2475-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5
⬛When the outside air temperature drops to around 0°C (32℉)
Even if you press , the air conditioning system may not work.
⬛When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still drawn into the vehicle
after closing the windows, it is recomme nded that the air intake mode be set
to outside air mode and the fan speed to any setting except off.
⬛Outside/recirculated air mode
Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
⬛Ventilation and air conditioning odors
⚫To let fresh air in, set the air conditio ning system to the outside air introduc-
tion mode.
⚫During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odors to
be emitted from the vents.
⚫To reduce potential odors from occurri ng, it is recommended that the air
conditioning system be set to outside air introduction mode prior to turning
the vehicle off.
⬛Air conditioning filter
➞ P. 3 3 8
NOTICE
⬛To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
RAIZE_OM_General_BZ358E.book 247 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2485-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E✽
: If equipped

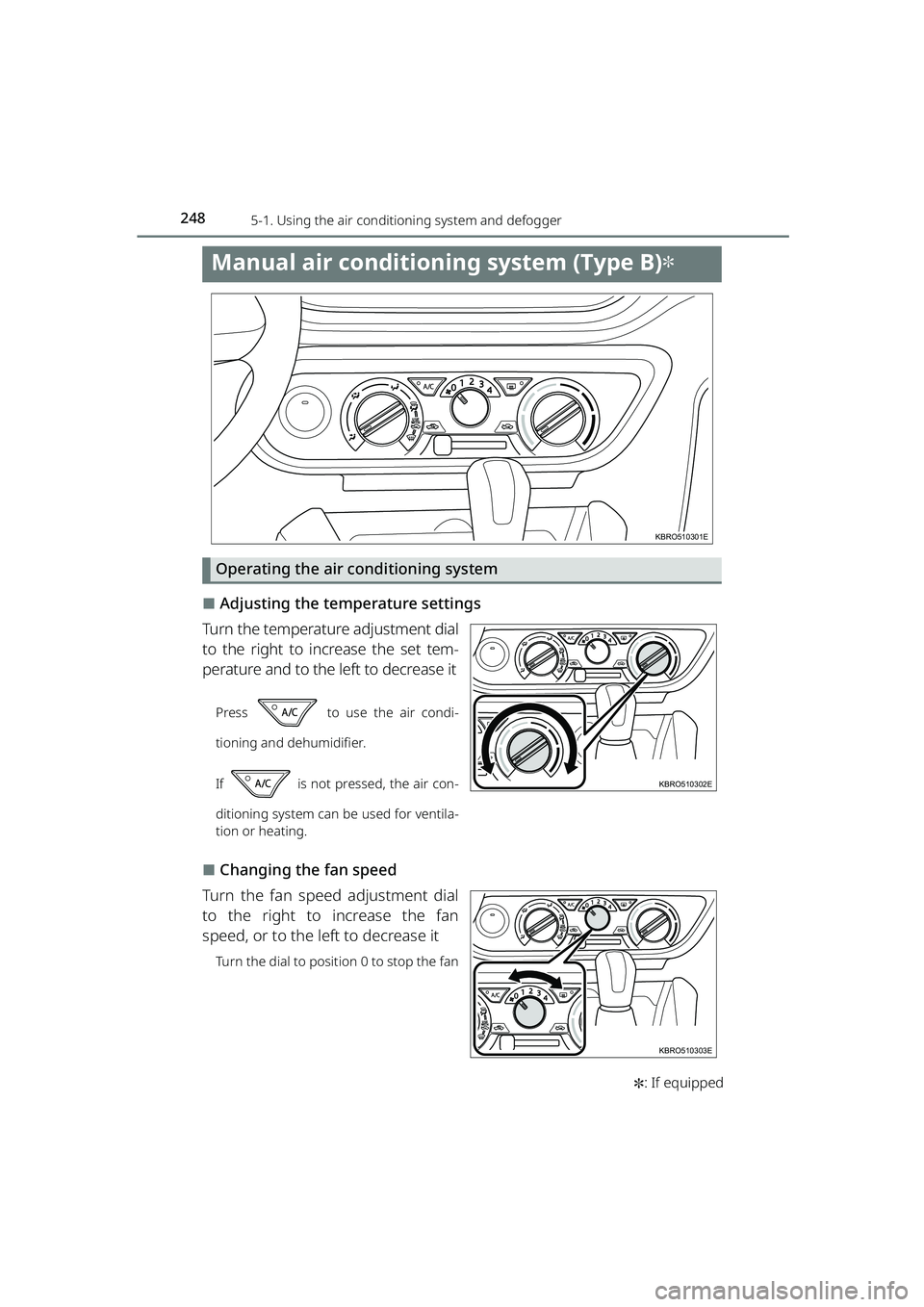

Manual air conditioning system (Type B)✽
Operating the air conditioning system
⬛Adjusting the temperature settings
Turn the temperature adjustment dial
to the right to increase the set tem-
perature and to the left to decrease it
Press to use the air condi-
tioning and dehumidifier.
If is not pressed, the air con-
ditioning system can be used for ventila-
tion or heating.
⬛Changing the fan speed
Turn the fan speed adjustment dial
to the right to increase the fan
speed, or to the left to decrease it
Turn the dial to position 0 to stop the fan
KBRO510301E
KBRO510302E
KBRO510303E
RAIZE_OM_General_BZ358E.book 248 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2495-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5

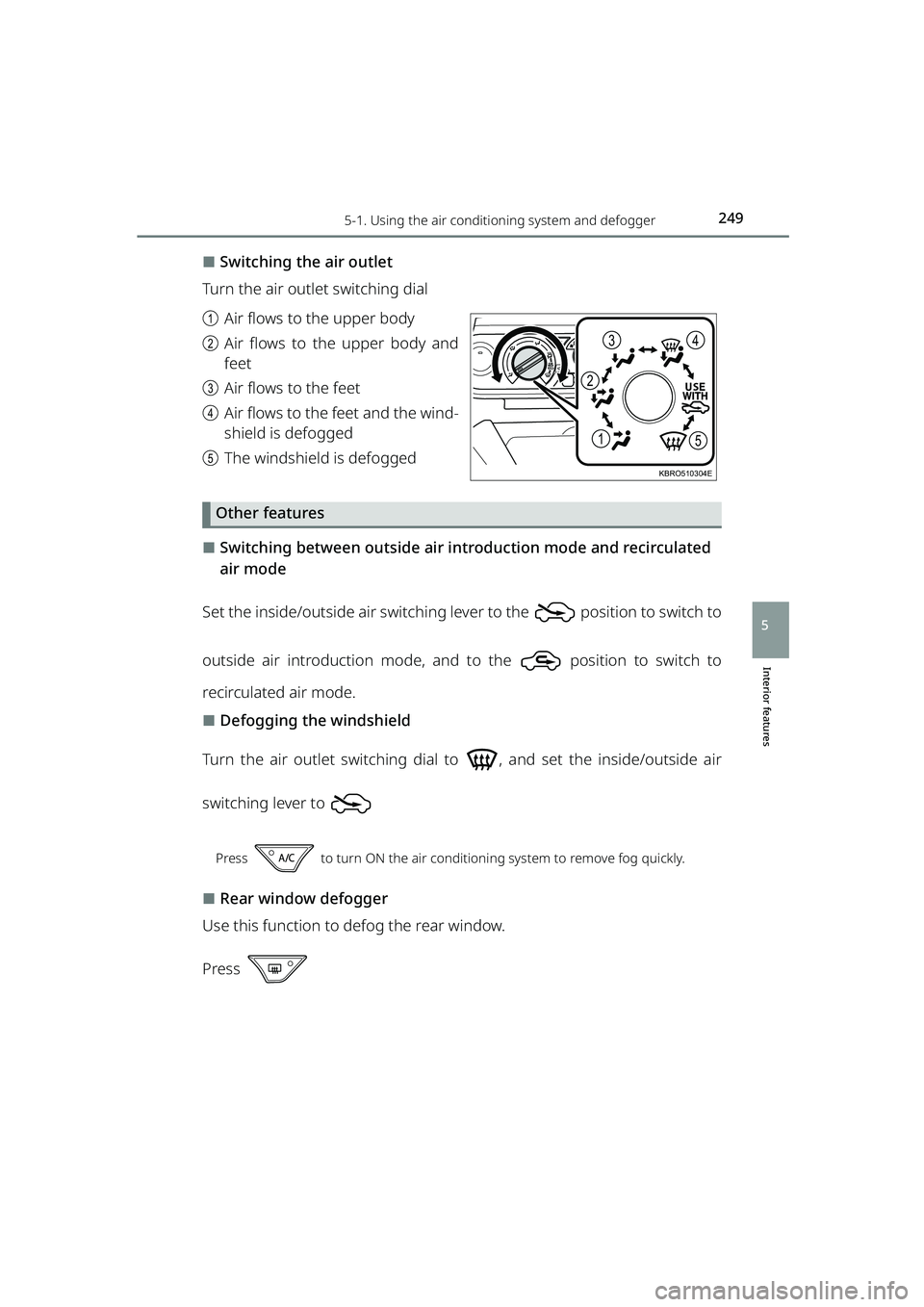

⬛Switching the air outlet
Turn the air outlet switching dial
a Air flows to the upper body
b Air flows to the upper body and
feet
c Air flows to the feet
d Air flows to the feet and the wind-
shield is defogged
e The windshield is defogged
Other features
⬛Switching between outside air intr oduction mode and recirculated
air mode
Set the inside/outside air switching lever to the position to switch to
outside air introduction mode, and to the position to switch to
recirculated air mode.
⬛Defogging the windshield
Turn the air outlet switching dial to , and set the inside/outside air
switching lever to
Press to turn ON the air conditioning system to remove fog quickly.
⬛Rear window defogger
Use this function to defog the rear window.
Press
15
2
34
KBRO510304E
RAIZE_OM_General_BZ358E.book 249 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2505-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E

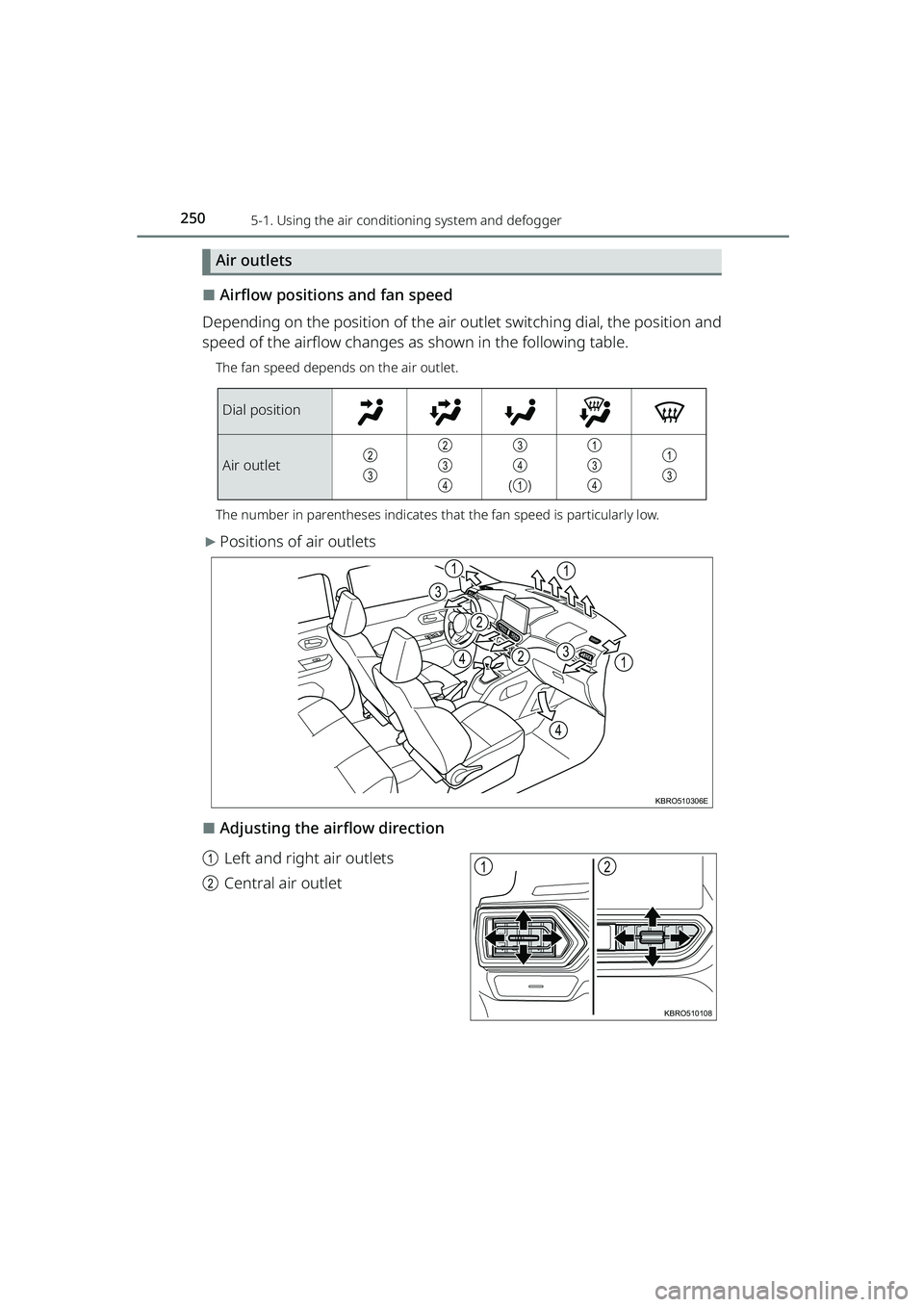

Air outlets
⬛Airflow positions and fan speed
Depending on the position of the air outlet switching dial, the position and
speed of the airflow changes as shown in the following table.
The fan speed depends on the air outlet.
The number in parentheses indicates th at the fan speed is particularly low.
▶Positions of air outlets
⬛Adjusting the airflow direction
a Left and right air outlets
b Central air outlet
Dial position
Air outletb
cb
c
dc
d
( a )a
c
da
c
11
3
4
4
3
2
21
KBRO510306E
12
KBRO510108
RAIZE_OM_General_BZ358E.book 250 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2515-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5
⬛Using the air conditioning system for cooling
In rare cases, it may appear that fog is blowing out of the air outlet, but this is
normal when moist air is suddenly cooled.
⬛Fogging up of the windows
⚫The windows will easily fog up when th e humidity in the vehicle is high.
Turning on will flow the dehumi dified air from the outlets and
defog the windshield effectively.
⚫If you turn off, the windows may fog up more easily.
⚫The windows may fog up if the re circulated air mode is used.
⬛When the air outlets are set to
In order to deliver cool air to the f ace and warm air to the feet, depending on
the position of the temperature control lever, the air sent to the feet will be
warmer than the air sent to the upper body.
⬛When the outside air temperature drops to around 0°C
Even if you press , the air conditioning system may not work.
⬛When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still drawn into the vehicle
after closing the windows, it is recomme nded that the air intake mode be set
to outside air mode and the fan speed to any setting except off.
⬛Outside/recirculated air mode
Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
⬛
This mark is intended to recommend that you set the inside/outside air switch-
ing lever to when setting the air outlet switching dial to or .
By setting the inside/outside air swit ching lever to , the windshield and win-
dows are less likely to fog.
RAIZE_OM_General_BZ358E.book 251 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2525-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
⬛Ventilation and air conditioning odors
⚫To let fresh air in, set the air conditioning system to the outside air introduc-
tion mode.
⚫During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odors to
be emitted from the vents.
⚫To reduce potential odors from occurri ng, it is recommended that the air
conditioning system be set to outside air introduction mode prior to turning
the vehicle off.
⬛Air conditioning filter
➞ P. 3 3 8
WARNING
⬛To prevent the windshield from fogging up
⚫Do not set the air outlet switching dial to the or position when set-
ting the temperature of the air conditioning system low in extremely humid
weather. The difference between the te mperature of the outside air and that
of the windshield can cause the outer surface of the windshield to fog up,
blocking your vision.
⚫Do not place anything on the
instrument panel which may cover
the air outlets. Otherwise, air flow
may be obstructed, preventing the
windshield defoggers from defog-
ging.
KBRO510307E
RAIZE_OM_General_BZ358E.book 252 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2535-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5
NOTICE
⬛To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
⬛Air outlets
Be careful when adjusting the air outlets while using the air conditioning sys-
tem for heating, for the outlets will become hot.
⬛Recirculated air
Do not set the inside/outside air switching lever to the position when the
air outlet switching dial is at , , or . The windshield and windows may
become fogged.
RAIZE_OM_General_BZ358E.book 253 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2545-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E✽
: If equipped
Automatic air conditioning system✽
The air outlets* and the fan speed are adjusted automatically in
accordance with the set temperature.
*Vehicles with heaters
Locations or designs of the switches vary according to the vehicle grade
level, etc.
Operating the air conditioning system
⬛Adjusting the temperature settings
Turn the temperature adjustment
dial to the right to increase the set
temperature and to the left to
decrease it
If is not pressed, the air con-
ditioning system can be used for ventila-
tion or heating*.
*Vehicles with heaters
KBRO510231E
