2023 TOYOTA RAIZE Owners Manual

3917-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
When trouble arises
7
“Fasten Seat Belt”
Rear seat belt is not fastened
The warning buzzer will sound.
It will be displayed when the vehicle speed
exceeds approx. 20 km/h (12 mph) and the
seat belt is unfastened.
➞ Wear a seat belt
“Release Parking
Brake”
The parking brake is not released
If the vehicle speed exceeds approx. 5 km/h
(3 mph) with the parking brake being
applied, the warning buzzer will sound.
➞ Release the parking brake
“Sonar Sensor in Oper-
ation Pay Attention”―
Front corner sensors or reverse sensors is
activated
✽
The activated sonar is displayed.
The warning buzzer may sound.
➞ Check the situation around you and drive
accordingly such as stepping on the
brake pedal
“VSC in Operation”
(Flashing)
VSC is activated
➞Drive with extreme caution
“Turn Lights OFF”
The driver’s door was opened while the
front position lights are turned on
The warning buzzer will sound.
➞ Turn off the front position lights
“Steering Angle Left”
―
The steering wheel is mo ved to left or right
while the vehicle is stopped
➞ Check the tire direction and move the
vehicle safety
“Steering Angle Right”
“Roads may be Icy”―
The outside temperature has become
approx. 3°C (37 ℉) or below
➞ Since the road could be frozen, check the
road condition and drive with extreme
caution
Warning messages
Indicators/
Warning lights
Warning content/Action to take
RAIZE_OM_General_BZ358E.book 391 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3927-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
⬛Warning messages
The displayed warning message in this document may be different from the
actual display depending on the use co nditions or vehicle specifications.
⬛Warning message display
⚫By pressing the RETURN switch when the engine switch is “ON”, the warning
message will disappear.
⚫Even when you hide the warning message by pressing the RETURN switch,
the following warning messages wi ll appear in a few seconds.
⦁ Low brake fluid
⦁ Brake system malfunction
⦁ Charging system malfunction
⦁ Low engine oil pressure
⦁ High temperature of engine coolant
⬛When the “Open” warning message is displayed
To avoid battery discharge, the message will automatically disappear after
approx. 10 minutes with the door open when the engine switch is “ACC” or
“OFF”.
“Oil Deterioration
Warning Oil Mainte-
nance Required Soon”
―
The engine oil replacement is due soon✽
➞ Have the vehicle inspected at your Toy-
ota dealer.
“Oil Deterioration
Warning Oil Mainte-
nance Required Visit
Your Dealer”
―
The engine oil is deteriorated✽
➞Have the vehicle inspected at your Toy-
ota dealer immediately.
Warning messages
Indicators/
Warning lights
Warning content/Action to take
RAIZE_OM_General_BZ358E.book 392 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3937-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
Situations requiring immediate action
Take action according to each troubleshooting method and check to see if
the key-free system’s wa rning message turns off.
Internal
warning buzzerExternal
warning buzzer
Warning messagesWarning content/Action to take
――“Key NOT Detected”
You tried to start the engine with-
out the electronic key on hand
➞ Keep the electronic key with
you*
1
5
times3
times“Key NOT Detected”
When the engine switch was “ACC”
or “ON”, any of the doors were
opened, and the electronic key was
taken outside the vehicle, and then
the door was closed
⦁The warning buzz er will sound.
➞ Keep the electronic key with you
and get in the vehicle
―1 time“Key Detected in Vehicle”
With the electronic key left inside
the vehicle, someone tried to lock
the doors using the lock/unlock
switch on the front door or back
door
➞ Take the electronic key from the
vehicle and lock it again
―1 time“Key Detected in Vehicle”
When the engine switch was “OFF”
and the electronic key was left
inside the vehicle, the door was
opened and closed while all the
doors were locked and any of the
inside lock buttons except the
driver’s door were set to the
unlocked side
➞ Keep the electronic key with you
and lock the doors
RAIZE_OM_General_BZ358E.book 393 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3947-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
―1 time“Key Detected in Vehicle”
When the engine switch was “OFF”
and the electronic key was left
inside the vehicle, you opened the
driver’s door and then tried to close
and lock the door with the door
handle pulled while the inside lock
button was set to the locked side
➞ Take the electronic key from the
vehicle and lock it again
――
“Press Brake Pedal and
Touch Engine Switch with
Key”You tried to start the engine 2 times
without the electronic key on hand
➞ Keep the electronic key with
you*
1
――“Auto Power OFF to Con-
serve Battery”
The engine switch turned “OFF”
automatically
⦁It will be displayed after 1 hour or
more when the engine switch is
“ACC”. When it is “ON”, it will be
displayed after 20 minutes or
more.
➞ Set the engine speed to a slightly
higher level when you start the
engine next time, and keep the
same speed for approx. 5 min-
utes and charge the battery
3
times―“Key Battery Low Replace
Key Battery”
The engine switch was turned “OFF”
when the electronic key battery was
close to its end of life*
2
⦁The warning buzz er will sound.
➞ Replace it with a new battery
(➞ P. 344)
Internal
warning buzzerExternal
warning buzzer
Warning messagesWarning content/Action to take
RAIZE_OM_General_BZ358E.book 394 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3957-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
*1If the engine does not start even when the electronic key is placed inside the
vehicle, it is possible that the key is running out of battery. ( ➞P. 344)
*2If the low battery state continues, the message also appears even when the
engine switch is turned to “ACC” or “ON”.
⬛Warning messages
➞ P. 3 9 2
⬛Warning message display
➞P. 3 9 2
⬛Warning buzzers
Depending on the situation, you ma y have difficulty hearing the buzzer
because of the noise outside or audio sound.
――
“Press Engine SW While
Turning Steering Right
and Left”
Unable to unlock the steering
wheel by pressing the engine
switch
➞ Step on the brake pedal and
press the engine switch while
turning the steering wheel right
and left
――“Shift to P and Turn Power
OFF”
You tried to turn “OFF” the engine
switch while the shift lever is placed
in a position other than P
✽
➞Set the shift lever to P
―1 time“Turn Power OFF”
When the engine switch was “ACC”
or “ON”, someone tried to lock the
doors using the lock/unlock switch
on the front or back door
➞ Turn the engine switch to “OFF”
and lock the doors
Internal
warning buzzerExternal
warning buzzer
Warning messagesWarning content/Action to take
RAIZE_OM_General_BZ358E.book 395 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3967-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
If you have a flat tire
Replace the flat tire with the supplied spare tire.
(See P. 327 for more information about tires)
WARNING
⬛If you have a flat tire
Do not drive with a flat tire.
Even over short distances, the tires an d wheels can be irreparably damaged or
cause an accident.
Before lifting the vehicle with a jack
⚫Move the vehicle to a hard, flat, safe location
⚫Apply the parking brake
⚫For continuously variable transmission vehicles, set the shift lever to P
⚫For vehicles with manual transmission, set the shift lever to R
⚫Stop the engine
⚫Turn the emergency flashers on
RAIZE_OM_General_BZ358E.book 396 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3977-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7

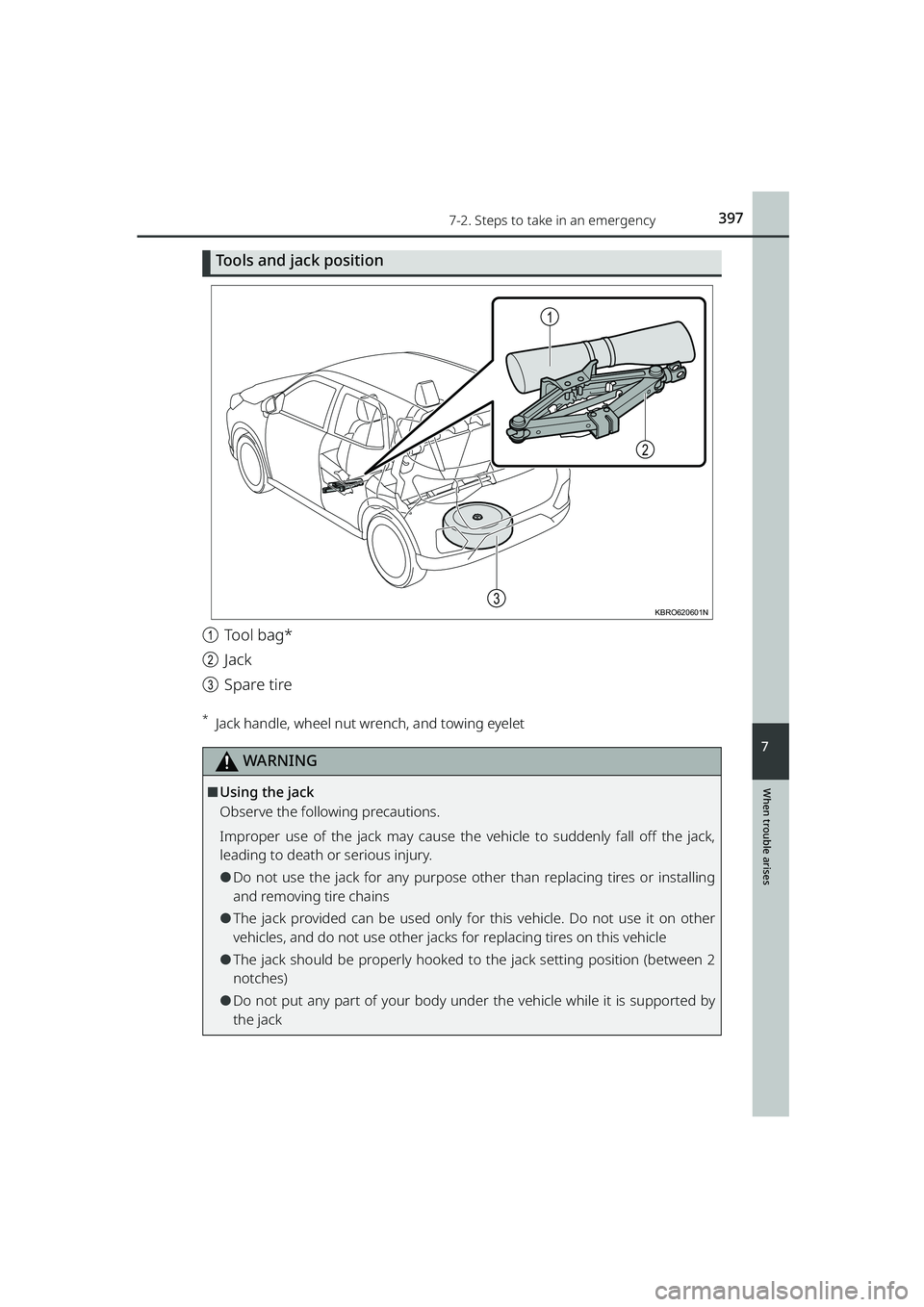

Tools and jack position
aTool bag*
b Jack
c Spare tire
*Jack handle, wheel nut wrench, and towing eyelet
WARNING
⬛Using the jack
Observe the following precautions.
Improper use of the jack may cause the vehicle to suddenly fall off the jack,
leading to death or serious injury.
⚫Do not use the jack for any purpose ot her than replacing tires or installing
and removing tire chains
⚫The jack provided can be used only for this vehicle. Do not use it on other
vehicles, and do not use other jacks for replacing tires on this vehicle
⚫The jack should be properly hooked to the jack setting position (between 2
notches)
⚫Do not put any part of your body unde r the vehicle while it is supported by
the jack
1
3
2
KBRO620601N
RAIZE_OM_General_BZ358E.book 397 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3987-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
WARNING
⚫Do not start the engine or drive the ve hicle while the vehicle is supported by
the jack
⚫Do not raise the vehicle while someone is inside
⚫When raising the vehicle, do not put an object on or under the jack
⚫Do not raise the vehicle to a height greater than that required to replace the
tire
⚫Use a jack stand if it is necessary to get under the vehicle
⚫When lowering the vehicle, make sure that there is no-one near the vehicle.
If there are people nearby, warn them vocally before lowering
Procedure to take out jacks and tools
aSlide the front left seat all the way
forward and partly remove its
cover
b Loosen and remove the jack
aTighten
b Loosen
c Take out the tool bag
KBRO620602E
1
2
KBRO620603N
