2023 TOYOTA RAIZE Owners Manual

263
RAIZE_OM_General_BZ358E✽
: If equipped
Interior features
5

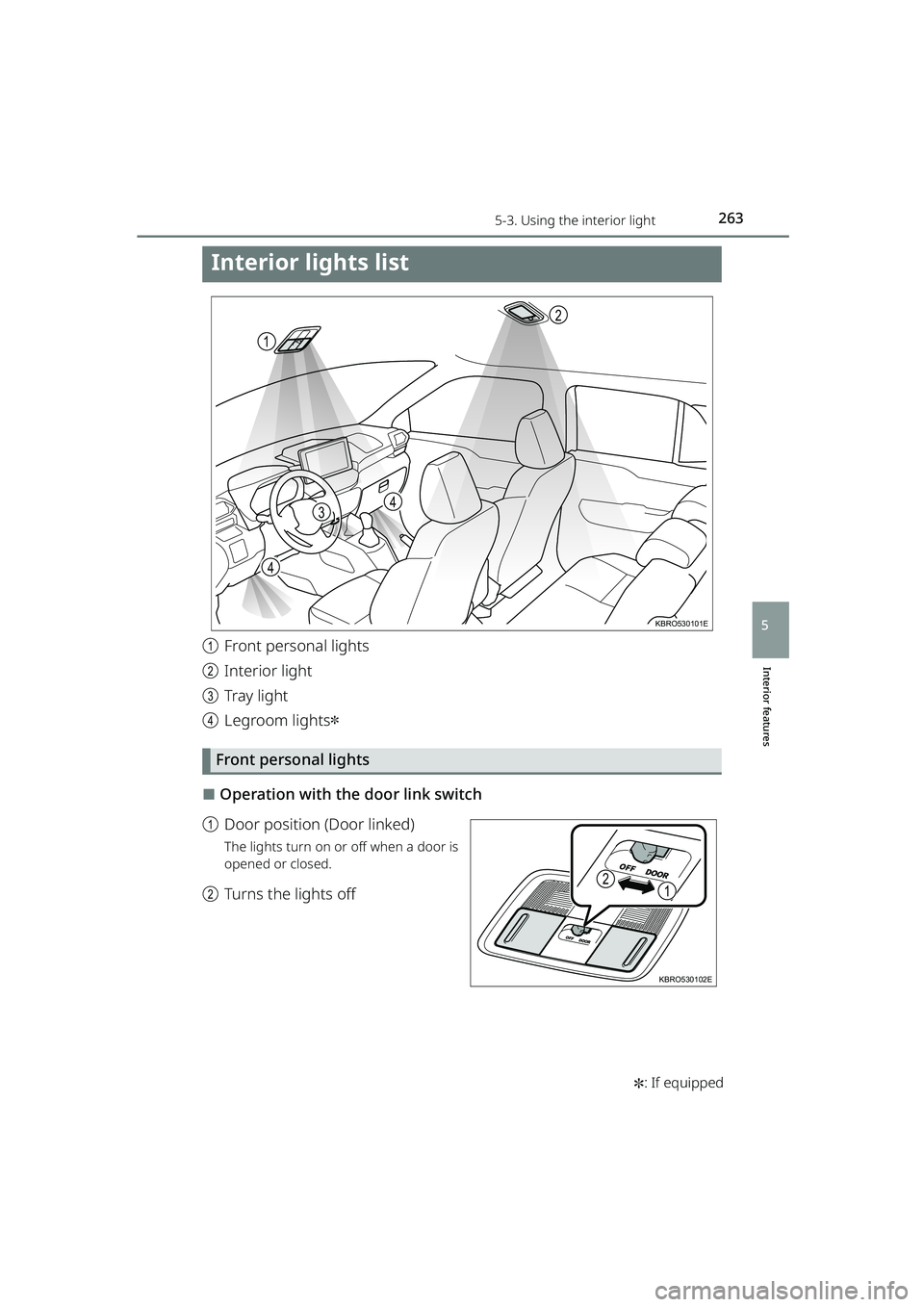

5-3. Using the interior light
Interior lights list
a Front personal lights
b Interior light
c Tray li g ht
d Legroom lights
✽
Front personal lights
⬛Operation with the door link switch
a Door position (Door linked)
The lights turn on or off when a door is
opened or closed.
bTurns the lights off
1
2
3
4
4
KBRO530101E
12
KBRO530102E
RAIZE_OM_General_BZ358E.book 263 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2645-3. Using the interior light
RAIZE_OM_General_BZ358E✽
: If equipped
⬛Operation with separate switches
Turns the light on or off
When the door link switch is in the door
position with the door open, the light will
not turn off even if the lens is pressed.
Interior light
a Turns the light on
b Turns the light off
c Door position (Door linked)
The light turns on or off when a door is
opened or closed.
⬛Illuminated entry system
When the switch of the light is in the door position, the lights automatically
turn on or off in the following conditions.
⚫When approaching the vehicle with the electronic key after locking the
doors
✽
⚫When unlocking or locking the doors
⚫When opening or closing the doors
⚫When operating the engine switch
⬛To prevent battery discharge
⚫When the switch of the light is in the door position with the door not fully
closed, the light automatically tu rns off after about 10 minutes.
⚫When the lights are left on, they automat ically turn off after about 12 min-
utes.
⬛Customizations
You can change the settings such as a peri od of time until the illuminated entry
system turns off. (List of customizable features: ➞P. 430)
KBRO530103E
23
1
KBRO530104N
RAIZE_OM_General_BZ358E.book 264 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2655-3. Using the interior light
RAIZE_OM_General_BZ358E
Interior features
5
NOTICE
⬛To prevent battery discharge
Do not leave the lights on for a long time with the engine stopped.
RAIZE_OM_General_BZ358E.book 265 ページ ２０２２年５月１７日　火曜日　午後１時５９分

266
RAIZE_OM_General_BZ358E✽
: If equipped

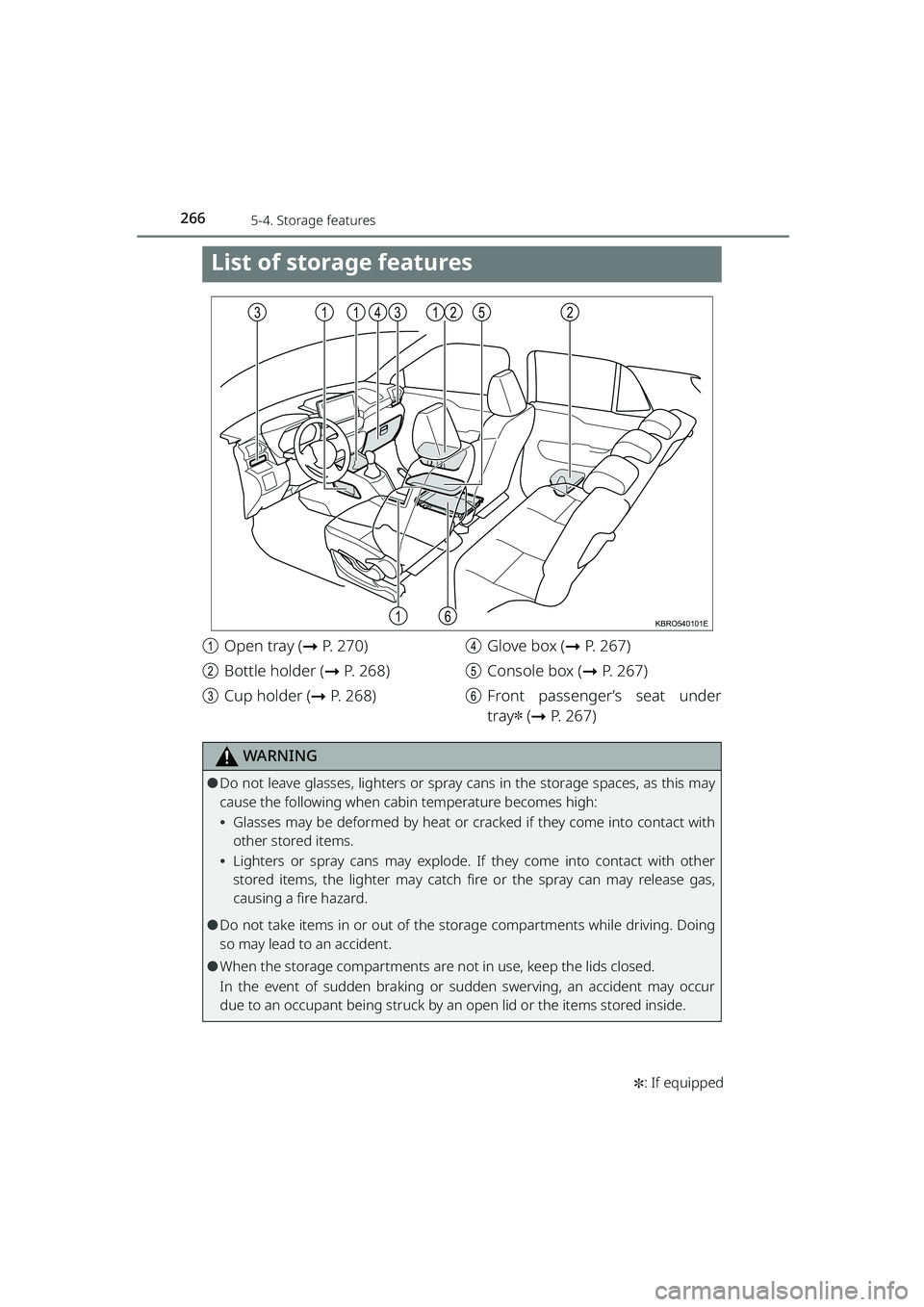

5-4. Storage features
List of storage features
a Open tray ( ➞P. 270)
b Bottle holder ( ➞P. 268)
c Cup holder ( ➞P. 268) d
Glove box ( ➞P. 2 6 7 )
e Console box ( ➞P. 267)
f Front passenger’s seat under
tray
✽ (➞ P. 267)
WARNING
⚫Do not leave glasses, lighters or spray c ans in the storage spaces, as this may
cause the following when cabin temperature becomes high:
⦁ Glasses may be deformed by heat or cracked if they come into contact with
other stored items.
⦁ Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
⚫Do not take items in or out of the st orage compartments while driving. Doing
so may lead to an accident.
⚫When the storage compartments are not in use, keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
33451
1
211
6
2
KBRO540101E
RAIZE_OM_General_BZ358E.book 266 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2675-4. Storage features
RAIZE_OM_General_BZ358E✽
: If equipped
Interior features
5

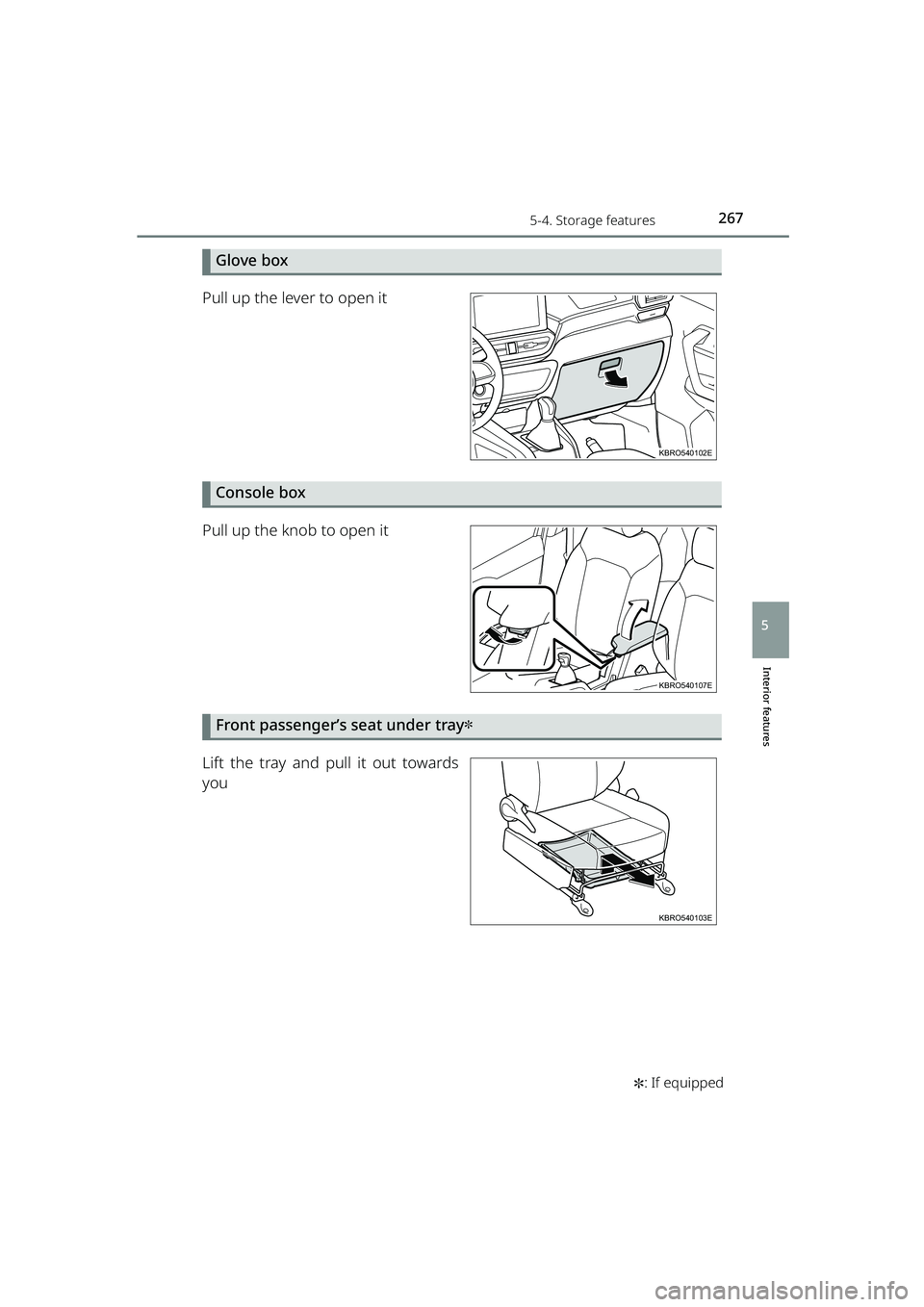

Glove box
Pull up the lever to open it
Console box
Pull up the knob to open it
Front passenger’s seat under tray✽
Lift the tray and pull it out towards
you
KBRO540102E
KBRO540107E
KBRO540103E
RAIZE_OM_General_BZ358E.book 267 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2685-4. Storage features
RAIZE_OM_General_BZ358E
Cup holder (Driver’s seat/front passenger’s seat)/Bottle holder
⬛Cup holder (Driver’s seat/front passenger’s seat)
Push to open it
Push again to close it.
⬛Bottle holder
▶Front doors▶Rear side
⬛Using the bottle holder
⚫When storing a plastic bottle, close the cap.
⚫Some plastic bottles may not fit into it depending on size or shape.
KBRO540104E
KBRO540105EKBRO540106E
RAIZE_OM_General_BZ358E.book 268 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2695-4. Storage features
RAIZE_OM_General_BZ358E
Interior features
5
WARNING
⚫Do not put anything other than cups, cans, and plastic bottles in the cup
holder.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
⚫Do not put anything other than plastic bottles in the bottle holder.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
⚫To prevent burns, close the lid when placing hot drinks in cup holders or bottle
holders.
⚫When using the cup holder on the driver’s seat side, storing a tall cup may
obstruct the driver’s view and lead to an accident.
⚫When the cup holders are not in use, make sure to return them to their origi-
nal positions.
Failure to do so may result in injury. For example, the opened cup holder may
hit a person in the event of sudden braking.
NOTICE
⚫When storing a plastic bottle, close the cap.
⚫Do not store a paper cup or glass with ju ice or other drinks in the bottle holder.
If you do so, drink may spill or the glass may get broken.
⚫Wipe off any spills immediately to pr event damage. If the liquid contacts
switches or electrical components, they may malfunction, or a vehicle fire may
occur.
⚫To prevent damage, do not place your han d on the cup holder or step on it.
⚫The opening and closing mechanism of the cup holder may get damaged due
to foreign matter including what is listed below.
⦁Small objects such as toothpicks and hairpins
⦁ Cigarette ash
⦁ Liquid air freshener
RAIZE_OM_General_BZ358E.book 269 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2705-4. Storage features
RAIZE_OM_General_BZ358E

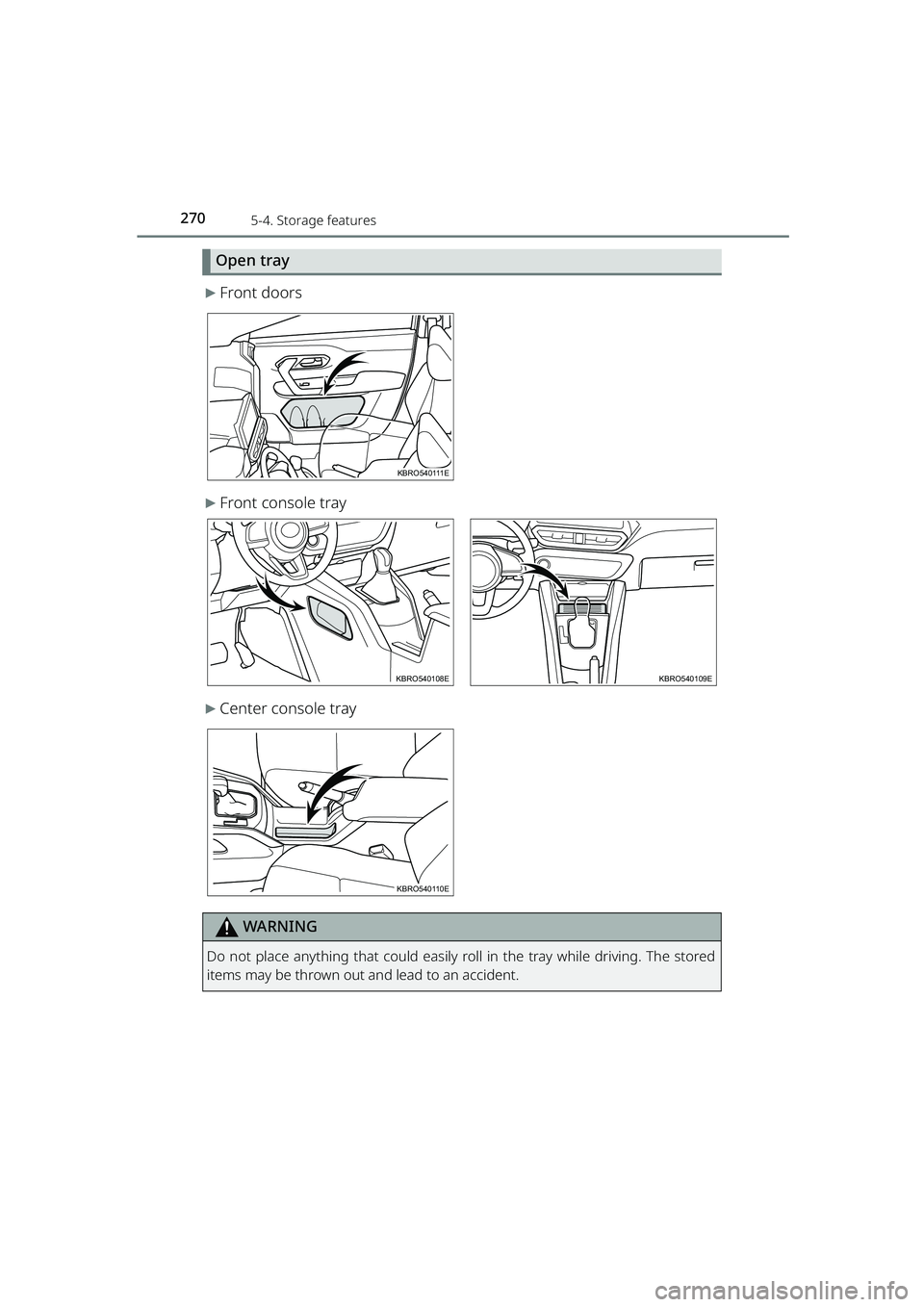

Open tray
▶Front doors
▶Front console tray
▶Center console tray
WARNING
Do not place anything that could easily roll in the tray while driving. The stored
items may be thrown out and lead to an accident.
KBRO540111E
KBRO540108EKBRO540109E
KBRO540110E
RAIZE_OM_General_BZ358E.book 270 ページ ２０２２年５月１７日　火曜日　午後１時５９分
