Pictorial index
Pictorial index
Exterior
The shapes of headlights vary accord ing to the vehicle grade level, etc.
aDoors ............................................................................................................. P. 133
Locking/unlocking .................................................................................................... P. 133
Opening and closing the windows ....................................................................... P. 160
Locking/unlocking with the key.................................................................... P. 134, 406
Warning lights
✽/warning messages✽......................................................... P. 379, 387
b Back door ...................................................................................................... P. 142
Locking/unlocking ........................................................................................... P. 121, 142
Warning lights
✽/warning messages✽......................................................... P. 379, 387
c Outside rear view mirrors........................................................................... P. 157
Adjusting the mirror angle ..................................................................................... P. 157
Folding the mirrors .................................................................................................. P. 158
d Windshield wipers ............................................................................... P. 203, 205
Precautions against winter season ...................................................................... P. 238
Replacing the wiper rubbers ................................................................................. P. 340
1
2
121516
3445
6
7
991311
14
8910KBRO040101E
RAIZE_OM_General_BZ358E.book 12 ページ ２０２２年５月１７日　火曜日　午後１時５９分

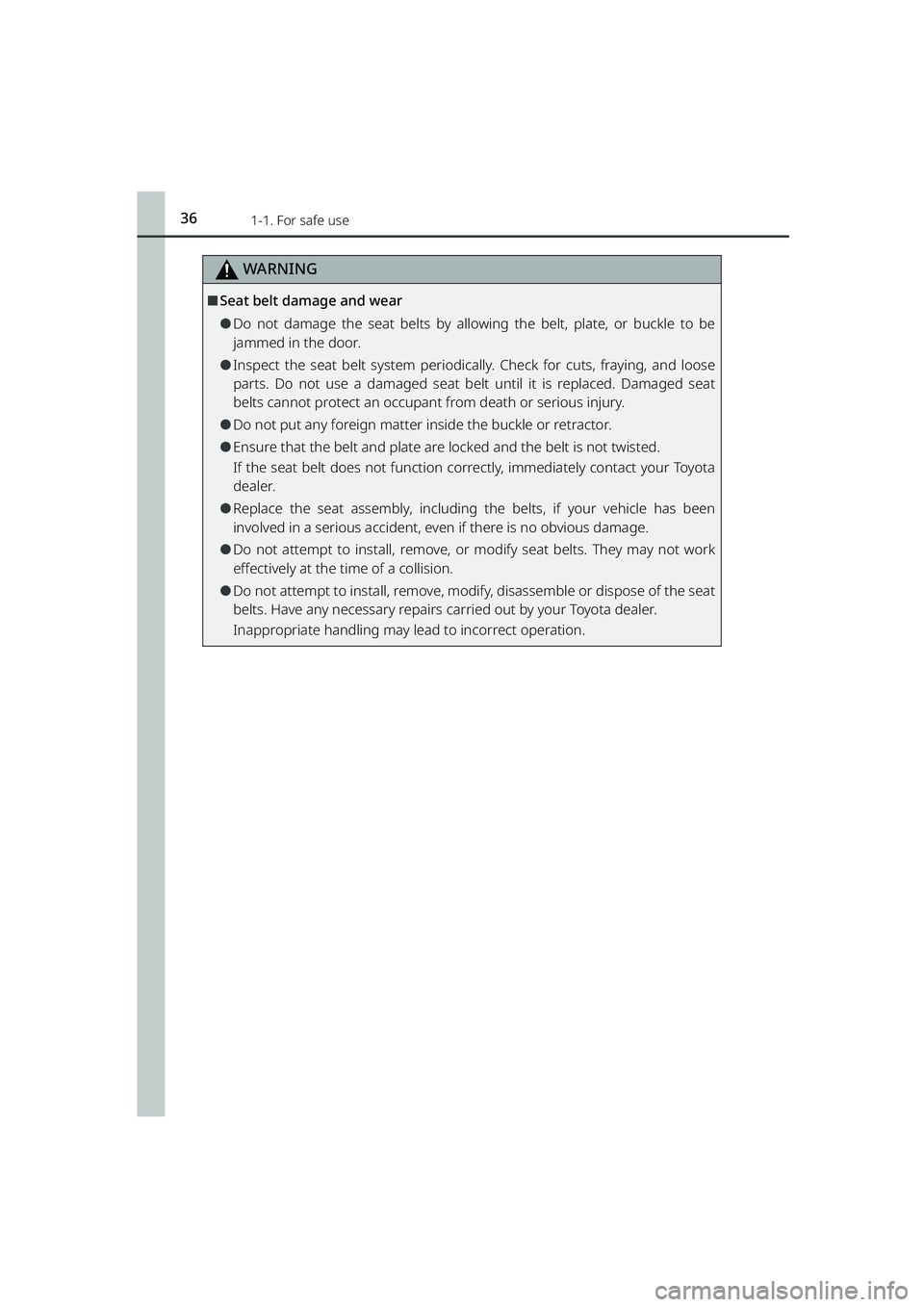

361-1. For safe use
RAIZE_OM_General_BZ358E
WARNING
⬛Seat belt damage and wear
⚫Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
⚫Inspect the seat belt system periodica lly. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant fr om death or serious injury.
⚫Do not put any foreign matter inside the buckle or retractor.
⚫Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota
dealer.
⚫Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
⚫Do not attempt to install, remove, or modify seat belts. They may not work
effectively at the time of a collision.
⚫Do not attempt to install, remove, modi fy, disassemble or dispose of the seat
belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling may lead to incorrect operation.
RAIZE_OM_General_BZ358E.book 36 ページ ２０２２年５月１７日　火曜日　午後１時５９分

48
RAIZE_OM_General_BZ358E
1-2. Safety information for children
When children are in the vehicle
Observe the following precautions when children are in the vehicle.
⚫Children should always use a seat belt. When a child who cannot prop-
erly wear the seat belt is in the ve hicle, use a proper child restraint sys-
tem. ( ➞P. 49)
⚫It is recommended that children sit in the rear seats to avoid accidental
contact with the device that operates the vehicle.
⚫Use the child-protector lock (➞ P. 135) and window lock switch
( ➞ P. 160) to prevent children from opening doors or accidentally oper-
ating power windows while the vehicle is in motion.
⚫Do not let small children operate equipment which may catch or pinch
body parts, such as power wind ows, hood, doors, seats, etc.
WARNING
⚫Never leave children unattended in the ve hicle. High temperatures inside the
vehicle can cause heatstroke and dehydr ation, which can cause death or a seri-
ous health hazard.
Also, children may operate devices inside the vehicle and get caught in the
door window or move a device that oper ates the vehicle, leading to an unfore-
seen accident.
⚫When children are in the vehicle, please refer to P. 49, which provides precau-
tions for ensuring your child’s safety, dire ctions on installing child restraint sys-
tems, and other related information.
RAIZE_OM_General_BZ358E.book 48 ページ ２０２２年５月１７日　火曜日　午後１時５９分

731-4. Theft deterrent system
RAIZE_OM_General_BZ358E✽
: If equipped
For safety and security
1
Alarm✽
The alarm
The alarm uses the emergency flashers and sound to give an alert when
an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
⚫A locked door is unlocked and open ed in any way other than using the
key-free function or wireless remote control.
⚫The hood is opened.
Setting the alarm system
The alarm will be set in the following
cases:
Close the doors and hood, and lock
all the doors using the key-free func-
tion or wireless remote control.
⚫When the doors are locked auto-
matically by the security feature.
( ➞ P. 1 3 9 )
The indicator light is flashing when the
system is set.
Deactivating the alarm
Do one of the following to deactivate the alarm:
⚫Unlock the doors using the key-free function or wireless remote control.
⚫Turn the engine switch to “ON”, or start the engine.
KBRO120101E
RAIZE_OM_General_BZ358E.book 73 ページ ２０２２年５月１７日　火曜日　午後１時５９分

741-4. Theft deterrent system
RAIZE_OM_General_BZ358E
Stopping the alarm
Do one of the following to stop the alarm:
⚫Press the lock or unlock button of the wireless remote control.
⚫Press the lock/unlock switch on the front door while carrying the elec-
tronic key with you.
⚫Press the lock button on the back do or while carrying the electronic key
with you (when opening the driver’s door).
⚫Press the back door opener switch on the back door while carrying the
electronic key with you (when closing the driver’s door).
⚫Get in the car with the electronic key.
⚫Turn the engine switch to “ON”, or start the engine.
⬛If the electronic key does not operate properly
If the electronic key does not work du e to battery depletion, etc., perform
the following operation.
a Vehicles with a continuously vari-
able transmission:
Depress the brake pedal.
Vehicles with a manual transmis-
sion:
Depress the clutch pedal.
b Touch the electronic key to the
engine switch, as shown in the
illustration.
KBRO820801E
RAIZE_OM_General_BZ358E.book 74 ページ ２０２２年５月１７日　火曜日　午後１時５９分

751-4. Theft deterrent system
RAIZE_OM_General_BZ358E
For safety and security
1
⬛System maintenance
The vehicle has a maintenance-free type alarm system.
⬛Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
⚫Nobody is in the vehicle.
⚫The windows are closed before the alarm is set.
⚫No valuables or other personal items are left in the vehicle.
⬛Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
⚫The doors are unlocked using the
key.
⚫A person inside the vehicle opens a
door or hood.
⬛When the battery is disconnected
Be sure to deactivate the alarm system.
If the battery is discharged before de activating the alarm system, the alarm
may be triggered when the battery is reconnected.
NOTICE
⬛To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper oper-
ation of the system cannot be guaranteed.
KBRO120102E
KBRO120103E
RAIZE_OM_General_BZ358E.book 75 ページ ２０２２年５月１７日　火曜日　午後１時５９分

922-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
⬛Customizable items
ItemSettingsDisplay (Initi al setting)
Resetting average fuel economy when fueling
ON
OFF
Resetting Trip meter A when fueling
ON
OFF
On/Off of Eco Driving Indicator Light
ON
OFF
Automatic correction of time (for vehicles
equipped with 9 inch display audio pairable with
smart phones)ON
OFF
Speed linked door locking function ( ➞P. 136)
ON*1
OFF
Shift-linked auto lock✽ (➞ P. 136)
ON*2
OFF
Shift-linked auto unlock✽ (➞ P. 136)
ON*3
OFF
Engine switch “OFF”-linked auto unlock ( ➞P. 136)
ON*4
OFF
RAIZE_OM_General_BZ358E.book 92 ページ ２０２２年５月１７日　火曜日　午後１時５９分
