2023 TOYOTA RAIZE wheel torque

4027-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
WARNING
⚫Failure to follow these precautions could cause the wheel nuts to loosen and
the tire to fall off, resultin g in death or serious injury.
⦁ Have the wheel nuts tightened with a torque wrench to 103 N·m (10.5
kgf·m, 76 ft·lbf) as soon as possible after changing wheels.
⦁ When installing a tire, only use whe el nuts that have been specifically
designed for that wheel.
⦁ If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehi cle inspected by your Toyota dealer.
⦁ When installing the wheel nuts, be su re to install them with the tapered
ends facing inward. ( ➞P. 337)
Installing the spare tire
a Remove any dirt or foreign mat-
ter from the wheel contact sur-
face
If the wheel contact surface is dirty, the
wheel nuts may loosen while the vehi-
cle is in motion, causing the tire to
come off.

bInstall the spare tire and loosely tighten each wheel nut by hand to the
extent that the tire does not rattle
Tighten the wheel nuts until the tapered portion comes into loose contact with the
wheel seat
▶Vehicles with steel wheels▶Vehicles with aluminum wheels

KBRO720419
KBRO720425N
Tapered portion
Seat portion
KBRO720426N
Tapered portion
Seat portion
Emergency.fm 402 ページ ２０２２年６月１７日　金曜日　午前９時４分

4037-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7

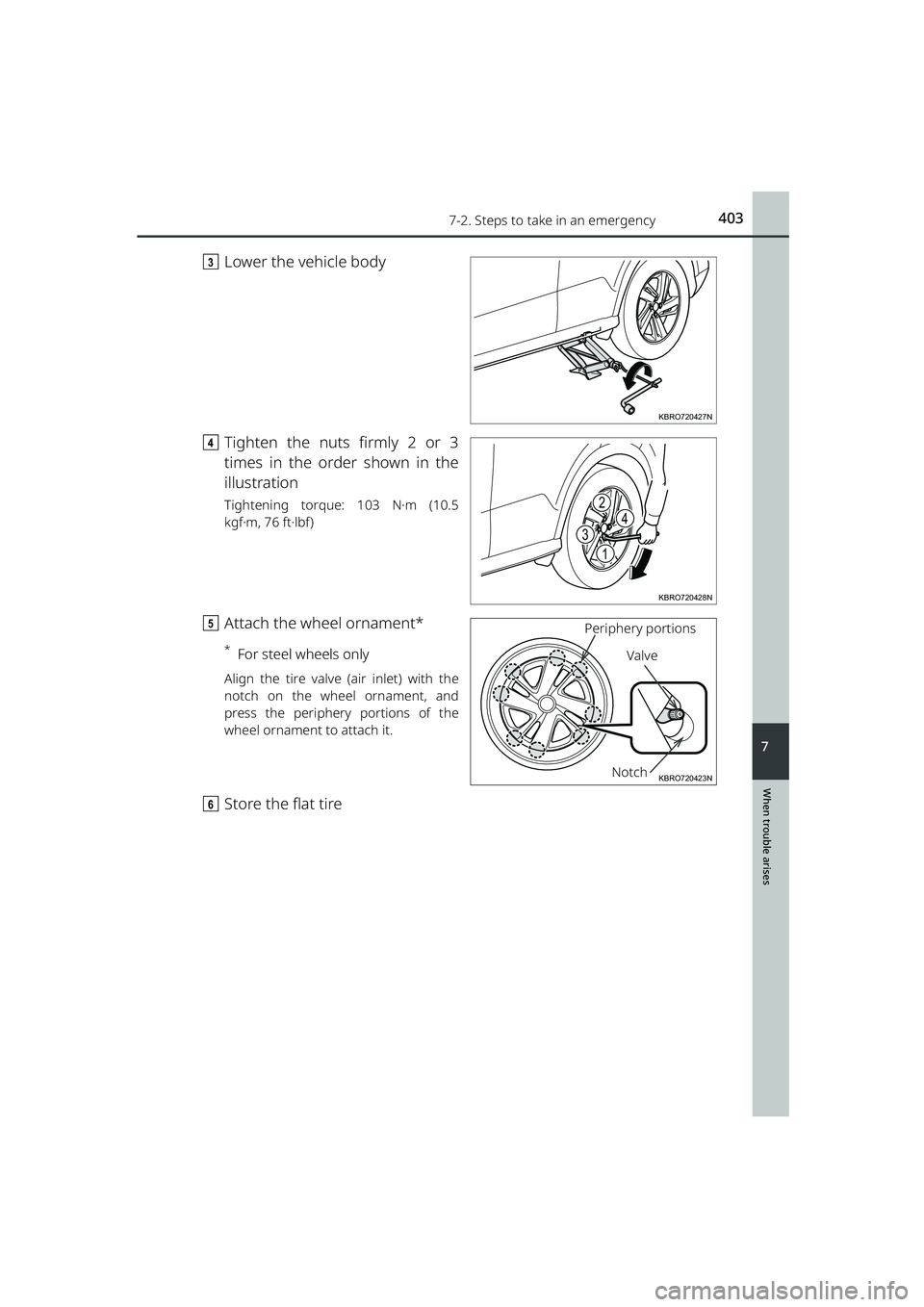

cLower the vehicle body
d Tighten the nuts firmly 2 or 3
times in the order shown in the
illustration
Tightening torque: 103 N·m (10.5
kgf·m, 76 ft·lbf)
eAttach the wheel ornament*
*For steel wheels only
Align the tire valve (air inlet) with the
notch on the wheel ornament, and
press the periphery portions of the
wheel ornament to attach it.
fStore the flat tire
KBRO720427N
3
1
4
2
KBRO720428N
KBRO720423NNotch
Periphery portions
Valve
RAIZE_OM_General_BZ358E.book 403 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4288-1. List of specifications
RAIZE_OM_General_BZ358E✽
: If equipped
Tires and wheels
Light bulbs
A : HB3 halogen bulbs
B : H11 halogen bulbs
C : Wedge base bulbs (amber) D : Wedge base bulbs (clear)
E : H16 halogen bulbs
F : Double end bulbs
Tire size205/65R16 95H
Tire inflation pres-
sure (Recom-
mended cold tire
inflation pressure)Front wheels
kPa (kgf/cm
2 or bar, psi)
Rear wheels
kPa (kgf/cm
2 or bar, psi)
240 (2.4, 35)240 (2.4, 35)
Wheel size16 x 6J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size205/60R17 94H
Tire inflation pres-
sure (Recom-
mended cold tire
inflation pressure)Front wheels
kPa (kgf/cm
2 or bar, psi)
Rear wheels
kPa (kgf/cm
2 or bar, psi)
240 (2.4, 35)240 (2.4, 35)
Wheel size17 x 6J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Light BulbsWType
Exterior
Headlights✽
High beam
Low beam60
55A
B
Front turn signal lights✽21C
Front position lights✽5D
Front fog lights✽19E
Rear turn signal lights21C
License plate lights5D
Back-up lights16D
Interior
Front personal lights5D
Rear interior light8F
Luggage compartment light5D
RAIZE_OM_General_BZ358E.book 428 ページ ２０２２年５月１７日　火曜日　午後１時５９分
