4-4. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:Before refueling the vehicle
⚫Close all the doors and windows, then turn the engine switch to “OFF”.
⚫Confirm the type of fuel.
⚫The side on which the fuel tank opening is mounted on the vehicle is
indicated on the meter.
▶Vehicles without TFT color multi-
information display (vehicles
without tachometer)▶Vehicles without TFT color multi-
information display (vehicles
with tachometer)
▶Vehicles with TFT color multi-
information display
⬛Fuel types
➞ P. 4 2 1
KBRO440112EKBRO440110
KBRO440111
RAIZE_OM_General_BZ358E.book 207 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2084-4. Refueling
RAIZE_OM_General_BZ358E
⬛Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
WARNING
⬛When refueling the vehicle
Observe the following precautions while re fueling the vehicle. Failure to do so
may result in death or serious injury.
⚫After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before re fueling because sparks resulting from
static electricity can cause fuel va pors to ignite while refueling.
⚫Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray ou t the filler neck and cause injury.
⚫Do not allow anyone that has not dischar ged static electricity from their body
to come close to an open fuel tank.
⚫Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
⚫Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
⚫Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
⬛When refueling
Observe the following prec autions to prevent fuel overflowing from the fuel
tank:
⚫Securely insert the fuel nozzle into the fuel filler neck.
⚫Stop filling the tank after the fu el nozzle automatically clicks off.
⚫Do not top off the fuel tank.
⬛When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in death
or serious injury.
RAIZE_OM_General_BZ358E.book 208 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2094-4. Refueling
RAIZE_OM_General_BZ358E
Driving
4
NOTICE
⬛Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control sys-
tem to operate abnormally, damaging fuel system components, or the vehi-
cle’s painted surface.

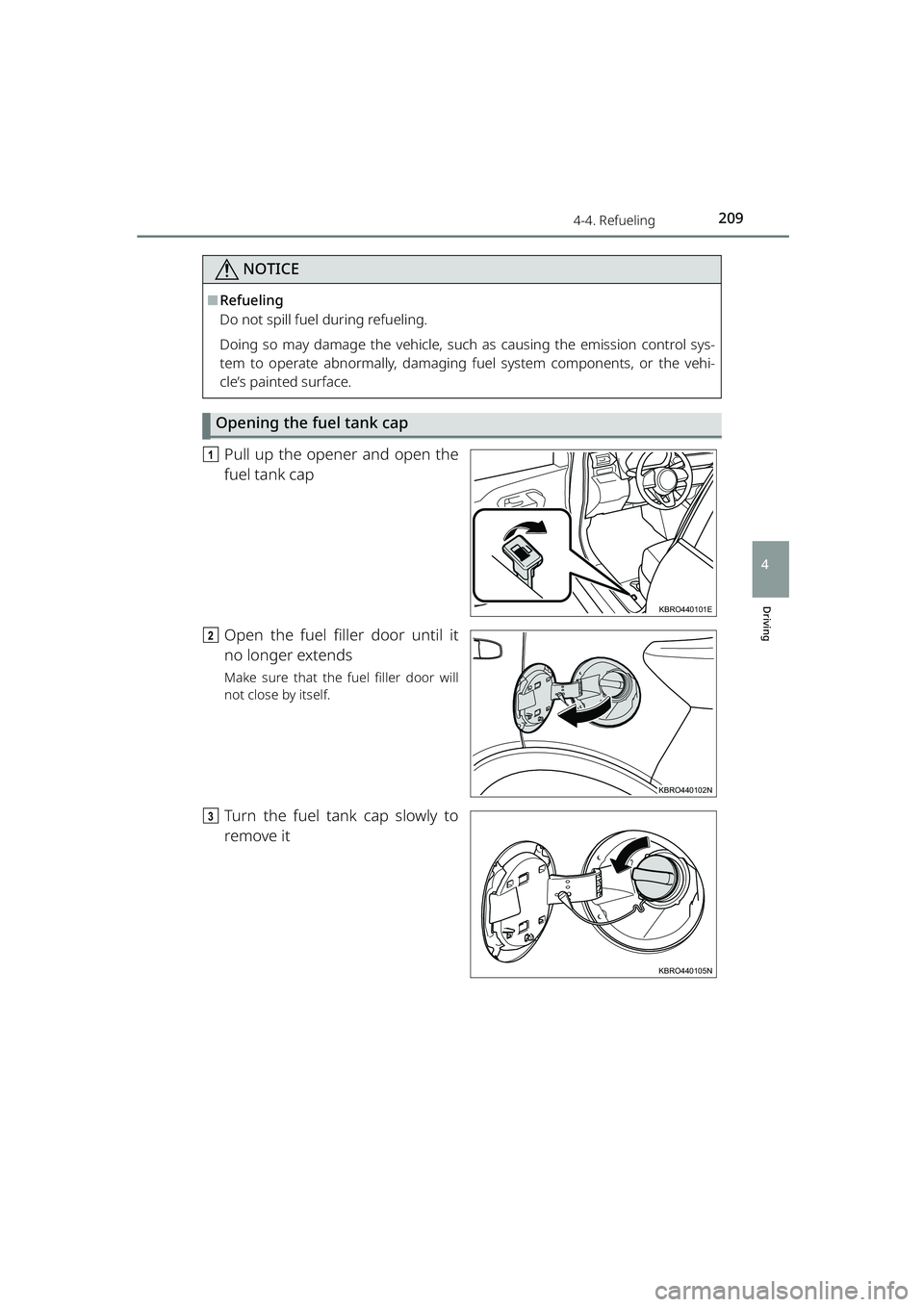

Opening the fuel tank cap
a Pull up the opener and open the
fuel tank cap
b Open the fuel filler door until it
no longer extends
Make sure that the fuel filler door will
not close by itself.
cTurn the fuel tank cap slowly to
remove it
KBRO440101E
KBRO440102N
KBRO440105N
RAIZE_OM_General_BZ358E.book 209 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2104-4. Refueling
RAIZE_OM_General_BZ358E
dPut the cap into the hanger
Closing the fuel tank cap
aTurn and close the cap until you
hear a click
Once the cap is released, it will turn
slightly in the opposite direction.
bClose the fuel filler door until you hear a click
WARNING
⬛If the cap does not close properly
Make sure to contact your Toyota dealer.
Using a fuel tank cap that does not close properly or using a fuel tank cap
other than a genuine cap may cause a fire or other incident which may result
in death or serious injury.
KBRO440103N
KBRO440104N
RAIZE_OM_General_BZ358E.book 210 ページ ２０２２年５月１７日　火曜日　午後１時５９分

211
RAIZE_OM_General_BZ358E✽
: If equipped
Driving
4
4-5. Using the driving support systems
BSM (Blind Spot Monitor)✽
Overview of Blind Spot Monitor
Blind Spot Monitor has the 2 functions.
⚫BSM (Blind Spot Monitor) function
Assists the driver in making decisions when changing lanes.
⚫RCTA (Rear Cross Traffic Alert) function
Assists the driver when backing up.
These functions use the same sensors.
a TFT color multi-information display
The BSM function or the RCTA function can be switched ON and OFF.
bOutside rear view mirror indicators
Installed on the outside rear view mirrors. When they detect a vehicle approaching
from behind, they light up or start flashing.
BSM function: When a vehicle is detected in the blind spot area of the outside rear
view mirrors or when a vehicle rapidly approaching into the blind spot area is
detected from the behind, it lights up the outside rear view mirror indicator of the
side that detected the vehicle. When you have moved the turn signal lever to the
side where the vehicle is detected, the outside rear view mirror indicators start
flashing.
RCTA function: When a vehicle approaching from the right or left rear end of your
vehicle is detected, both of the outside rear view mirror indicators start flashing.
c BSM OFF indicator/RCTA OFF indicator
When you turn off the BSM function, the BSM OFF indicator lights up.
When you turn off the RCTA function, the RCTA OFF indicator lights up.
4
322
1
KBRO460501E
RAIZE_OM_General_BZ358E.book 211 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2124-5. Using the driving support systems
RAIZE_OM_General_BZ358E
dBuzzer

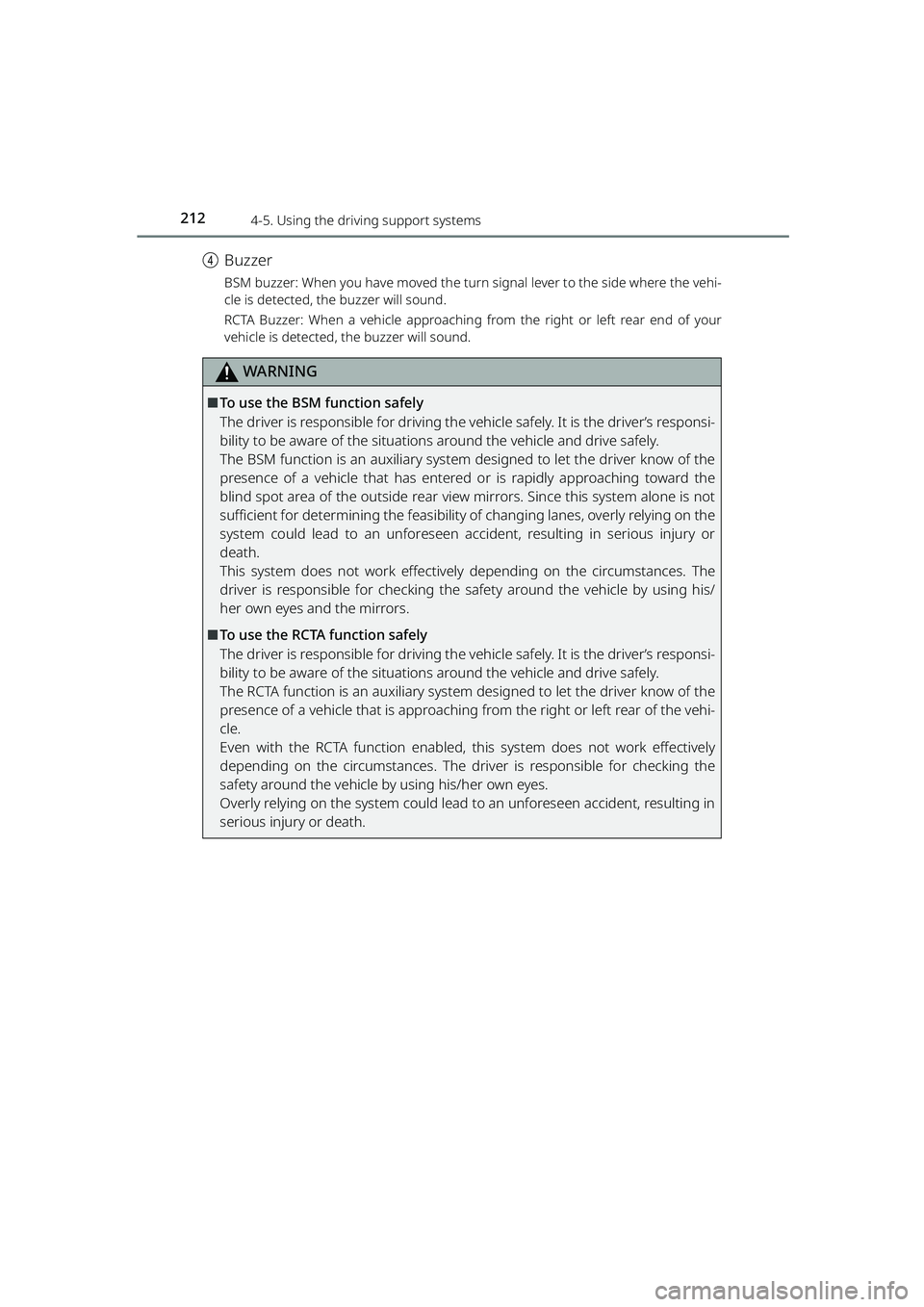

BSM buzzer: When you have moved the turn signal lever to the side where the vehi-
cle is detected, the buzzer will sound.
RCTA Buzzer: When a vehicle approaching from the right or left rear end of your
vehicle is detected, the buzzer will sound.
WARNING
⬛To use the BSM function safely
The driver is responsible for driving the vehicle safely. It is th e driver’s responsi-
bility to be aware of the situations around the vehicle and drive safely.
The BSM function is an auxilia ry system designed to let the driver know of the
presence of a vehicle that has entere d or is rapidly approaching toward the
blind spot area of the outside rear view mirrors. Since this system alone is not
sufficient for determining the feasibility of changing lanes, overly relying on the
system could lead to an unforeseen accid ent, resulting in serious injury or
death.
This system does not work effectively depending on the circumstances. The
driver is responsible for checking the safety around the vehicle by using his/
her own eyes and the mirrors.
⬛To use the RCTA function safely
The driver is responsible for driving the vehicle safely. It is th e driver’s responsi-
bility to be aware of the situations around the vehicle and drive safely.
The RCTA function is an auxiliary system designed to let the driver know of the
presence of a vehicle that is approaching from the right or left rear of the vehi-
cle.
Even with the RCTA function enabled, this system does not work effectively
depending on the circumstances. The dr iver is responsible for checking the
safety around the vehicle by using his/her own eyes.
Overly relying on the system could lead to an unforeseen accident, resulting in
serious injury or death.
RAIZE_OM_General_BZ358E.book 212 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2134-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4
How to set up
Go to the “Settings” menu on the TFT color multi-information display, you
can change the settings of BSM function/RCTA function ON (enabled)/OFF
(disabled). (➞P. 109)
⬛Visibility of the outside rear view mirror indicators
⚫It may be difficult to see if the outsid e rear view mirror indicators are lit or
flashing in the following cases:
⦁ Under strong sunlight
⦁ The outside rear view mirrors are covered with ice or snow
⬛Buzzers
⚫It may be difficult to hear the buzzers if there is a loud noise around, such as
high volume audio.
⬛When the TFT color multi-information display shows “BSM Radar Blocked
Temporarily Unavailable”
It is possible that the rear bumper near the sensors is covered with ice, snow,
or mud. If you remove the ice, snow, or mud covering the rear bumper near
the sensors, the function will start working normally again.
⬛When the TFT color multi-information display shows “BSM Temporary
Unavailable”
If you use the function in an extremely hot or cold environment or if the bat-
tery voltage is lower or higher than th e specified level, the system operation
will be temporarily stopped. If the BSM OFF indicator or the RCTA OFF indicator
remains lit for a long time, have the vehi cle inspected at your Toyota dealer.
⬛When the TFT color multi-information display shows “BSM Malfunction
Visit Your Dealer”
It is possible that the sensors have failed or their positions or orientations are
off. Have the vehicle inspec ted at your Toyota dealer.
⬛Customizations
The BSM and RCTA settings can be changed.
(List of customizable features: ➞ P. 430)
(The settings can be changed from the setup screen of the TFT color multi-
information display: ➞ P. 104)
RAIZE_OM_General_BZ358E.book 213 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2144-5. Using the driving support systems
RAIZE_OM_General_BZ358E
WARNING
⬛Handling of the radar sensors
⚫The BSM sensors are installed
inside the rear bumper, one each
on the right and left side.
For the system to work properly,
observe the precautions listed
below.
⚫Keep the rear bumper near the sensors clean at all times.
If the rear bumper near the sensors is covered with rain, snow, ice, or dirt,
the warning display ( ➞P. 389) will appear, and the system may stop working.
If that happens, remove the rain, snow, ice, or dirt from the rear bumper,
and drive the vehicle for a while (appro x. 10 minutes) under the activation
conditions of the BSM function ( ➞P. 216). If the warning display persists,
have the vehicle inspected at your Toyota dealer.
⚫Avoid strong shock to the rear bumper near the sensors.
If the sensor position and orientation ar e off even just a little bit, they may
not be able to detect vehicles correctly, or the devices may not work as
intended.
⚫In the following case, have the vehicle inspected at your Toyota dealer.
⦁ The sensors and the areas near the sensors received a strong impact
⦁ There is a scratch or dent on the rear bumper near the sensors, or some
of the bumper parts are missing
⚫Do not disassemble the sensors.
⚫Do not paste stickers or install accessories on the sensors or on the rear
bumper near the sensors.
⚫Do not alter the sensors or the rear bumper near the sensors.
⚫Do not paint the rear bumper any color other than an official Toyota color.
⚫Scratches on the rear bumper paint may prevent the system from working
normally. Contact your Toyota dealer.
