1714-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
Driving
4
⚫Avoid sudden engine braking (shift lever operation). The tires may lock and
slip, causing an accident.
⚫Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so could cause the driver to mishandle the vehicle.
⚫Always check that all occupants’ arms , heads or other parts of their bodies
are not outside the vehicle.
⚫Do not drive off-road.
If you must drive off-road, drive carefully.
⚫Do not drive underwater such as crossing a river.
It may cause a serious vehicle failure such as short-circuiting of electrical
components or damage to the engine.
⚫Do not drive with luggage on or near the seats.
If the vehicle brakes or turns sudden ly, the luggage may be thrown out and
hit occupants, the luggage may be dama ged, or the driver may be distracted
by the luggage, which may lead to an unforeseen accident.
⚫Drive carefully where there are large steps or where there are wheel chocks.
The bumper may be damaged.
⚫Do not release the clutch pedal all the way at once. Doing so could move the
vehicle forward and may lead to an unforeseen accident. (➞ P. 194)
⬛When driving on slippery road surfaces
⚫Sudden braking, acceleration or steering may cause tire slippage and reduce
your ability to control the vehicle.
⚫Sudden acceleration, engine braking due to shifting, or changes in engine
speed could cause the vehicle to skid.
⚫After driving through a puddle, lightly depress the brake pedal to make sure
that the brakes are functioning prop erly. Wet brake pads may prevent the
brakes from functioning properly. If th e brakes on only one side are wet and
not functioning properly, steering control may be affected.
⬛When operating the shift lever
⚫For the continuously variable transmissi on vehicles, never let the vehicle roll
backward while the shift lever is in a driv ing position, or roll forward while the
shift lever is in R.
Doing so may cause the engine to sta ll or lead to poor brake and steering
performance, resulting in an acci dent or damage to the vehicle.
RAIZE_OM_General_BZ358E.book 171 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1724-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
⚫On vehicles with continuously variable transmission, do not shift the shift
lever to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle
control.
⚫Do not shift the shift lever to R wh ile the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
⚫Do not shift the shift lever to a driv ing position while the vehicle is moving
backward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
⚫Moving the shift lever to N while the vehicle is moving will disengage the
engine from the transmission. Engine braking is not available when N is
selected.
⚫Be careful not to set the shift lever with the accelerator pedal depressed.
Setting the shift lever to a gear othe r than P (continuously variable transmis-
sion vehicles) or N is dangerous, as it could lead to unexpected rapid acceler-
ation of the vehicle that may cause an unforeseen accident.
⬛If you hear a continuous squealing noise from around the brakes
Have the brake pads checked and replaced by your Toyota dealer as soon as
possible.
Damage to the disc rotor may result if the pads are not replaced when needed.
Parts such as pads and rotors wear out as they are used. Riding beyond the
limits of wear will not only cause malfunctions, but may also lead to an acci-
dent.
⬛When stopping the vehicle
⚫Do not depress the accelerator pedal unnecessarily.
Setting the shift lever to a gear othe r than P (continuously variable transmis-
sion vehicles) or N is dangerous, as it could lead to unexpected rapid acceler-
ation of the vehicle that may cause an unforeseen accident.
⚫In order to prevent accidents due to the vehicle rolling away, always keep
depressing the brake pedal while the en gine is running, and apply the park-
ing brake as necessary.
⚫If the vehicle is stopped on an incline, in order to prevent accidents caused
by the vehicle rolling forward or back ward, always depress the brake pedal
and securely apply the parking brake as needed.
RAIZE_OM_General_BZ358E.book 172 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2966-2. Maintenance
RAIZE_OM_General_BZ358E
FUEL AND EMISSION CONTROL SYSTEMS
12Fuel filter*3R96
13Air cleaner filterIRIRI: 24
R: 48
14
Fuel tank cap, fuel
lines, connections
and fuel vapor con-
trol valve*
2
II24
15Charcoal canisterII24
CHASSIS AND BODY
16Clutch pedal
(1KR-VET engine)IIIIIIII12
17Clutch pedal
(WA-VE engine)IIIIIIII12
18Brake pedal and
parking brakeIIIIIIII6
19
Brake linings and
drums (include park-
ing brake linings and
drums)
IIII12
20Brake pads and discsIIII6
21Brake fluidIIIRIIIRI: 6
R: 24
22Clutch fluid
(1KR-VET engine)IIIRIIIRI: 6
R: 24
23Brake pipes and
hosesIIII12
24
Steering wheel, link-
age and steering
gear box
IIII12
SERVICE
INTERVAL:ODOMETER READING
MONTHS
(Odometer reading or months,
whichever
comes first.) x1000
km 1 1020304050607080
x1000 miles 1 6 12 18 24 30 36 42 48
RAIZE_OM_General_BZ358E.book 296 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2986-2. Maintenance
RAIZE_OM_General_BZ358E
Additional maintenance schedule (except for Mexico)
Refer to the following table for normal maintenance schedule items
requiring more frequent service specific to the type of severe conditions.
(For outline, see “Maintenan ce schedule requirements”.)
A-1: Operating on rough or muddy roads, or roads with melted snow
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection*1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 of brake pipes and hosesEvery 10000 km (6000 miles) or 6
months
Inspection*1 of steering wheel, linkage
and steering gear boxEvery 5000 km (3000 miles) or 3
months
Inspection*1 of suspension ball joint and
dust coverEvery 10000 km (6000 miles) or 6
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Inspection*1 of front and rear suspensionEvery 10000 km (6000 miles) or 6
months
Tightening of bolts and nuts on chassis
and body*
2
Every 10000 km (6000 miles) or 6
months
A-2: Operating on dusty ro ads (Roads in areas where their pavement rate is
low, or a cloud of dust ofte n arises and the air is dry.)
Replacement of engine oil
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Replacement of engine oil filter
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil filter
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Inspection*1 or replacement of air cleaner
filter
I: Every 2500 km (1500 miles) or 3 months
R: Every 20000 km (12000 miles) or 48 months
RAIZE_OM_General_BZ358E.book 298 ページ ２０２２年５月１７日　火曜日　午後１時５９分

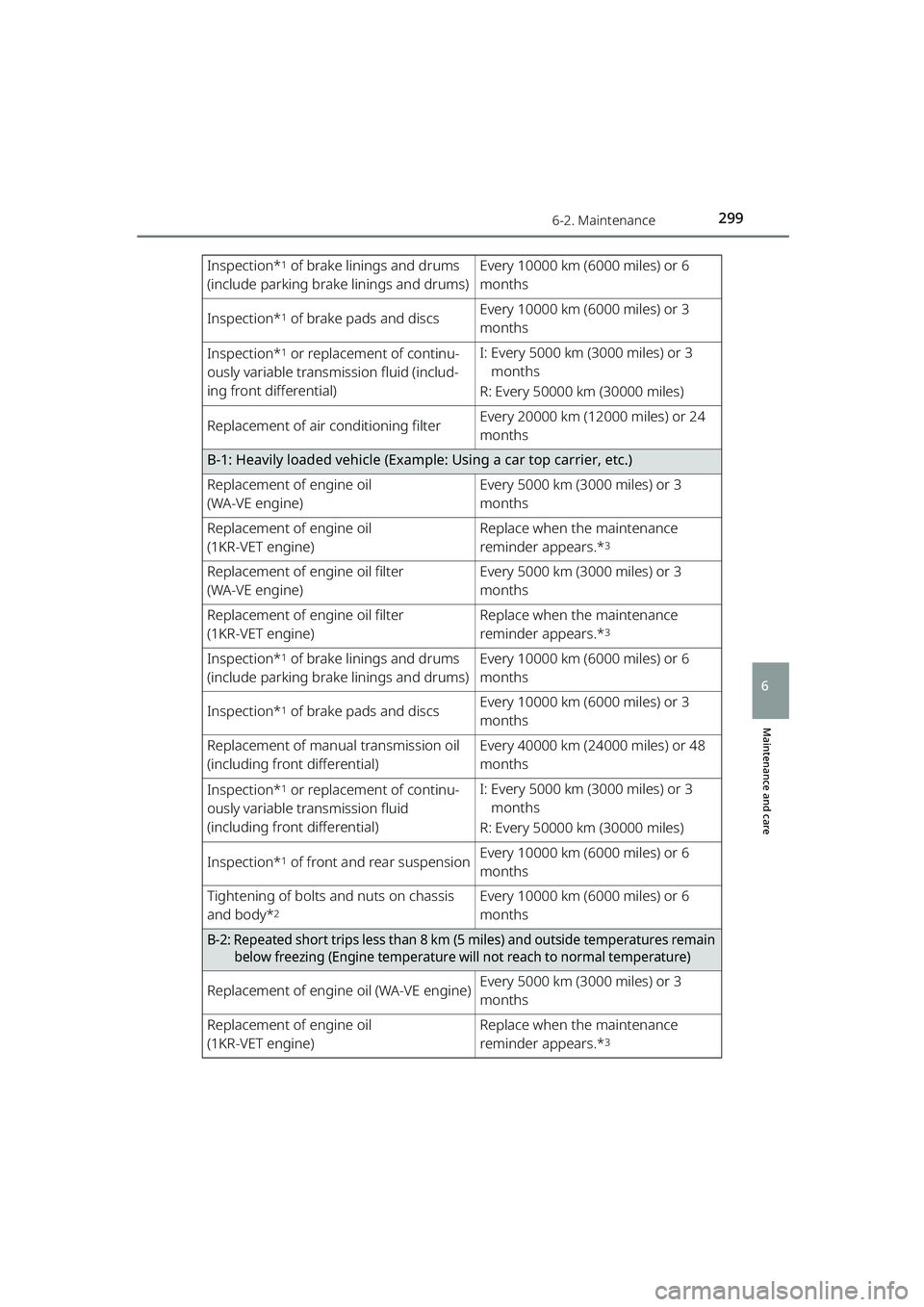

2996-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection*1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Replacement of air conditioning filter Every 20000 km (12000 miles) or 24
months
B-1: Heavily loaded vehicle (Example: Using a car top carrier, etc.)
Replacement of engine oil
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Replacement of engine oil filter
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil filter
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection*1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Replacement of manual transmission oil
(including front differential)Every 40000 km (24000 miles) or 48
months
Inspection*1 or replacement of continu-
ously variable transmission fluid
(including front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Inspection*1 of front and rear suspensionEvery 10000 km (6000 miles) or 6
months
Tightening of bolts and nuts on chassis
and body*
2
Every 10000 km (6000 miles) or 6
months
B-2: Repeated short trips less than 8 km (5 miles) and outside temperatures remain below freezing (Engine temperature will not reach to normal temperature)
Replacement of engine oil (WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
RAIZE_OM_General_BZ358E.book 299 ページ ２０２２年５月１７日　火曜日　午後１時５９分

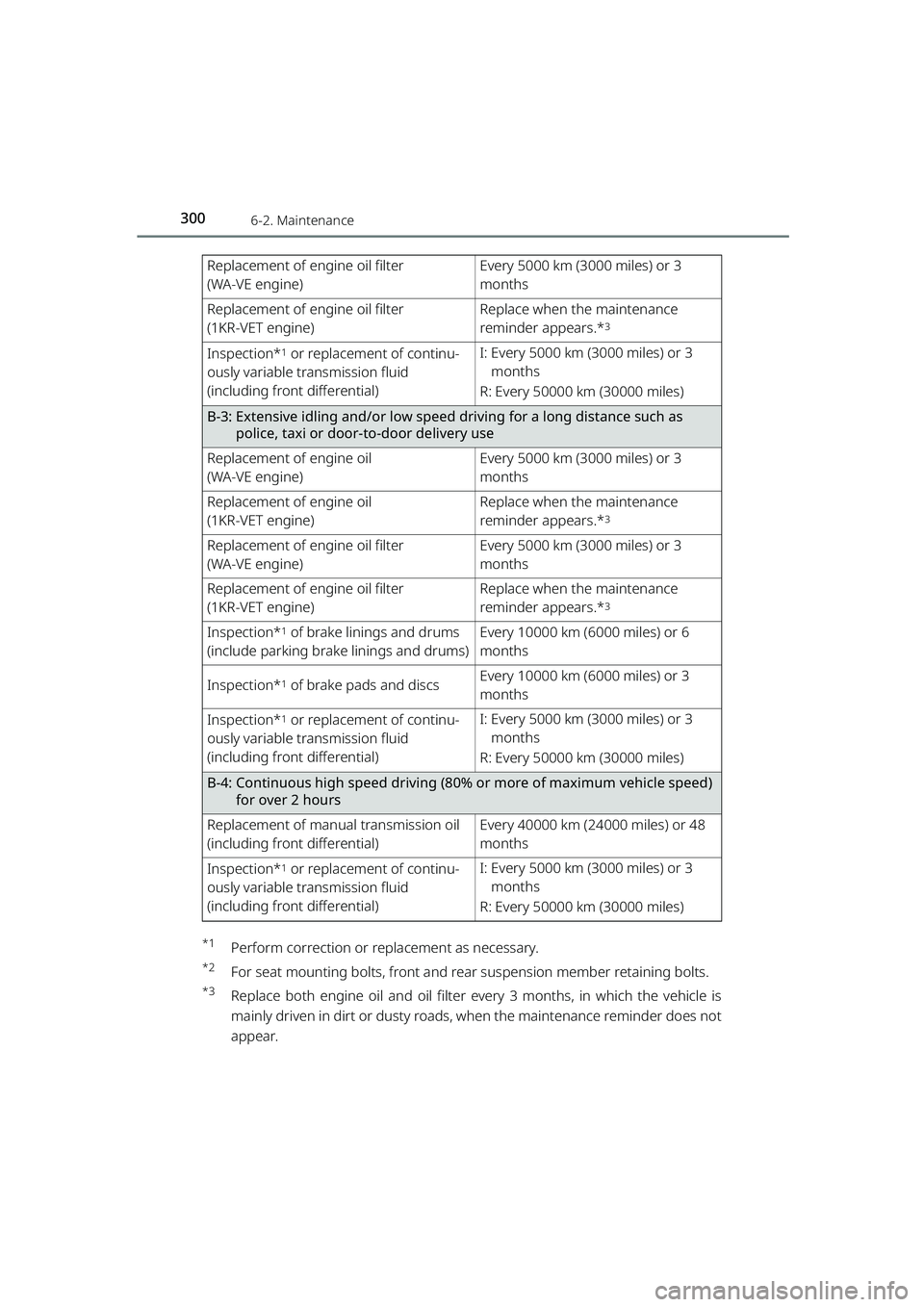

3006-2. Maintenance
RAIZE_OM_General_BZ358E
*1Perform correction or replacement as necessary.
*2For seat mounting bolts, front and rear suspension member retaining bolts.
*3Replace both engine oil and oil filter every 3 months, in which the vehicle is
mainly driven in dirt or dusty roads, when the maintenance reminder does not
appear.
Replacement of engine oil filter
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil filter
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Inspection*1 or replacement of continu-
ously variable transmission fluid
(including front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
B-3: Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use
Replacement of engine oil
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Replacement of engine oil filter
(WA-VE engine)Every 5000 km (3000 miles) or 3
months
Replacement of engine oil filter
(1KR-VET engine)Replace when the maintenance
reminder appears.*
3
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection*1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 or replacement of continu-
ously variable transmission fluid
(including front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
B-4: Continuous high speed driving (80% or more of maximum vehicle speed) for over 2 hours
Replacement of manual transmission oil
(including front differential)Every 40000 km (24000 miles) or 48
months
Inspection*1 or replacement of continu-
ously variable transmission fluid
(including front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
RAIZE_OM_General_BZ358E.book 300 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3026-2. Maintenance
RAIZE_OM_General_BZ358E
CHASSIS AND BODY
13
Brake linings and
drums (include park-
ing brake linings and
drums)
IIII12
14Brake pads and discsIIII6
15Brake fluidIIIRIIIRI: 6
R: 24
16Clutch fluidIIIRIIIRI: 6
R: 24
17Brake pipes and
hosesIIII12
18
Steering wheel, link-
age and steering
gear box
IIII12
19Drive shaft bootsIIIIIIII6
20Suspension ball joint
and dust coverIIII12
21
Manual transmis-
sion oil (including
front differential)
IRI: 48
R: 96
22
Continuously varia-
ble transmission
fluid (including front
differential)
Inspect every 12 months, Replace every
100000 km (60000 miles)―
23Front and rear sus-
pensionIIII12
24Front wheel align-
ment (toe-in)II48
25Air conditioning filterRRRR24
SERVICE
INTERVAL:ODOMETER READING
MONTHS
(Odometer reading or months,
whichever
comes first.) x1000
km 10 20 30 40 50 60 70 80
x1000 miles 6 12182430364248
RAIZE_OM_General_BZ358E.book 302 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3036-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
REMARKS: See page 306 for general maintenance items.
*1Replace both the engine oil and oil filter, even when the maintenance
reminder does not appear, after 6 mont hs have passed, since the last oil
change.
*2After 80000 km (48000 miles) or 48 months inspection, inspect every 20000
km (12000 miles) or 12 months.
*3Including the filter in fuel tank.
Additional maintenance schedule (For Mexico)
Refer to the following table for normal maintenance schedule items
requiring more frequent service specific to the type of severe conditions.
(For outline, see “Maintenan ce schedule requirements”.)
A-1: Operating on rough or muddy roads, or roads with melted snow
Inspection*
1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection* 1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 of brake pipes and hosesEvery 10000 km (6000 miles) or 6
months
Inspection*1 of steering wheel, linkage
and steering gear boxEvery 5000 km (3000 miles) or 3
months
Inspection* 1 of suspension ball joint and
dust coversEvery 10000 km (6000 miles) or 6
months
Inspection* 1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Inspection* 1 of front and rear suspensionEvery 10000 km (6000 miles) or 6
months
Tightening of bolts and nuts on chassis
and body
*2Every 10000 km (6000 miles) or 6
months
A-2: Operating on dusty ro ads (Roads in areas where their pavement rate is
low, or a cloud of dust ofte n arises and the air is dry.)
Replacement of engine oilReplace when the maintenance
reminder appears.
*
3
RAIZE_OM_General_BZ358E.book 303 ページ ２０２２年５月１７日　火曜日　午後１時５９分
