2023 TOYOTA RAIZE Owners Manual

2795-5. Using the other interior features
RAIZE_OM_General_BZ358E
Interior features
5
cAfter use, make sure to remove the cable
Check that the lids are closed.
⚫If charging stops temporarily when th e engine restarts, the battery may be
deteriorated. In that case, contact your Toyota dealer.
⚫Depending on the devices connected, charging may occasionally be sus-
pended and then start again. This is not a malfunction.
⬛Operating conditions
When the engine switch is “ACC” or “ON”
⬛Situations where the USB ports may not work properly
⚫If a device requiring more than the maximum rating is connected
⦁ Charging may not be possible due to protection features.
⦁ Even if charging starts, it may ta ke long time to be completed.
⚫If the temperature inside the vehicle is high, such as immediately after the
vehicle has been parked in the hot sun
⦁ By using the air conditioning system or other means, ventilate the vehicle
and decrease the temperature inside it. After a while, start charging.
⦁ If charging is performed in a high temperature environment, it may be
automatically stopped by the temperature sensor.
WARNING
⚫Inserting fingers or foreign matter such as metals and liquid into the USB
ports may cause damage, a short circuit, or electric shock.
⚫Be careful not to trip over the cables co nnected. This may cause damage to the
device or injury due to falling.
NOTICE
⚫Do not apply strong impact or force.
⬛To prevent battery discharge
⚫Do not use the USB ports for a long time with the engine stopped.
⚫Even when the ports are used while dr iving, remove the cables when they
are no longer in use.
RAIZE_OM_General_BZ358E.book 279 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2805-5. Using the other interior features
RAIZE_OM_General_BZ358E✽
: If equipped
USB ports (for communication)✽
Use this port to connect your device
with the display audio pairable with
smart phones.
For details, refer to the instruction
manual included with the display
audio pairable with smart phones.
WARNING
⚫Inserting fingers or foreign matter such as metals and liquid into the USB
ports may cause damage, a short circuit, or electric shock.
⚫Be careful not to trip over the cables co nnected. This may cause damage to the
device or injury due to falling.
NOTICE
⚫Do not apply strong impact or force.
⬛To prevent battery discharge
⚫Do not use the USB ports for a long time with the engine stopped.
⚫Remove your cables from the ports if they are no longer in use, even when
the ports are used while driving.
KBRO550111E
RAIZE_OM_General_BZ358E.book 280 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2815-5. Using the other interior features
RAIZE_OM_General_BZ358E
Interior features
5

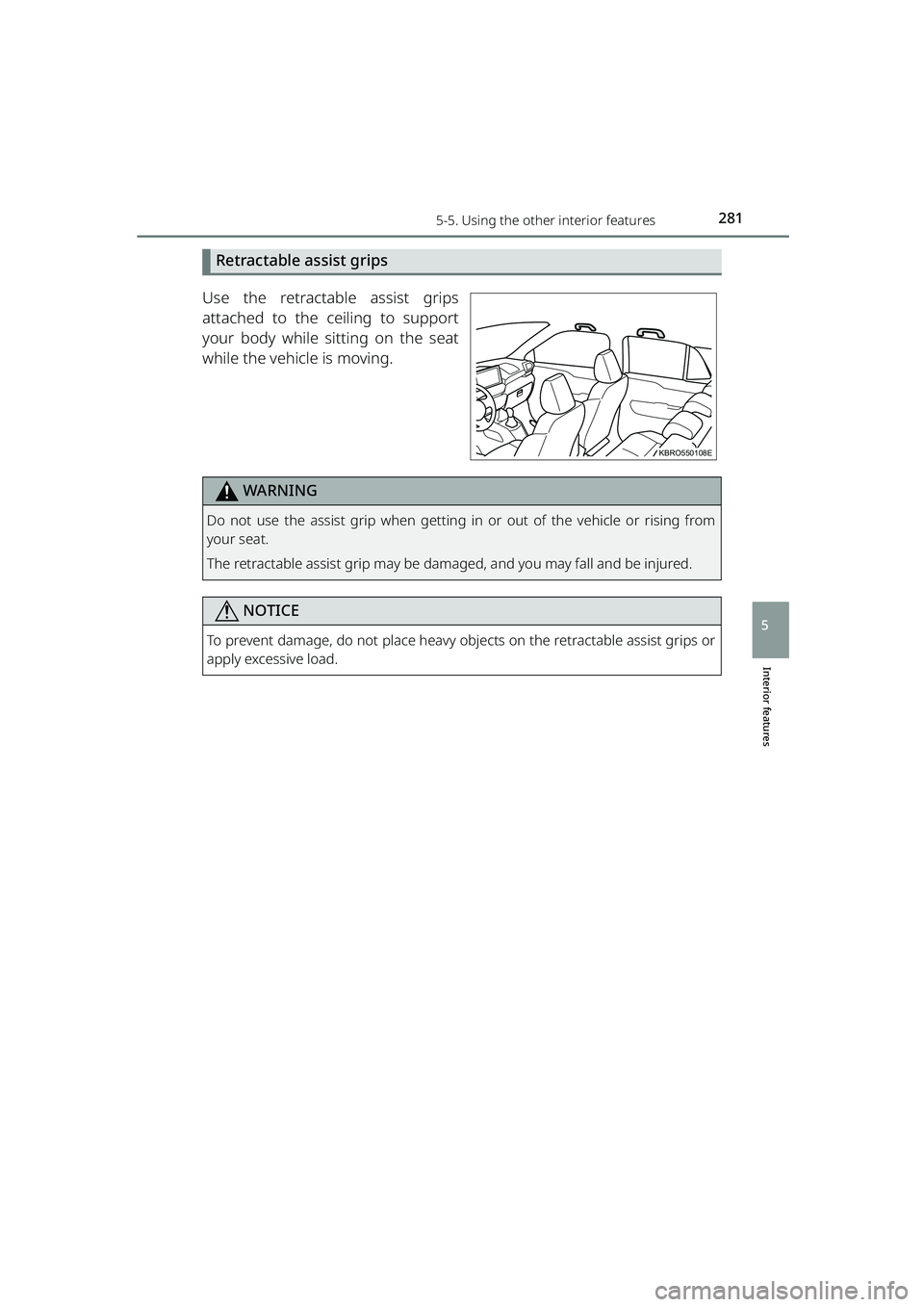

Retractable assist grips
Use the retractable assist grips
attached to the ceiling to support
your body while sitting on the seat
while the vehicle is moving.
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
The retractable assist grip may be dama ged, and you may fall and be injured.
NOTICE
To prevent damage, do not place heavy ob jects on the retractable assist grips or
apply excessive load.
KBRO550108E
RAIZE_OM_General_BZ358E.book 281 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2825-5. Using the other interior features
RAIZE_OM_General_BZ358E
RAIZE_OM_General_BZ358E.book 282 ページ ２０２２年５月１７日　火曜日　午後１時５９分

283
6
RAIZE_OM_General_BZ358E
Maintenance and care
6-1. Maintenance and care
Cleaning and protecting the vehicle exterior........................ 284
Cleaning and protecting the vehicle interior......................... 289
6-2. Maintenance
Maintenance requirements .... 292
Scheduled maintenance .......... 294
General maintenance ............... 306
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions .............................. 309
Hood ............................................ 311
Floor jack ..................................... 314
Engine compartment ............... 315
Tires .............................................. 327
Tire pressure .............................. 334
Wheels ......................................... 336
Replacing the air conditioning filter............................................ 338
Replacing the wiper rubbers ... 340
Replacing the key battery ........ 344
Checking and replacing fuses .......................................... 348
Replacing light bulbs ................ 352
RAIZE_OM_General_BZ358E.book 283 ページ ２０２２年５月１７日　火曜日　午後１時５９分

284
RAIZE_OM_General_BZ358E✽
: If equipped
6-1. Maintenance and care

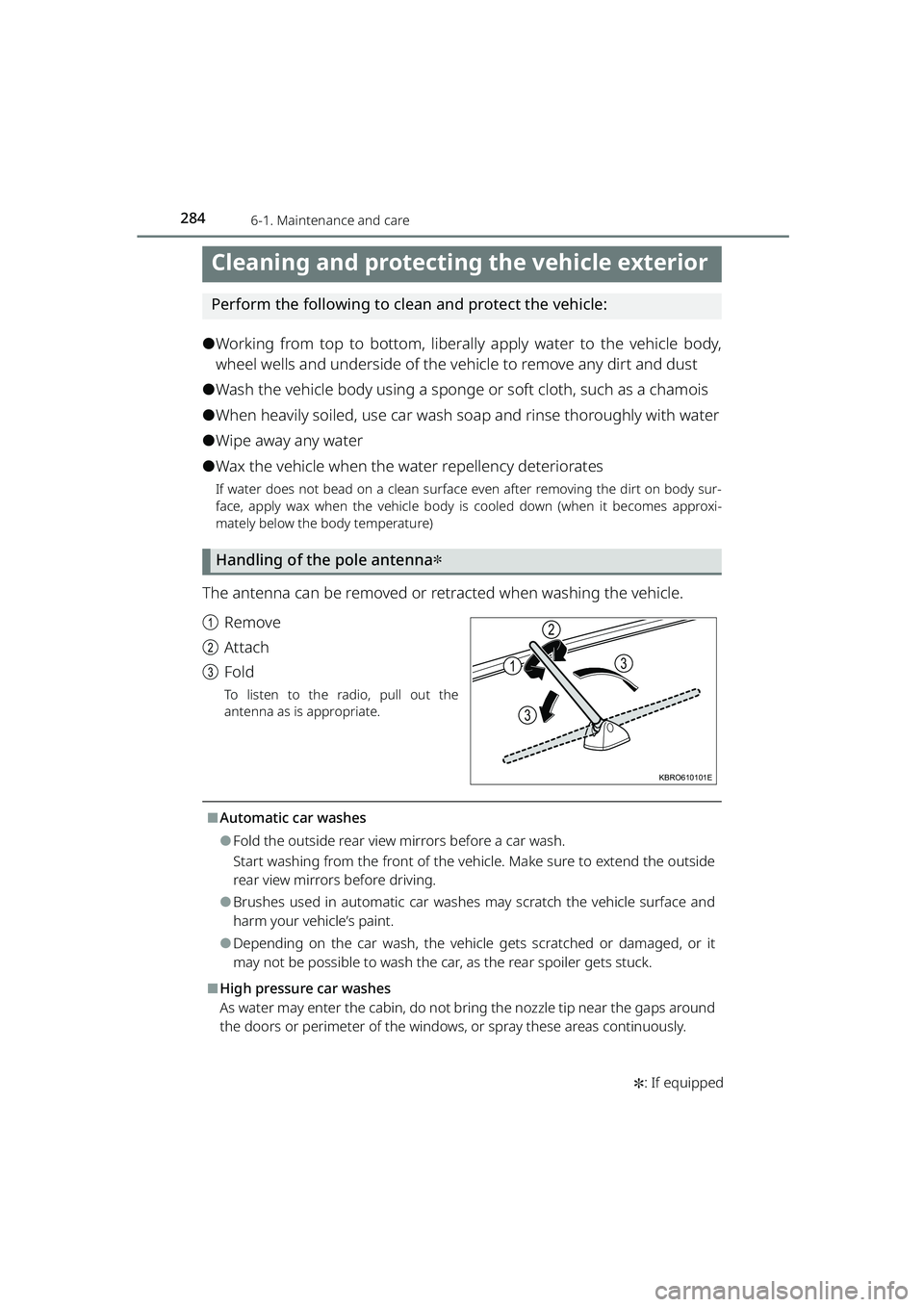

Cleaning and protecting the vehicle exterior
Perform the following to clean and protect the vehicle:
⚫Working from top to bottom, liberally apply water to the vehicle body,
wheel wells and underside of the vehicle to remove any dirt and dust
⚫Wash the vehicle body using a sponge or soft cloth, such as a chamois
⚫When heavily soiled, use car wash so ap and rinse thoroughly with water
⚫Wipe away any water
⚫Wax the vehicle when the water repellency deteriorates
If water does not bead on a clean surface even after removing the dirt on body sur-
face, apply wax when the vehicle body is cooled down (when it becomes approxi-
mately below the body temperature)
Handling of the pole antenna✽
The antenna can be removed or retracted when washing the vehicle.
a Remove
b Attach
c Fold
To listen to the radio, pull out the
antenna as is appropriate.
⬛Automatic car washes
⚫Fold the outside rear view mirrors before a car wash.
Start washing from the front of the vehi cle. Make sure to extend the outside
rear view mirrors before driving.
⚫Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
⚫Depending on the car wash, the vehic le gets scratched or damaged, or it
may not be possible to wash the car, as the rear spoiler gets stuck.
⬛High pressure car washes
As water may enter the cabin, do not bring the nozzle tip near the gaps around
the doors or perimeter of the windows, or spray these areas continuously.
1
2
3
3
KBRO610101E
RAIZE_OM_General_BZ358E.book 284 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2856-1. Maintenance and care
RAIZE_OM_General_BZ358E
Maintenance and care
6
⬛Water splashed over the vehicle during car wash, etc. (vehicles with key-
free system)
If water splashes on the door handle switch, the doors may get locked and
unlocked repeatedly while the electronic key is located within the operating
range. If that happens, perform the pr ocedures listed below. (Without opening
or closing the doors, the unlocked door s will be automatically locked approxi-
mately after 30 seconds)
⚫Place the key at least 3 m (9.8 ft.) away from the vehicle (beware of theft)
⚫Disabling the key-free system activation by setting the key to the battery-sav-
ing mode ( ➞P. 125)
⬛When using detergent or wax
⚫Carefully read the instructions for th e detergent or wax you are using and
clean the vehicle correctly.
⚫Do not use wax on unpainted plastic parts. If wax adheres, the part may
become white or blotchy.
⬛Wheels and wheel ornaments
⚫Remove any dirt immediately by using a neutral detergent.
⚫Wash detergent off with water immediately after use.
⚫To protect the paint from damage, make sure to observe the following pre-
cautions.
⦁ Do not use acid, alkaline or abrasive detergent
⦁ Do not use hard brushes
⦁ Do not use detergent on the wheels when they are hot, such as after driv-
ing or parking in hot weather
⚫Do not allow hot water to splash directly on the wheels, for example, with
steam cleaning, as the wheels may lose their luster.
WARNING
⬛When washing the vehicle
⚫Do not apply water to the insi de of the engine compartment.
If water splash on the electrical components or the like, vehicle fire may
result.
⚫Be careful not to injure your hands when washing around the underside of
the vehicle and around the wheels.
RAIZE_OM_General_BZ358E.book 285 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2866-1. Maintenance and care
RAIZE_OM_General_BZ358E
WARNING
✽: If equipped

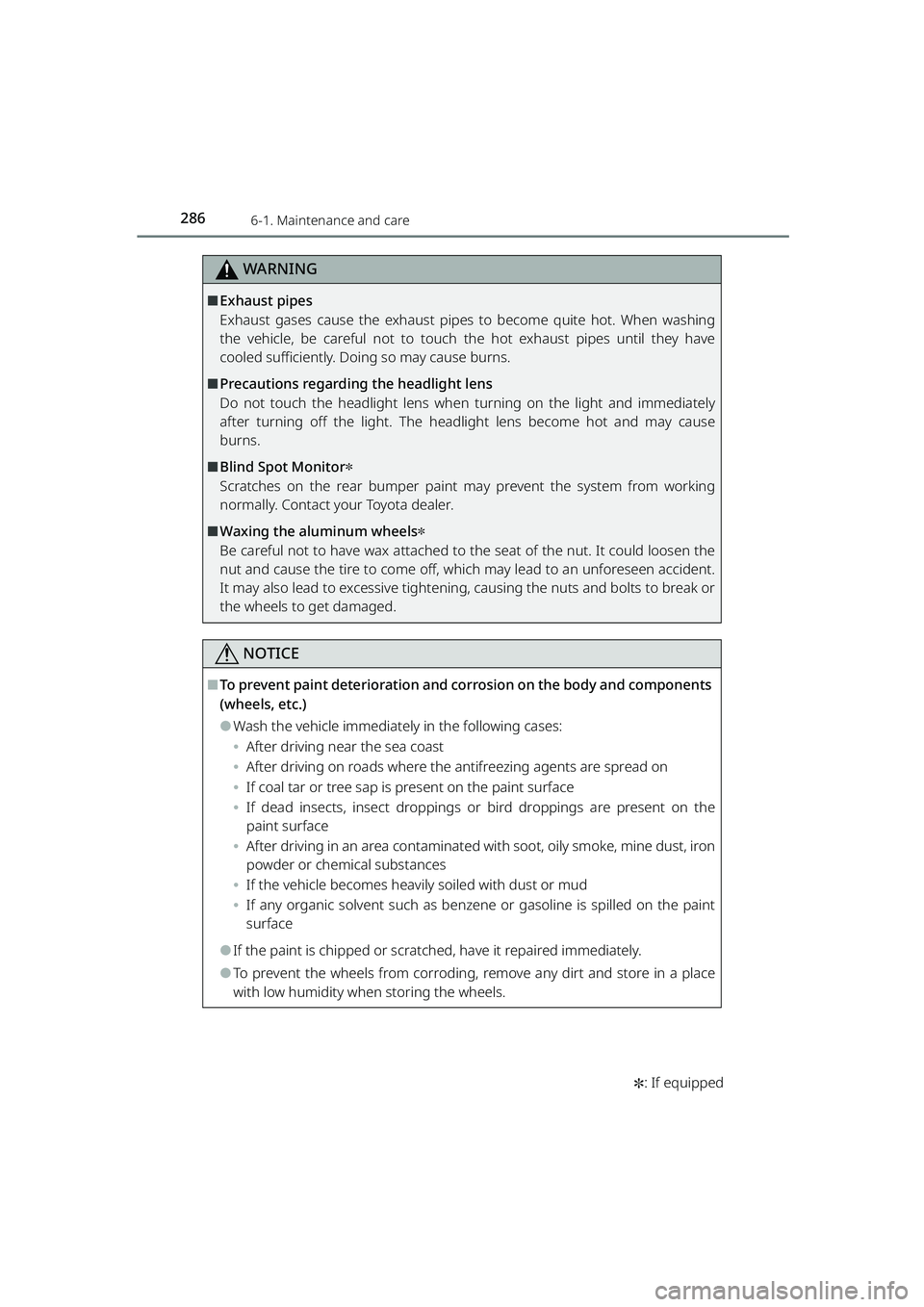

⬛Exhaust pipes
Exhaust gases cause the exhaust pipes to become quite hot. When washing
the vehicle, be careful not to touch the hot exhaust pipes until they have
cooled sufficiently. Doing so may cause burns.
⬛Precautions regarding the headlight lens
Do not touch the headlight lens when turning on the light and immediately
after turning off the light. The head light lens become hot and may cause
burns.
⬛Blind Spot Monitor✽
Scratches on the rear bumper paint may prevent the system from working
normally. Contact your Toyota dealer.
⬛Waxing the aluminum wheels✽
Be careful not to have wax attached to the seat of the nut. It could loosen the
nut and cause the tire to come off, which may lead to an unforeseen accident.
It may also lead to excessive tighteni ng, causing the nuts and bolts to break or
the wheels to get damaged.
NOTICE
⬛To prevent paint deterioration and co rrosion on the body and components
(wheels, etc.)
⚫Wash the vehicle immediately in the following cases:
⦁ After driving near the sea coast
⦁ After driving on roads where the antifreezing agents are spread on
⦁ If coal tar or tree sap is present on the paint surface
⦁ If dead insects, insect droppings or bird droppings are present on the
paint surface
⦁ After driving in an area contaminated wi th soot, oily smoke, mine dust, iron
powder or chemical substances
⦁ If the vehicle becomes heavily soiled with dust or mud
⦁ If any organic solvent such as benzene or gasoline is spilled on the paint
surface
⚫If the paint is chipped or scrat ched, have it repaired immediately.
⚫To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
RAIZE_OM_General_BZ358E.book 286 ページ ２０２２年５月１７日　火曜日　午後１時５９分
