Engine coolant
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines
on the reservoir when the engine is cold.
a Reservoir cap
b “FULL” line
c “LOW” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL” line.
(➞ P. 412)
⬛Coolant selection
Only use “Toyota Super Long Life Coolan t” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid org anic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35°C [-31°F])
For more details about engine coolant, contact your Toyota Genuine dealer.
⬛If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir cap, drain cock and
water pump.
If you cannot find a leak, have your Toyo ta dealer test the cap and check for
leaks in the cooling system.
WARNING
⬛When the engine is hot
Do not remove the radiator cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing seri ous injuries, such as burns.
⬛When replacing the coolant
To avoid coolant spilling on the altern ator, do not remove the upper radiator
hose from engine side (remove from the radiator side). Coolant spilled on the
alternator will cause corrosion of the coil and a fire.
1
3
2
KBRO620908N
RAIZE_OM_General_BZ358E.book 319 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3206-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
NOTICE
⬛When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
⬛If you spill coolant
Be sure to wash it off with water to pr event it from damaging parts or paint.
Radiator and condenser
Check the radiator and condenser and clear away any foreign objects. If
either of the above parts is extremel y dirty or you are not sure of their
condition, have your vehicle inspected by your Toyota dealer.
WARNING
⬛When the engine is hot
Do not touch the radiator or condenser as they may be hot and cause serious
injuries, such as burns.
Brake fluid
⬛Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN” lines
on the tank.
⬛Adding fluid
Make sure to check the fluid type and prepare the necessary item.
KBRO620912E
Fluid typeFMVSS No.116 DOT 3 brake fluid
ItemClean funnel
RAIZE_OM_General_BZ358E.book 320 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3216-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped
Maintenance and care
6
⬛Brake fluid can absorb moisture from the air
Excess moisture in the brake fluid can ca use a dangerous loss of braking efficiency.
Use only newly opened brake fluid.
WARNING
⬛When filling the reservoir
Take care as brake fluid can harm your hands and eyes and damage painted
surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, consult a doctor.
NOTICE
⬛If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear
out or when the fluid level in the accumulator is high.
If the reservoir needs frequent ref illing, there may be a serious problem.
Battery
Check the battery as follows.
⬛Caution symbols✽
The meanings of each caution symbol on the top of the battery are as fol-
lows:
No smoking, no naked
flames, no sparksBattery acid
Shield eyesNote operating instructions
Keep away from childrenExplosive gas
Maintenance.fm 321 ページ ２０２２年６月１６日　木曜日　午前９時４３分

3226-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E

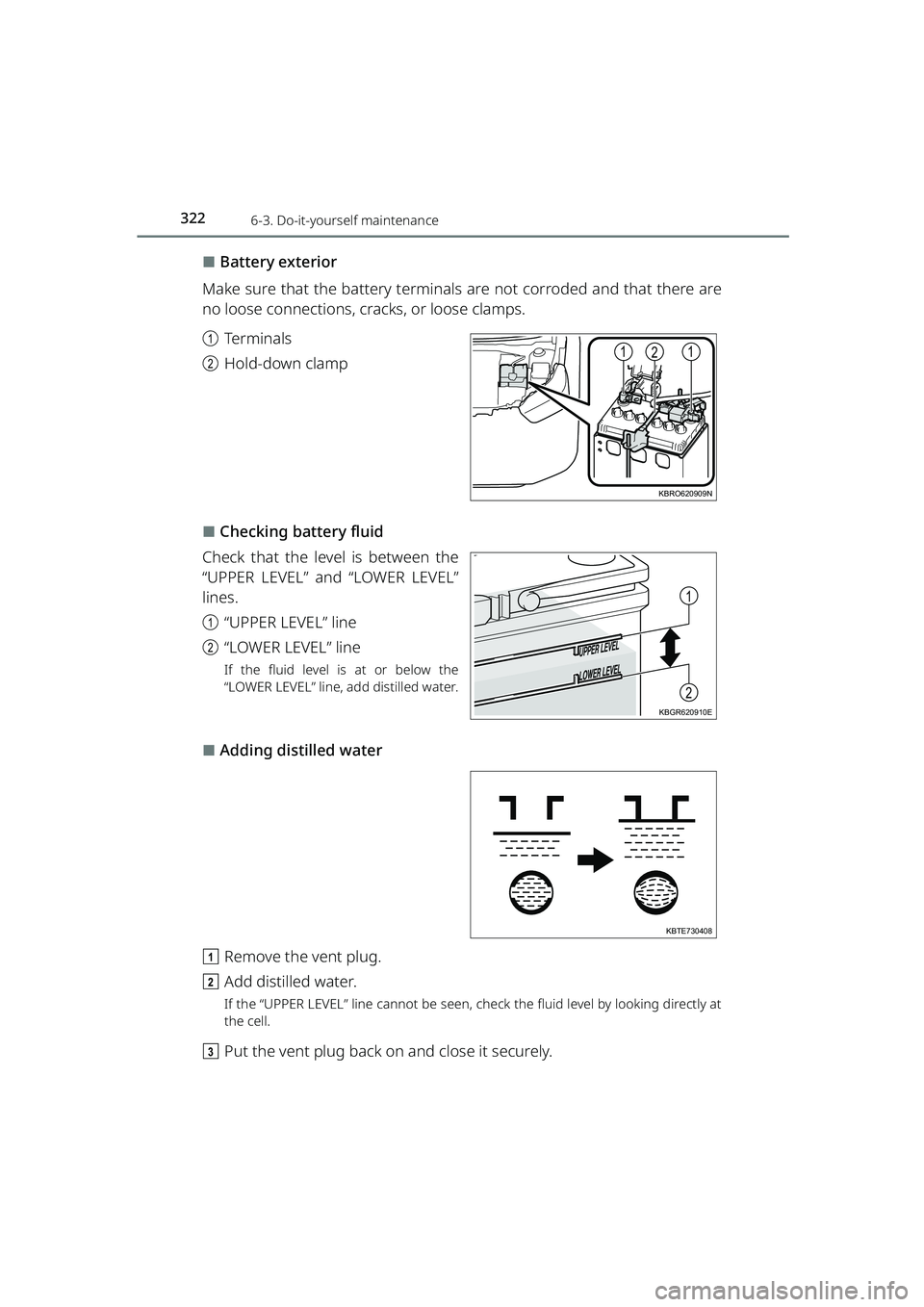

⬛Battery exterior
Make sure that the battery terminals are not corroded and that there are
no loose connections, cracks, or loose clamps.
a Terminals
b Hold-down clamp
⬛Checking battery fluid
Check that the level is between the
“UPPER LEVEL” and “LOWER LEVEL”
lines.
a “UPPER LEVEL” line
b “LOWER LEVEL” line
If the fluid level is at or below the
“LOWER LEVEL” line, add distilled water.
⬛Adding distilled water
a Remove the vent plug.
b Add distilled water.
If the “UPPER LEVEL” line cannot be seen, check the fluid level by looking directly at
the cell.
c Put the vent plug back on and close it securely.
112
KBRO620909N
1
2
KBGR620910E
KBTE730408
RAIZE_OM_General_BZ358E.book 322 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3236-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
⬛Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:
⚫If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
⚫Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.
WARNING
⬛Chemicals in the battery
Batteries contain poisonous and corrosive sulfuric acid and may produce
hydrogen gas which is flammable and expl osive. To reduce the risk of death or
serious injury, take the following precautions while working on or near the bat-
tery:
⚫Do not cause sparks by touching the battery terminals with tools.
⚫Do not smoke or light a match near the battery.
⚫Avoid contact with eyes, skin and clothes.
⚫Never inhale or swallow electrolyte.
⚫Wear protective safety glasse s when working near the battery.
⚫Keep children away from the battery.
⬛Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a
garage or closed room where th ere is insufficient ventilation.
⬛Emergency measures regarding electrolyte
⚫If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immediate
medical attention. If possible, continue to apply water with a sponge or cloth
while traveling to the nearest medical facility.
⚫If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
⚫If electrolyte gets on your clothes
It can soak through clothing on to yo ur skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.
⚫If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.
RAIZE_OM_General_BZ358E.book 323 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3246-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
WARNING
⬛When there is insufficient battery fluid
If the battery is used or charged while the battery fluid level in any cell is below
the “LOWER LEVEL” line displayed on th e side of the battery, the battery life
may become short and the battery may explode or generate heat.
NOTICE
⬛When recharging the battery
Never recharge the battery while the engi ne is running. Also, be sure all acces-
sories are turned off.
⬛When adding distilled water
Avoid overfilling. Water spilled during battery recharging may cause corrosion.
Washer fluid
⬛Inspection procedure
Check the liquid surface with your
eyes from the side of the washer
tank.
⬛Refill procedure
Remove the cap from the washer
tank and dilute the fluid by referring
to the freezing temperature shown
on the washer fluid container.
KBRO620910N
KBRO620911N
RAIZE_OM_General_BZ358E.book 324 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3256-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
WARNING
⬛When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid con-
tains alcohol and may catch fire if spilled on the engine, etc.
NOTICE
⬛Do not use any fluid other than washer fluid
Do not use soapy water or engine an tifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces, as well as
damaging the pump leading to proble ms of the washer fluid not spraying.
⬛Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures list ed on the label of the washer fluid bot-
tle.
Air cleaner filter
Check the air cleaner filter as follows:
a Release the clips.
KBRO620913E
RAIZE_OM_General_BZ358E.book 325 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3266-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E

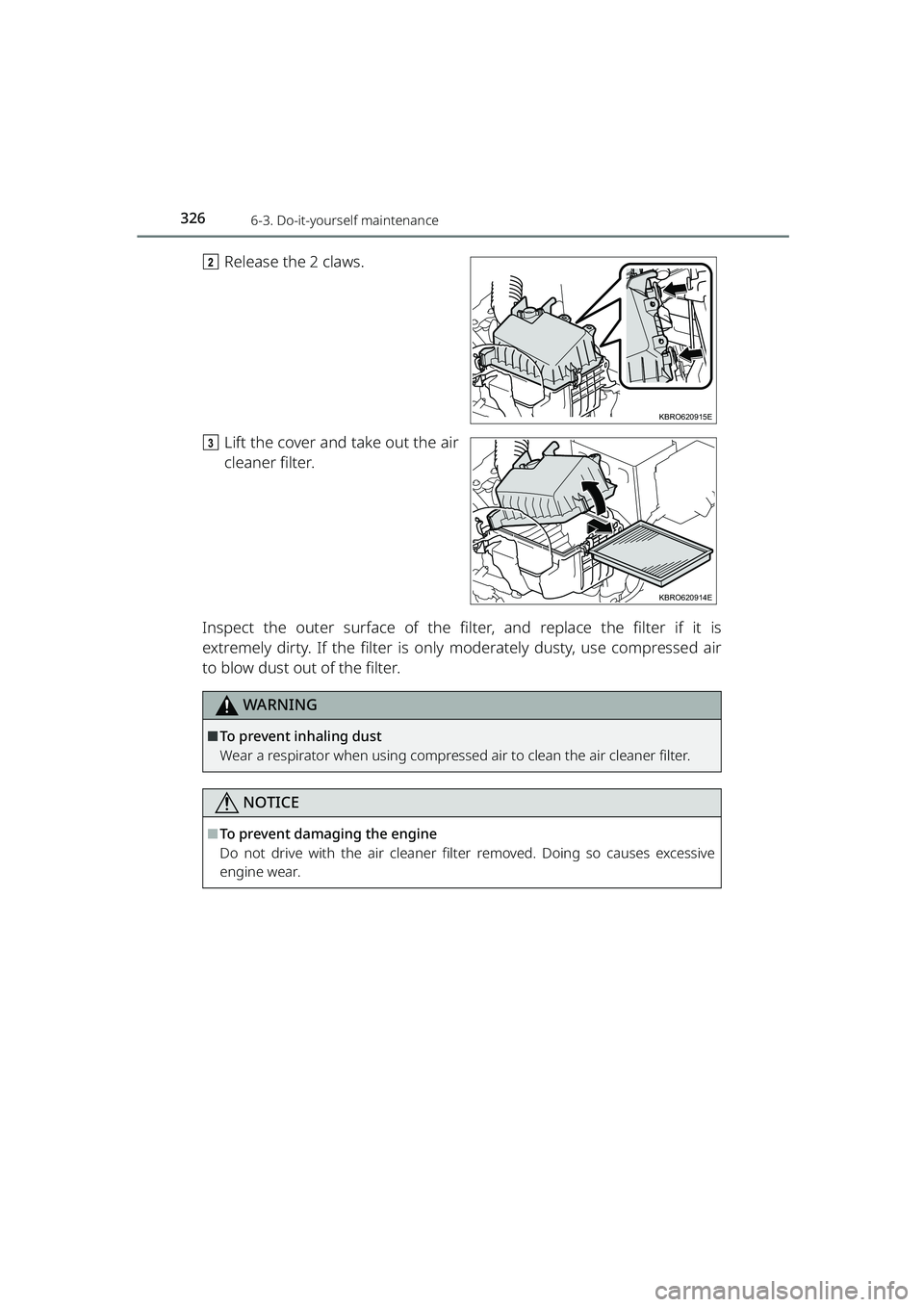

bRelease the 2 claws.
c Lift the cover and take out the air
cleaner filter.
Inspect the outer surface of the filter, and replace the filter if it is
extremely dirty. If the filter is only moderately dusty, use compressed air
to blow dust out of the filter.
WARNING
⬛To prevent inhaling dust
Wear a respirator when using compressed air to clean the air cleaner filter.
NOTICE
⬛To prevent damaging the engine
Do not drive with the air cleaner filter removed. Doing so causes excessive
engine wear.
KBRO620915E
KBRO620914E
RAIZE_OM_General_BZ358E.book 326 ページ ２０２２年５月１７日　火曜日　午後１時５９分
