309
RAIZE_OM_General_BZ358E
Maintenance and care
6
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsParts and tools
Battery condition
(➞ P. 321)
⚫Warm water
⚫Baking soda
⚫Grease
⚫Conventional wrench (for terminal clamp bolts)
⚫Distilled water
Brake fluid level
(➞ P. 320)⚫FMVSS No.116 DOT 3 brake fluid
⚫Rag or paper towel
⚫Funnel (used only for adding brake fluid)
Engine coolant level
(➞ P. 319)
⚫“Toyota Super Long Life Coolan t” or a similar high quality
ethylene glycol-based non-silicate, non-amine, non-nitrite
and non-borate coolant with long-life hybrid organic acid
technology “Toyota Super Long Life Coolant” is premixed
with 50% coolant and 50% deionized water.
⚫Funnel (used only for adding coolant)
Engine oil level
( ➞ P. 316)⚫Engine oil
⚫Rag or paper towel
⚫Funnel (used only for adding engine oil)
Fuses ( ➞P. 348)⚫Fuse with same amperage rating as original
Light bulbs
(➞ P. 352)⚫Bulb with same number and wattage rating as original
⚫Flathead screwdriver
⚫Wrench
Radiator and con-
denser ( ➞P. 320)―
Tire inflation pres-
sure ( ➞P. 334)⚫Tire pressure gauge
⚫Compressed air source
Washer fluid
(➞ P. 324)⚫Water or washer fluid containing antifreeze (for winter
use)
⚫Funnel (used only for addi ng water or washer fluid)
RAIZE_OM_General_BZ358E.book 309 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3506-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
eCheck if the fuse is blown.
aNormal fuse
b Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
▶Type A▶Type B
f To install, reverse the removal procedure
⬛After a fuse is replaced
⚫If the lights do not turn on even afte r the fuse has been replaced, replace the
bulb. ( ➞P. 352)
⚫If the replaced fuse blows again, or if the electrical system does not work,
have the vehicle inspected by your Toyota dealer.
⬛If there is an overload in a circuit
The fuses are designed to blow, protec ting the wiring harness from damage.
⬛When replacing light bulbs
We recommend that you use genuine Toyota products designated for this
vehicle. Because certain bulbs are connect ed to circuits designed to prevent
overload, products other than the Toyo ta genuine parts designated for this
vehicle may be unusable.
KBTE731003KBTE731004
RAIZE_OM_General_BZ358E.book 350 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3526-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped

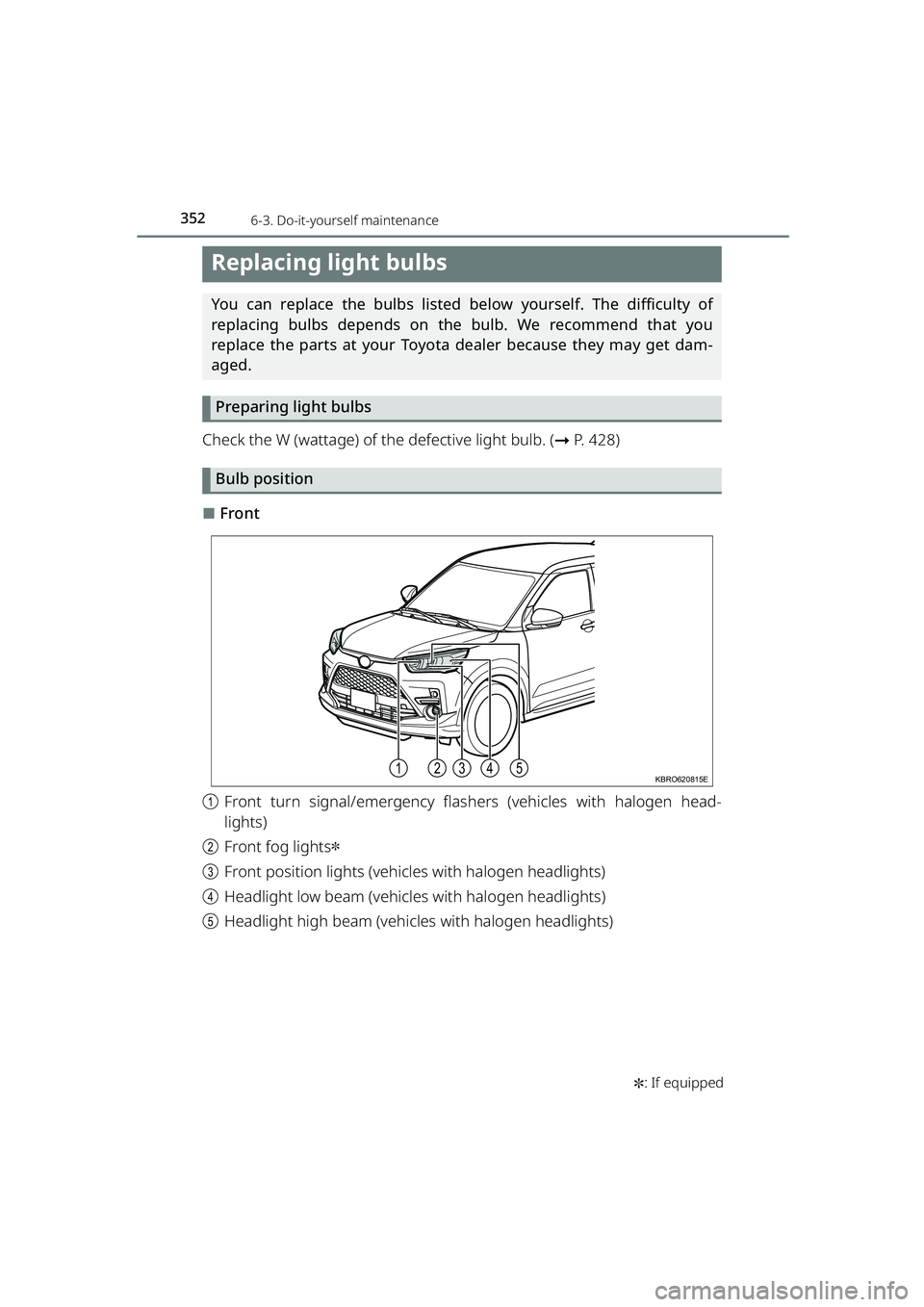

Replacing light bulbs
You can replace the bulbs listed below yourself. The difficulty of
replacing bulbs depends on the bulb. We recommend that you
replace the parts at your Toyota dealer because they may get dam-
aged.
Preparing light bulbs
Check the W (wattage) of the defective light bulb. ( ➞P. 428)
Bulb position
⬛Front
a Front turn signal/emergency flashers (vehicles with halogen head-
lights)
b Front fog lights
✽
cFront position lights (vehicles with halogen headlights)
d Headlight low beam (vehicles with halogen headlights)
e Headlight high beam (vehicles with halogen headlights)
12345KBRO620815E
RAIZE_OM_General_BZ358E.book 352 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3546-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E

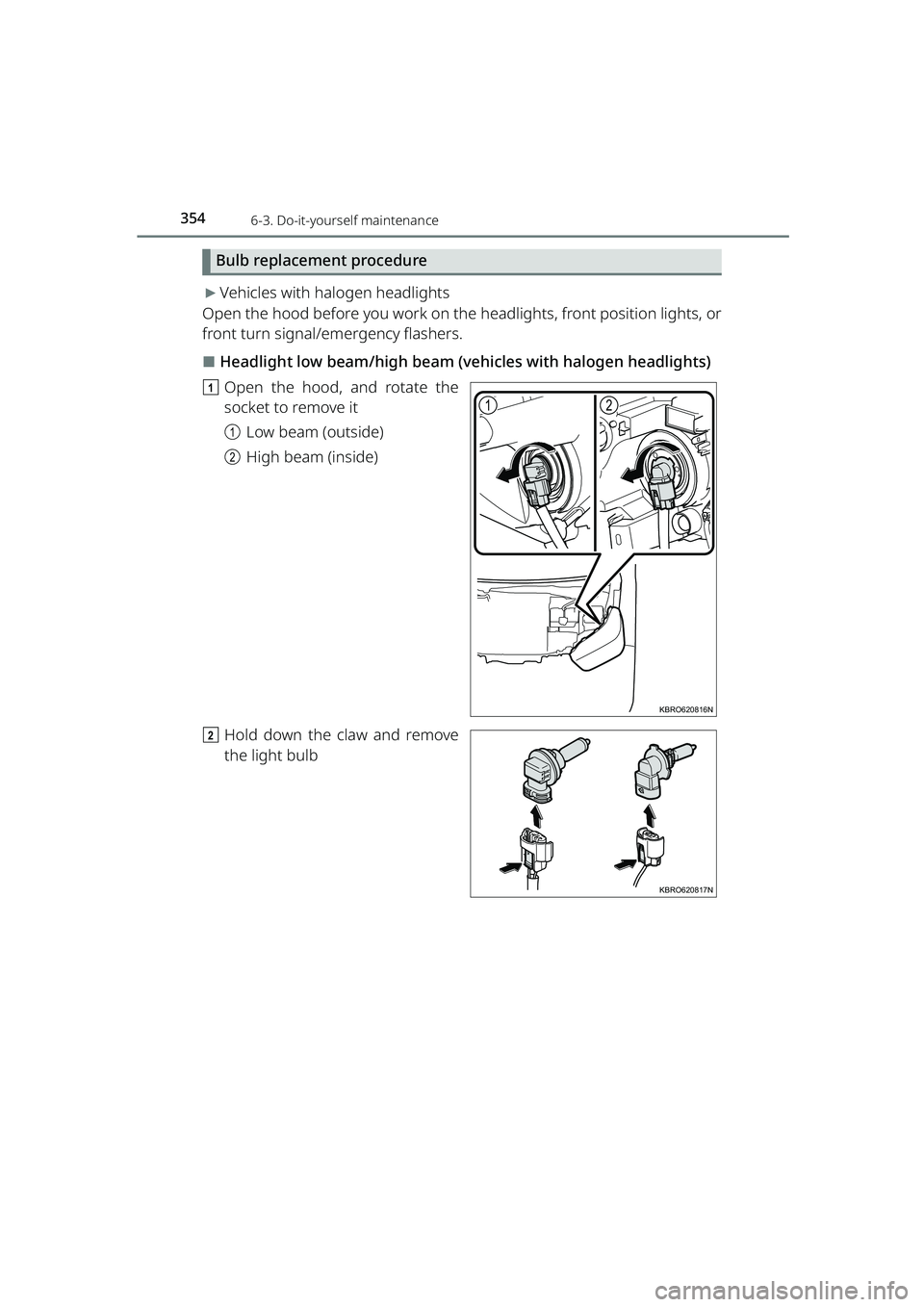

Bulb replacement procedure
▶Vehicles with halogen headlights
Open the hood before you work on th e headlights, front position lights, or
front turn signal/emergency flashers.
⬛Headlight low beam/high beam (v ehicles with halogen headlights)
a Open the hood, and rotate the
socket to remove it
aLow beam (outside)
b High beam (inside)
b Hold down the claw and remove
the light bulb
12
KBRO620816N
KBRO620817N
