Maintenance and care
6

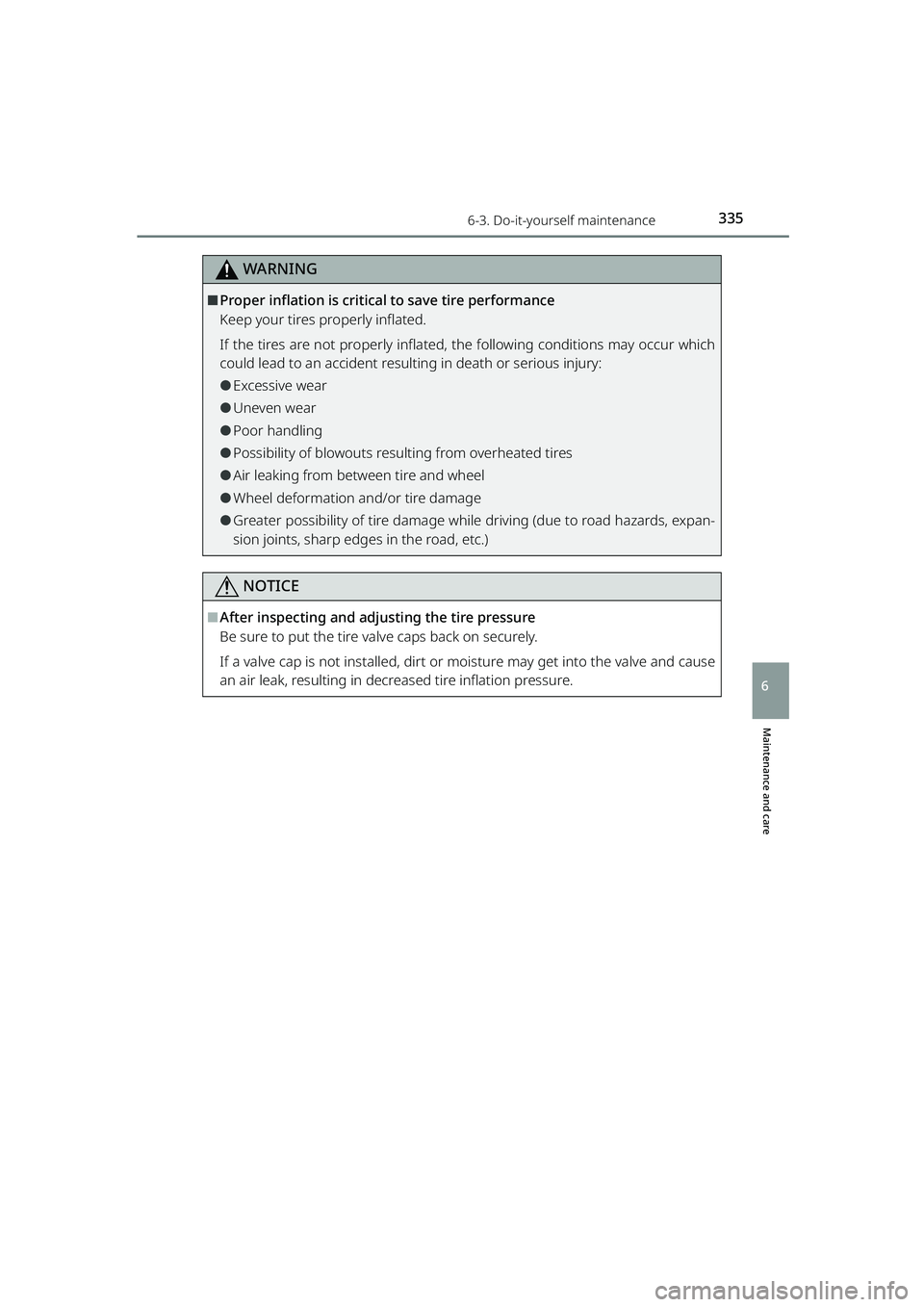

WARNING
⬛Proper inflation is critical to save tire performance
Keep your tires properly inflated.
If the tires are not properly inflated, the following conditions may occur which
could lead to an accident resulting in death or serious injury:
⚫Excessive wear
⚫Uneven wear
⚫Poor handling
⚫Possibility of blowouts resulting from overheated tires
⚫Air leaking from between tire and wheel
⚫Wheel deformation and/or tire damage
⚫Greater possibility of tire damage while driving (due to road hazards, expan-
sion joints, sharp edges in the road, etc.)
NOTICE
⬛After inspecting and adjusting the tire pressure
Be sure to put the tire valve caps back on securely.
If a valve cap is not installed, dirt or moisture may get into the valve and cause
an air leak, resulting in decreased tire inflation pressure.
RAIZE_OM_General_BZ358E.book 335 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3366-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped

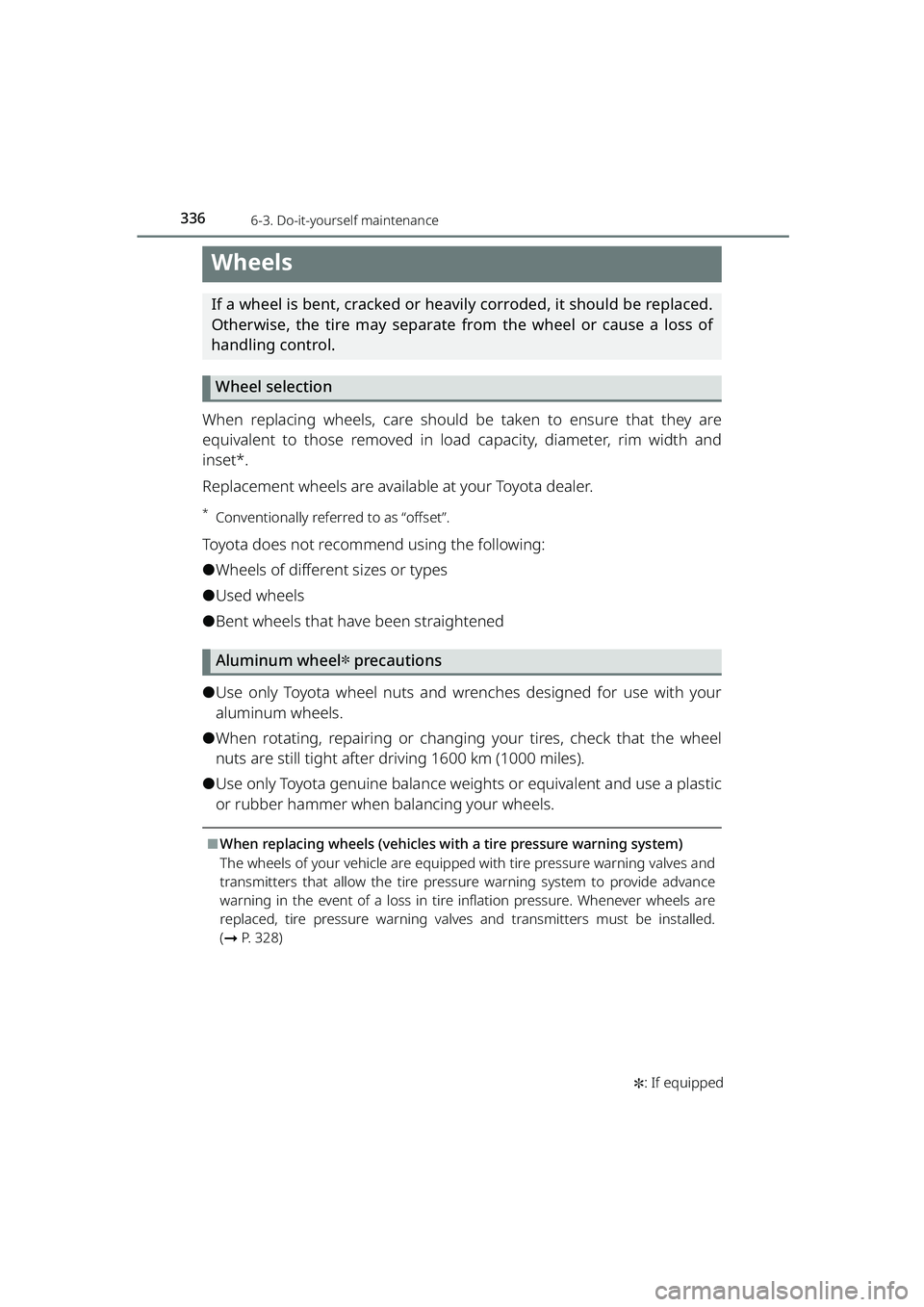

Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause a loss of
handling control.
Wheel selection
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset*.
Replacement wheels are available at your Toyota dealer.
*Conventionally referred to as “offset”.
Toyota does not recommend using the following:
⚫Wheels of different sizes or types
⚫Used wheels
⚫Bent wheels that ha ve been straightened
Aluminum wheel
✽ precautions
⚫Use only Toyota wheel nuts and wrenches designed for use with your
aluminum wheels.
⚫When rotating, repairing or changing your tires, check that the wheel
nuts are still tight after driving 1600 km (1000 miles).
⚫Use only Toyota genuine balance weights or equivalent and use a plastic
or rubber hammer when balancing your wheels.
⬛When replacing wheels (vehicles with a tire pressure warning system)
The wheels of your vehicle are equipped with tire pressure warning valves and
transmitters that allow the tire pressu re warning system to provide advance
warning in the event of a lo ss in tire inflation pressure. Whenever wheels are
replaced, tire pressure warning valves and transmitters must be installed.
( ➞ P. 328)
RAIZE_OM_General_BZ358E.book 336 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3376-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

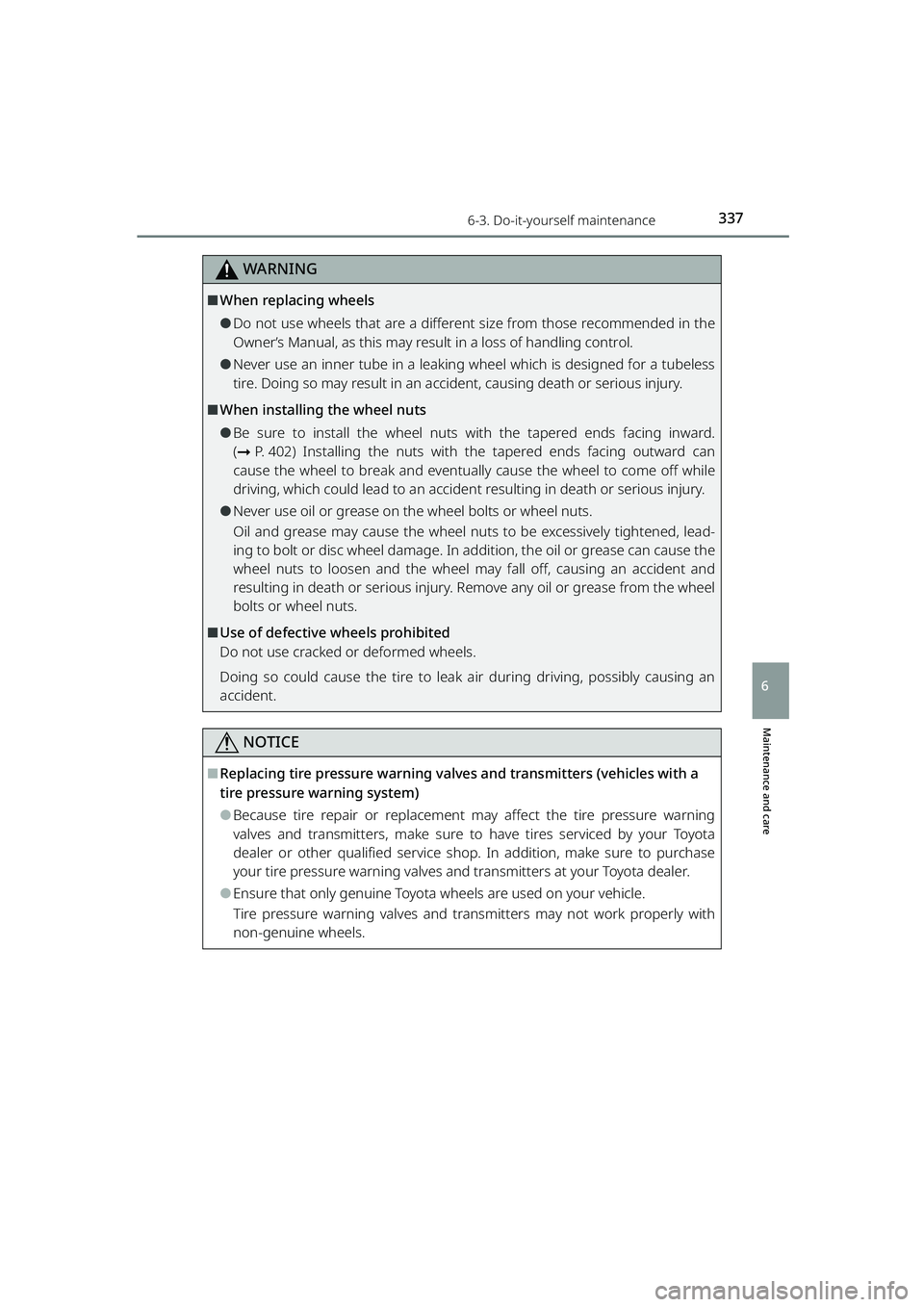

WARNING
⬛When replacing wheels
⚫Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
⚫Never use an inner tube in a leaking wheel which is designed for a tubeless
tire. Doing so may result in an accident, causing death or serious injury.
⬛When installing the wheel nuts
⚫Be sure to install the wheel nuts wi th the tapered ends facing inward.
( ➞ P. 402) Installing the nu ts with the tapered ends facing outward can
cause the wheel to break and eventual ly cause the wheel to come off while
driving, which could lead to an acciden t resulting in death or serious injury.
⚫Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened, lead-
ing to bolt or disc wheel damage. In addition, the oil or grease can cause the
wheel nuts to loosen and the wheel ma y fall off, causing an accident and
resulting in death or serious injury. Re move any oil or grease from the wheel
bolts or wheel nuts.
⬛Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an
accident.
NOTICE
⬛Replacing tire pressure warning valves and transmitters (vehicles with a
tire pressure warning system)
⚫Because tire repair or replacement ma y affect the tire pressure warning
valves and transmitters, make sure to have tires serviced by your Toyota
dealer or other qualified service shop . In addition, make sure to purchase
your tire pressure warning valves and transmitters at your Toyota dealer.
⚫Ensure that only genuine Toyota wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with
non-genuine wheels.
RAIZE_OM_General_BZ358E.book 337 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3386-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Replacing the air conditioning filter
The air conditioning filter must be changed regularly to maintain air
conditioning efficiency.
Replacement method
a Turn the engine switch to “OFF”
b Remove the glove box
aPush the right side inward
and disengage the upper claw
b Push the left side inward and
disengage the upper claw
c Disengage the lower claws
c Remove the filter cover
aUnlock the filter cover
b Slide the filter cover in the
direction of the arrow to
remove it
d Remove the filter and replace it
with a new one
“ ” Attach it so that the arrow
indicated with the icon faces upward.
1
3
2
KBRO620703E
21
KBRO620501E
KBRO620502E
RAIZE_OM_General_BZ358E.book 338 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3396-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

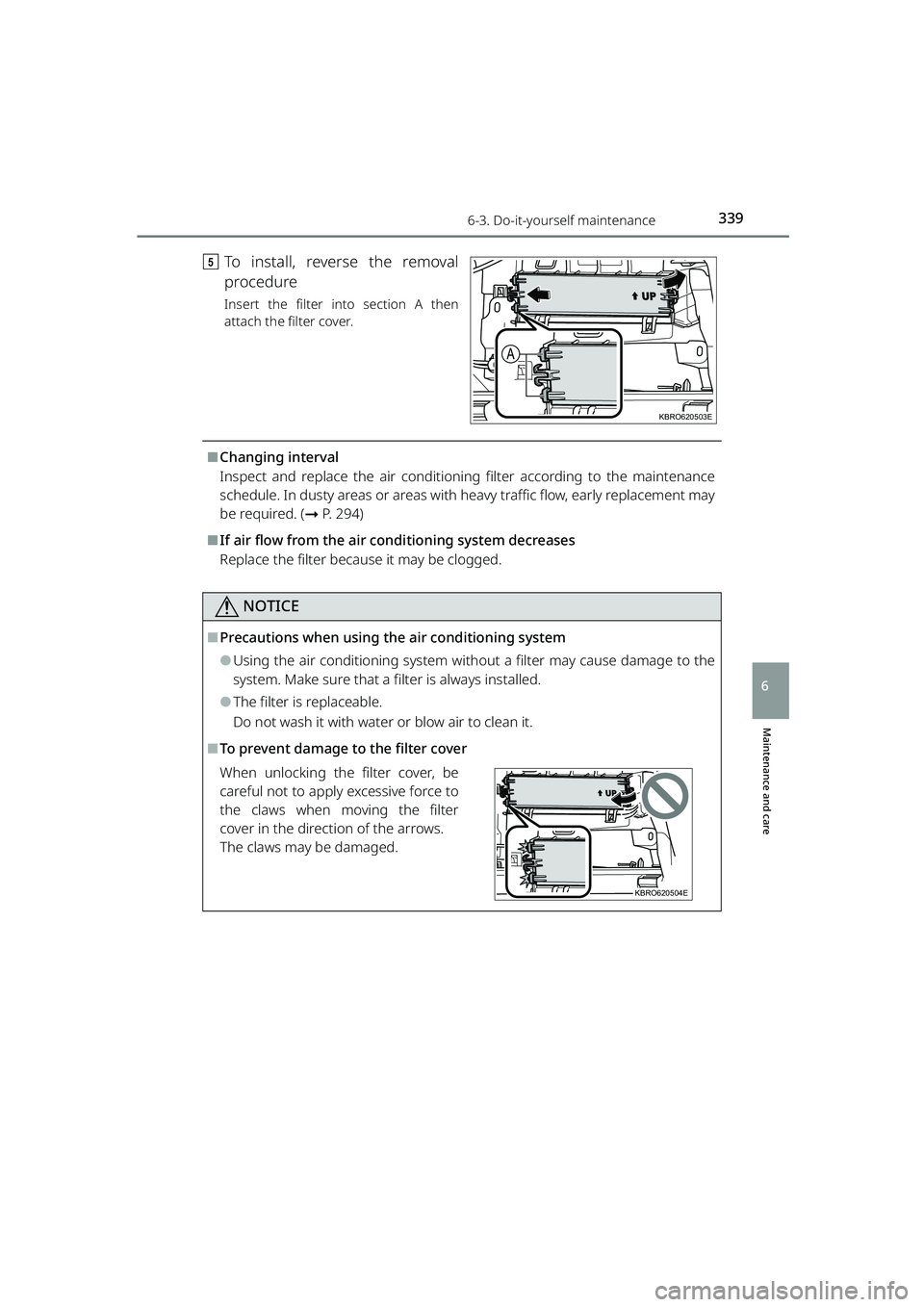

eTo install, reverse the removal
procedure
Insert the filter into section A then
attach the filter cover.
⬛Changing interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement may
be required. ( ➞P. 294)
⬛If air flow from the air conditioning system decreases
Replace the filter because it may be clogged.
NOTICE
⬛Precautions when using th e air conditioning system
⚫Using the air conditioning system without a filter may cause damage to the
system. Make sure that a filter is always installed.
⚫The filter is replaceable.
Do not wash it with water or blow air to clean it.
⬛To prevent damage to the filter cover
When unlocking the filter cover, be
careful not to apply excessive force to
the claws when moving the filter
cover in the direction of the arrows.
The claws may be damaged.
A
KBRO620503E
KBRO620504E
RAIZE_OM_General_BZ358E.book 339 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3406-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Replacing the wiper rubbers
When replacing the wiper rubbers, handle each part of the wipers as
follows.
Windshield wipers

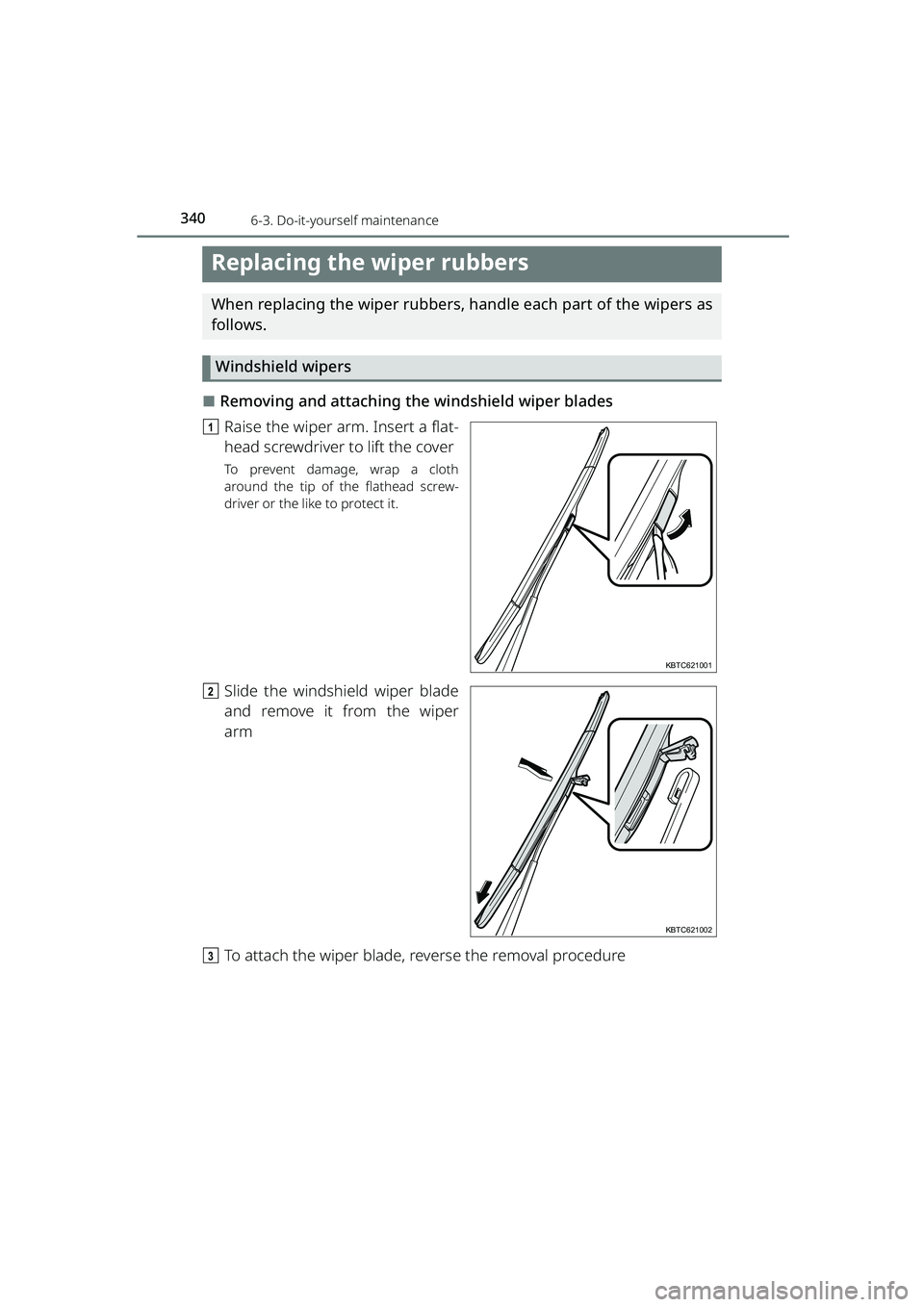

⬛Removing and attaching the windshield wiper blades
a Raise the wiper arm. Insert a flat-
head screwdriver to lift the cover
To prevent damage, wrap a cloth
around the tip of the flathead screw-
driver or the like to protect it.
bSlide the windshield wiper blade
and remove it from the wiper
arm
c To attach the wiper blade, reverse the removal procedure
KBTC621001
KBTC621002
RAIZE_OM_General_BZ358E.book 340 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3416-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

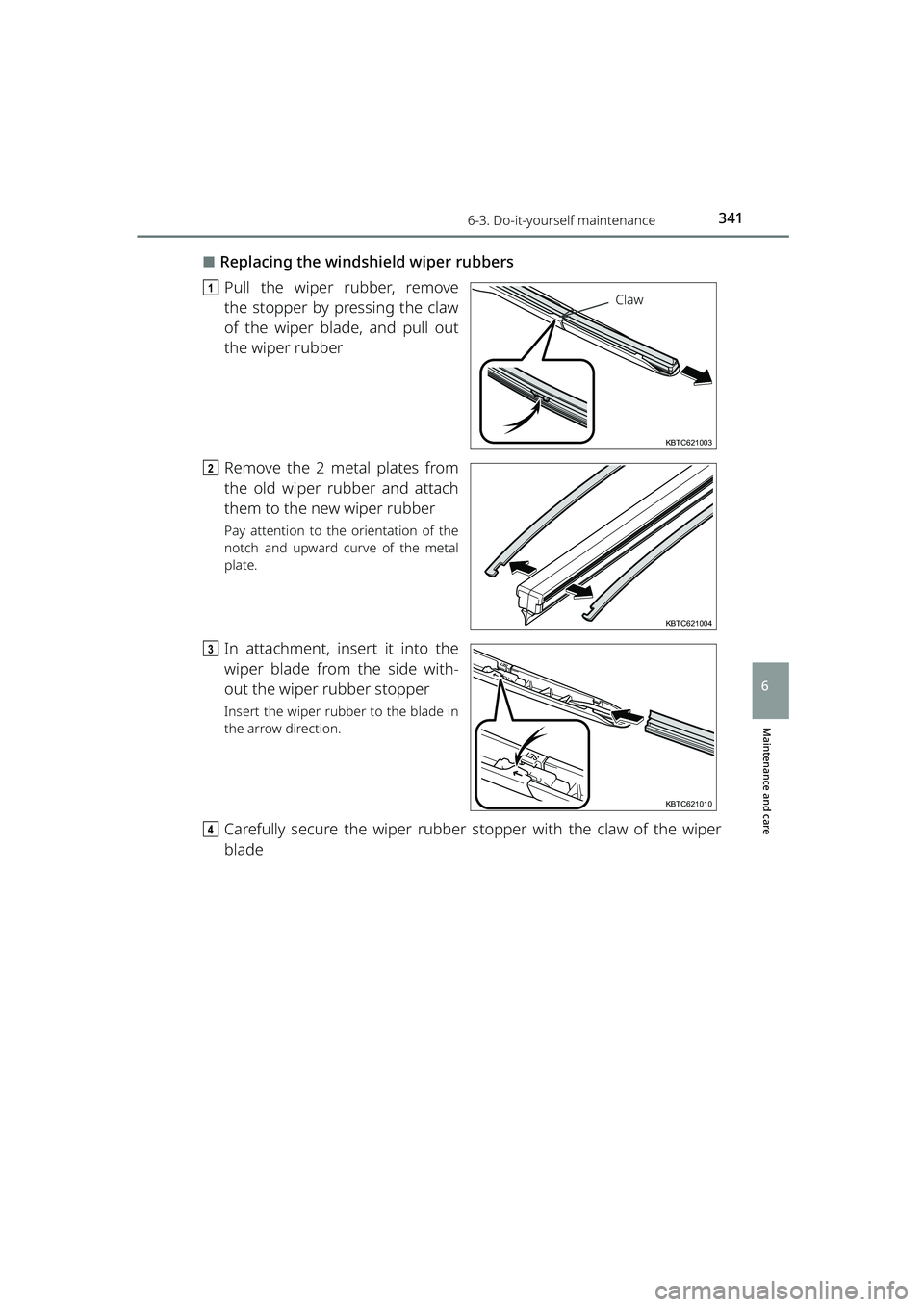

⬛Replacing the windshield wiper rubbers
a Pull the wiper rubber, remove
the stopper by pressing the claw
of the wiper blade, and pull out
the wiper rubber
b Remove the 2 metal plates from
the old wiper rubber and attach
them to the new wiper rubber
Pay attention to the orientation of the
notch and upward curve of the metal
plate.
cIn attachment, insert it into the
wiper blade from the side with-
out the wiper rubber stopper
Insert the wiper rubber to the blade in
the arrow direction.
dCarefully secure the wiper rubber stopper with the claw of the wiper
blade
KBTC621003
Claw
KBTC621004
KBTC621010
RAIZE_OM_General_BZ358E.book 341 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3426-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E

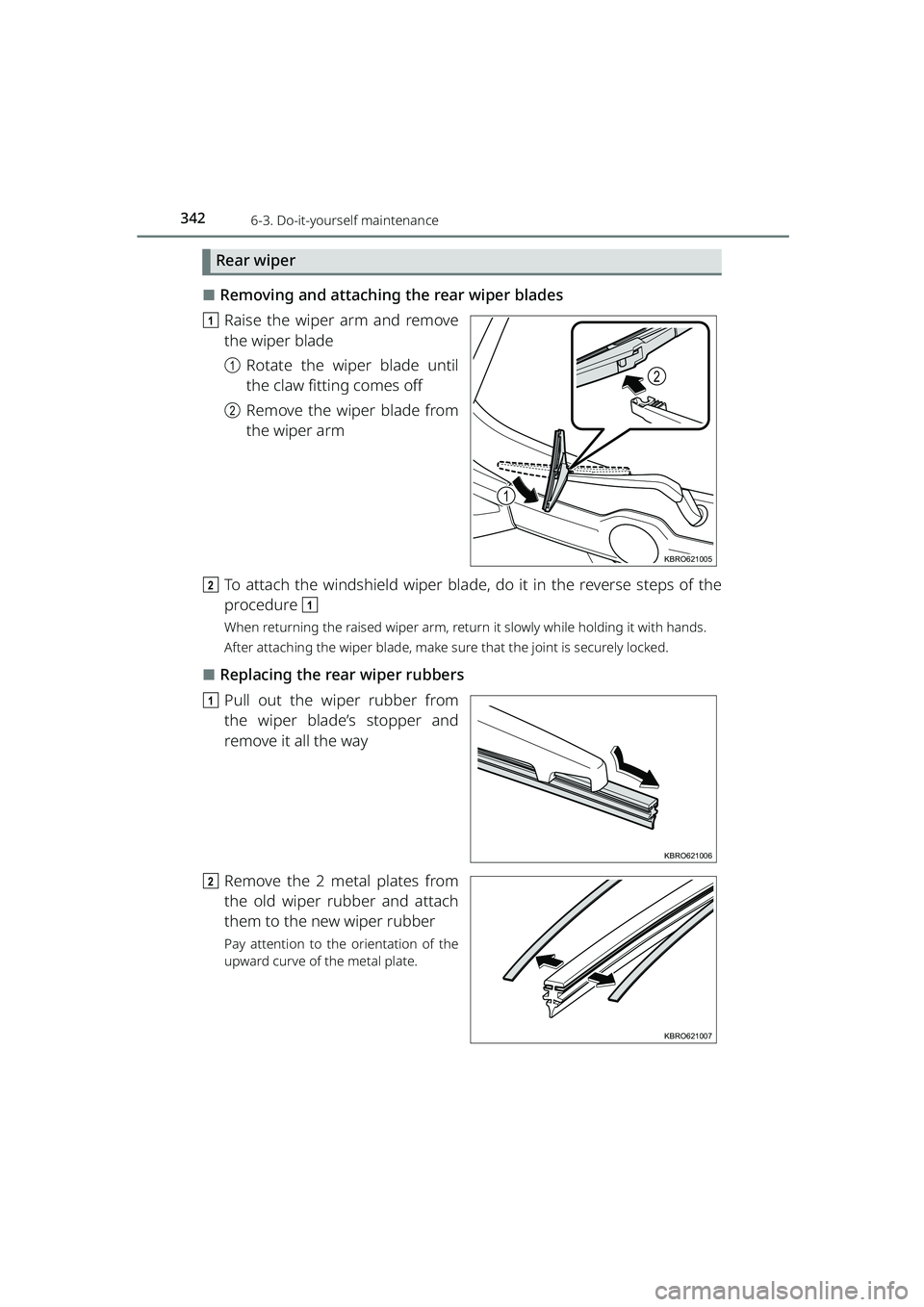

Rear wiper
⬛Removing and attaching the rear wiper blades
a Raise the wiper arm and remove
the wiper blade
aRotate the wiper blade until
the claw fitting comes off
b Remove the wiper blade from
the wiper arm
b To attach the windshield wiper blade, do it in the reverse steps of the
procedure a
When returning the raised wiper arm, return it slowly while holding it with hands.
After attaching the wiper blade, make sure that the joint is securely locked.
⬛Replacing the rear wiper rubbers
a Pull out the wiper rubber from
the wiper blade’s stopper and
remove it all the way
b Remove the 2 metal plates from
the old wiper rubber and attach
them to the new wiper rubber
Pay attention to the orientation of the
upward curve of the metal plate.
2
1
