When trouble arises
7
If the vehicle has become stuck
Carry out the following procedures if the tires spin or the vehicle has
become stuck in mud, sand or snow:
a Make sure that the parking brake is applied. For continuously variable
transmission vehicles, set the shift lever to P, and for the manual trans-
mission vehicles, set it to N, then stop the engine
b Remove the dirt and snow from around the wheels
c Place wood, stones or some other material under the rear wheels to
help provide traction
d Restart the engine
e For continuously variable transmission vehicles, set the shift lever to D
or R. For the manual transmission ve hicles, make sure to set the gear
to 1 or R. Then, step on the accelerator pedal while exercising caution
If VSC/TRC is making it difficult to extricate the vehicle, turn off TRC or VSC/TRC.
( ➞ P. 233)
WARNING
⬛When attempting to free a stuck vehicle
If you choose to push the vehicle back an d forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lu nge back suddenly as it becomes free.
Use extreme caution.
⬛When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause
an accident resulting in death or serious injury.
⬛To avoid damage to the transmission and other components
⚫Avoid spinning the wheels and depre ssing the accelerator pedal more than
necessary to race the engine. The tr ansmission or other parts may be dam-
aged, which may lead to an accident.
⚫Do not spin the wheels at high speed. The tires may rupture or overheat,
which may lead to an accident.
RAIZE_OM_General_BZ358E.book 415 ページ ２０２２年５月１７日　火曜日　午後１時５９分

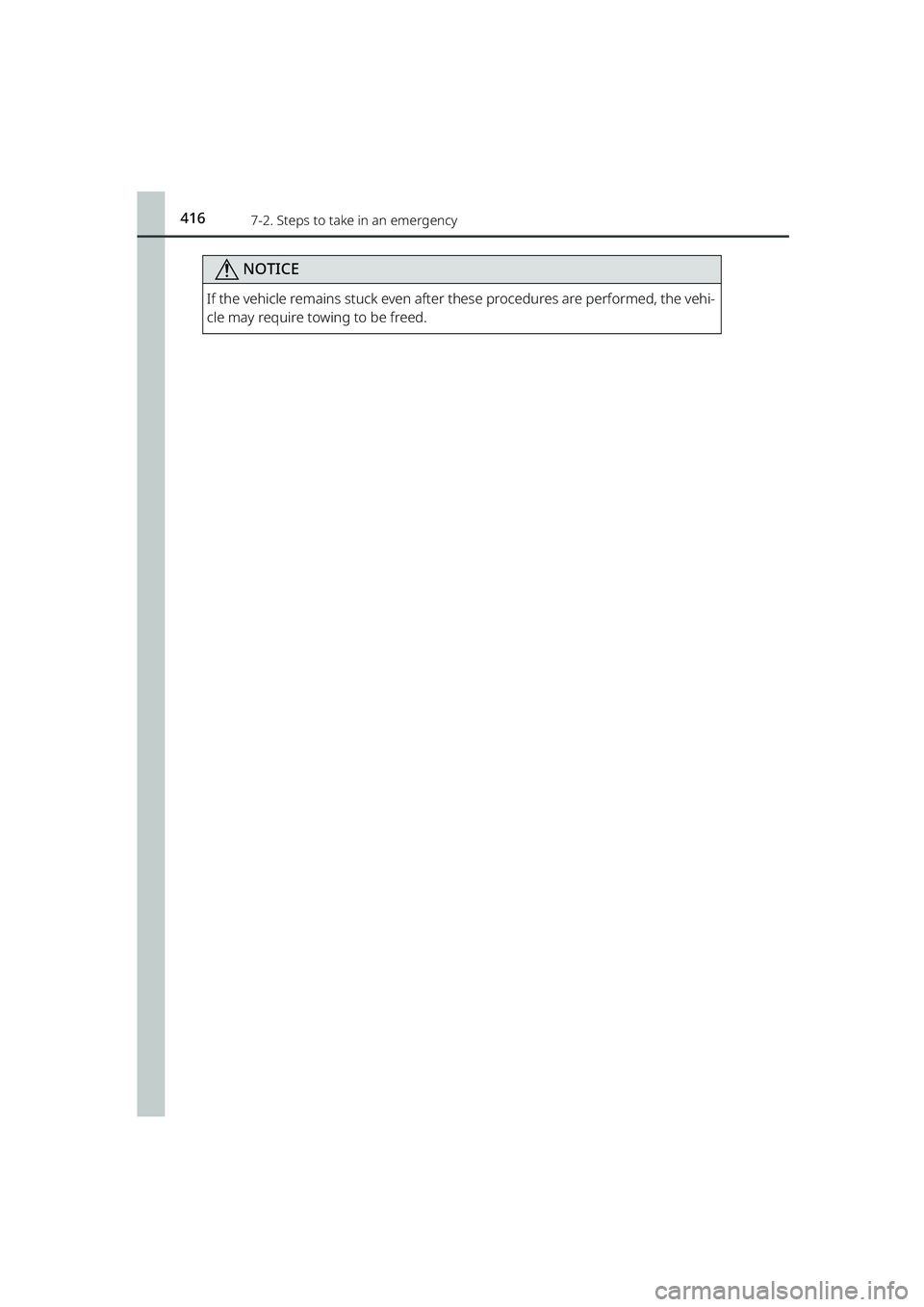

4167-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
NOTICE
If the vehicle remains stuck even after th ese procedures are performed, the vehi-
cle may require towing to be freed.
RAIZE_OM_General_BZ358E.book 416 ページ ２０２２年５月１７日　火曜日　午後１時５９分

417
8
RAIZE_OM_General_BZ358E
Vehicle information
8-1. List of specifications
Maintenance data (specified fuel, oil capacity,
etc.) ............................................ 418
Fuel information ........................ 429
8-2. Customizations
List of customizable features..................................... 430
8-3. Initial setting
Item that requires initial setting ....................................... 434
RAIZE_OM_General_BZ358E.book 417 ページ ２０２２年５月１７日　火曜日　午後１時５９分

418
RAIZE_OM_General_BZ358E
8-1. List of specifications
Maintenance data (specified fuel, oil capacity,
etc.)
Dimensions and weights
*1Unladen vehicles
*2Vehicles with the pole antenna
*3Vehicles without the pole antenna
Vehicle identification
⬛Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehi-
cle. This is the primary identification number for your Toyota. It is used in
registering the ownership of your vehicle.
This number is stamped in the
engine compartment.
Overall length4030 mm (158.7 in.)
Overall width1710 mm (67.3 in.)
Overall height* 11605 mm (63.2 in.)*2
1635 mm (64.4 in.)*3
Wheelbase2525 mm (99.4 in.)
Trea dFront1475 mm (58.1 in.)
Rear1470 mm (57.9 in.)
KBRO810101N
RAIZE_OM_General_BZ358E.book 418 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4198-1. List of specifications
RAIZE_OM_General_BZ358E
Vehicle information
8

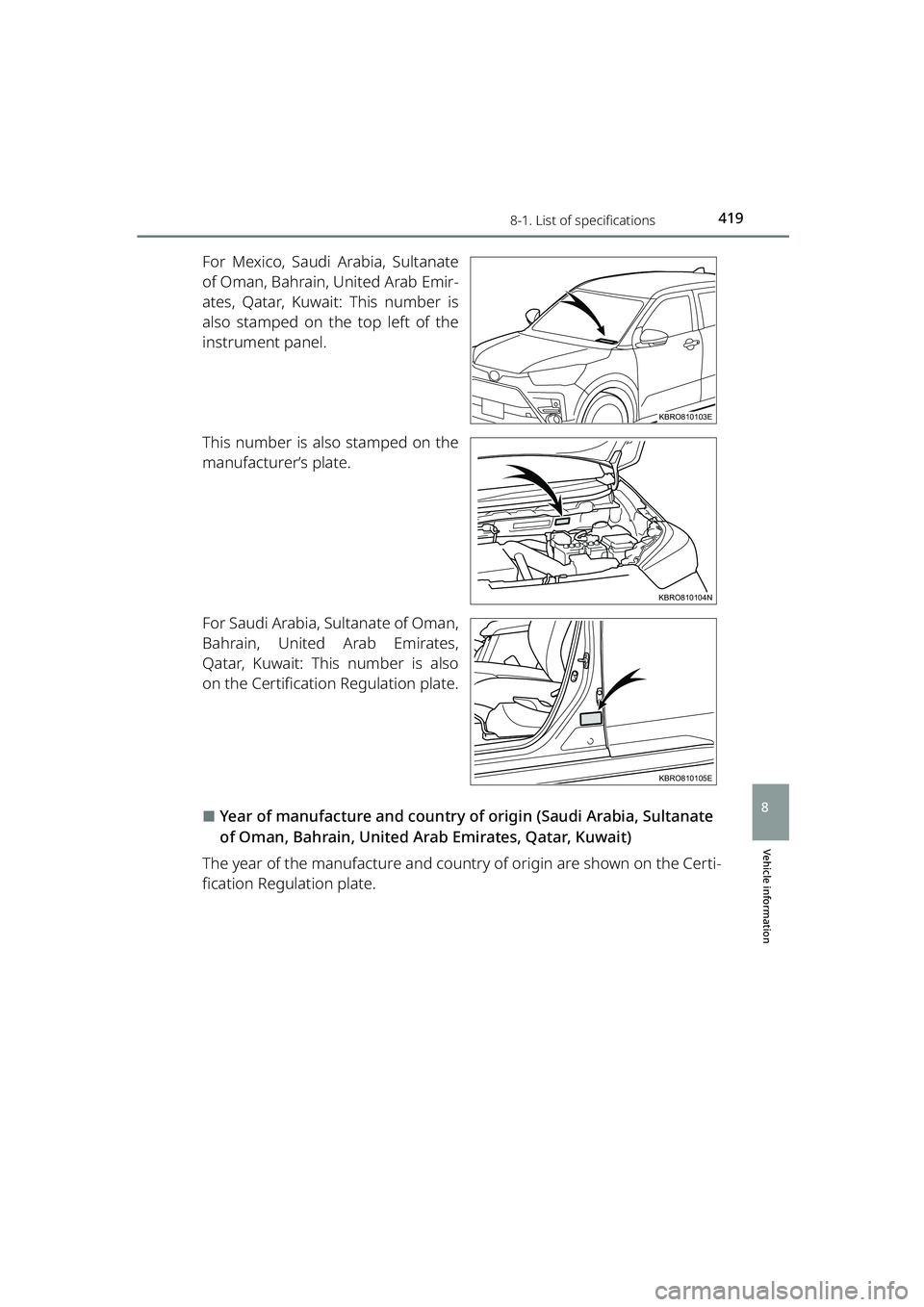

For Mexico, Saudi Arabia, Sultanate
