2023 TOYOTA RAIZE Owners Manual

551-2. Safety information for children
RAIZE_OM_General_BZ358E
For safety and security
1
Child restraint system compatibility for each seating position
⬛Child restraint system compatibility for each seating position
Compatibility of each seating positi on with child restraint systems (➞P. 5 6 )
displays the type of child restraint systems that can be used and possible
seating positions for installation using symbols. Also, the recommended
child restraint system that is suitable for your child can be selected.
Otherwise, check [Recommended child restraint systems and Compatibil-
ity table] for recommended child restraint systems. (➞P. 59)
Check the selected child restraint system together with the following
[Before confirming the compatibility of each seating position with child
restraint systems].
⬛Before confirming the compatibilit y of each seating position with
child restraint systems
a Checking the child rest raint system standards.
Use a child restraint system th at conforms to UN(ECE) R44*
1 or
UN(ECE) R129*
1, 2. The following approval mark is displayed on child
restraint systems which are conformed.
Check for an approval mark attached to the child restraint system.
▶Example of the displayed regu-
lation number
a UN(ECE) R44 approval mark*
3
The weight range of the child
who is applicable for an
UN(ECE) R44 approval mark is
indicated.
bUN(ECE) R129 approval mark*3
The height range of the child
who is applicable as well as
available weights for an
UN(ECE) R129 approval mark
is indicated.
*1UN(ECE) R44 and UN(ECE) R129 are U.N. regulations for child restraint sys-
tems.
*2The child restraint systems mentioned in the table may not be available
outside of the EU area.
*3The displayed mark may differ depending on the product.
KBTA110604
RAIZE_OM_General_BZ358E.book 55 ページ ２０２２年５月１７日　火曜日　午後１時５９分

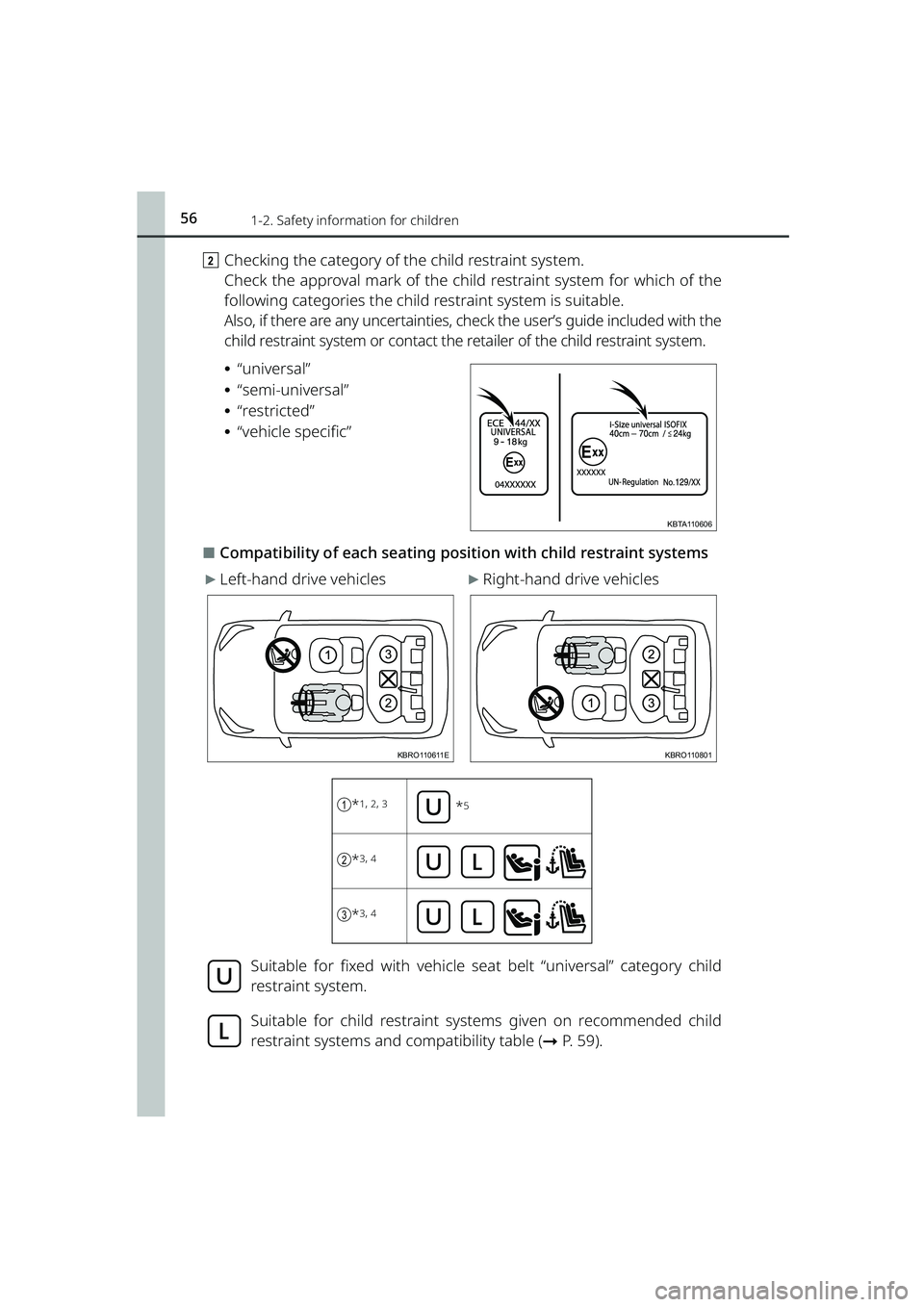

561-2. Safety information for children
RAIZE_OM_General_BZ358E
bChecking the category of the child restraint system.
Check the approval mark of the child restraint system for which of the
following categories the child restraint system is suitable.
Also, if there are any uncertainties, ch eck the user’s guide included with the
child restraint system or contact the retailer of the child restraint system.
⦁“universal”
⦁ “semi-universal”
⦁ “restricted”
⦁ “vehicle specific”
⬛Compatibility of each seating position with child restraint systems
▶Left-hand drive vehicles▶Right-hand drive vehicles
Suitable for fixed with vehicle seat belt “universal” category child restraint system.
Suitable for child restraint systems given on recommended child restraint systems and compatibility table (➞P. 59).
KBTA110606
KBRO110611EKBRO110801
a*1, 2, 3*5
b*3, 4
c*3, 4
RAIZE_OM_General_BZ358E.book 56 ページ ２０２２年５月１７日　火曜日　午後１時５９分

571-2. Safety information for children
RAIZE_OM_General_BZ358E
For safety and security
1
Suitable for i-Size and ISOFIX child restraint system.
This seat is fitted with a Top tether anchorage point.
Not suitable for child restraint system.
Never use a rear-facing child restraint system on the front passen-
ger seat.
*1Install the child restraint system with the seat pushed all the way back.
*2Tilt the seatback forward, place it back in its 1st fixed position (a), and adjust
it to its 5th fixed position ( b).
*3If the child restraint system cannot be properly installed because the head
restraint is in the way, fix the head restraint at its highest position or remove
it.
*4Tilt the seatback forward and place it back in its 1st fixed position ( a).
*5Child restraint systems should always be used facing forward.
21
KBRO110612E
1
KBRO110609
RAIZE_OM_General_BZ358E.book 57 ページ ２０２２年５月１７日　火曜日　午後１時５９分

581-2. Safety information for children
RAIZE_OM_General_BZ358E
⬛Detail information for CRS installation
ISOFIX child restraint systems are divided into different “fixture”. The child
restraint system can be used in th e seating positions for “fixture” men-
tioned in the table above. For kind of “fixture” relation, confirm the follow-
ing table.
If your child restraint system has no kind of “fixture” (or if you cannot find
information in the table below), please refer to the child restraint system
“vehicle list” for compatibility information or ask the retailer of your child
seat.
Seating position
Seat position numberabc
Seating position suitable for universal
belted (yes/no)YesYe sYe s
i-Size seating position (yes/no)NoYe sYe s
Seating position suitable for lateral fix-
ture (L1/L2/No)NoNoNo
Suitable rearward facing fixture (R1/
R2X/R2/R3/No)NoR1, R2X, R2,
R3R1, R2X, R2, R3
Suitable forward facing fixture (F2X/F2/
F3/No)NoF2X, F2, F3F2X, F2, F3
Suitable junior seat fixture (B2/B3/No)NoB2, B3B2, B3
FixtureDescription
F3Full-height, forward-facing child restraint systems
F2Reduced-height forward-faci ng child restraint systems
F2XReduced-height forward-facing child restraint systems
R3Full-size, rearward-facing child restraint systems
R2Reduced-size, rearward-facing child restraint systems
R2XReduced-size, rearward-facing child restraint systems
R1Rearward-facing infant seat
L1Left lateral-facing (carrycot) infant seat
L2Right lateral-facing (carrycot) infant seat
B2Junior seat
B3Junior seat
RAIZE_OM_General_BZ358E.book 58 ページ ２０２２年５月１７日　火曜日　午後１時５９分

591-2. Safety information for children
RAIZE_OM_General_BZ358E
For safety and security
1
⬛Recommended child restraint systems and Compatibility table
When installing a child restraint in th e rear seats, adjust the front seat so
that it does not interfere with the child or child restraint system.
WARNING
When securing some types of child restra int systems in rear seat, it may not be
possible to properly use the seat belts in positions next to the child restraint
without interfering with it or af fecting seat belt effectiveness.
Be sure your seat belt fits snugly across your shoulder and low on your hips. If it
does not, or if it interferes with the ch ild restraint, move to a different position.
Failure to do so may result in death or serious injury.
Mass groupsRecommended Child Restraint SystemSeating position
abc
0, 0+
Up to 13 kg (28
lb.)i-Size MIDINoYesYe s
I
9 to 18 kg (20
to 39 lb.)
i-Size MIDINoYesYe s
RAIZE_OM_General_BZ358E.book 59 ページ ２０２２年５月１７日　火曜日　午後１時５９分

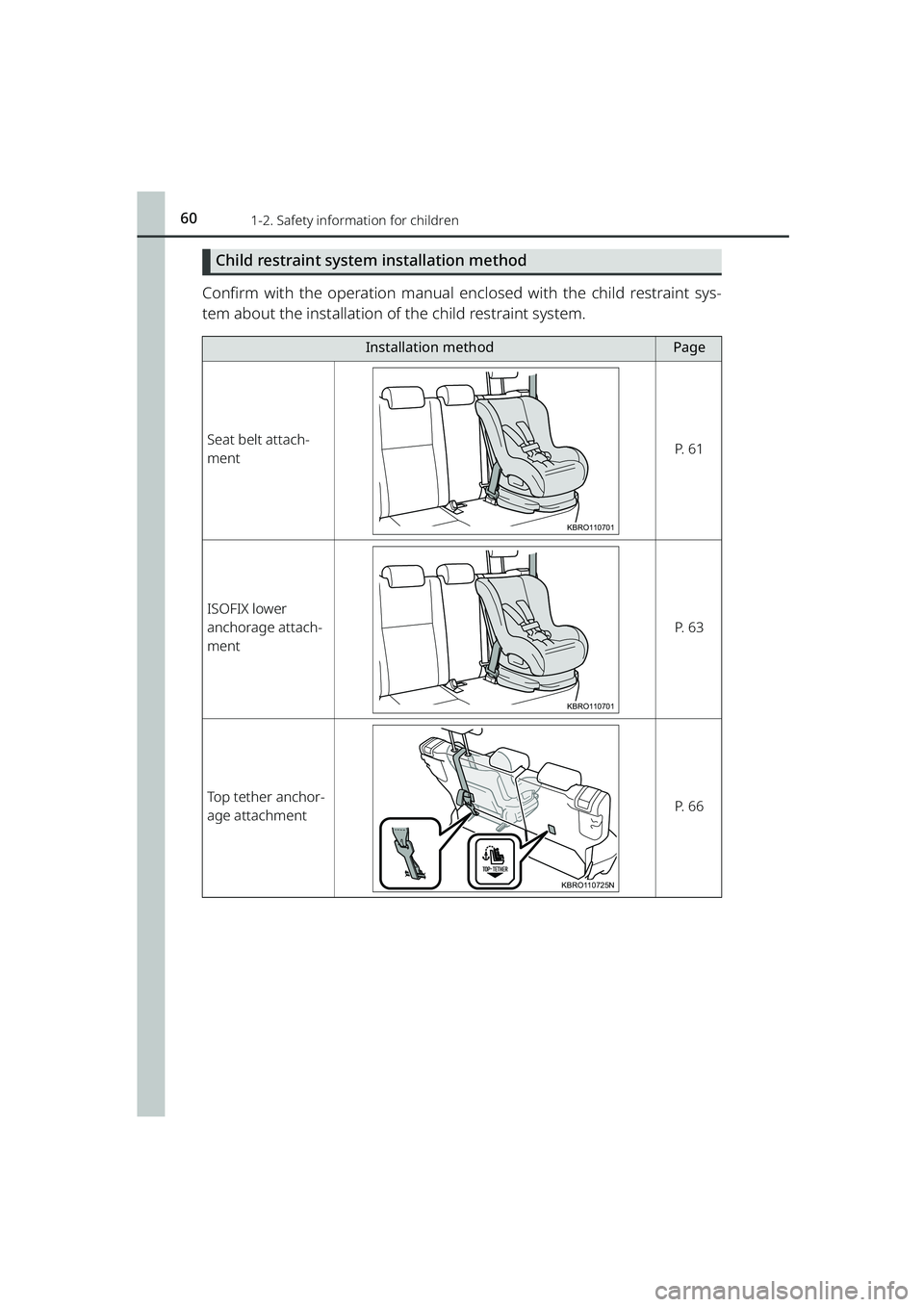

601-2. Safety information for children
RAIZE_OM_General_BZ358E
Child restraint system installation method
Confirm with the operation manual enclosed with the child restraint sys-
tem about the installation of the child restraint system.
Installation methodPage
Seat belt attach-
mentP. 6 1
ISOFIX lower
anchorage attach-
ment
P. 6 3
Top tether anchor-
age attachmentP. 6 6
KBRO110701
KBRO110701
KBRO110725N
RAIZE_OM_General_BZ358E.book 60 ページ ２０２２年５月１７日　火曜日　午後１時５９分

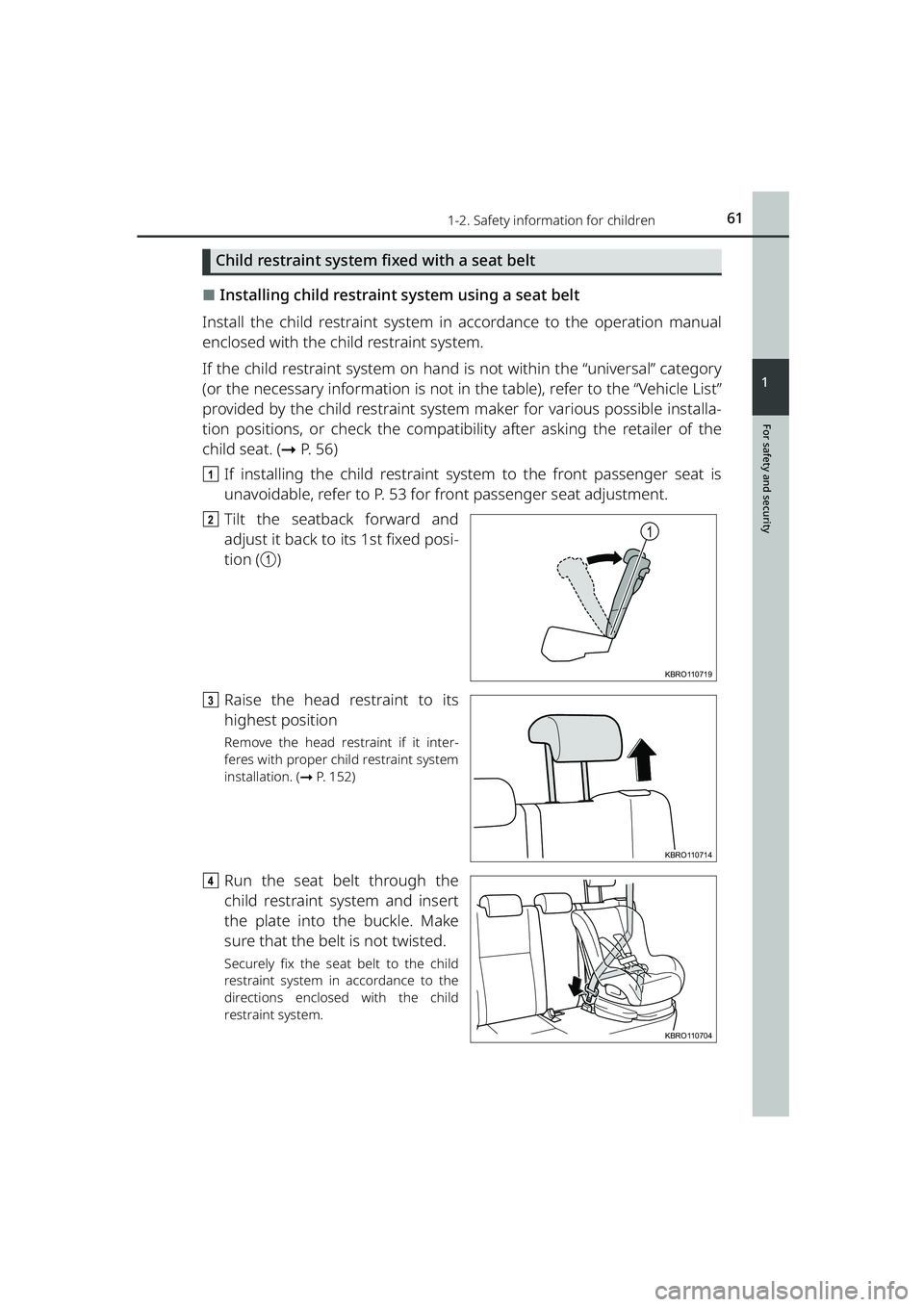

611-2. Safety information for children
RAIZE_OM_General_BZ358E
For safety and security
1
Child restraint system fixed with a seat belt
⬛Installing child restraint system using a seat belt
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
If the child restraint system on hand is not within the “universal” category
(or the necessary information is not in the table), refer to the “Vehicle List”
provided by the child restraint system maker for various possible installa-
tion positions, or check the compatibility after asking the retailer of the
child seat. ( ➞P. 5 6 )
a If installing the child restraint syst em to the front passenger seat is
unavoidable, refer to P. 53 for front passenger seat adjustment.
b Tilt the seatback forward and
adjust it back to its 1st fixed posi-
tion (a )
c Raise the head restraint to its
highest position
Remove the head restraint if it inter-
feres with proper child restraint system
installation. ( ➞P. 152)
d Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Securely fix the seat belt to the child
restraint system in accordance to the
directions enclosed with the child
restraint system.
1
KBRO110719
KBRO110714
KBRO110704
RAIZE_OM_General_BZ358E.book 61 ページ ２０２２年５月１７日　火曜日　午後１時５９分

621-2. Safety information for children
RAIZE_OM_General_BZ358E
eIf your child restraint system is
not equipped with a lock off (a
seat belt locking feature), secure
the child restraint system using a
locking clip.
f After installing the child restraint system, rock it back and forth to
ensure that it is installed securely.
⬛Removing a child restraint syst em installed with a seat belt
Press the buckle release button and fully retract the seat belt.
When releasing the buckle, the child restraint system may spring up due to the
rebound of the seat cushion. Release the buckle while holding down the child
restraint system.
Since the seat belt automatically reels itself , slowly return it to the stowing position.
⬛When installing a child restraint system
You may need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child restraint
system does not provide a locking c lip, you can purchase the following item
from any authorized Toyota retailer or Toyota authorized repairer, or any relia-
ble repairer: Locking clip for child re straint system (Part No. 73119-22010)
WARNING
⬛When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
⚫Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may le ad to choking or other serious injuries
that could result in death. If this occurs and the buckle cannot be unfas-
tened, scissors should be used to cut the belt.
⚫Ensure that the belt and plate are secu rely locked and the seat belt is not
twisted.
⚫Shake the child restraint system left and right, and forward and backward to
ensure that it has been securely installed.
⚫After securing a child restraint system, never adjust the seat.
KBPA110705
