391-1. For safe use
RAIZE_OM_General_BZ358E
For safety and security
1
WARNING
⬛SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
⚫The driver and all passengers in the vehicle must wear their seat belts prop-
erly.
The SRS airbags are supplemental devices to be used with the seat belts.
⚫The SRS driver airbag deploys with co nsiderable force, and can cause death
or serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.) of
inflation, placing yourself 250 mm (10 in .) from your driver airbag provides
you with a clear margin of safety. This distance is measured from the center
of the steering wheel to your breastbo ne. If you sit less than 250 mm (10 in.)
away now, you can change your driving position in several ways:
⦁ Move your seat to the rear as far as you can while still reaching the pedals
comfortably.
⦁ Slightly recline the back of the seat . Although vehicle designs vary, many
drivers can achieve the 250 mm (10 in.) distance, even with the driver seat
all the way forward, simply by reclin ing the back of the seat somewhat. If
reclining the back of your seat makes it hard to see the road, raise yourself
by using a firm, non-slippery cushion, or raise the seat if your vehicle has
that feature.
⦁ If your steering wheel is adjustable, ti lt it downward. This points the airbag
toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintaining
control of the foot pedals, steering wh eel, and your view of the instrument
panel controls.
⚫The SRS front passenger airbag also de ploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the air-
bag as possible with the seatback ad justed, so the front passenger sits
upright.
⚫A deploying airbag can cause even the de ath or serious injury of an infant or
child who is improperly seated and/or restrained. An infant or child who is
too small to use a seat belt should be properly secured using a child
restraint system. Toyota strongly re commends that all infants and children
be placed in the rear seats of the ve hicle and properly restrained. The rear
seats are safer for infants and child ren than the front passenger seat.
( ➞ P. 49)
RAIZE_OM_General_BZ358E.book 39 ページ ２０２２年５月１７日　火曜日　午後１時５９分

972-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
WARNING
⬛Caution while driving
For safety reasons, do not operate the display change button or the clock
adjustment switch while driving. Doing so is dangerous and may lead to an
accident such as incorrect op eration of the steering wheel.
Stop the vehicle to operate it. While drivin g, keep the time that you look at the
display to the minimum necessary.
⬛When changing settings
As the engine needs to be running duri ng setting up the display, ensure that
the vehicle is parked in a place with adeq uate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may col-
lect and enter the vehicle. This may cau se death or a serious health hazard.
NOTICE
⬛Screen display at low temperatures
When the display screen temperature is extremely low, the display changes
may be delayed. Allow the interior of th e vehicle to warm up before using it.
⬛When changing display settings
Make sure that the engine is running, as otherwise the battery may discharge.
⬛About cruising distance
Even if the value indicated for cruising distance seems sufficient, try to fill the
fuel tank when the fuel gauge nears “E”, or the low fuel level warning light
turns on.
RAIZE_OM_General_BZ358E.book 97 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1152-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
⬛“Settings” operation
⚫The operation will be temporarily suspended if any of the following condi-
tions occur during the “Settings” operation.
⦁When warning messages are displayed
⦁ When the vehicle starts driving
⚫If the settings cannot be changed even after performing the operation, the
“Settings Failed” message will appear.
⬛When battery terminals are connected/disconnected
Clock data is reset when battery terminals are connected or disconnected.
⬛Liquid crystal display
➞ P. 8 5
⬛About notification screen
⚫Notification screen is displayed once a day.
⚫Birthday, and Anniversary day set to Fe bruary 29 are displayed on March 1,
except the leap year.
WARNING
⬛Caution while driving
For safety reasons, do not use the oper ation button while driving. Doing so is
dangerous and may lead to an accident such as incorrect operation of the
steering wheel.
Stop the vehicle to operate it. While drivin g, keep the time that you look at the
display to the minimum necessary.
⬛When changing settings
➞ P. 9 7
NOTICE
⬛Screen display at low temperatures
➞P. 9 7
⬛When changing display settings
➞P. 9 7
⬛About cruising distance
➞P. 9 7
RAIZE_OM_General_BZ358E.book 115 ページ ２０２２年５月１７日　火曜日　午後１時５９分

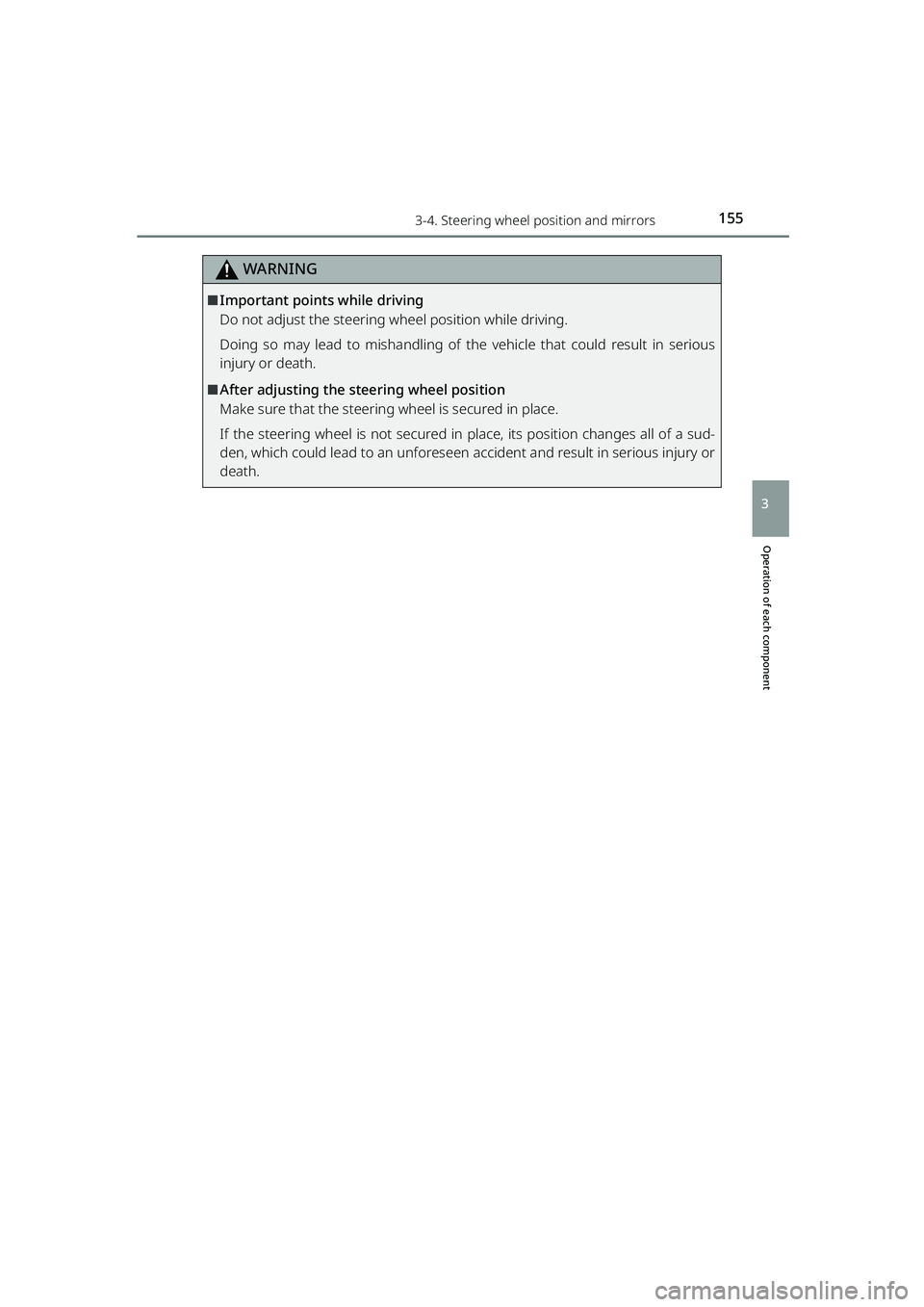

1553-4. Steering wheel position and mirrors
RAIZE_OM_General_BZ358E
Operation of each component
3
WARNING
⬛Important points while driving
Do not adjust the steering wheel position while driving.
Doing so may lead to mishandling of the vehicle that could result in serious
injury or death.
⬛After adjusting the steering wheel position
Make sure that the steering wheel is secured in place.
If the steering wheel is not secured in pl ace, its position changes all of a sud-
den, which could lead to an unforeseen a ccident and result in serious injury or
death.
RAIZE_OM_General_BZ358E.book 155 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1714-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
Driving
4
⚫Avoid sudden engine braking (shift lever operation). The tires may lock and
slip, causing an accident.
⚫Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so could cause the driver to mishandle the vehicle.
⚫Always check that all occupants’ arms , heads or other parts of their bodies
are not outside the vehicle.
⚫Do not drive off-road.
If you must drive off-road, drive carefully.
⚫Do not drive underwater such as crossing a river.
It may cause a serious vehicle failure such as short-circuiting of electrical
components or damage to the engine.
⚫Do not drive with luggage on or near the seats.
If the vehicle brakes or turns sudden ly, the luggage may be thrown out and
hit occupants, the luggage may be dama ged, or the driver may be distracted
by the luggage, which may lead to an unforeseen accident.
⚫Drive carefully where there are large steps or where there are wheel chocks.
The bumper may be damaged.
⚫Do not release the clutch pedal all the way at once. Doing so could move the
vehicle forward and may lead to an unforeseen accident. (➞ P. 194)
⬛When driving on slippery road surfaces
⚫Sudden braking, acceleration or steering may cause tire slippage and reduce
your ability to control the vehicle.
⚫Sudden acceleration, engine braking due to shifting, or changes in engine
speed could cause the vehicle to skid.
⚫After driving through a puddle, lightly depress the brake pedal to make sure
that the brakes are functioning prop erly. Wet brake pads may prevent the
brakes from functioning properly. If th e brakes on only one side are wet and
not functioning properly, steering control may be affected.
⬛When operating the shift lever
⚫For the continuously variable transmissi on vehicles, never let the vehicle roll
backward while the shift lever is in a driv ing position, or roll forward while the
shift lever is in R.
Doing so may cause the engine to sta ll or lead to poor brake and steering
performance, resulting in an acci dent or damage to the vehicle.
RAIZE_OM_General_BZ358E.book 171 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2976-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
*1Replace both the engine oil and oil filter, even when the maintenance
reminder does not appear, after 6 mont hs have passed, since the last oil
change.
*2After 80000 km (48000 miles) or 48 months inspection, inspect every 20000
km (12000 miles) or 12 months.
*3Including the filter in fuel tank.
25Drive shaft bootsIIIIIIII6
26Front wheel align-
ment (toe-in)II48
27Suspension ball joint
and dust coverIIII12
28
Manual transmis-
sion oil (including
front differential)
IRI: 48
R: 96
29
Continuously varia-
ble transmission
fluid (including front
differential)
Inspect every 12 months, Replace every
100000 km (60000 miles)―
30Front and rear sus-
pensionIIII12
31Tires and inflation
pressureIIIIIIII6
32Lights, horns, wipers
and washersIIIIIIII6
33Air conditioning filterRRRR24
SERVICE
INTERVAL:ODOMETER READING
MONTHS
(Odometer reading or months,
whichever
comes first.) x1000
km 1 1020304050607080
x1000 miles 1 6 12 18 24 30 36 42 48
RAIZE_OM_General_BZ358E.book 297 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3036-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
REMARKS: See page 306 for general maintenance items.
*1Replace both the engine oil and oil filter, even when the maintenance
reminder does not appear, after 6 mont hs have passed, since the last oil
change.
*2After 80000 km (48000 miles) or 48 months inspection, inspect every 20000
km (12000 miles) or 12 months.
*3Including the filter in fuel tank.
Additional maintenance schedule (For Mexico)
Refer to the following table for normal maintenance schedule items
requiring more frequent service specific to the type of severe conditions.
(For outline, see “Maintenan ce schedule requirements”.)
A-1: Operating on rough or muddy roads, or roads with melted snow
Inspection*
1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection* 1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 of brake pipes and hosesEvery 10000 km (6000 miles) or 6
months
Inspection*1 of steering wheel, linkage
and steering gear boxEvery 5000 km (3000 miles) or 3
months
Inspection* 1 of suspension ball joint and
dust coversEvery 10000 km (6000 miles) or 6
months
Inspection* 1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Inspection* 1 of front and rear suspensionEvery 10000 km (6000 miles) or 6
months
Tightening of bolts and nuts on chassis
and body
*2Every 10000 km (6000 miles) or 6
months
A-2: Operating on dusty ro ads (Roads in areas where their pavement rate is
low, or a cloud of dust ofte n arises and the air is dry.)
Replacement of engine oilReplace when the maintenance
reminder appears.
*
3
RAIZE_OM_General_BZ358E.book 303 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3586-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped

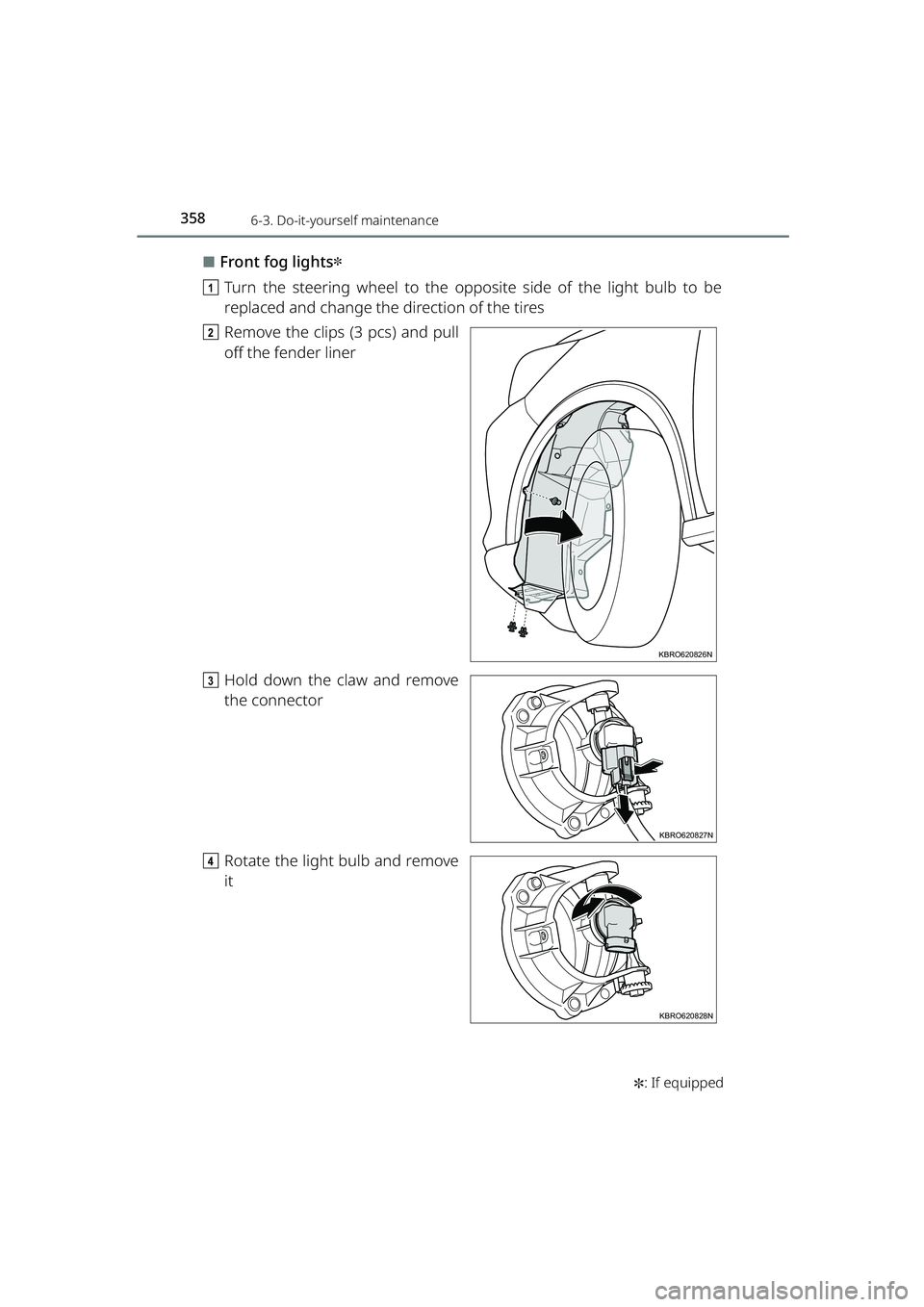

⬛Front fog lights✽
a Turn the steering wheel to the opposite side of the light bulb to be
replaced and change the direction of the tires
b Remove the clips (3 pcs) and pull
off the fender liner
c Hold down the claw and remove
the connector
d Rotate the light bulb and remove
it
KBRO620826N
KBRO620827N
KBRO620828N
