2023 TOYOTA RAIZE Owners Manual

2394-6. Driving tips
RAIZE_OM_General_BZ358E
Driving
4

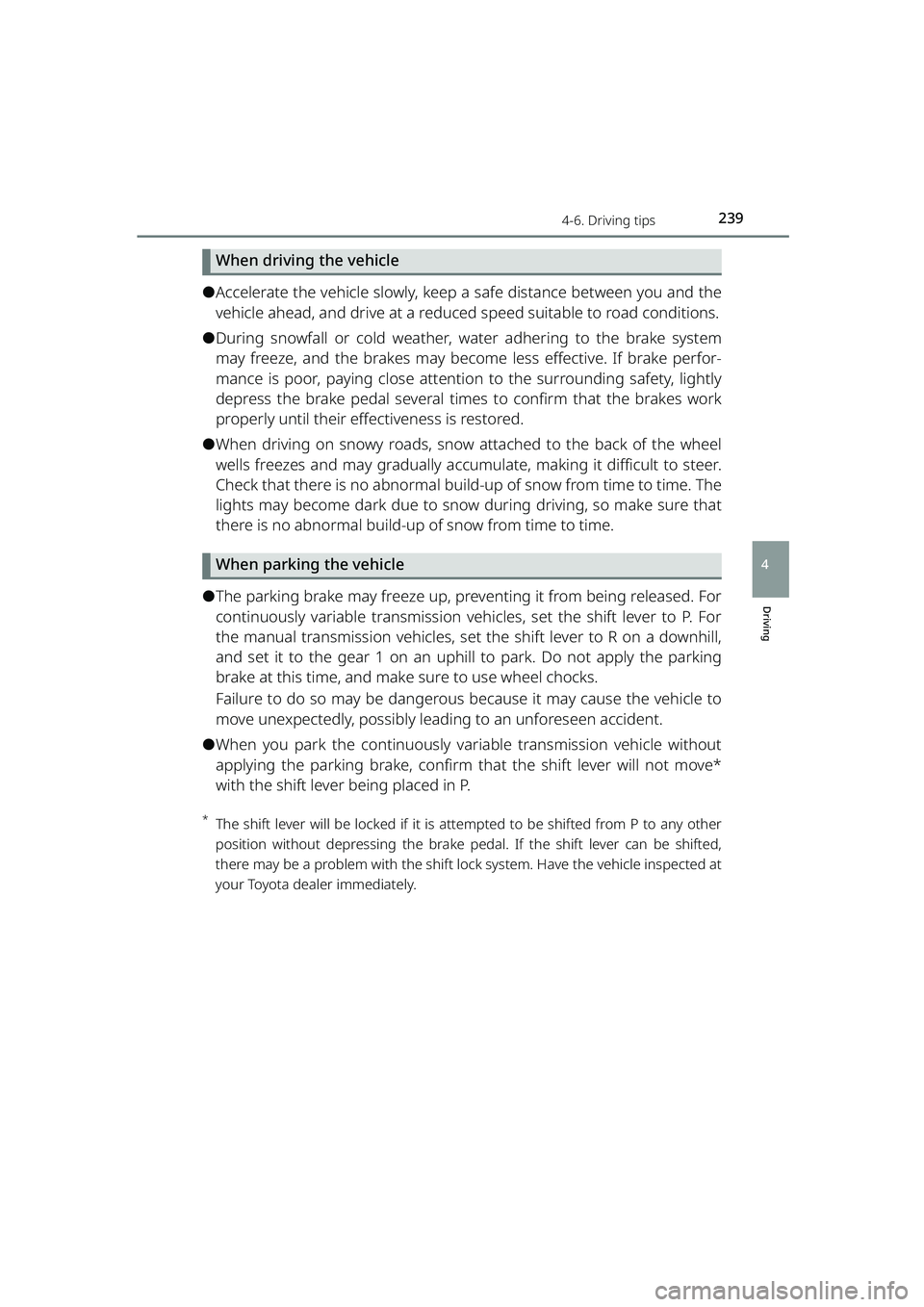

When driving the vehicle
⚫Accelerate the vehicle slowly, keep a safe distance between you and the
vehicle ahead, and drive at a reduced speed suitable to road conditions.
⚫During snowfall or cold weather, water adhering to the brake system
may freeze, and the brakes may become less effective. If brake perfor-
mance is poor, paying close attention to the surrounding safety, lightly
depress the brake pedal several times to confirm that the brakes work
properly until their effectiveness is restored.
⚫When driving on snowy roads, snow attached to the back of the wheel
wells freezes and may grad ually accumulate, making it difficult to steer.
Check that there is no abnormal build-up of snow from time to time. The
lights may become dark due to snow during driving, so make sure that
there is no abnormal build-up of snow from time to time.
When parking the vehicle
⚫The parking brake may freeze up, preventing it from being released. For
continuously variable transmission vehicles, set the shift lever to P. For
the manual transmission vehicles, set the shift lever to R on a downhill,
and set it to the gear 1 on an uphill to park. Do not apply the parking
brake at this time, and make sure to use wheel chocks.
Failure to do so may be dangerous because it may cause the vehicle to
move unexpectedly, possibly leading to an unforeseen accident.
⚫When you park the continuously variable transmission vehicle without
applying the parking brake, confirm that the shift lever will not move*
with the shift lever being placed in P.
*The shift lever will be locked if it is attempted to be shifted from P to any other
position without depressing the brake pe dal. If the shift lever can be shifted,
there may be a problem with the shift lo ck system. Have the vehicle inspected at
your Toyota dealer immediately.
RAIZE_OM_General_BZ358E.book 239 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2404-6. Driving tips
RAIZE_OM_General_BZ358E
WARNING
⬛When the brakes freeze
If normal braking is not restored, have the vehicle inspected at your Toyota
dealer immediately.
⬛Caution when parking
When parking without applying the parking brake, be sure to use wheel
chocks. Failure to do so may be dangerous because it may cause the vehicle to
move unexpectedly, possibly leading to an unforeseen accident.
NOTICE
⬛When removing ice from the windshield and windows
Do not hit and break the ice.
The glass may crack.
⬛When the doors, windshield wipers, windshield, or windows freeze
⚫Thaw the ice by applying lukewarm water.
Hot water may damage or deform components.
⚫If the windshield wipers, outside rear view mirrors, or windows are forcibly
activated while frozen or when snow is strongly attached, the wiper rubber
may be damaged or the motor may break.
⬛Repairing or replacing snow tires (veh icles with the tire pressure warning
system)
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the operation
of the tire pressure warning valves and transmitters.
⬛Fitting tire chains (vehicles with the tire pressure warning system)
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.
RAIZE_OM_General_BZ358E.book 240 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2414-6. Driving tips
RAIZE_OM_General_BZ358E
Driving
4

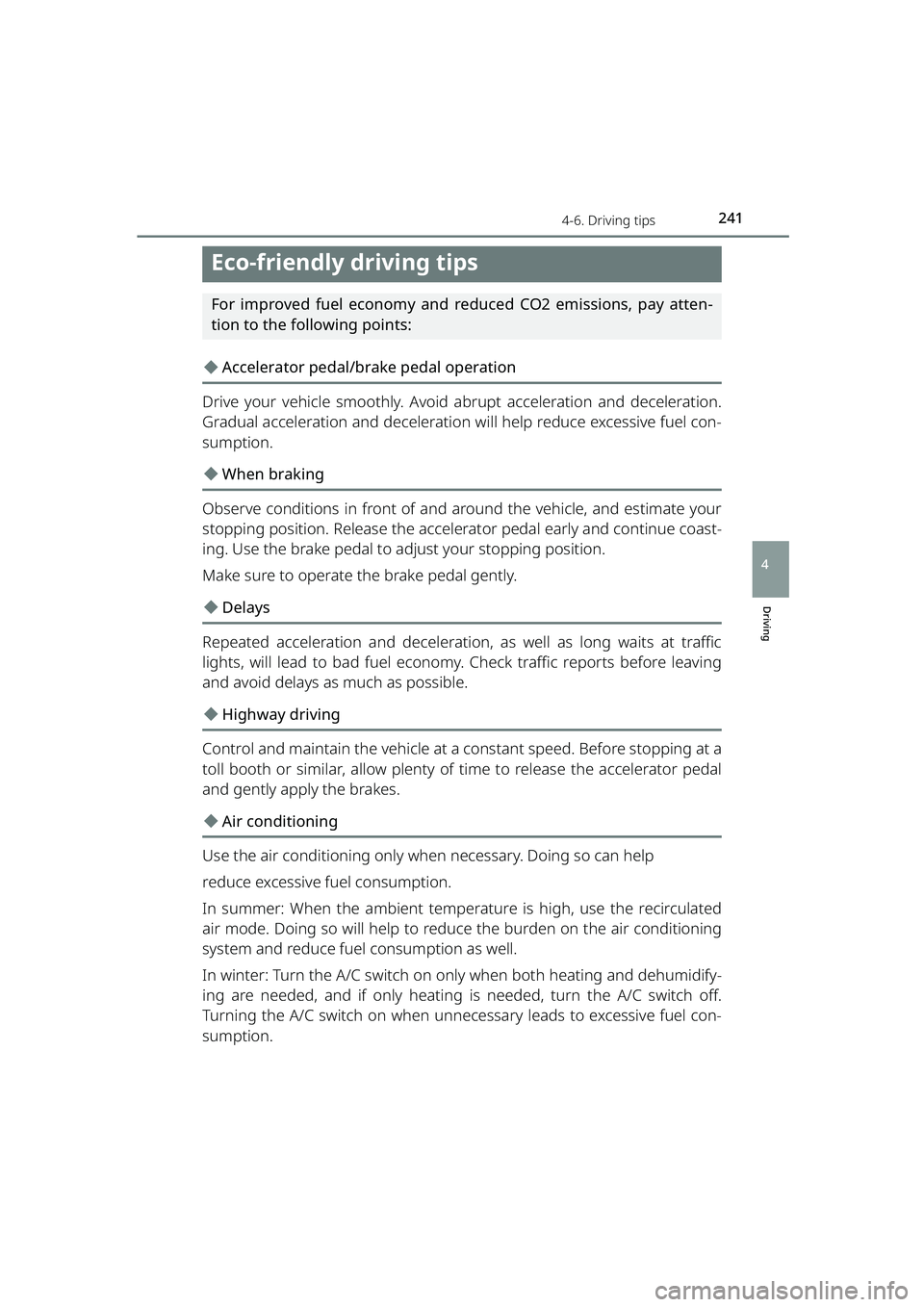

Eco-friendly driving tips
For improved fuel economy and reduced CO2 emissions, pay atten-
tion to the following points:
◆Accelerator pedal/brake pedal operation
Drive your vehicle smoothly. Avoid abrupt acceleration and deceleration.
Gradual acceleration and deceleration will help reduce excessive fuel con-
sumption.
◆When braking
Observe conditions in front of and around the vehicle, and estimate your
stopping position. Release the accele rator pedal early and continue coast-
ing. Use the brake pedal to adjust your stopping position.
Make sure to operate the brake pedal gently.
◆Delays
Repeated acceleration and deceleration, as well as long waits at traffic
lights, will lead to bad fuel economy. Check traffic reports before leaving
and avoid delays as much as possible.
◆Highway driving
Control and maintain the vehicle at a constant speed. Before stopping at a
toll booth or similar, allow plenty of time to release the accelerator pedal
and gently apply the brakes.
◆Air conditioning
Use the air conditioning only when necessary. Doing so can help
reduce excessive fuel consumption.
In summer: When the ambient temper ature is high, use the recirculated
air mode. Doing so will help to redu ce the burden on the air conditioning
system and reduce fuel consumption as well.
In winter: Turn the A/C switch on on ly when both heating and dehumidify-
ing are needed, and if only heating is needed, turn the A/C switch off.
Turning the A/C switch on when unnece ssary leads to excessive fuel con-
sumption.
RAIZE_OM_General_BZ358E.book 241 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2424-6. Driving tips
RAIZE_OM_General_BZ358E
◆Performing idling stops
⚫Avoid unnecessary idling. Stop the engine when parking the vehicle to
reduce excessive fuel consumption, even it is only for a short period of
time.
⚫Except in severe environment, such as when the outside temperature is
extremely low, warming up the engine before driving is unnecessary.
Rather than idling, it is more efficient to drive the vehicle gently to warm
up each part while avoiding increasing the engine revolutions unneces-
sarily and accelerating or decelerating suddenly.
◆Luggage
Carrying heavy luggage will lead to poor fuel economy. Avoid carrying
unnecessary luggage. Installing a large roof rack will also cause poor fuel
economy.
◆Regular maintenance
⚫Make sure to check the tire inflation pressure frequently. Improper tire
inflation pressure can cause poor fu el economy. Also, as snow tires can
cause large amounts of friction, thei r use on dry roads can lead to poor
fuel economy. Use tires that are appropriate for the season and road
conditions.
⚫Use oil and fluid of the recommended quality, which affect fuel con-
sumption and the life of the vehicle. Also, check oil and fluid periodically.
( ➞ P. 2 9 4 )
RAIZE_OM_General_BZ358E.book 242 ページ ２０２２年５月１７日　火曜日　午後１時５９分

243
5
RAIZE_OM_General_BZ358E

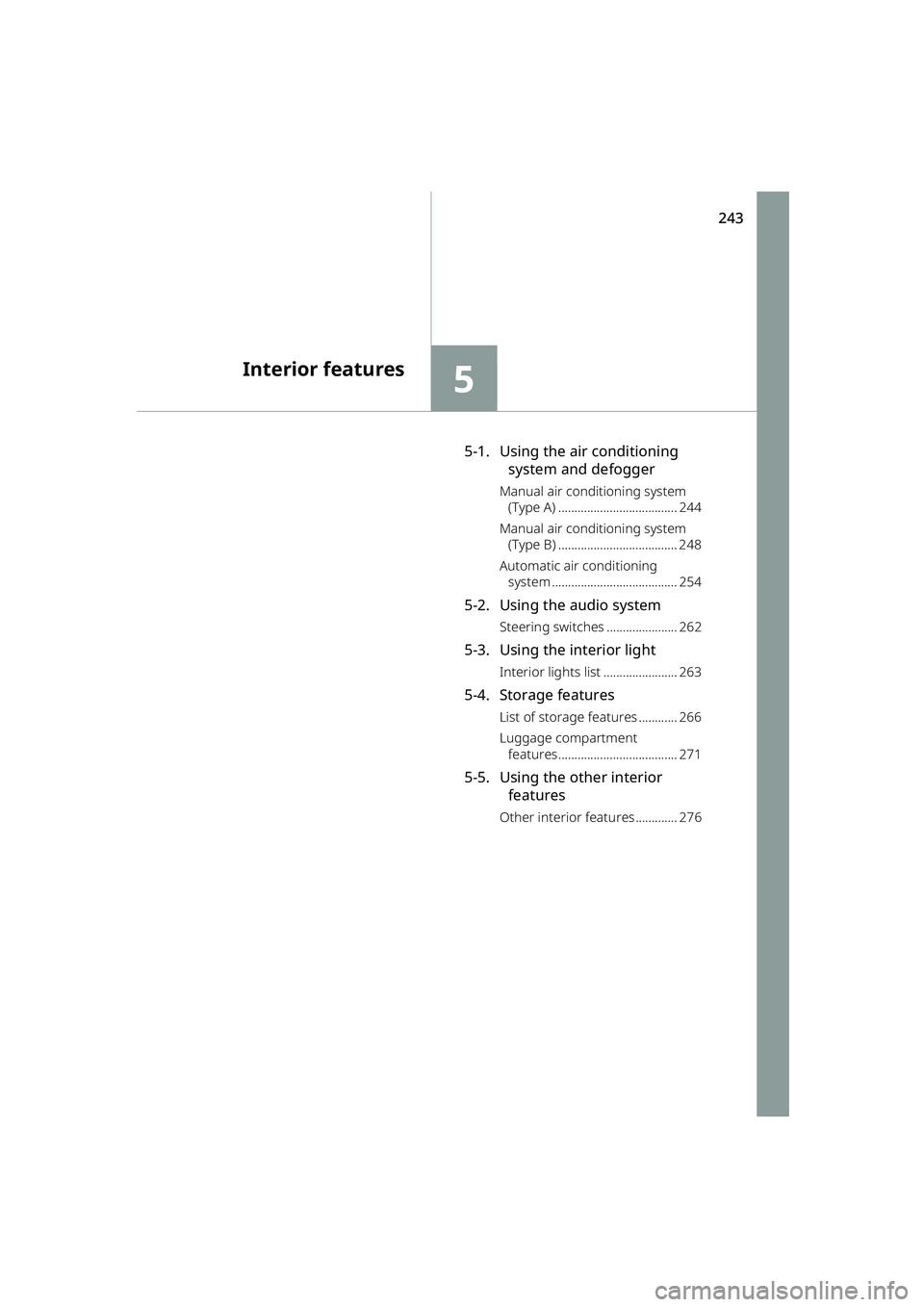

Interior features
5-1. Using the air conditioning system and defogger
Manual air conditioning system
(Type A) ..................................... 244
Manual air conditioning system (Type B) ..................................... 248
Automatic air conditioning system ....................................... 254
5-2. Using the audio system
Steering switches ...................... 262
5-3. Using the interior light
Interior lights list ....................... 263
5-4. Storage features
List of storage features ............ 266
Luggage compartment features..................................... 271
5-5. Using the other interior features
Other interior features ............. 276
RAIZE_OM_General_BZ358E.book 243 ページ ２０２２年５月１７日　火曜日　午後１時５９分

244
RAIZE_OM_General_BZ358E✽
: If equipped

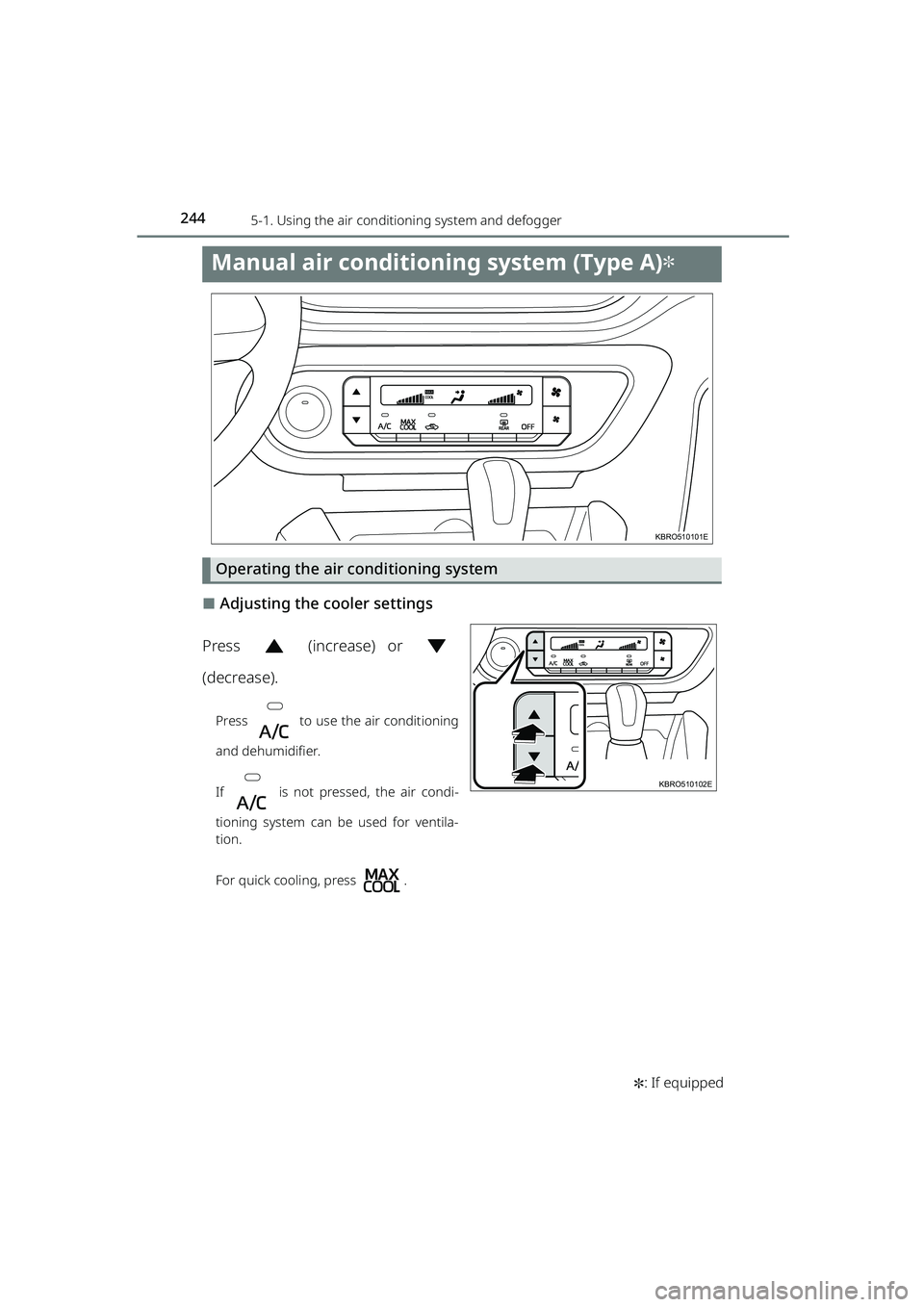

5-1. Using the air conditioning system and defogger
Manual air conditioning system (Type A)✽
Operating the air conditioning system
⬛Adjusting the cooler settings
Press (increase) or
(decrease).
Press to use the air conditioning
and dehumidifier.
If is not pressed, the air condi-
tioning system can be used for ventila-
tion.
For quick cooling, press .
KBRO510101E
KBRO510102E
RAIZE_OM_General_BZ358E.book 244 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2455-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5

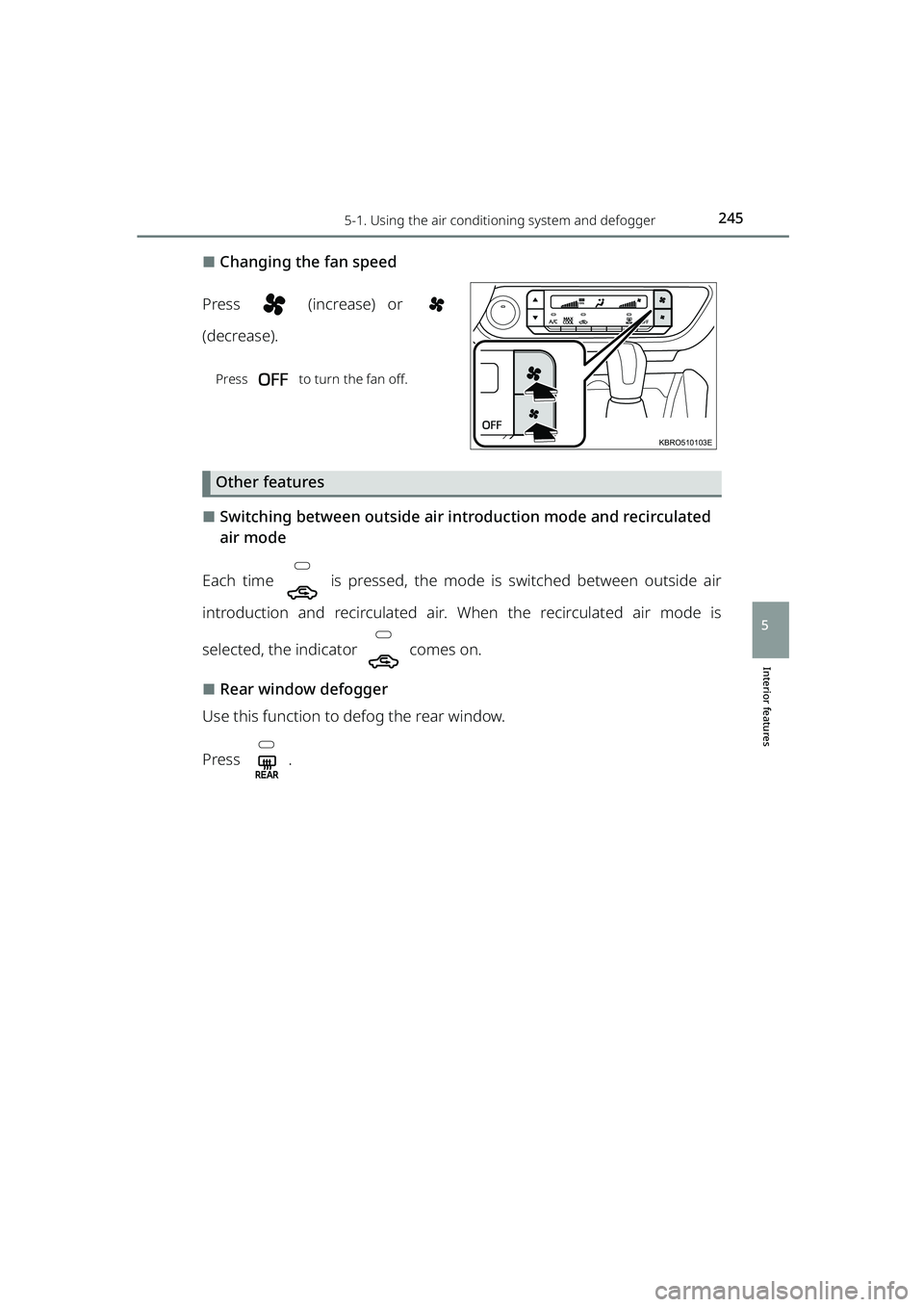

⬛Changing the fan speed
Press (increase) or
(decrease).
Press to turn the fan off.
Other features
⬛Switching between outside air intr oduction mode and recirculated
air mode
Each time is pressed, the mode is switched between outside air
introduction and recirculated air. When the recirculated air mode is
selected, the indi cator comes on.
⬛Rear window defogger
Use this function to defog the rear window.
Press .
KBRO510103E
RAIZE_OM_General_BZ358E.book 245 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2465-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E

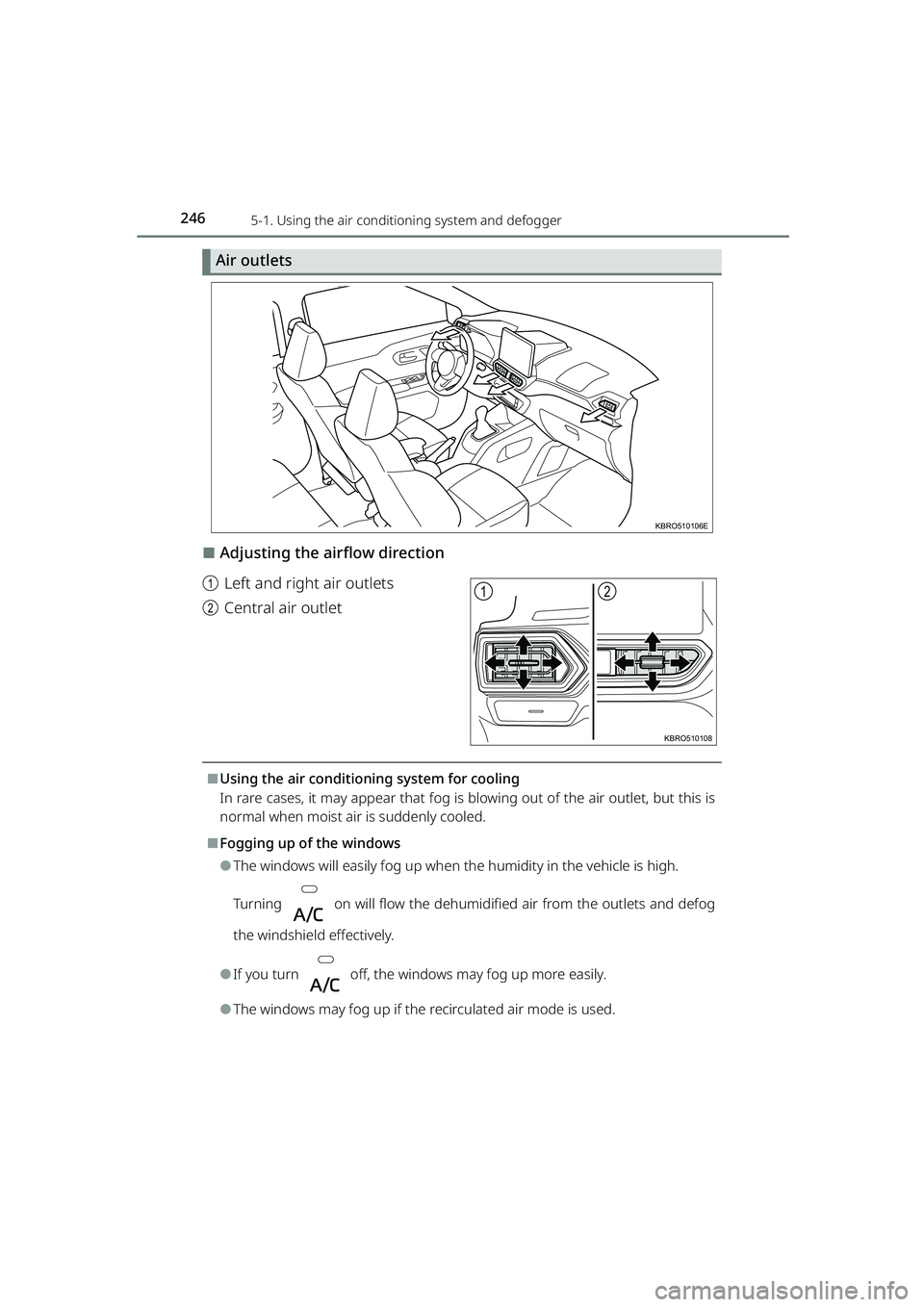

Air outlets
⬛Adjusting the airflow direction
a Left and right air outlets
b Central air outlet
⬛Using the air conditioni ng system for cooling
In rare cases, it may appear that fog is blowing out of the air outlet, but this is
normal when moist air is suddenly cooled.
⬛Fogging up of the windows
⚫The windows will easily fog up when th e humidity in the vehicle is high.
Turning on will flow the dehumidified air from the outlets and defog
the windshield effectively.
⚫If you turn off, the windows may fog up more easily.
⚫The windows may fog up if the re circulated air mode is used.
KBRO510106E
12
KBRO510108
RAIZE_OM_General_BZ358E.book 246 ページ ２０２２年５月１７日　火曜日　午後１時５９分
