2023 TOYOTA RAIZE open hood

13Pictorial index
RAIZE_OM_General_BZ358E✽
: If equipped
e Fuel filler door .............................................................................................. P. 207
Refueling method .................................................................................................... P. 207
Fuel type/fuel tank capacity ................................................................................... P. 421
f Tires ............................................................................................................... P. 327
Tire size/inflation pressure ..................................................................................... P. 428
Checking/rotation .................................................................................................... P. 327
Dealing with flat tires............................................................................................... P. 396
g Hood .............................................................................................................. P. 311
Opening ..................................................................................................................... P. 3 11
Engine oil .......................................................................................................... P. 421, 423
Coping with overheat .............................................................................................. P. 412
Light bulbs of the exterior lights for driving
(Replacing method: P. 352, Watts: P. 428)
h Headlights .................................................................................................... P. 198
i Turn signal lights ......................................................................................... P. 196
j Front position lights .................................................................................... P. 198
k Front fog lights
✽........................................................................................... P. 201
l Daytime running lights
✽............................................................................. P. 198
m Back-up lights
Setting the shift lever to R ............................................................................. P. 189, 194
n Tail lights ....................................................................................................... P. 198
o License plate lights ...................................................................................... P. 198
p Rear fog light
✽.............................................................................................. P. 201
RAIZE_OM_General_BZ358E.book 13 ページ ２０２２年５月１７日　火曜日　午後１時５９分

15Pictorial index
RAIZE_OM_General_BZ358E✽
: If equipped
c Meters ....................................................................................................... P. 84, 85
How to read/adjust the brightness ................................................................ P. 89, 104
Warning lights and indicators .................................................................................. P. 78
When the warning lights come on ....................................................................... P. 379
Multi-information display
✽………………………………………………………………… P. 86
TFT color multi-in formation display
✽.......................................................... P. 98
Display contents ................................................................................................... P. 86, 98
When warning messages are displayed
✽........................................................... P. 387
d Turn signal lever .......................................................................................... P. 196
Headlight switch ……………………………………………………………………………… P. 198
Headlights/front position lights/tail lights .......................................................... P. 198
Front fog lights
✽....................................................................................................... P. 201
e Windshield wipers and washer switch .............................................. P. 203, 205
Usage ................................................................................................................. P. 203, 20 5
Adding washer fluid ................................................................................................. P. 324
f Emergency flashers switch ......................................................................... P. 366
g Hood lock release lever ............................................................................... P. 311
h Tilt Steering .................................................................................................. P. 154
i Parking brake ............................................................................................... P. 197
Engaging/releasing.................................................................................................. P. 197
Precautions against winter season ...................................................................... P. 238
Warning buzzer/warning message
✽........................................................... P. 382, 391
j Air conditioning system .............................................................. P. 244, 248, 254
Operation method ................................................................................. P. 244, 248, 254
Defogging the rear window (Rear window defogger)
✽................. P. 245, 249, 256
k Power outlet ................................................................................................. P. 277
l USB ports .............................................................................................. P. 278, 280
m Fuel tank opening lever .............................................................................. P. 209
n Audio system
✽*
*Refer to the instruction manual included with the audio system.
RAIZE_OM_General_BZ358E.book 15 ページ ２０２２年５月１７日　火曜日　午後１時５９分

21Pictorial index
RAIZE_OM_General_BZ358E✽
: If equipped
c Meters ....................................................................................................... P. 84, 85
How to read/adjust the brightness ................................................................ P. 89, 104
Warning lights and indicators .................................................................................. P. 78
When the warning lights come on ....................................................................... P. 379
Multi-information display
✽………………………………………………………………… P. 86
TFT color multi-in formation display
✽.......................................................... P. 98
Display contents ................................................................................................... P. 86, 98
When warning messages are displayed
✽........................................................... P. 387
d Turn signal lever .......................................................................................... P. 196
Headlight switch ……………………………………………………………………………… P. 198
Headlights/front position lights/tail lights .......................................................... P. 198
Front fog lights
✽....................................................................................................... P. 201
e Windshield wipers and washer switch .............................................. P. 203, 205
Usage ................................................................................................................. P. 203, 20 5
Adding washer fluid ................................................................................................. P. 324
f Emergency flashers switch ......................................................................... P. 366
g Hood lock release lever ............................................................................... P. 311
h Tilt Steering .................................................................................................. P. 154
i Parking brake ............................................................................................... P. 197
Engaging/releasing.................................................................................................. P. 197
Precautions against winter season ...................................................................... P. 238
Warning buzzer/warning message
✽........................................................... P. 382, 391
j Air conditioning system .............................................................. P. 244, 248, 254
Operation method ................................................................................. P. 244, 248, 254
Defogging the rear window (Rear window defogger) ................... P. 245, 249, 256
k Power outlet ................................................................................................. P. 277
l USB ports .............................................................................................. P. 278, 280
m Fuel tank opening lever .............................................................................. P. 209
n Audio system
✽*
*Refer to the instruction manual included with the audio system.
RAIZE_OM_General_BZ358E.book 21 ページ ２０２２年５月１７日　火曜日　午後１時５９分

48
RAIZE_OM_General_BZ358E

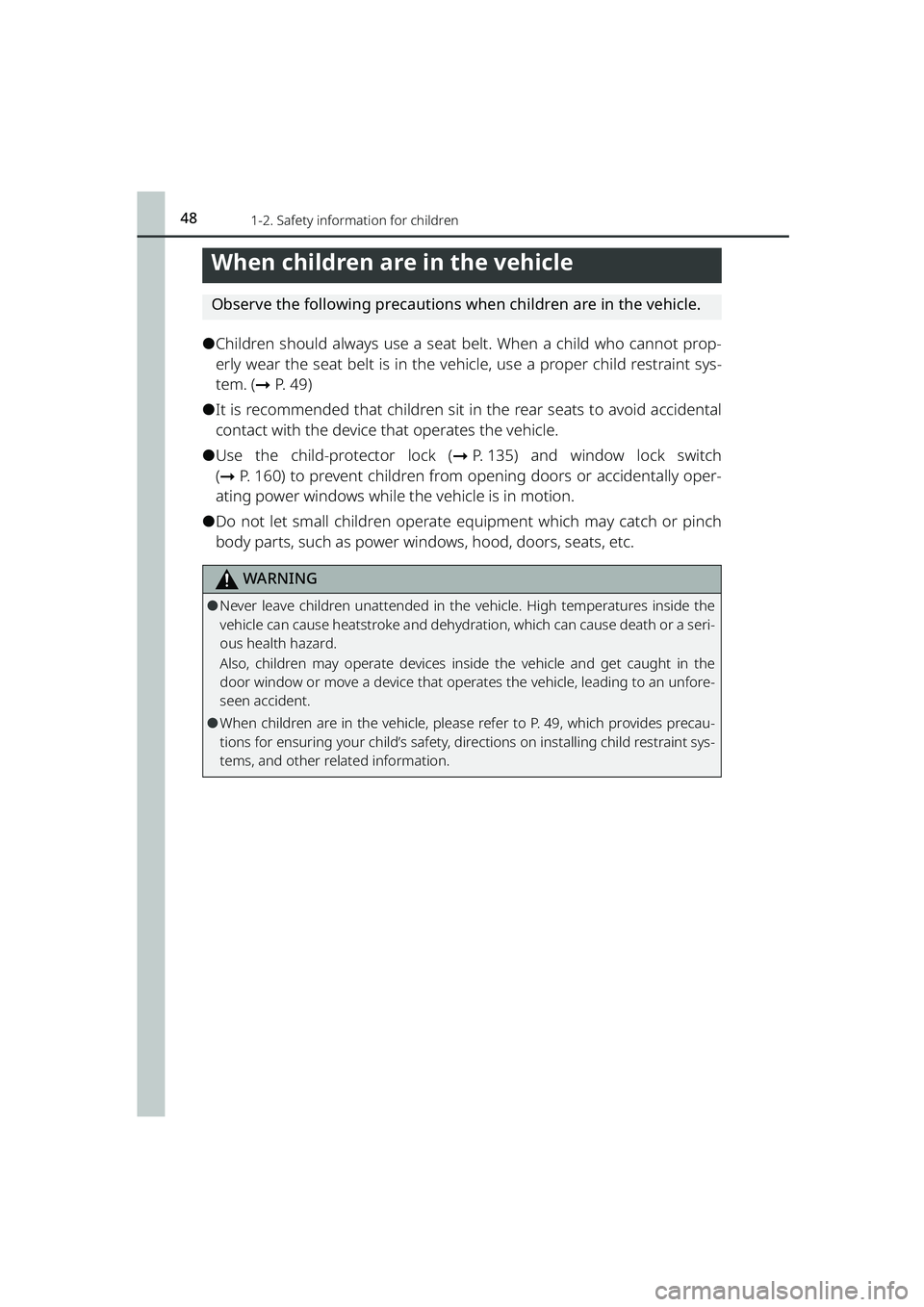

1-2. Safety information for children
When children are in the vehicle
Observe the following precautions when children are in the vehicle.
⚫Children should always use a seat belt. When a child who cannot prop-
erly wear the seat belt is in the ve hicle, use a proper child restraint sys-
tem. ( ➞P. 49)
⚫It is recommended that children sit in the rear seats to avoid accidental
contact with the device that operates the vehicle.
⚫Use the child-protector lock (➞ P. 135) and window lock switch
( ➞ P. 160) to prevent children from opening doors or accidentally oper-
ating power windows while the vehicle is in motion.
⚫Do not let small children operate equipment which may catch or pinch
body parts, such as power wind ows, hood, doors, seats, etc.
WARNING
⚫Never leave children unattended in the ve hicle. High temperatures inside the
vehicle can cause heatstroke and dehydr ation, which can cause death or a seri-
ous health hazard.
Also, children may operate devices inside the vehicle and get caught in the
door window or move a device that oper ates the vehicle, leading to an unfore-
seen accident.
⚫When children are in the vehicle, please refer to P. 49, which provides precau-
tions for ensuring your child’s safety, dire ctions on installing child restraint sys-
tems, and other related information.
RAIZE_OM_General_BZ358E.book 48 ページ ２０２２年５月１７日　火曜日　午後１時５９分

731-4. Theft deterrent system
RAIZE_OM_General_BZ358E✽
: If equipped
For safety and security
1
Alarm✽
The alarm
The alarm uses the emergency flashers and sound to give an alert when
an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
⚫A locked door is unlocked and open ed in any way other than using the
key-free function or wireless remote control.
⚫The hood is opened.
Setting the alarm system
The alarm will be set in the following
cases:
Close the doors and hood, and lock
all the doors using the key-free func-
tion or wireless remote control.
⚫When the doors are locked auto-
matically by the security feature.
( ➞ P. 1 3 9 )
The indicator light is flashing when the
system is set.
Deactivating the alarm
Do one of the following to deactivate the alarm:
⚫Unlock the doors using the key-free function or wireless remote control.
⚫Turn the engine switch to “ON”, or start the engine.
KBRO120101E
RAIZE_OM_General_BZ358E.book 73 ページ ２０２２年５月１７日　火曜日　午後１時５９分

751-4. Theft deterrent system
RAIZE_OM_General_BZ358E
For safety and security
1
⬛System maintenance
The vehicle has a maintenance-free type alarm system.
⬛Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
⚫Nobody is in the vehicle.
⚫The windows are closed before the alarm is set.
⚫No valuables or other personal items are left in the vehicle.
⬛Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
⚫The doors are unlocked using the
key.
⚫A person inside the vehicle opens a
door or hood.
⬛When the battery is disconnected
Be sure to deactivate the alarm system.
If the battery is discharged before de activating the alarm system, the alarm
may be triggered when the battery is reconnected.
NOTICE
⬛To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper oper-
ation of the system cannot be guaranteed.
KBRO120102E
KBRO120103E
RAIZE_OM_General_BZ358E.book 75 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3116-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

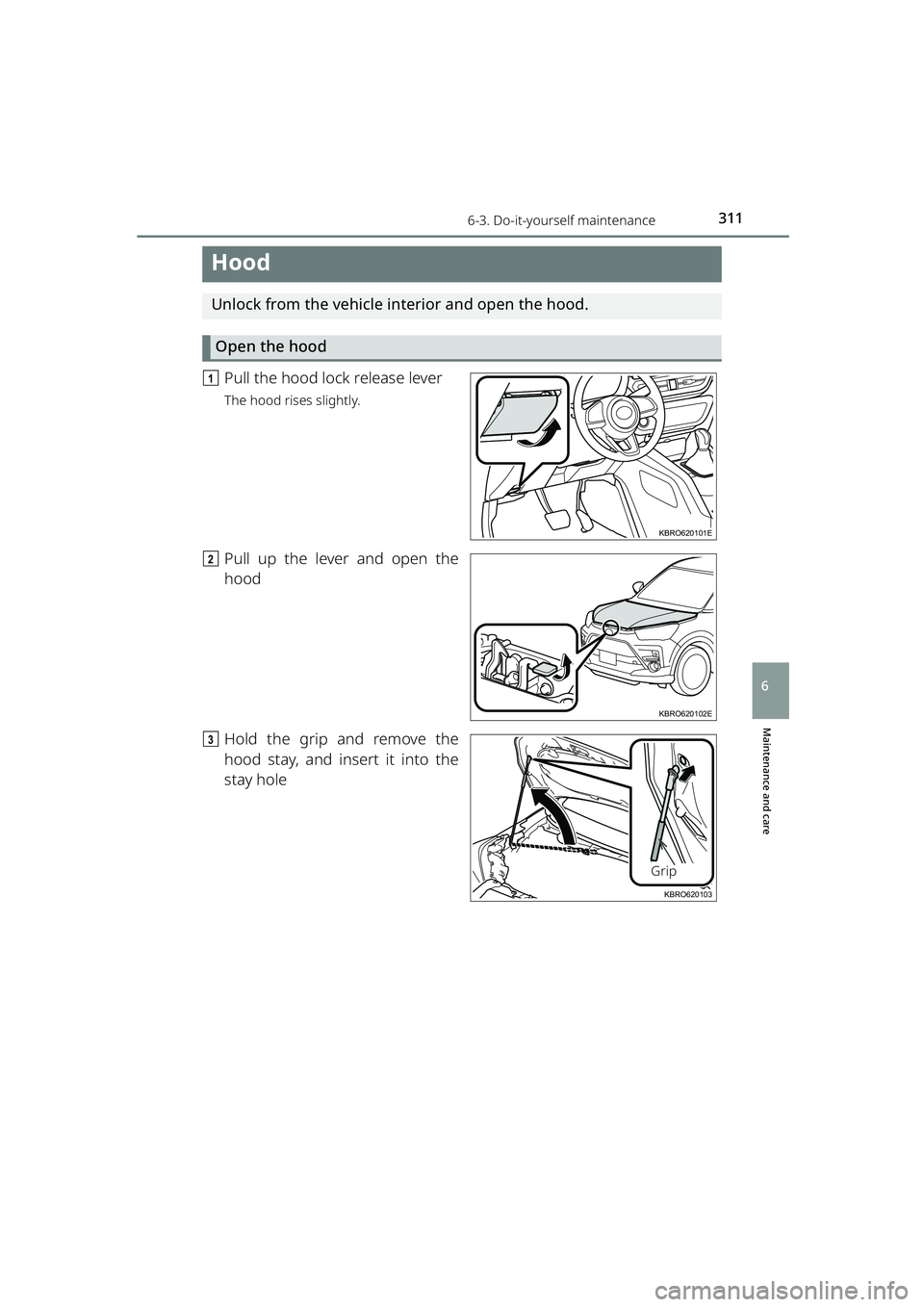

Hood
Unlock from the vehicle interior and open the hood.Open the hood
a Pull the hood lock release lever
The hood rises slightly.
bPull up the lever and open the
hood
c Hold the grip and remove the
hood stay, and insert it into the
stay hole
KBRO620101E
KBRO620102E
KBRO620103
Grip
RAIZE_OM_General_BZ358E.book 311 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3126-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Close the hood
aSupport the hood with one hand
b Hold the grip and remove the hood stay, and restore it to its original
position
c Lower the hood gently and close it by pushing it with your hand
⬛To disconnect the battery terminals
If you disconnect the battery terminals, the information stored in the computer
will be erased. Before removing the battery terminals, contact your Toyota
dealer for assistance.
WARNING
⬛Check before driving
⚫Make sure the hood is securely locked.
Driving without locking the hood can caus e it to suddenly open while driving,
causing death or serious injury.
⚫If the hood is opened, the hood st ay may detach and the hood may close
unexpectedly. Be especially careful on windy days.
⬛To prevent injury
The interior of the engine compartment is hot after driving. Touching hot com-
ponents can cause serious injury such as burns.
⬛Verification after inspecting the engine compartment
Before starting the engine, make sure that no flammable materials are left in
the engine compartment. Make sure th at there are no flammable materials
such as twigs brought in by small animals and birds in the engine compart-
ment, especially if you have not used th e vehicle for a long time. Such flamma-
ble materials may lead to a vehicle fire.
If you notice a burning smell from th e engine compartment while driving,
immediately stop at a safe place and contact your Toyota dealer.
⬛Checking and changing oil
Make sure that oil is not adhered to the alternator. If oil is ad hered, wipe it off
immediately. If oil is adhered, it may lead to a vehicle fire.
RAIZE_OM_General_BZ358E.book 312 ページ ２０２２年５月１７日　火曜日　午後１時５９分
