3036-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
REMARKS: See page 306 for general maintenance items.
*1Replace both the engine oil and oil filter, even when the maintenance
reminder does not appear, after 6 mont hs have passed, since the last oil
change.
*2After 80000 km (48000 miles) or 48 months inspection, inspect every 20000
km (12000 miles) or 12 months.
*3Including the filter in fuel tank.
Additional maintenance schedule (For Mexico)
Refer to the following table for normal maintenance schedule items
requiring more frequent service specific to the type of severe conditions.
(For outline, see “Maintenan ce schedule requirements”.)
A-1: Operating on rough or muddy roads, or roads with melted snow
Inspection*
1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection* 1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 of brake pipes and hosesEvery 10000 km (6000 miles) or 6
months
Inspection*1 of steering wheel, linkage
and steering gear boxEvery 5000 km (3000 miles) or 3
months
Inspection* 1 of suspension ball joint and
dust coversEvery 10000 km (6000 miles) or 6
months
Inspection* 1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Inspection* 1 of front and rear suspensionEvery 10000 km (6000 miles) or 6
months
Tightening of bolts and nuts on chassis
and body
*2Every 10000 km (6000 miles) or 6
months
A-2: Operating on dusty ro ads (Roads in areas where their pavement rate is
low, or a cloud of dust ofte n arises and the air is dry.)
Replacement of engine oilReplace when the maintenance
reminder appears.
*
3
RAIZE_OM_General_BZ358E.book 303 ページ ２０２２年５月１７日　火曜日　午後１時５９分

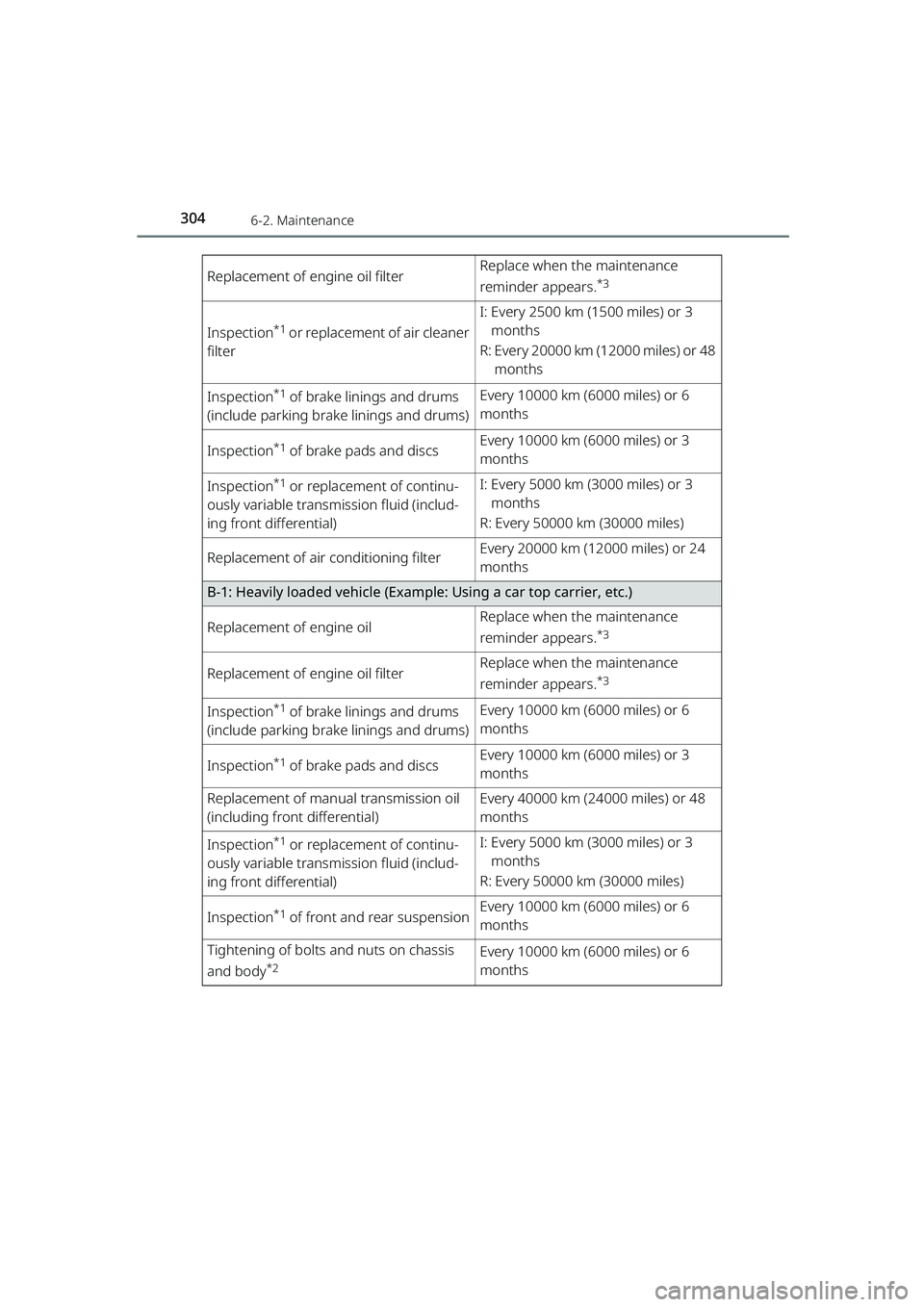

3046-2. Maintenance
RAIZE_OM_General_BZ358E
Replacement of engine oil filterReplace when the maintenance
reminder appears.
*3
Inspection*1 or replacement of air cleaner
filter
I: Every 2500 km (1500 miles) or 3 months
R: Every 20000 km (12000 miles) or 48 months
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection* 1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Replacement of air conditioning filterEvery 20000 km (12000 miles) or 24
months
B-1: Heavily loaded vehicle (Example: Using a car top carrier, etc.)
Replacement of engine oilReplace when the maintenance
reminder appears.
* 3
Replacement of engine oil filterReplace when the maintenance
reminder appears.
*3
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection* 1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Replacement of manual transmission oil
(including front differential)Every 40000 km (24000 miles) or 48
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
Inspection* 1 of front and rear suspensionEvery 10000 km (6000 miles) or 6
months
Tightening of bolts and nuts on chassis
and body
*2Every 10000 km (6000 miles) or 6
months
RAIZE_OM_General_BZ358E.book 304 ページ ２０２２年５月１７日　火曜日　午後１時５９分

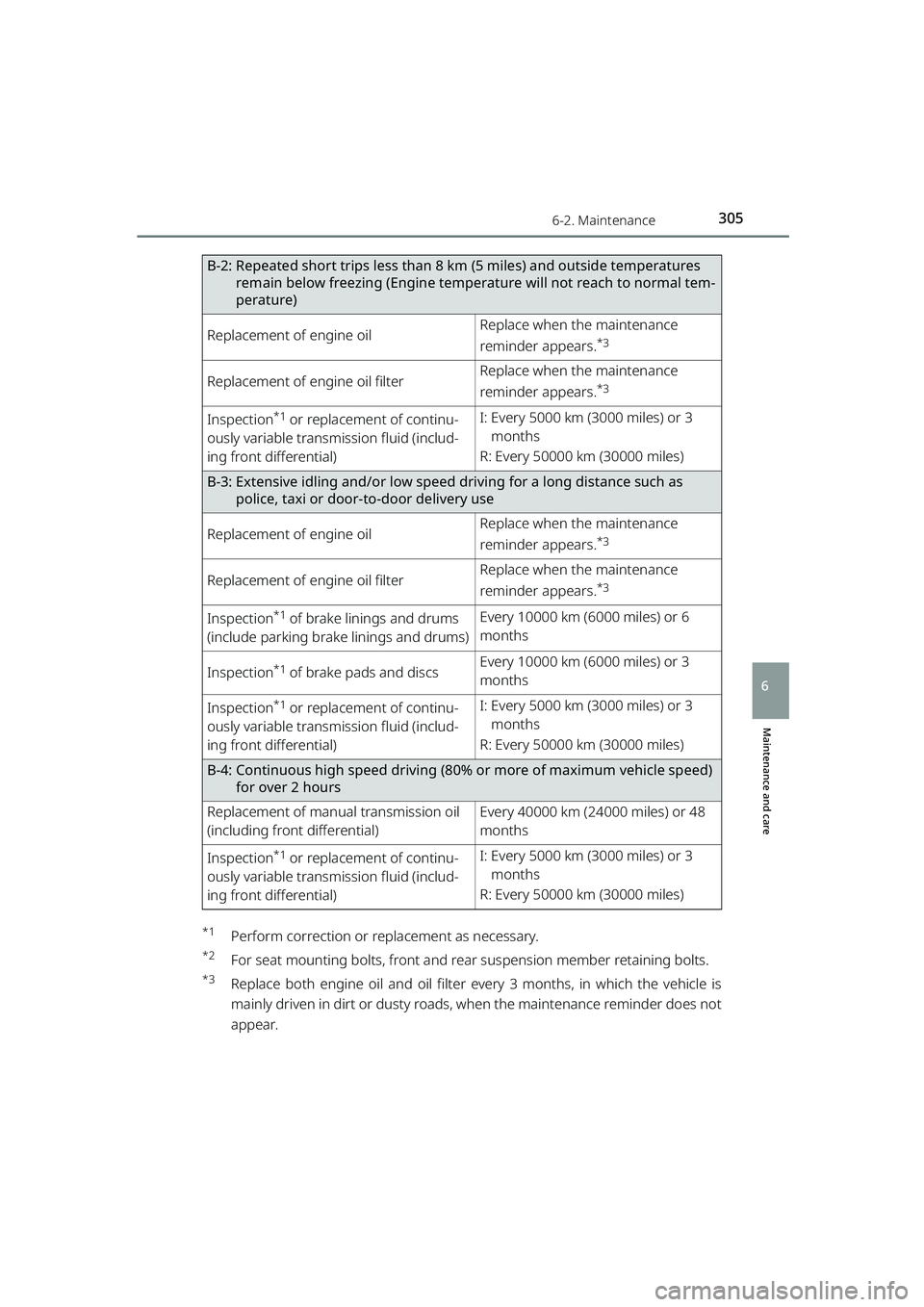

3056-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
*1Perform correction or replacement as necessary.
*2For seat mounting bolts, front and rear suspension member retaining bolts.
*3Replace both engine oil and oil filter every 3 months, in which the vehicle is
mainly driven in dirt or dusty roads, when the maintenance reminder does not
appear.
B-2: Repeated short trips less than 8 km (5 miles) and outside temperatures remain below freezing (Engine temperature will not reach to normal tem-
perature)
Replacement of engine oilReplace when the maintenance
reminder appears.
*3
Replacement of engine oil filterReplace when the maintenance
reminder appears.
*3
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
B-3: Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use
Replacement of engine oilReplace when the maintenance
reminder appears.
*3
Replacement of engine oil filterReplace when the maintenance
reminder appears.
*3
Inspection*1 of brake linings and drums
(include parking brake linings and drums)Every 10000 km (6000 miles) or 6
months
Inspection* 1 of brake pads and discsEvery 10000 km (6000 miles) or 3
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
B-4: Continuous high speed driving (80% or more of maximum vehicle speed) for over 2 hours
Replacement of manual transmission oil
(including front differential)Every 40000 km (24000 miles) or 48
months
Inspection*1 or replacement of continu-
ously variable transmission fluid (includ-
ing front differential)I: Every 5000 km (3000 miles) or 3 months
R: Every 50000 km (30000 miles)
RAIZE_OM_General_BZ358E.book 305 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3066-2. Maintenance
RAIZE_OM_General_BZ358E
General maintenance
Listed below are the general maintenance items that should be per-
formed at the intervals specified. It is recommended that any prob-
lem you notice should be brought to the attention of your Toyota
dealer or qualified service shop for advice.
Engine compartment
Vehicle interior
ItemsCheck points
BatteryCheck the battery fluid level and connections. ( ➞P. 321)
Brake fluidIs the brake fluid at the correct level? ( ➞P. 320)
Engine coolantIs the engine coolant at the correct level? (➞ P. 319)
Engine oilIs the engine oil at the correct level? (➞P. 316)
Exhaust systemThere should not be any fumes or strange sounds.
Radiator/condenserThe radiator and condenser should be free from foreign
objects. ( ➞P. 320)
Washer fluidIs there sufficient washer fluid? ( ➞P. 324)
ItemsCheck points
Accelerator pedal⚫The accelerator pedal should move smoothly (without
uneven pedal effort or catching).
Automatic transmis-
sion “Park” mechanism⚫When parked on a slope and th e shift lever is in P, is
the vehicle securely stopped?
Brake pedal
⚫Does the brake pedal move smoothly?
⚫Does the brake pedal have appropriate clearance from
the floor? (➞ P. 427)
⚫Does the brake pedal have the correct amount of free
play? (➞P. 427)
Brakes
⚫The vehicle should not pull to one side when the
brakes are applied.
⚫The brakes should work effectively.
⚫The brake pedal should not feel spongy.
⚫The brake pedal should not get too close to the floor
when the brakes are applied.
RAIZE_OM_General_BZ358E.book 306 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3076-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

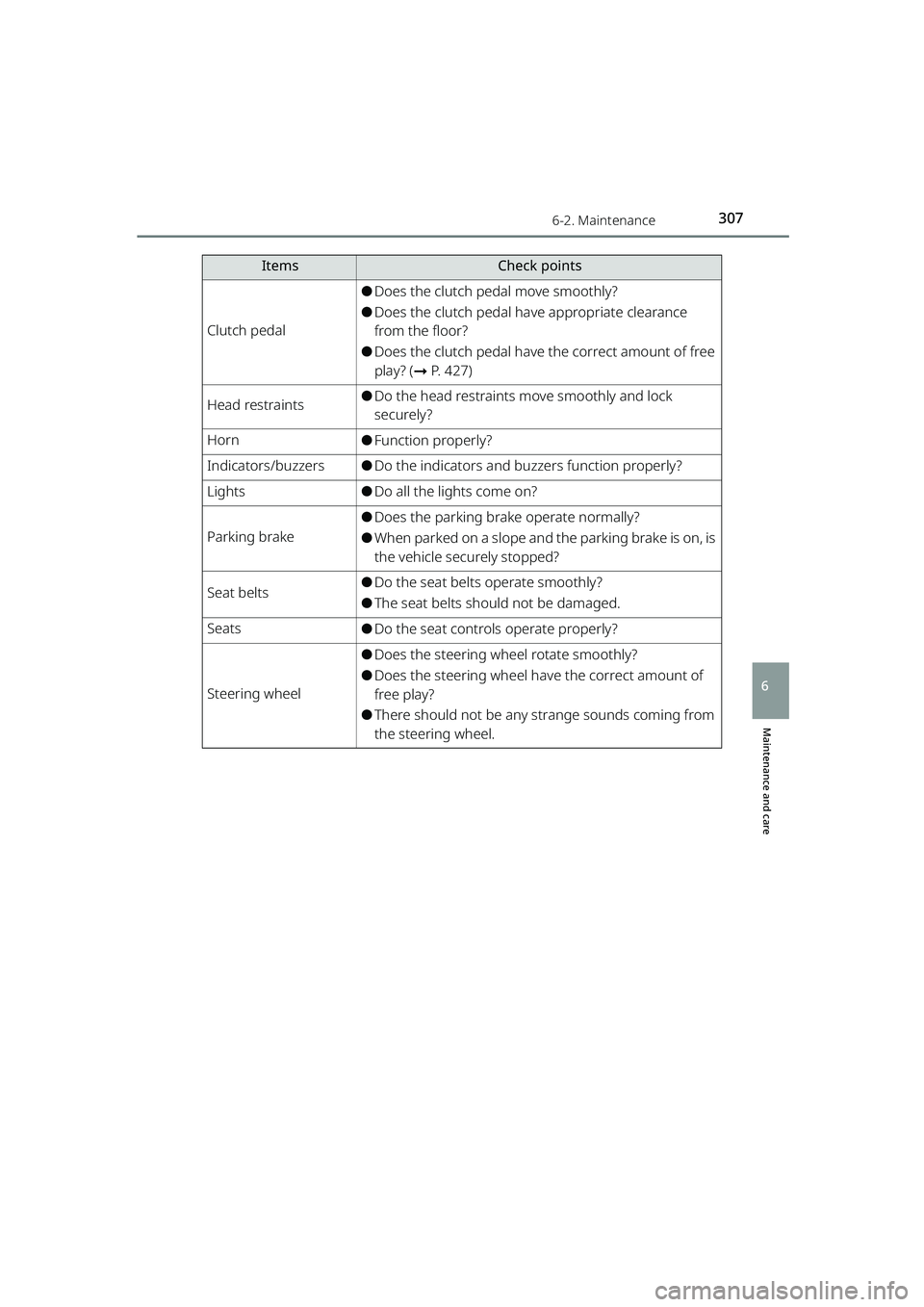

Clutch pedal
⚫Does the clutch pedal move smoothly?
⚫Does the clutch pedal have appropriate clearance
from the floor?
⚫Does the clutch pedal have the correct amount of free
play? (➞P. 427)
Head restraints⚫Do the head restraints move smoothly and lock
securely?
Horn⚫Function properly?
Indicators/buzzers⚫Do the indicators and bu zzers function properly?
Lights⚫Do all the lights come on?
Parking brake
⚫Does the parking brake operate normally?
⚫When parked on a slope and the parking brake is on, is
the vehicle securely stopped?
Seat belts⚫Do the seat belts operate smoothly?
⚫The seat belts should not be damaged.
Seats⚫Do the seat controls operate properly?
Steering wheel
⚫Does the steering wheel rotate smoothly?
⚫Does the steering wheel have the correct amount of
free play?
⚫There should not be any st range sounds coming from
the steering wheel.
ItemsCheck points
RAIZE_OM_General_BZ358E.book 307 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3086-2. Maintenance
RAIZE_OM_General_BZ358E
Vehicle exterior
WARNING
⬛If the engine is running
Turn the engine off and ensure that there is adequate ventilation before per-
forming maintenance checks.
ItemsCheck points
Doors⚫Do the doors operate smoothly?
Engine hood⚫Does the engine hood lock system work properly?
Fluid leaks⚫There should not be any signs of fluid leakage after the
vehicle has been parked.
Tire
⚫Is the tire inflation pressure correct?
⚫The tires should not be da maged or excessively worn.
⚫Have the tires been rotated according to the mainte-
nance schedule?
⚫The wheel nuts should not be loose.
Windshield wipers
⚫The wiper blades should not show any signs of crack-
ing, splitting, wear, contamination or deformation.
⚫The wiper blades should clear the Windshield without
streaking or skipping.
RAIZE_OM_General_BZ358E.book 308 ページ ２０２２年５月１７日　火曜日　午後１時５９分

309
RAIZE_OM_General_BZ358E
Maintenance and care
6
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsParts and tools
Battery condition
(➞ P. 321)
⚫Warm water
⚫Baking soda
⚫Grease
⚫Conventional wrench (for terminal clamp bolts)
⚫Distilled water
Brake fluid level
(➞ P. 320)⚫FMVSS No.116 DOT 3 brake fluid
⚫Rag or paper towel
⚫Funnel (used only for adding brake fluid)
Engine coolant level
(➞ P. 319)
⚫“Toyota Super Long Life Coolan t” or a similar high quality
ethylene glycol-based non-silicate, non-amine, non-nitrite
and non-borate coolant with long-life hybrid organic acid
technology “Toyota Super Long Life Coolant” is premixed
with 50% coolant and 50% deionized water.
⚫Funnel (used only for adding coolant)
Engine oil level
( ➞ P. 316)⚫Engine oil
⚫Rag or paper towel
⚫Funnel (used only for adding engine oil)
Fuses ( ➞P. 348)⚫Fuse with same amperage rating as original
Light bulbs
(➞ P. 352)⚫Bulb with same number and wattage rating as original
⚫Flathead screwdriver
⚫Wrench
Radiator and con-
denser ( ➞P. 320)―
Tire inflation pres-
sure ( ➞P. 334)⚫Tire pressure gauge
⚫Compressed air source
Washer fluid
(➞ P. 324)⚫Water or washer fluid containing antifreeze (for winter
use)
⚫Funnel (used only for addi ng water or washer fluid)
RAIZE_OM_General_BZ358E.book 309 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3106-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
WARNING
The engine compartment contains many mechanisms and fluids that may move
suddenly, become hot, or become electrically energized. To avoid death or seri-
ous injury, observe the following precautions.
⬛When working on the engine compartment
⚫Keep hands, clothing and tools away from the moving fan and engine drive
belt.
⚫Be careful not to touch the engine, radiator, exhaust manifold, etc., right
after driving as they may be hot. O il and other fluids may also be hot.
⚫Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
⚫Do not smoke, cause sparks or expose an open flame to fuel or the battery.
Fuel and battery fumes are flammable.
⚫Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
⚫Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with cl ean water immediately.
If you still experience discomfort, consult a doctor.
⬛When working near the electric cooling fan or radiator grille
Be sure the engine switch is in off.
With the engine switch in “ON”, the elect ric cooling fan may automatically start
to run if the air conditioning is on and/or the coolant temperature is high.
( ➞ P. 320)
⬛Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in your eyes.
NOTICE
⬛If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
⬛If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear
or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
RAIZE_OM_General_BZ358E.book 310 ページ ２０２２年５月１７日　火曜日　午後１時５９分
