2545-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E✽
: If equipped

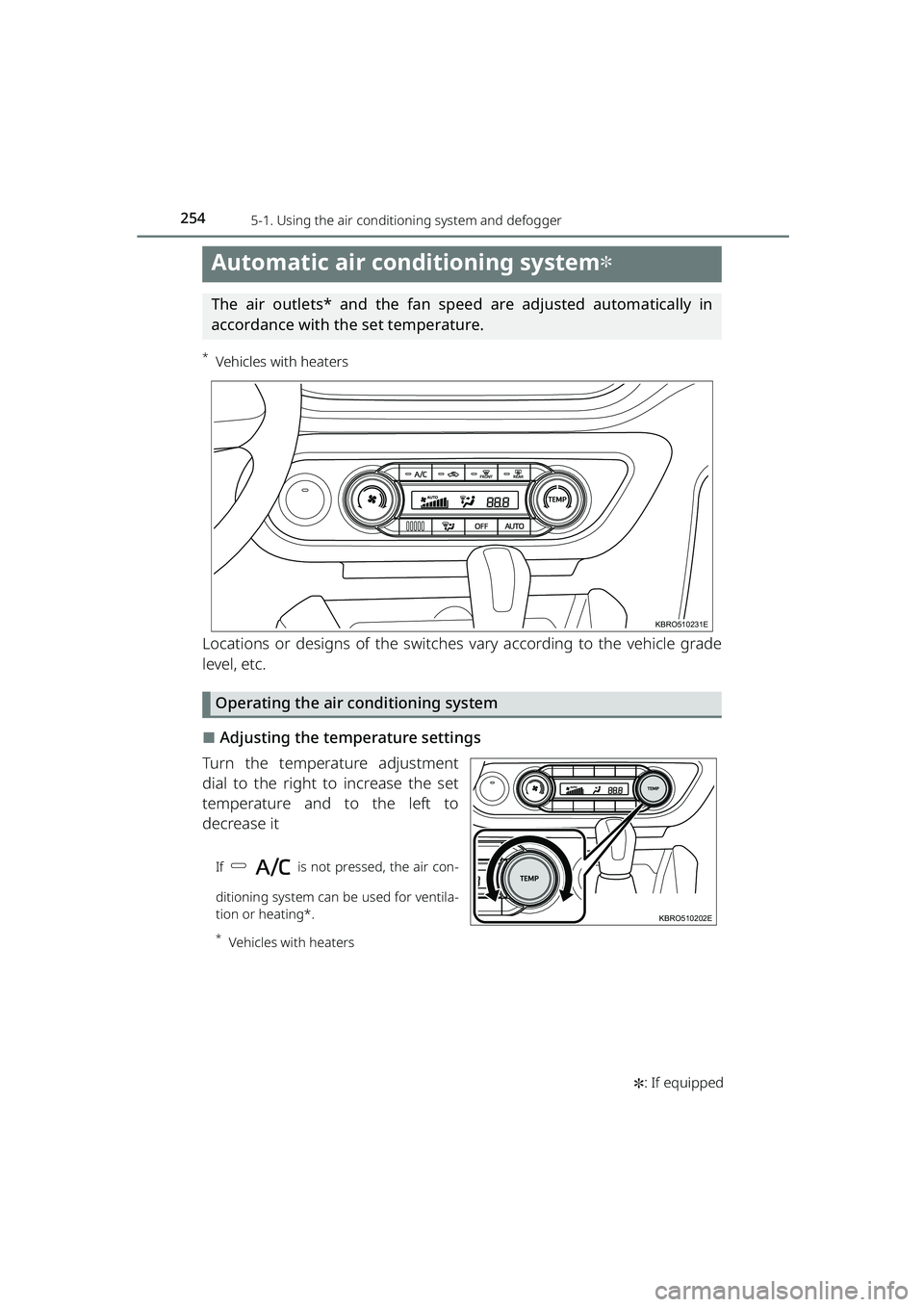

Automatic air conditioning system✽
The air outlets* and the fan speed are adjusted automatically in
accordance with the set temperature.
*Vehicles with heaters
Locations or designs of the switches vary according to the vehicle grade
level, etc.
Operating the air conditioning system
⬛Adjusting the temperature settings
Turn the temperature adjustment
dial to the right to increase the set
temperature and to the left to
decrease it
If is not pressed, the air con-
ditioning system can be used for ventila-
tion or heating*.
*Vehicles with heaters
KBRO510231E
KBRO510202E
RAIZE_OM_General_BZ358E.book 254 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2555-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5

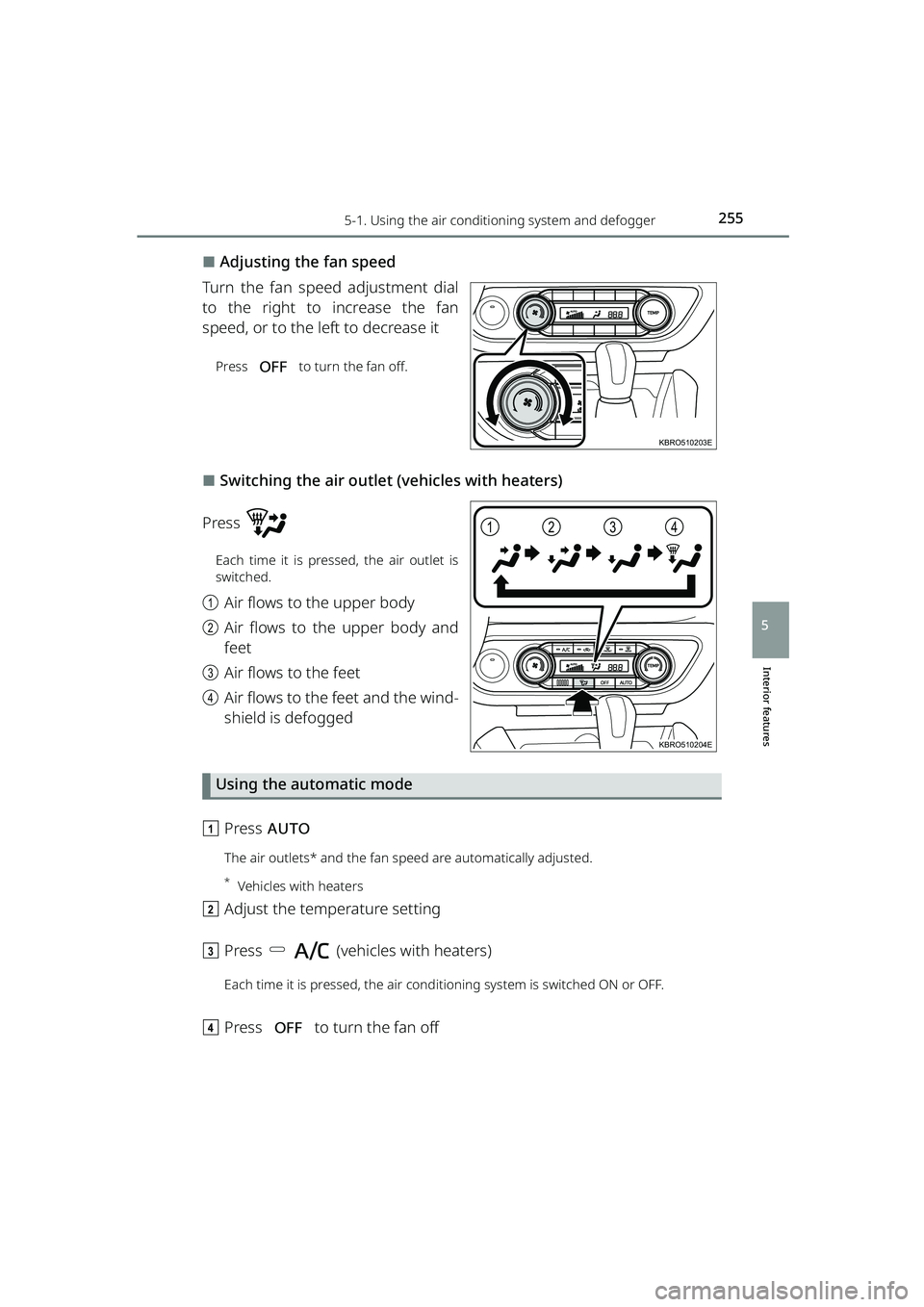

⬛Adjusting the fan speed
Turn the fan speed adjustment dial
to the right to increase the fan
speed, or to the left to decrease it
Press to turn the fan off.
⬛Switching the air outlet (vehicles with heaters)
Press
Each time it is pressed, the air outlet is
switched.
a Air flows to the upper body
b Air flows to the upper body and
feet
c Air flows to the feet
d Air flows to the feet and the wind-
shield is defogged
Using the automatic mode
aPress
The air outlets* and the fan speed are automatically adjusted.
*Vehicles with heaters
bAdjust the temperature setting
c Press (vehicles with heaters)
Each time it is pressed, the air condit ioning system is switched ON or OFF.
dPress to turn the fan off
KBRO510203E
1234
KBRO510204E
RAIZE_OM_General_BZ358E.book 255 ページ ２０２２年５月１７日　火曜日　午後１時５９分

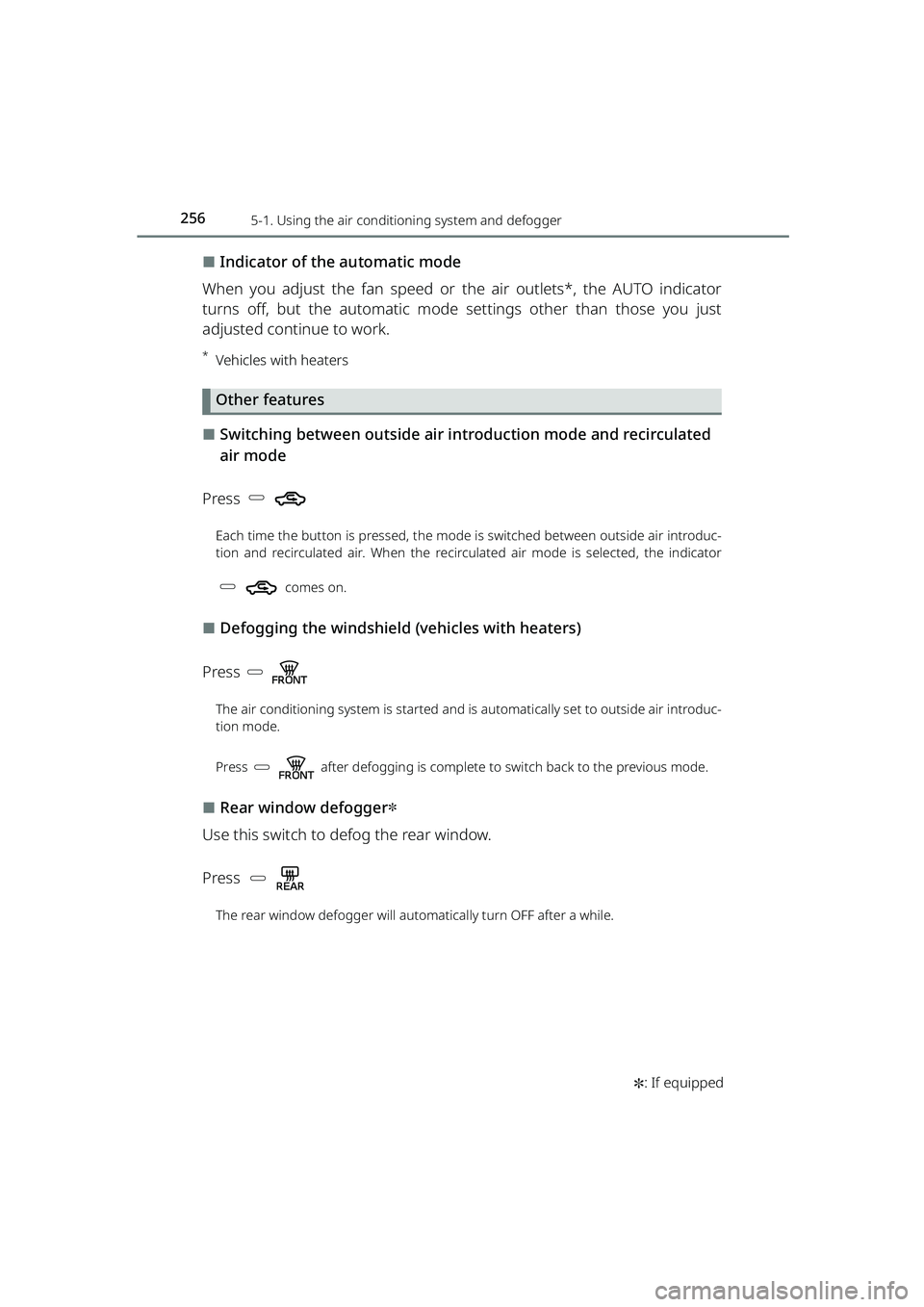

2565-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E✽
: If equipped
⬛Indicator of the automatic mode
When you adjust the fan speed or the air outlets*, the AUTO indicator
turns off, but the automatic mode settings other than those you just
adjusted continue to work.
*Vehicles with heaters
Other features
⬛Switching between outside air intr oduction mode and recirculated
air mode
Press
Each time the button is pres sed, the mode is switched between outside air introduc-
tion and recirculated air. When the recirc ulated air mode is selected, the indicator
comes on.
⬛Defogging the windshield (vehicles with heaters)
Press
The air conditioning system is started and is automatically set to outside air introduc-
tion mode.
Press after defogging is complete to switch back to the previous mode.
⬛Rear window defogger✽
Use this switch to defog the rear window.
Press
The rear window defogger will automatically turn OFF after a while.
RAIZE_OM_General_BZ358E.book 256 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2575-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5

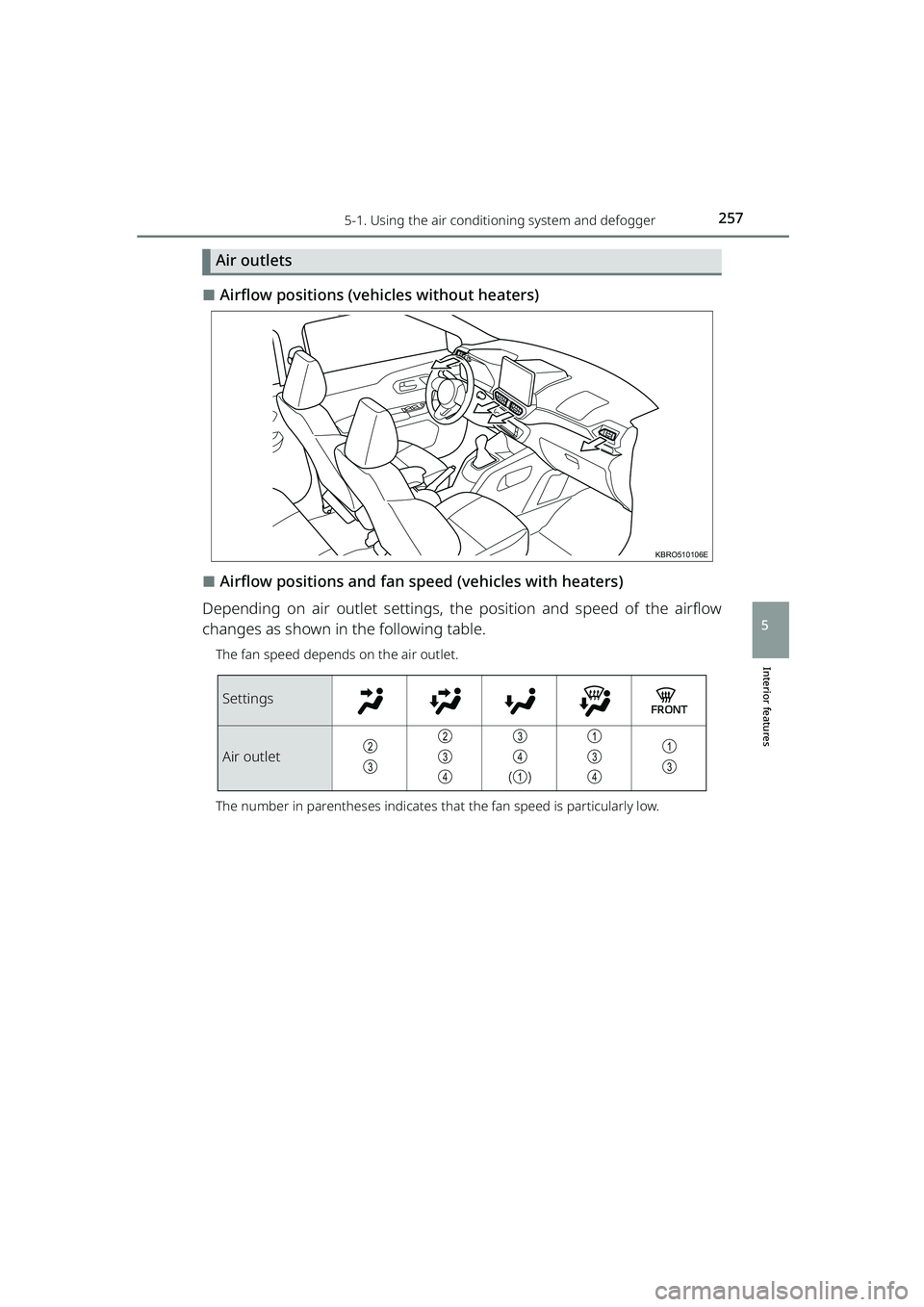

Air outlets
⬛Airflow positions (vehicles without heaters)
⬛Airflow positions and fan speed (vehicles with heaters)
Depending on air outlet settings, the position and speed of the airflow
changes as shown in the following table.
The fan speed depends on the air outlet.
The number in parentheses indicates th at the fan speed is particularly low.
Settings
Air outletb
cb
c
dc
d
( a )a
c
da
c
KBRO510106E
RAIZE_OM_General_BZ358E.book 257 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2605-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
⬛When the outside air temperature drops to around 0°C (32℉)
Even if you press , the air conditioning system may not work.
⬛When the air outlets are set to (vehicles with heaters)
In order to deliver cool air to the driver and passe ngers’ faces and warm air to
their feet, depending on the set temperature, the air sent to the driver and
passengers’ feet will be warmer than the air sent to the upper body.
⬛When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still drawn into the vehicle
after closing the windows, it is recomme nded that the air intake mode be set
to outside air mode and the fan speed to any setting except off.
⬛Outside/recirculated air mode
Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
⬛Ventilation and air conditioning odors
⚫To let fresh air in, set the air conditio ning system to the outside air introduc-
tion mode.
⚫During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odors to
be emitted from the vents.
⚫When the automatic mode is used, the fan may stop for a while immediately
after the air conditioning system starts to reduce potential odors generated
during startup. In addition, it is re commended that the air conditioning sys-
tem be set to outside air introduction mode prior to turning the vehicle off.
⬛Air conditioning filter
➞P. 3 3 8
RAIZE_OM_General_BZ358E.book 260 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2615-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5
WARNING
⬛To prevent the windshield from fogging up (vehicles with heaters)
⚫Do not press when setting the temperature of the air condition-
ing system low in extremely humid weather. Also, do not switch the air out-
lets to . The difference between the temperature of the outside air and
that of the windshield can cause the outer surface of the windshield to fog
up, blocking your vision.
⚫Do not place anything on the
instrument panel which may cover
the air outlets. Otherwise, air flow
may be obstructed, preventing the
windshield defoggers from defog-
ging.
NOTICE
⬛To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
⬛Air outlets (vehicles with heaters)
Be careful when adjusting the air outlets while using the air conditioning sys-
tem for heating, for the outlets will become hot.
KBRO510307E
RAIZE_OM_General_BZ358E.book 261 ページ ２０２２年５月１７日　火曜日　午後１時５９分
