2023 TOYOTA RAIZE outside temperature

822-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
*1The indicator lights up when the engine coolant temperature is low. If the
indicator remains lit blue after the engine is warmed up enough, have it
inspected at Toyota dealer.
*2These lights turn on when the engine swit ch is turned to “ON”, to indicate that
a system check is being performed. Th ey will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the light s do not turn off. Have the vehicle
inspected at your Toyota dealer.
*3It is indicated on the outside rear view mirror.
WARNING
⬛If a safety system warning light does not come on
If warning lights for the safety system such as ABS, and SRS airbags do not
turn on when you turn the engine switch to “ON”, or if the lights remain lit after
a few minutes or when you start the engi ne, the safety system may not operate
in the event of an accident, result ing in serious injury or death.
Have the vehicle inspected at your Toyota dealer immediately.
*2Eco Driving Indicator Light✽169
*2BSM OFF indicator✽211
*2RCTA OFF indicator✽211
*2, 3Outside rear view mirror indicators✽211
Power mode indicator✽190
IndicatorsReference
RAIZE_OM_General_BZ358E.book 82 ページ ２０２２年５月１７日　火曜日　午後１時５９分

862-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Multi-information display✽
Display contents
The multi-information display shows a va riety of outside temperature- and
driving-related information.
⚫Trip information ( ➞P. 8 9 )
The displayed items are as follows.
⦁Odometer
⦁ Tr ip m eter A/B
⦁ Instrument panel illumination adjust-
ment
⚫Driving information ( ➞P. 90)
The displayed items are as follows.
⦁Instantaneous fuel economy
⦁ Average fuel economy
⦁ Cruising distance
⦁ Outside temperature
⚫Fuel gauge
Indicates the amount of remaining fuel.
⚫Shift position display✽ (➞ P. 189)
⚫Clock display ( ➞P. 88)
⚫Front corner sensor/Reverse sen-
sor indicator
✽ (➞ P. 221)
▶Vehicles without tachometer
▶Vehicles with tachometer
KBRO210501E
KBRO210301E
RAIZE_OM_General_BZ358E.book 86 ページ ２０２２年５月１７日　火曜日　午後１時５９分

912-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
⬛Outside temperature
⚫Displays the outside temperature.
Outside temperature: the temperature is
shown in a range from –30°C to 60°C (-
22℉ to 140 ℉).
⚫Road surface freezing warning is
displayed when the outside tem-
perature becomes 3°C (37 ℉) or
lower.
Temperature indicator blinks indicating
the road surface may possibly be frozen.
Vehicles without tachometer: Press th e switch while the outside tempera-
ture is displayed, the display change s to the instrument panel illumination
adjustment ( ➞P. 8 9 ) .
User customization screen
When you switch to the user customization screen, you can change the
settings for meter display and functions.
Note that the screen is not operable while the vehicle is running. Be sure to operate
the screen when the vehicle is stopped in a safe place.
Use the ODO/TRIP DISP switch (for vehicles without tachometer) or the
ODO/TRIP switch (for vehicles with tachometer) to adjust the display.
⬛How to change settings
a Press and hold the switch while Odometer is displayed to switch to the
user customization screen
b Press the switch until the item you need to change appears
Each time you press the switch, the indication switches over.
cPress and hold the switch to change the settings
Each time you press and hold the switch, the display switches over.
To exit the user customization screen, press the switch until
appears on the screen, then press and hold the switch.
RAIZE_OM_General_BZ358E.book 91 ページ ２０２２年５月１７日　火曜日　午後１時５９分

952-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
⬛About average fuel economy
⚫Immediately after the engine switch has been turned “ON”, it shows the
value when the engine was stopped last.
⚫Fuel economy is not displayed if the da ta cannot be received when refresh-
ing the display, or if in valid data is received.
⬛About cruising distance
⚫Refreshing time for display depend s on driving conditions (running,
stopped).
⚫Note that the cruising distance data shown as when you receive your new
vehicle does not necessarily represent the correct value.
⚫When a malfunction is detected, cruising distance data may not be displayed
for a while.
⬛About outside temperature
⚫When the outside temperature cannot be measured correctly, it shows “- -°C”.
⚫Under the following conditions, the outside temperature may not be dis-
played properly, or update of temperat ure indication may be delayed. These
phenomena are not considered a failure.
⦁ When the vehicle is stopped or is running at low speeds (approx. 20 km/h
[12.4 mph] or lower)
⦁ When the outside temperature drastically changes (in a garage, or at the
entrance/exit of a tunnel)
⚫The outside temperature indication may change depending on the vehicle
conditions, such as speed and wind direction.
⬛About road surface freezing warning indication
⚫Indication of road surface freezing warnin g is just a guide. Be sure to check
the actual condition of the road.
⚫When the engine switch is turned “ON” , the warning will not be displayed if
the outside temperature is already 3°C (37 ℉) or below.
⚫Once the road surface freezing warning is displayed, the warning will not
appear again until the outside temperature becomes 4°C (39 ℉) or higher
and then goes down to 3°C (37 ℉) or lower.
RAIZE_OM_General_BZ358E.book 95 ページ ２０２２年５月１７日　火曜日　午後１時５９分

992-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
hOutside temperature indication
⦁Displays the outside temperature.
Outside temperature: the temperature is shown in a range from -30°C to 60°C (-
22℉ to 140℉ ).
⦁Road surface freezing warning is displayed when the outside temper-
ature becomes 3°C (37 ℉) or lower.
Temperature indicator blinks indicating th e road surface may possibly be frozen.
iMaintenance icon
This icon turns on when notification is needed.
When this is lit, check the maintenance screen and after the maintenance, set again
the maintenance period. ( ➞P. 111)
Display change
Press the display change button to switch screens, or change the settings.
a / / / switches
⦁Switches menus.
⦁ Switches contents, feeds page, and
moves cursor
b ENTER switch
⦁Selects and confirms items.
⦁ Resets items for running information
(➞ P. 101) by pressing and holding
this.
c TRIP switch
Switches display for trip information.
(➞ P. 100)
d RETURN switch
Goes back to the previous screen.
Goes back to the initial screen by
pressing and holding this.
4
31
121
1
KBRO210463E
RAIZE_OM_General_BZ358E.book 99 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2304-5. Using the driving support systems
RAIZE_OM_General_BZ358E

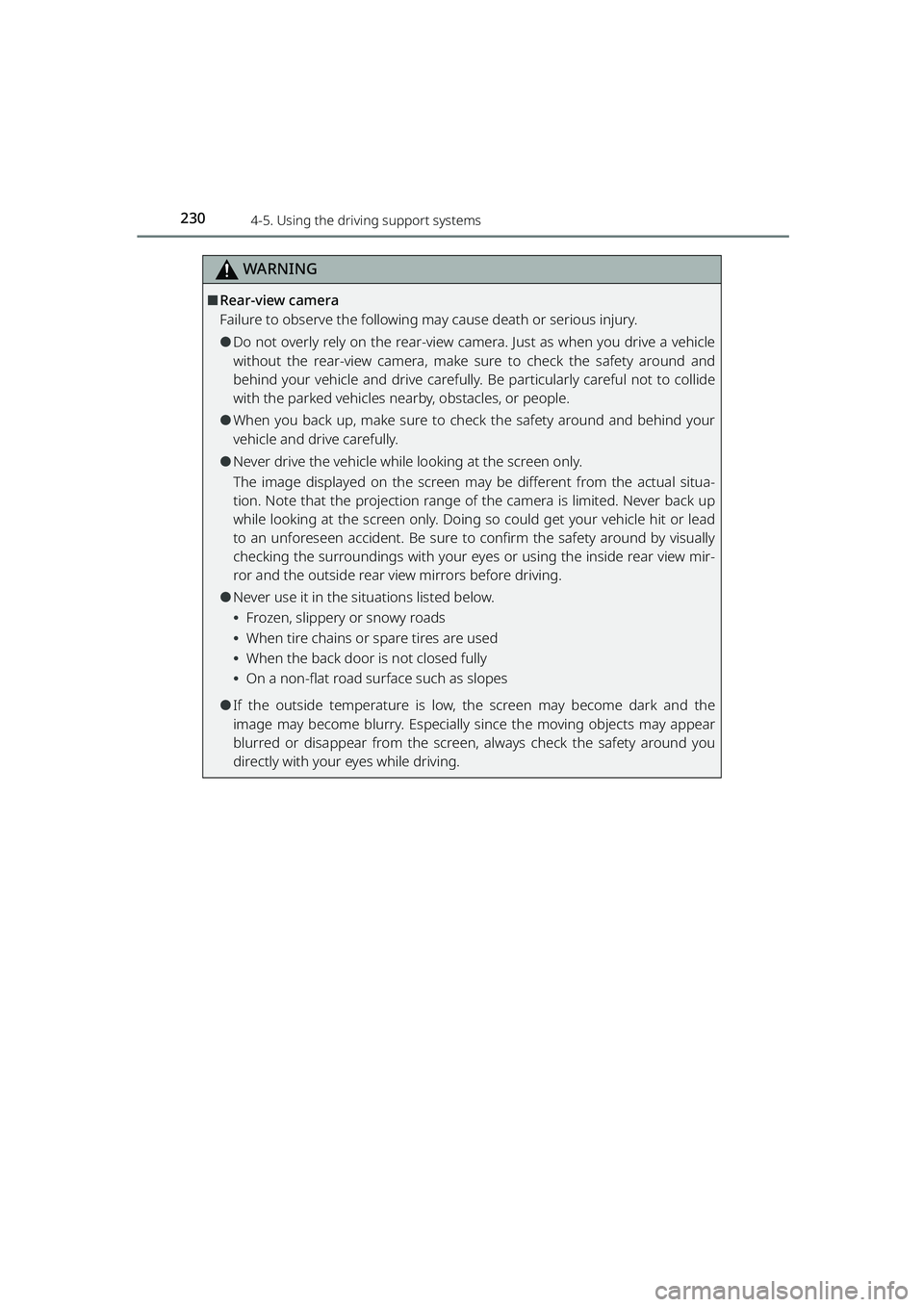

WARNING
⬛Rear-view camera
Failure to observe the following may cause death or serious injury.
⚫Do not overly rely on the rear-view camera. Just as when you drive a vehicle
without the rear-view camera, make su re to check the safety around and
behind your vehicle and drive carefully. Be particularly careful not to collide
with the parked vehicles nearby, obstacles, or people.
⚫When you back up, make sure to check the safety around and behind your
vehicle and drive carefully.
⚫Never drive the vehicle while looking at the screen only.
The image displayed on the screen ma y be different from the actual situa-
tion. Note that the projection range of the camera is limited. Never back up
while looking at the screen only. Doing so could get your vehicle hit or lead
to an unforeseen accident. Be sure to confirm the safety around by visually
checking the surroundings with your ey es or using the inside rear view mir-
ror and the outside rear view mirrors before driving.
⚫Never use it in the situations listed below.
⦁ Frozen, slippery or snowy roads
⦁ When tire chains or spare tires are used
⦁ When the back door is not closed fully
⦁ On a non-flat road surface such as slopes
⚫If the outside temperature is low, the screen may be come dark and the
image may become blurry. Especially since the moving objects may appear
blurred or disappear from the screen, always check the safety around you
directly with your eyes while driving.
RAIZE_OM_General_BZ358E.book 230 ページ ２０２２年５月１７日　火曜日　午後１時５９分

238
RAIZE_OM_General_BZ358E
4-6. Driving tips
Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropri-
ate to the prevailing weather conditions.Preparation for winter
⚫Use fluids that are appropriate to the prevailing outside temperatures.
⦁ Engine oil
⦁ Coolant
⦁ Washer fluid
⚫Have a service technician inspec t the condition of the battery.
Before driving
Perform the following according to the driving conditions:
⚫Do not try to forcibly open a window or move a windshield wiper that is
frozen. Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
⚫To ensure proper operation of the air conditioning system fan, remove
any snow that has accumulated on the air inlet vents in front of the
windshield.
⚫Check for and remove any excess ice or snow that may have accumu-
lated on the exterior lights, vehicle’s roof, around the tires or on the
brakes.
⚫Look under the vehicle and check that there are no ice blocks around
the ground. Remove any attached ice blocks with great care to avoid
damaging vehicle components. Also check that the pedals and steering
wheel move smoothly.
⚫Remove any snow or mud from the bottom of your shoes before getting
in the vehicle.
RAIZE_OM_General_BZ358E.book 238 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2424-6. Driving tips
RAIZE_OM_General_BZ358E
◆Performing idling stops
⚫Avoid unnecessary idling. Stop the engine when parking the vehicle to
reduce excessive fuel consumption, even it is only for a short period of
time.
⚫Except in severe environment, such as when the outside temperature is
extremely low, warming up the engine before driving is unnecessary.
Rather than idling, it is more efficient to drive the vehicle gently to warm
up each part while avoiding increasing the engine revolutions unneces-
sarily and accelerating or decelerating suddenly.
◆Luggage
Carrying heavy luggage will lead to poor fuel economy. Avoid carrying
unnecessary luggage. Installing a large roof rack will also cause poor fuel
economy.
◆Regular maintenance
⚫Make sure to check the tire inflation pressure frequently. Improper tire
inflation pressure can cause poor fu el economy. Also, as snow tires can
cause large amounts of friction, thei r use on dry roads can lead to poor
fuel economy. Use tires that are appropriate for the season and road
conditions.
⚫Use oil and fluid of the recommended quality, which affect fuel con-
sumption and the life of the vehicle. Also, check oil and fluid periodically.
( ➞ P. 2 9 4 )
RAIZE_OM_General_BZ358E.book 242 ページ ２０２２年５月１７日　火曜日　午後１時５９分
