2023 TOYOTA RAIZE snow chains

2304-5. Using the driving support systems
RAIZE_OM_General_BZ358E
WARNING
⬛Rear-view camera
Failure to observe the following may cause death or serious injury.
⚫Do not overly rely on the rear-view camera. Just as when you drive a vehicle
without the rear-view camera, make su re to check the safety around and
behind your vehicle and drive carefully. Be particularly careful not to collide
with the parked vehicles nearby, obstacles, or people.
⚫When you back up, make sure to check the safety around and behind your
vehicle and drive carefully.
⚫Never drive the vehicle while looking at the screen only.
The image displayed on the screen ma y be different from the actual situa-
tion. Note that the projection range of the camera is limited. Never back up
while looking at the screen only. Doing so could get your vehicle hit or lead
to an unforeseen accident. Be sure to confirm the safety around by visually
checking the surroundings with your ey es or using the inside rear view mir-
ror and the outside rear view mirrors before driving.
⚫Never use it in the situations listed below.
⦁ Frozen, slippery or snowy roads
⦁ When tire chains or spare tires are used
⦁ When the back door is not closed fully
⦁ On a non-flat road surface such as slopes
⚫If the outside temperature is low, the screen may be come dark and the
image may become blurry. Especially since the moving objects may appear
blurred or disappear from the screen, always check the safety around you
directly with your eyes while driving.
RAIZE_OM_General_BZ358E.book 230 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2364-5. Using the driving support systems
RAIZE_OM_General_BZ358E
WARNING
⬛The ABS does not operate effectively when
⚫Do not overly rely on the ABS.
The limits of tire gripping performance have been exceeded (such as exces-
sively worn tires on a snow covered road).
⚫The vehicle hydroplanes while driving at high speed on wet or slick roads.
⬛Stopping distance when the ABS is operating may exceed that of normal
conditions
The ABS is not designed to shorten th e vehicle’s stopping distance. Always
maintain a safe distance from the vehicle in front of you, especially in the fol-
lowing situations:
⚫When driving on dirt, grav el or snow-covered roads
⚫When driving with tire chains
⚫When driving over bumps in the road
⚫When driving over roads with potholes or roads with uneven surfaces
⬛TRC/VSC may not operate effectively when
⚫Do not overly rely on the TRC/VSC.
Directional control and power may not be achievable while driving on slip-
pery road surfaces, even if the TRC/VSC system is operating.
Drive the vehicle carefully in condit ions where stability and power may be
lost.
⚫The VSC and TRC may not function proper ly when tire chains are installed.
⬛Hill-start assist control does not operate effectively when
⚫Do not overly rely on hill-start assist control. Hill-start assist control may not
operate effectively on steep inclines an d dirt, gravel or snow-covered roads.
⚫Unlike the parking brake, hill-start assist control is not intended to hold the
vehicle stationary for an extended period of time. Do not attempt to use hill-
start assist control to hold the vehicle on an incline, as doing so may lead to
an accident.
⚫The hill-start assist control may no t become activated depending on the
number of occupants or luggage weight in the vehicle, or if the driver did not
step on the brake pedal strong enough when stopping.
⬛When the VSC is activated
The slip indicator light flashes. Always drive carefully. Reckless driving may
cause an accident. Exercise particular care when the indicator light flashes.
⬛When the ABS warning light or slip indicator is on
The emergency brake signal ( ➞P. 232) may not be activated.
RAIZE_OM_General_BZ358E.book 236 ページ ２０２２年５月１７日　火曜日　午後１時５９分

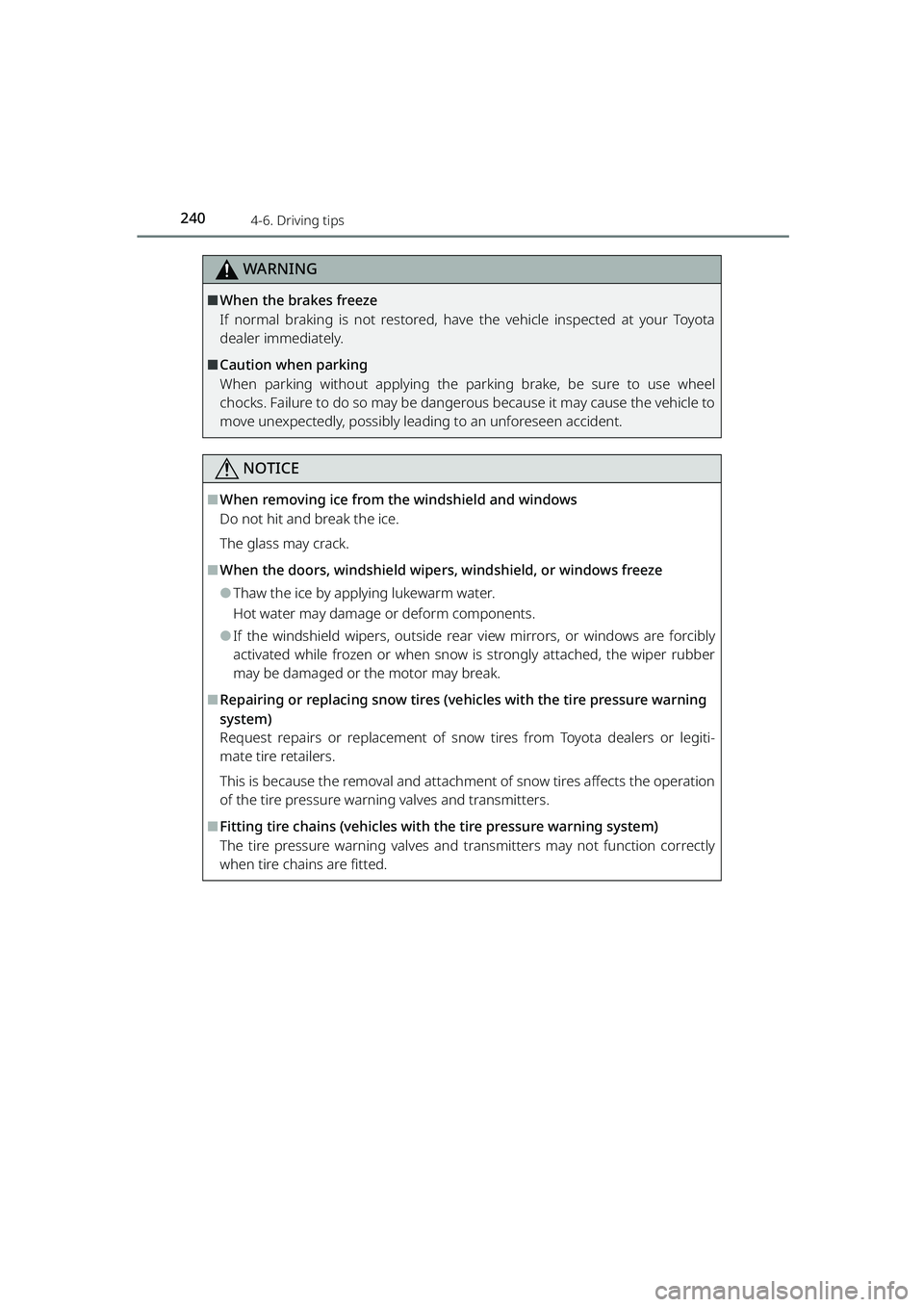

2404-6. Driving tips
RAIZE_OM_General_BZ358E
WARNING
⬛When the brakes freeze
If normal braking is not restored, have the vehicle inspected at your Toyota
dealer immediately.
⬛Caution when parking
When parking without applying the parking brake, be sure to use wheel
chocks. Failure to do so may be dangerous because it may cause the vehicle to
move unexpectedly, possibly leading to an unforeseen accident.
NOTICE
⬛When removing ice from the windshield and windows
Do not hit and break the ice.
The glass may crack.
⬛When the doors, windshield wipers, windshield, or windows freeze
⚫Thaw the ice by applying lukewarm water.
Hot water may damage or deform components.
⚫If the windshield wipers, outside rear view mirrors, or windows are forcibly
activated while frozen or when snow is strongly attached, the wiper rubber
may be damaged or the motor may break.
⬛Repairing or replacing snow tires (veh icles with the tire pressure warning
system)
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the operation
of the tire pressure warning valves and transmitters.
⬛Fitting tire chains (vehicles with the tire pressure warning system)
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.
RAIZE_OM_General_BZ358E.book 240 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3316-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
✽: If equipped
Maintenance and care
6
⬛Situations in which the tire pressure warning system may not operate properly✽
⚫In the following cases, the tire pressure warning system may not operate
properly.
⦁ If non-genuine Toyota wheels are used.
⦁A tire has been replaced with a tire that is not an OE (Original Equipment) tire.
⦁A tire has been replaced with a tire that is not of the specified size.
⦁ Tire chains, etc., are equipped.
⦁ An auxiliary-supported run-flat tire is equipped.
⦁ If a window tint that affects the radio wave signals is installed.
⦁ If there is a lot of snow or ice on th e vehicle, particularly around the wheels
or wheel housings.
⦁ If the tire inflation pressure is extr emely higher than the specified level.
⦁ If the spare tire is in a location subj ect to poor radio wave signal reception.
⦁ If a large metallic object which can in terfere with signal reception is put
near the spare tire.
⦁ If a wheel, not equipped with a tire pressure warning valve and transmit-
ter, is used.
⦁ If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning computer.
⚫Performance may be affected in the following situations.
⦁Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
⦁ When carrying a portable radio, cellul ar phone, cordless phone or other
wireless communication device
⚫When the vehicle is parked, the time ta ken for the warning to start or go off
could be extended.
⚫When tire inflation pressure declin es rapidly for example when a tire has
burst, the warning may not function.
⬛The initialization operation (vehicles with the tire pressure warning system)
⚫Make sure to carry out init ialization after adjusting th e tire inflation pressure.
Also, make sure the tires are cold befo re carrying out initialization or tire
inflation pressure adjustment.
⚫If you have accidentally turned the engi ne switch to “OFF” during initializa-
tion, it is not necessary to press the reset switch again as initialization will
restart automatically when the engine switch has been turned to “ON” for
the next time.
⚫If you accidentally press the reset switch when initialization is not necessary,
adjust the tire inflation pressure to the specified level when the tires are
cold, and conduct initialization again.
RAIZE_OM_General_BZ358E.book 331 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3857-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
⚫If electronic devices or facilities us ing similar radio wave frequencies are
nearby
⚫If a radio set at a similar frequency is in use in the vehicle
⚫If a window tint that affects the radio wave signals is installed
⚫If there is a lot of snow or ice on th e vehicle, particularly around the wheels
or wheel housings
⚫If non-genuine Toyota wheels are used (Even if you use Toyota wheels, the
tire pressure warning system may no t work properly with some types of
tires.)
⚫If tire chains are used
⚫If the spare tire is in a location subject to poor radio wave signal reception.
⚫If a large metallic object which can in terfere with signal reception is put in
the luggage room.
⬛If the tire pressure warning light freq uently comes on after blinking for 1
minute (vehicles with a tire pressure warning system)
If the tire pressure warning light freque ntly comes on after blinking for 1 min-
ute when the engine switch is turned on, have it checked by your Toyota
dealer.
