2017 TOYOTA VERSO Owners Manual

5

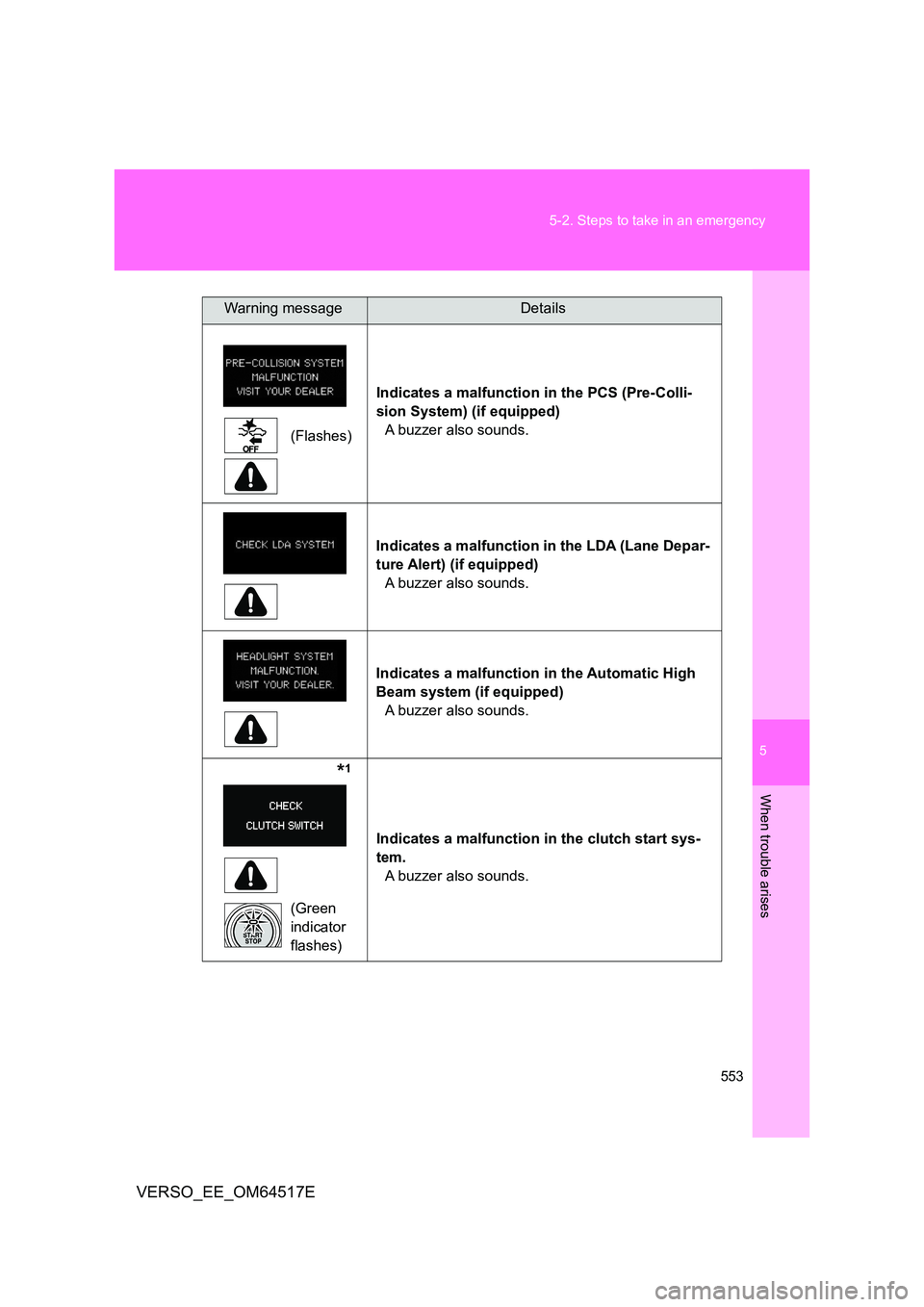

553
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E
(Flashes)

Indicates a malfunction in the PCS (Pre-Colli-
sion System) (if equipped)
A buzzer also sounds.

Indicates a malfunction in the LDA (Lane Depar-
ture Alert) (if equipped)
A buzzer also sounds.

Indicates a malfunction in the Automatic High
Beam system (if equipped)
A buzzer also sounds.
*1
(Green
indicator
flashes)
Indicates a malfunction in the clutch start sys-
tem.
A buzzer also sounds.
Warning messageDetails

554
5-2. Steps to take in an emergency
VERSO_EE_OM64517E
*1: Vehicles with smart entry & start system
*2: Diesel engine only
Indicates a malfunction in the DPF system
(Diesel engine only)
*2
Indicates an abnormal amount of water in the
fuel filter.
A buzzer also sounds.
Indicates that the pre-collision system is dis-
abled. (if equipped)
NOTICE
■ If the “DRAIN WATER FROM FUEL FILTER” warning message is dis-
played
Never drive the vehicle if the warning message is displayed. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.
Warning messageDetails

5

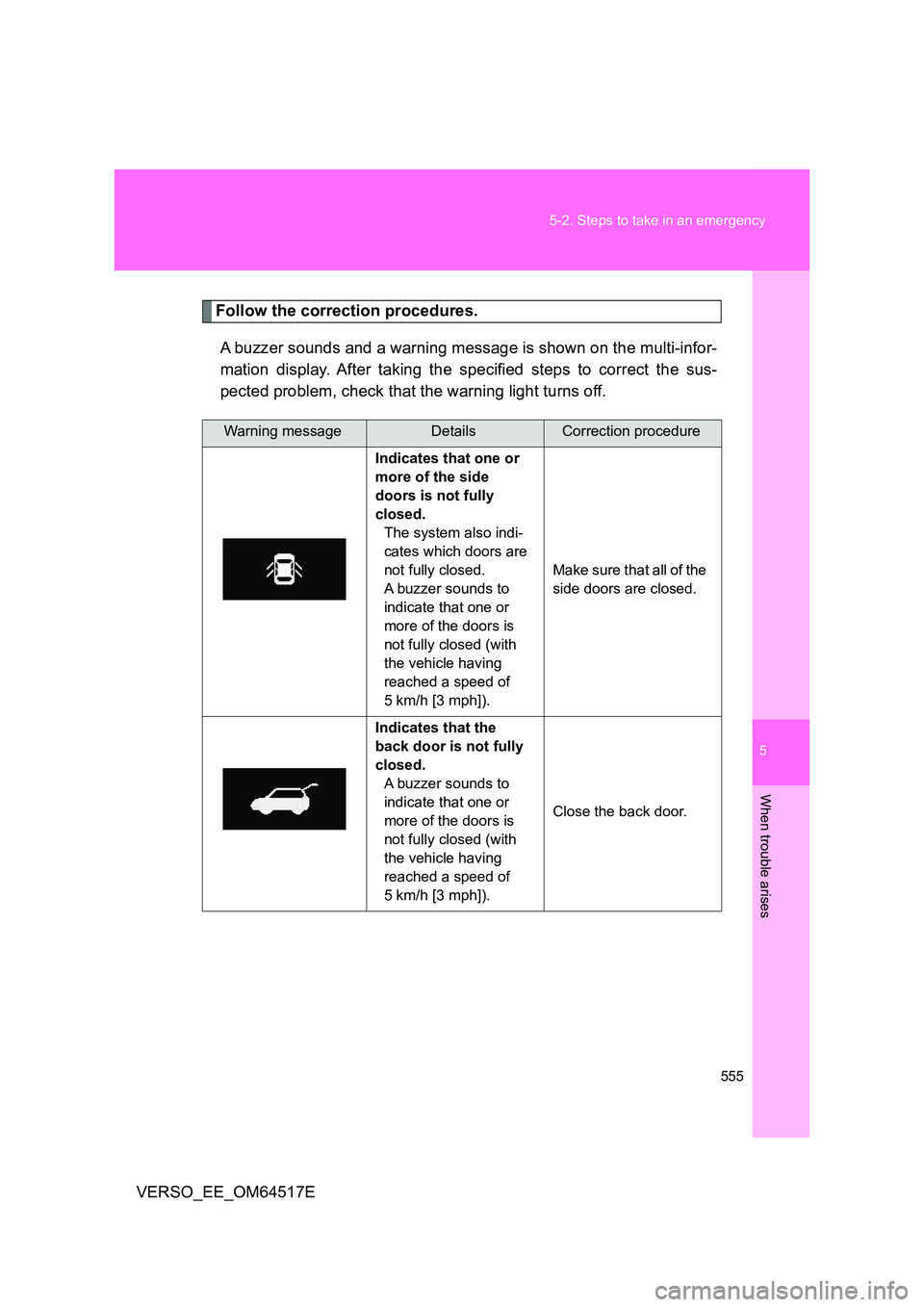

555
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E
Follow the correction procedures.
A buzzer sounds and a warning message is shown on the multi-infor-
mation display. After taking the specified steps to correct the sus-
pected problem, check that the warning light turns off.
Warning messageDetailsCorrection procedure

Indicates that one or
more of the side
doors is not fully
closed.
The system also indi-
cates which doors are
not fully closed.
A buzzer sounds to
indicate that one or
more of the doors is
not fully closed (with
the vehicle having
reached a speed of
5 km/h [3 mph]).
Make sure that all of the
side doors are closed.

Indicates that the
back door is not fully
closed.
A buzzer sounds to
indicate that one or
more of the doors is
not fully closed (with
the vehicle having
reached a speed of
5 km/h [3 mph]).
Close the back door.

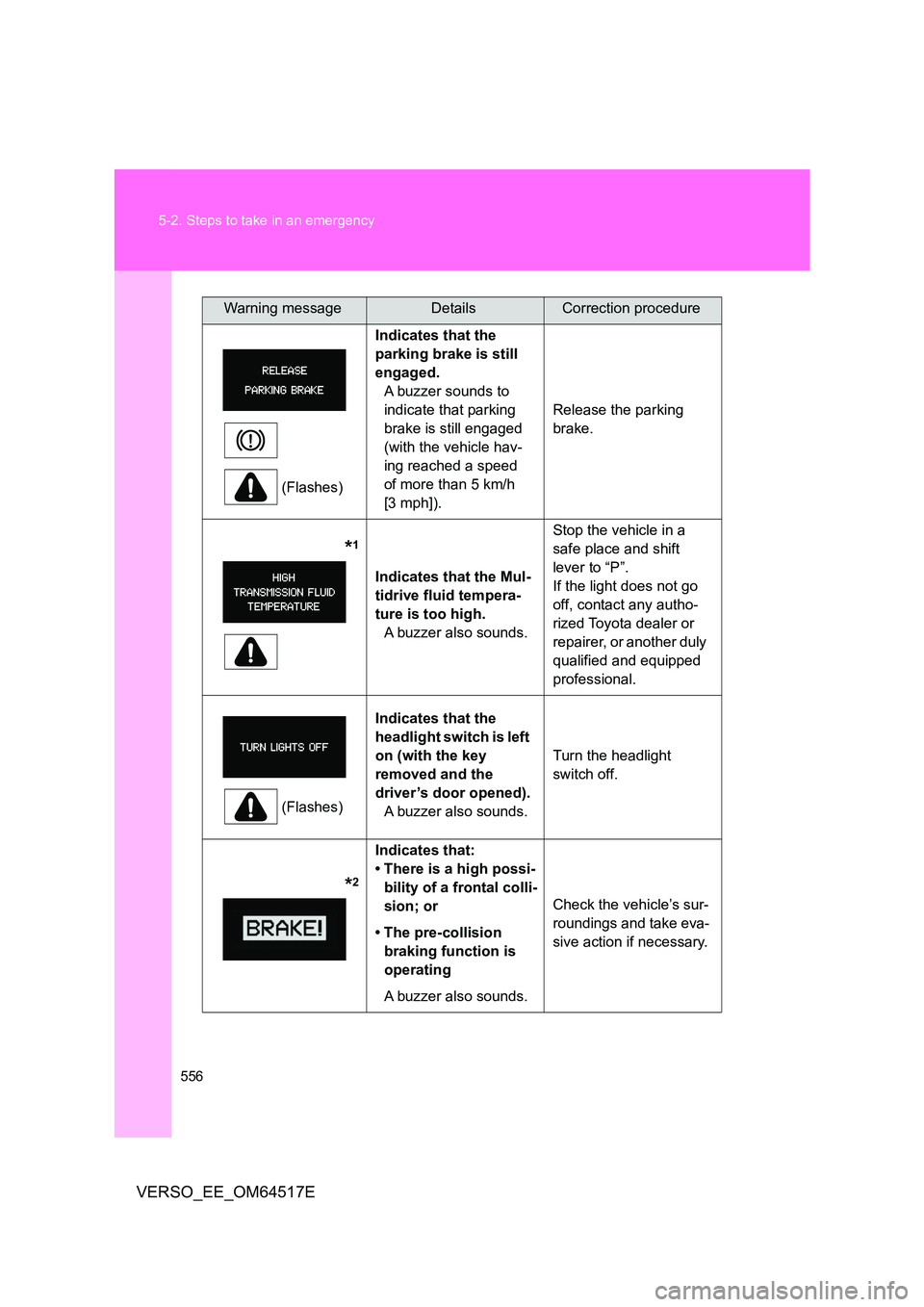

556
5-2. Steps to take in an emergency
VERSO_EE_OM64517E
(Flashes)
Indicates that the
parking brake is still
engaged.
A buzzer sounds to
indicate that parking
brake is still engaged
(with the vehicle hav-
ing reached a speed
of more than 5 km/h
[3 mph]).
Release the parking
brake.
*1
Indicates that the Mul-
tidrive fluid tempera-
ture is too high.
A buzzer also sounds.
Stop the vehicle in a
safe place and shift
lever to “P”.
If the light does not go
off, contact any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional.
(Flashes)
Indicates that the
headlight switch is left
on (with the key
removed and the
driver’s door opened).
A buzzer also sounds.
Turn the headlight
switch off.
*2
Indicates that:
• There is a high possi-
bility of a frontal colli-
sion; or
• The pre-collision
braking function is
operating
A buzzer also sounds.
Check the vehicle’s sur-
roundings and take eva-
sive action if necessary.
Warning messageDetailsCorrection procedure

5
557
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E
*2

Indicates that, since
the VSC (Vehicle Sta-
bility Control) system
was turned off, the
pre-collision braking
and pre-collision
brake assist are dis-
abled (The pre-colli-
sion warning function
will be operational)
Turn the VSC on.
( P. 282318)
The system is tempo-
rarily canceled
because the operating
conditions of the front
sensor (temperature,
etc.) are not met.
The following systems
may be suspended:
• PCS (Pre-Collision
System) (if equipped).
• LDA (Lane Departure
Alert) (if equipped);
• Automatic High Beam
(if equipped)
The system can be
operated when the
operating conditions of
the front sensor (tem-
perature, etc.) are met.
Turn the system off,
wait for a while, and
then turn the system
back on.
The area of the wind-
shield in front of the
front sensor is fogged
up or covered with
dirt, rain, ice, snow,
etc.
The following systems
may be suspended:
• PCS (Pre-Collision
System) (if equipped).
• LDA (Lane Departure
Alert) (if equipped);
• Automatic High Beam
(if equipped)
Turn the system off,
clear the windshield of
dirt, fog, ice, etc. then
turn the system back
on. ( P. 265)
Warning messageDetailsCorrection procedure

558
5-2. Steps to take in an emergency
VERSO_EE_OM64517E
Indicates that the LDA
(Lane Departure Alert)
system cannot be
used because the
vehicle speed is lower
than approximately
50 km/h (32 mph) (if
equipped).
Drive the vehicle at
approximately 50 km/h
(32 mph) or higher.
Indicates that the LDA
(Lane Departure Alert)
system cannot be
used because the
vehicle speed is out-
side of the operational
range (if equipped).
Drive the vehicle while
lowering the vehicle
speed.
*3
Indicates that engine
oil is scheduled to be
changed. (The indica-
tor will not work prop-
erly unless the oil
maintenance data has
been reset.)
Check the level of
engine oil, and add if
necessary.
If necessary, have the
engine oil changed by
any authorized Toyota
dealer or repairer, or
another duly qualified
and equipped profes-
sional. After changing
the engine oil, the oil
change system should
be reset.
*3
Indicates that the
engine oil scheduled
be changed. (After the
engine oil is changed
and the oil mainte-
nance data has been
reset.)
Check and have the
engine oil and oil filter
changed by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional. After
changing the engine oil,
the oil change system
should be reset.
Warning messageDetailsCorrection procedure

5

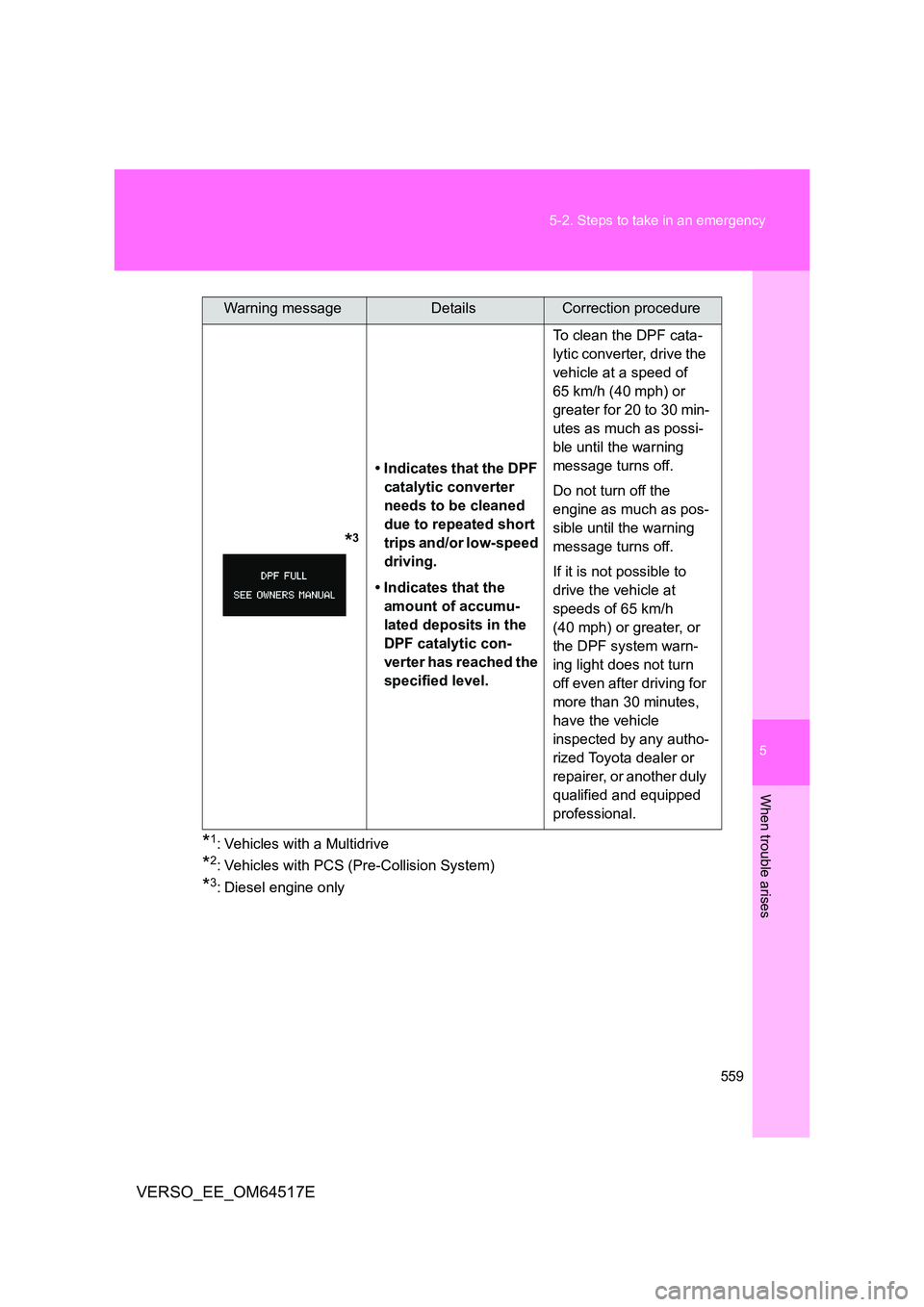

559
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E
*1: Vehicles with a Multidrive
*2: Vehicles with PCS (Pre-Collision System)
*3: Diesel engine only
*3
• Indicates that the DPF
catalytic converter
needs to be cleaned
due to repeated short
trips and/or low-speed
driving.
• Indicates that the
amount of accumu-
lated deposits in the
DPF catalytic con-
verter has reached the
specified level.
To clean the DPF cata-
lytic converter, drive the
vehicle at a speed of
65 km/h (40 mph) or
greater for 20 to 30 min-
utes as much as possi-
ble until the warning
message turns off.
Do not turn off the
engine as much as pos-
sible until the warning
message turns off.
If it is not possible to
drive the vehicle at
speeds of 65 km/h
(40 mph) or greater, or
the DPF system warn-
ing light does not turn
off even after driving for
more than 30 minutes,
have the vehicle
inspected by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional.
Warning messageDetailsCorrection procedure

560
5-2. Steps to take in an emergency
VERSO_EE_OM64517E
Follow the correction procedures. (vehicles with smart entry & start system)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure
Once
(Flashes)
Indicates that
an attempt was
made to start
the engine with-
out the elec-
tronic key being
present, or the
electronic key
was not func-
tioning normally.
Confirm the
location of the
electronic key.
Once3 times
(Flashes)
Indicates that a
door other than
the driver’s door
has been
opened or
closed with the
“ENGINE
START STOP”
switch in any
mode other
than off and the
electronic key
outside of the
detection area.
Confirm the
location of the
electronic key.
