2017 TOYOTA VERSO Owners Manual

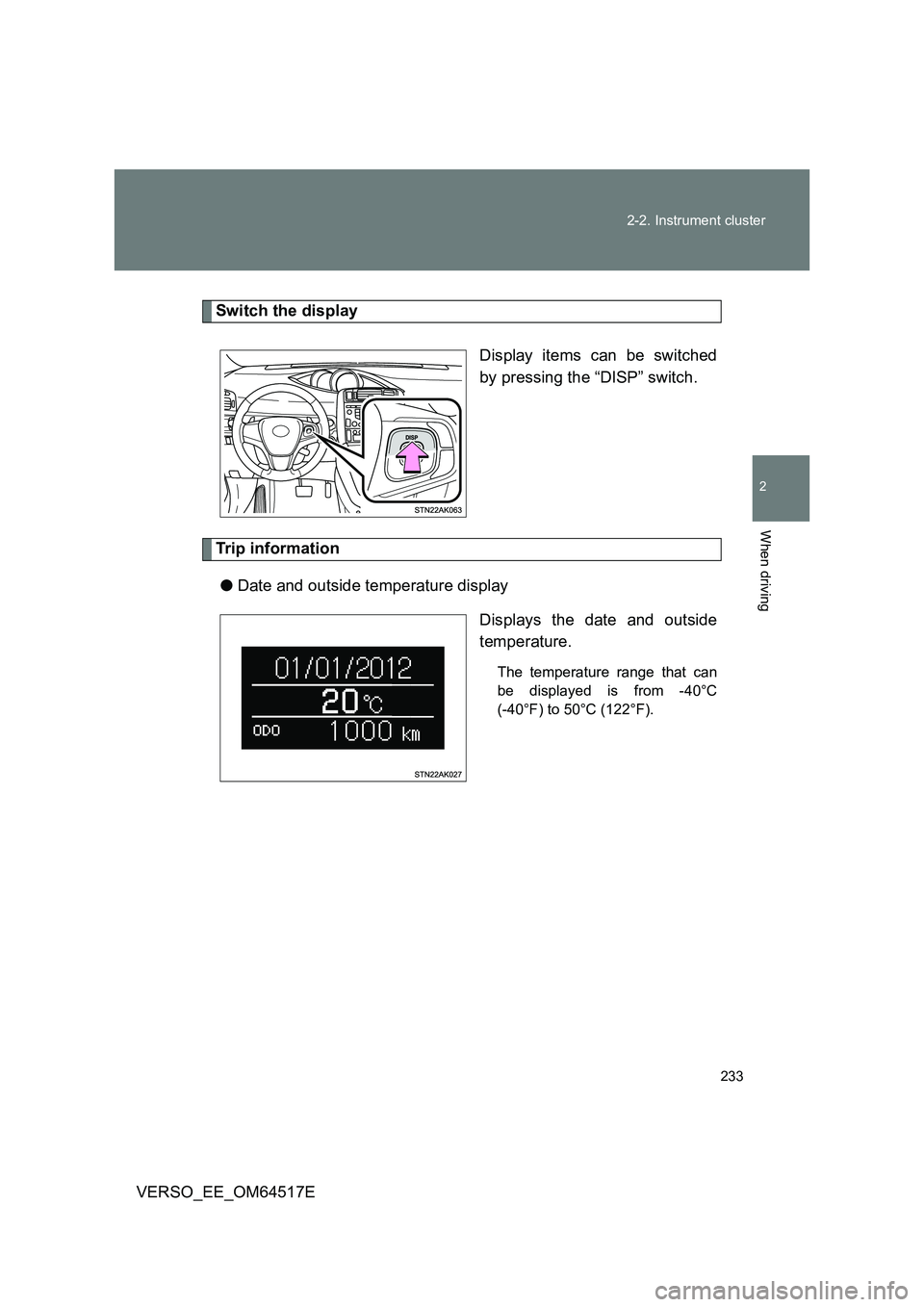

233
2-2. Instrument cluster
2
When driving
VERSO_EE_OM64517E
Switch the display
Display items can be switched
by pressing the “DISP” switch.
Trip information
● Date and outside temperature display
Displays the date and outside
temperature.
The temperature range that can
be displayed is from -40°C
(-40°F) to 50°C (122°F).

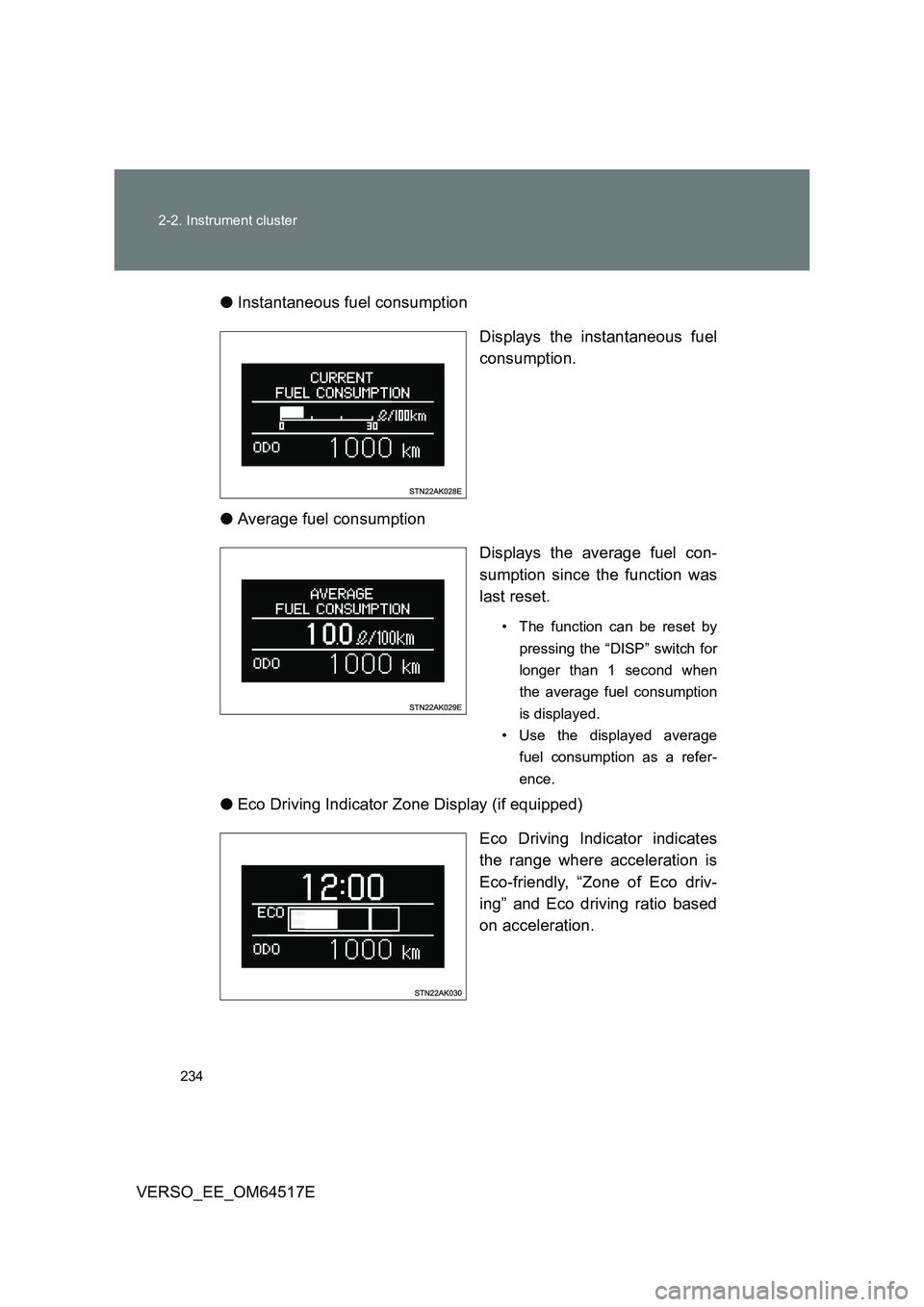

234
2-2. Instrument cluster
VERSO_EE_OM64517E
● Instantaneous fuel consumption
Displays the instantaneous fuel
consumption.
● Average fuel consumption
Displays the average fuel con-
sumption since the function was
last reset.
• The function can be reset by
pressing the “DISP” switch for
longer than 1 second when
the average fuel consumption
is displayed.
• Use the displayed average
fuel consumption as a refer-
ence.
● Eco Driving Indicator Zone Display (if equipped)
Eco Driving Indicator indicates
the range where acceleration is
Eco-friendly, “Zone of Eco driv-
ing” and Eco driving ratio based
on acceleration.

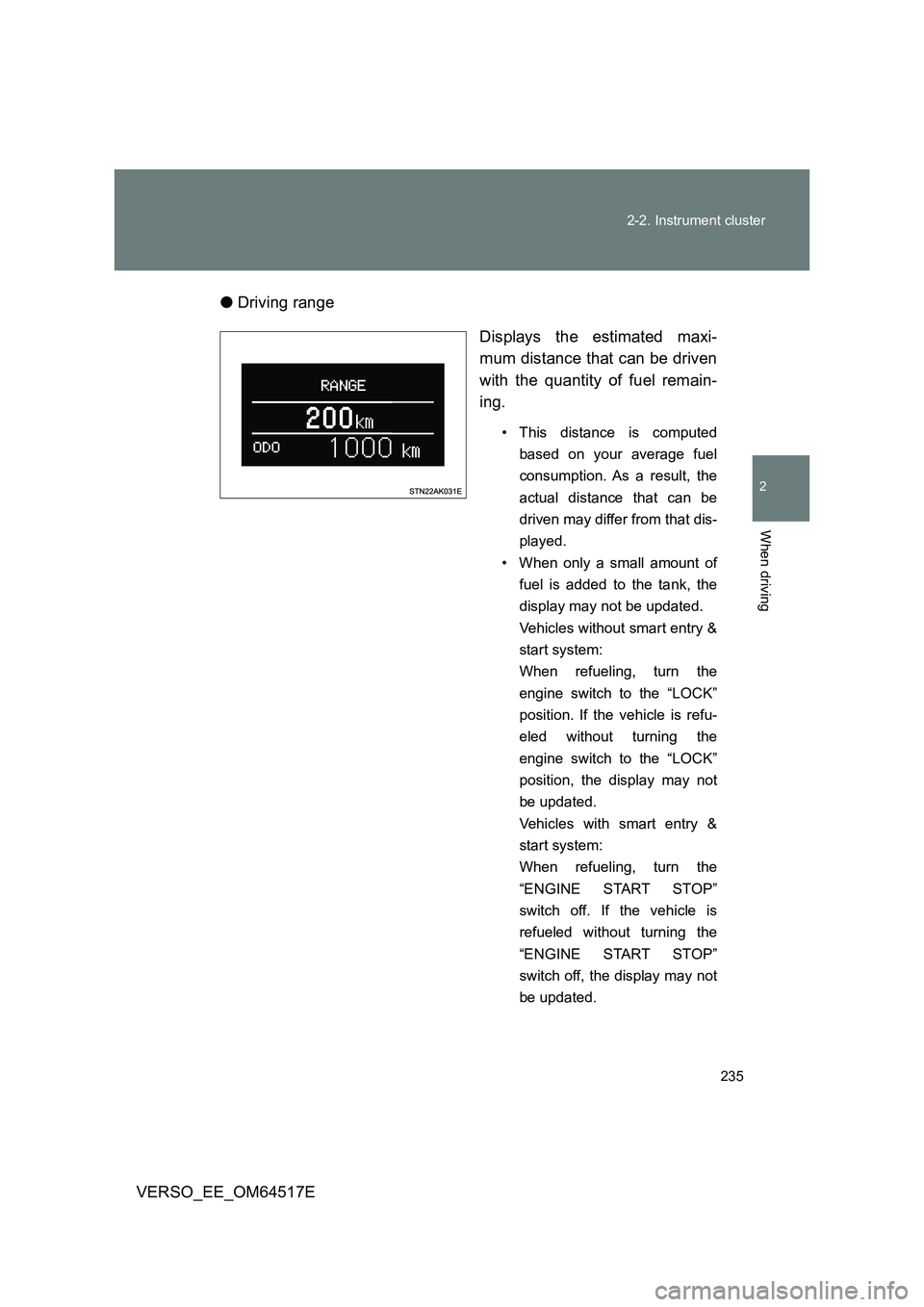

235
2-2. Instrument cluster
2
When driving
VERSO_EE_OM64517E
● Driving range
Displays the estimated maxi-
mum distance that can be driven
with the quantity of fuel remain-
ing.
• This distance is computed
based on your average fuel
consumption. As a result, the
actual distance that can be
driven may differ from that dis-
played.
• When only a small amount of
fuel is added to the tank, the
display may not be updated.
Vehicles without smart entry &
start system:
When refueling, turn the
engine switch to the “LOCK”
position. If the vehicle is refu-
eled without turning the
engine switch to the “LOCK”
position, the display may not
be updated.
Vehicles with smart entry &
start system:
When refueling, turn the
“ENGINE START STOP”
switch off. If the vehicle is
refueled without turning the
“ENGINE START STOP”
switch off, the display may not
be updated.

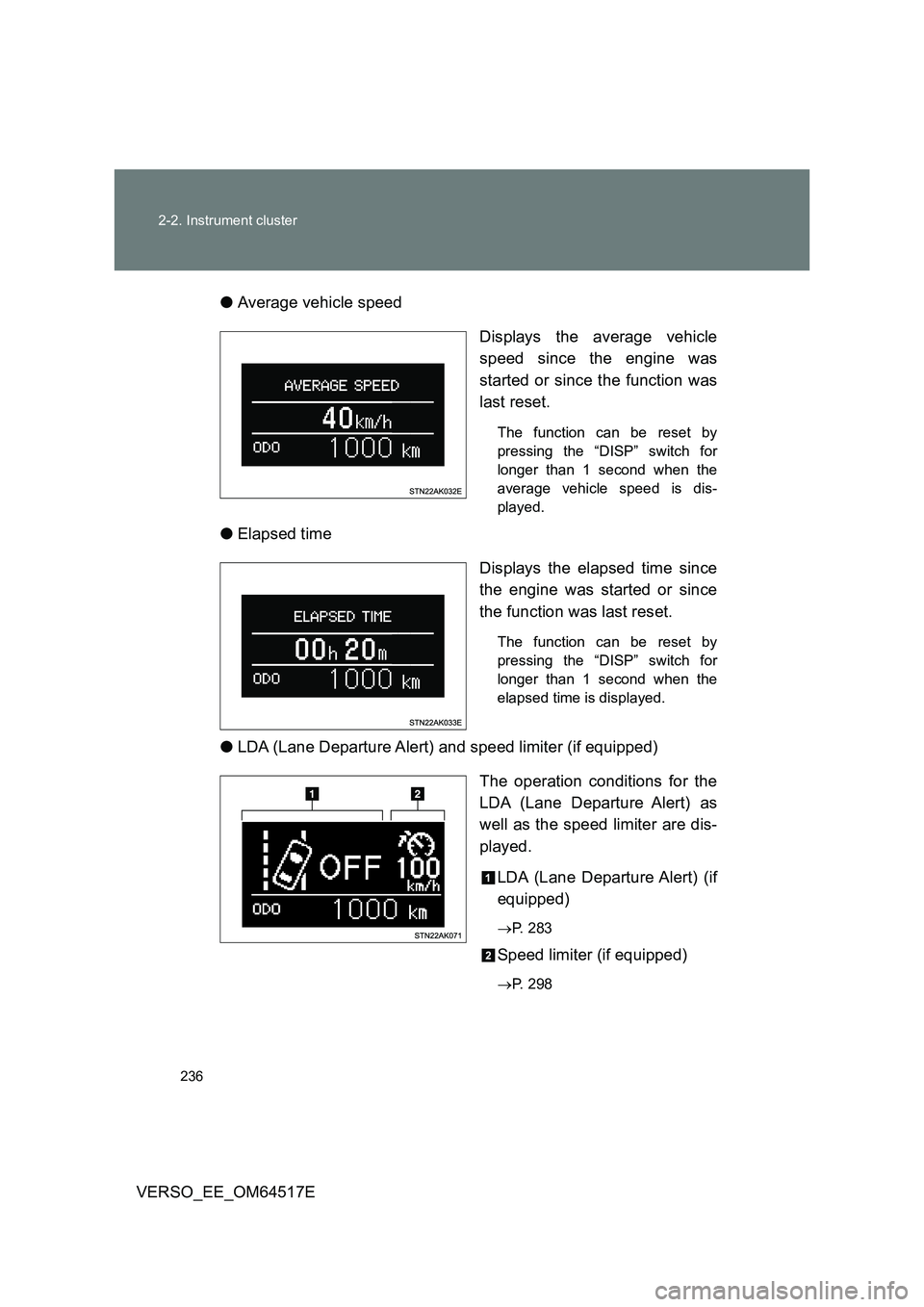

236
2-2. Instrument cluster
VERSO_EE_OM64517E
● Average vehicle speed
Displays the average vehicle
speed since the engine was
started or since the function was
last reset.
The function can be reset by
pressing the “DISP” switch for
longer than 1 second when the
average vehicle speed is dis-
played.
● Elapsed time
Displays the elapsed time since
the engine was started or since
the function was last reset.
The function can be reset by
pressing the “DISP” switch for
longer than 1 second when the
elapsed time is displayed.
●LDA (Lane Departure Alert) and speed limiter (if equipped)
The operation conditions for the
LDA (Lane Departure Alert) as
well as the speed limiter are dis-
played.
LDA (Lane Departure Alert) (if
equipped)
 P. 283
Speed limiter (if equipped)
P. 298

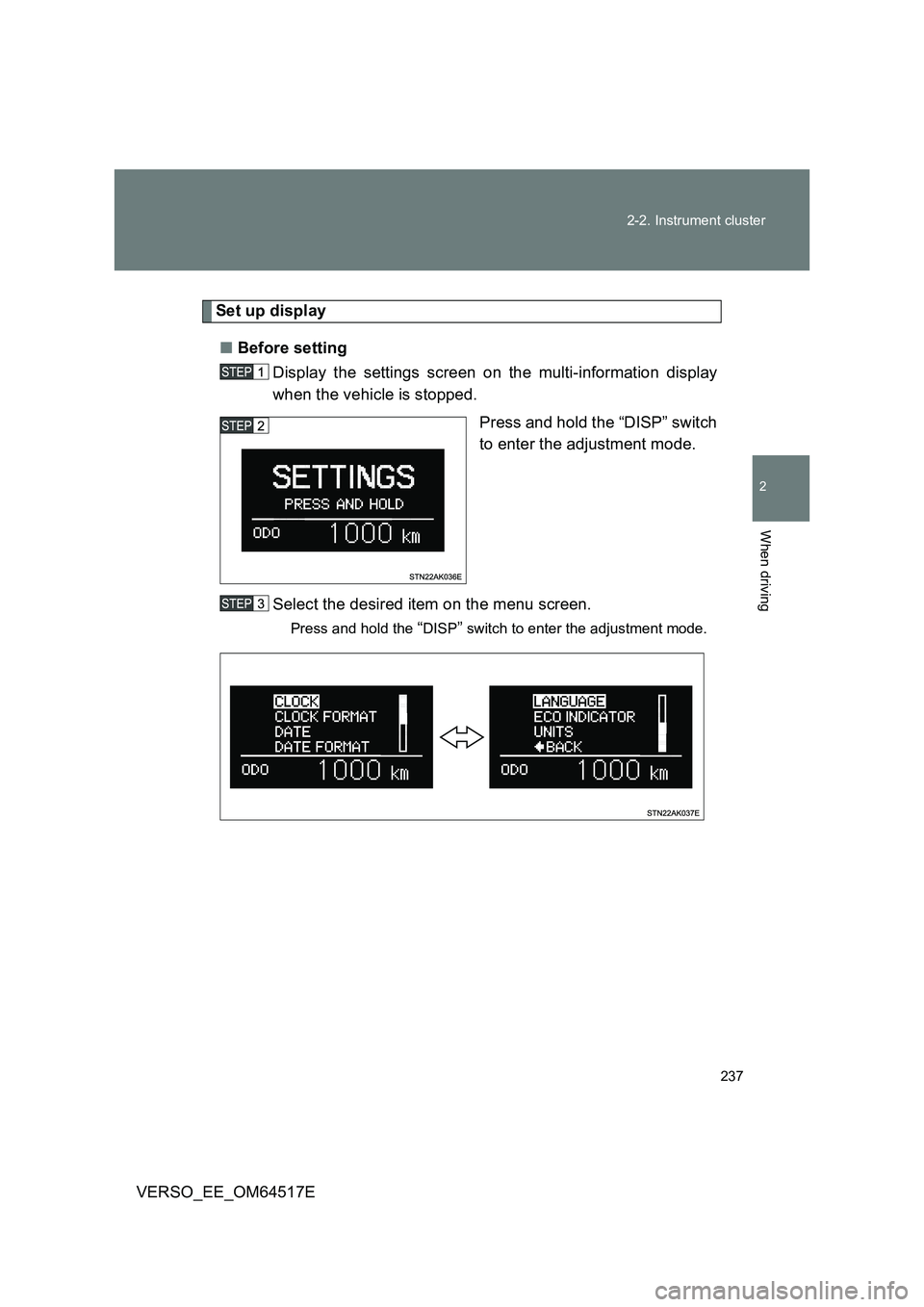

237
2-2. Instrument cluster
2
When driving
VERSO_EE_OM64517E
Set up display
■ Before setting
Display the settings screen on the multi-information display
when the vehicle is stopped.
Press and hold the “DISP” switch
to enter the adjustment mode.
Select the desired item on the menu screen.
Press and hold the “DISP” switch to enter the adjustment mode.

238
2-2. Instrument cluster
VERSO_EE_OM64517E
■ Setting the clock
Select “CLOCK” on the menu screen.
Press the “DISP” switch to adjust
the hours.
After setting the hours, wait for 5
seconds until the bar disappears,
and confirm that the hour has
been input.
Press the “DISP” switch to adjust
the minutes.
After setting the minutes, wait for
5 seconds until the bar disap-
pears, and confirm that the min-
utes has been input.
■ Setting the clock format
Select “CLOCK FORMAT” on the menu screen.
Select the desired clock format.
Press and hold the “DISP” switch
to input the choice.

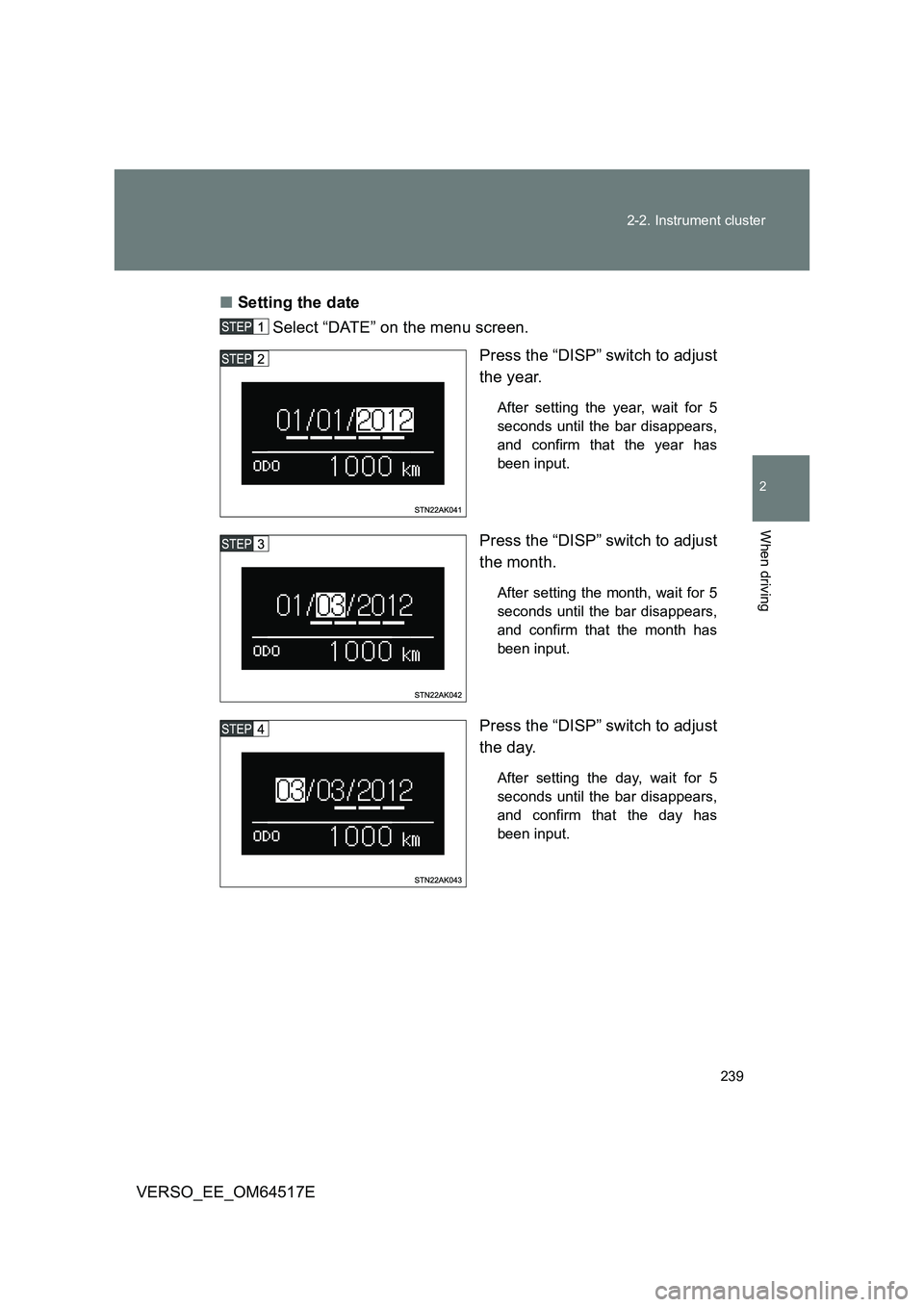

239
2-2. Instrument cluster
2
When driving
VERSO_EE_OM64517E
■ Setting the date
Select “DATE” on the menu screen.
Press the “DISP” switch to adjust
the year.
After setting the year, wait for 5
seconds until the bar disappears,
and confirm that the year has
been input.
Press the “DISP” switch to adjust
the month.
After setting the month, wait for 5
seconds until the bar disappears,
and confirm that the month has
been input.
Press the “DISP” switch to adjust
the day.
After setting the day, wait for 5
seconds until the bar disappears,
and confirm that the day has
been input.

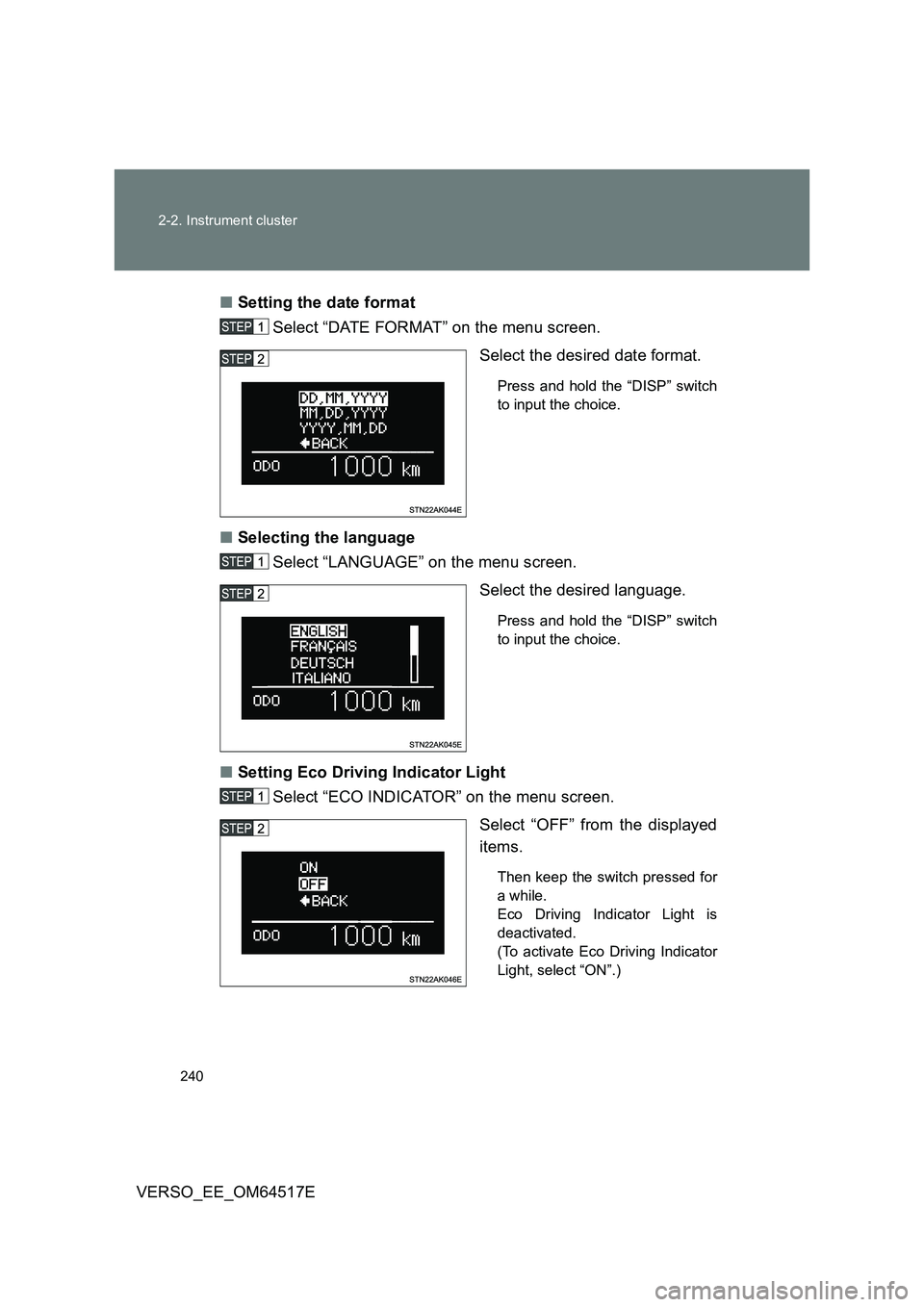

240
2-2. Instrument cluster
VERSO_EE_OM64517E
■ Setting the date format
Select “DATE FORMAT” on the menu screen.
Select the desired date format.
Press and hold the “DISP” switch
to input the choice.
■ Selecting the language
Select “LANGUAGE” on the menu screen.
Select the desired language.
Press and hold the “DISP” switch
to input the choice.
■ Setting Eco Driving Indicator Light
Select “ECO INDICATOR” on the menu screen.
Select “OFF” from the displayed
items.
Then keep the switch pressed for
a while.
Eco Driving Indicator Light is
deactivated.
(To activate Eco Driving Indicator
Light, select “ON”.)
