6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64517E
■ Engine number

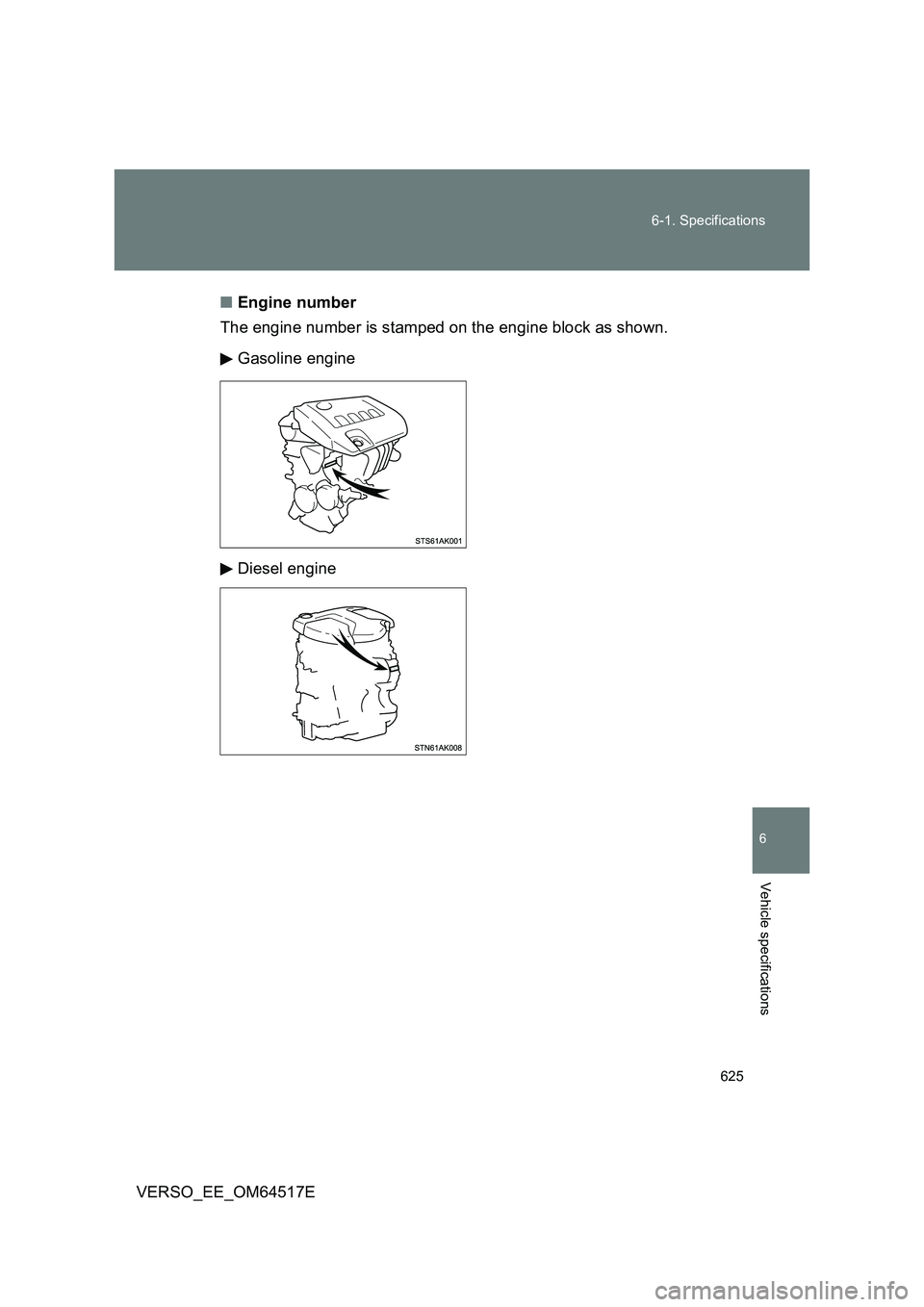

The engine number is stamped on the engine block as shown.
Gasoline engine
Diesel engine

626
6-1. Specifications
VERSO_EE_OM64517E
Engine
Gasoline engine
Model 1ZR-FAE, 2ZR-FAE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke
1ZR-FAE engine
80.5  78.5 mm (3.17  3.09 in.)
2ZR-FAE engine
80.5  88.3 mm (3.17  3.48 in.)
Displacement
1ZR-FAE engine
1598 cm3 (97.5 cu. in.)
2ZR-FAE engine
1798 cm3 (109.7 cu. in.)
Valve clearance
(Engine cold) Automatic adjustment

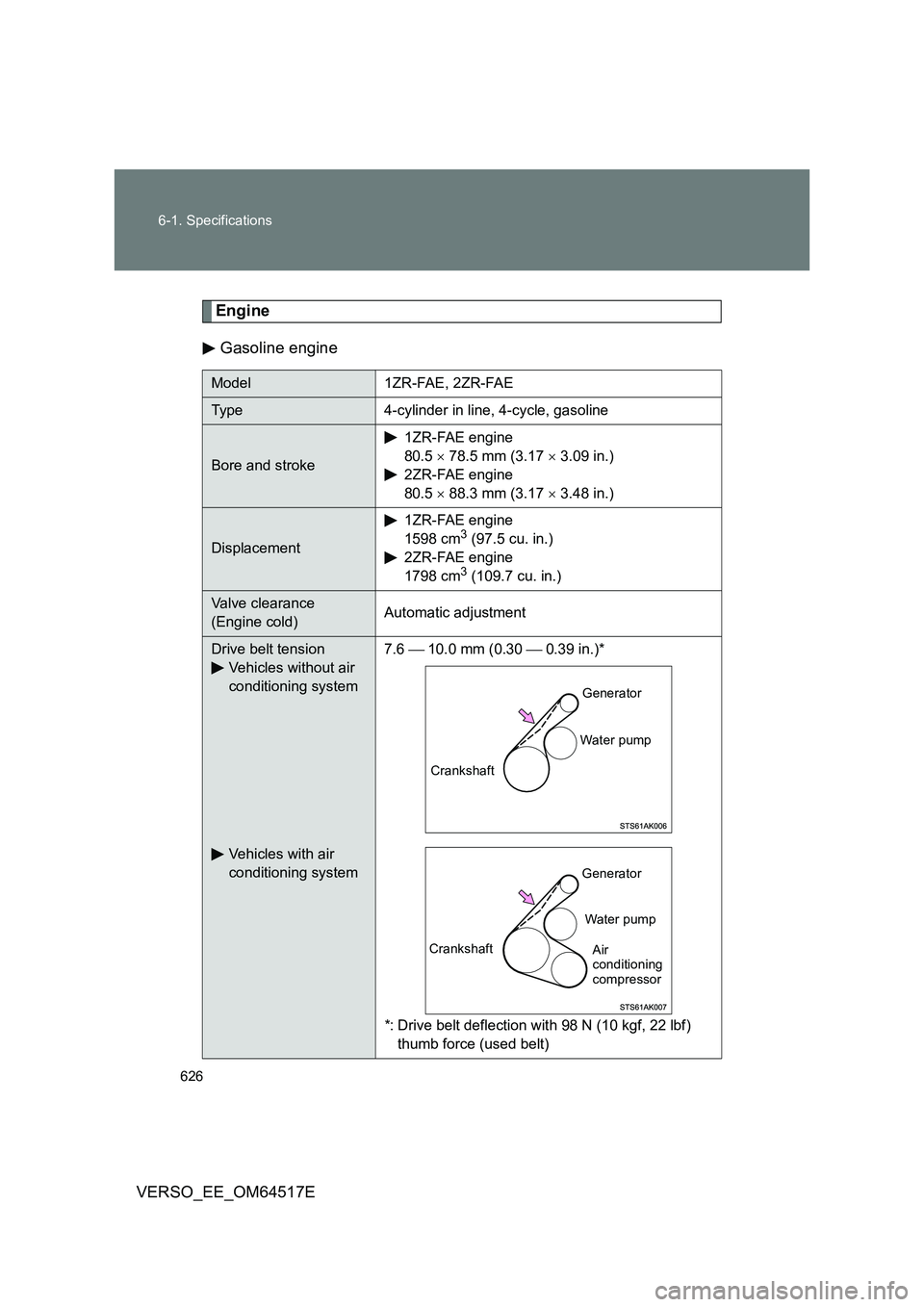

Drive belt tension
Vehicles without air
conditioning system
Vehicles with air
conditioning system
7.6  10.0 mm (0.30  0.39 in.)*
*: Drive belt deflection with 98 N (10 kgf, 22 lbf)
thumb force (used belt)
Crankshaft
Generator
Water pump
Crankshaft
Generator
Water pump
Air conditioning compressor

627
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64517E

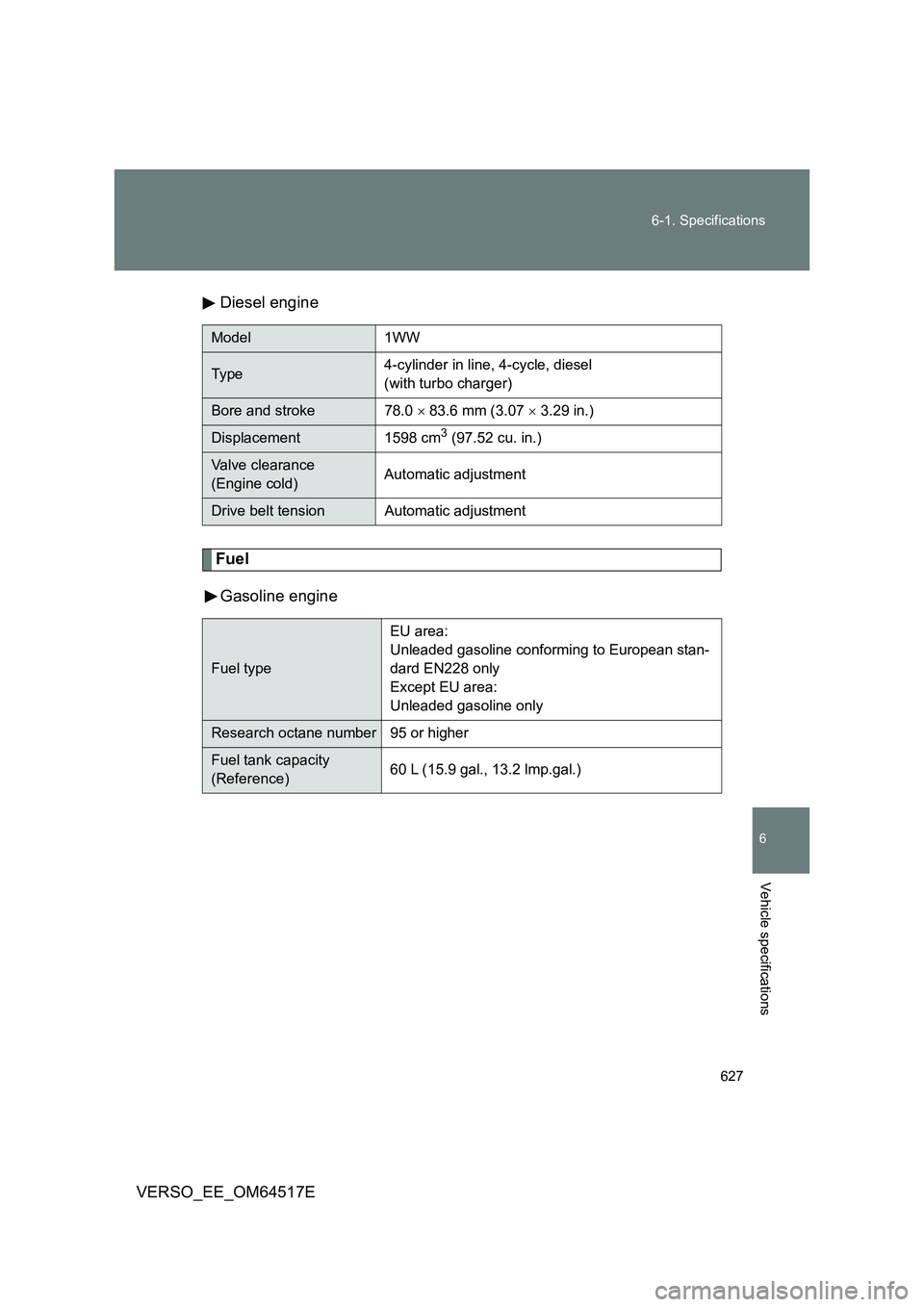

Diesel engine
Fuel
Gasoline engine
Model 1WW
Ty p e 4-cylinder in line, 4-cycle, diesel
(with turbo charger)
Bore and stroke 78.0  83.6 mm (3.07  3.29 in.)
Displacement 1598 cm3 (97.52 cu. in.)
Valve clearance
(Engine cold) Automatic adjustment
Drive belt tension Automatic adjustment
Fuel type
EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane number 95 or higher
Fuel tank capacity
(Reference) 60 L (15.9 gal., 13.2 lmp.gal.)

628
6-1. Specifications
VERSO_EE_OM64517E
Diesel engine
Lubrication system
Gasoline engine
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
Fuel type
EU area:
You must only use diesel fuel conforming to Euro-
pean standard EN590.
Except EU area (except Russia):
You must only use diesel fuel that contains 10
ppm or less of sulfur and has a cetane number of
48 or higher.
Except EU area (Russia):
You must only use diesel fuel with a cetane num-
ber of 48 or higher.
Your vehicle must use only diesel fuel confirming
to GOST R52368-2005 (Sulfur max 50ppm).
Cetane number 48 or higher
Fuel tank capacity
(Reference) 55 L (14.5 gal., 12.1 lmp.gal.)
Oil capacity
(Drain and refill - reference*)
With filter
Without filter
4.2 L (4.4 qt., 3.7 Imp.qt.)
3.9 L (4.1 qt., 3.4 Imp.qt.)

629
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64517E
■ Engine oil selection
EU area and Russia
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil

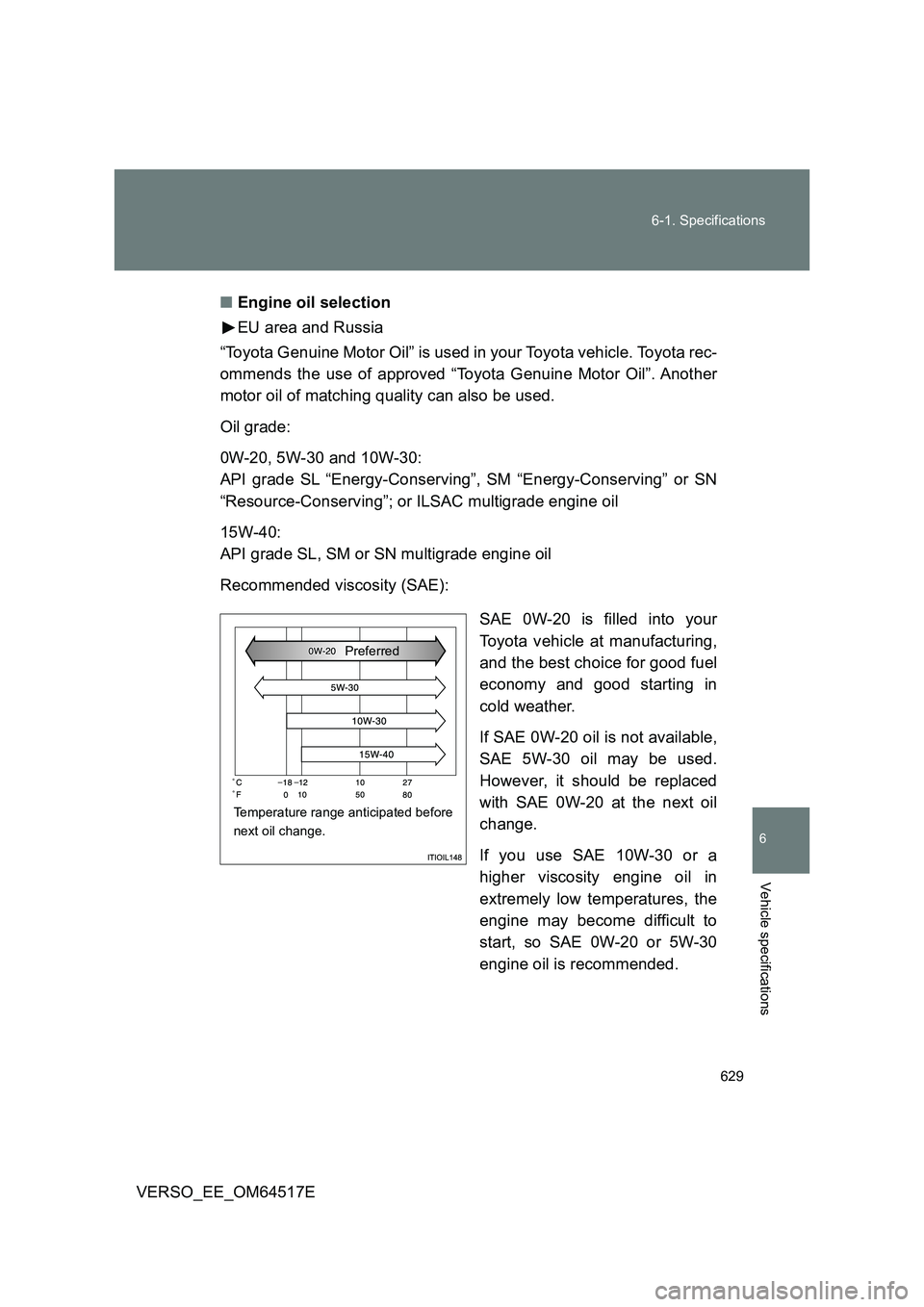

Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 0W-20 or 5W-30
engine oil is recommended.
Temperature range anticipated before
next oil change.
Preferred

630
6-1. Specifications
VERSO_EE_OM64517E
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation
by American Petroleum Institute
(API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Speci-
fication Advisory Committee
(ILSAC) Certification Mark is dis-
played on the front of the con-
tainer.

631
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64517E
Other area
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil

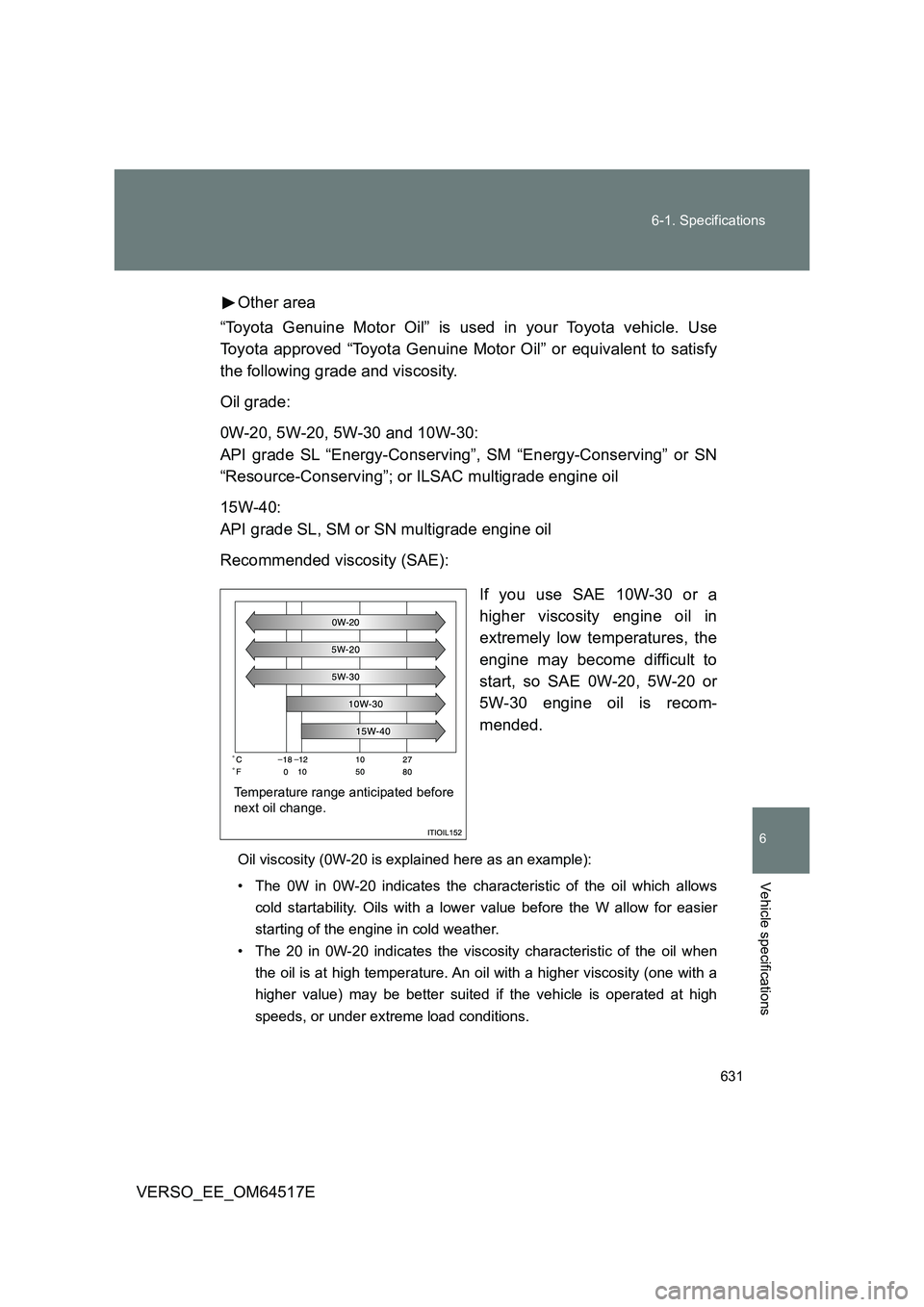

Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 0W-20, 5W-20 or
5W-30 engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.

632
6-1. Specifications
VERSO_EE_OM64517E
How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation
by American Petroleum Institute
(API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Speci-
fication Advisory Committee
(ILSAC) Certification Mark is dis-
played on the front of the con-
tainer.
