2017 TOYOTA VERSO Owners Manual

5
617

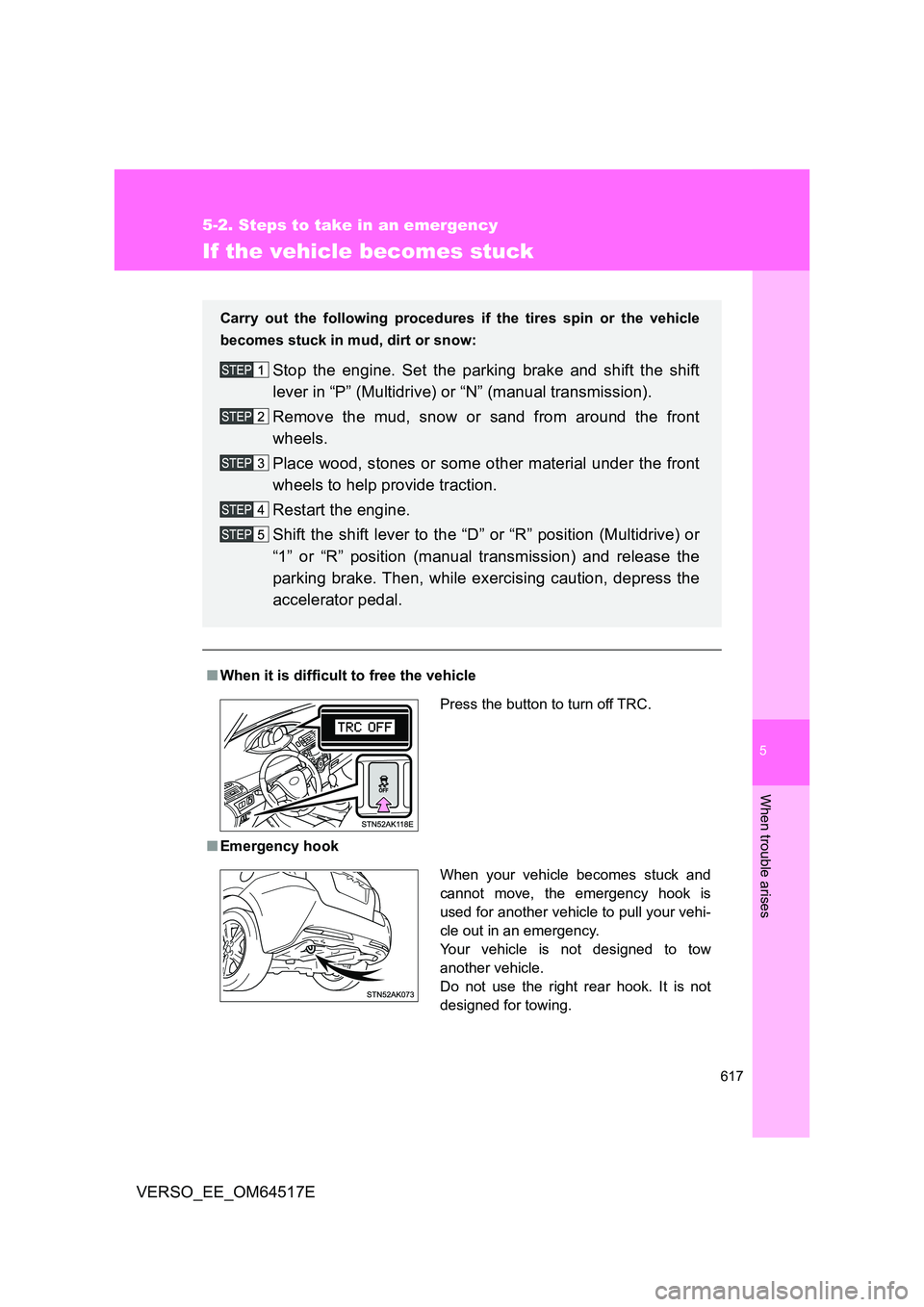

5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E
If the vehicle becomes stuck
■When it is difficult to free the vehicle
■ Emergency hook
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Stop the engine. Set the parking brake and shift the shift
lever in “P” (Multidrive) or “N” (manual transmission).
Remove the mud, snow or sand from around the front
wheels.
Place wood, stones or some other material under the front
wheels to help provide traction.
Restart the engine.
Shift the shift lever to the “D” or “R” position (Multidrive) or
“1” or “R” position (manual transmission) and release the
parking brake. Then, while exercising caution, depress the
accelerator pedal.
Press the button to turn off TRC.
When your vehicle becomes stuck and
cannot move, the emergency hook is
used for another vehicle to pull your vehi-
cle out in an emergency.
Your vehicle is not designed to tow
another vehicle.
Do not use the right rear hook. It is not
designed for towing.

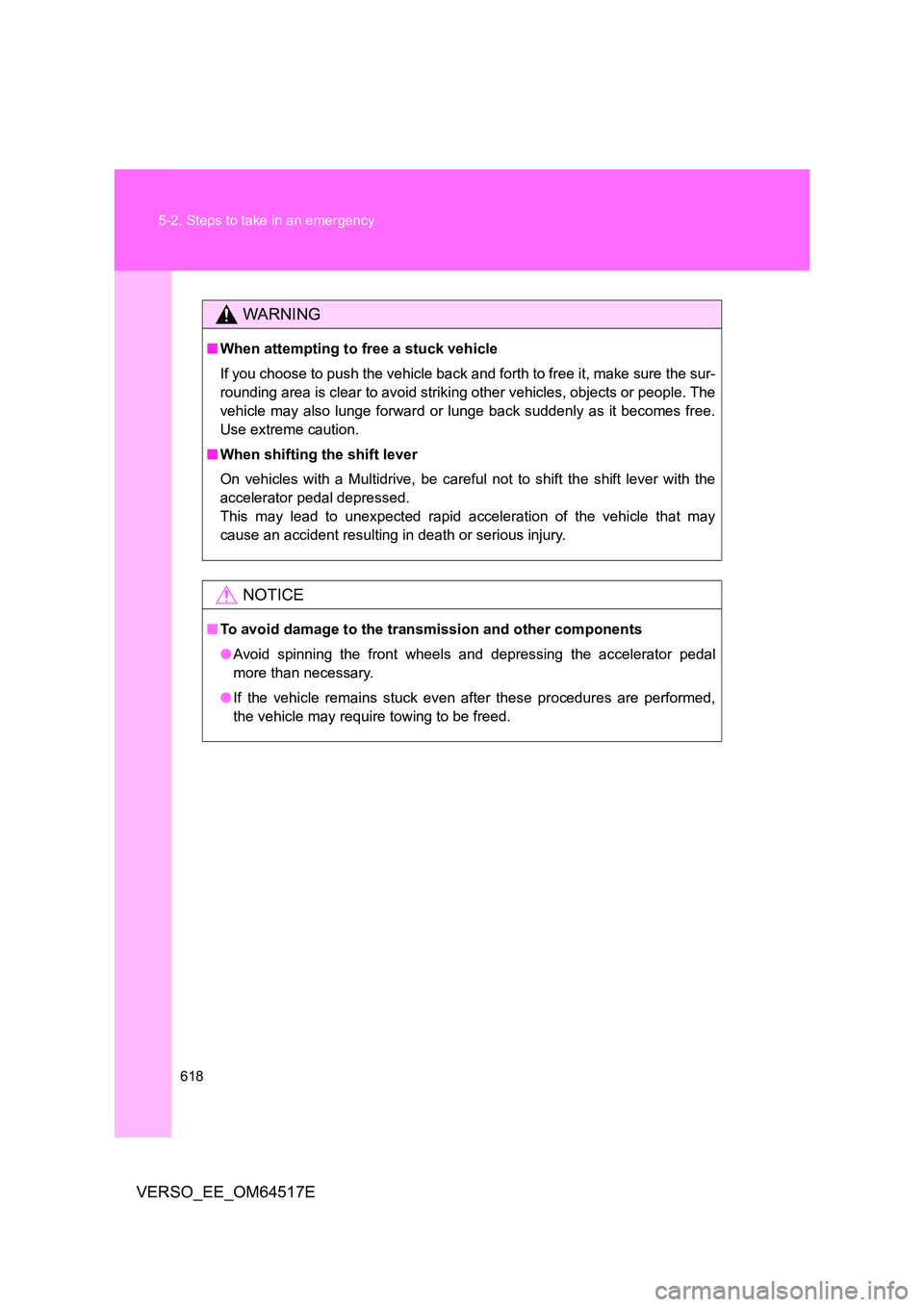

618
5-2. Steps to take in an emergency
VERSO_EE_OM64517E
WARNING
■ When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking ot her vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
■ When shifting the shift lever
On vehicles with a Multidrive, be careful not to shift the shift lever with the
accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the transmission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

5

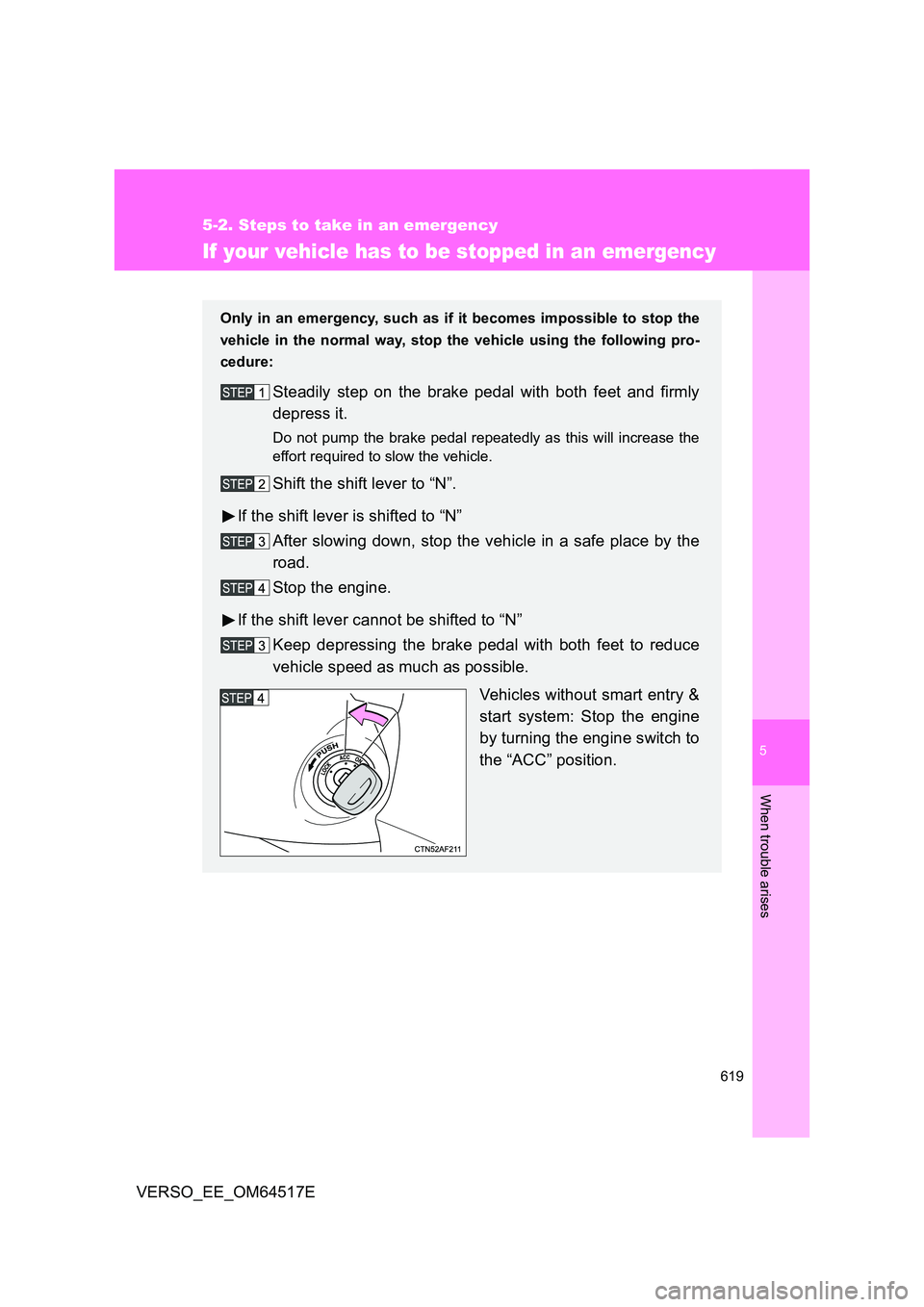

619
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E
If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to “N”.
If the shift lever is shifted to “N”
After slowing down, stop the vehicle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to “N”
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Vehicles without smart entry &
start system: Stop the engine
by turning the engine switch to
the “ACC” position.

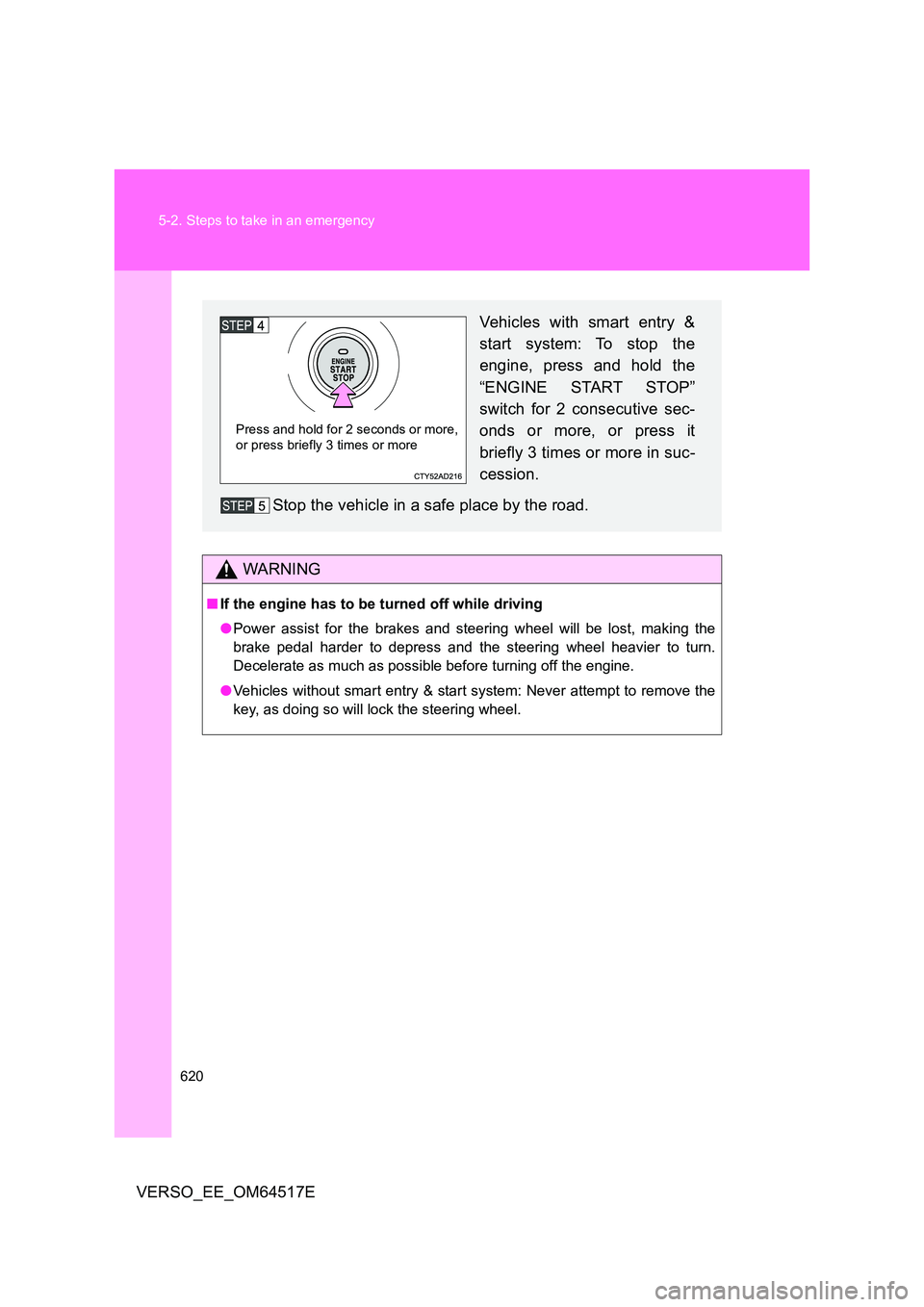

620
5-2. Steps to take in an emergency
VERSO_EE_OM64517E
WARNING
■ If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without smart entry & start system: Never attempt to remove the
key, as doing so will lock the steering wheel.
Vehicles with smart entry &
start system: To stop the
engine, press and hold the
“ENGINE START STOP”
switch for 2 consecutive sec-
onds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
Press and hold for 2 seconds or more,
or press briefly 3 times or more

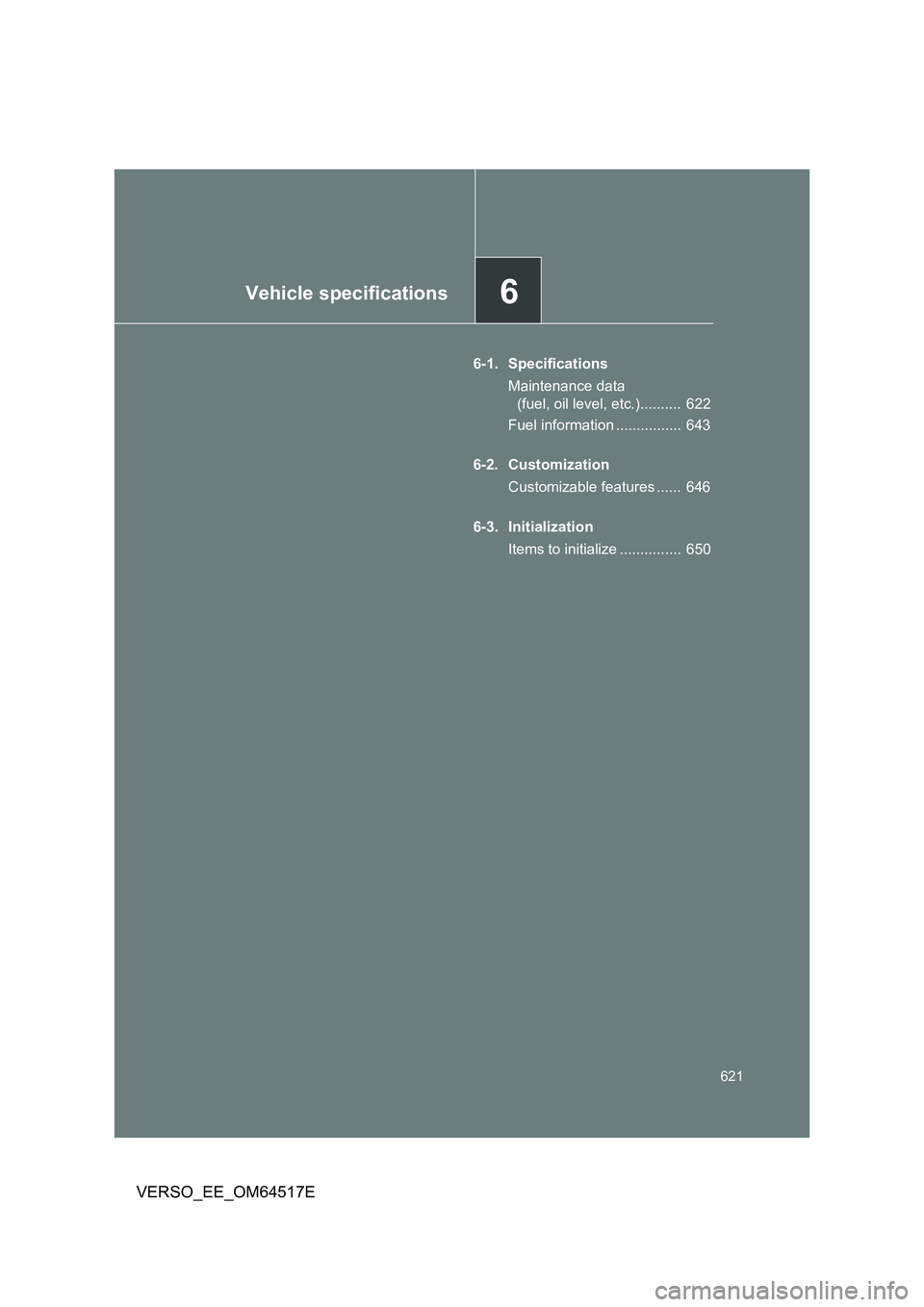

6Vehicle specifications
621
VERSO_EE_OM64517E
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 622
Fuel information ................ 643
6-2. Customization
Customizable features ...... 646
6-3. Initialization
Items to initialize ............... 650

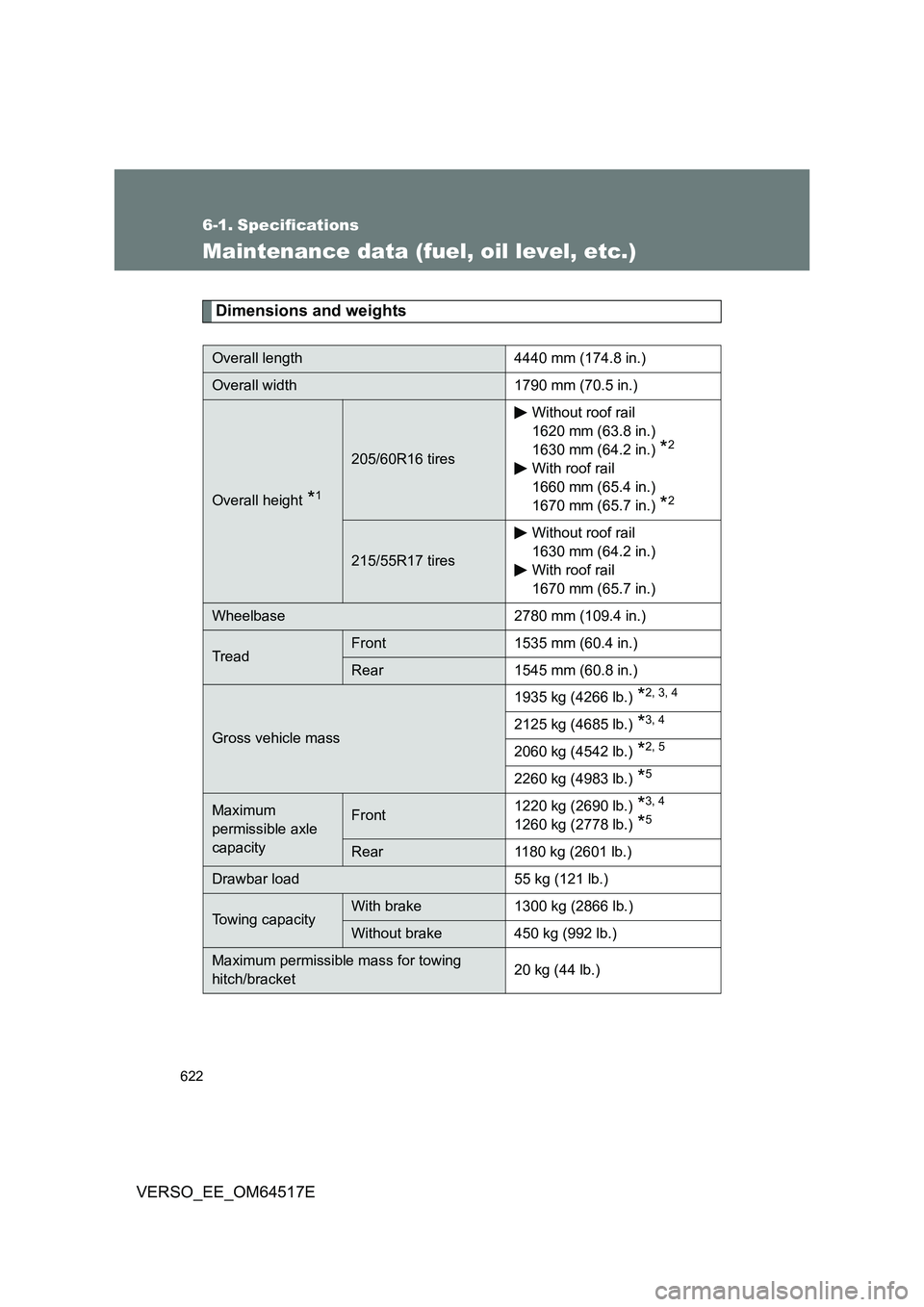

622
VERSO_EE_OM64517E
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4440 mm (174.8 in.)
Overall width 1790 mm (70.5 in.)
Overall height *1
205/60R16 tires
Without roof rail
1620 mm (63.8 in.)
1630 mm (64.2 in.) *2
With roof rail
1660 mm (65.4 in.)
1670 mm (65.7 in.) *2
215/55R17 tires
Without roof rail
1630 mm (64.2 in.)
With roof rail
1670 mm (65.7 in.)
Wheelbase 2780 mm (109.4 in.)
TreadFront 1535 mm (60.4 in.)
Rear 1545 mm (60.8 in.)
Gross vehicle mass
1935 kg (4266 lb.) *2, 3, 4
2125 kg (4685 lb.) *3, 4
2060 kg (4542 lb.) *2, 5
2260 kg (4983 lb.) *5
Maximum
permissible axle
capacity
Front 1220 kg (2690 lb.) *3, 4
1260 kg (2778 lb.) *5
Rear 1180 kg (2601 lb.)
Drawbar load 55 kg (121 lb.)
Towing capacityWith brake 1300 kg (2866 lb.)
Without brake 450 kg (992 lb.)
Maximum permissible mass for towing
hitch/bracket 20 kg (44 lb.)

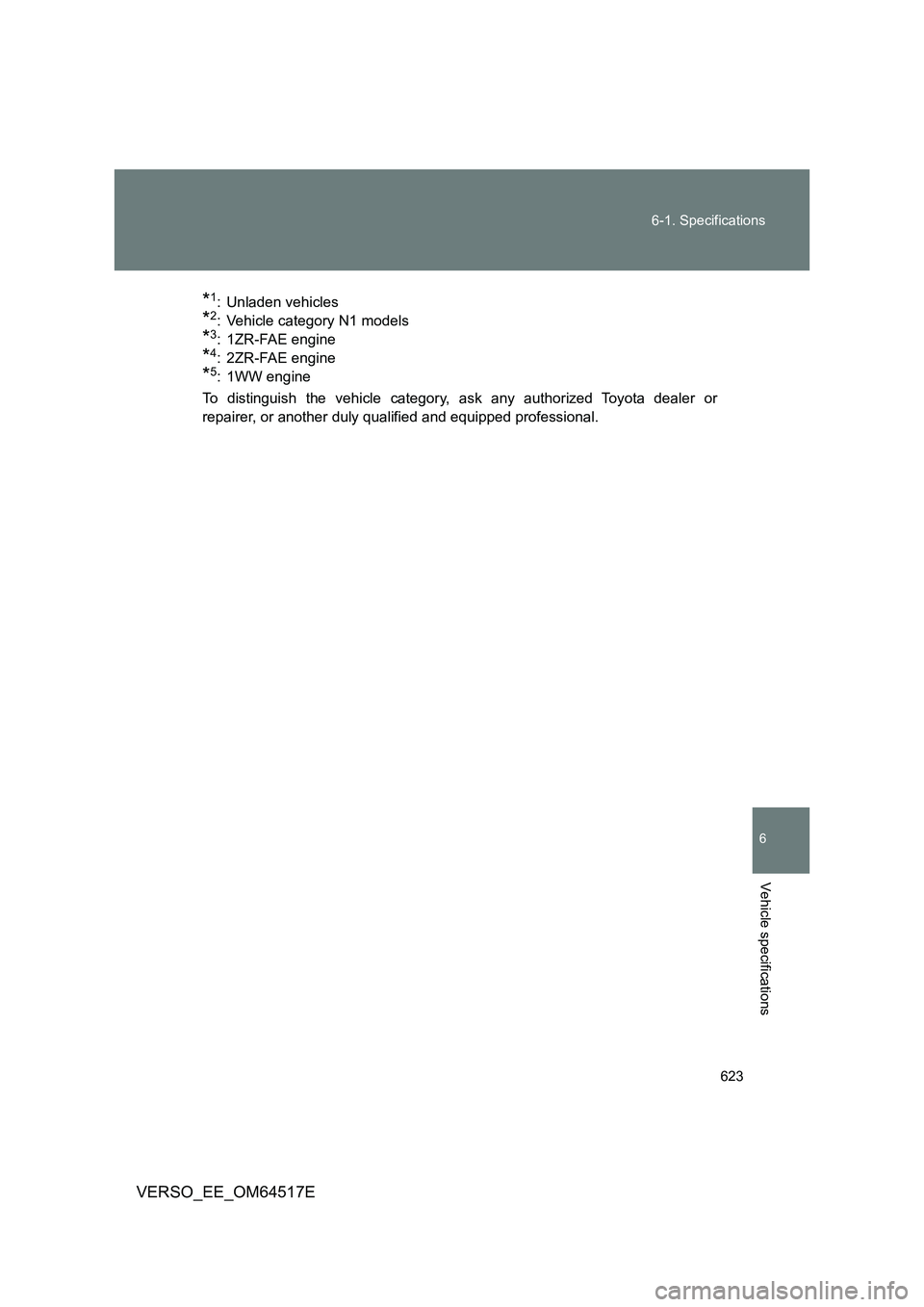

623
6-1. Specifications
6
Vehicle specifications
VERSO_EE_OM64517E
*1: Unladen vehicles
*2: Vehicle category N1 models
*3: 1ZR-FAE engine
*4: 2ZR-FAE engine
*5: 1WW engine
To distinguish the vehicle category, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

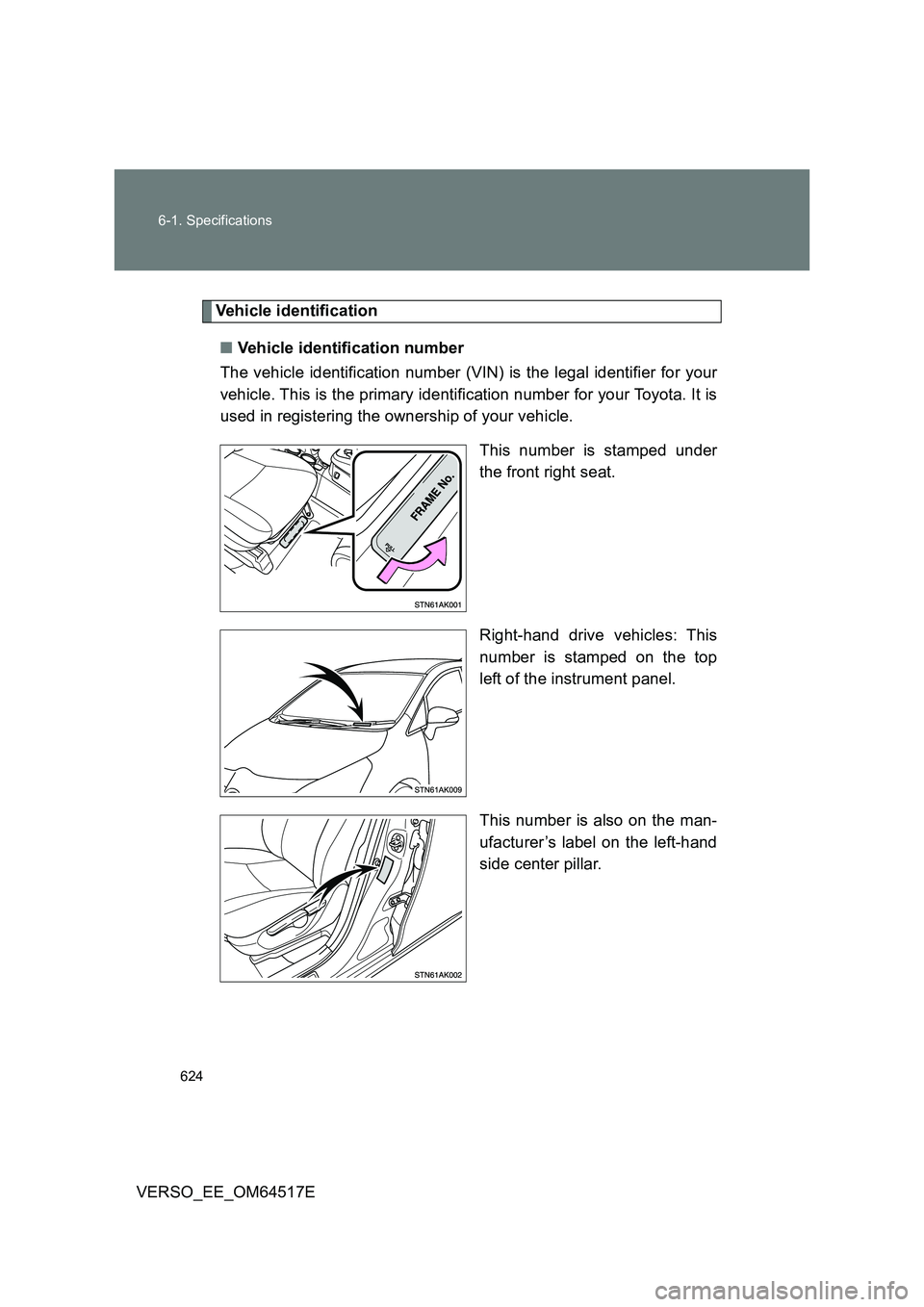

624
6-1. Specifications
VERSO_EE_OM64517E
Vehicle identification
■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped under
the front right seat.
Right-hand drive vehicles: This
number is stamped on the top
left of the instrument panel.
This number is also on the man-
ufacturer’s label on the left-hand
side center pillar.
