2017 TOYOTA VERSO Owners Manual

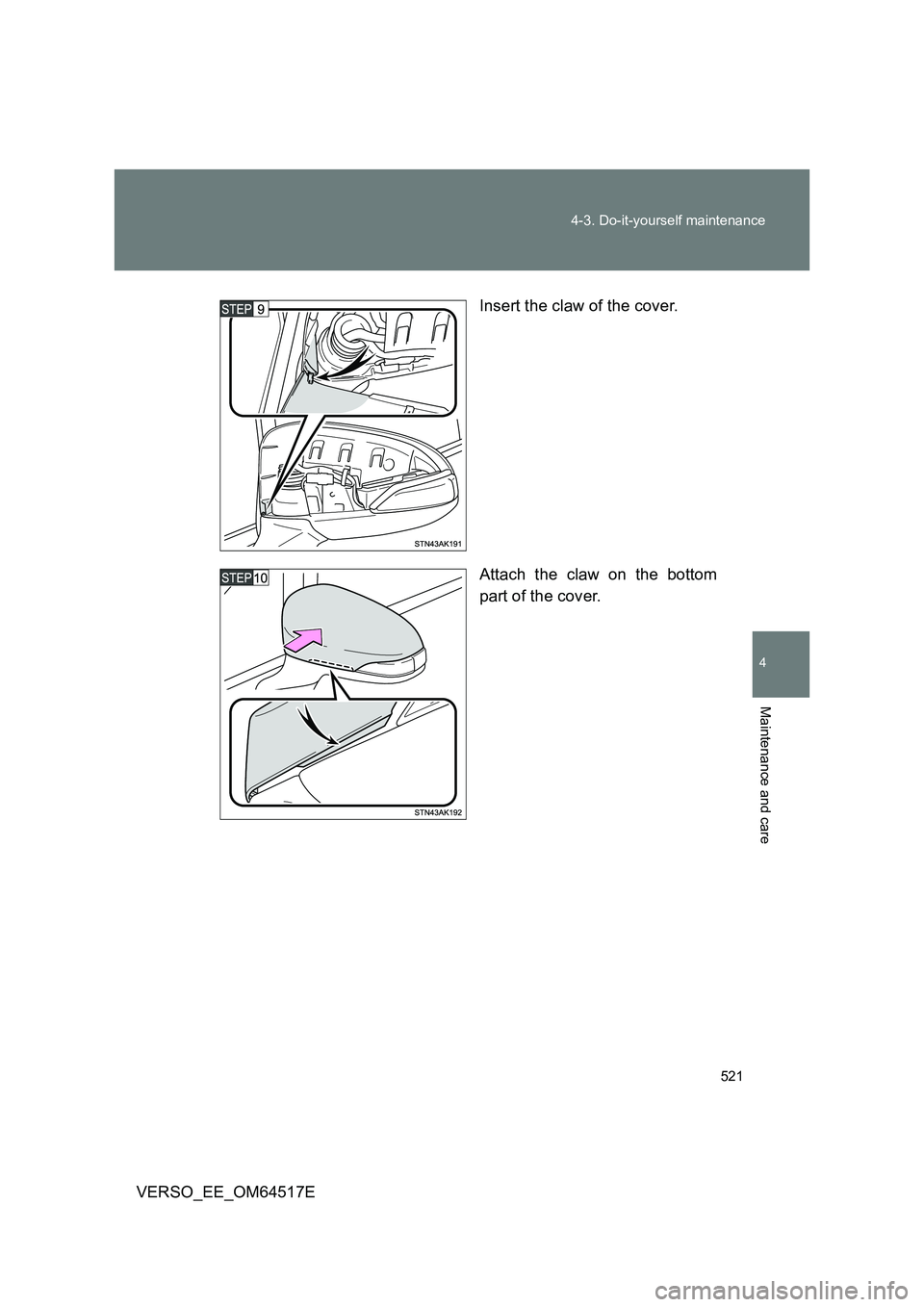

521
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E
Insert the claw of the cover.
Attach the claw on the bottom
part of the cover.

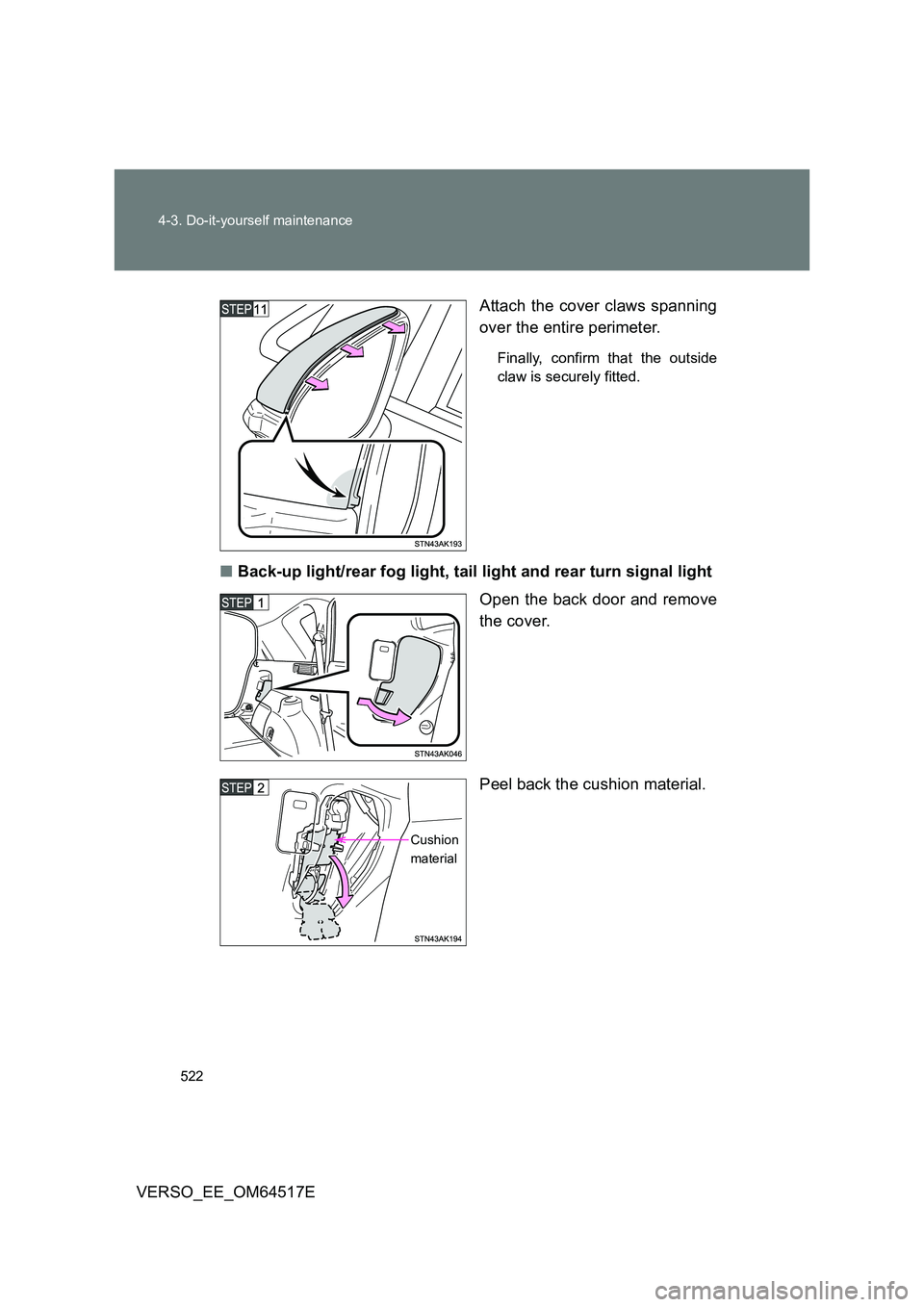

522
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E
Attach the cover claws spanning
over the entire perimeter.
Finally, confirm that the outside
claw is securely fitted.
■ Back-up light/rear fog light, tail light and rear turn signal light
Open the back door and remove
the cover.
Peel back the cushion material.
Cushion
material

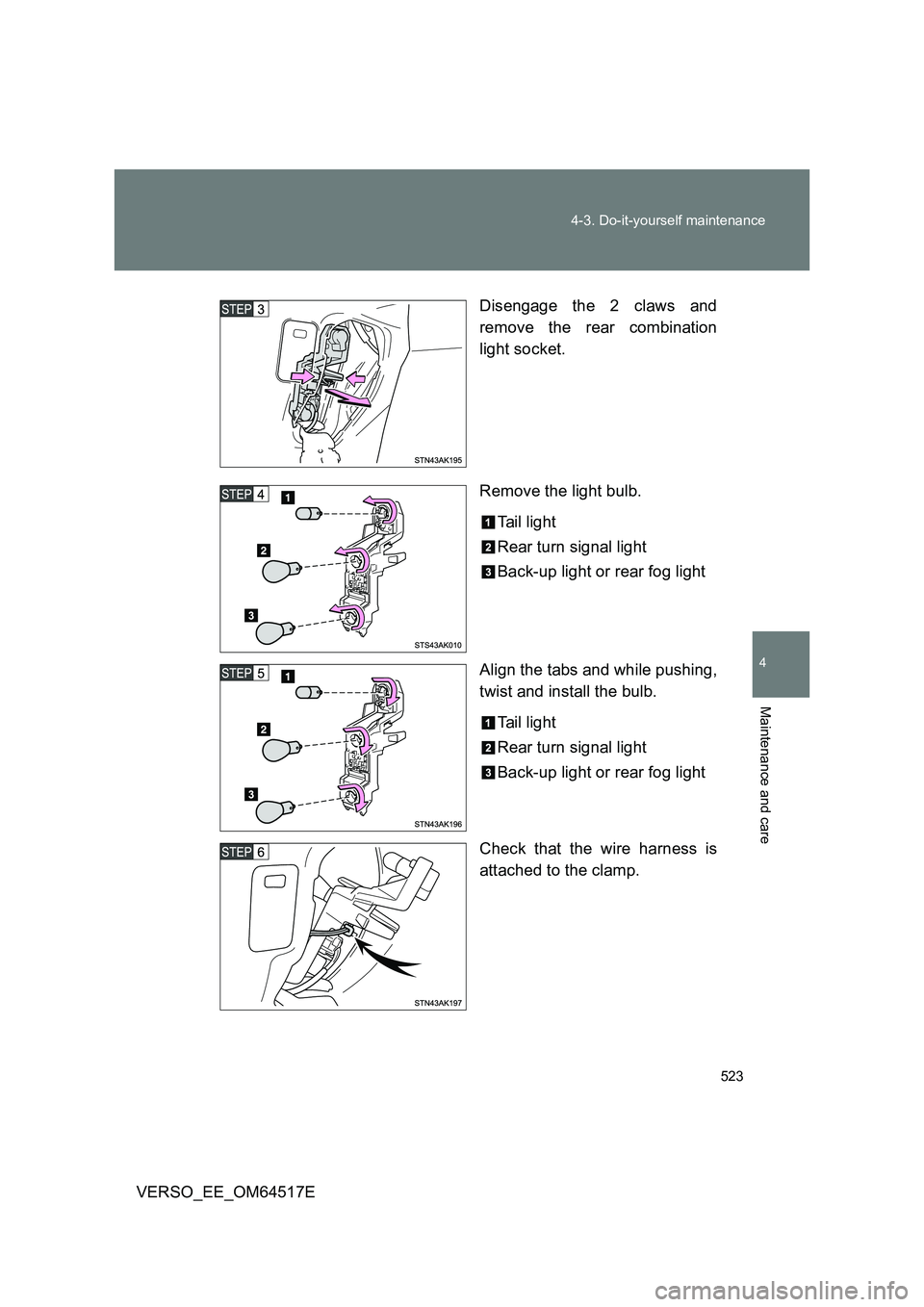

523
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E
Disengage the 2 claws and
remove the rear combination
light socket.
Remove the light bulb.
Tail light
Rear turn signal light
Back-up light or rear fog light
Align the tabs and while pushing,
twist and install the bulb.
Tail light
Rear turn signal light
Back-up light or rear fog light
Check that the wire harness is
attached to the clamp.

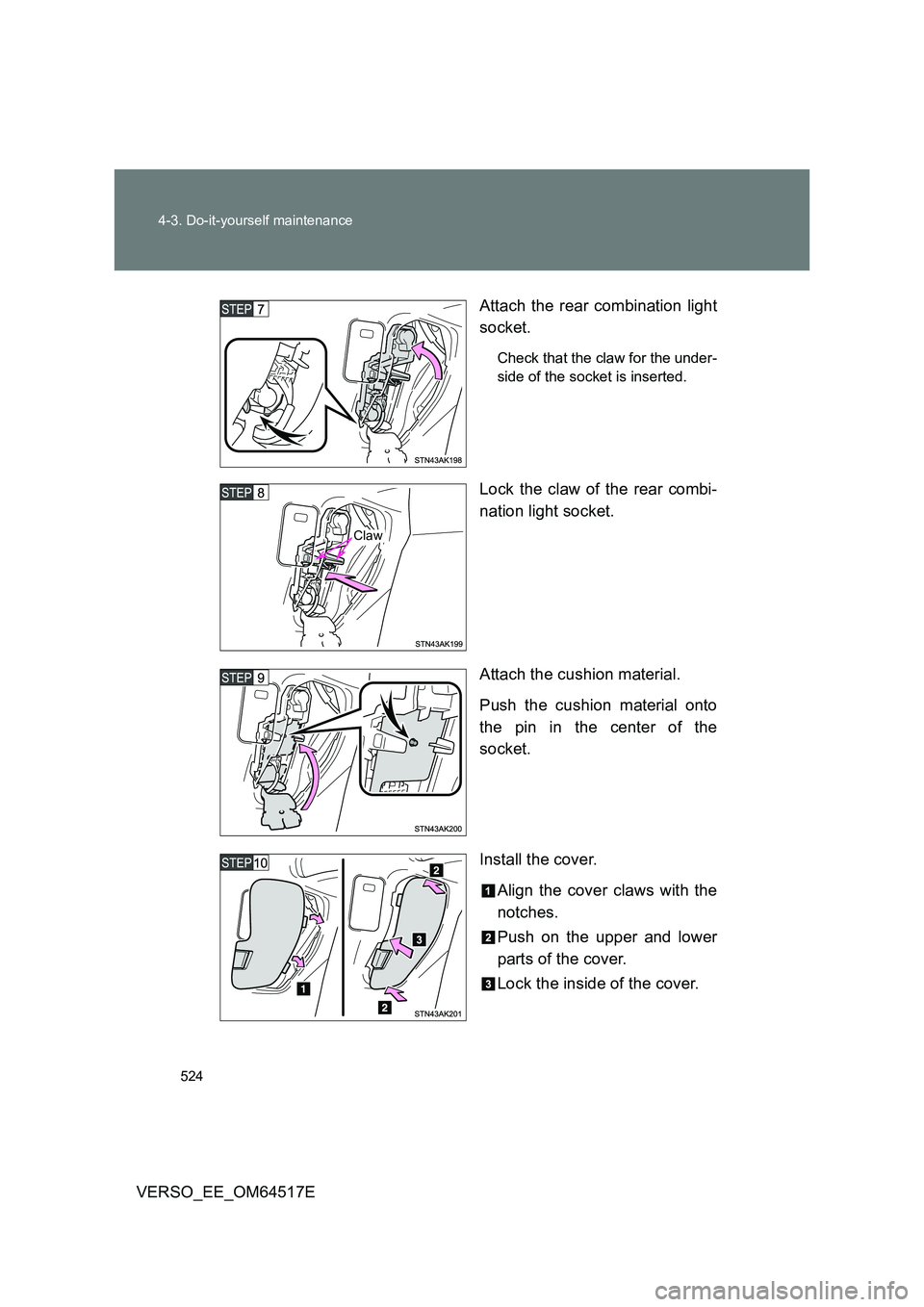

524
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E
Attach the rear combination light
socket.
Check that the claw for the under-
side of the socket is inserted.
Lock the claw of the rear combi-
nation light socket.
Attach the cushion material.
Push the cushion material onto
the pin in the center of the
socket.
Install the cover.
Align the cover claws with the
notches.
Push on the upper and lower
parts of the cover.
Lock the inside of the cover.
Claw

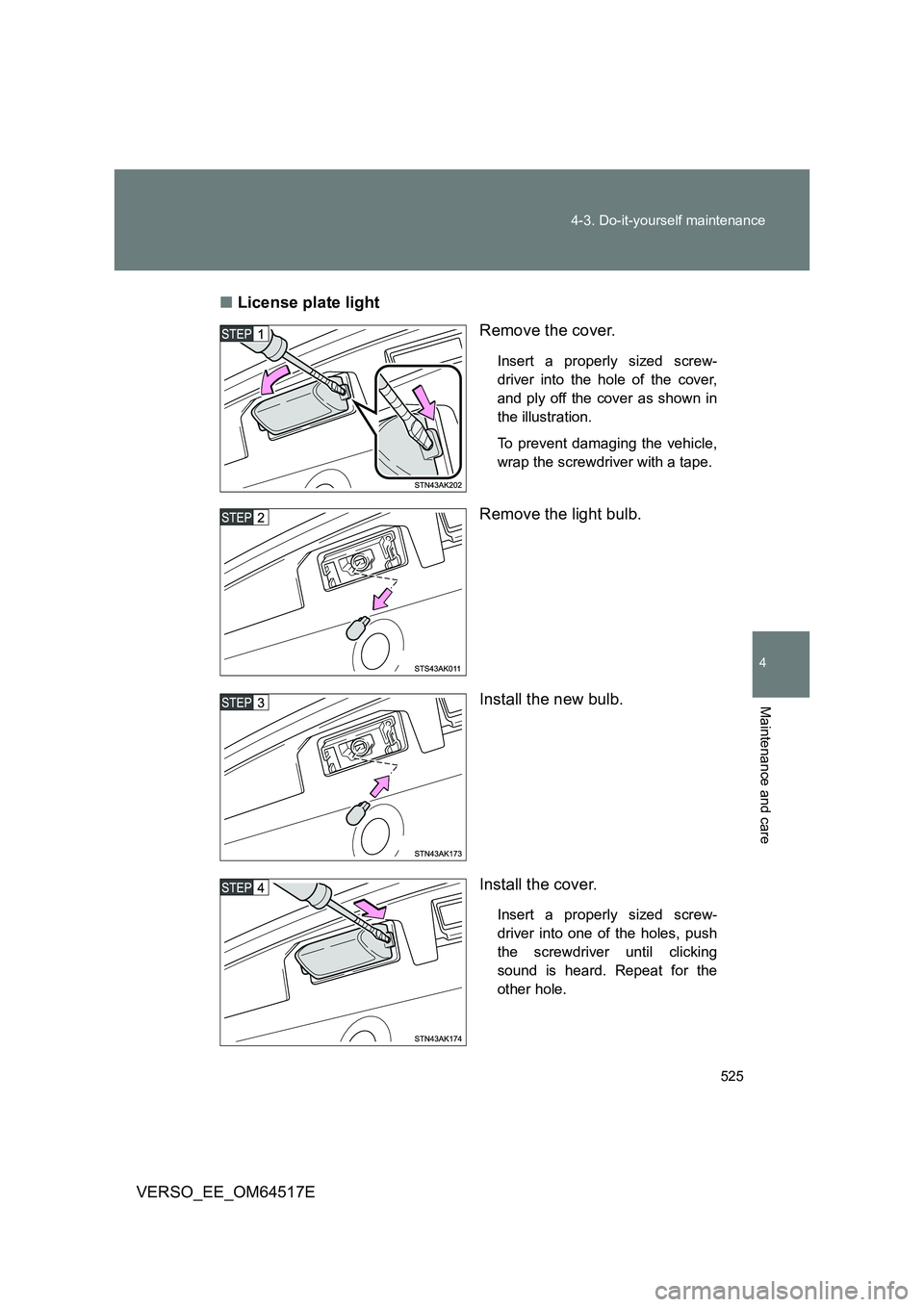

525
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E
■ License plate light
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown in
the illustration.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.
Remove the light bulb.
Install the new bulb.
Install the cover.
Insert a properly sized screw-
driver into one of the holes, push
the screwdriver until clicking
sound is heard. Repeat for the
other hole.

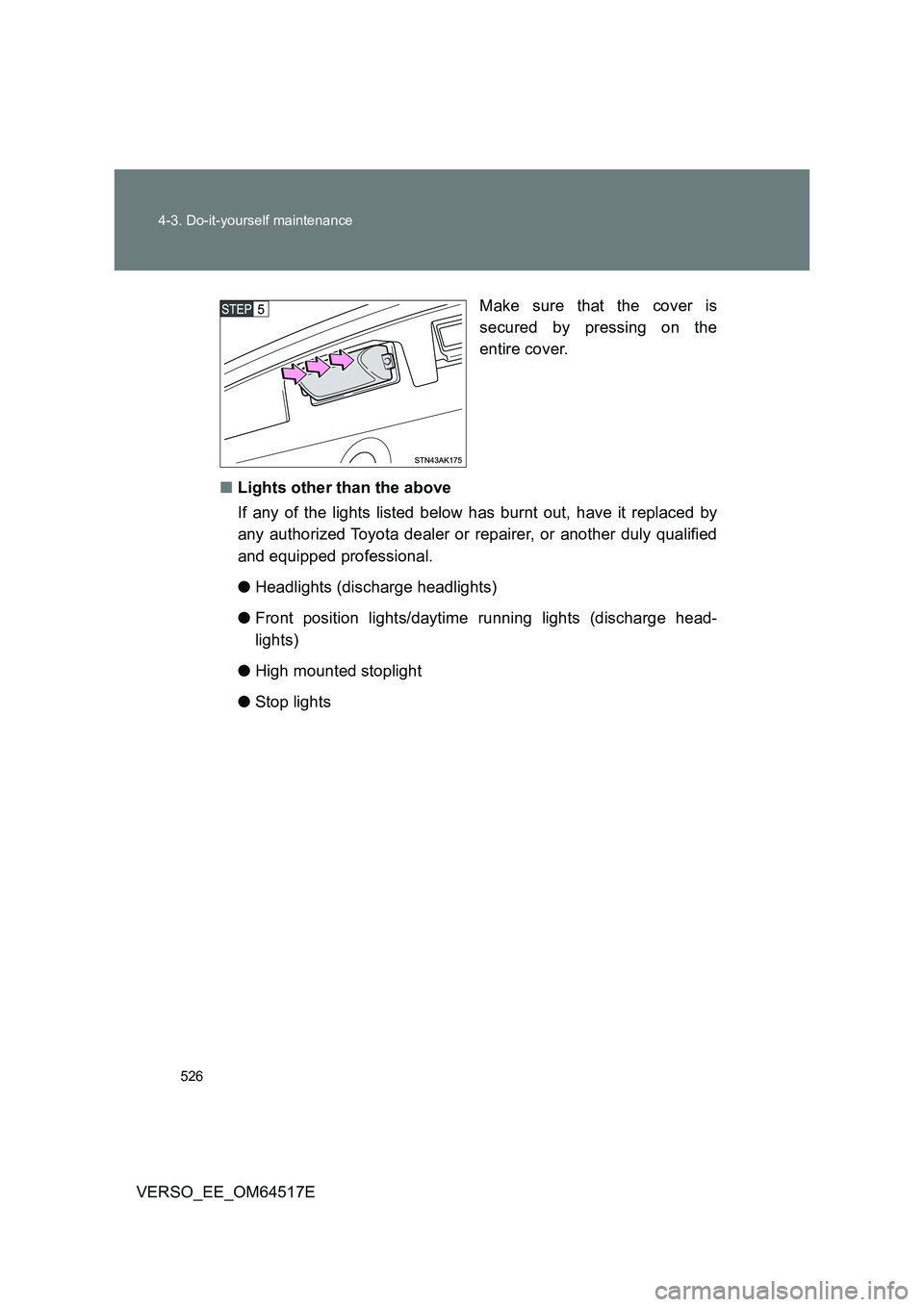

526
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E
Make sure that the cover is
secured by pressing on the
entire cover.
■ Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● Headlights (discharge headlights)
● Front position lights/daytime running lights (discharge head-
lights)
● High mounted stoplight
● Stop lights

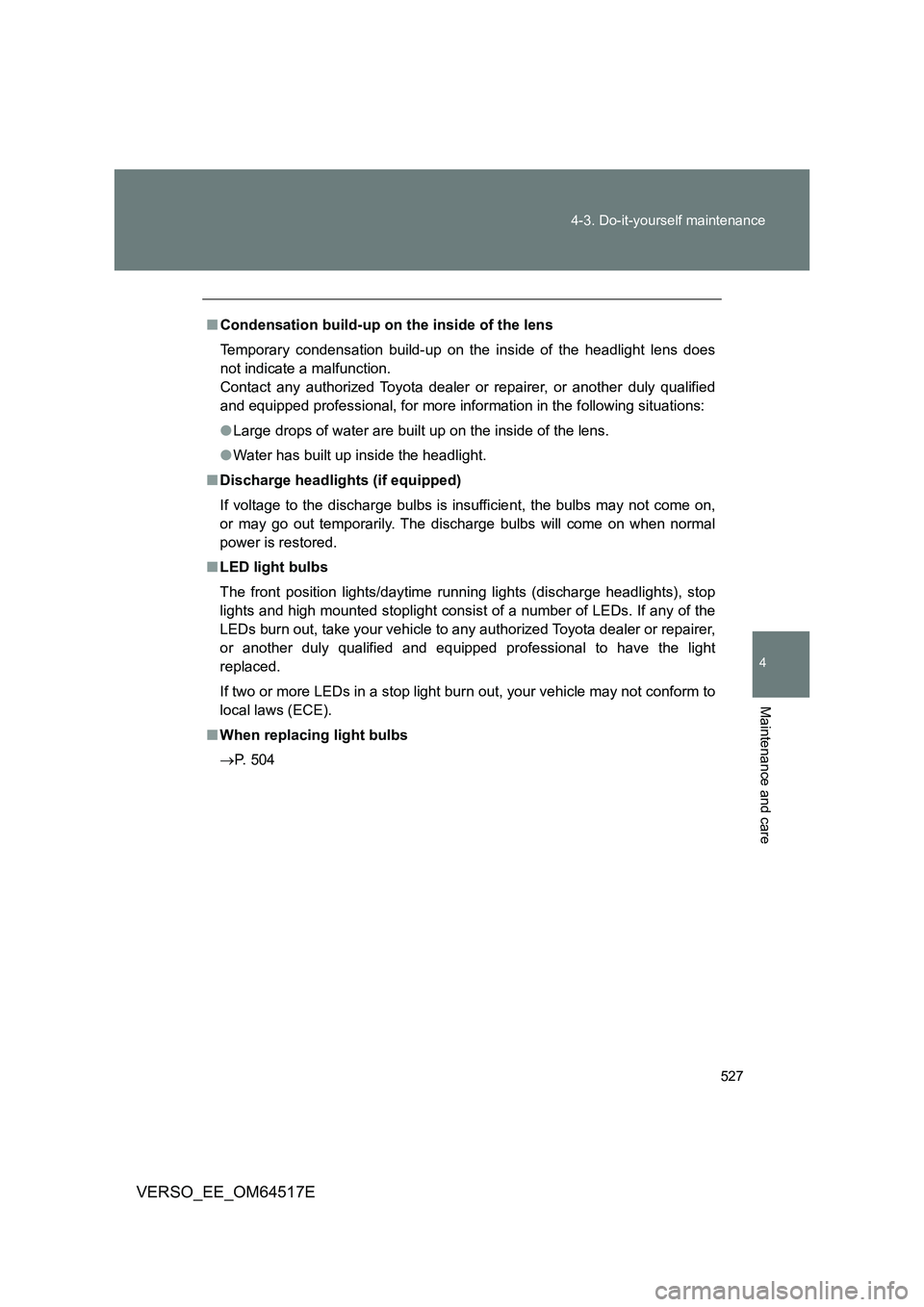

527
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for more information in the following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The disc harge bulbs will come on when normal
power is restored.
■ LED light bulbs
The front position lights/daytime running lights (discharge headlights), stop
lights and high mounted stoplight consist of a number of LEDs. If any of the
LEDs burn out, take your vehicle to any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional to have the light
replaced.
If two or more LEDs in a stop light burn out, your vehicle may not conform to
local laws (ECE).
■ When replacing light bulbs
 P. 504

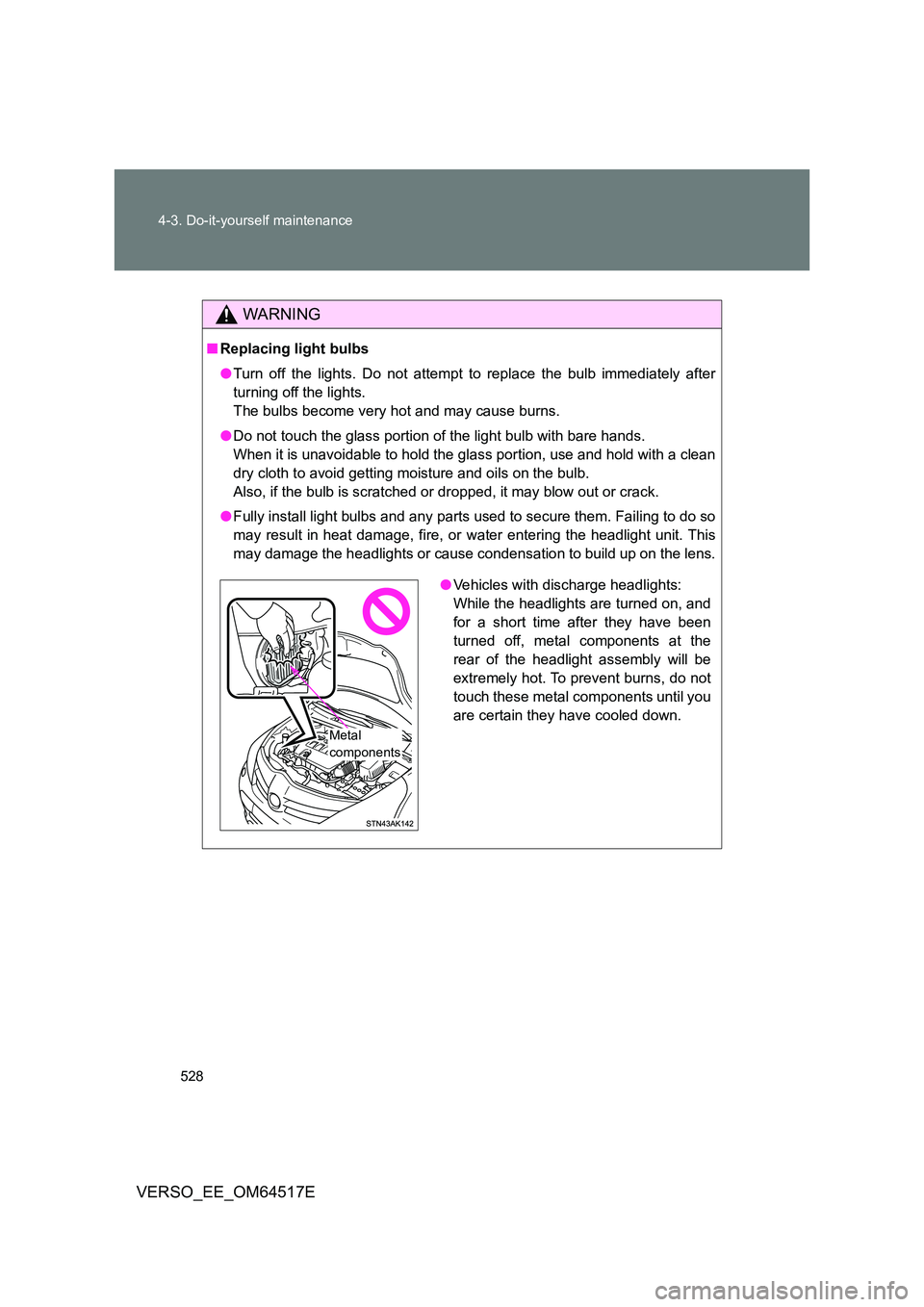

528
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E
WARNING
■ Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands.
When it is unavoidable to hold the gl ass portion, use and hold with a clean
dry cloth to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Vehicles with discharge headlights:
While the headlights are turned on, and
for a short time after they have been
turned off, metal components at the
rear of the headlight assembly will be
extremely hot. To prevent burns, do not
touch these metal components until you
are certain they have cooled down.
Metal
components
