5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E
*1: Use of the jack, jack handle and wheel nut wrench. (if equipped)
( P. 566)
A jack, jack handle and wheel nut wrench can be purchased at any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*2: Use of the wheel cap clip. (if equipped) ( P. 482)
*3: The emergency tire puncture repair kit is located in the auxiliary box
(type C). ( P. 4 0 6 )
■Emergency tire puncture repair kit components
Compressor switch
Air pressure gauge
Power plug
Black case
Stickers
Pressure release
button
Nozzle
Hose

586
5-2. Steps to take in an emergency
VERSO_EE_OM64517E
Before performing emergency repair
Check the degree of the tire
damage.
• Do not remove the nail or
screw from the tire. Removing
the object may widen the
opening and prevent emer-
gency repair with the repair kit.
• To avoid sealant leakage,
move the vehicle until the area
of the puncture, if known, is
positioned at the top of the
tire.
Taking out the emergency tire puncture repair kit
Open the auxiliary box (Type C) ( P. 406)
Take out the black case containing the emergency tire punc-
ture repair kit. ( P. 584)
■In the following cases, the tire cannot be repaired with the emergency
tire puncture repair kit. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
● When the tire is damaged due to driving without sufficient air pressure
● When there are any cracks or damage at any location on the tire, such as
on the side wall, except the tread
● When the tire is visibly separated from the wheel
● When the cut or damage to the tread is 4 mm (0.16 in.) long or more
● When the wheel is damaged
● When two or more tires have been punctured
● When more than 2 sharp objects such as nails or screws have passed
through the tread on a single tire
● When the sealant has expired

5
587
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E

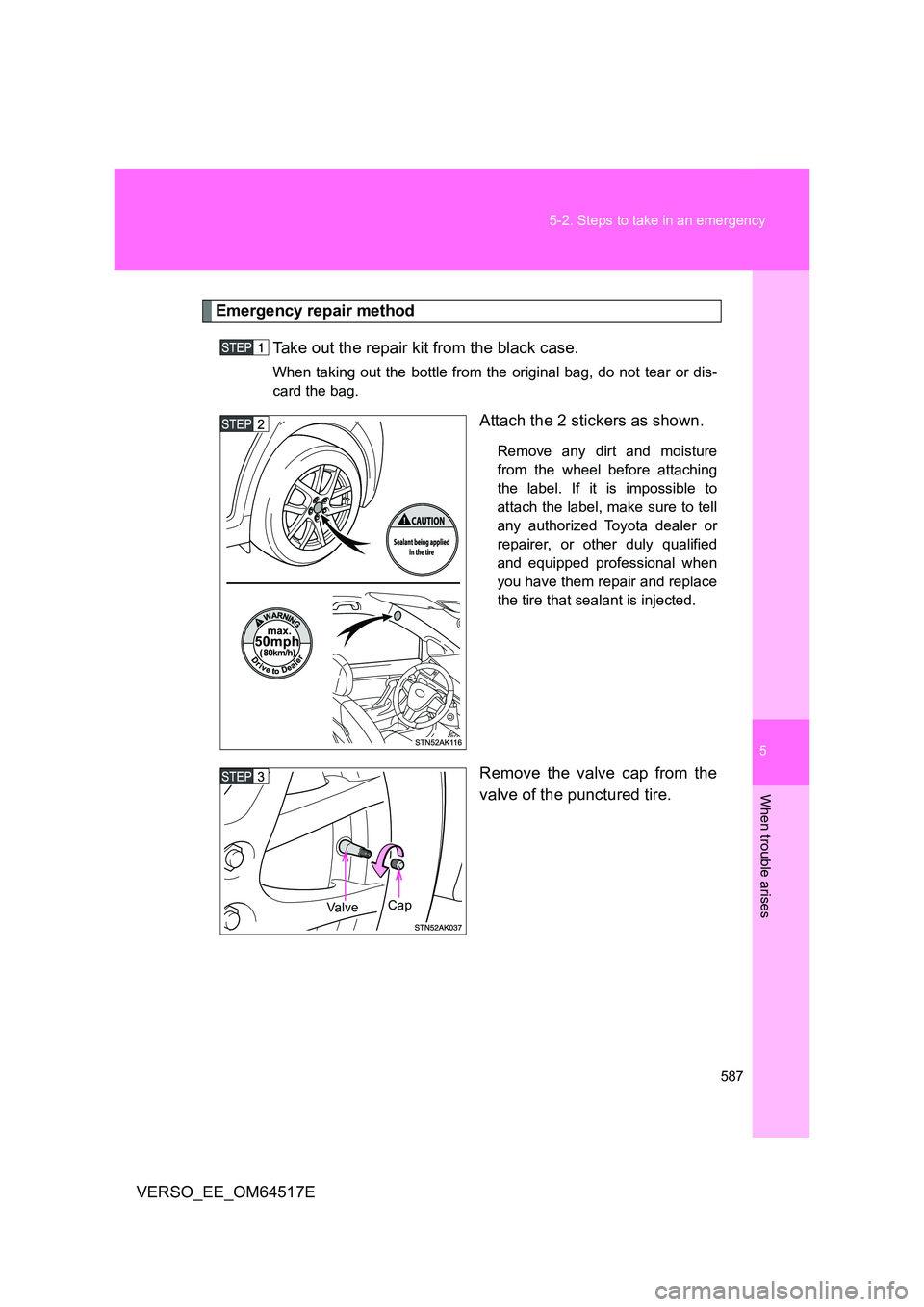

Emergency repair method
Take out the repair kit from the black case.
When taking out the bottle from the original bag, do not tear or dis-
card the bag.
Attach the 2 stickers as shown.
Remove any dirt and moisture
from the wheel before attaching
the label. If it is impossible to
attach the label, make sure to tell
any authorized Toyota dealer or
repairer, or other duly qualified
and equipped professional when
you have them repair and replace
the tire that sealant is injected.
Remove the valve cap from the
valve of the punctured tire.
Cap Va l v e

588
5-2. Steps to take in an emergency
VERSO_EE_OM64517E

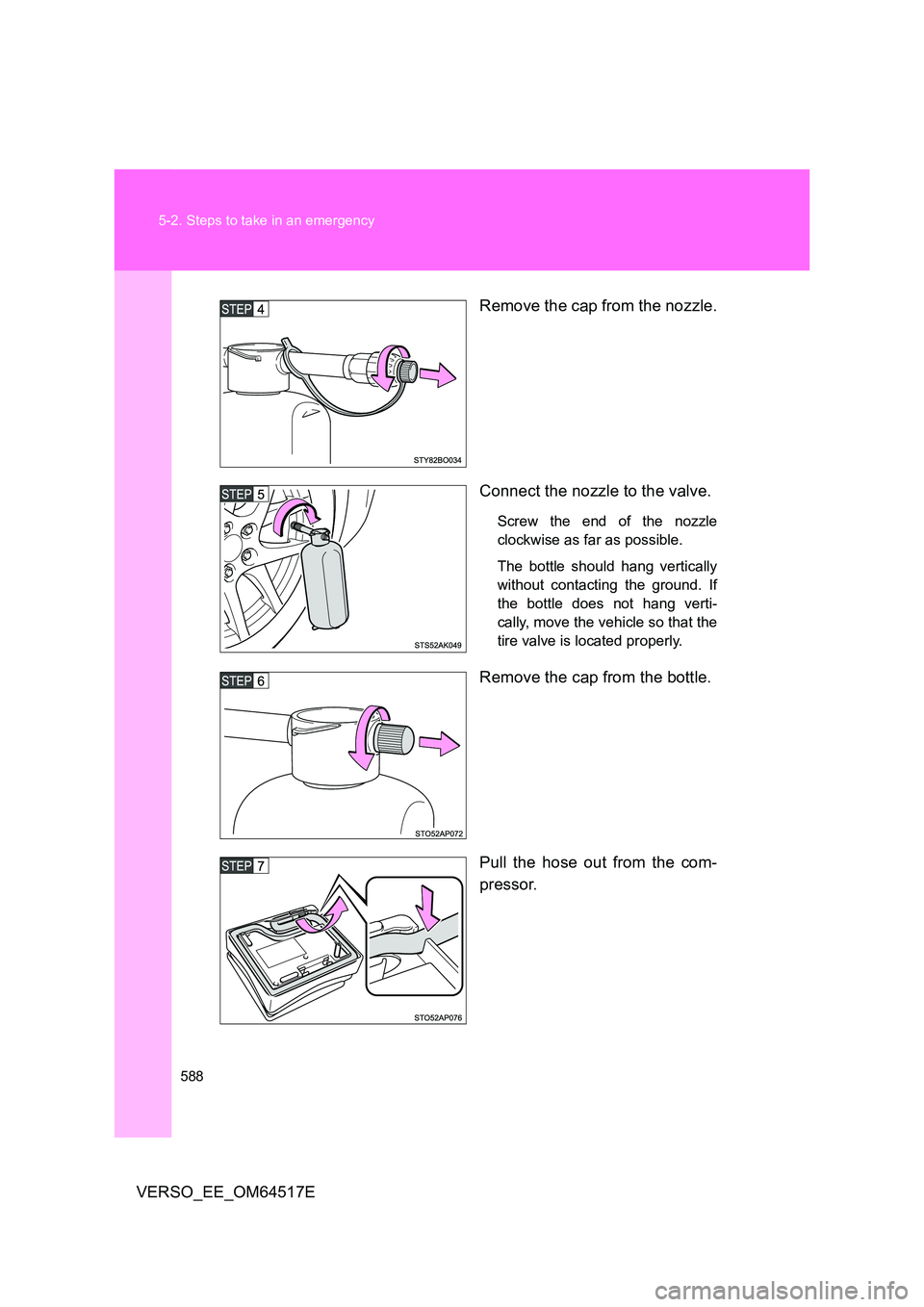

Remove the cap from the nozzle.
Connect the nozzle to the valve.
Screw the end of the nozzle
clockwise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang verti-
cally, move the vehicle so that the
tire valve is located properly.
Remove the cap from the bottle.
Pull the hose out from the com-
pressor.

5
589
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E

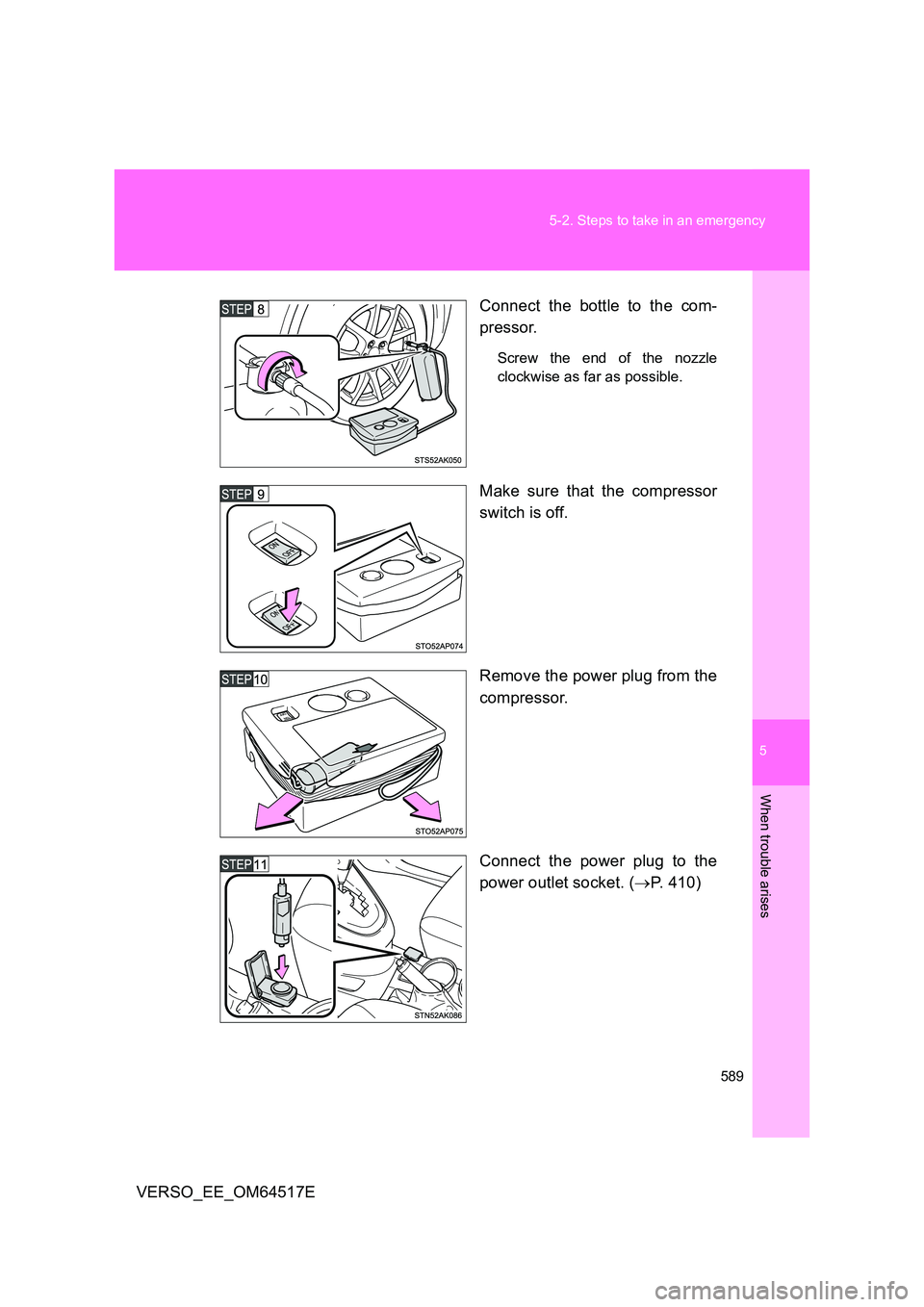

Connect the bottle to the com-
pressor.
Screw the end of the nozzle
clockwise as far as possible.
Make sure that the compressor
switch is off.
Remove the power plug from the
compressor.
Connect the power plug to the
power outlet socket. ( P. 410)

590
5-2. Steps to take in an emergency
VERSO_EE_OM64517E

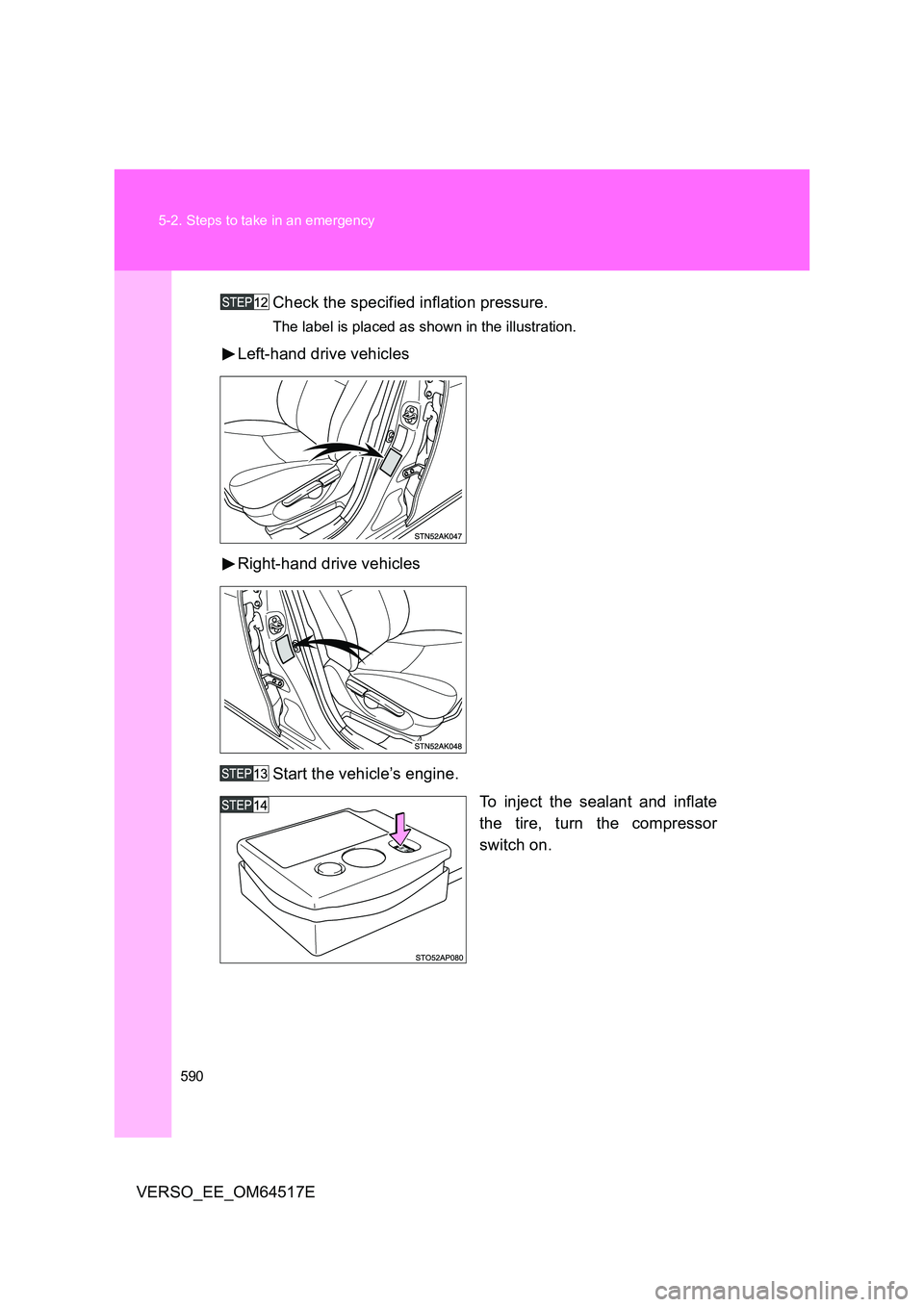

Check the specified inflation pressure.
The label is placed as shown in the illustration.
Left-hand drive vehicles
Right-hand drive vehicles
Start the vehicle’s engine.
To inject the sealant and inflate
the tire, turn the compressor
switch on.

5
591
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E

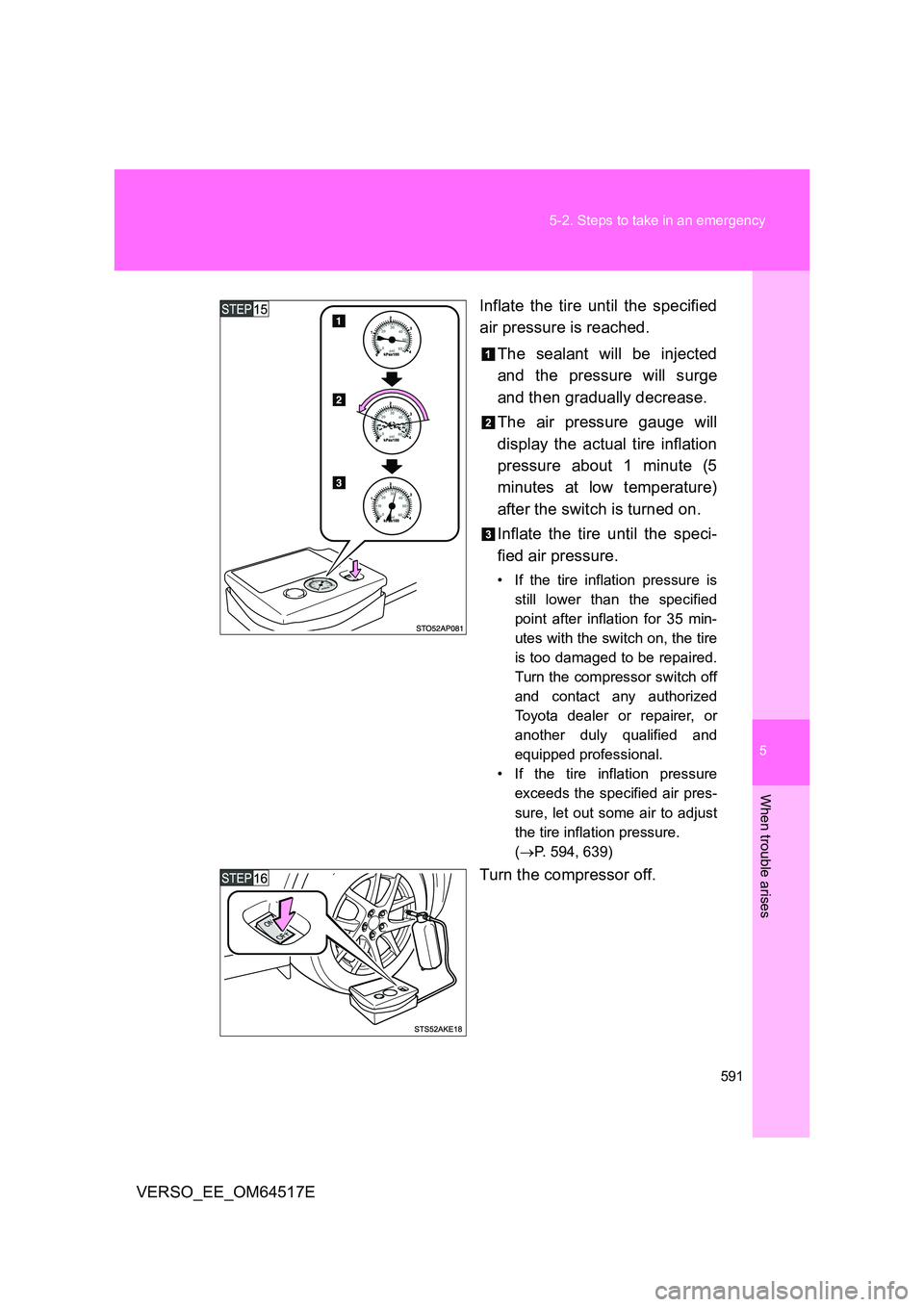

Inflate the tire until the specified
air pressure is reached.
The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire inflation
pressure about 1 minute (5
minutes at low temperature)
after the switch is turned on.
Inflate the tire until the speci-
fied air pressure.
• If the tire inflation pressure is
still lower than the specified
point after inflation for 35 min-
utes with the switch on, the tire
is too damaged to be repaired.
Turn the compressor switch off
and contact any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
• If the tire inflation pressure
exceeds the specified air pres-
sure, let out some air to adjust
the tire inflation pressure.
( P. 594, 639)
Turn the compressor off.

592
5-2. Steps to take in an emergency
VERSO_EE_OM64517E

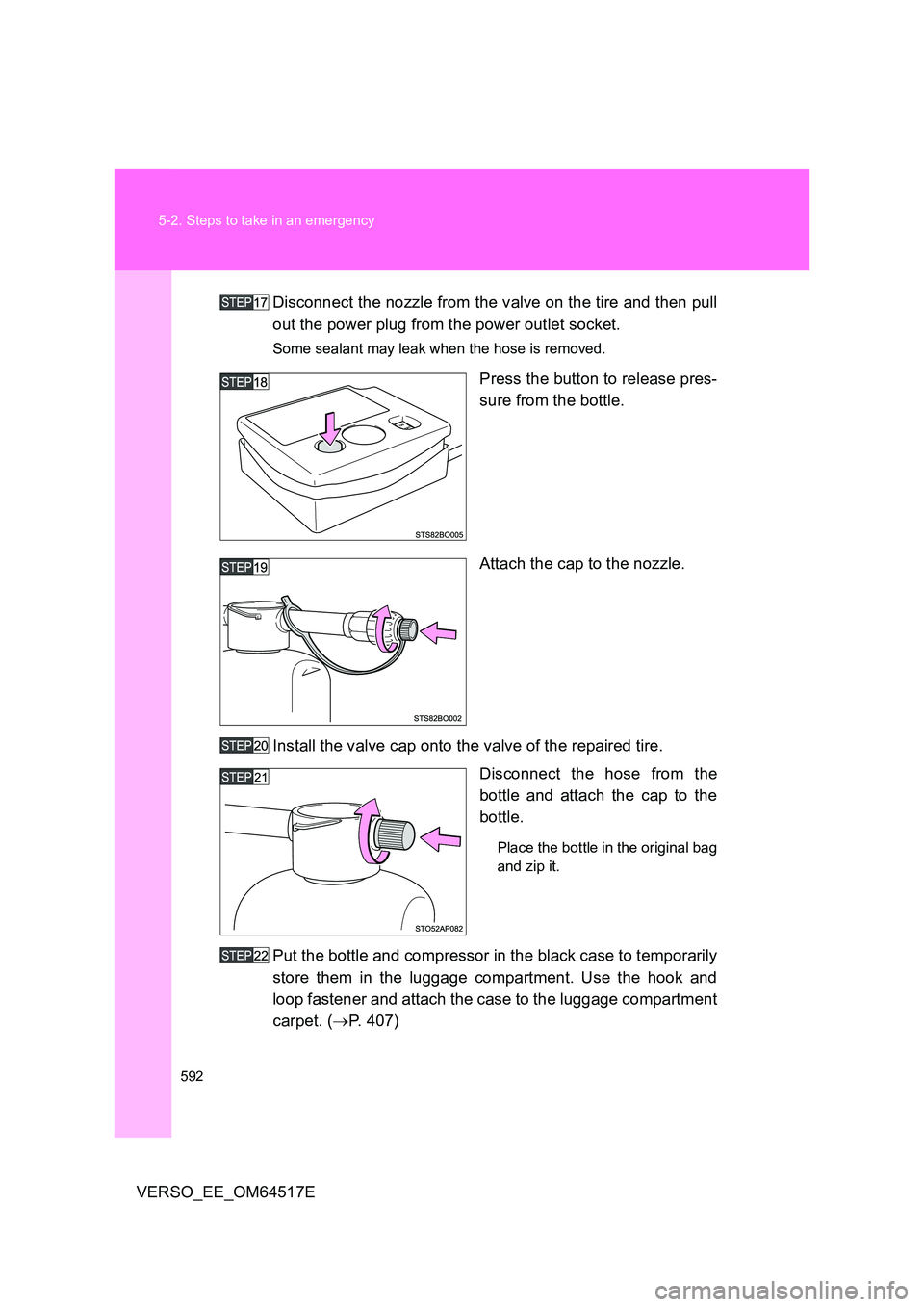

Disconnect the nozzle from the valve on the tire and then pull
out the power plug from the power outlet socket.
Some sealant may leak when the hose is removed.
Press the button to release pres-
sure from the bottle.
Attach the cap to the nozzle.
Install the valve cap onto the valve of the repaired tire.
Disconnect the hose from the
bottle and attach the cap to the
bottle.
Place the bottle in the original bag
and zip it.
Put the bottle and compressor in the black case to temporarily
store them in the luggage compartment. Use the hook and
loop fastener and attach the case to the luggage compartment
carpet. ( P. 407)
