2017 TOYOTA VERSO Owners Manual

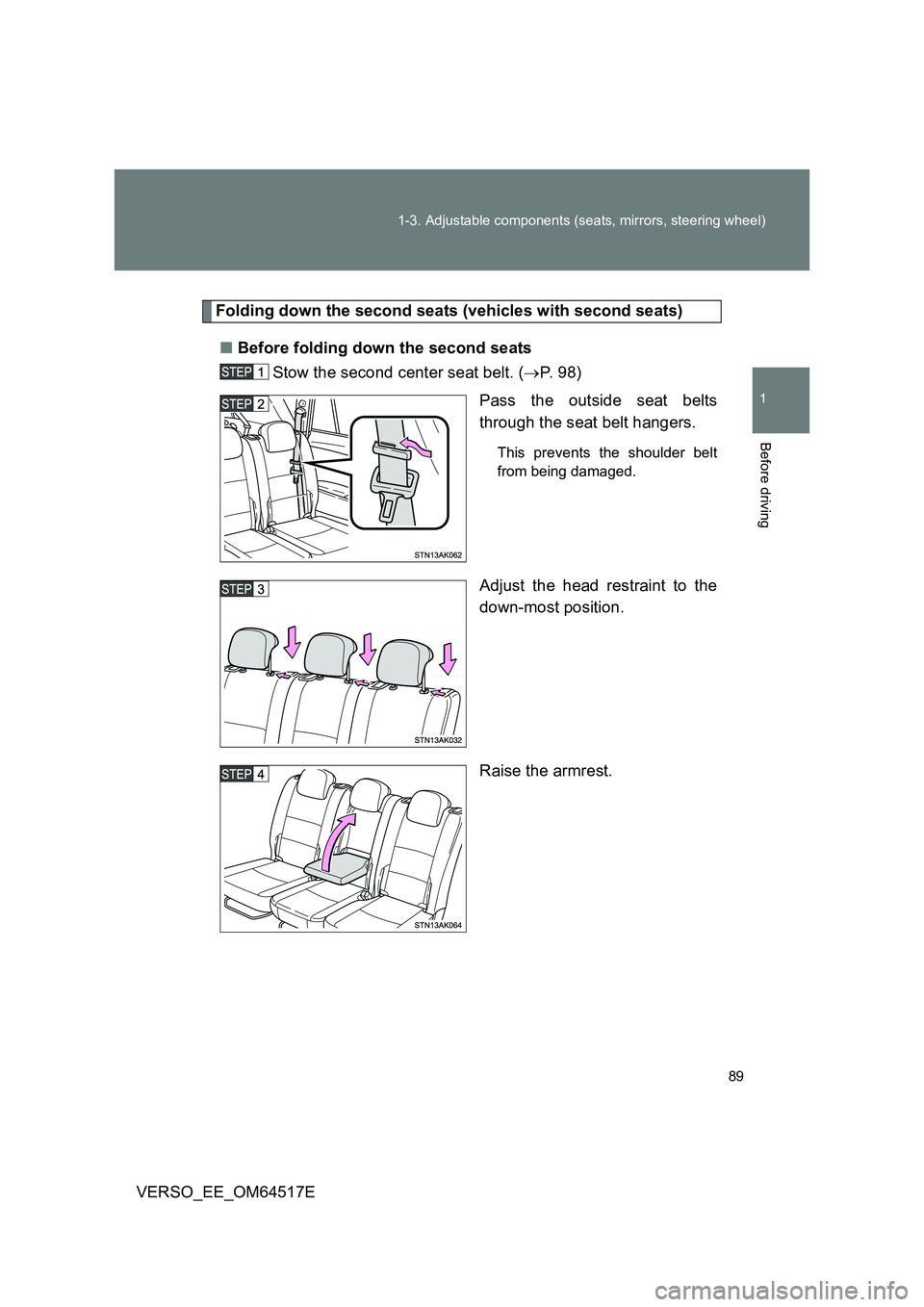

89
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO_EE_OM64517E
Folding down the second seats (vehicles with second seats)
■ Before folding down the second seats
Stow the second center seat belt. ( P. 9 8 )
Pass the outside seat belts
through the seat belt hangers.
This prevents the shoulder belt
from being damaged.
Adjust the head restraint to the
down-most position.
Raise the armrest.

90
1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO_EE_OM64517E
■ Folding down the second seats
Pull up the seatback angle
adjustment lever and fold down
the seatback.
■ Returning the second seats
Lift up the seatbacks until they lock.
Remove the outside seat belts from the seat belt hangers.
Replace the second center seat belt. ( P. 9 8 )
Folding down the third seats (vehicles with third seats)
■ Before folding down the third seats
Stow the seat belt buckles as
shown.

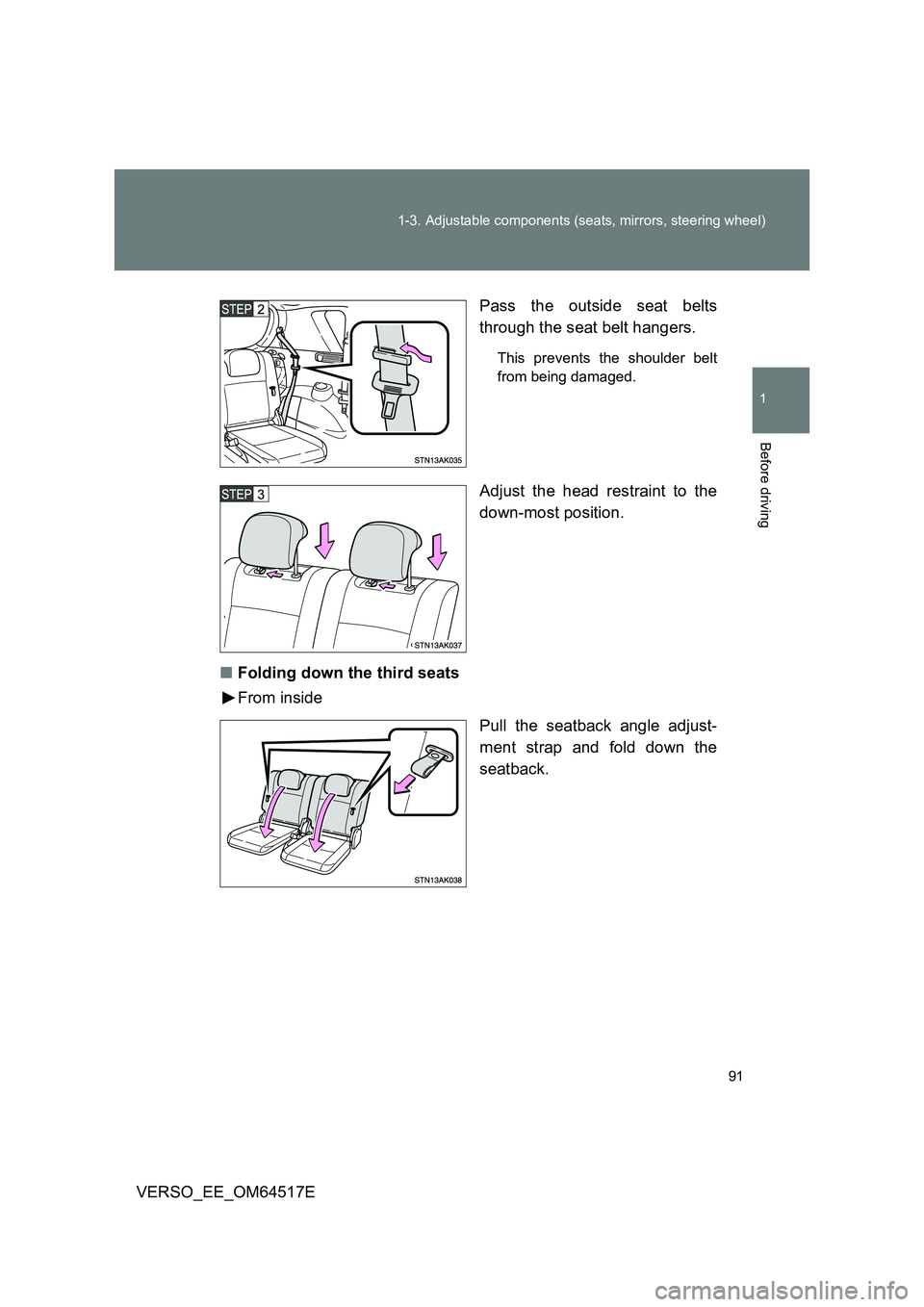

91
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO_EE_OM64517E
Pass the outside seat belts
through the seat belt hangers.
This prevents the shoulder belt
from being damaged.
Adjust the head restraint to the
down-most position.
■ Folding down the third seats
From inside
Pull the seatback angle adjust-
ment strap and fold down the
seatback.

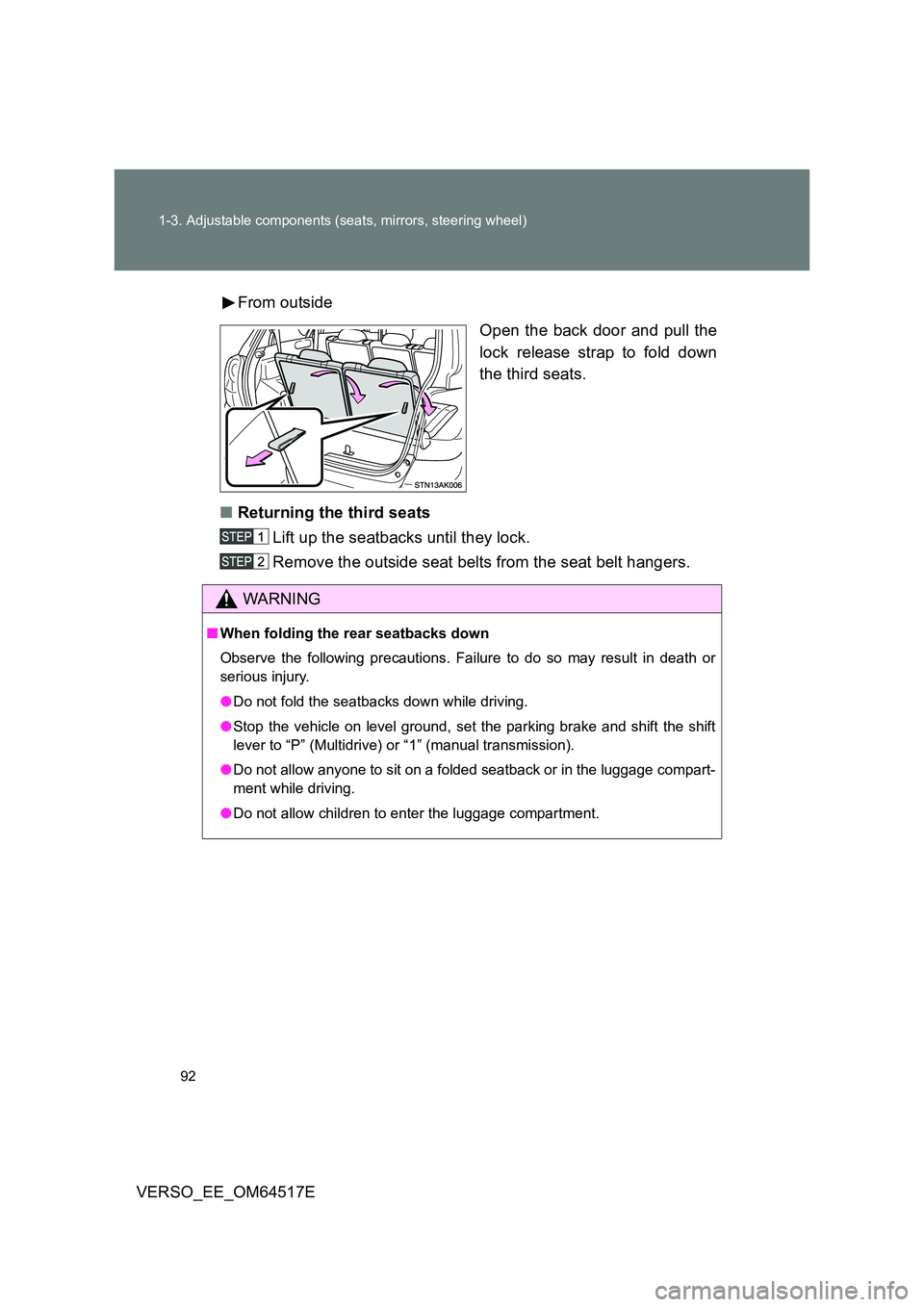

92
1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO_EE_OM64517E
From outside
Open the back door and pull the
lock release strap to fold down
the third seats.
■ Returning the third seats
Lift up the seatbacks until they lock.
Remove the outside seat belts from the seat belt hangers.
WARNING
■ When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to “P” (Multidrive) or “1” (manual transmission).
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.

93
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO_EE_OM64517E
WARNING
■ Seat adjustment
● Be careful not to get your hands pinched between the luggage cover and
the seat.
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary. If the seat is too reclined, the lap
belt may slide past the hips and apply restraint forces directly to the abdo-
men, or your neck may contact the shoulder belt, increasing the risk of
death or serious injury in the event of an accident. Adjustments should not
be made while driving as the seat may unexpectedly move and cause the
driver to lose control of the vehicle.
■ After returning the seatbacks to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Make sure the seatback is securely locked by pressing forward and rear-
ward on the top.
● Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■Stowing the seat belts
The seat belts and the buckles must be stowed before you fold down the
rear seatbacks.

94
1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO_EE_OM64517E
Head restraints
Front seats
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Second seats (if equipped)
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Third seats (if equipped)
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Lock release button
Lock release button
Lock release button

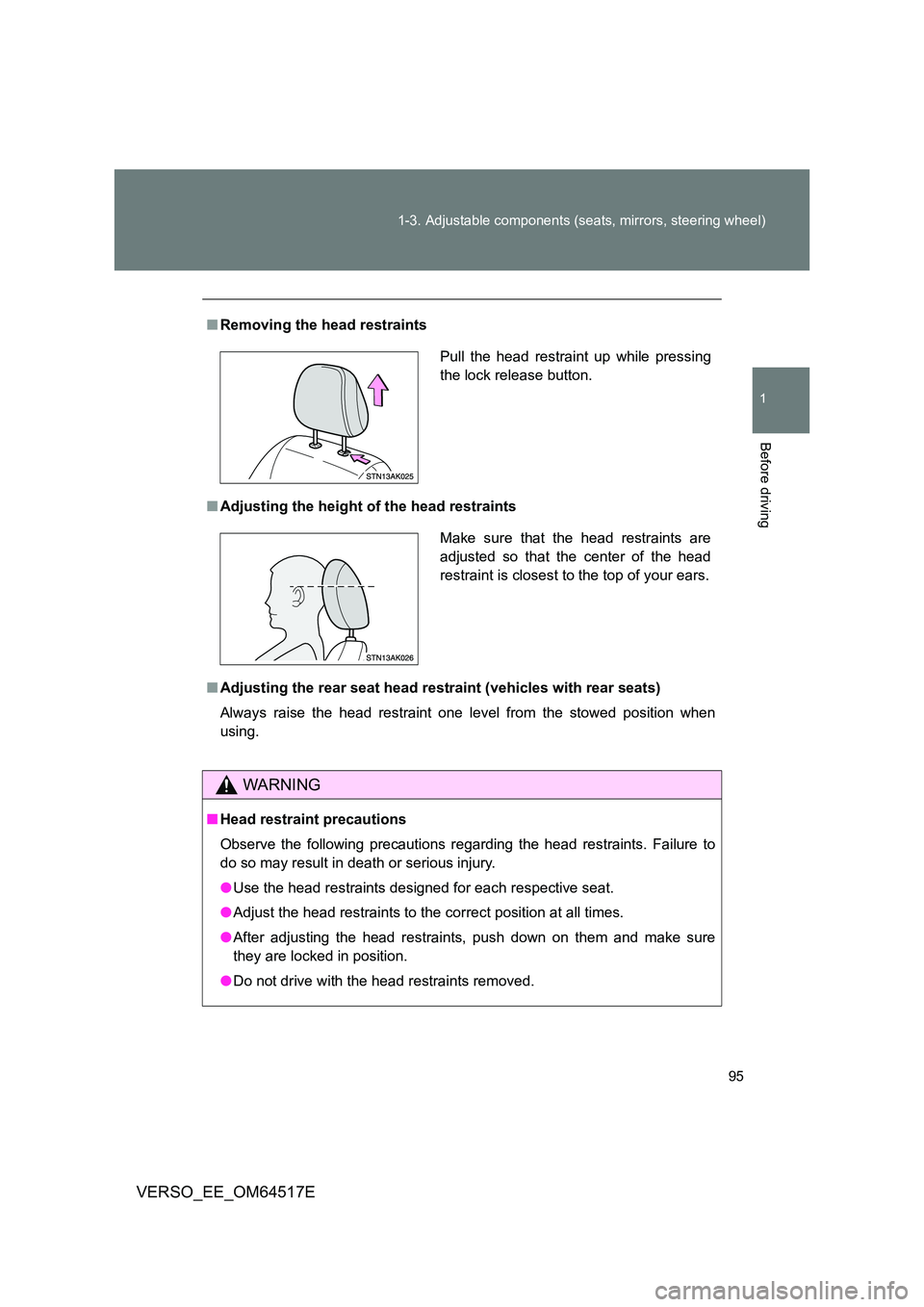

95
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO_EE_OM64517E
■ Removing the head restraints
■ Adjusting the height of the head restraints
■ Adjusting the rear seat head restraint (vehicles with rear seats)
Always raise the head restraint one level from the stowed position when
using.
WARNING
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
Pull the head restraint up while pressing
the lock release button.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

96
1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO_EE_OM64517E
Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■ Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
■ Fastening and releasing the seat belt
Fastening the belt
Push the plate into the buckle
until a click sound is heard.
