2017 TOYOTA VERSO Owners Manual

297
2-5. Using other driving systems
2
When driving
VERSO_EE_OM64517E
WARNING
■ To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
● In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● When your vehicle is towing a trailer

298
2-5. Using other driving systems
VERSO_EE_OM64517E

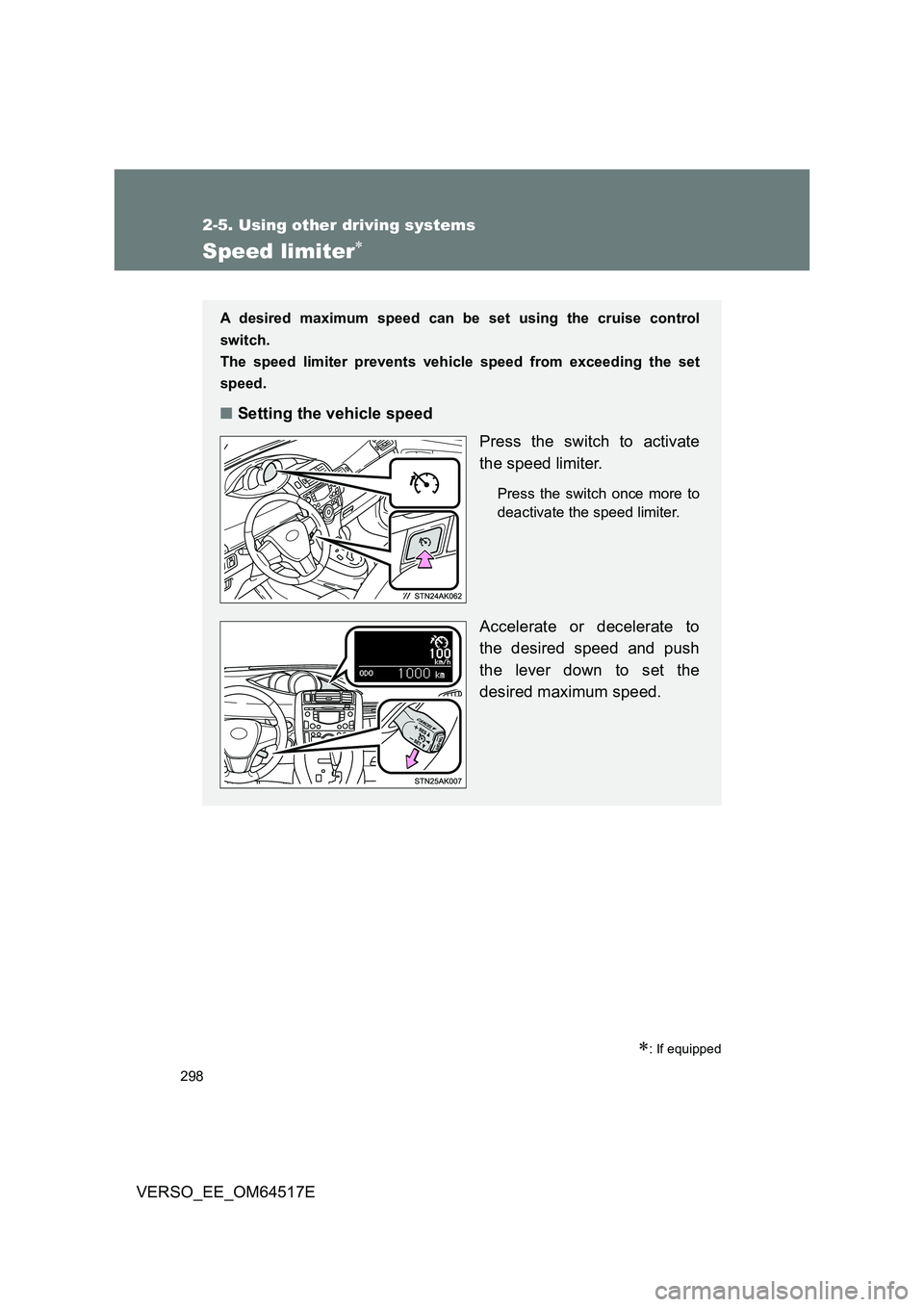

Speed limiter
: If equipped
A desired maximum speed can be set using the cruise control
switch.
The speed limiter prevents vehicle speed from exceeding the set
speed.
■ Setting the vehicle speed
Press the switch to activate
the speed limiter.
Press the switch once more to
deactivate the speed limiter.
Accelerate or decelerate to
the desired speed and push
the lever down to set the
desired maximum speed.

299
2-5. Using other driving systems
2
When driving
VERSO_EE_OM64517E

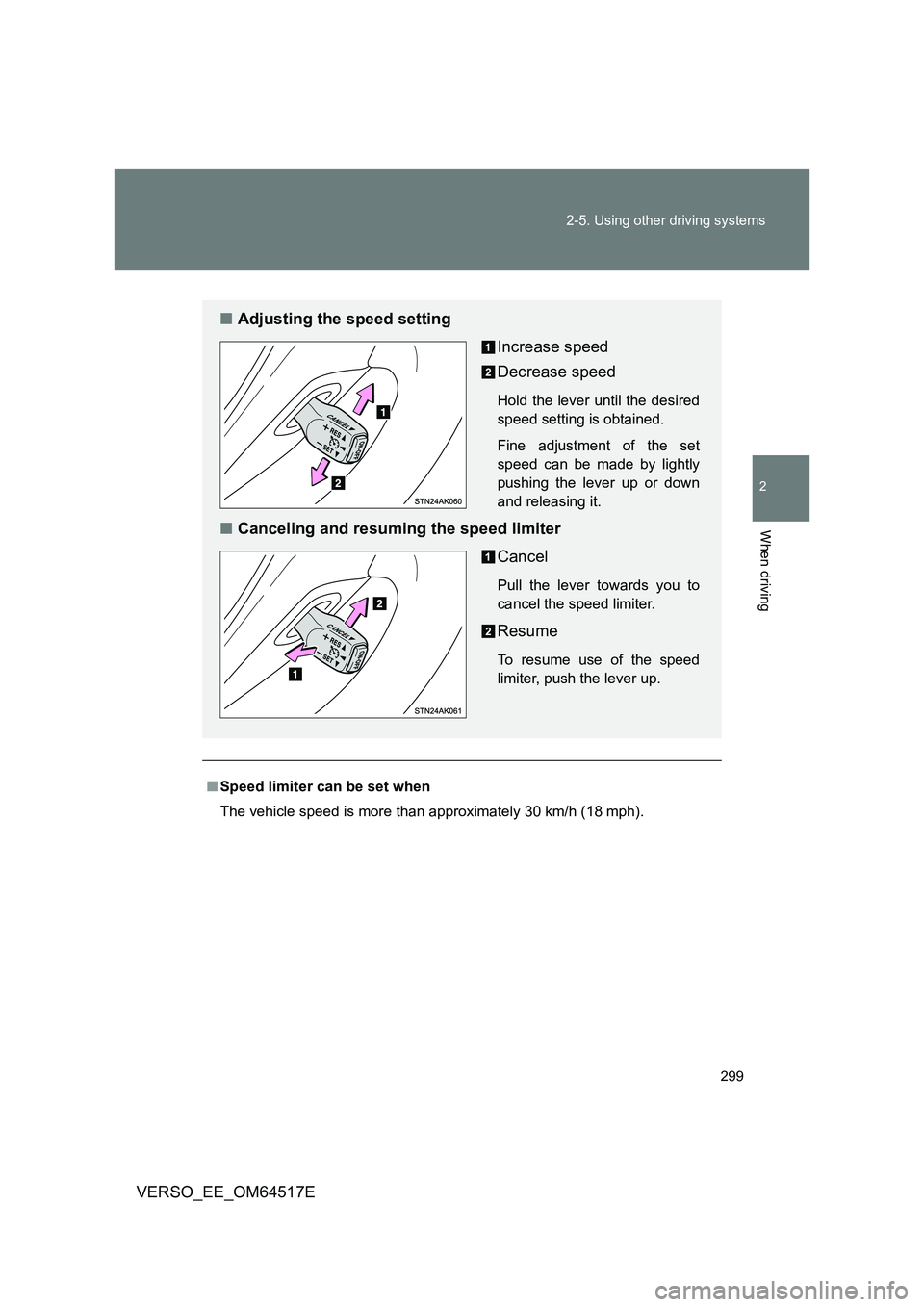

■ Speed limiter can be set when
The vehicle speed is more than approximately 30 km/h (18 mph).
■ Adjusting the speed setting
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set
speed can be made by lightly
pushing the lever up or down
and releasing it.
■ Canceling and resuming the speed limiter
Cancel
Pull the lever towards you to
cancel the speed limiter.
Resume
To resume use of the speed
limiter, push the lever up.

300
2-5. Using other driving systems
VERSO_EE_OM64517E

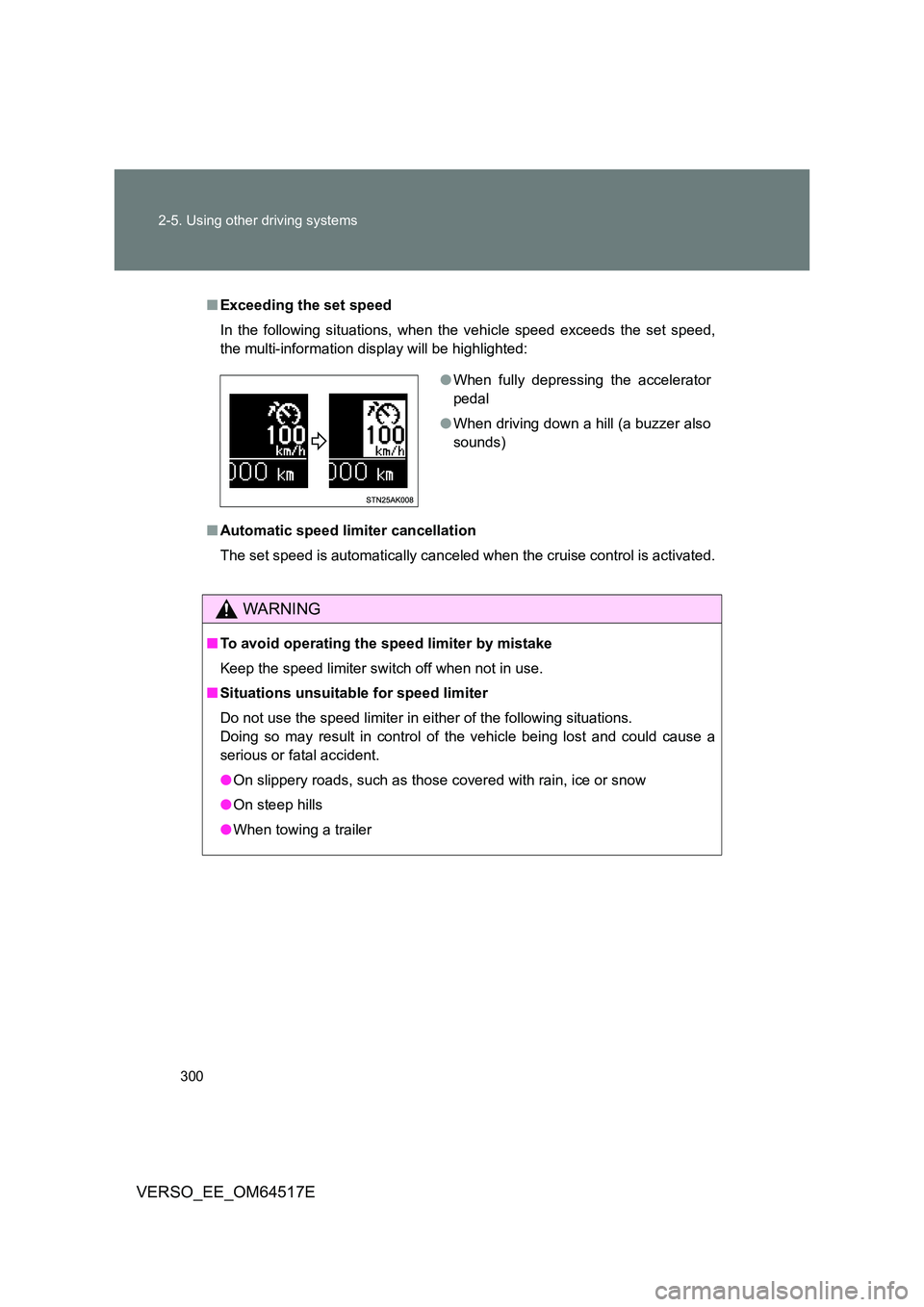

■ Exceeding the set speed
In the following situations, when the vehicle speed exceeds the set speed,
the multi-information display will be highlighted:
■ Automatic speed limiter cancellation
The set speed is automatically canceled when the cruise control is activated.
WARNING
■ To avoid operating the speed limiter by mistake
Keep the speed limiter switch off when not in use.
■ Situations unsuitable for speed limiter
Do not use the speed limiter in either of the following situations.
Doing so may result in control of the vehicle being lost and could cause a
serious or fatal accident.
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
● When towing a trailer
●When fully depressing the accelerator
pedal
● When driving down a hill (a buzzer also
sounds)

301
2-5. Using other driving systems
2
When driving
VERSO_EE_OM64517E
Toyota parking assist-sensor
: If equipped
The distance from your vehicle to nearby obstacles when parallel
parking or maneuvering into a garage is measured by the sensors
and communicated via an indicator and a buzzer. Always check the
surrounding area when using this system.
■ Types of sensors
Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors
■ Toyota parking assist-sensor switch
Turns the Toyota parking
assist-sensor on/off
When on, the indicator light
comes on to inform the driver
that the system is operational.

302
2-5. Using other driving systems
VERSO_EE_OM64517E
Display
When the sensors detect an obstacle, the Toyota parking assist-sen-
sor indicator is illuminated by an LED depending on position and dis-
tance to the obstacle.
Front center sensor operation
Front corner sensor operation
Rear corner sensor operation
Rear center sensor operation
The light comes on to indicate
that the system is operating
The distance display and buzzer
When a sensor detects an obstacle, the direction of and the approxi-
mate distance to the obstacle are displayed and the buzzer sounds.
■ Sensor operation and distance to an obstacle
The system operates when the vehicle approaches an obstacle, as
shown by the following table.

303
2-5. Using other driving systems
2
When driving
VERSO_EE_OM64517E
Front center sensor
Front corner sensor
Rear corner sensor
Rear center sensor
Distance to an obstacle cm (ft.)Indicator and buzzer
Approximately 100 - 50 (3.2 - 1.6) Intermittent
Approximately 50 - 37.5 (1.6 - 1.2) Fast intermittent
Approximately 37.5 - 30 (1.2 - 1.0) Very fast intermittent
Approximately 30 or less (1.0 or less) Continuous
Distance to an obstacle cm (ft.)Indicator and buzzer
Approximately 60 - 45 (2.0 - 1.5) Intermittent
Approximately 45 - 30 (1.5 - 1.0) Fast intermittent
Approximately 30 or less (1.0 or less) Continuous
Distance to an obstacle cm (ft.)Indicator and buzzer
Approximately 60 - 45 (2.0 - 1.5) Intermittent
Approximately 45 - 30 (1.5 - 1.0) Fast intermittent
Approximately 30 or less (1.0 or less) Continuous
Distance to an obstacle cm (ft.)Indicator and buzzer
Approximately 150 - 60 (4.9 - 2.0) Intermittent
Approximately 60 - 45 (2.0 - 1.5) Fast intermittent
Approximately 45 - 35 (1.5 - 1.1) Very fast intermittent
Approximately 35 or less (1.1 or less) Continuous

304
2-5. Using other driving systems
VERSO_EE_OM64517E
■ Buzzer operation and distance to an obstacle
A buzzer sounds when the corner sensors and center sensors are
operating.
● The buzzer beeps faster as the vehicle approaches an obstacle.
When the vehicle comes within the following distance of the
obstacle, the buzzer sounds continuously.
• Front corner sensors: Approximately 30 cm (1.0 ft.)
• Front center sensors: Approximately 30 cm (1.0 ft.)
• Rear corner sensors: Approximately 30 cm (1.0 ft.)
• Rear center sensors: Approximately 35 cm (1.1 ft.)
● When obstacles are simultaneously detected in front and to the
rear:
• The buzzer sounds in response to the nearest obstacle.
• When an obstacle either in front or to the rear is extremely
close, the buzzer will alternate between sounding continu-
ously and sounding intermittently.
• When obstacles both in front and to the rear are extremely
close, the buzzer will alternate between sounding continu-
ously and sounding intermittently, with a shorter interval.
■ Sensors that operate
Forward Backward
