2017 TOYOTA VERSO Owners Manual

137
1
1-6. Theft deterrent system
Before driving
VERSO_EE_OM64517E
Alarm
: If equipped
The system sounds the alarm and flashes the lights when forcible
entry is detected.
■ Triggering of the alarm
The alarm is triggered in the following situations when the alarm
is set.
● A locked door is unlocked or opened in any way other than
using the entry function (vehicles with smart entry & start sys-
tem) or wireless remote control. (The doors will lock again
automatically.)
● The hood is opened.
● Vehicles with the intrusion sensor: The intrusion sensor
detects something moving inside the vehicle. (An intruder gets
in the vehicle.)
● Vehicles with the glass breakage sensor: The back door win-
dow is tapped or broken.
● The battery is reconnected.

138
1-6. Theft deterrent system
VERSO_EE_OM64517E

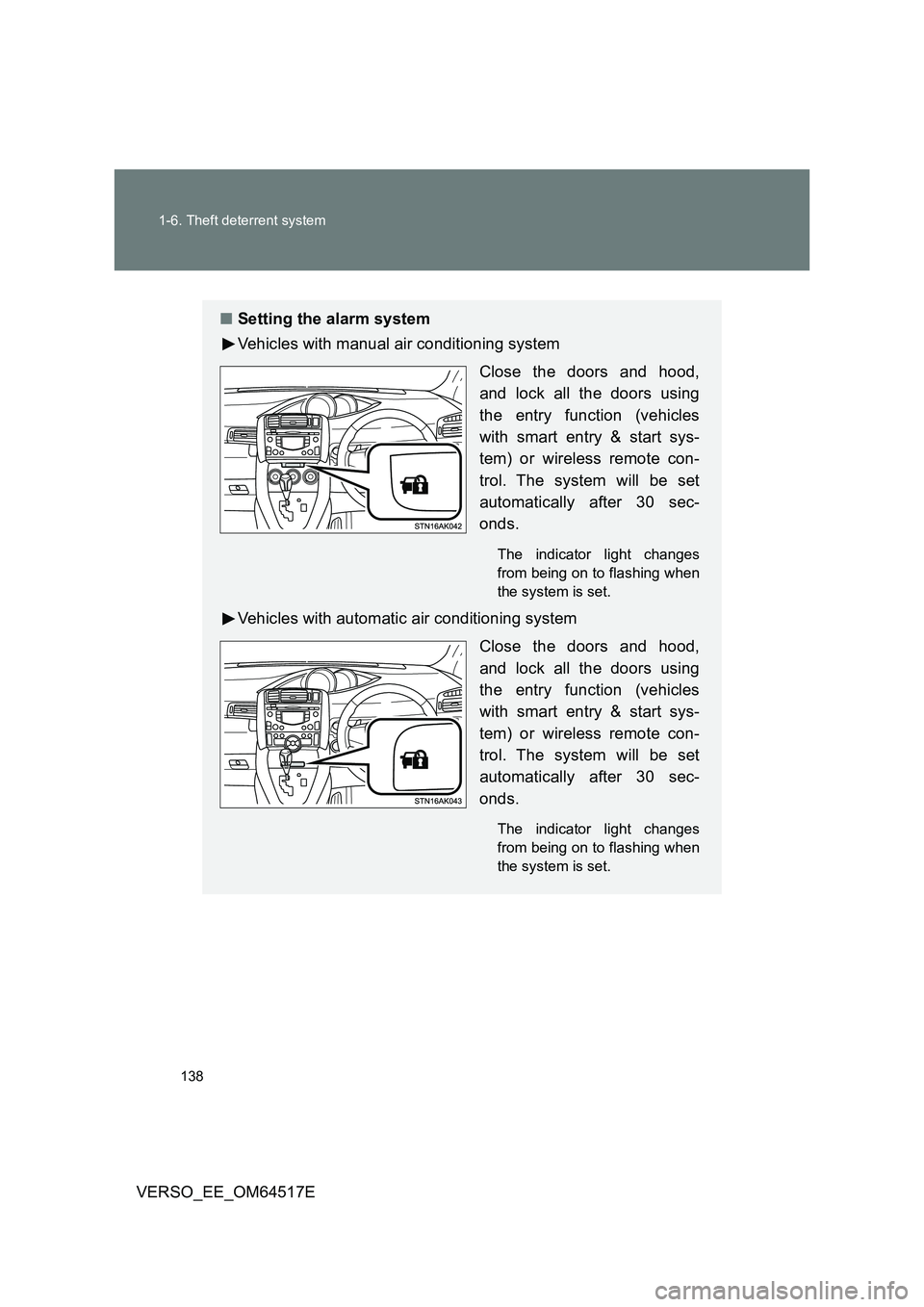

■ Setting the alarm system
Vehicles with manual air conditioning system
Close the doors and hood,
and lock all the doors using
the entry function (vehicles
with smart entry & start sys-
tem) or wireless remote con-
trol. The system will be set
automatically after 30 sec-
onds.
The indicator light changes
from being on to flashing when
the system is set.
Vehicles with automatic air conditioning system
Close the doors and hood,
and lock all the doors using
the entry function (vehicles
with smart entry & start sys-
tem) or wireless remote con-
trol. The system will be set
automatically after 30 sec-
onds.
The indicator light changes
from being on to flashing when
the system is set.

139
1-6. Theft deterrent system
1
Before driving
VERSO_EE_OM64517E
Intrusion sensor (if equipped)
The intrusion sensor detects an intruder or movement in the vehicle.
The intrusion sensor can be canceled using the cancel switch.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■ Canceling the intrusion sensor
Vehicles without smart entry &
start system: Turn the engine
switch to the “LOCK” position
and press the intrusion sensor
cancel switch.
Vehicles with smart entry & start
system: Turn the “ENGINE
START STOP” switch off and
press the intrusion sensor cancel
switch.
Pressing the switch again will re-
enable the intrusion sensor.
To cancel the intrusion sensor, perform the necessary procedure
each time canceling the sensor is desired.
■ Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
● Unlock the doors using the entry function (vehicles with smart
entry & start system) or wireless remote control.
● Start the engine. (The alarm will be deactivated or stopped
after a few seconds.)

140
1-6. Theft deterrent system
VERSO_EE_OM64517E

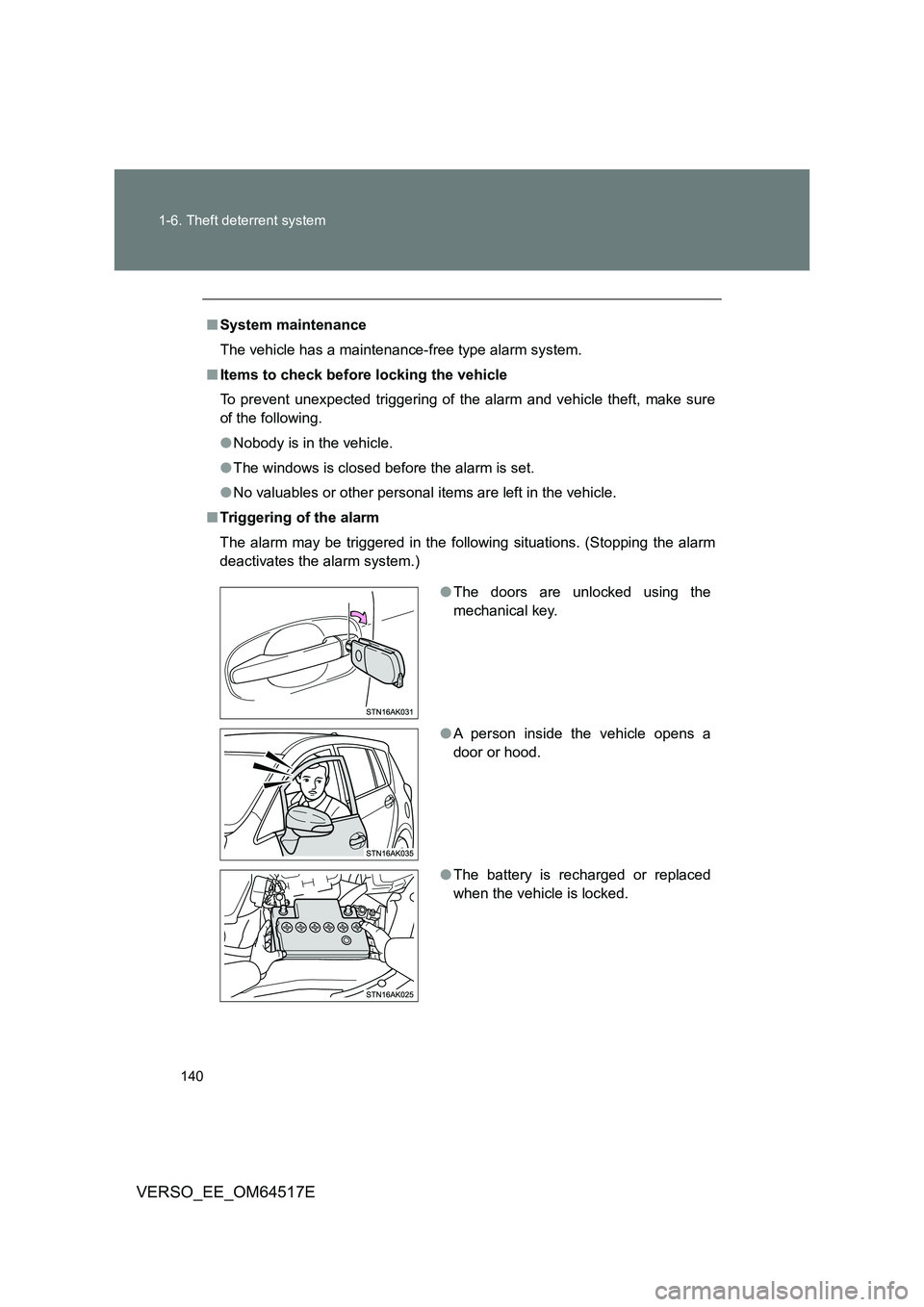

■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure
of the following.
● Nobody is in the vehicle.
● The windows is closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the follow ing situations. (Stopping the alarm
deactivates the alarm system.)
● The doors are unlocked using the
mechanical key.
● A person inside the vehicle opens a
door or hood.
● The battery is recharged or replaced
when the vehicle is locked.

141
1-6. Theft deterrent system
1
Before driving
VERSO_EE_OM64517E
■ When the battery is disconnected
Be sure to cancel the alarm system.
If the battery is discharged before canceling the alarm, the system may be
triggered when the battery is reconnected.
■ Alarm-operated door lock
In the following cases, depending on the situation, the door may automati-
cally lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm
is activated.
● While the alarm is activated, a person remaining in the vehicle unlocks
the door.
● When recharging or replacing the battery.
■ Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● Vehicles without smart entry & start system: After the intrusion sensor is
canceled, turn the engine switch to the “ON” position or unlocking the
doors using the wireless remote control will re-enable the intrusion sen-
sor.
● Vehicles with smart entry & start system: After the intrusion sensor is
canceled, pressing the “ENGINE START STOP” switch or unlocking the
doors using the smart entry & start system or wireless remote control will
re-enable the intrusion sensor.
● When the alarm system is set again, the intrusion sensor will also be set.
■ Intrusion sensor considerations
The sensor may trigger the alarm in the following situations.
● Persons or pets are in the vehicle.

142
1-6. Theft deterrent system
VERSO_EE_OM64517E
● Unstable items, such as dangling accessories or clothes hanging on the
coat hooks, are in the vehicle.
● A window is open.
● The vehicle is inside an automatic or high-pressure car washer.
● The vehicle experiences impacts, such as hail, lightning strikes, or other
kinds of repeated impacts or vibrations.
● Unstable items, such as dangling
accessories or clothes hanging on the
coat hooks, are in the vehicle.
● The vehicle is parked in a place where
extreme vibrations or noises occur,
such as in a parking garage.
● Ice or snow is removed from the vehi-
cle, causing the vehicle to receive
repeated impacts or vibrations.

143
1-6. Theft deterrent system
1
Before driving
VERSO_EE_OM64517E

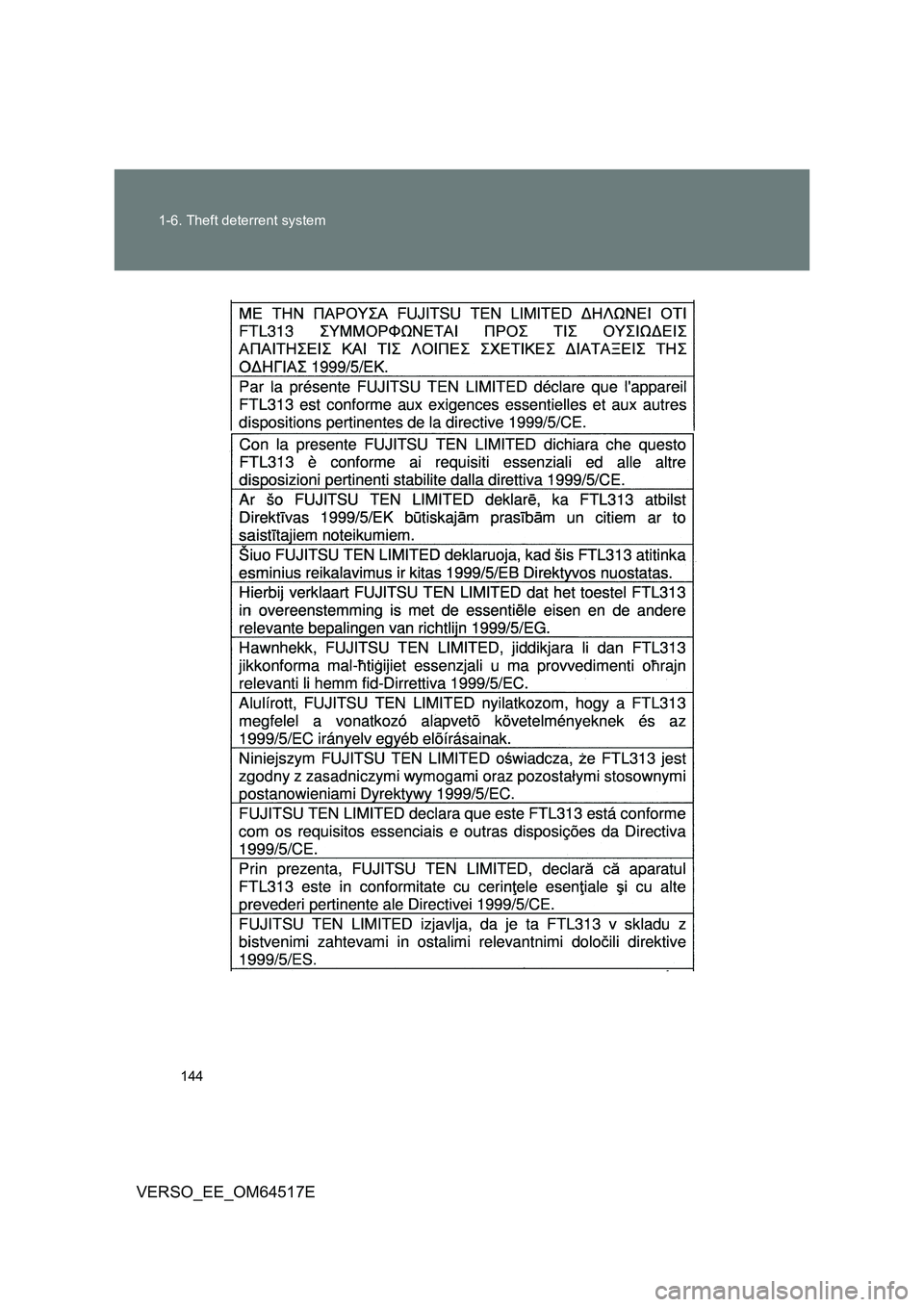

■ Certification
The sensor installed to vehicles sold other than UK and Ireland is not
allowed to operate in UK.
The latest “DECLARATION of CONFORMITY” (DoC) is available at the fol-
lowing:
DoC address: FUJITSU TEN LIMITED
2-28, Gosho-dori 1-chom e, Hyogo-ku, Kobe, 652-8510,
Japan

144
1-6. Theft deterrent system
VERSO_EE_OM64517E
