2017 TOYOTA VERSO Owners Manual

505
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E

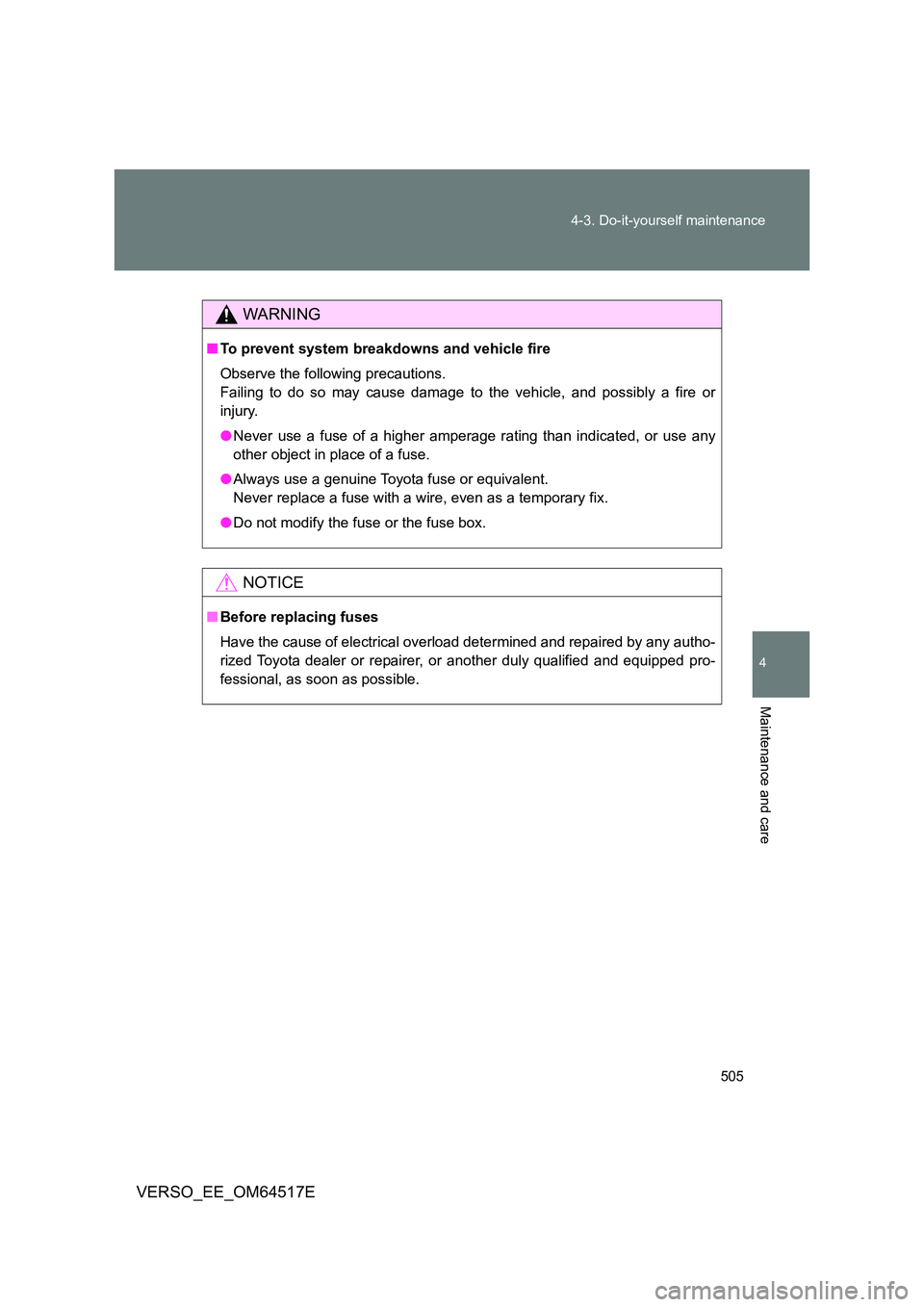

WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional, as soon as possible.

506
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. As there is a danger that
components may be damaged, we recommend that replacement is
carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
■ Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. ( P. 642)
■ Remove the engine compartment cover
 P. 4 5 2
■ Front bulb locations
Headlight high beam (halogen headlights)
Headlight low beam
(halogen headlights)
Front turn
signal light
Front fog light
Front position light/
daytime running light
(halogen headlights)
Side turn signal lights

507
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E

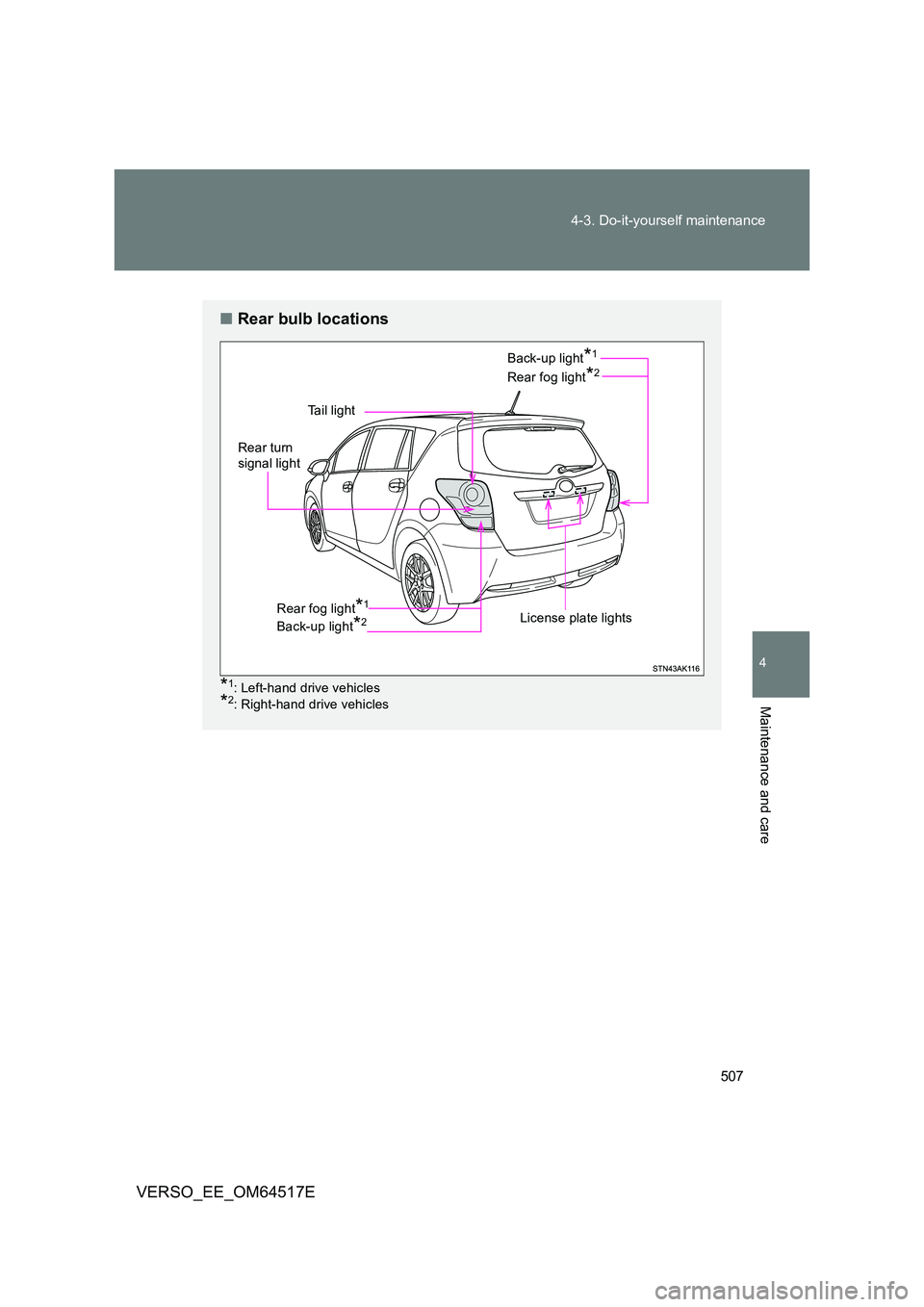

■ Rear bulb locations
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Ta i l l i g h t
Rear fog light*2
License plate lights
Rear turn signal light
Back-up light*1
Rear fog light*1
Back-up light*2

508
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E

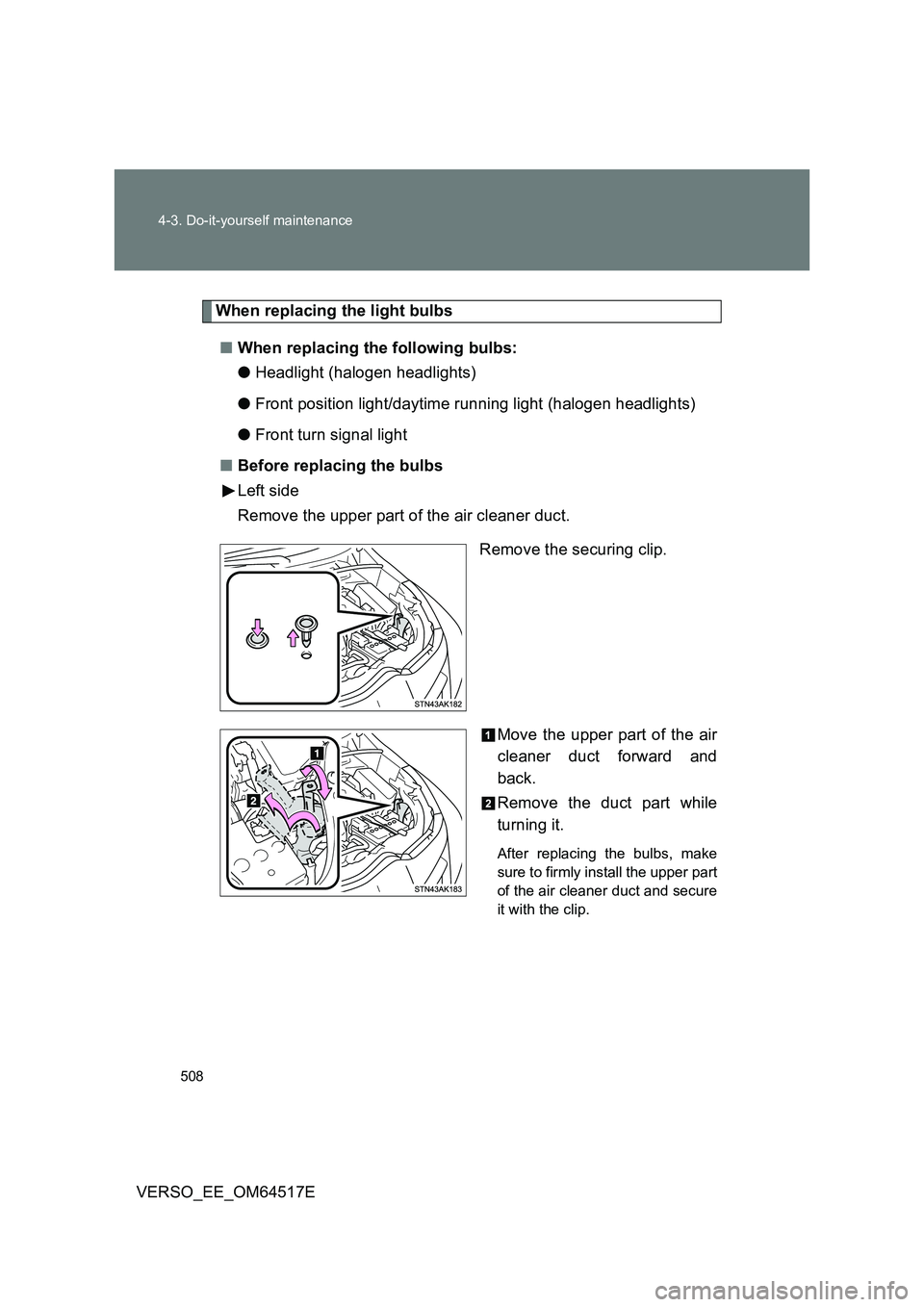

When replacing the light bulbs
■ When replacing the following bulbs:
● Headlight (halogen headlights)
● Front position light/daytime running light (halogen headlights)
● Front turn signal light
■ Before replacing the bulbs
Left side
Remove the upper part of the air cleaner duct.
Remove the securing clip.
Move the upper part of the air
cleaner duct forward and
back.
Remove the duct part while
turning it.
After replacing the bulbs, make
sure to firmly install the upper part
of the air cleaner duct and secure
it with the clip.

509
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E
Right side
Move the washer fluid filler open-
ing.
Remove the securing clip.
Move the washer fluid filler
opening.
After replacing the bulbs, make
sure to firmly install the washer
fluid filler opening and secure it
with the clip.
■ After replacing the bulbs
Left side
Make sure to secure the upper
part of the air cleaner duct with
the clip.
Right side
Make sure to secure the washer
fluid filler opening with the clip.

510
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E
Replacing light bulbs
■ Headlight low beam (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 508)
Turn the cover to the open posi-
tion and remove it.
Open position
Turn the bulb base counterclock-
wise.

511
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E

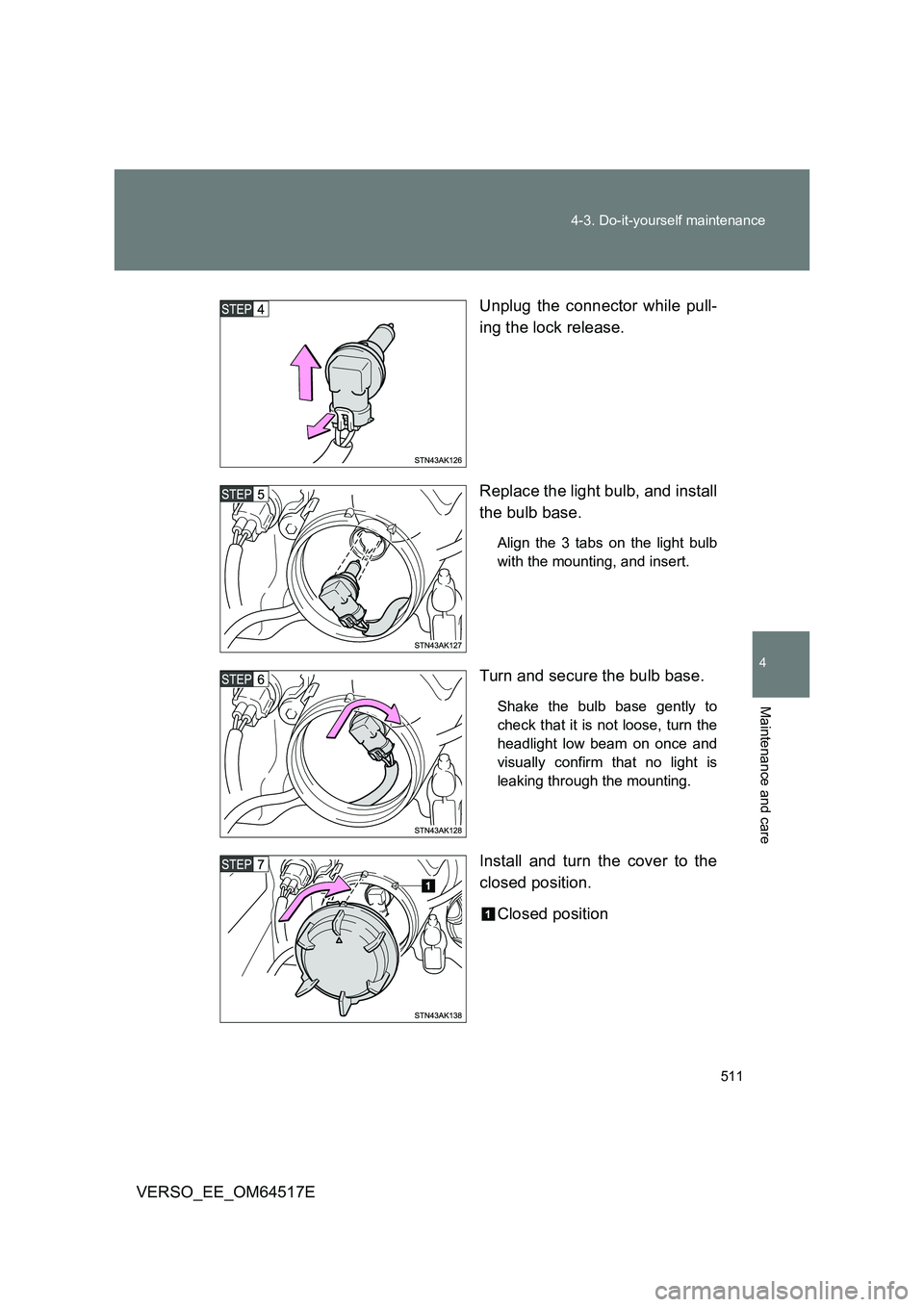

Unplug the connector while pull-
ing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight low beam on once and
visually confirm that no light is
leaking through the mounting.
Install and turn the cover to the
closed position.
Closed position

512
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E
After replacing the light bulb, air cleaner duct, and/or washer
fluid filler opening, return it to the original position. ( P. 508)
■ Headlight high beam (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 508)
Turn the cover to the open posi-
tion and remove it.
Open position
Turn the bulb base counterclock-
wise.
