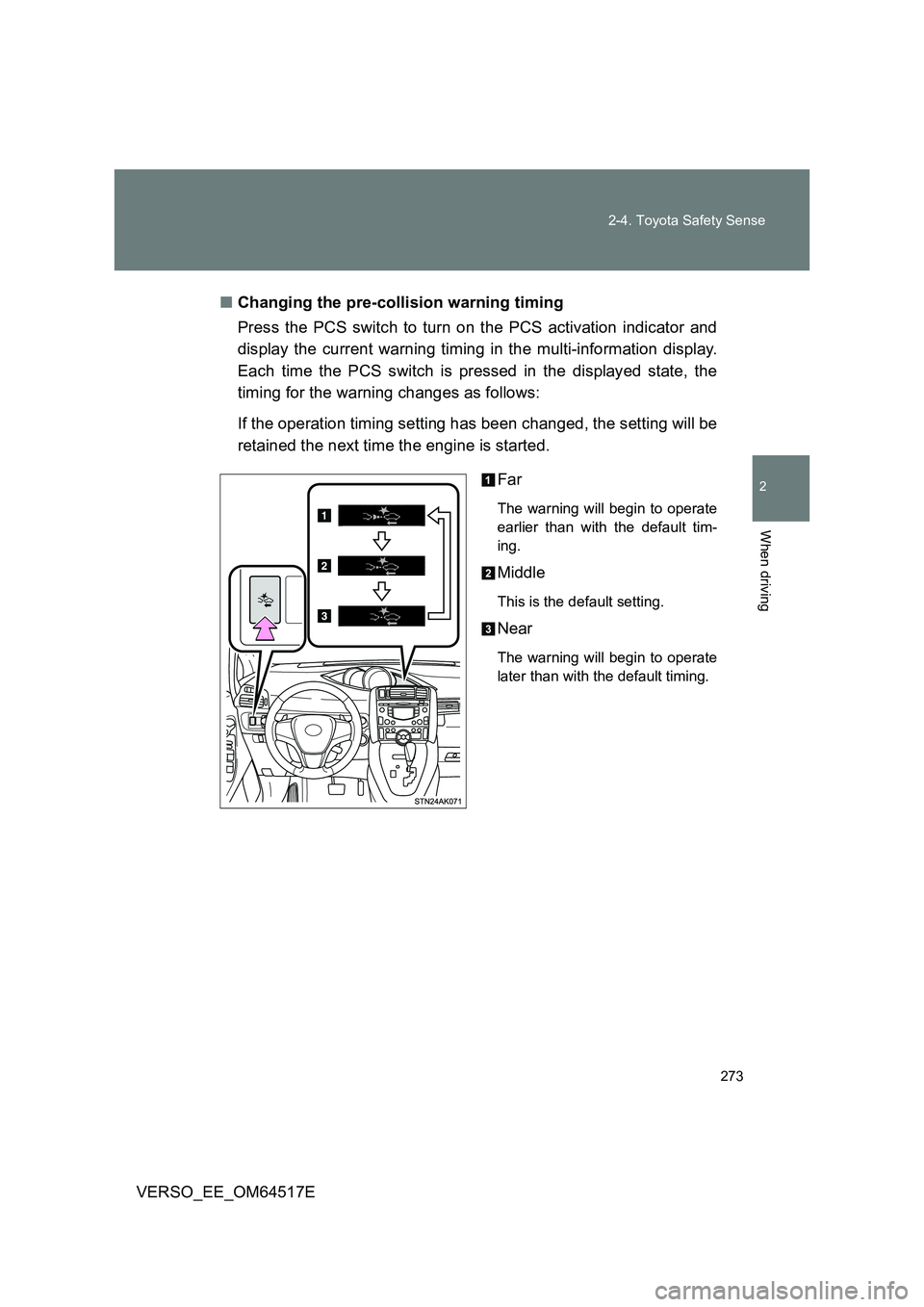

2017 TOYOTA VERSO Owners Manual

273
2-4. Toyota Safety Sense
2
When driving
VERSO_EE_OM64517E
■ Changing the pre-collision warning timing
Press the PCS switch to turn on the PCS activation indicator and
display the current warning timing in the multi-information display.
Each time the PCS switch is pressed in the displayed state, the
timing for the warning changes as follows:
If the operation timing setting has been changed, the setting will be
retained the next time the engine is started.
Far
The warning will begin to operate
earlier than with the default tim-
ing.
Middle
This is the default setting.
Near
The warning will begin to operate
later than with the default timing.

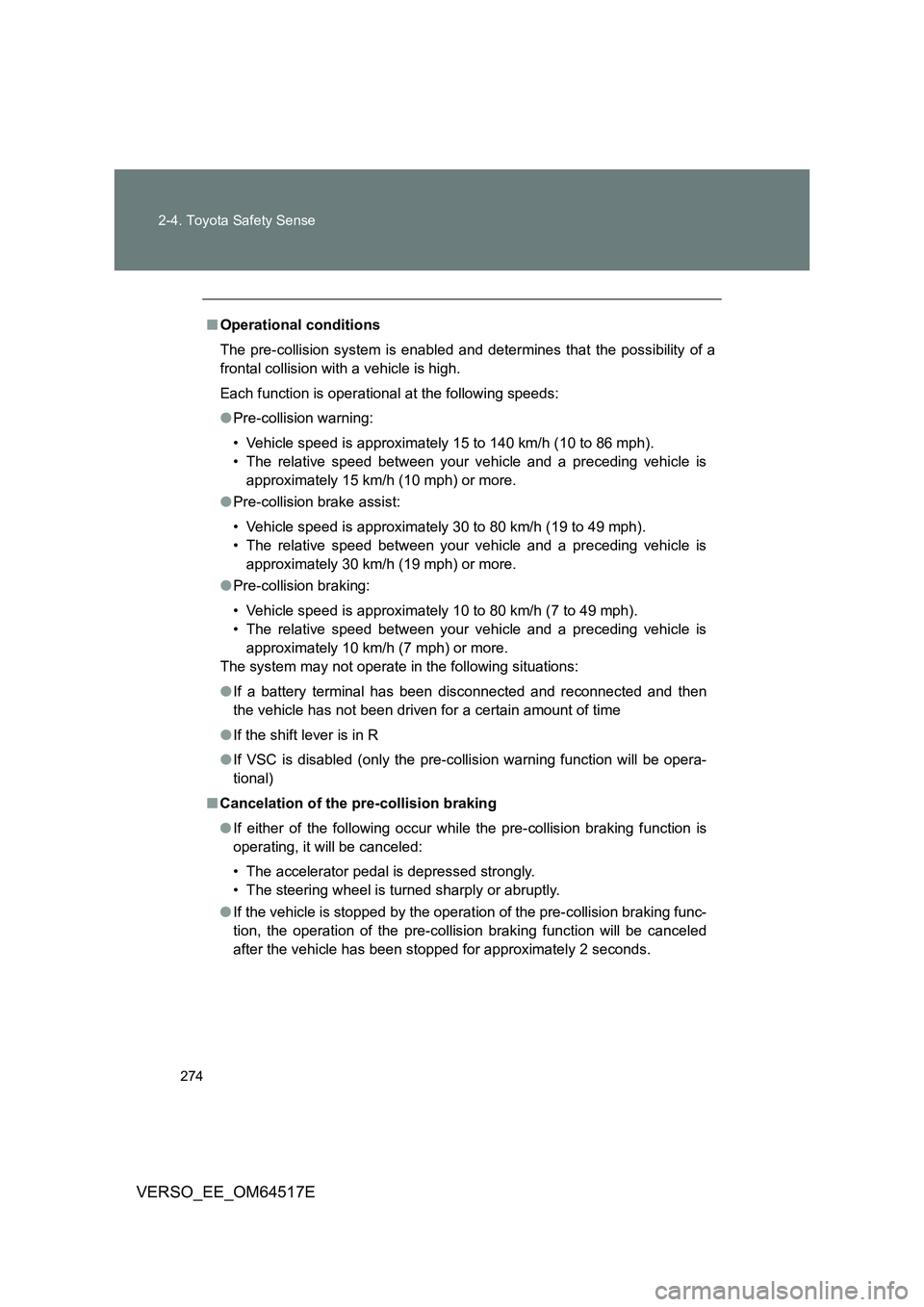

274
2-4. Toyota Safety Sense
VERSO_EE_OM64517E
■ Operational conditions
The pre-collision system is enabled and determines that the possibility of a
frontal collision with a vehicle is high.
Each function is operational at the following speeds:
● Pre-collision warning:
• Vehicle speed is approximately 15 to 140 km/h (10 to 86 mph).
• The relative speed between your vehicle and a preceding vehicle is
approximately 15 km/h (10 mph) or more.
● Pre-collision brake assist:
• Vehicle speed is approximately 30 to 80 km/h (19 to 49 mph).
• The relative speed between your vehicle and a preceding vehicle is
approximately 30 km/h (19 mph) or more.
● Pre-collision braking:
• Vehicle speed is approximately 10 to 80 km/h (7 to 49 mph).
• The relative speed between your vehicle and a preceding vehicle is
approximately 10 km/h (7 mph) or more.
The system may not operate in the following situations:
● If a battery terminal has been disconnected and reconnected and then
the vehicle has not been driven for a certain amount of time
● If the shift lever is in R
● If VSC is disabled (only the pre-collision warning function will be opera-
tional)
■ Cancelation of the pre-collision braking
● If either of the following occur while the pre-collision braking function is
operating, it will be canceled:
• The accelerator pedal is depressed strongly.
• The steering wheel is tu rned sharply or abruptly.
● If the vehicle is stopped by the operation of the pre-collision braking func-
tion, the operation of the pre-collision braking function will be canceled
after the vehicle has been stopped for approximately 2 seconds.

275
2-4. Toyota Safety Sense
2
When driving
VERSO_EE_OM64517E
■ Conditions under which the system may operate even if there is no
possibility of a collision
● In some situations such as the following, the system may determine that
there is a possibility of a frontal collision and operate.
• If the front of the vehicle is raised or lowered, such as when the road
surface is uneven or undulating
• When passing a vehicle in an
oncoming lane that is stopped to
make a right/left turn
• When passing an oncoming vehi-
cle while making a left or right turn
• When driving on a road where rel-
ative location to vehicle ahead in
an adjacent lane may change,
such as on a winding road
• When rapidly closing on a preced-
ing vehicle

276
2-4. Toyota Safety Sense
VERSO_EE_OM64517E
• When driving on a narrow path surrounded by a structure, such as in a
tunnel or on an iron bridge
• When passing extremely close to
a vehicle or structural object
• When there is a vehicle or object
by the roadside at the entrance of
a curve
• When there is a reflective object
(manhole cover, steel plate, etc.),
steps, dip, or a protrusion on the
road surface or roadside
• When passing through a place
with a low structure above the
road (low ceiling, traffic sign, etc.)

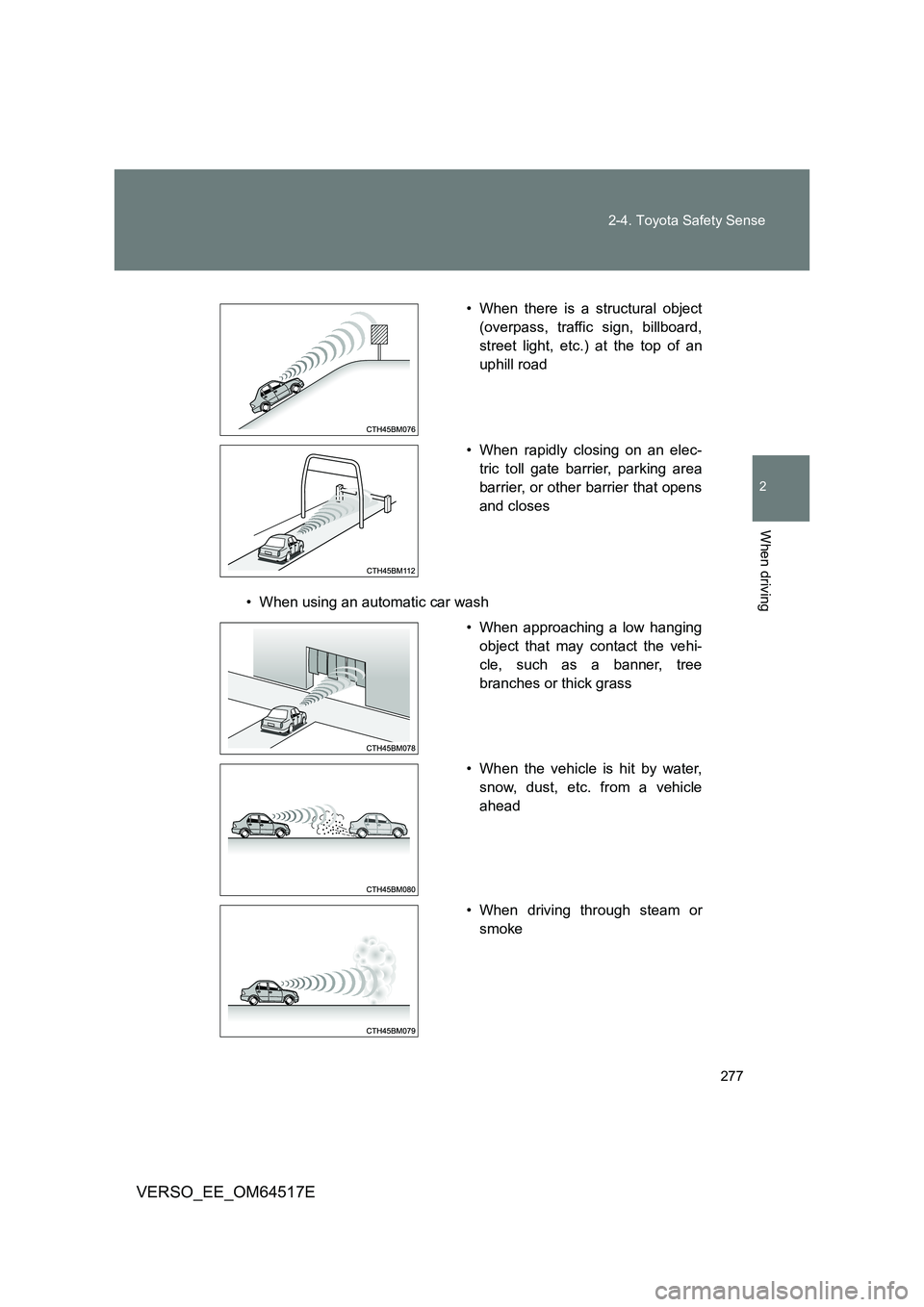

277
2-4. Toyota Safety Sense
2
When driving
VERSO_EE_OM64517E
• When using an automatic car wash
• When there is a structural object
(overpass, traffic sign, billboard,
street light, etc.) at the top of an
uphill road
• When rapidly closing on an elec-
tric toll gate barrier, parking area
barrier, or other barrier that opens
and closes
• When approaching a low hanging
object that may contact the vehi-
cle, such as a banner, tree
branches or thick grass
• When the vehicle is hit by water,
snow, dust, etc. from a vehicle
ahead
• When driving through steam or
smoke

278
2-4. Toyota Safety Sense
VERSO_EE_OM64517E
• When there are patterns or paint on the road or a wall that may be
mistaken for a vehicle
• When the front part of the vehicle
is raised or lowered
• When the sensor is misaligned
due to a strong impact being
applied to the sensor, etc.
• When the vehicle is being parked
in a place where there is a low
hanging object at the height of the
front sensor
• When the windshield is covered
with raindrops, etc.

279
2-4. Toyota Safety Sense
2
When driving
VERSO_EE_OM64517E
■ Situations in which the system may not operate properly
● In some situations such as the following, a vehicle may not be detected
by the front sensor, preventing t he system from operating properly:
• If an oncoming vehicle is approaching your vehicle
• When approaching the side or front of a vehicle
• If a preceding vehicle has a small rear end, such as an unloaded truck
• If a vehicle ahead is irregularly shaped, such as a tractor or side car
• If the sun or other light is shining directly on a vehicle ahead
• If a vehicle ahead is carrying a load which protrudes past its rear
bumper
• If a preceding vehicle has a low
rear end, such as a low bed trailer
• If a vehicle ahead has extremely
high ground clearance
• If a vehicle ahead makes an abrupt maneuver (such as sudden
swerving, acceleration or deceleration)
• When suddenly cutting behind a preceding vehicle
• If a vehicle cuts in front of your
vehicle or emerges from beside a
vehicle

280
2-4. Toyota Safety Sense
VERSO_EE_OM64517E
• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead
• When driving through steam or smoke that may obscure vehicles
ahead
• When driving in a place where the surrounding brightness changes
suddenly, such as at the entrance or exit of a tunnel
• When a vehicle ahead is not
directly in front of your vehicle
• When driving in inclement
weather such as heavy rain, fog,
snow or a sand storm
• While driving on a curve and for a certain amount of time after driving
on a curve
• When a very bright light, such as
the sun or the headlights of
oncoming traffic, shines directly
into the front sensor
• When the surrounding area is
dim, such as at dawn or dusk, or
while at night or in a tunnel
