4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E
7ALT*2120 A

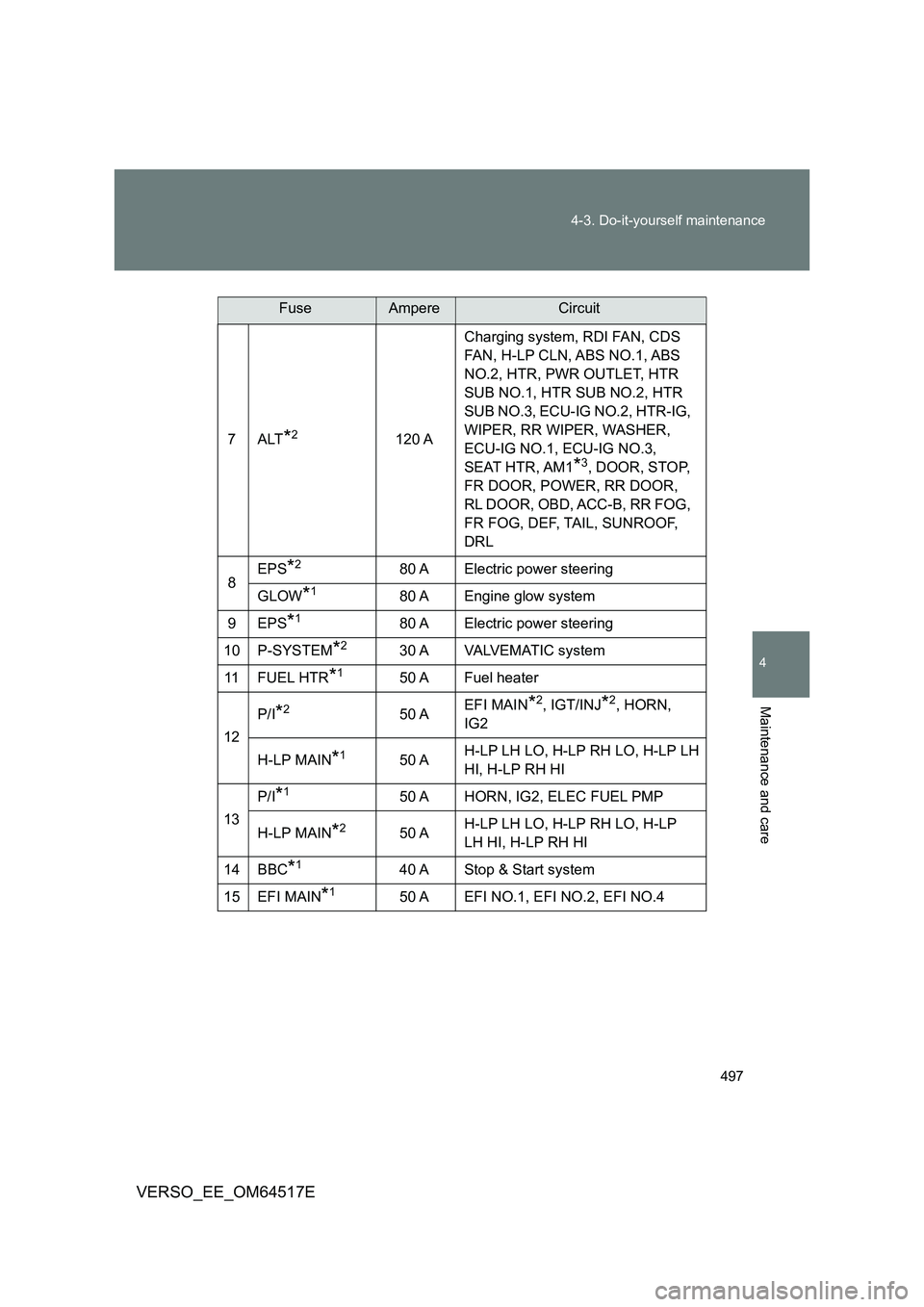

Charging system, RDI FAN, CDS
FAN, H-LP CLN, ABS NO.1, ABS
NO.2, HTR, PWR OUTLET, HTR
SUB NO.1, HTR SUB NO.2, HTR
SUB NO.3, ECU-IG NO.2, HTR-IG,
WIPER, RR WIPER, WASHER,
ECU-IG NO.1, ECU-IG NO.3,
SEAT HTR, AM1*3, DOOR, STOP,
FR DOOR, POWER, RR DOOR,
RL DOOR, OBD, ACC-B, RR FOG,
FR FOG, DEF, TAIL, SUNROOF,
DRL
8 EPS*280 A Electric power steering
GLOW*180 A Engine glow system
9 EPS*180 A Electric power steering
10 P-SYSTEM*230 A VALVEMATIC system
11 F U E L H T R*150 A Fuel heater
12
P/I*250 A EFI MAIN*2, IGT/INJ*2, HORN,
IG2
H-LP MAIN*150 A H-LP LH LO, H-LP RH LO, H-LP LH
HI, H-LP RH HI
13
P/I*150 A HORN, IG2, ELEC FUEL PMP
H-LP MAIN*250 A H-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
14 BBC*140 A Stop & Start system
15 EFI MAIN*150 A EFI NO.1, EFI NO.2, EFI NO.4
FuseAmpereCircuit

498
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E
16 SPARE 10 A Spare fuse
17 SPARE 30 A Spare fuse
18 SPARE 20 A Spare fuse
19 EFI MAIN
NO.2*17.5 A
Multiport fuel injection system/
sequential multiport fuel injection
system
20 ECU-B2 10 A
Smart entry & start system, air con-
ditioning system, power windows,
gateway ECU
21 D.C.C SHORT No circuit
22 ECU-B 10 A
Gauges and meters, sub-battery,
steering sensor, double locking
system, wireless remote control,
smart entry & start system
23 RAD NO.1*220 A Audio system
24 DOME 10 A
Luggage compartment light, vanity
lights, front door courtesy lights,
personal/interior lights, foot lights
25 AM2 NO.2 7.5 A Starting system
26 TURN-HAZ 10 A Turn signal lights, emergency
flashers
27 ETCS*210 A Electronic throttle control system
28 AM2 30 A Starting system
29 STRG LOCK 20 A Steering lock system
30 IGT/INJ*215 A
Multiport fuel injection system/
sequential multiport fuel injection
system
FuseAmpereCircuit

499
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E

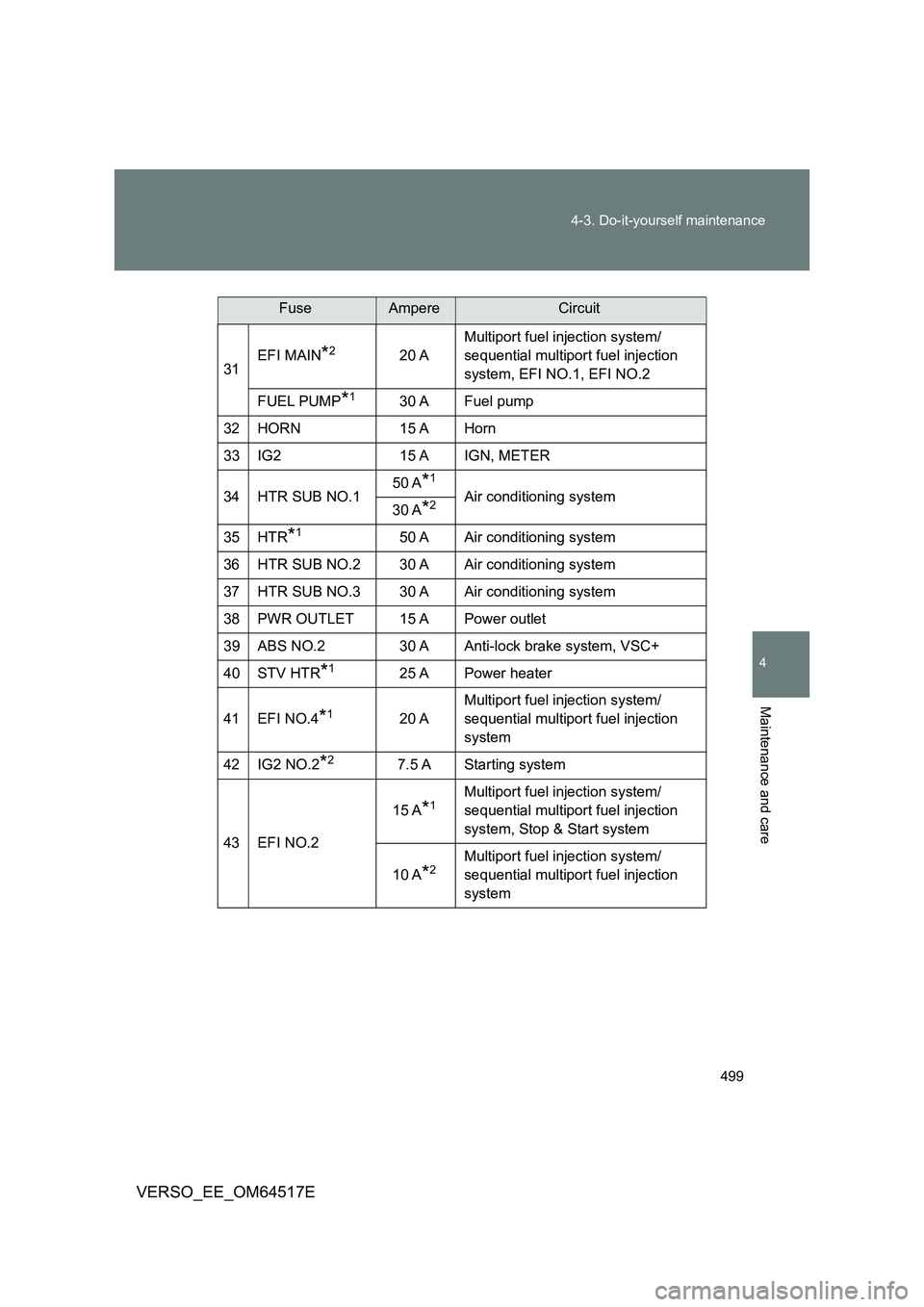

31 EFI MAIN*220 A
Multiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
FUEL PUMP*130 A Fuel pump
32 HORN 15 A Horn
33 IG2 15 A IGN, METER
34 HTR SUB NO.1 50 A*1
Air conditioning system 30 A*2
35 HTR*150 A Air conditioning system
36 HTR SUB NO.2 30 A Air conditioning system
37 HTR SUB NO.3 30 A Air conditioning system
38PWR OUTLET15 APower outlet
39 ABS NO.2 30 A Anti-lock brake system, VSC+
40 STV HTR*125 A Power heater
41 EFI NO.4*120 A
Multiport fuel injection system/
sequential multiport fuel injection
system
42 IG2 NO.2*27.5 A Starting system
43 EFI NO.2
15 A*1Multiport fuel injection system/
sequential multiport fuel injection
system, Stop & Start system
10 A*2Multiport fuel injection system/
sequential multiport fuel injection
system
FuseAmpereCircuit

500
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E
*1: Vehicles with diesel engine
*2: Vehicles with gasoline engine
*3: Vehicles without smart entry & start system
*4: Vehicles with halogen headlights
*5: Vehicles with discharge headlights

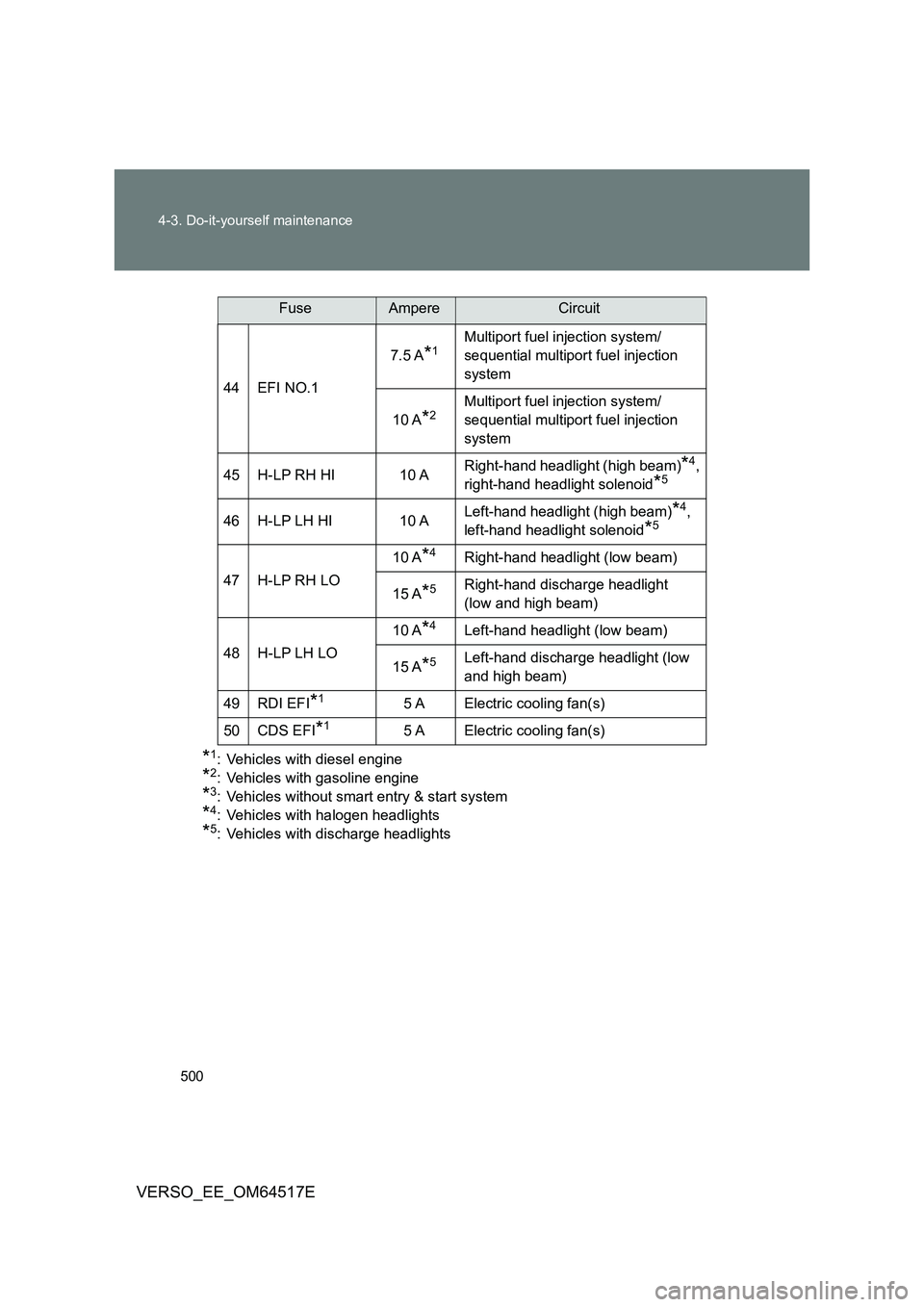

44 EFI NO.1
7.5 A*1Multiport fuel injection system/
sequential multiport fuel injection
system
10 A*2Multiport fuel injection system/
sequential multiport fuel injection
system
45 H-LP RH HI 10 A Right-hand headlight (high beam)*4,
right-hand headlight solenoid*5
46 H-LP LH HI 10 A Left-hand headlight (high beam)*4,
left-hand headlight solenoid*5
47 H-LP RH LO
10 A*4Right-hand headlight (low beam)
15 A*5Right-hand discharge headlight
(low and high beam)
48 H-LP LH LO
10 A*4Left-hand headlight (low beam)
15 A*5Left-hand discharge headlight (low
and high beam)
49 RDI EFI*15 A Electric cooling fan(s)
50 CDS EFI*15 A Electric cooling fan(s)
FuseAmpereCircuit

501
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E
■ Under the instrument panel (type A)
FuseAmpereCircuit
1 TAIL 10 A
Front position lights, tail lights,
license plate lights, rear fog light,
front fog lights, manual headlight
leveling system, instrument cluster
lights, glove box light, switch illumi-
nation, Toyota parking assist-sen-
sor ECU, PCS (Pre-Collision
System) switch
2 ECU-IG NO.3 10 A
Panoramic roof shade, auto anti-
glare inside rear view mirror, smart
entry & start system, audio system,
Stop & Start system*1, PCS (Pre-
Collision System), buzzer, gate-
way ECU
3 FR DOOR 20 A Power windows (front passenger
side)
4 RL DOOR 20 A Power windows (rear left)
5 RR DOOR 20 A Power windows (rear right)
6 CIG 15 A Power outlets
7 ACC 7.5 A
Shift lock system, audio system,
main body ECU, power outlet, out-
side rear view mirrors, Stop & Start
system*1, gateway ECU
8 MIR HTR 10 A Outside rear view mirror defoggers

502
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E
9 RR FOG 7.5 A Rear fog light
10 IGN 7.5 A
Steering lock system, SRS airbag
system, multiport fuel injection sys-
tem/sequential multiport fuel injec-
tion system, starting system,
gateway ECU
11 M E T E R 7 . 5 A Gauges and meters, Stop & Start
system*1
12 SEAT HTR 15 A Seat heaters
13 HTR-IG 10 A Air conditioning system, power
heater
14 WIPER 25 A Windshield wipers, rain-sensing
windshield wipers
15 RR WIPER 15 A Rear window wiper
16 WASHER 15 A Windshield washers, rear window
washer
17 ECU-IG NO.1 10 A
Main body ECU*2, electric cooling
fan(s), shift lock system, anti-lock
brake system, steering sensor, yaw
rate sensor, VSC+, headlight
cleaners, SEQUENTIAL switch,
automatic headlight leveling sys-
tem, electric power steering, tire
pressure warning system
18 ECU-IG NO.2 10 A
Back-up light, charging system*2,
emergency flashers, rear window
defogger, “PASSENGER AIRBAG”
indicator, air conditioning system,
Toyota parking assist-sensor indi-
cator, Toyota parking assist-sensor
switch, sub-battery
FuseAmpereCircuit

503
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E
*1: Vehicles with diesel engine
*2: Vehicles with gasoline engine
*3: Vehicles without smart entry & start system

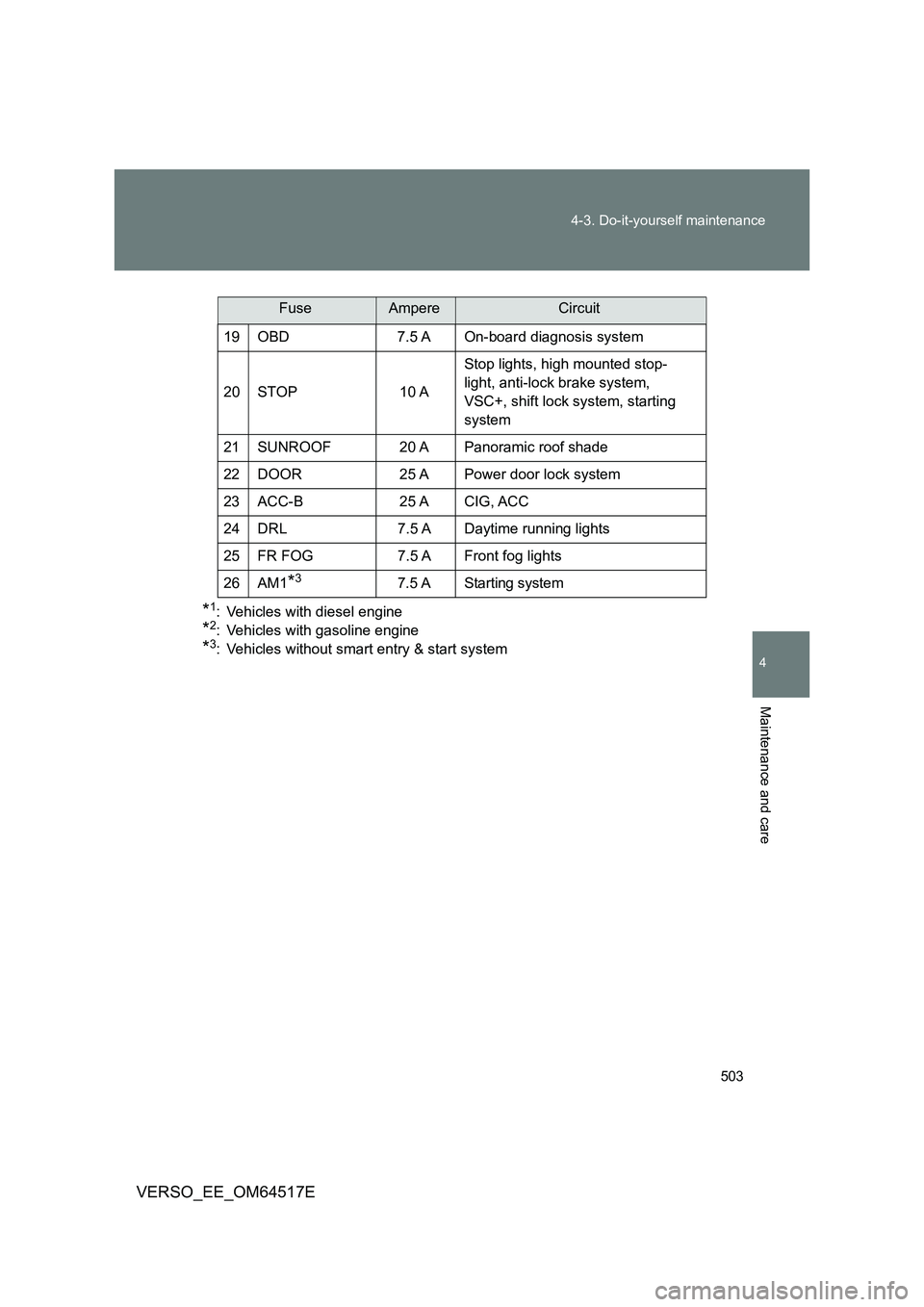

19 OBD 7.5 A On-board diagnosis system
20 STOP 10 A
Stop lights, high mounted stop-
light, anti-lock brake system,
VSC+, shift lock system, starting
system
21 SUNROOF 20 A Panoramic roof shade
22 DOOR 25 A Power door lock system
23 ACC-B 25 A CIG, ACC
24 DRL 7.5 A Daytime running lights
25 FR FOG 7.5 A Front fog lights
26 AM1*37.5 A Starting system
FuseAmpereCircuit

504
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E

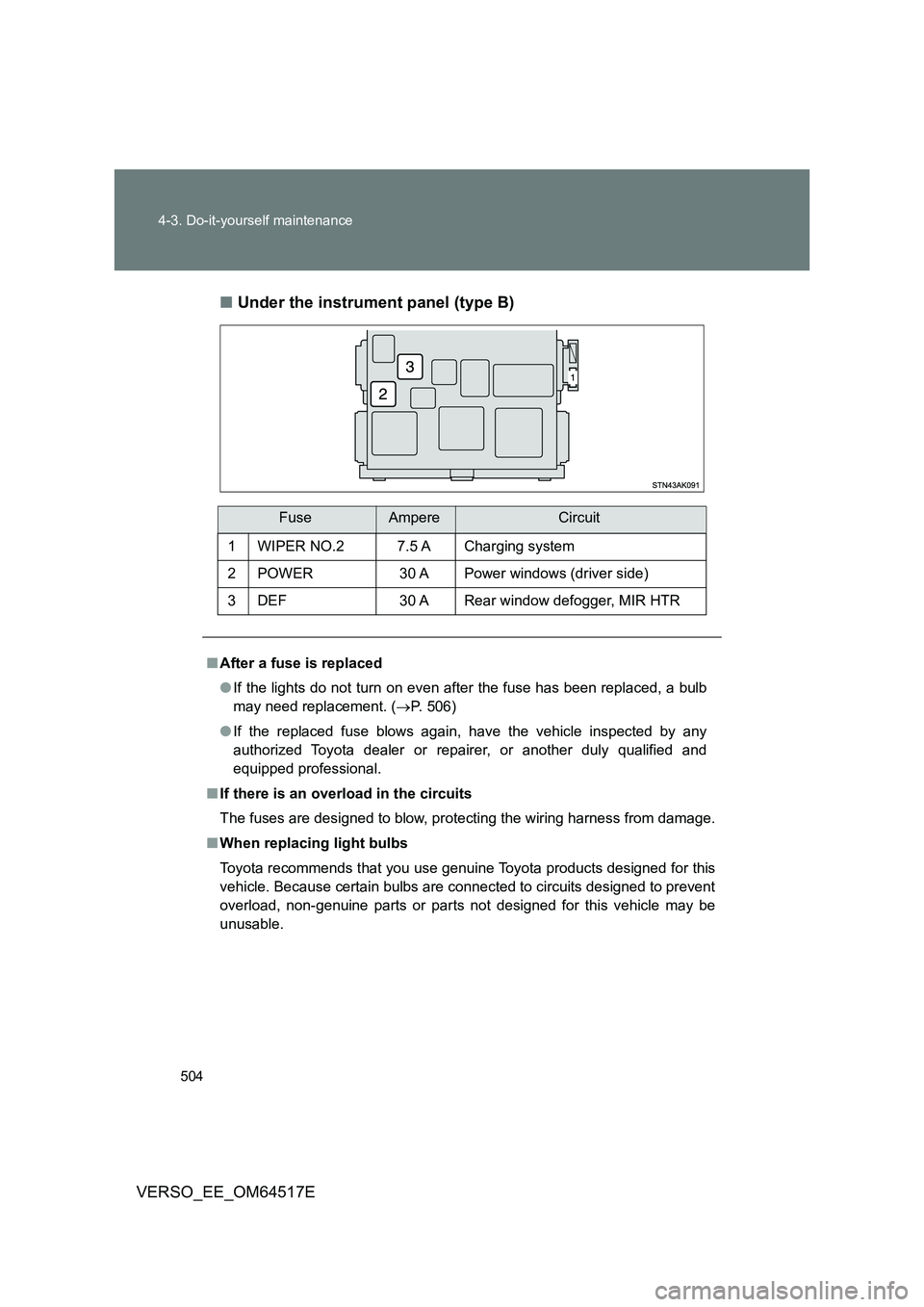

■ Under the instrument panel (type B)
FuseAmpereCircuit
1 WIPER NO.2 7.5 A Charging system
2 POWER 30 A Power windows (driver side)
3 DEF 30 A Rear window defogger, MIR HTR
■ After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 506)
● If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
