2017 TOYOTA VERSO Owners Manual

105
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
VERSO_EE_OM64517E

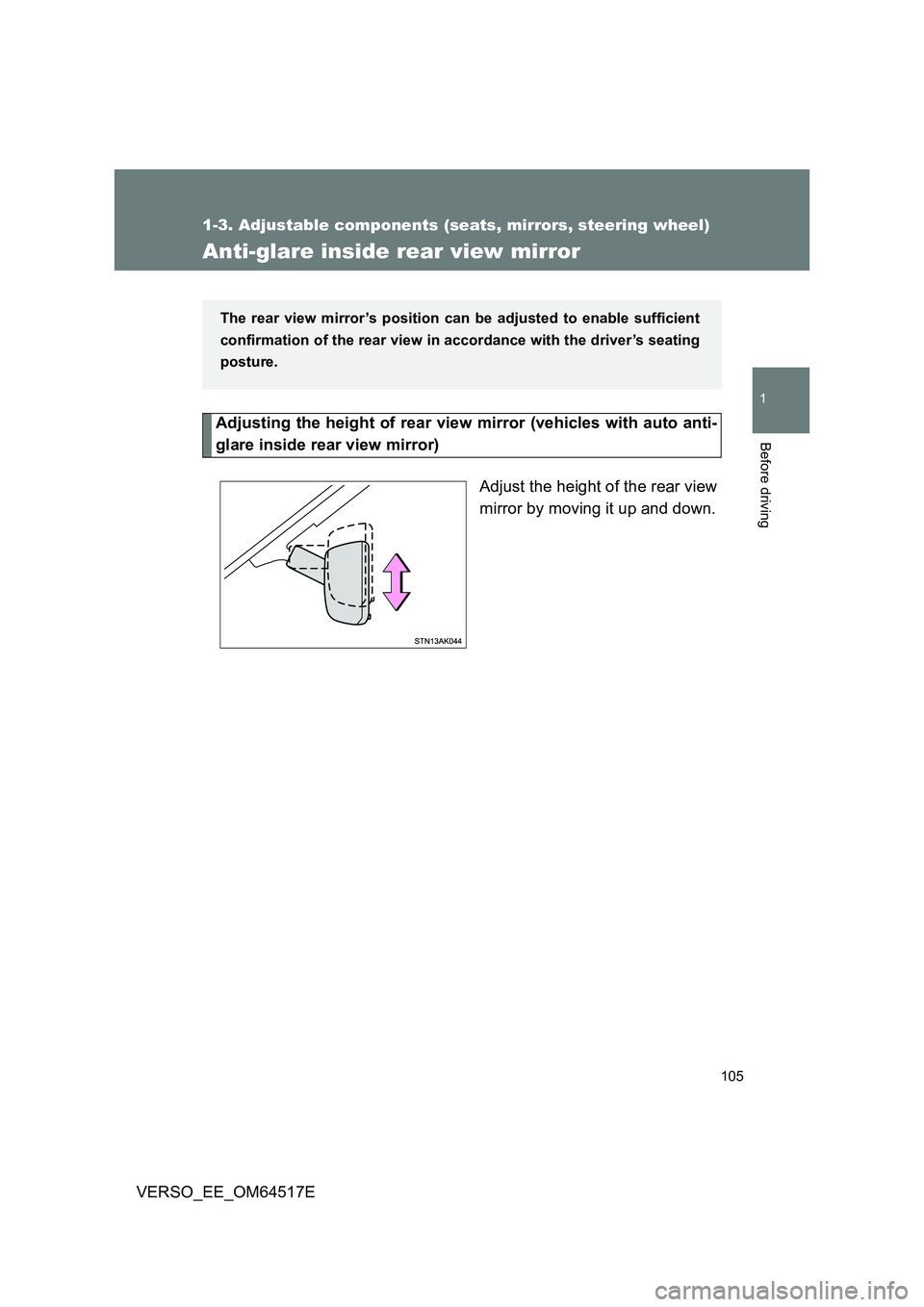

Anti-glare inside rear view mirror
Adjusting the height of rear view mirror (vehicles with auto anti-
glare inside rear view mirror)
Adjust the height of the rear view
mirror by moving it up and down.
The rear view mirror’s position can be adjusted to enable sufficient
confirmation of the rear view in accordance with the driver’s seating
posture.

106
1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO_EE_OM64517E

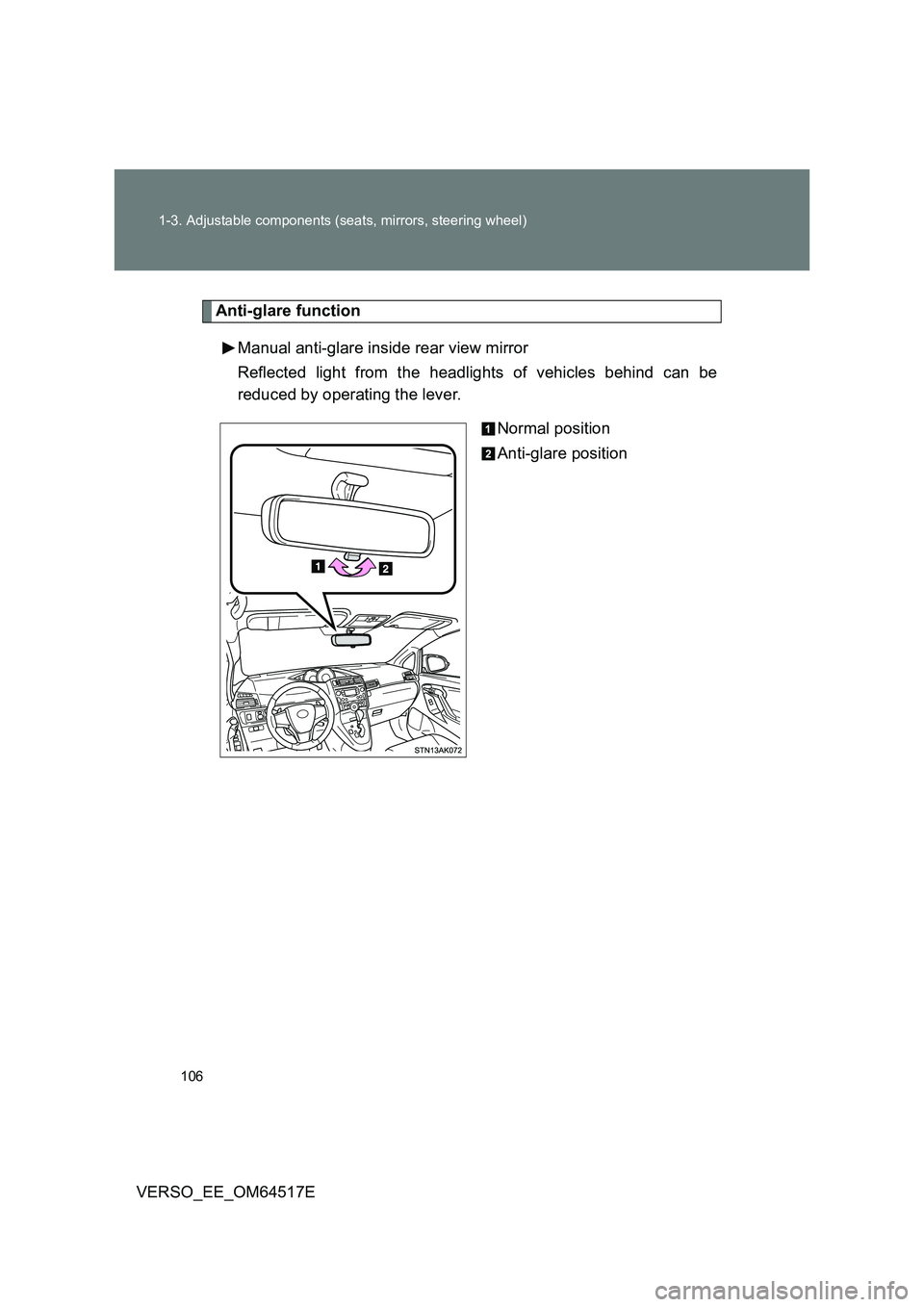

Anti-glare function
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be
reduced by operating the lever.
Normal position
Anti-glare position

107
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO_EE_OM64517E
Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON/OFF
When the automatic anti-glare
function is in ON mode, the indi-
cator illuminates.
The function will set to ON mode
each time the “ENGINE START
STOP” switch is turned to IGNI-
TION ON mode.
Pressing the button turns the
function to OFF mode. (The indi-
cator also turns off.)
■ To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
To ensure that the sensors operate prop-
erly, do not touch or cover them.

108
1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO_EE_OM64517E

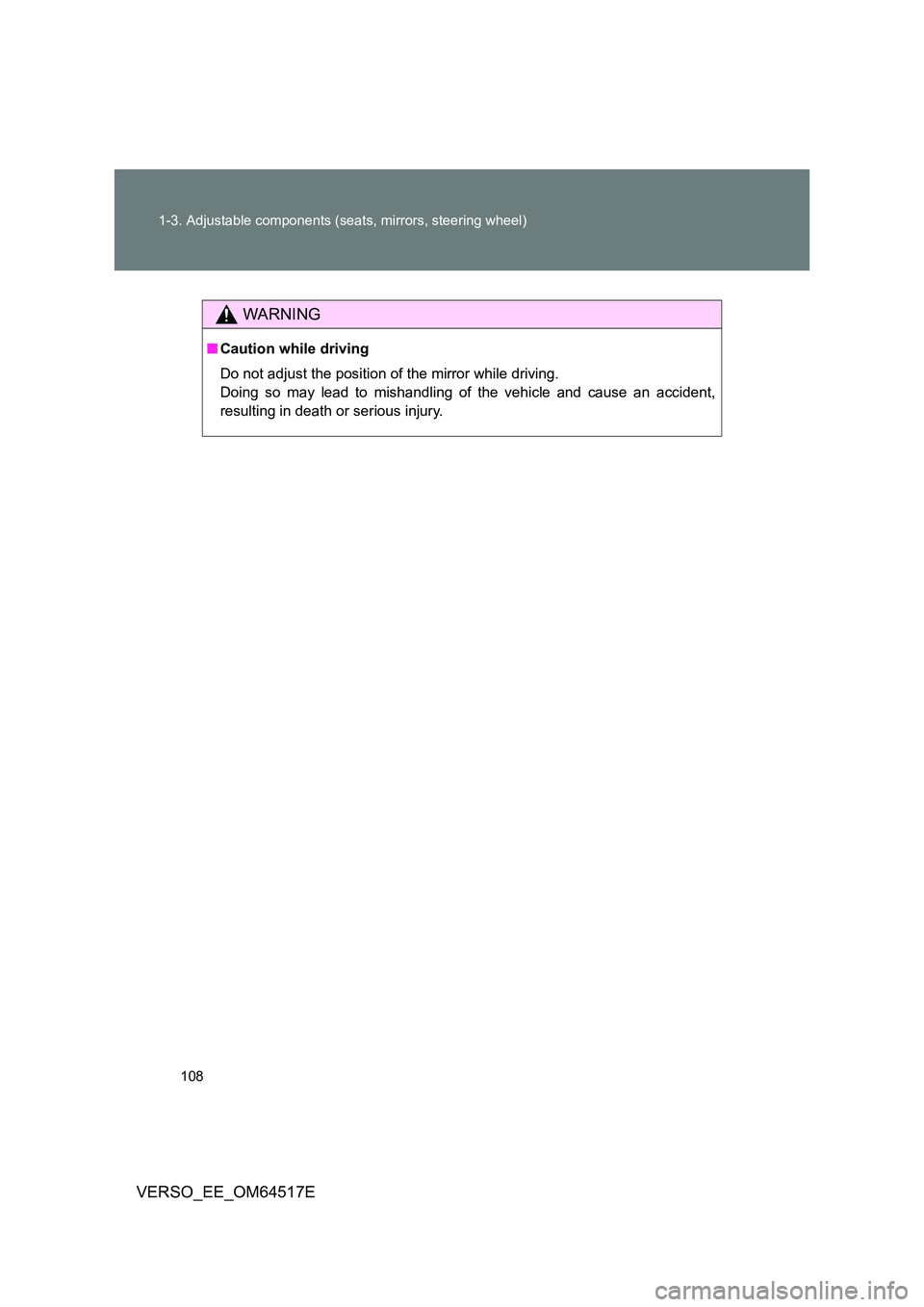

WARNING
■ Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

109
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
VERSO_EE_OM64517E

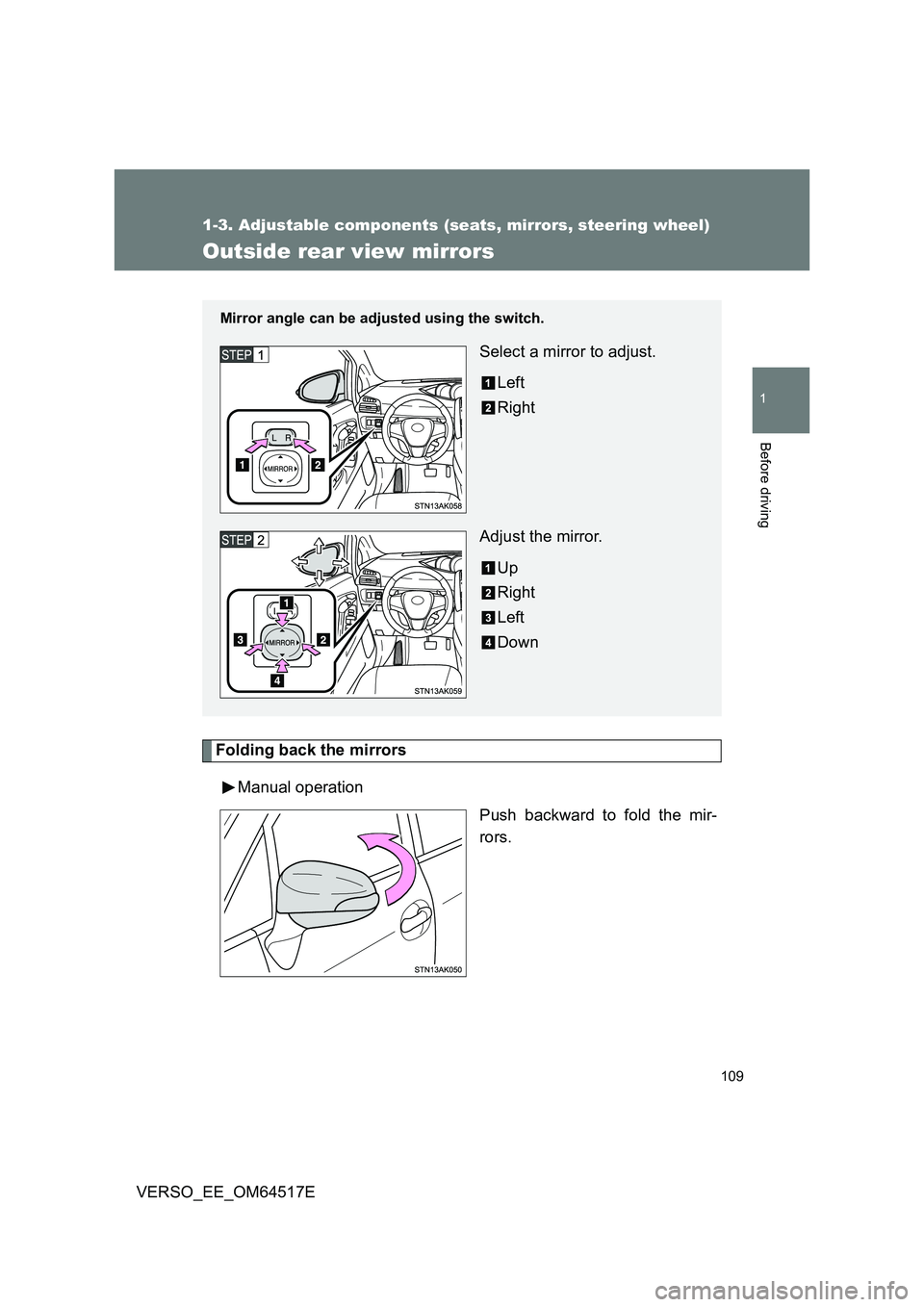

Outside rear view mirrors
Folding back the mirrors
Manual operation
Push backward to fold the mir-
rors.
Mirror angle can be adjusted using the switch.
Select a mirror to adjust.
Left
Right
Adjust the mirror.
Up
Right
Left
Down

110
1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO_EE_OM64517E

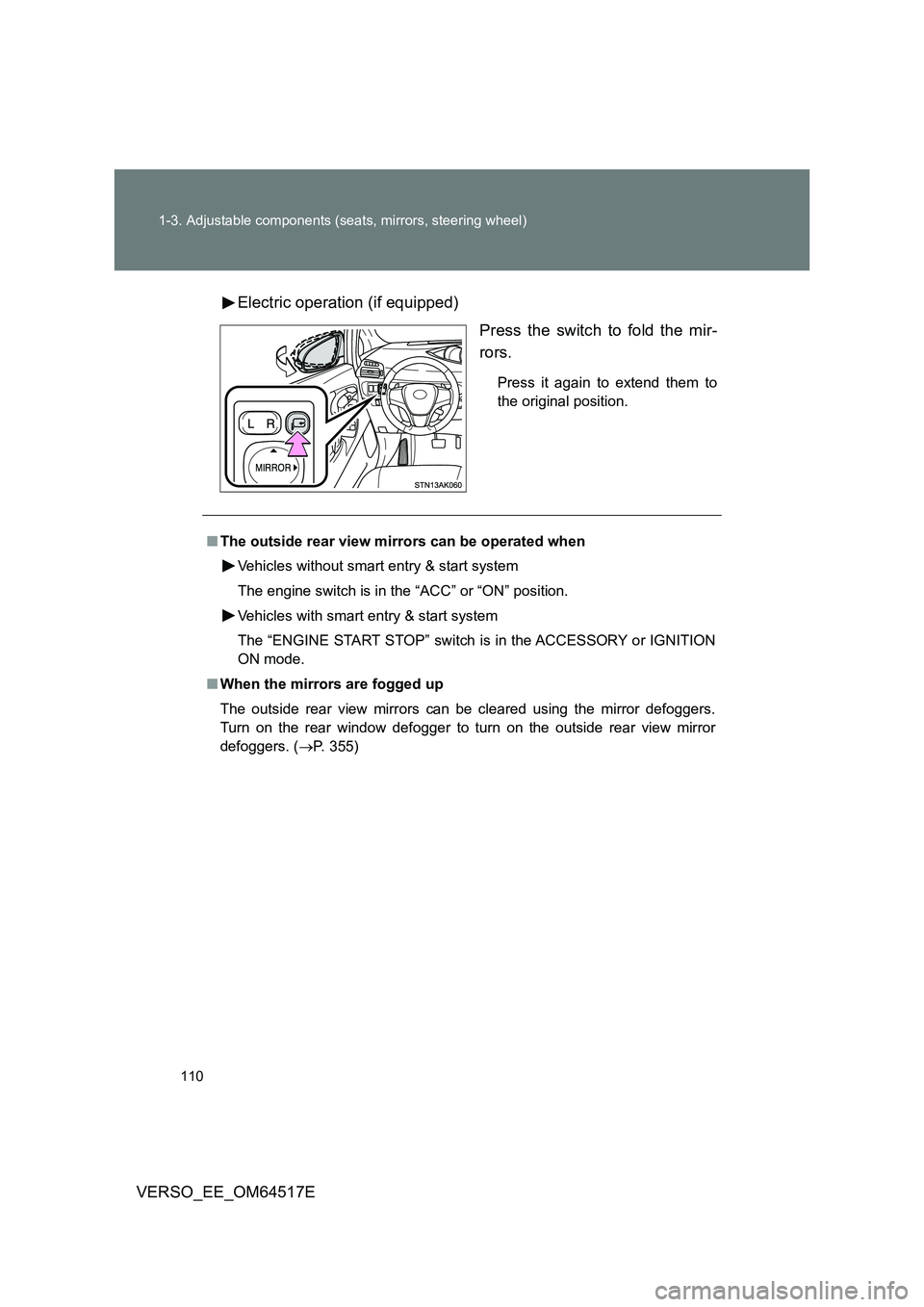

Electric operation (if equipped)
Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.
■ The outside rear view mirrors can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the ACCESSORY or IGNITION
ON mode.
■ When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers.
Turn on the rear window defogger to turn on the outside rear view mirror
defoggers. ( P. 355)

111
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO_EE_OM64517E

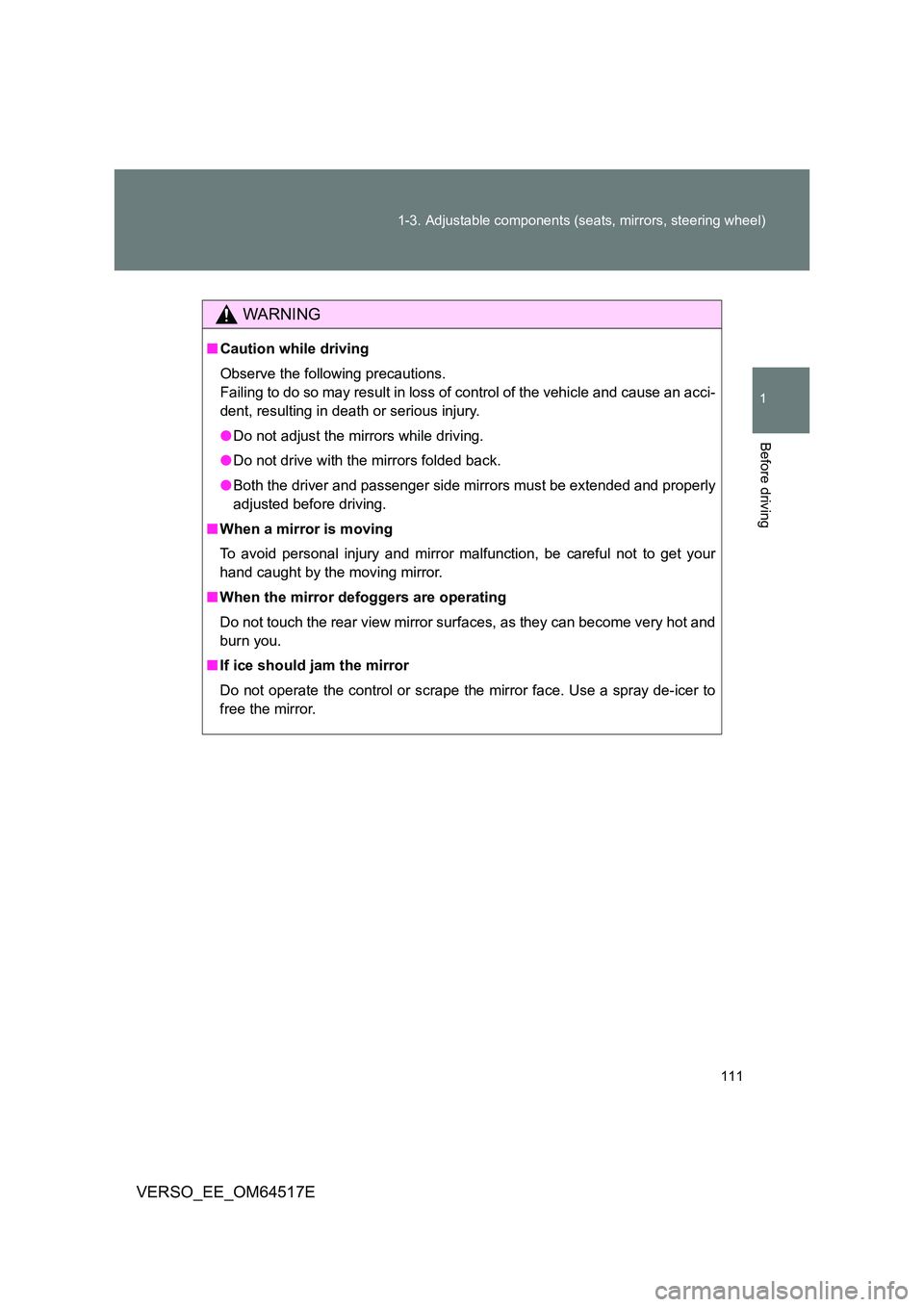

WARNING
■ Caution while driving
Observe the following precautions.
Failing to do so may result in loss of control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded back.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
■ If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.

112
VERSO_EE_OM64517E
1-4. Opening and closing the windows and panoramic roof shade

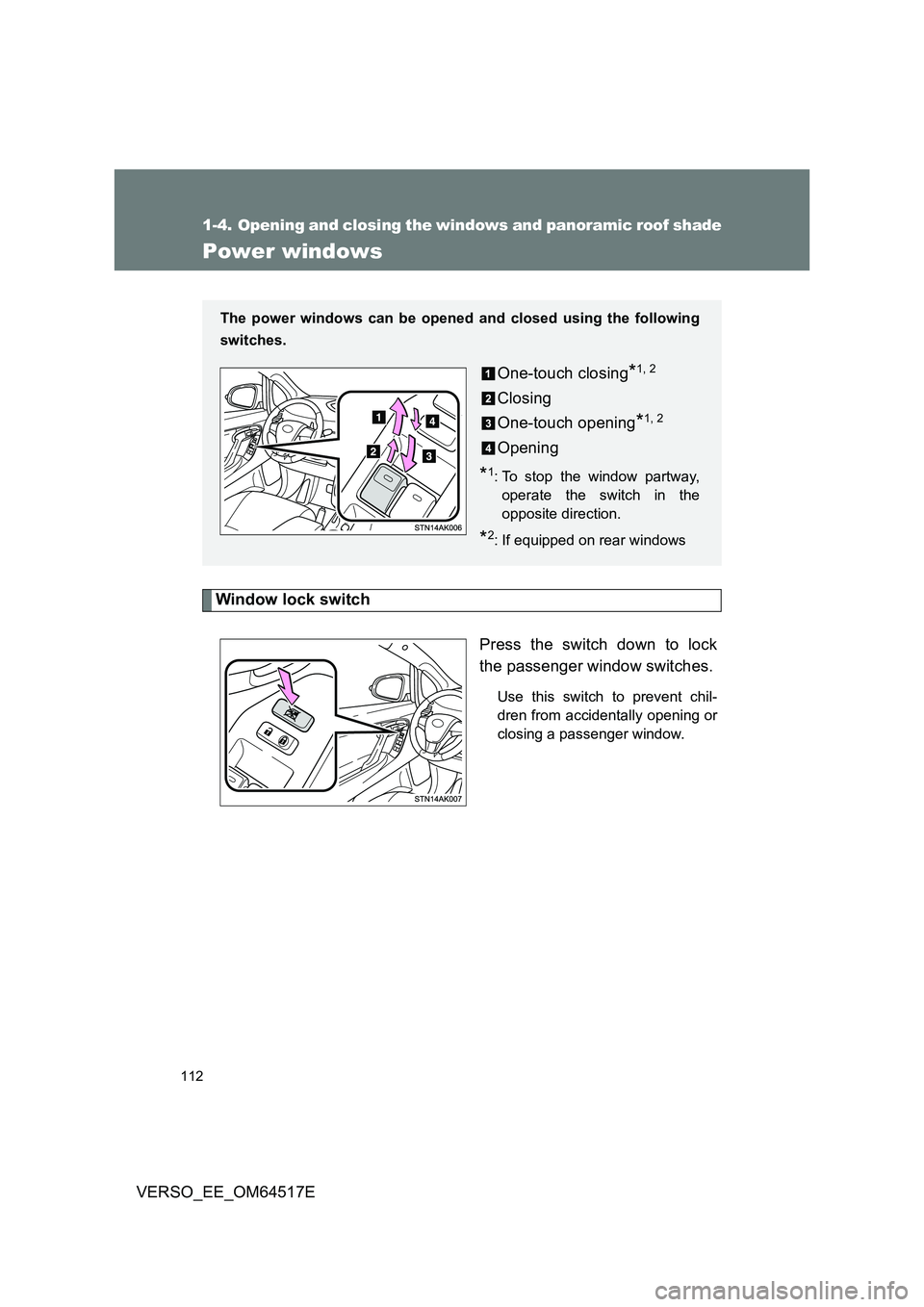

Power windows
Window lock switch
Press the switch down to lock
the passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
The power windows can be opened and closed using the following
switches.
One-touch closing*1, 2
Closing
One-touch opening*1, 2
Opening
*1: To stop the window partway,
operate the switch in the
opposite direction.
*2: If equipped on rear windows
