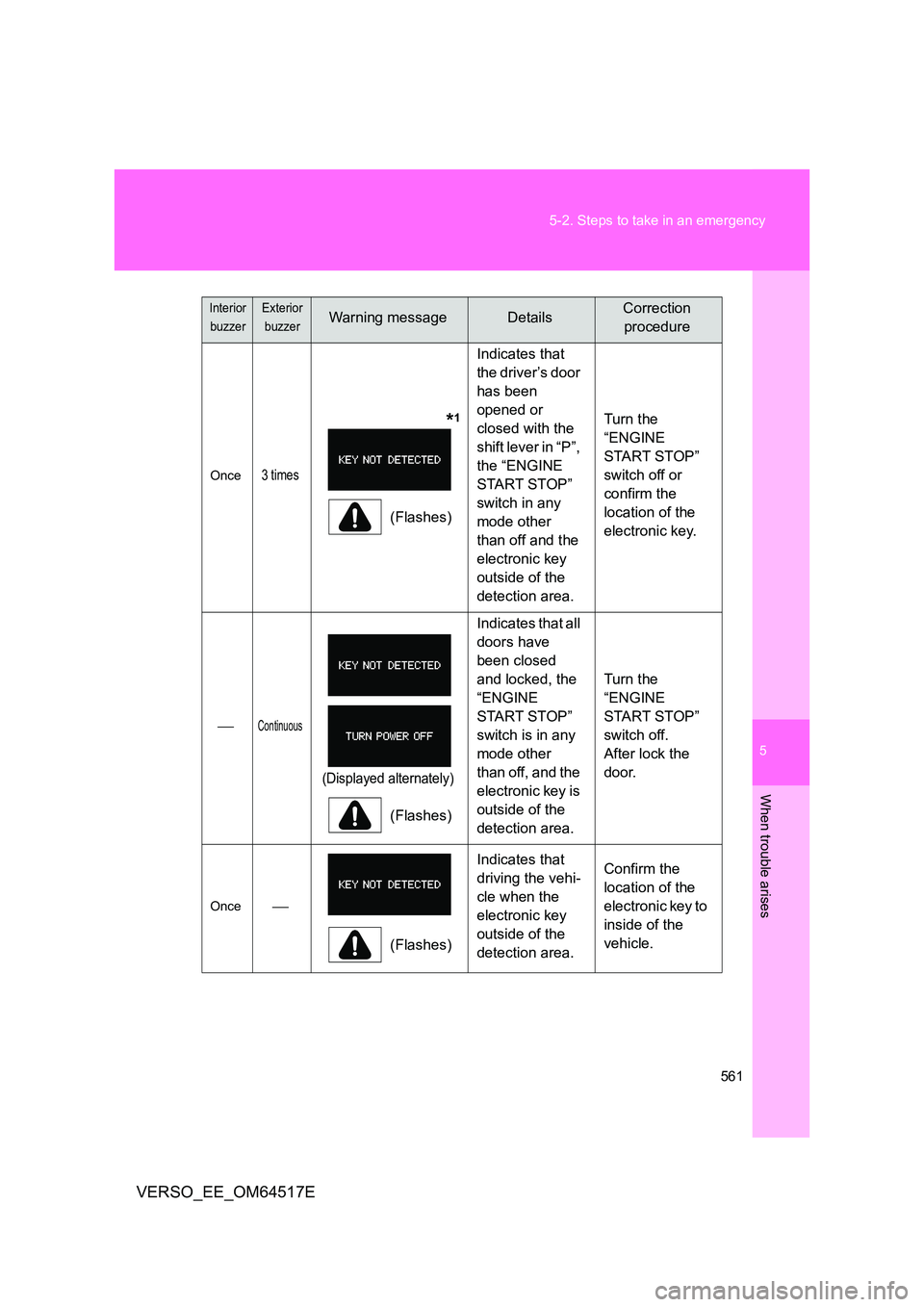

2017 TOYOTA VERSO Owners Manual

5
561
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E
Once3 times
*1
(Flashes)
Indicates that
the driver’s door
has been
opened or
closed with the
shift lever in “P”,
the “ENGINE
START STOP”
switch in any
mode other
than off and the
electronic key
outside of the
detection area.
Turn the
“ENGINE
START STOP”
switch off or
confirm the
location of the
electronic key.
Continuous
(Displayed alternately)
(Flashes)
Indicates that all
doors have
been closed
and locked, the
“ENGINE
START STOP”
switch is in any
mode other
than off, and the
electronic key is
outside of the
detection area.
Turn the
“ENGINE
START STOP”
switch off.
After lock the
door.
Once
(Flashes)
Indicates that
driving the vehi-
cle when the
electronic key
outside of the
detection area.
Confirm the
location of the
electronic key to
inside of the
vehicle.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure

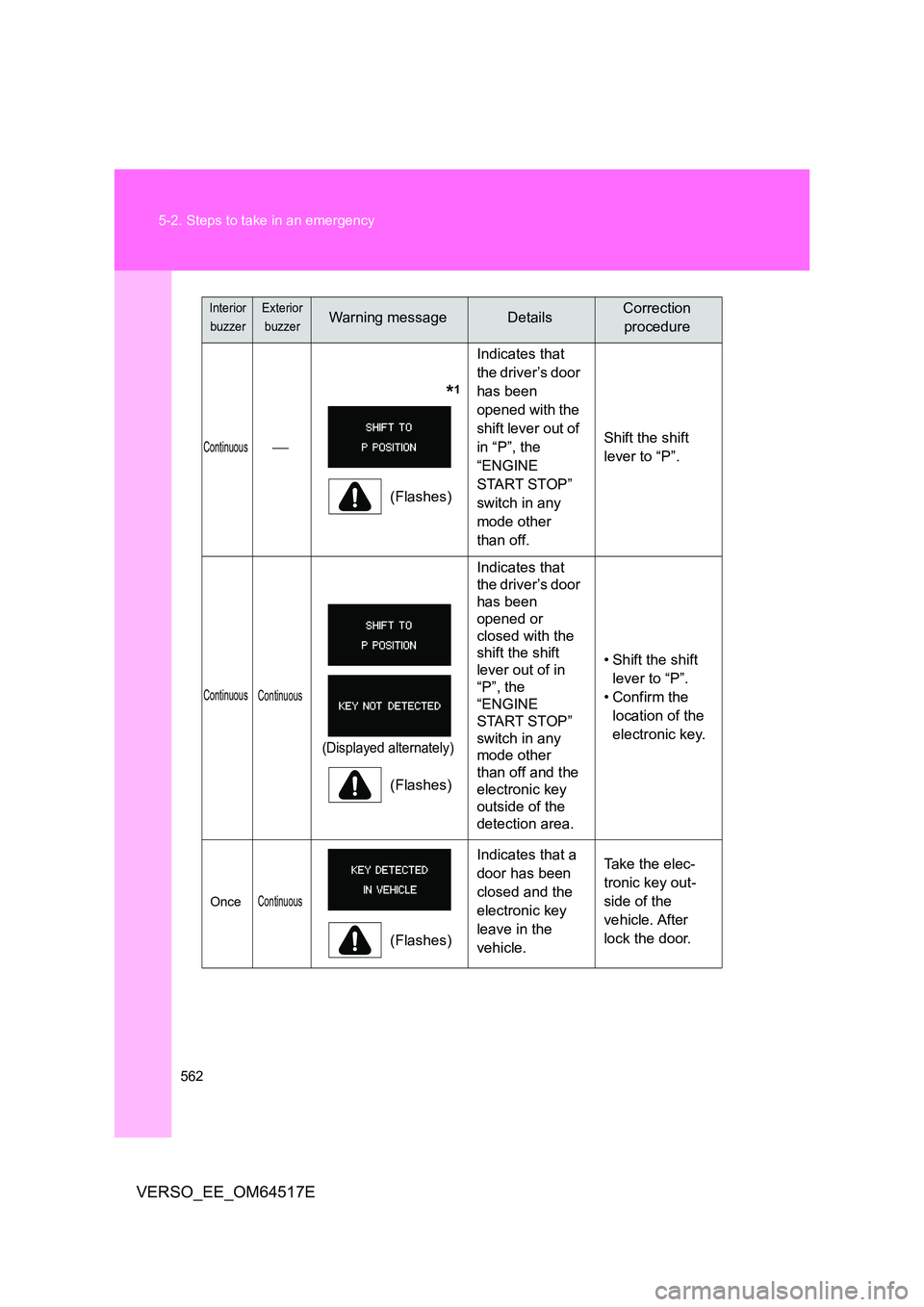

562
5-2. Steps to take in an emergency
VERSO_EE_OM64517E
Continuous
*1
(Flashes)
Indicates that
the driver’s door
has been
opened with the
shift lever out of
in “P”, the
“ENGINE
START STOP”
switch in any
mode other
than off.
Shift the shift
lever to “P”.
Continuous Continuous
(Displayed alternately)
(Flashes)
Indicates that
the driver’s door
has been
opened or
closed with the
shift the shift
lever out of in
“P”, the
“ENGINE
START STOP”
switch in any
mode other
than off and the
electronic key
outside of the
detection area.
• Shift the shift
lever to “P”.
• Confirm the
location of the
electronic key.
OnceContinuous
(Flashes)
Indicates that a
door has been
closed and the
electronic key
leave in the
vehicle.
Take the elec-
tronic key out-
side of the
vehicle. After
lock the door.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure

5

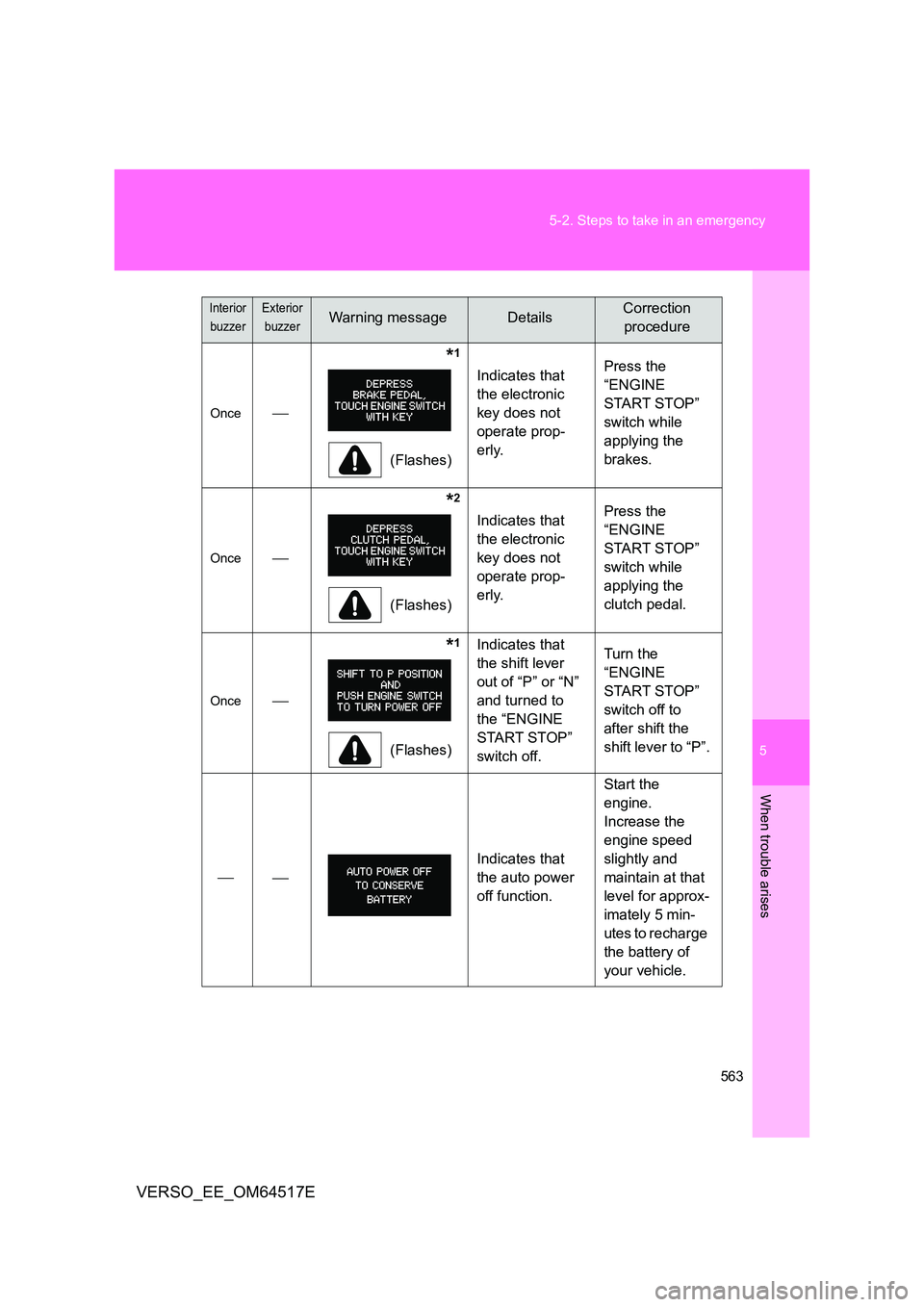

563
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E
Once
*1
(Flashes)
Indicates that
the electronic
key does not
operate prop-
erly.
Press the
“ENGINE
START STOP”
switch while
applying the
brakes.
Once
*2
(Flashes)
Indicates that
the electronic
key does not
operate prop-
erly.
Press the
“ENGINE
START STOP”
switch while
applying the
clutch pedal.
Once
*1
(Flashes)
Indicates that
the shift lever
out of “P” or “N”
and turned to
the “ENGINE
START STOP”
switch off.
Turn the
“ENGINE
START STOP”
switch off to
after shift the
shift lever to “P”.
 
Indicates that
the auto power
off function.
Start the
engine.
Increase the
engine speed
slightly and
maintain at that
level for approx-
imately 5 min-
utes to recharge
the battery of
your vehicle.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure

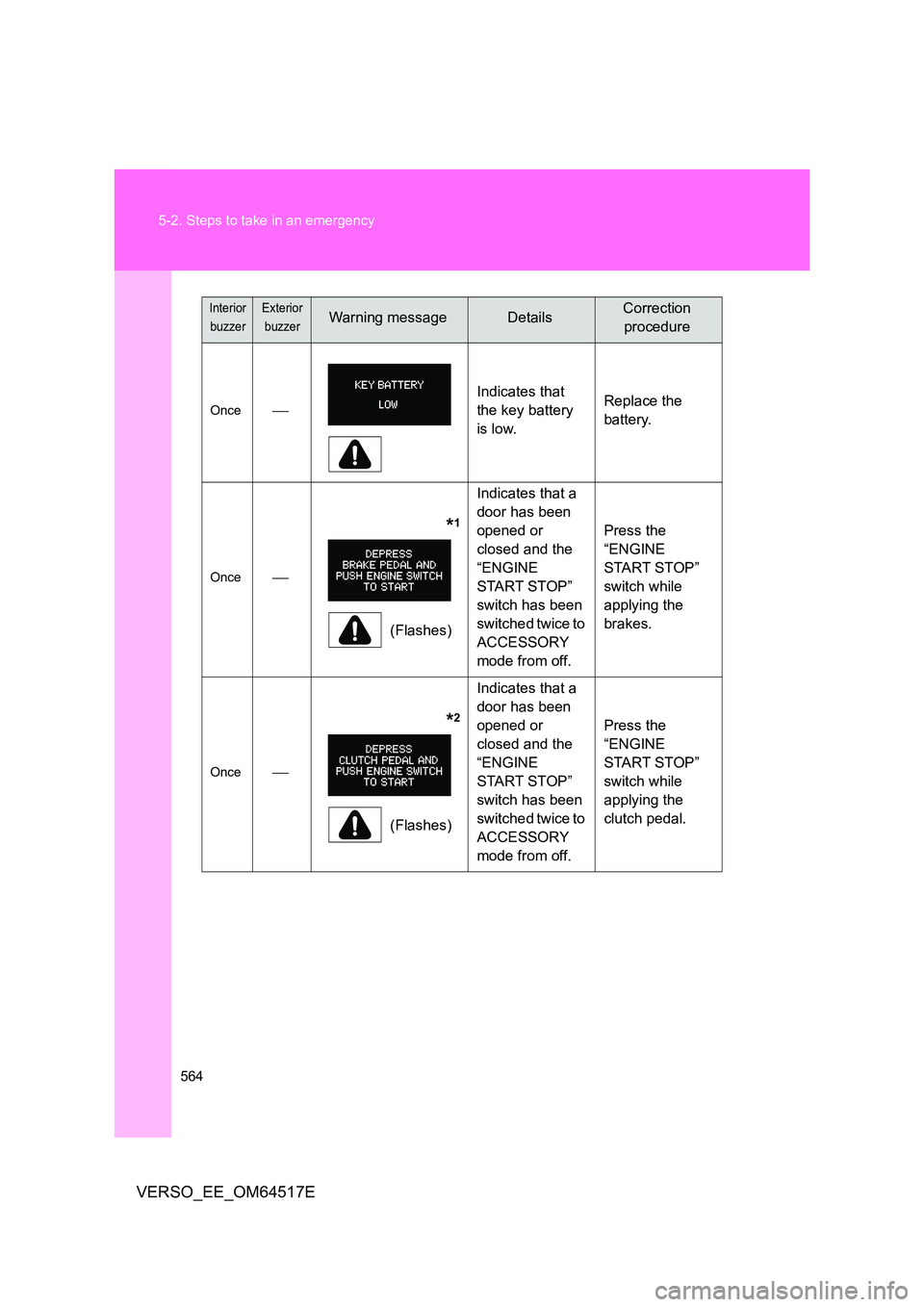

564
5-2. Steps to take in an emergency
VERSO_EE_OM64517E
Once
Indicates that
the key battery
is low.
Replace the
battery.
Once
*1
(Flashes)
Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice to
ACCESSORY
mode from off.
Press the
“ENGINE
START STOP”
switch while
applying the
brakes.
Once
*2
(Flashes)
Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice to
ACCESSORY
mode from off.
Press the
“ENGINE
START STOP”
switch while
applying the
clutch pedal.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure

5

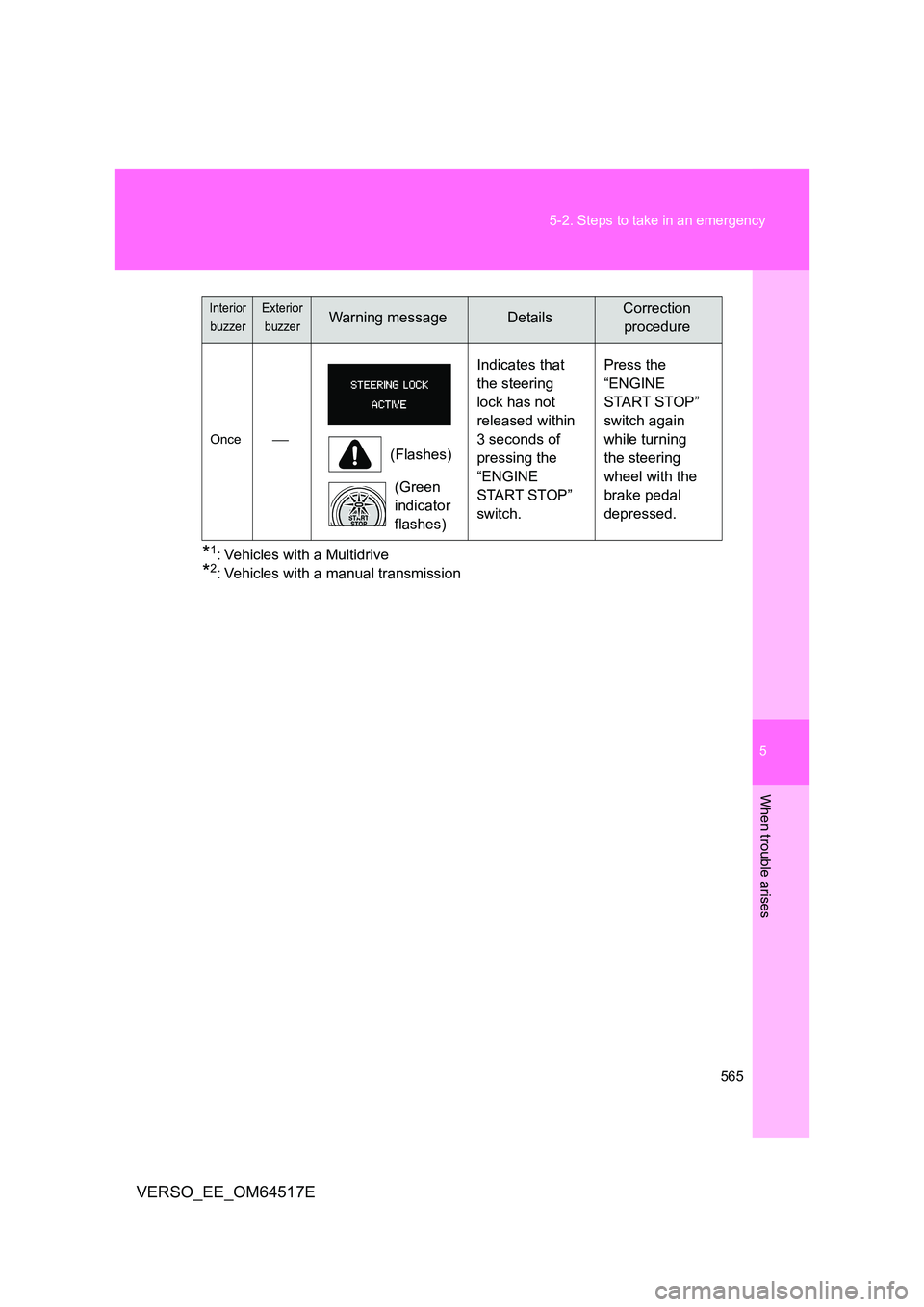

565
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E
*1: Vehicles with a Multidrive
*2: Vehicles with a manual transmission
Once (Flashes)
(Green
indicator
flashes)
Indicates that
the steering
lock has not
released within
3 seconds of
pressing the
“ENGINE
START STOP”
switch.
Press the
“ENGINE
START STOP”
switch again
while turning
the steering
wheel with the
brake pedal
depressed.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure

566
5-2. Steps to take in an emergency
VERSO_EE_OM64517E

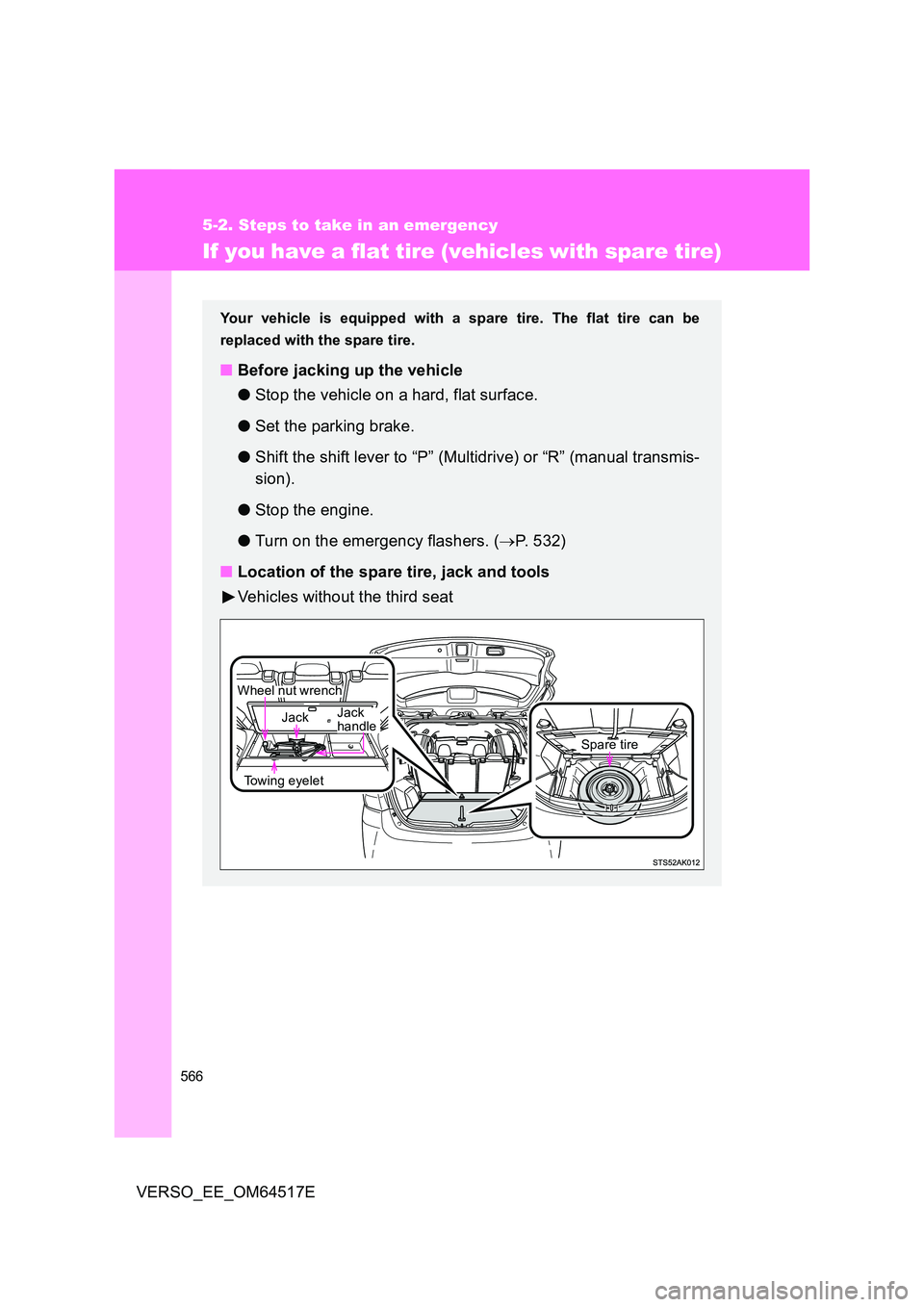

If you have a flat tire (vehicles with spare tire)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
■ Before jacking up the vehicle
● Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to “P” (Multidrive) or “R” (manual transmis-
sion).
● Stop the engine.
● Turn on the emergency flashers. (P. 532)
■ Location of the spare tire, jack and tools
Vehicles without the third seat
Spare tire
Jack handleJack
Wheel nut wrench
Towing eyelet

5
567
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E

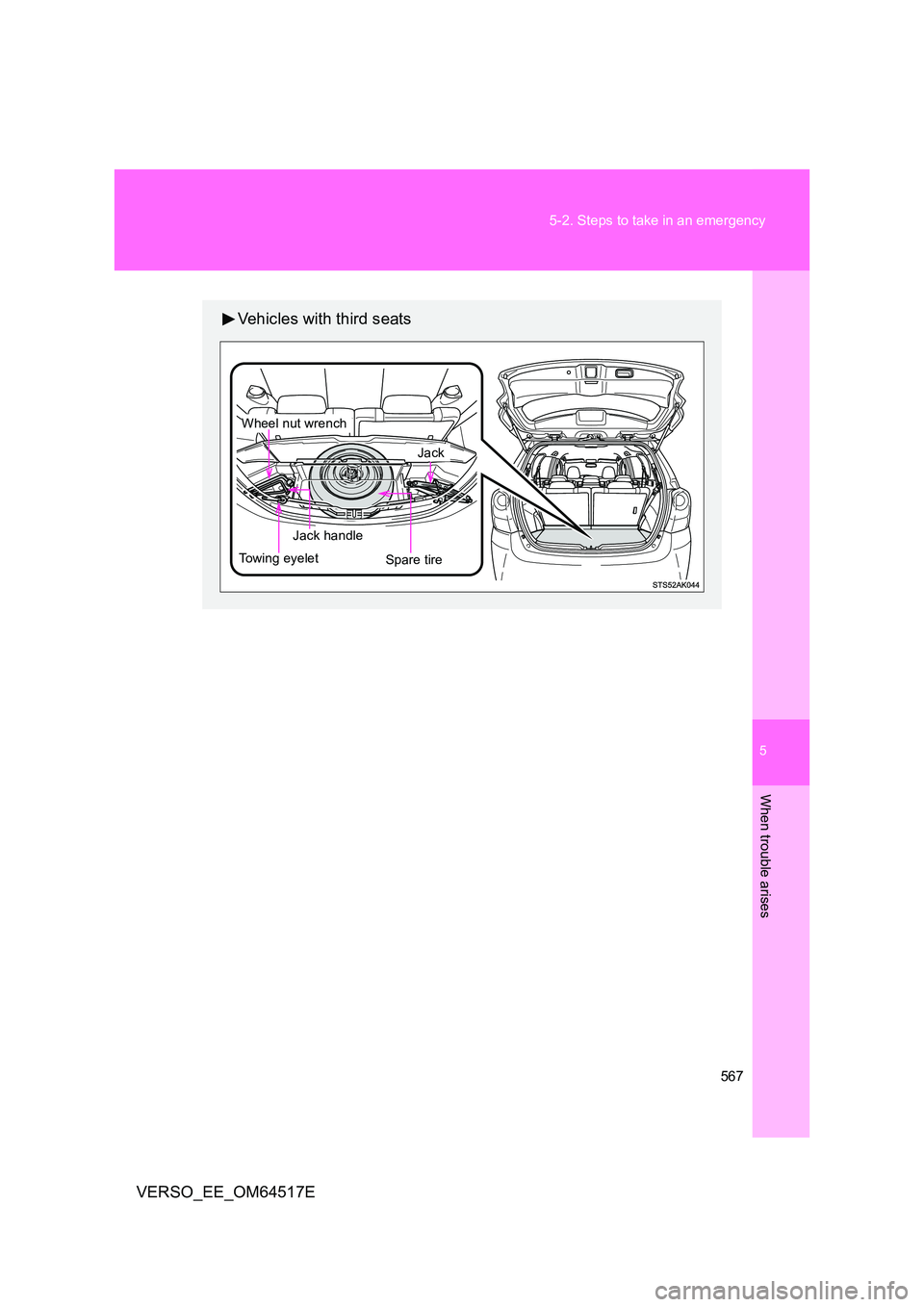

Vehicles with third seats
Spare tire
Jack handle
Jack
Wheel nut wrench
Towing eyelet

568
5-2. Steps to take in an emergency
VERSO_EE_OM64517E
Taking out the jack (vehicles without the third seat)
Open the front deck board.
Remove the jack.
