2017 TOYOTA VERSO Owners Manual

665
What to do if...
VERSO_EE_OM64517E

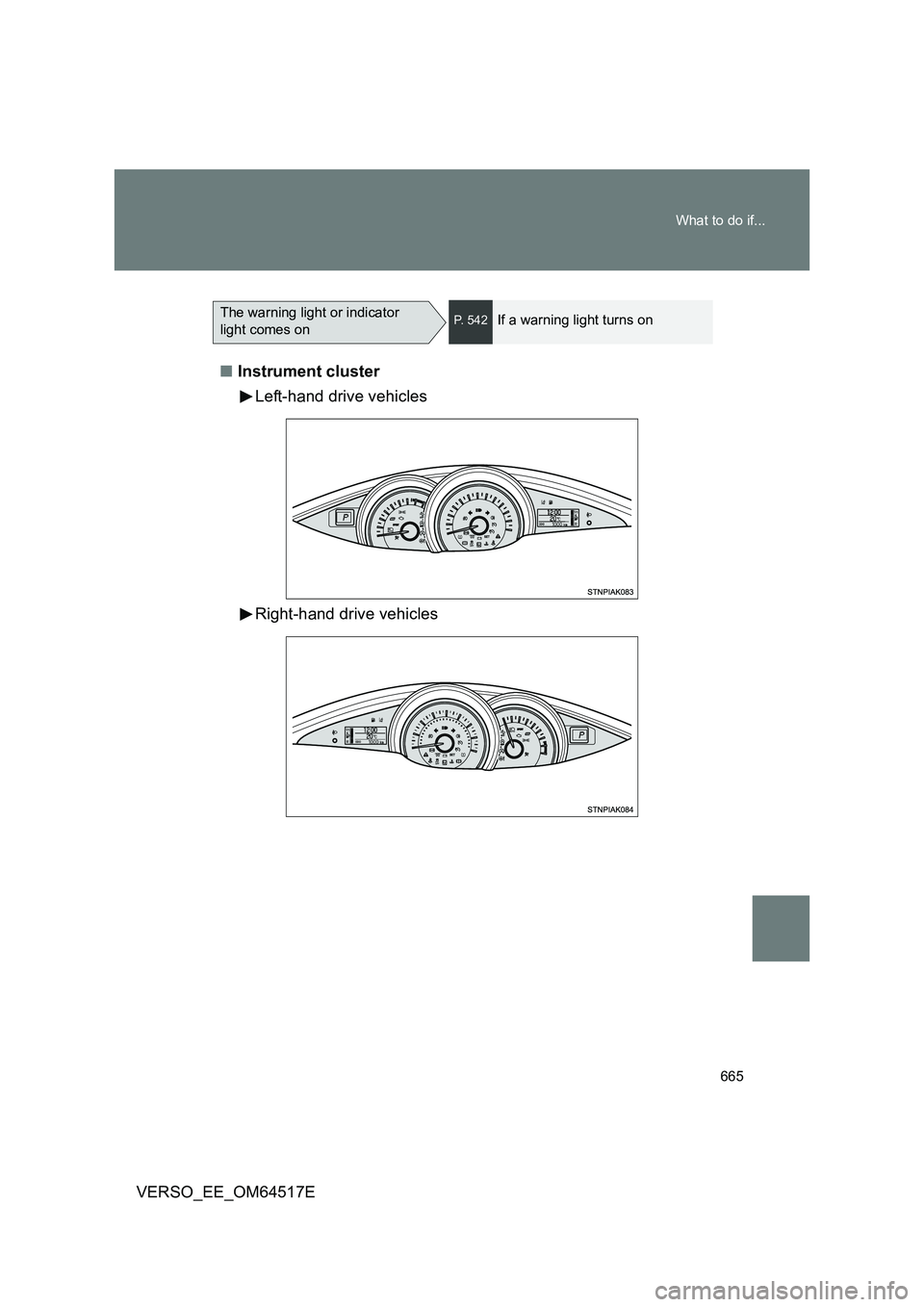

■ Instrument cluster
Left-hand drive vehicles
Right-hand drive vehicles
The warning light or indicator
light comes onP. 542If a warning light turns on

666
What to do if...
VERSO_EE_OM64517E
■ Center panel
Vehicles with manual air conditioning system
Vehicles with automatic air conditioning system
7-passenger models
5-passenger models
7-passenger models
5-passenger models

667
What to do if...
VERSO_EE_OM64517E

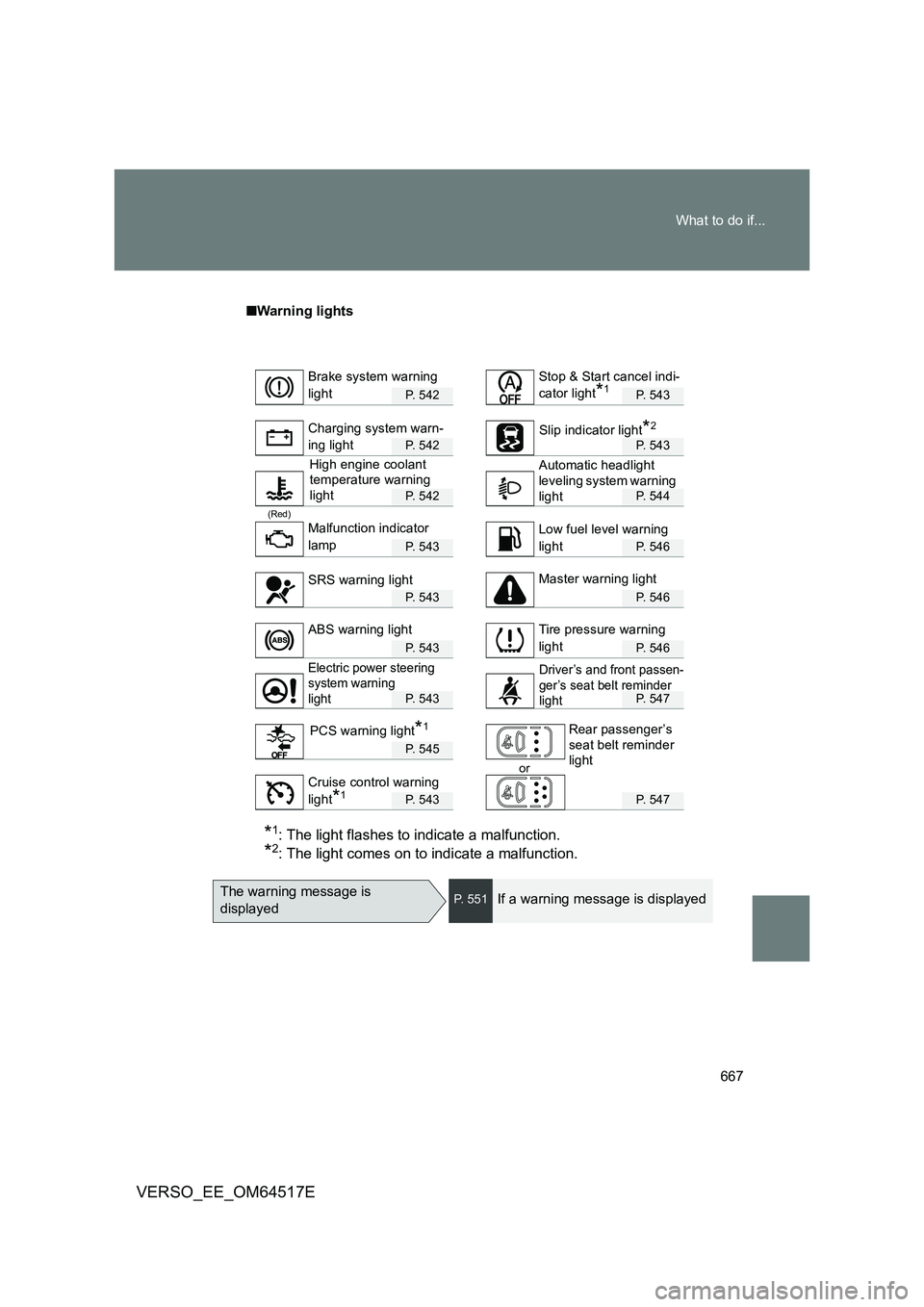

■ Warning lights
P. 542P. 543
P. 542P. 543
P. 542P. 544
(Red)
P. 543P. 546
P. 543P. 546
P. 543P. 546
P. 543P. 547
P. 545
or
P. 543P. 547
*1: The light flashes to indicate a malfunction.
*2: The light comes on to indicate a malfunction.
Brake system warning
light
Stop & Start cancel indi-
cator light*1
Charging system warn-
ing light
High engine coolant temperature warning
light
Automatic headlight
leveling system warning light
Malfunction indicator
lamp
Low fuel level warning
light
SRS warning lightMaster warning light
ABS warning lightTire pressure warning
light
Electric power steering system warning
light
PCS warning light*1Rear passenger’s seat belt reminder light
Cruise control warning
light*1
Driver’s and front passen- ger’s seat belt reminder light
Slip indicator light*2
The warning message is
displayedP. 551If a warning message is displayed

668
VERSO_EE_OM64517E

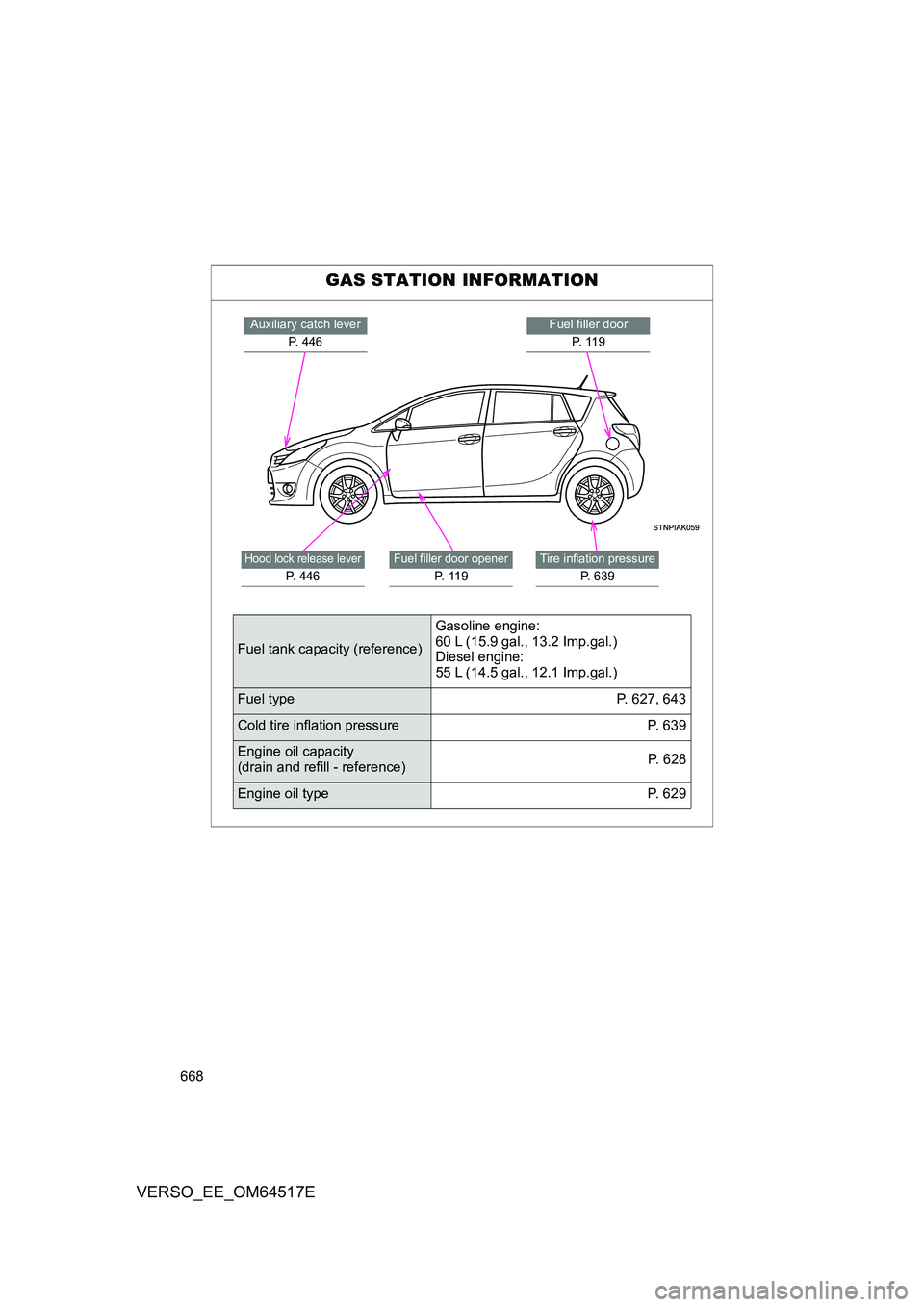

GAS STATION INFORMATION
Fuel filler door
P. 1 1 9
Auxiliary catch lever
P. 446
Tire inflation pressure
P. 6 3 9
Fuel filler door opener
P. 1 1 9
Hood lock release lever
P. 446
Fuel tank capacity (reference)
Gasoline engine:
60 L (15.9 gal., 13.2 Imp.gal.) Diesel engine:55 L (14.5 gal., 12.1 Imp.gal.)
Fuel type P. 627, 643
Cold tire inflation pressure P. 639
Engine oil capacity
(drain and refill - reference) P. 6 2 8
Engine oil type P. 629
