2017 TOYOTA VERSO Owners Manual

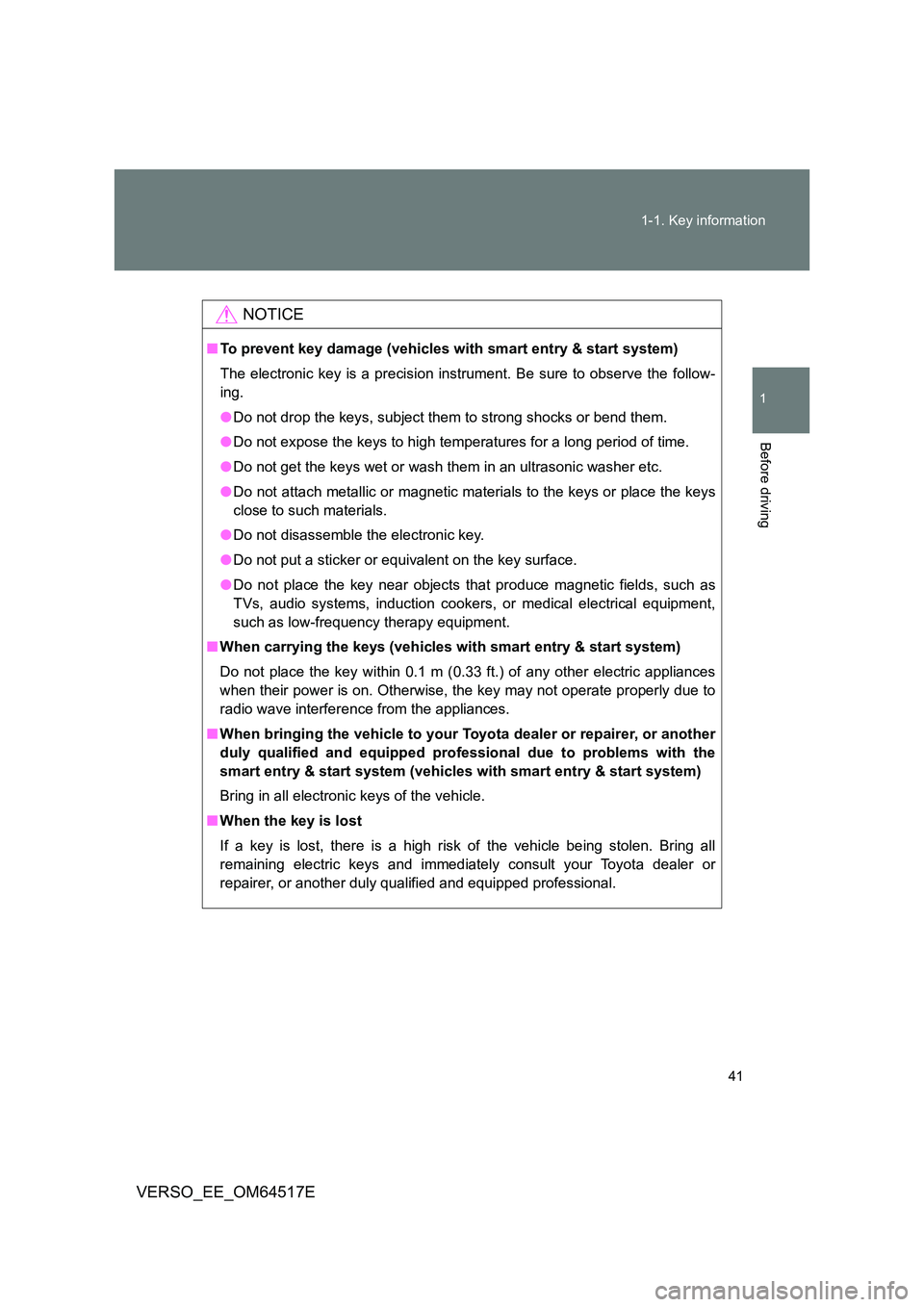

41
1-1. Key information
1
Before driving
VERSO_EE_OM64517E
NOTICE
■ To prevent key damage (vehicles with smart entry & start system)
The electronic key is a precision instrument. Be sure to observe the follow-
ing.
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for a long period of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the electronic key.
● Do not put a sticker or equivalent on the key surface.
● Do not place the key near objects that produce magnetic fields, such as
TVs, audio systems, induction cookers, or medical electrical equipment,
such as low-frequency therapy equipment.
■ When carrying the keys (vehicles with smart entry & start system)
Do not place the key within 0.1 m (0.33 ft.) of any other electric appliances
when their power is on. Otherwise, the key may not operate properly due to
radio wave interference from the appliances.
■ When bringing the vehicle to your Toyota dealer or repairer, or another
duly qualified and equipped professi onal due to problems with the
smart entry & start system (vehicl es with smart entry & start system)
Bring in all electronic keys of the vehicle.
■ When the key is lost
If a key is lost, there is a high risk of the vehicle being stolen. Bring all
remaining electric keys and immediately consult your Toyota dealer or
repairer, or another duly qualified and equipped professional.

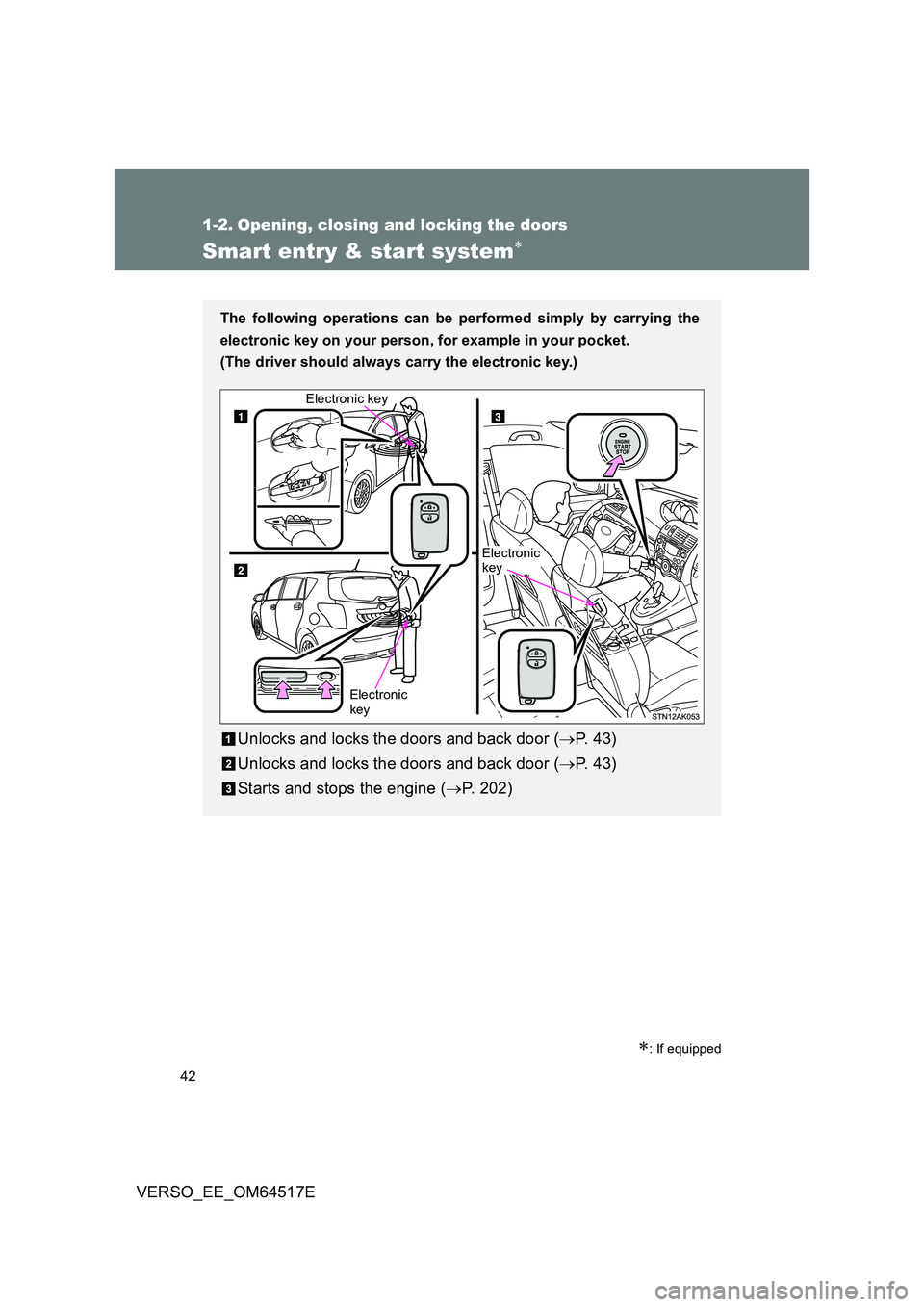

42
VERSO_EE_OM64517E
1-2. Opening, closing and locking the doors
Smart entry & start system
: If equipped
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Unlocks and locks the doors and back door ( P. 4 3 )
Unlocks and locks the doors and back door ( P. 4 3 )
Starts and stops the engine ( P. 202)
Electronic key
Electronic key
Electronic key

43
1-2. Opening, closing and locking the doors
1
Before driving
VERSO_EE_OM64517E
Unlocking and locking the doors (front door handles only)
Grip the handle to unlock the
doors.
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after they are locked.
Touch the sensor area to lock the
doors.
Check that the door is securely
locked.
Unlocking and locking the back door
Press the unlock button to
unlock the doors.
Press and hold the button for 1
second to open the back door.
The doors cannot be unlocked for
3 seconds after they are locked.
Lock the back door again when
you leave the vehicle. The back
door will not lock automatically
after it has been opened and then
closed.

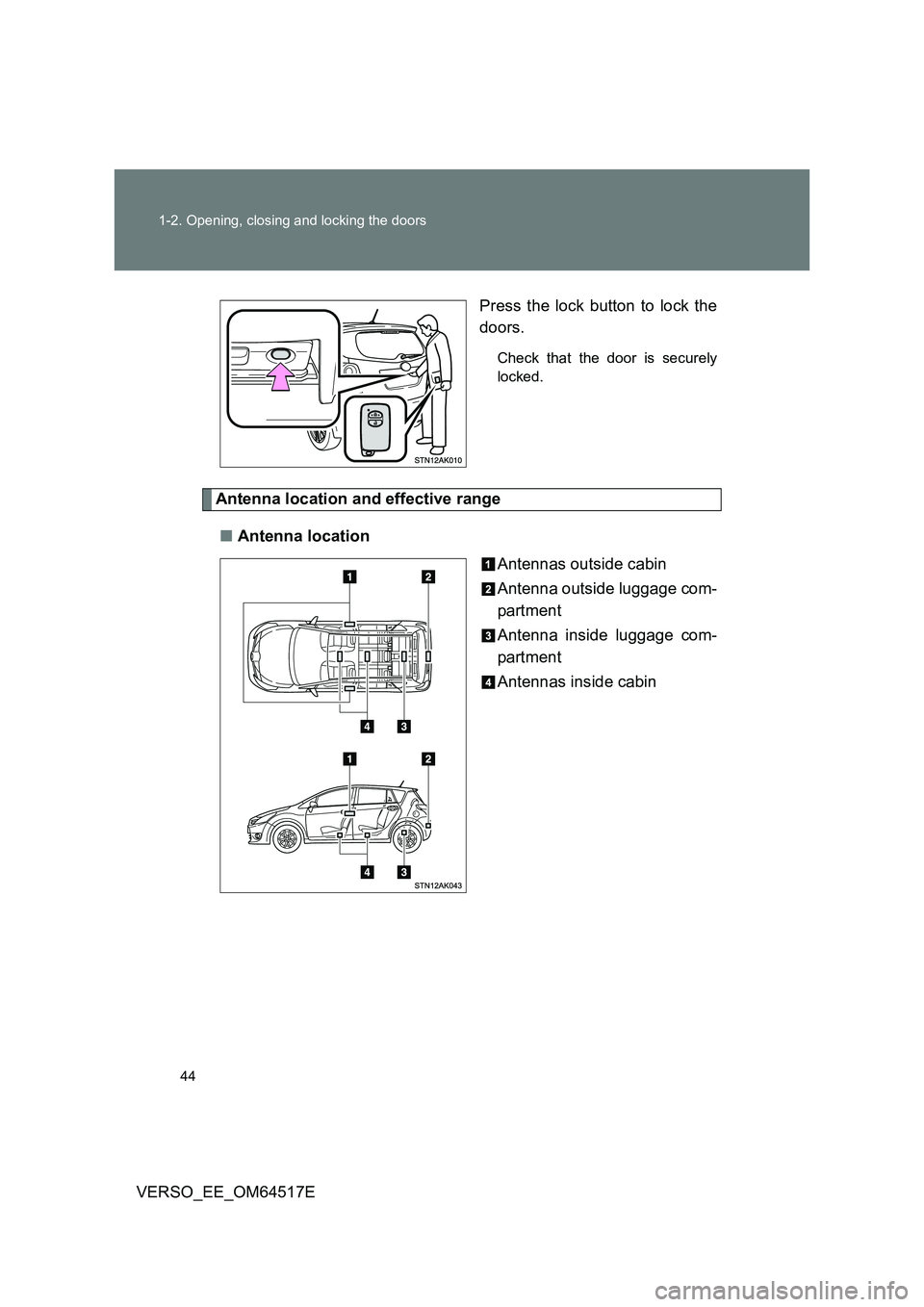

44
1-2. Opening, closing and locking the doors
VERSO_EE_OM64517E
Press the lock button to lock the
doors.
Check that the door is securely
locked.
Antenna location and effective range
■ Antenna location
Antennas outside cabin
Antenna outside luggage com-
partment
Antenna inside luggage com-
partment
Antennas inside cabin

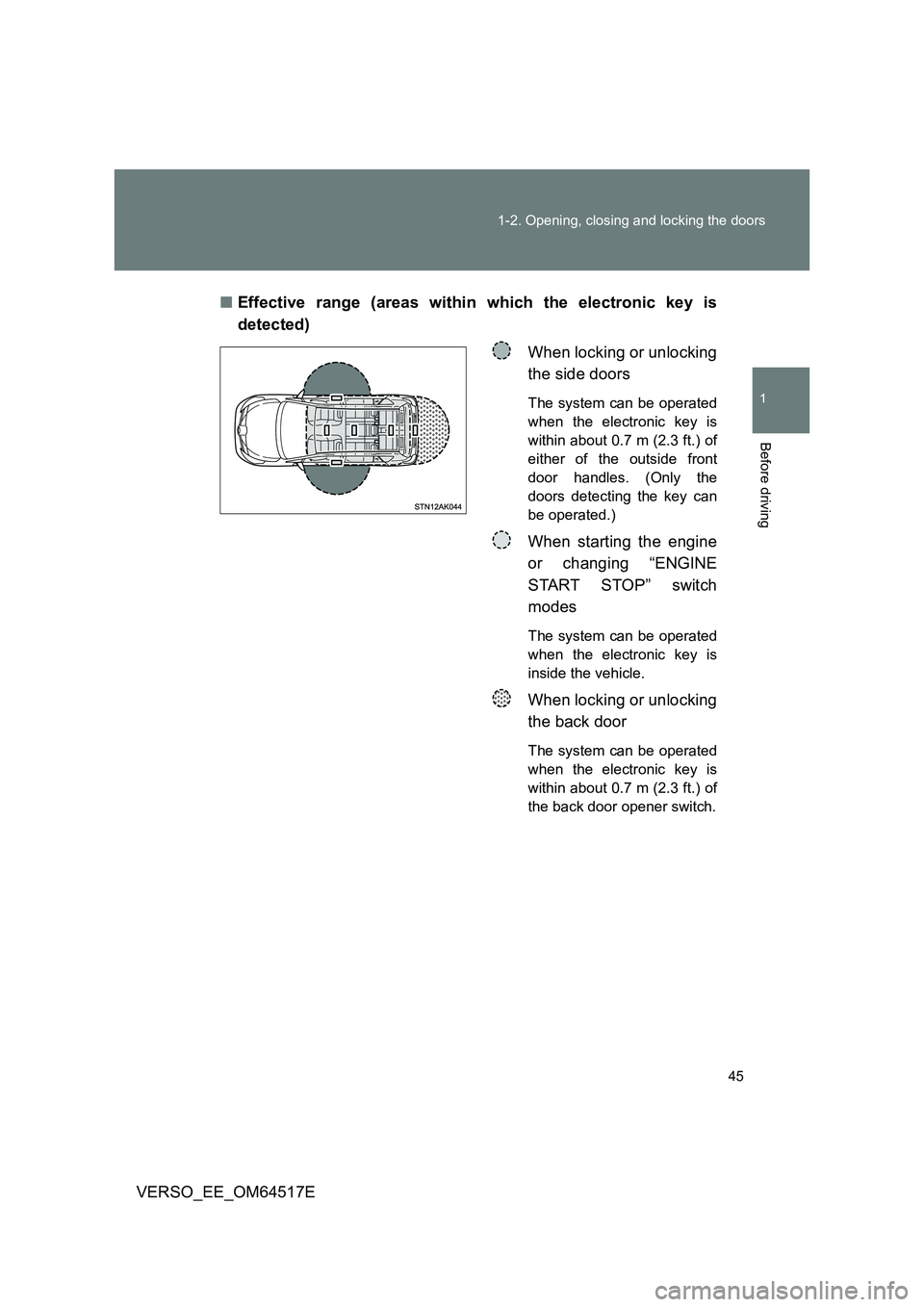

45
1-2. Opening, closing and locking the doors
1
Before driving
VERSO_EE_OM64517E
■ Effective range (areas within which the electronic key is
detected)
When locking or unlocking
the side doors
The system can be operated
when the electronic key is
within about 0.7 m (2.3 ft.) of
either of the outside front
door handles. (Only the
doors detecting the key can
be operated.)
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be operated
when the electronic key is
inside the vehicle.
When locking or unlocking
the back door
The system can be operated
when the electronic key is
within about 0.7 m (2.3 ft.) of
the back door opener switch.

46
1-2. Opening, closing and locking the doors
VERSO_EE_OM64517E
■ Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
■ If the doors cannot be locked with the upper lock sensor of the door
handle...
■ Battery-saving function
The battery-saving function will be activated in order to prevent the elec-
tronic key battery and the vehicle battery from being discharged while the
vehicle is not in operation for a long time.
● In the following situations, the smart entry & start system may take some
time to unlock the doors.
• The electronic key has been left in an area of approximately 2 m (6 ft.)
of the outside of the vehicle for 10 minutes or longer.
• The smart entry & start system has not been used for 5 days or longer.
● If the smart entry & start system has not been used for 14 days or longer,
the doors cannot be unlocked at any doors except the driver door. In this
case, take hold of the driver door handle, or use the wireless remote con-
trol or the mechanical key, to unlock the doors.
If the doors cannot be locked by touching
the lock sensor provided on the upper
edge of a door handle, simultaneously
touch the lock sensors provided on the
upper and lower edges of the door han-
dle.

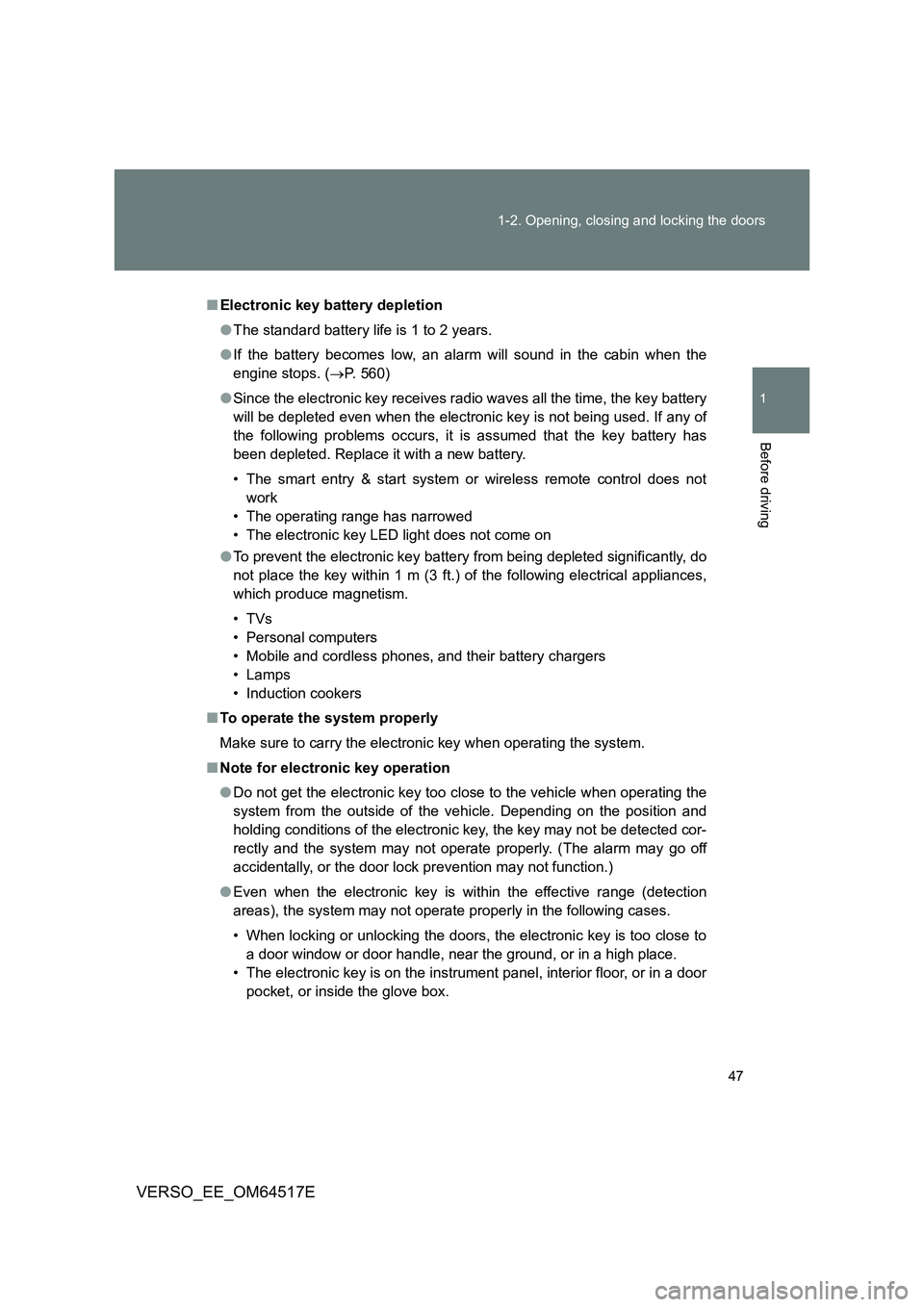

47
1-2. Opening, closing and locking the doors
1
Before driving
VERSO_EE_OM64517E
■ Electronic key battery depletion
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin when the
engine stops. ( P. 560)
● Since the electronic key receives radio waves all the time, the key battery
will be depleted even when the electronic key is not being used. If any of
the following problems occurs, it is assumed that the key battery has
been depleted. Replace it with a new battery.
• The smart entry & start system or wireless remote control does not
work
• The operating range has narrowed
• The electronic key LED light does not come on
● To prevent the electronic key battery from being depleted significantly, do
not place the key within 1 m (3 ft.) of the following electrical appliances,
which produce magnetism.
•TVs
• Personal computers
• Mobile and cordless phones, and their battery chargers
• Lamps
• Induction cookers
■ To operate the system properly
Make sure to carry the electronic key when operating the system.
■ Note for electronic key operation
● Do not get the electronic key too close to the vehicle when operating the
system from the outside of the vehicle. Depending on the position and
holding conditions of t he electronic key, the key may not be detected cor-
rectly and the system may not operate properly. (The alarm may go off
accidentally, or the door lock prevention may not function.)
● Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases.
• When locking or unlocking the doors, the electronic key is too close to
a door window or door handle, near the ground, or in a high place.
• The electronic key is on the instrument panel, interior floor, or in a door
pocket, or inside the glove box.

48
1-2. Opening, closing and locking the doors
VERSO_EE_OM64517E
● Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave
reception conditions, it may be detected by the antenna outside the cabin
and the door will become lockable from the outside, possibly trapping the
electronic key inside the vehicle.
■ Special note for smart entry & start system
● When the electronic key is in the operating range, anyone can lock and
unlock the doors even without having the electronic key. However, the
unlocking operation will not be active at a door that has not detected the
electronic key.
● When the electronic key is in the operating range and the door handles
get soaked with water due to car washing or heavy rain, the doors may
be locked or unlocked. If the doors ar e unlocked, the doors will automati-
cally be locked again when no door operations occur in approximately 30
seconds.
● If the electronic key is inside or near the vehicle and if the doors are
locked using the wireless remote control, the doors may not be unlocked
with the smart entry & start system. In this case, unlock the doors using
the wireless remote control.
■ Note for door locking operation
● When touching a lock sensor to lock the doors while wearing gloves, the
response may be slow or the doors may not be locked. In this case,
touch the lock sensor without wearing a glove.
● When door handles get wet while washing the vehicle with the electronic
key on your person, the doors may be locked and unlocked repeatedly. In
this case, keep the electronic key 2 m (6 ft.) or more away from the vehi-
cle while washing (pay attention to key theft).
● When the electronic key is inside the vehicle and door handles get wet
due to a car wash, a warning message stating that the key is in the cabin
may appear on the multi-information display, interior and exterior alarms
may sound. In this case, lock the doors to stop the alarms.
