2017 TOYOTA VERSO Owners Manual

449
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E

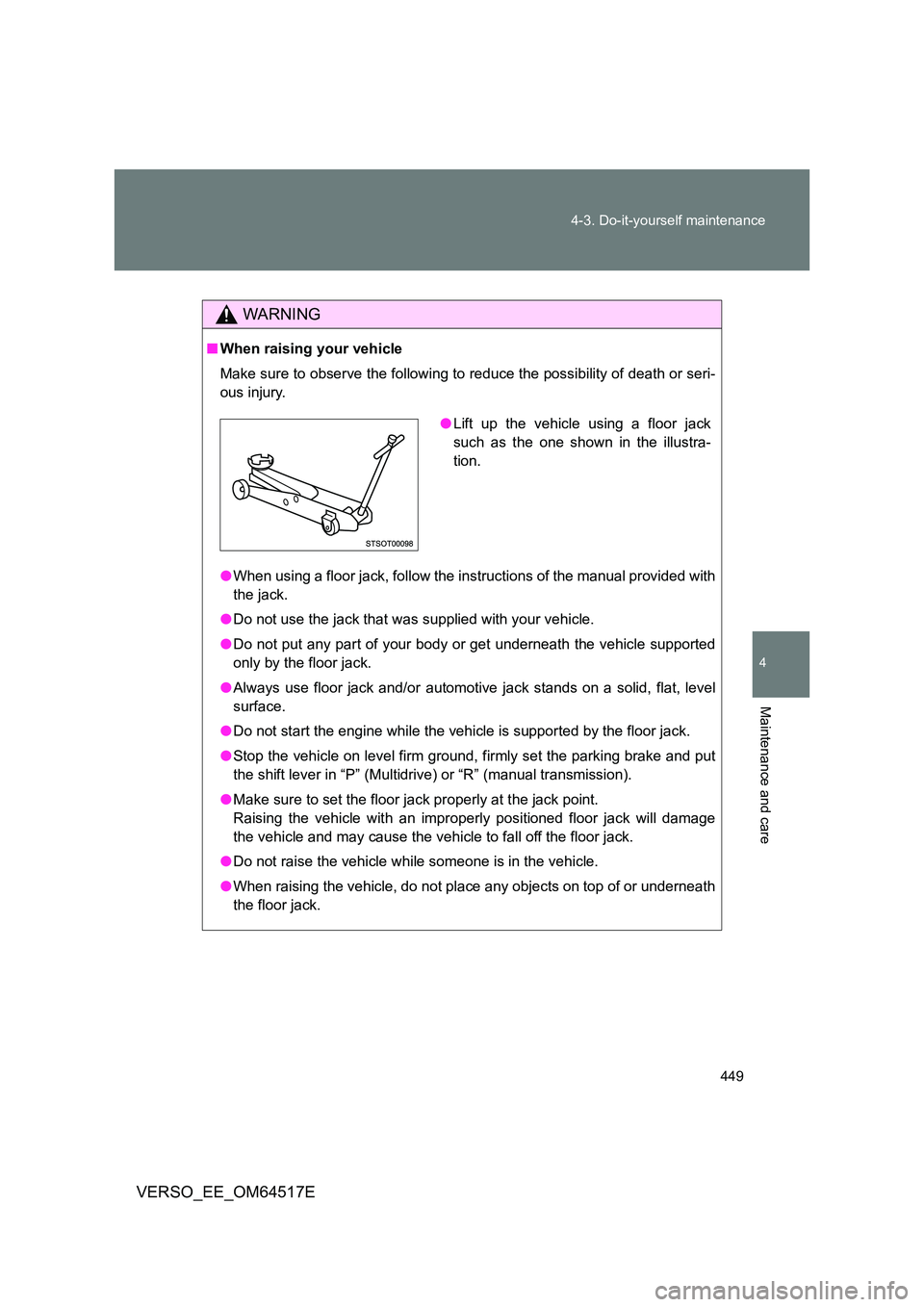

WARNING
■ When raising your vehicle
Make sure to observe the following to reduce the possibility of death or seri-
ous injury.
● When using a floor jack, follow the instructions of the manual provided with
the jack.
● Do not use the jack that was supplied with your vehicle.
● Do not put any part of your body or get underneath the vehicle supported
only by the floor jack.
● Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
● Do not start the engine while the vehicle is supported by the floor jack.
● Stop the vehicle on level firm ground, firmly set the parking brake and put
the shift lever in “P” (Multidrive) or “R” (manual transmission).
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
● Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any objects on top of or underneath
the floor jack.
● Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

450
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E
Engine compartment
Gasoline engine
Washer fluid tank (P. 465)
Engine coolant reservoir
( P. 458)
Engine oil level dipstick
( P. 453)
Engine oil filler cap
( P. 455)
Fuse box (P. 491)
Battery ( P. 461)
Electric cooling fan
Condenser ( P. 460)
Radiator ( P. 460)

451
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E
Diesel engine
Washer fluid tank ( P. 465)
Engine coolant reservoir
( P. 458)
Engine oil filler cap
( P. 455)
Engine oil level dipstick
( P. 453)
Fuel filter (P. 466)
Fuse box ( P. 491)
Battery ( P. 461)
Condenser ( P. 460)
Electric cooling fans
Intercooler ( P. 460)
Radiator ( P. 460)

452
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E

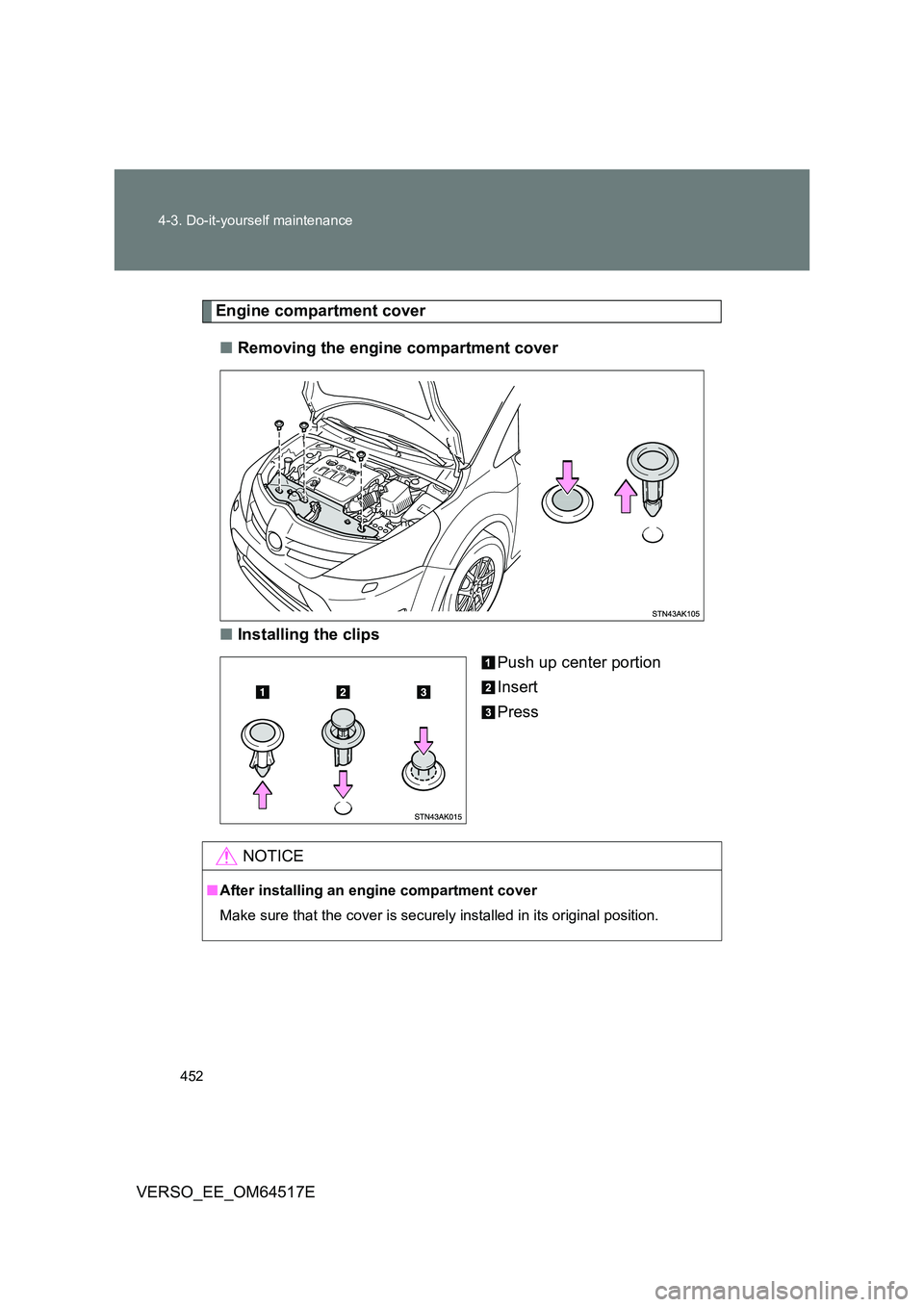

Engine compartment cover
■ Removing the engine compartment cover
■ Installing the clips
Push up center portion
Insert
Press
NOTICE
■ After installing an engine compartment cover
Make sure that the cover is securely installed in its original position.

453
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E

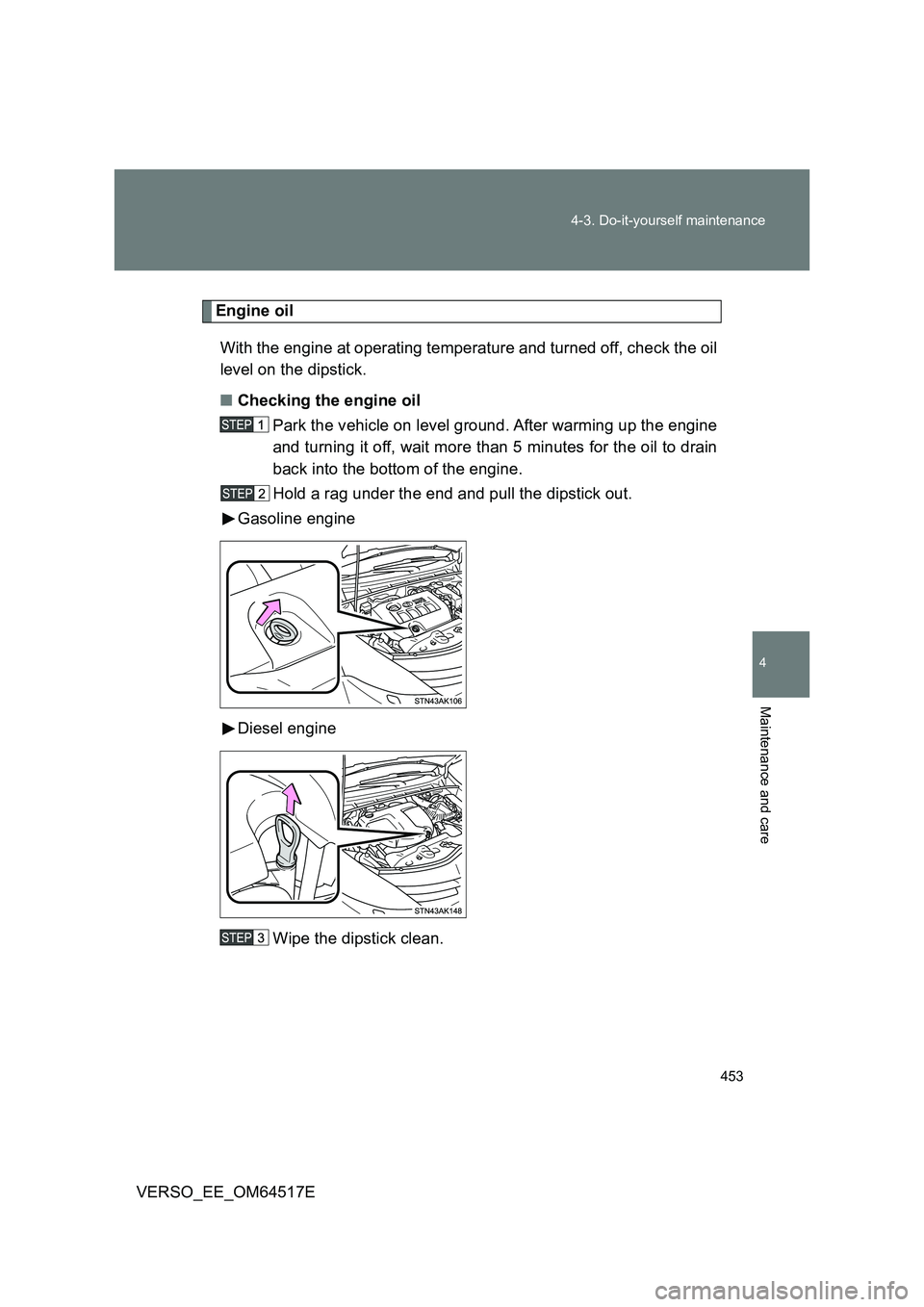

Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
Hold a rag under the end and pull the dipstick out.
Gasoline engine
Diesel engine
Wipe the dipstick clean.

454
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E

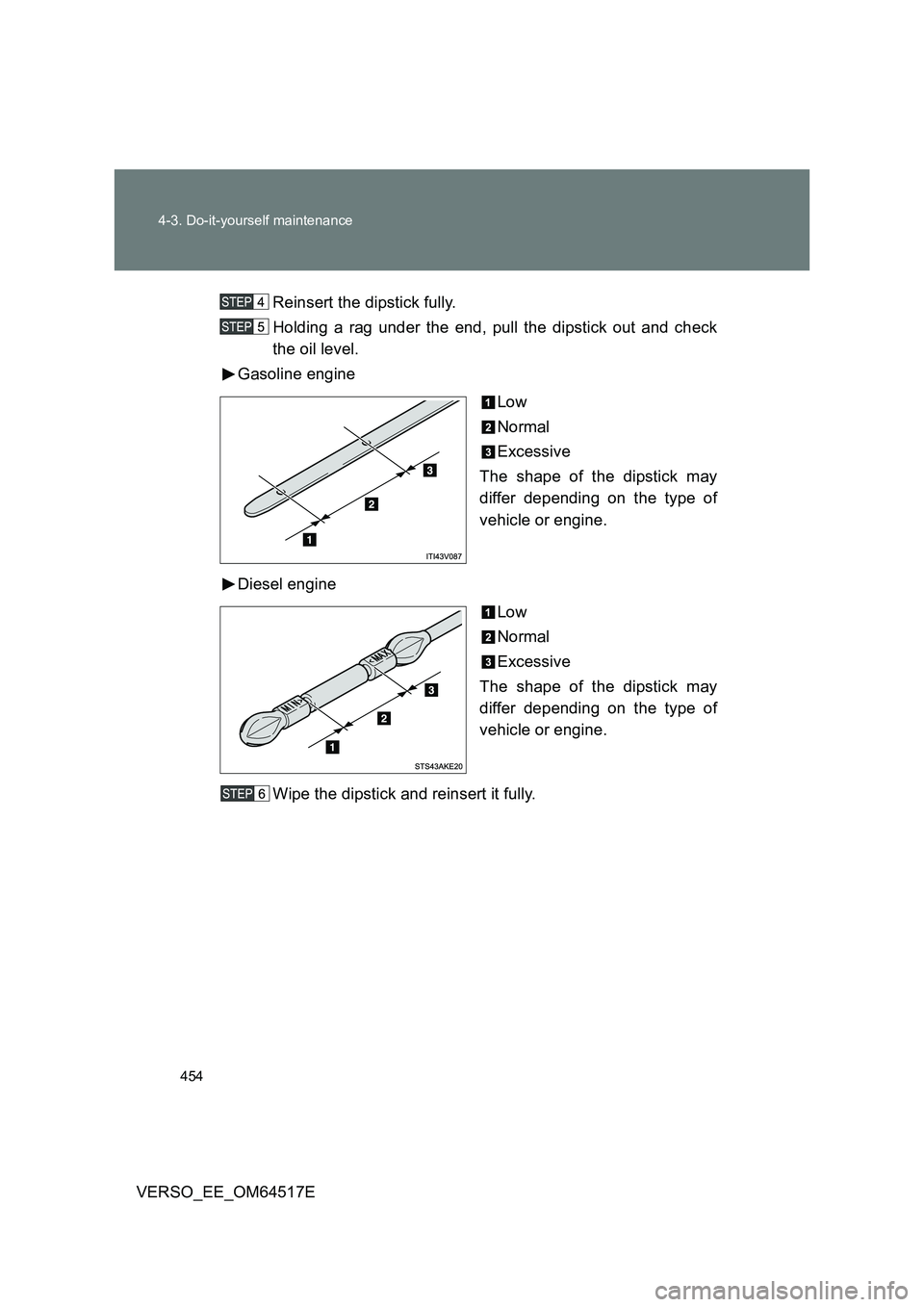

Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Gasoline engine
Low
Normal
Excessive
The shape of the dipstick may
differ depending on the type of
vehicle or engine.
Diesel engine
Low
Normal
Excessive
The shape of the dipstick may
differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.

455
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E
■ Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection P. 628
Oil quantity
(Low  Full)
Gasoline engine
1.5 L (1.6 qt., 1.3 Imp.qt.)
Diesel engine
1.2 L (1.3 qt., 1.1 Imp.qt.)
Items Clean funnel

456
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E

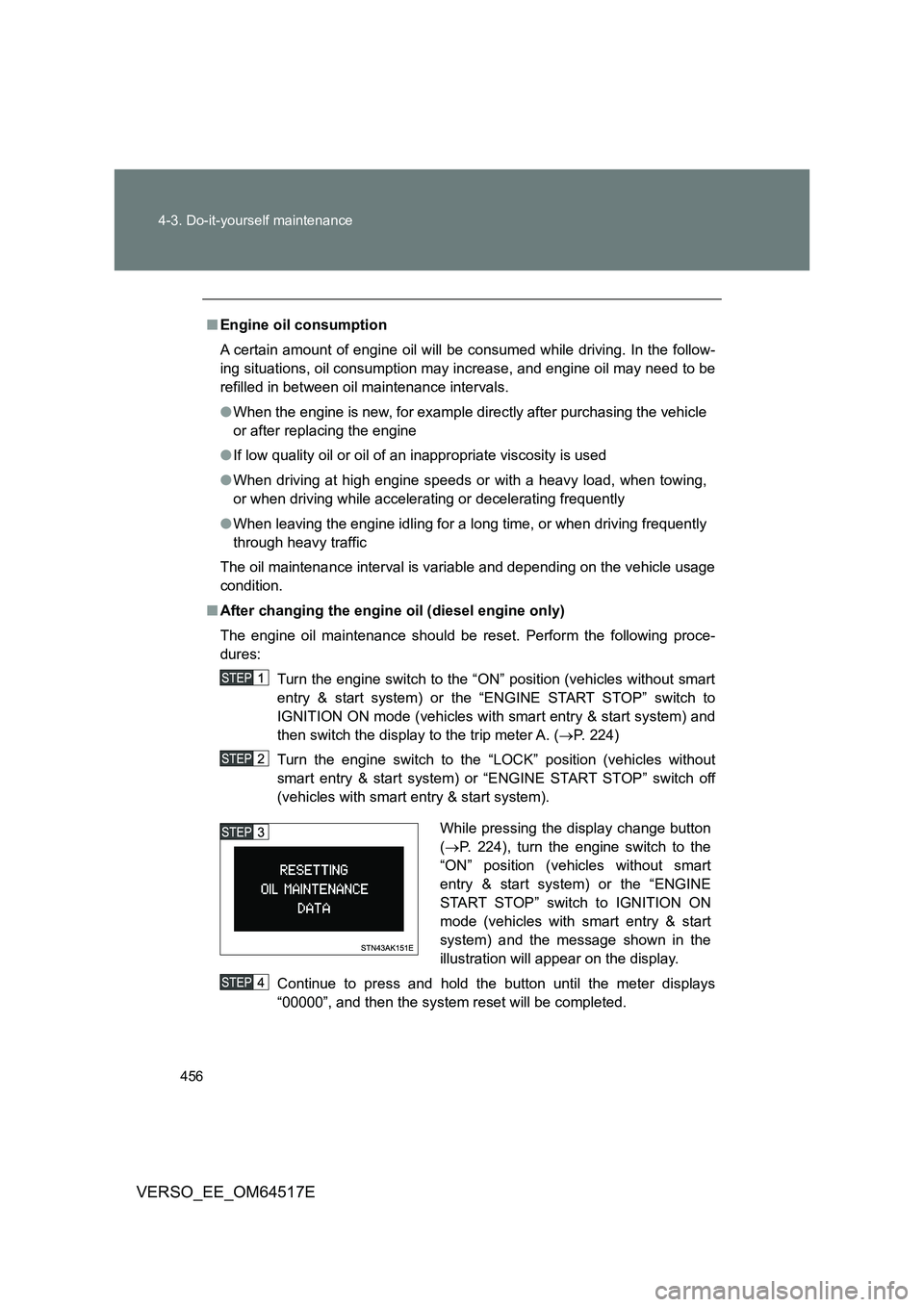

■ Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the follow-
ing situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
● When the engine is new, for example directly after purchasing the vehicle
or after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, when towing,
or when driving while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
The oil maintenance interval is variable and depending on the vehicle usage
condition.
■ After changing the engine oil (diesel engine only)
The engine oil maintenance should be reset. Perform the following proce-
dures:
Turn the engine switch to the “ON” position (vehicles without smart
entry & start system) or the “ENGINE START STOP” switch to
IGNITION ON mode (vehicles with smart entry & start system) and
then switch the display to the trip meter A. ( P. 224)
Turn the engine switch to the “LOCK” position (vehicles without
smart entry & start system) or “ENGINE START STOP” switch off
(vehicles with smart entry & start system).
Continue to press and hold the button until the meter displays
“00000”, and then the system reset will be completed.
While pressing the display change button
( P. 224), turn the engine switch to the
“ON” position (vehicles without smart
entry & start system) or the “ENGINE
START STOP” switch to IGNITION ON
mode (vehicles with smart entry & start
system) and the message shown in the
illustration will appear on the display.
