VERSO_EE_OM64517E
2-2. Instrument cluster
Gauges and meters ............ 222
Indicators and warning
lights ................................. 227
Multi-information display ..... 232
Fuel consumption
information ........................ 244
2-3. Operating the lights and
wipers
Headlight switch.................. 248
Fog light switch ................... 254
Windshield wipers and
washer .............................. 255
Rear window wiper and
washer .............................. 260
2-4. Toyota Safety Sense
Toyota Safety Sense .......... 261
PCS (Pre-Collision
System) ............................ 268
LDA (Lane Departure
Alert) ................................. 283
Automatic High Beam ......... 288
2-5. Using other driving systems
Cruise control...................... 294
Speed limiter ....................... 298
Toyota parking
assist-sensor .................... 301
Stop & Start system ............ 309
Driving assist systems ........ 316
2-6. Driving information
Cargo and luggage............. 322
Winter driving tips............... 325
Trailer towing...................... 329
3-1. Using the air conditioning
system and defogger
Manual air conditioning
system.............................. 340
Automatic air conditioning
system.............................. 346
Power heater ...................... 353
Rear window and outside
rear view mirror
defoggers ......................... 355
3-2. Using the audio system
Audio system types ............ 357
Using the radio ................... 359
Using the CD player ........... 363
Playing back MP3 and
WMA discs ....................... 368
Operating an iPod .............. 374
Operating
a USB memory................. 381
Optimal use of the audio
system.............................. 388
Using the AUX port ............ 390
Using the steering wheel
audio switches ................. 391
3Interior features

17
VERSO_EE_OM64517E
Manual headlight leveling dial P. 249
Power heater switch P. 353
Outside rear view mirror switches
P. 109
VSC/TRC off switch P. 317
Tilt and telescopic steering
lock release lever P. 104
Toyota parking assist-sensor
switch P. 301
PCS (Pre-Collision System) switch P. 272
: If equipped

20
VERSO_EE_OM64517E
Pictorial indexInterior
(right-hand drive vehicles)
Vanity lights P. 409
Panoramic roof shade switch P. 116
Vanity mirrors P. 409
Sun visors*1 P. 408
SRS curtain shield airbags P. 148
Overhead console P. 403
Personal/interior lights P. 396
Personal/interior lights P. 396
Personal/interior lights main switch P. 395
Anti-glare inside rear view mirror P. 105
Center second seat belt P. 98
Microphone*2
Assist grips P. 418
Intrusion sensor cancel switch P. 139
Panoramic roof shade P. 116

43
1-2. Opening, closing and locking the doors
1
Before driving
VERSO_EE_OM64517E
Unlocking and locking the doors (front door handles only)
Grip the handle to unlock the
doors.
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after they are locked.
Touch the sensor area to lock the
doors.
Check that the door is securely
locked.
Unlocking and locking the back door
Press the unlock button to
unlock the doors.
Press and hold the button for 1
second to open the back door.
The doors cannot be unlocked for
3 seconds after they are locked.
Lock the back door again when
you leave the vehicle. The back
door will not lock automatically
after it has been opened and then
closed.

46
1-2. Opening, closing and locking the doors
VERSO_EE_OM64517E
■ Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
■ If the doors cannot be locked with the upper lock sensor of the door
handle...
■ Battery-saving function
The battery-saving function will be activated in order to prevent the elec-
tronic key battery and the vehicle battery from being discharged while the
vehicle is not in operation for a long time.
● In the following situations, the smart entry & start system may take some
time to unlock the doors.
• The electronic key has been left in an area of approximately 2 m (6 ft.)
of the outside of the vehicle for 10 minutes or longer.
• The smart entry & start system has not been used for 5 days or longer.
● If the smart entry & start system has not been used for 14 days or longer,
the doors cannot be unlocked at any doors except the driver door. In this
case, take hold of the driver door handle, or use the wireless remote con-
trol or the mechanical key, to unlock the doors.
If the doors cannot be locked by touching
the lock sensor provided on the upper
edge of a door handle, simultaneously
touch the lock sensors provided on the
upper and lower edges of the door han-
dle.

48
1-2. Opening, closing and locking the doors
VERSO_EE_OM64517E
● Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave
reception conditions, it may be detected by the antenna outside the cabin
and the door will become lockable from the outside, possibly trapping the
electronic key inside the vehicle.
■ Special note for smart entry & start system
● When the electronic key is in the operating range, anyone can lock and
unlock the doors even without having the electronic key. However, the
unlocking operation will not be active at a door that has not detected the
electronic key.
● When the electronic key is in the operating range and the door handles
get soaked with water due to car washing or heavy rain, the doors may
be locked or unlocked. If the doors ar e unlocked, the doors will automati-
cally be locked again when no door operations occur in approximately 30
seconds.
● If the electronic key is inside or near the vehicle and if the doors are
locked using the wireless remote control, the doors may not be unlocked
with the smart entry & start system. In this case, unlock the doors using
the wireless remote control.
■ Note for door locking operation
● When touching a lock sensor to lock the doors while wearing gloves, the
response may be slow or the doors may not be locked. In this case,
touch the lock sensor without wearing a glove.
● When door handles get wet while washing the vehicle with the electronic
key on your person, the doors may be locked and unlocked repeatedly. In
this case, keep the electronic key 2 m (6 ft.) or more away from the vehi-
cle while washing (pay attention to key theft).
● When the electronic key is inside the vehicle and door handles get wet
due to a car wash, a warning message stating that the key is in the cabin
may appear on the multi-information display, interior and exterior alarms
may sound. In this case, lock the doors to stop the alarms.

49
1-2. Opening, closing and locking the doors
1
Before driving
VERSO_EE_OM64517E
● A lock sensor covered with ice, snow or mud may not work properly. In
this case, remove the ice, snow or mud from the lock sensor surface and
then touch the sensor again, or unlock the doors using the lock sensor
located on the lower edge of the door handle.
● Fingernails may come into contact with a door when taking hold of a door
handle. Be careful not to damage the door surface or your fingernails.
■ Note for door unlocking operation
● The doors may not be unlocked when a door handle is operated quickly,
or if you suddenly enter the operating range of the exterior antenna and
operate a door handle. In this case, return the door handle to its original
position, unlock the doors again, and then check that the doors are
unlocked before pulling the door handle.
● When taking hold of a door handle while wearing gloves, the unlocking
response may become slow or the doors may not be unlocked.
● If there is another electronic key in the operating range, the response
time to unlock the doors after a door handle is taken hold of may become
longer.
■ When the vehicle is not driven for extended periods
● To prevent theft of the vehicle, do not leave the electronic key within 2 m
(6 ft.) of the vehicle.
● The smart entry & start system can be disabled. (P. 646)
■ Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

107
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO_EE_OM64517E

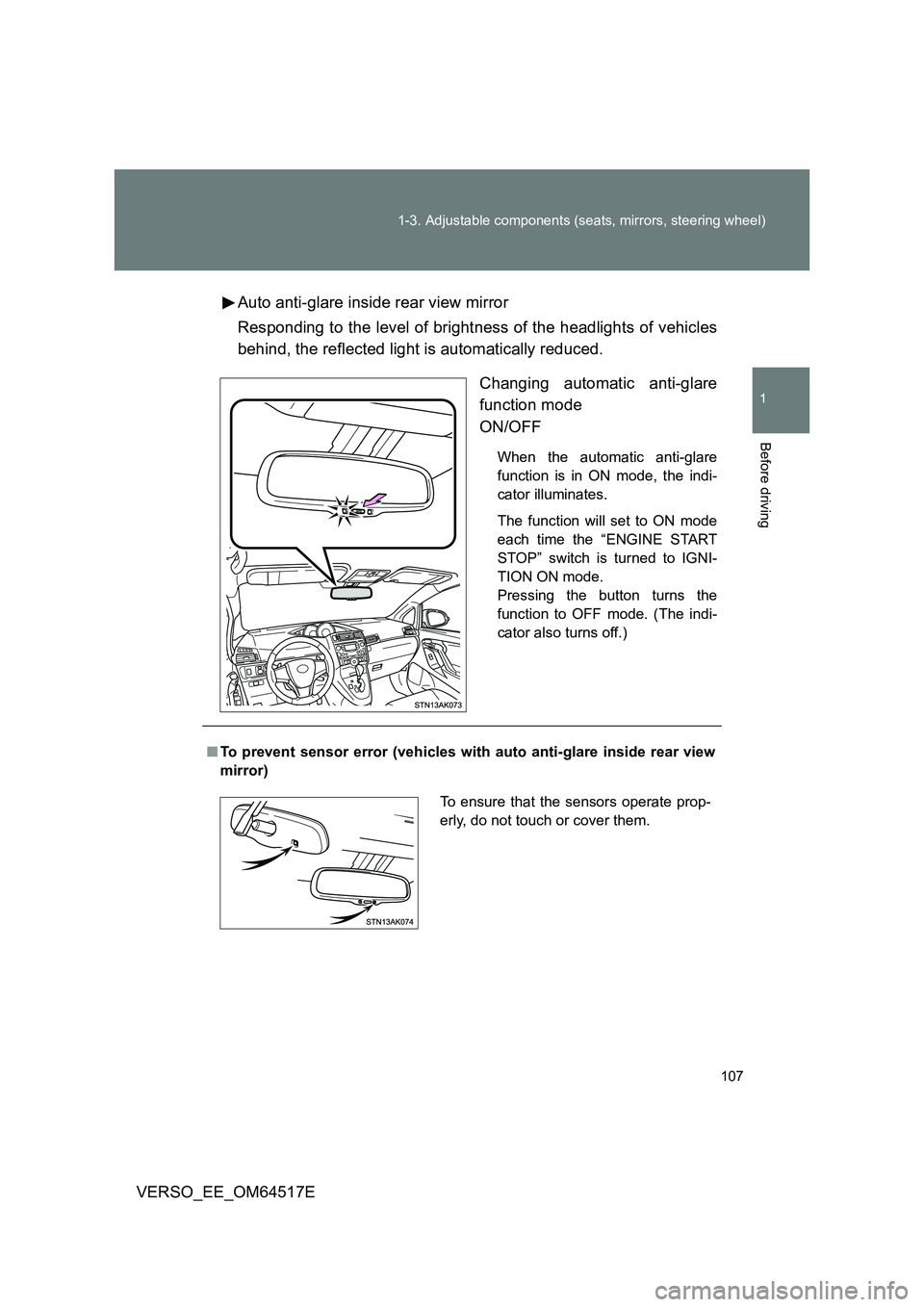

Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON/OFF
When the automatic anti-glare
function is in ON mode, the indi-
cator illuminates.
The function will set to ON mode
each time the “ENGINE START
STOP” switch is turned to IGNI-
TION ON mode.
Pressing the button turns the
function to OFF mode. (The indi-
cator also turns off.)
■ To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
To ensure that the sensors operate prop-
erly, do not touch or cover them.
