2017 MAZDA MODEL CX-5 Owners Manual (in English)

4–33
When Driving
Instrument Cluster and Display
*Some models.
Warning Indication/Warning Lights
These lights turn on or fl ash to notify the user of the system operation status or a system
malfunction.

Signal Warning Page

Brake System Warning Indication/Warning Light *1*2
7-23

ABS Warning Light *1 Electronic
Brake Force Distribution
System Warning 7-23
ABS warning 7-26

Charging System Warning Indication/Warning Light *1
7-23

Engine Oil Warning Light *1
7-23


(Red) * High Engine Coolant Temperature Warning Indication/Warning Light *1
7-23

* Power Steering Malfunction Indication/Malfunction Indicator Light *1
7-23

* Master Warning Indication/Warning Light *1
7-26

Electric Parking Brake (EPB) Warning Indication/Warning Light *1
7-26


(Red) * Brake Pedal Operation Demand Warning Light *1 Flashing
4-75
Buzzer & Flashing 7-26

Check Engine Light *1
7-26

* Automatic Transaxle Warning Indication/Warning Light *1
7-26

* AWD Warning Indication/Warning Light *1
7-26

Air Bag/Front Seat Belt Pretensioner System Warning Light *1
7-26
CX-5_8FN1-EA-16L_Edition1.indb 332016/12/12 10:05:47

4–34
When Driving
Instrument Cluster and Display
*Some models.
Signal Warning Page

* Tire Pressure Monitoring System Warning Light *1 Flashing
7-26
Turns on 7-31


(Amber/White) * KEY Warning Indication Amber
7-26
White 7-31


(Red) * KEY Warning Light *1 Malfunction
7-26
Except
malfunction 7-31


(Amber) * High Beam Control System (HBC) Warning Indication/Warning Light *1
7-26

* Blind Spot Monitoring (BSM) Warning Indication
7-26


(Amber) * Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop &
Go function) Warning Indication 7-26


(Amber) * Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) Warning Indication 7-26

LED Headlight Warning Light *1
7-26


(Amber)
* Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning
Indication/Warning Light *1 7-31

Low Fuel Warning Indication/Warning Light
7-31

Check Fuel Cap Warning Indication/Warning Light *1
7-31

Seat Belt Warning Light
7-31

* Low Washer Fluid Level Warning Indication/Warning Light
7-31
CX-5_8FN1-EA-16L_Edition1.indb 342016/12/12 10:05:48

4–35
When Driving
Instrument Cluster and Display
*Some models.
Signal Warning Page


* Door-Ajar Warning Indication
7-31


* Liftgate-Ajar Warning Indication
7-31

* Door-Ajar Warning Light
7-31
*1 The light turns on when the ignition is switched on for an operation che\
ck, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains tur\
ned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the electric parking brake (EPB) \
is applied.


Indication/Indicator Lights
These lights turn on or fl ash to notify the user of the system operation status or a system
malfunction.

Signal Indicator Page

* Front Passenger Air Bag Deactivation Indicator Light *1
2-61


(Green) * KEY Indicator Light
4-5

Security Indicator Light *1
3-46

* Wrench Indication/Indicator Light *1
4-38


(Blue) * Low Engine Coolant Temperature Indicator Light
4-38
CX-5_8FN1-EA-16L_Edition1.indb 352016/12/12 10:05:49

4–36
When Driving
Instrument Cluster and Display
*Some models.
Signal Indicator Page

Shift Position Indication
4-44

Lights-On Indication/Indicator Light
4-51

Headlight High-Beam Indicator Light Headlight High-
Low Beam 4-54
Flashing the Headlights 4-54

Turn Signal/Hazard Warning Indicator Lights Turn and Lane-
Change Signals 4-57
Hazard Warning Flasher 4-65


(Green) Brake Pedal Operation demand Indicator Light
4-71

AUTOHOLD Active Indicator Light
*1
4-78
* Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop &
Go function) indicator Light 4-132

TCS/DSC Indicator Light *1 Traction Control
System (TCS) 4-83
Dynamic
Stability Control (DSC) 4-85
Turns on 7-26

TCS OFF Indicator Light
*1
4-84

* Select Mode Indication 4-88


(Green) * High Beam Control System (HBC) Indicator Light
4-98
CX-5_8FN1-EA-16L_Edition1.indb 362016/12/12 10:05:49

4–37
When Driving
Instrument Cluster and Display
*Some models.
Signal Indicator Page

* Blind Spot Monitoring (BSM) OFF Indicator Light *1 Malfunction
7-26
Except
malfunction 4-104


(White) * Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop &
Go function) Main Indication 4-126


(Green) * Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop &
Go function) Set Indication 4-126


(White/Green) * Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) Indication 4-139


* Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) OFF Indicator Light *1 4-144


* Smart City Brake Support (SCBS) Indication
4-151


(Red) * Smart City Brake Support (SCBS) Indicator Light
4-151


* Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator \
Light *1 Smart City
Brake Support
(SCBS) System 4-152
Smart Brake
Support (SBS) System 4-155


(White) * Cruise Main Indication
4-168


(Green) * Cruise Set Indication
4-168
*1 The light turns on when the ignition is switched on for an operation che\
ck, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains tur\
ned on, have the vehicle inspected at an
Authorized Mazda Dealer.

CX-5_8FN1-EA-16L_Edition1.indb 372016/12/12 10:05:50

4–38
When Driving
Instrument Cluster and Display
*Some models.
Wrench Indicator Light *

When the ignition is switched ON, the
wrench indicator light turns on and then
turns off after a few seconds.

The wrench indicator light turns on under
the following conditions:
   When the preset maintenance period has
arrived.
   When it’s time to replace the engine oil.
Refer to Maintenance Monitor on page
6-16 .
Low Engine Coolant Temperature
Indicator Light (Blue) *

The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.

CX-5_8FN1-EA-16L_Edition1.indb 382016/12/12 10:05:51

4–39
When Driving

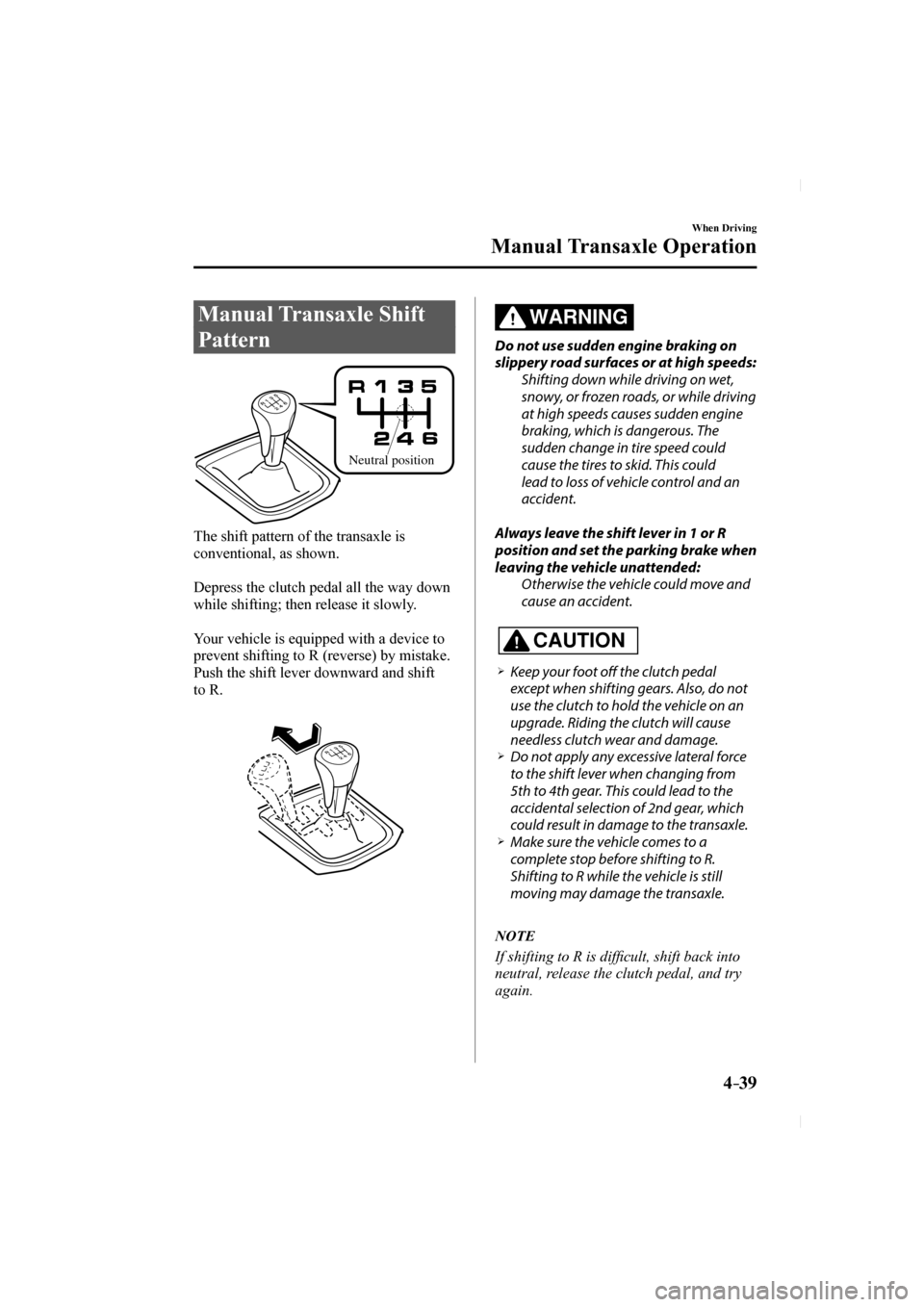

Manual Transaxle Operation
Manual Transaxle Shift
Pattern

Neutral position

The shift pattern of the transaxle is
conventional, as shown.

Depress the clutch pedal all the way down
while shifting; then release it slowly.

Your vehicle is equipped with a device to
prevent shifting to R (reverse) by mistake.
Push the shift lever downward and shift
to R.



WARNING
Do not use sudden engine braking on
slippery road surfaces or at high speeds: Shifting down while driving on wet,
snowy, or frozen roads, or while driving
at high speeds causes sudden engine
braking, which is dangerous. The
sudden change in tire speed could
cause the tires to skid. This could
lead to loss of vehicle control and an
accident.

Always leave the shift lever in 1 or R
position and set the parking brake when
leaving the vehicle unattended: Otherwise the vehicle could move and
cause an accident.

CAUTION
 Keep your foot off the clutch pedal except when shifting gears. Also, do not
use the clutch to hold the vehicle on an
upgrade. Riding the clutch will cause
needless clutch wear and damage.
 Do not apply any excessive lateral force to the shift lever when changing from
5th to 4th gear. This could lead to the
accidental selection of 2nd gear, which
could result in damage to the transaxle.
 Make sure the vehicle comes to a complete stop before shifting to R.
Shifting to R while the vehicle is still
moving may damage the transaxle.

NOTE
If shifting to R is dif fi cult, shift back into
neutral, release the clutch pedal, and try
again.

CX-5_8FN1-EA-16L_Edition1.indb 392016/12/12 10:05:51

4–40
When Driving
Manual Transaxle Operation
Gear Shift Indicator (GSI)
The Gear Shift Indicator (GSI) supports
you to obtain optimum fuel economy and
smooth driving. It displays the selected
gear position in the instrument cluster as
well as notifi es the driver to change to the
most suitable gear position corresponding
to the actual driving condition.


Selected gear position Suitable gear position

Indication Condition
Numeral The selected gear position is
displayed.

and numeral Shift up or down to the indicated
gear position is recommended.

CAUTION
Do not rely solely on the shift-up/
shift-down recommendations by
indications. The actual driving
situation might require shift operations
diff erent from indication. To avoid the
risk of accidents, the road and traffi
c
conditions have to be judged correctly
by the driver before shifting.

NOTE
The Gear Shift Indicator (GSI) turns
off when the following operations are
performed.
   The vehicle is stopped.  The vehicle is put in neutral.  The vehicle is driven in reverse.  The clutch is not fully engaged when
accelerating from a stop.
  The clutch pedal remains depressed for
2 seconds or longer while driving.

Recommendations for Shifting
Upshifting
For normal acceleration, Mazda
recommends these shift points:

Gear Vehicle speed
1 to 2 24 km/h (15 mph)
2 to 3 42 km/h (26 mph)
3 to 4 60 km/h (37 mph)
4 to 5 75 km/h (46 mph)
5 to 6 79 km/h (49 mph)

For cruising, Mazda recommends these
shift points:
Gear Vehicle speed
1 to 2 13 km/h (8 mph)
2 to 3 29 km/h (18 mph)
3 to 4 49 km/h (30 mph)
4 to 5 63 km/h (39 mph)
5 to 6 70 km/h (43 mph)

CX-5_8FN1-EA-16L_Edition1.indb 402016/12/12 10:05:51
