When Driving
Start/Stop Engine
If the engine cannot be started due to a
dead key battery, the engine can be started
using the following procedure:

1. Continue to depress the brake pedal fi rmly until the engine has completely
started.
2. (Manual transaxle)
Continue to depress the clutch pedal fi rmly until the engine has completely
started.
3. Verify that the push button start indication light (green) fl ashes.
4. Touch the push button start using the backside of the key (as shown) while
the push button start indicator light
(green) fl ashes.


Push button start
Indicator light
Key

NOTE
When touching the push button start using
the backside of the key as shown in the
illustration, touch the push button start
with the lock switch side of the key facing
up.

5. Verify that the push button start indicator light (green) turns on. 6. Press the push button start to start the
engine.
NOTE
  The engine cannot be started unless the
clutch pedal is fully depressed (manual
transaxle) or the brake pedal is fully
depressed (automatic transaxle).
  If there is a malfunction with the push
button start function, the push button
start indicator light (amber) fl ashes.
In this case, the engine may start,
however, have the vehicle checked at an
Authorized Mazda Dealer as soon as
possible.
   If the push button start indicator light
(green) does not illuminate, perform the
operation from the beginning again. If
it does not illuminate, have the vehicle
checked at an Authorized Mazda Dealer.
  To switch the ignition position without
starting the engine, perform the
following operations after the push
button start indicator light (green) turns
on.

1. Release the clutch pedal (manual transaxle) or brake pedal (automatic
transaxle).
2. Press the push button start to switch the ignition position. The ignition
switches in the order of ACC, ON,
and off each time the push button
start is pressed. To switch the
ignition position again, perform the
operation from the beginning.


CX-5_8FN1-EA-16L_Edition1.indb 92016/12/12 10:05:41

4–10
When Driving
Start/Stop Engine
Emergency Operation for Starting the Engine
If the KEY warning light (red) illuminates,
or the push button start indicator light
(amber) fl ashes, this could indicate that
the engine may not start using the usual
starting method. Have your vehicle
inspected at an Authorized Mazda Dealer
as soon as possible. If this occurs, the
engine can be force-started. Press and hold
the push button start until the engine starts.
Other procedures necessary for starting the
engine such as having the key in the cabin,
and depressing the clutch pedal (manual
transaxle) or the brake pedal (automatic
transaxle) are required.
Turning the Engine Off
WARNING
Do not stop the engine while the vehicle
is moving: Stopping the engine while the vehicle
is moving for any reason other than in
an emergency is dangerous. Stopping
the engine while the vehicle is moving
will result in reduced braking ability
due to the loss of power braking, which
could cause an accident and serious
injury.

1. Stop the vehicle completely.
2. (Manual transaxle)
Shift into neutral and set the parking brake.
(Automatic transaxle)
Shift the selector lever to the P position and set the parking brake.
3. Press the push button start to turn off the engine. The ignition position is off.

CAUTION
When leaving the vehicle, make sure
the push button start is off .

CX-5_8FN1-EA-16L_Edition1.indb 102016/12/12 10:05:41

4–11
When Driving
Start/Stop Engine
NOTE
  The cooling fan in the engine
compartment could turn on for a few
minutes after the ignition is switched
from ON to OFF, whether or not the
A/C is on or off, to cool the engine
compartment quickly.
  If the system detects that the remaining
battery power of the key is low when the
ignition is switched from ON to ACC or
OFF, the following is indicated.
 Replace with a new battery before the key becomes unusable.
 Refer to Key Battery Replacement on page 6-36 .
 (Vehicle equipped with Type A
instrument cluster)
 A message is indicated in the display of
the instrument cluster.
 (Vehicle equipped with Type B
instrument cluster)
 The KEY indicator light (green) fl ashes
for approximately 30 seconds.
 Refer to Warning/Indicator Lights on page 4-32 .
  (Automatic transaxle)  If the engine is turned off while the
selector lever is in a position other than
P, the ignition switches to ACC.

Emergency Engine Stop
Continuously pressing the push button
start or quickly pressing it any number of
times while the engine is running or the
vehicle is being driven will turn the engine
off immediately. The ignition switches to
ACC.
CX-5_8FN1-EA-16L_Edition1.indb 112016/12/12 10:05:41

4–12
When Driving
Instrument Cluster and Display
Meters and Gauges

Steering Switch
Active Driving Display(Windshield Type) (Auto Flip-up Type)
Type A
(With Multi-information Display)
(Without Multi-information Display)
Instrument Cluster
Type B





Speedometer ............................................................\
............................................... page 4-13



Odometer, Trip Meter and Trip Meter Selector ..................................................... page 4-13



Tachometer ..............................................................\
............................................... page 4-14
CX-5_8FN1-EA-16L_Edition1.indb 122016/12/12 10:05:41

4–13
When Driving
Instrument Cluster and Display


Dashboard Illumination..................................................\
........................................ page 4-16



Trip Computer and INFO Switch ........................................................................\
... page 4-17



Engine Coolant Temperature Gauge ...................................................................... page 4-15



Fuel Gauge ..................................................................\
........................................... page 4-15



Outside Temperature Display ................................................................\
................. page 4-17



Cruise Control Set Vehicle Speed Display ............................................................. page 4-17



Multi-information Display and INFO Switch ........................................................ page 4-20



Active Driving Display ........................................................................\
.................. page 4-28
Speedometer
The speedometer indicates the speed of the
vehicle.
Odometer, Trip Meter and Trip Meter Selector (Without Multi-
information Display)
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
selector while one of them is displayed.
The selected mode will be displayed.


Selector
Press the selector Press the selector
Press the selector
Odometer
Trip meter A
Trip meter B


Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total distance
of two trips. One is recorded in trip meter
A, and the other is recorded in trip meter
B.

For instance, trip meter A can record the
distance from the point of origin, and
trip meter B can record the distance from
where the fuel tank is
fi lled.

When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.

When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.

The trip meter records the total distance
the vehicle is driven until the meter
is again reset. Return it to “0.0” by
depressing and holding the selector for
one second or more. Use this meter to
measure trip distances and to compute fuel
consumption.
CX-5_8FN1-EA-16L_Edition1.indb 132016/12/12 10:05:42

4–14
When Driving
Instrument Cluster and Display
NOTE
  (Vehicles with type B audio)  If the fuel economy data is reset using
the fuel economy monitor, or trip A
is reset using the trip meter when the
function which synchronizes the fuel
economy monitor and the trip meter is
on, the fuel economy data and trip A are
reset simultaneously.
 Refer to Fuel Economy Monitor on page 4-86 .
  Only the trip meters record tenths of
kilometers (miles).
  The trip record will be erased when:   The power supply is interrupted
(blown fuse or the battery is
disconnected).
  The vehicle is driven over 9999.9 km
(mile).


Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.

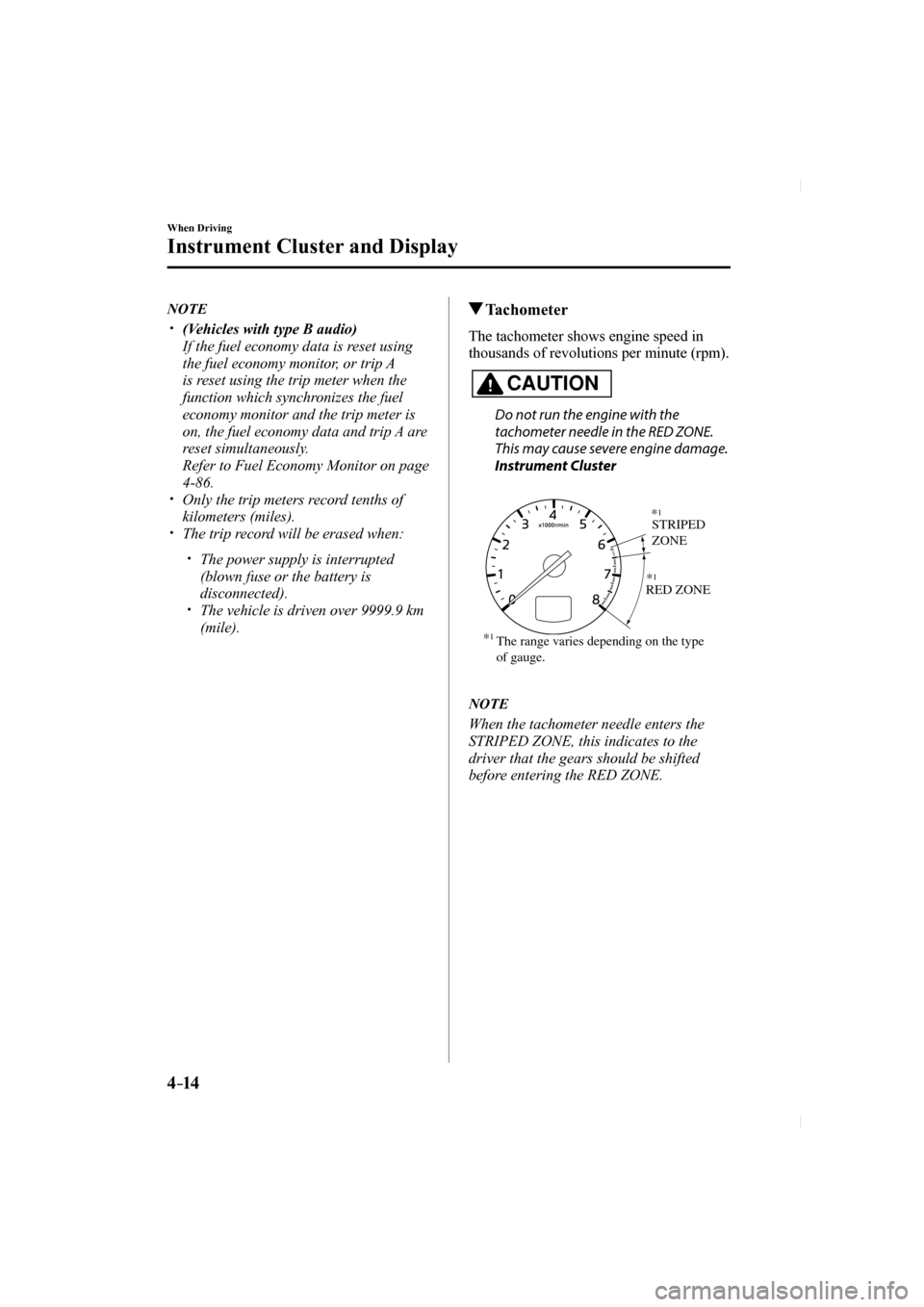

Instrument Cluster


STRIPED
ZONE
RED ZONE
*
1The range varies depending on the type
of gauge. *
1
*1

NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.


CX-5_8FN1-EA-16L_Edition1.indb 142016/12/12 10:05:42

4–15
When Driving
Instrument Cluster and Display
Engine Coolant Temperature Gauge (Without Multi-information
Display)
Displays the engine coolant temperature.
The white gauge indicates that the engine
coolant temperature is low, and the red
gauge indicates that the engine coolant
temperature is high and overheating.


CAUTION
If the engine coolant temperature
gauge indicator fl ashes, there is a
possibility of overheating. Park the
vehicle in a safe place immediately
and take appropriate measures. If the
vehicle continues to be driven, it could
cause damage to the engine.
Refer to Overheating on page 7-18 .

NOTE
  The temperature unit (Centigrade/
Fahrenheit) of the engine coolant gauge
display changes in conjunction with
the temperature unit of the outside
temperature display.
 Refer to Personalization Features on page 9-11 .
  During normal driving, the engine
coolant temperature stabilizes at
100 °C (210 °F) or less, and the gauge
indicates a range lower than 100 °C
(210 °F).
  If the engine load increases and the
engine coolant temperature exceeds
100 °C (210 °F), the gauge indicates the
engine coolant temperature.

Fuel Gauge (Without Multi-information Display)
The fuel gauge shows approximately
how much fuel is remaining in the tank
when the ignition is switched ON. We
recommend keeping the tank over 1/4 full.


Full
1/4 Full
Empty

If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
Refer to Warning Indication/Warning
Lights on page 4-33 .
CX-5_8FN1-EA-16L_Edition1.indb 152016/12/12 10:05:42

4–16
When Driving
Instrument Cluster and Display
NOTE
  After refueling, it may require some
time for the indicator to stabilize. In
addition, the indicator may deviate
while driving on a slope or curve since
the fuel moves in the tank.
  The display indicating a quarter or less
remaining fuel has more segments to
show the remaining fuel level in greater
detail.
  The direction of the arrow ( )
indicates that the fuel- fi ller lid is on the
left side of the vehicle.

Dashboard Illumination
(Without auto-light control)
When the position lights are turned
on with the ignition switched ON, the
brightness of the dashboard illumination is
dimmed.
(With auto-light control)
When the position lights are turned
on with the ignition switched ON, the
brightness of the dashboard illumination
is dimmed. However, when the light
sensor detects that the surrounding area is
bright such as when the position lights are
turned on in the daytime, the dashboard
illumination does not dim.
NOTE
   (With auto-light control)  When the ignition is switched ON in the
early evening or at dusk, the dashboard
illumination is dimmed for several
seconds until the light sensor detects
the brightness of the surrounding area,
however, the dimmer may cancel after
the brightness is detected.
  When the position lights are turned on,
the position lights indicator light in the
instrument cluster turns on.
 Refer to Headlights on page 4-51 .
The brightness of the instrument cluster
and dashboard illuminations can be
adjusted by rotating the knob.
  The brightness decreases by rotating the
knob to the left. A beep sound will be
heard when the knob has been rotated to
the maximum dim position.
   The brightness increases by rotating the
knob to the right.


Dim
Bright

Function for cancelling illumination
dimmer
The illumination dimmer can be canceled
by rotating the dashboard illumination
knob to the right until a beep sound is
heard while the instrument cluster is
dimmed with the ignition switched ON.
If the instrument cluster's visibility is
reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.
CX-5_8FN1-EA-16L_Edition1.indb 162016/12/12 10:05:43
