2017 MAZDA MODEL CX-5 Owners Manual (in English)

4–1*Some models.
4When Driving
Information concerning safe driving and stopping.

Start/Stop Engine ................................ 4-4 Ignition Switch ............................... 4-4
Starting the Engine ......................... 4-5
Turning the Engine Off ................ 4-10

Instrument Cluster and Display ...... 4-12 Meters and Gauges ....................... 4-12
Multi-information Display and INFO
Switch
* ......................................... 4-20
Active Driving Display * ............... 4-28
Warning/Indicator Lights ............. 4-32

Manual Transaxle Operation ........... 4-39 Manual Transaxle Shift Pattern .... 4-39

Automatic Transaxle ......................... 4-42 Automatic Transaxle Controls ..... 4-42
Shift-Lock System ....................... 4-43
Transaxle Ranges ......................... 4-43
Manual Shift Mode ...................... 4-45
Driving Tips ................................. 4-50
Switches and Controls ...................... 4-51
Lighting Control ........................... 4-51
Fog Lights
* ................................... 4-57
Turn and Lane-Change Signals .... 4-57
Windshield Wipers and Washer ... 4-58
Rear Window Wiper and
Washer .......................................... 4-62
Rear Window Defogger ............... 4-62
Horn ............................................. 4-65
Hazard Warning Flasher ............... 4-65
HomeLink Wireless Control
System
* ......................................... 4-66

Brake .................................................. 4-70 Brake System ............................... 4-70
AUTOHOLD ............................... 4-75
Hill Launch Assist (HLA) ............ 4-81

ABS/TCS/DSC ................................... 4-82 Antilock Brake System (ABS) ..... 4-82
Traction Control System (TCS) ... 4-83
Dynamic Stability Control
(DSC) ........................................... 4-85

Fuel Economy Monitor ..................... 4-86 Fuel Economy Monitor
* ............... 4-86

Drive Selection ................................... 4-88 Drive Selection ............................. 4-88

i-ACTIV AWD ................................... 4-89 i-ACTIV AWD Operation
* ........... 4-89

CX-5_8FN1-EA-16L_Edition1.indb 12016/12/12 10:05:40

4–2*Some models.
Power Steering................................... 4-91 Power Steering ............................. 4-91

i-ACTIVSENSE................................. 4-92 i-ACTIVSENSE
* .......................... 4-92
Adaptive Front Lighting System
(AFS)
* .......................................... 4-95
High Beam Control System
(HBC)
* .......................................... 4-96
Blind Spot Monitoring (BSM) * .... 4-99
Traffi c Sign Recognition System
(TSR)
* ........................................ 4-105
Distance Recognition Support System
(DRSS)
* ...................................... 4-112
Rear Cross Traffi c Alert
(RCTA)
* ..................................... 4-117
Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function)
* .......................... 4-121
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS)
* .................................... 4-135
Smart City Brake Support
(SCBS)
* ...................................... 4-148
Smart Brake Support (SBS) * ...... 4-153
Forward Sensing Camera
(FSC)
* ......................................... 4-156
Radar Sensor (Front) * ................. 4-162
Radar Sensors (Rear) * ................ 4-165

Cruise Control ................................. 4-167 Cruise Control
* ........................... 4-167

Tire Pressure Monitoring System ... 4-172
Tire Pressure Monitoring
System
* ....................................... 4-172
Rear View Monitor .......................... 4-176
Rear View Monitor
* ................... 4-176
CX-5_8FN1-EA-16L_Edition1.indb 22016/12/12 10:05:40

4–3
MEMO
CX-5_8FN1-EA-16L_Edition1.indb 32016/12/12 10:05:40

4–4
When Driving
Start/Stop Engine
*Some models.

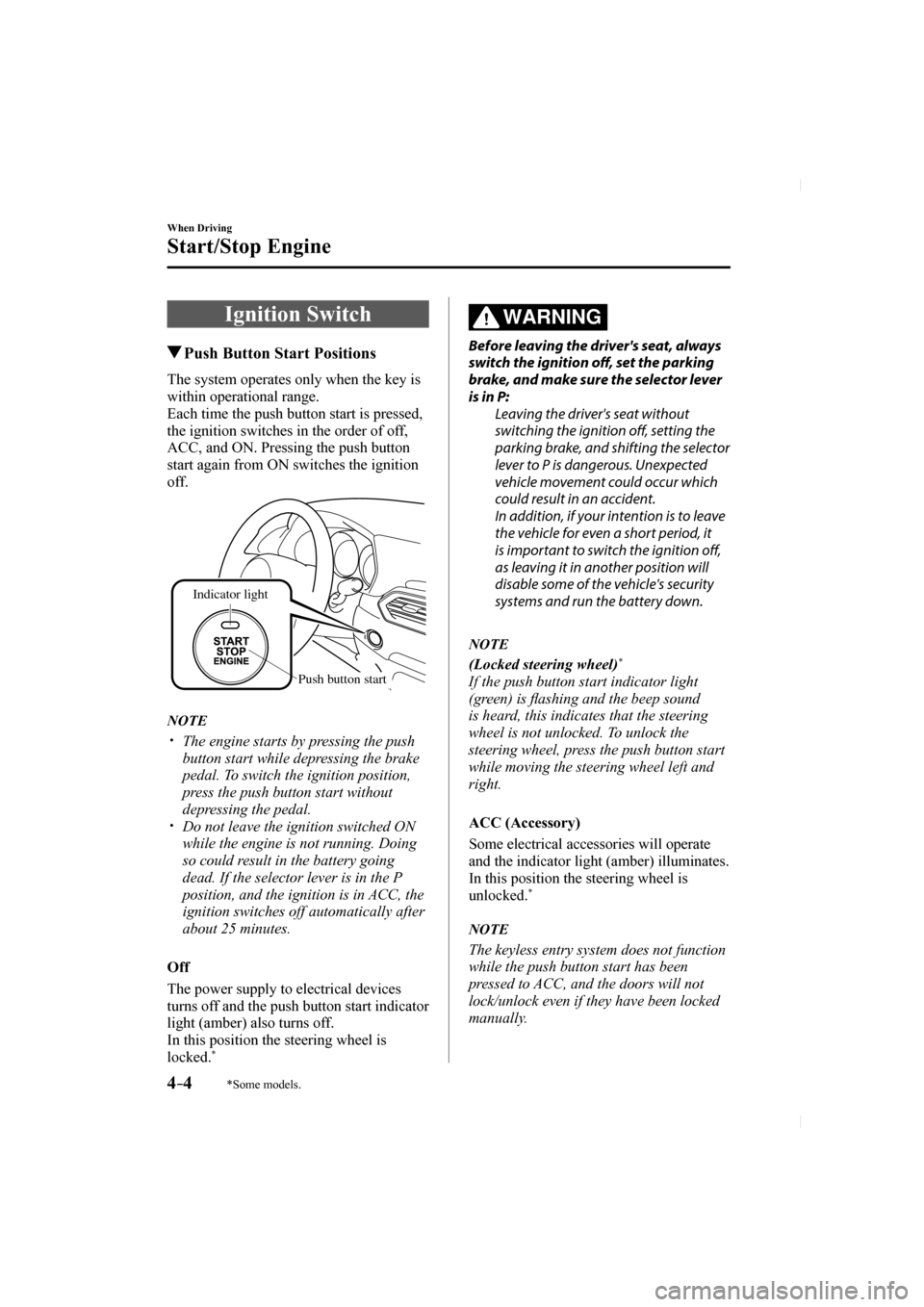

Ignition Switch
Push Button Start Positions
The system operates only when the key is
within operational range.
Each time the push button start is pressed,
the ignition switches in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.
Indicator light
Push button start
NOTE
   The engine starts by pressing the push
button start while depressing the brake
pedal. To switch the ignition position,
press the push button start without
depressing the pedal.
  Do not leave the ignition switched ON
while the engine is not running. Doing
so could result in the battery going
dead. If the selector lever is in the P
position, and the ignition is in ACC, the
ignition switches off automatically after
about 25 minutes.

Off
The power supply to electrical devices
turns off and the push button start indicator
light (amber) also turns off.
In this position the steering wheel is
locked.
*
WARNING
Before leaving the driver's seat, always
switch the ignition off , set the parking
brake, and make sure the selector lever
is in P: Leaving the driver's seat without
switching the ignition off , setting the
parking brake, and shifting the selector
lever to P is dangerous. Unexpected
vehicle movement could occur which
could result in an accident.
In addition, if your intention is to leave
the vehicle for even a short period, it
is important to switch the ignition off ,
as leaving it in another position will
disable some of the vehicle's security
systems and run the battery down.

NOTE
(Locked steering wheel) *
If the push button start indicator light
(green) is fl ashing and the beep sound
is heard, this indicates that the steering
wheel is not unlocked. To unlock the
steering wheel, press the push button start
while moving the steering wheel left and
right.

ACC (Accessory)
Some electrical accessories will operate
and the indicator light (amber) illuminates.
In this position the steering wheel is
unlocked.
*
NOTE
The keyless entry system does not function
while the push button start has been
pressed to ACC, and the doors will not
lock/unlock even if they have been locked
manually.

CX-5_8FN1-EA-16L_Edition1.indb 42016/12/12 10:05:40

4–5
When Driving
Start/Stop Engine
ON
This is the normal running position after
the engine is started. The indicator light
(amber) turns off. (The indicator light
(amber) illuminates when the ignition
is switched ON and the engine is not
running.)
Some indicator lights/warning lights
should be inspected before the engine is
started (page 4-32 ).
NOTE
When the push button start is pressed to
ON, the sound of the fuel pump motor
operating near the fuel tank can be heard.
This does not indicate an abnormality.

Starting the Engine
WARNING
Radio waves from the key may aff ect
medical devices such as pacemakers: Before using the key near people who
use medical devices, ask the medical
device manufacturer or your physician
if radio waves from the key will aff ect
the device.

CX-5_8FN1-EA-16L_Edition1.indb 52016/12/12 10:05:40

4–6
When Driving
Start/Stop Engine
NOTE
  The key must be carried because the key
carries an immobilizer chip that must
communicate with the engine controls at
short range.
  The engine can be started when the
push button start is pressed from off,
ACC, or ON.
  The push button start system functions
(function which can start the engine
by only carrying the key) can be
deactivated to prevent any possible
adverse effect on a user wearing a
pacemaker or other medical device. If
the system is deactivated, you will be
unable to start the engine by carrying
the key. Consult an Authorized Mazda
Dealer for details. If the push button
start system functions have been
deactivated, you can start the engine by
following the procedure indicated when
the key battery goes dead.
 Refer to Engine Start Function When Key Battery is Dead on page 4-8 .
  After starting a cold engine, the engine
speed increases and a whining sound
from the engine compartment can be
heard.
 This is for improved exhaust gas purifi cation and does not indicate any
parts defect.
   Engine-starting is controlled by the
spark ignition system.
 This system meets all Canadian Interference-Causing Equipment
Standard requirements regulating the
impulse electrical fi eld strength of radio
noise.

1. Make sure you are carrying the key.
2. Occupants should fasten their seat belts.
3. Make sure the parking brake is on. 4. Continue to press the brake pedal
fi rmly until the engine has completely
started.
5. (Manual transaxle)
Continue to press the clutch pedal fi rmly until the engine has completely
started.
(Automatic transaxle)
Put the vehicle in park (P). If you must restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
  (Manual transaxle)  The starter will not operate if the clutch
pedal is not depressed suf fi ciently.
   (Automatic transaxle)  The starter will not operate if the
selector lever is not in P or N and the
brake pedal is not depressed suf fi ciently.

6. Verify that the KEY indicator light
(green) (if equipped) in the instrument
cluster and the push button start
indicator light (green) illuminate.



Indicator light
Push button start
CX-5_8FN1-EA-16L_Edition1.indb 62016/12/12 10:05:40

4–7
When Driving
Start/Stop Engine
NOTE
  If the push button start indicator light
(green) fl ashes, make sure that the key is
being carried.
   If the push button start indicator light
(green) fl ashes with the key being
carried, touch the key to the push
button start and start the engine. Refer
to Engine Start Function When Key
Battery is Dead on page 4-8 .

CAUTION
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) fl ashes, this
could indicate a problem with the
engine starting system. This may
prevent the engine from starting or
from switching the ignition to ACC or
ON. Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.

NOTE
   Under the following conditions, the
KEY warning light (red) fl ashes after
the push button start is pressed. This
informs the driver that the push button
start will not switch to ACC, even if it is
pressed from off.
   The key battery is dead.  The key is out of operational range.  The key is placed in areas where it is
diffi cult for the system to detect the
signal (page 3-8 ).
  A key from another manufacturer
similar to the key is in the
operational range.
  (Forced engine starting method)  If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) fl ashes, this
could indicate that the engine may not
start using the usual starting method.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible. If this occurs, the engine can
be force-started. Press and hold the
push button start until the engine starts.
Other procedures necessary for starting
the engine, such as having the key in the
cabin, and depressing the clutch pedal
(manual transaxle) or the brake pedal
(automatic transaxle) are required.
   When the engine is force-started, the
KEY warning light (red) (if equipped)
remains illuminated and the push button
start indicator light (amber) remains
fl ashing.
   (Automatic transaxle)  When the selector lever is in the neutral
(N) position, the KEY indicator light
(green) (if equipped) and the push
button start indicator light (green) do
not illuminate.

CX-5_8FN1-EA-16L_Edition1.indb 72016/12/12 10:05:41

4–8
When Driving
Start/Stop Engine
7. Press the push button start after both the KEY indicator light (green) (if
equipped) in the instrument cluster and
the push button start indicator light
(green) illuminate.
NOTE
  After starting the engine, the push
button start indicator light (amber)
turns off and the ignition switches to the
ON position.
  After pressing the push button start and
before the engine starts, the operation
sound of the fuel pump motor from near
the fuel tank can be heard, however, this
does not indicate a malfunction.

8. After starting the engine, let it idle for about ten seconds.
NOTE
  Whether the engine is cold or warm, it
should be started without the use of the
accelerator.
  If the engine does not start the fi rst
time, refer to Starting a Flooded Engine
under Emergency Starting. If the engine
still does not start, have your vehicle
inspected by an Authorized Mazda
Dealer (page 7-17 ).

Engine Start Function When Key Battery is Dead
CAUTION
When starting the engine by holding
the transmitter over the push button
start due to a dead key battery or a
malfunctioning key, be careful not
to allow the following, otherwise the
signal from the key will not be received
correctly and the engine may not start.
 Metal parts of other keys or metal
objects touch the key.

 Spare keys or keys for other vehicles equipped with an immobilizer
system touch or come near the key.

 Devices for electronic purchases, or security passage touch or come near
the key.

CX-5_8FN1-EA-16L_Edition1.indb 82016/12/12 10:05:41
