2012 SSANGYONG KORANDO Service Manual

15-74012-00
2) Sectional Diagram and Bolts for Rear Sub Frame
Installation Sectional structure
1. Front
4WD 2WD
2. Rear
4WD 2WD
3. Rear axle - Front
(4WD)
4. Rear axle - rear
(4WD)

15-8

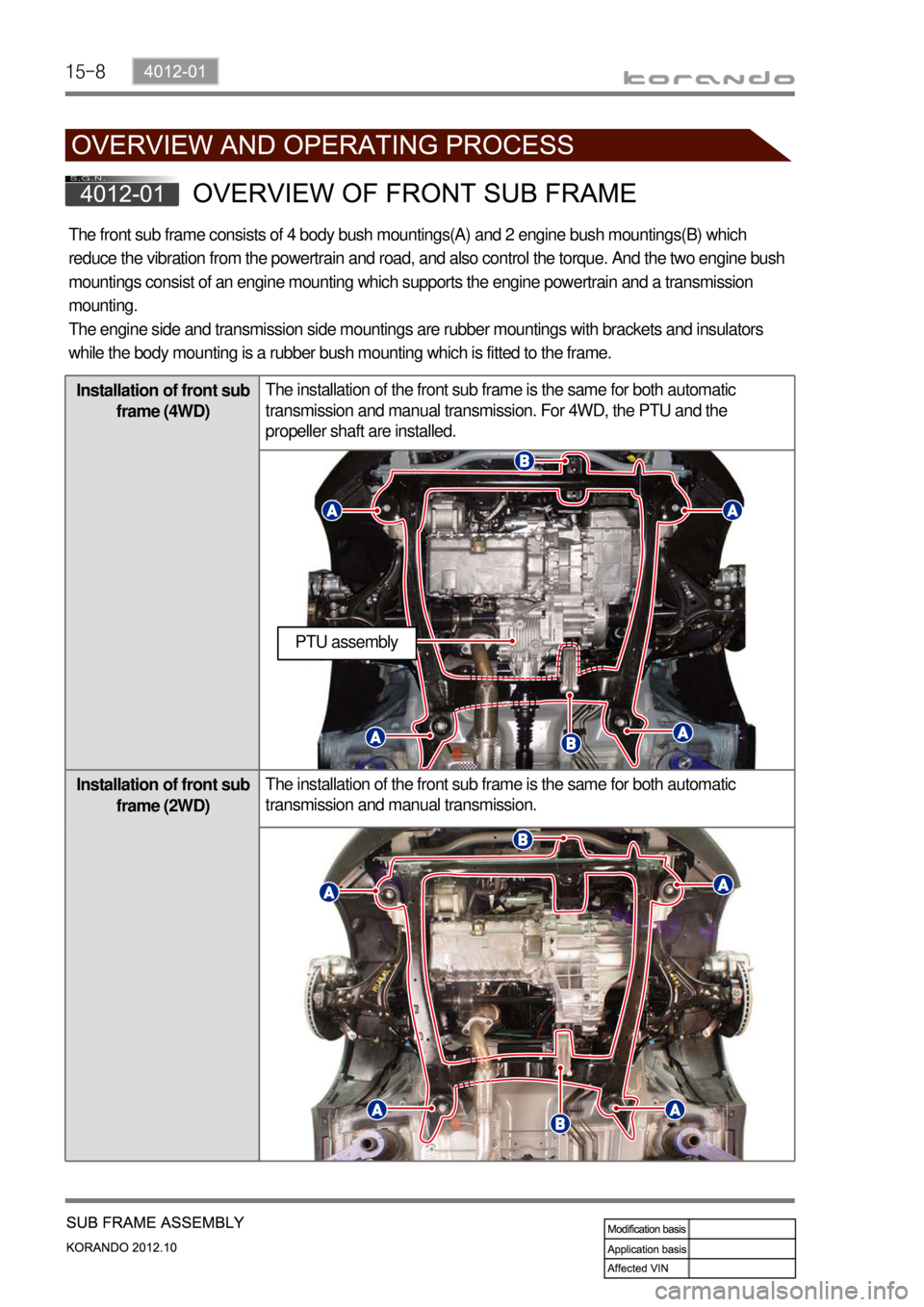

The front sub frame consists of 4 body bush mountings(A) and 2 engine bush mountings(B) which
reduce the vibration from the powertrain and road, and also control the torque. And the two engine bush
mountings consist of an engine mounting which supports the engine powertrain and a transmission
mounting.
The engine side and transmission side mountings are rubber mountings with brackets and insulators
while the body mounting is a rubber bush mounting which is fitted to the frame.
Installation of front sub
frame (4WD)The installation of the front sub frame is the same for both automatic
transmission and manual transmission. For 4WD, the PTU and the
propeller shaft are installed.
Installation of front sub
frame (2WD)The installation of the front sub frame is the same for both automatic
transmission and manual transmission.
PTU assembly

15-94015-01

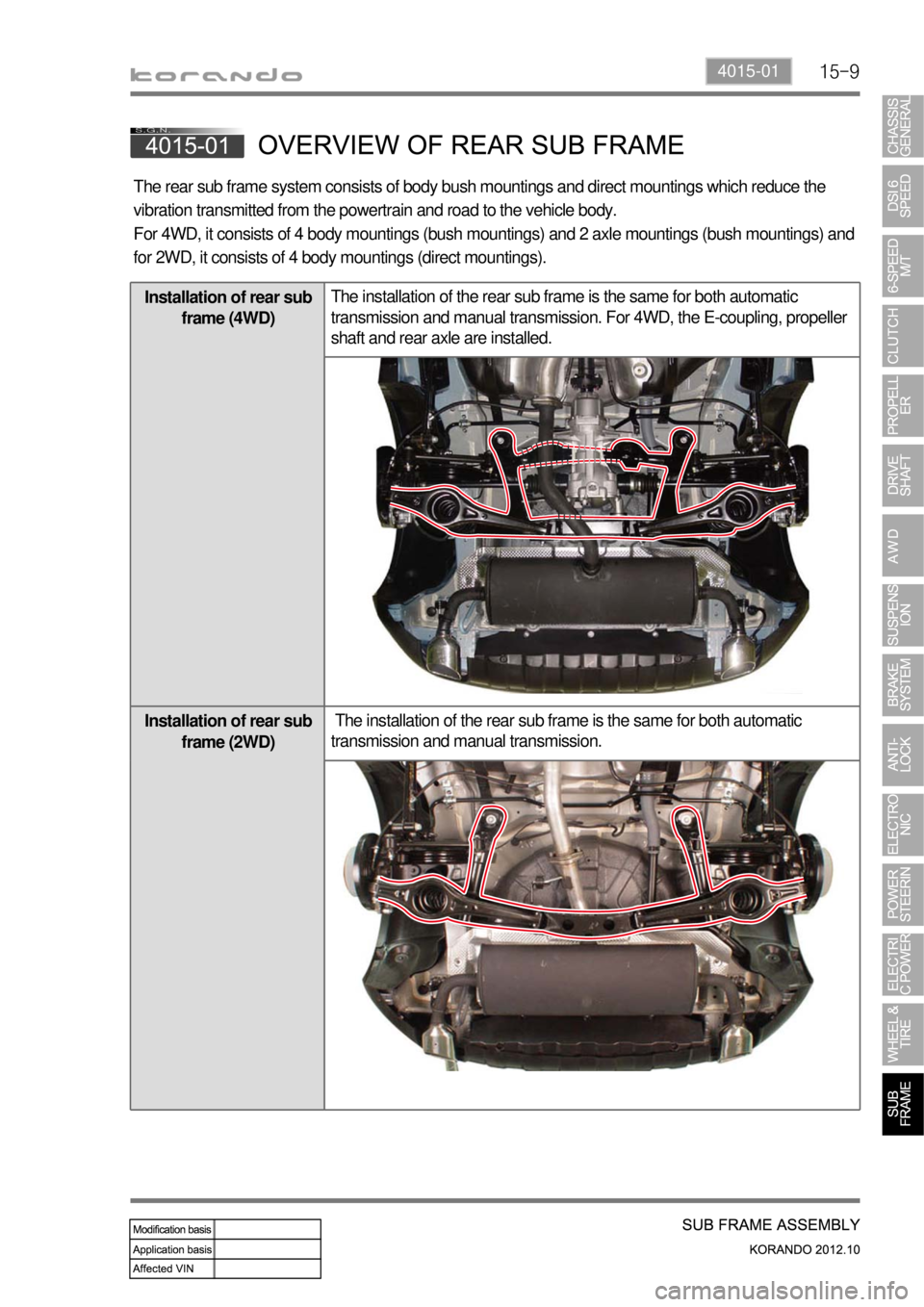

Installation of rear sub
frame (4WD)The installation of the rear sub frame is the same for both automatic
transmission and manual transmission. For 4WD, the E-coupling, propeller
shaft and rear axle are installed.
Installation of rear sub
frame (2WD) The installation of the rear sub frame is the same for both automatic
transmission and manual transmission.
The rear sub frame system consists of body bush mountings and direct mountings which reduce the
vibration transmitted from the powertrain and road to the vehicle body.
For 4WD, it consists of 4 body mountings (bush mountings) and 2 axle mountings (bush mountings) and
for 2WD, it consists of 4 body mountings (direct mountings).

01-36810-00
1. SPECIFICATION
Description Specification
HeaterCore size (㎣)200 x 165.5 x 25
Capacity (kcal/h) 4,800
EvaporatorCore size (㎣)254.8 x 196.75 x 60
Capacity (kcal/h) 4,700
Blower Supply power (W) 240 + 10% Max (at 12 V)
Fan speed (rpm)2900±200 Max
(Rec.Mode: 420㎥/h)
PTC Supply power 1 kW
CondenserCore size (㎣)588 x 455 x 16 (2,625)
Capacity (kcal/h) 12,000
Capacity of receiver drier 250 cc
compressor Capacity 170 cc/rev
Diameter of pulleyØ120
Max. continuous speed 8,000 rpm
voltage DC 12 V
Power consumption 2.2 A

01-4

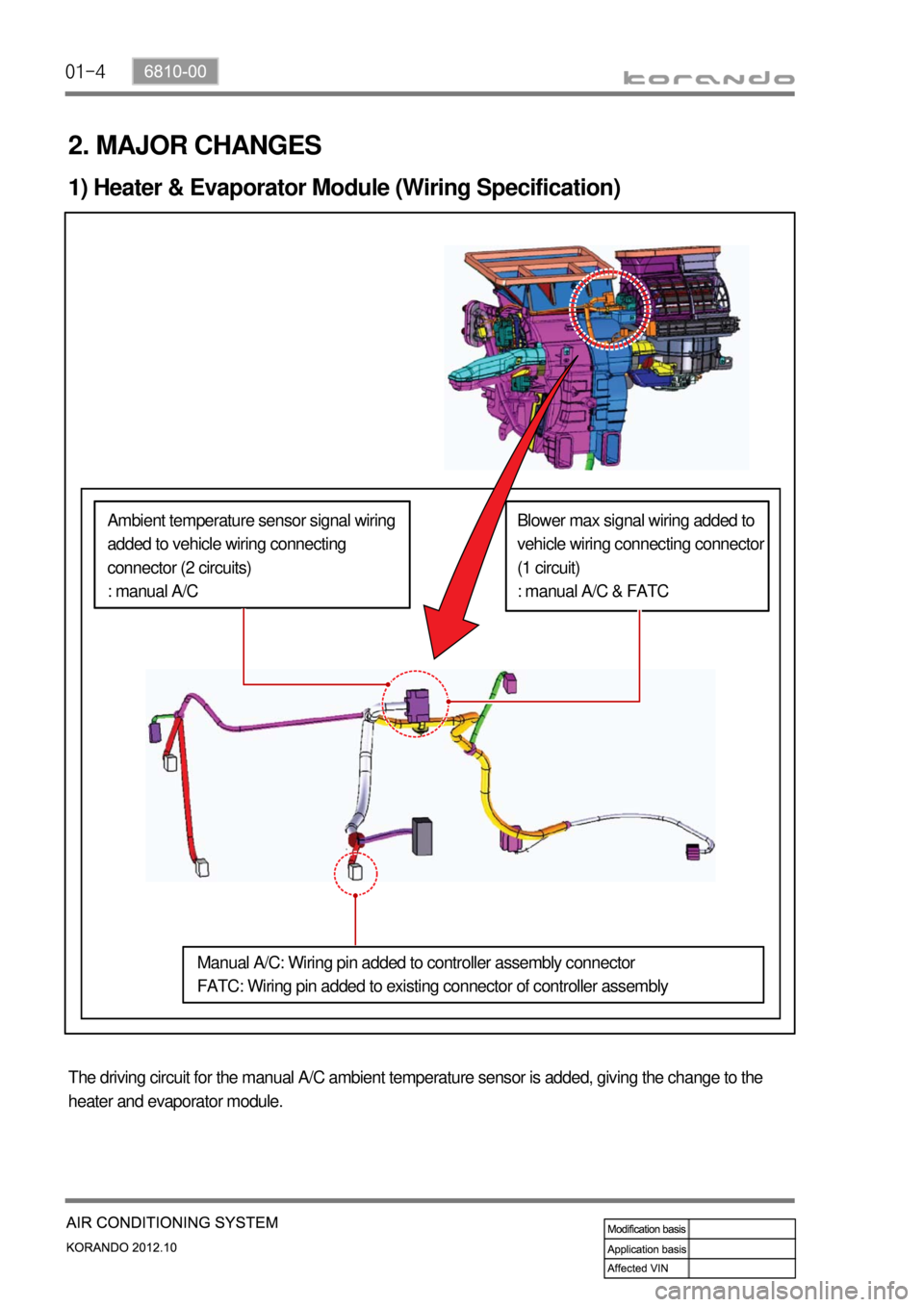

2. MAJOR CHANGES
1) Heater & Evaporator Module (Wiring Specification)
The driving circuit for the manual A/C ambient temperature sensor is added, giving the change to the
heater and evaporator module.
Ambient temperature sensor signal wiring
added to vehicle wiring connecting
connector (2 circuits)
: manual A/CBlower max signal wiring added to
vehicle wiring connecting connector
(1 circuit)
: manual A/C & FATC
Manual A/C: Wiring pin added to controller assembly connector
FATC: Wiring pin added to existing connector of controller assembly

01-56810-00

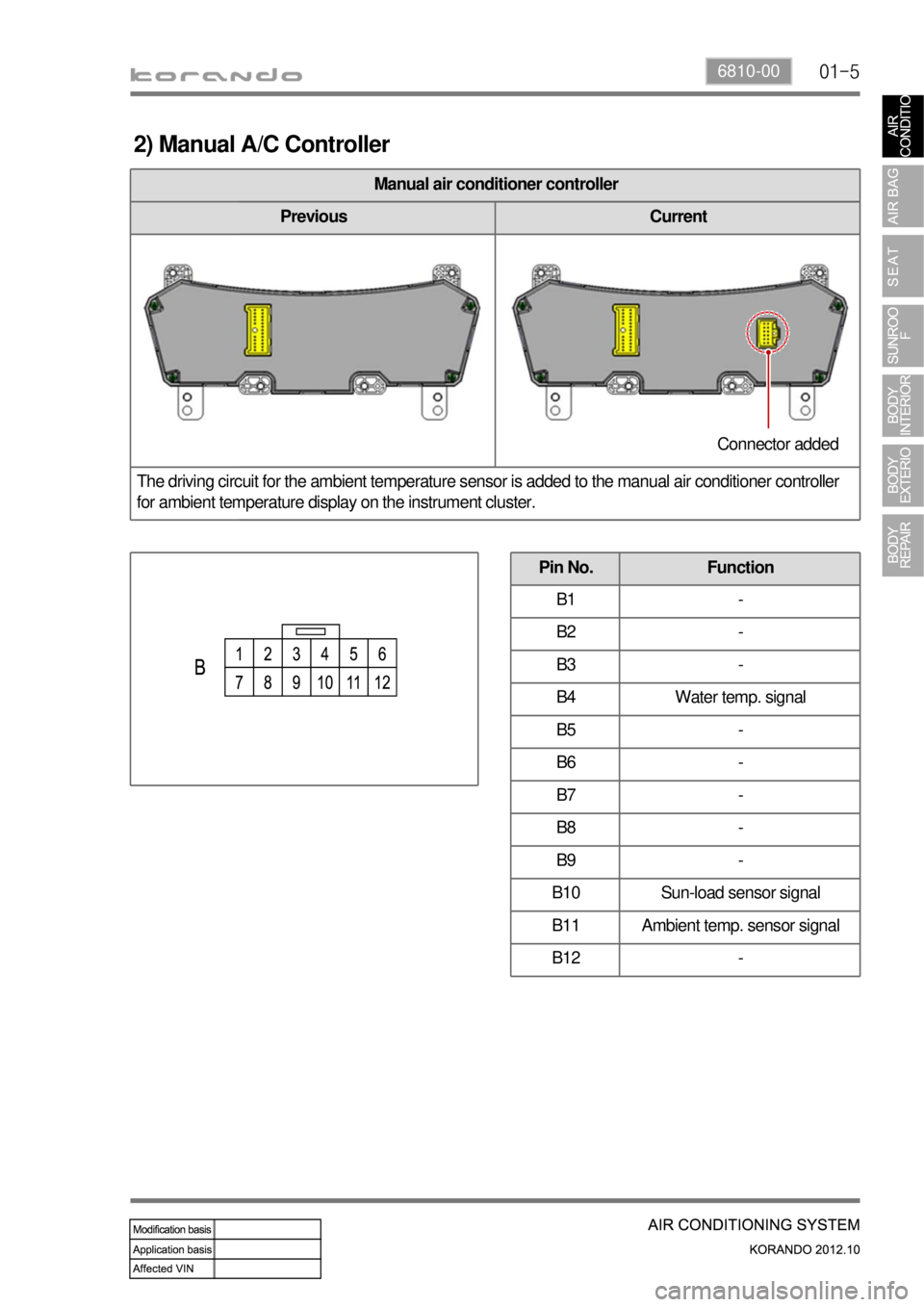

2) Manual A/C Controller
Manual air conditioner controller
Previous Current
The driving circuit for the ambient temperature sensor is added to the manual air conditioner controller
for ambient temperature display on the instrument cluster.
Connector added
Pin No. Function
B1 -
B2 -
B3 -
B4 Water temp. signal
B5 -
B6 -
B7 -
B8 -
B9 -
B10 Sun-load sensor signal
B11 Ambient temp. sensor signal
B12 -

01-6

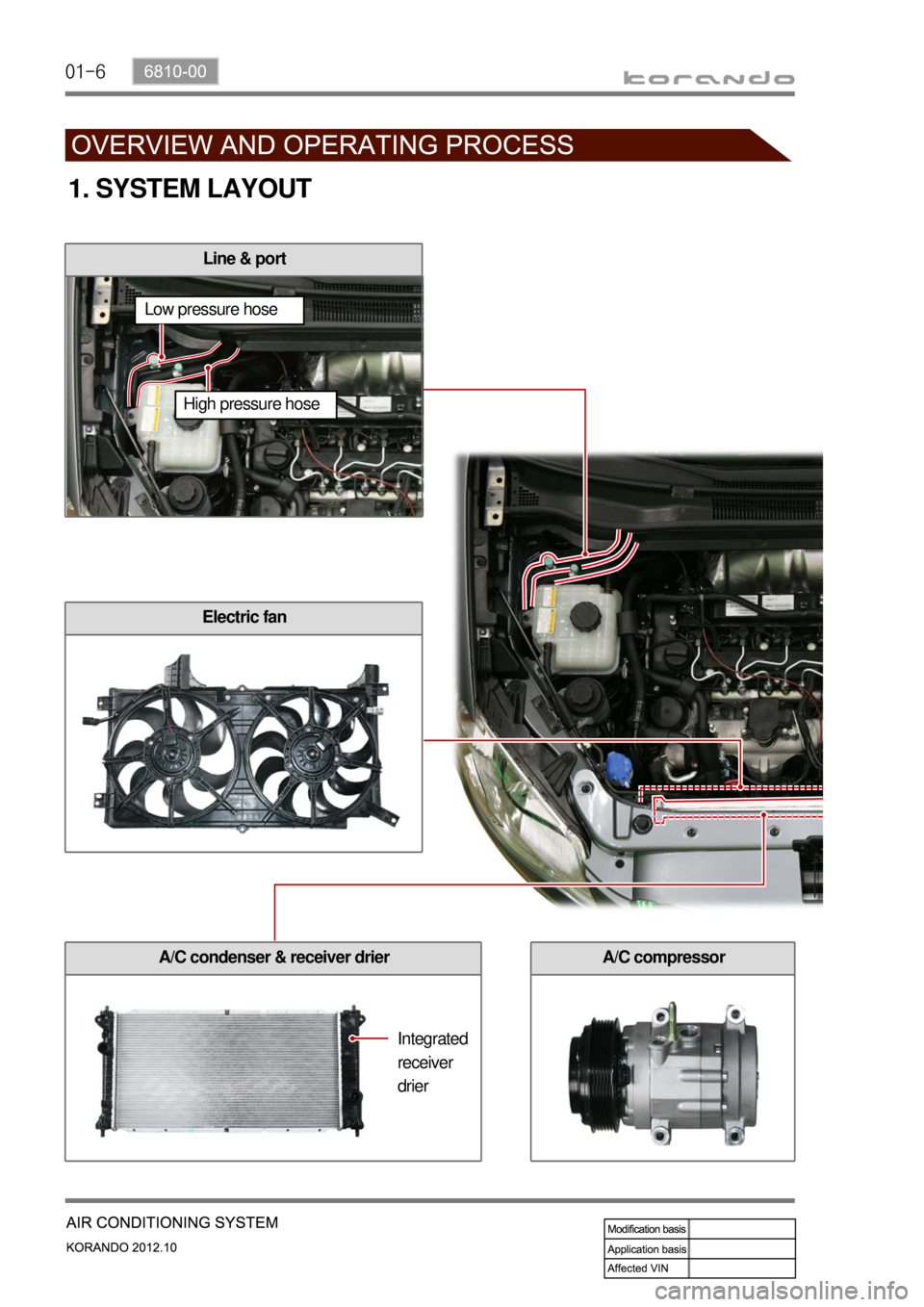

1. SYSTEM LAYOUT
Line & port
A/C compressor
Electric fan
A/C condenser & receiver drier
Integrated
receiver
drier
High pressure hose Low pressure hose

01-76810-00

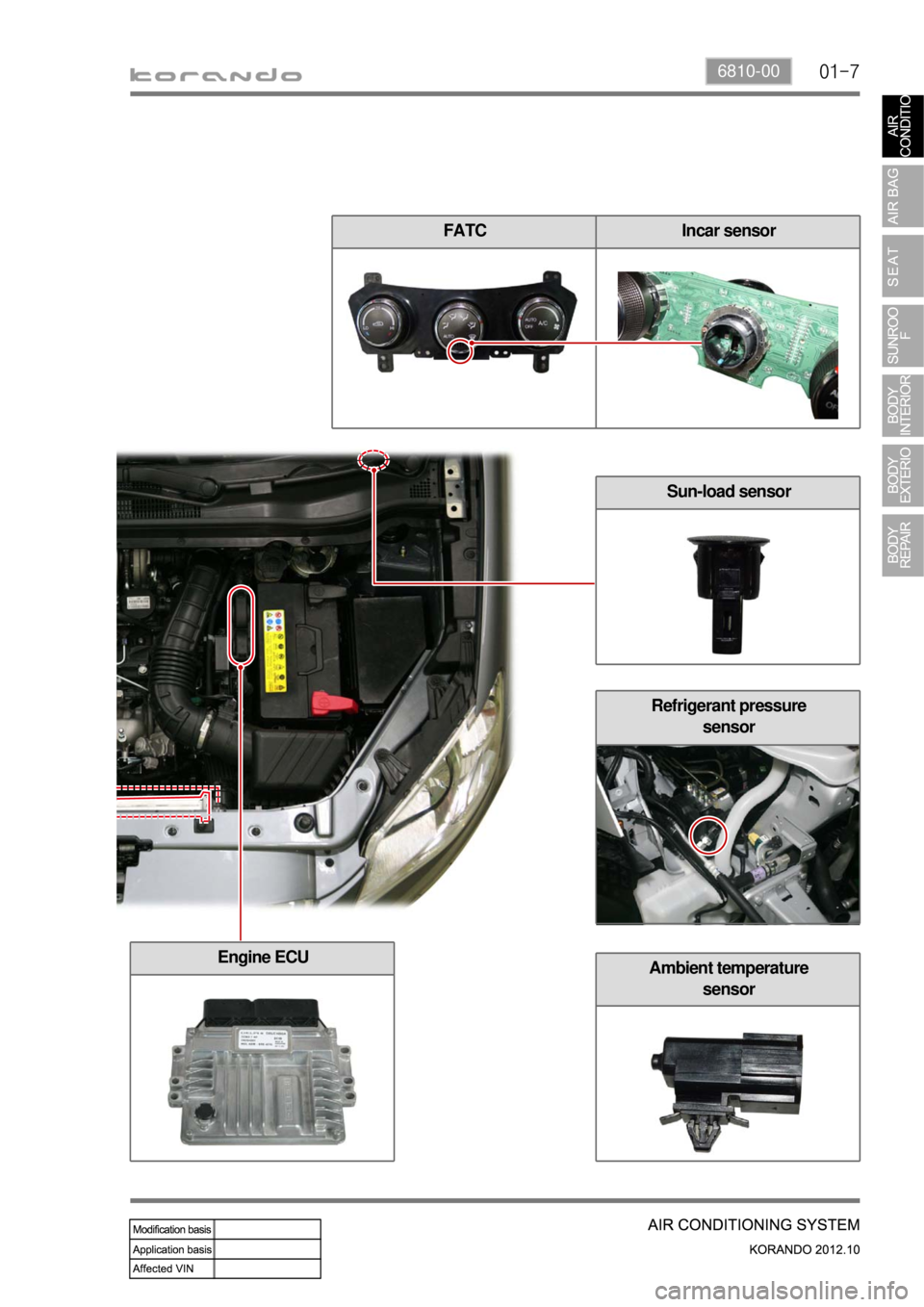

FATC Incar sensor
Refrigerant pressure
sensor
Ambient temperature
sensor
Sun-load sensor
Engine ECU
