2012 SSANGYONG KORANDO Service Manual

09-130000-00
2) Without SMART Key System

09-14
3. CIRCUIT DIAGRAM

10-31413-00
1. SPECIFICATION
Description Specification
Glow plug Rated voltage 4.4 V
Maximum temperature1100°C
Operating temperature1080 to 1100°C
Glow plug control unit EMS operating voltage 6 to 16 V
Operating temperature-40°C to 110°C
Dark current Max. 1 mA

10-4
GCU (Glow plug Control Unit)

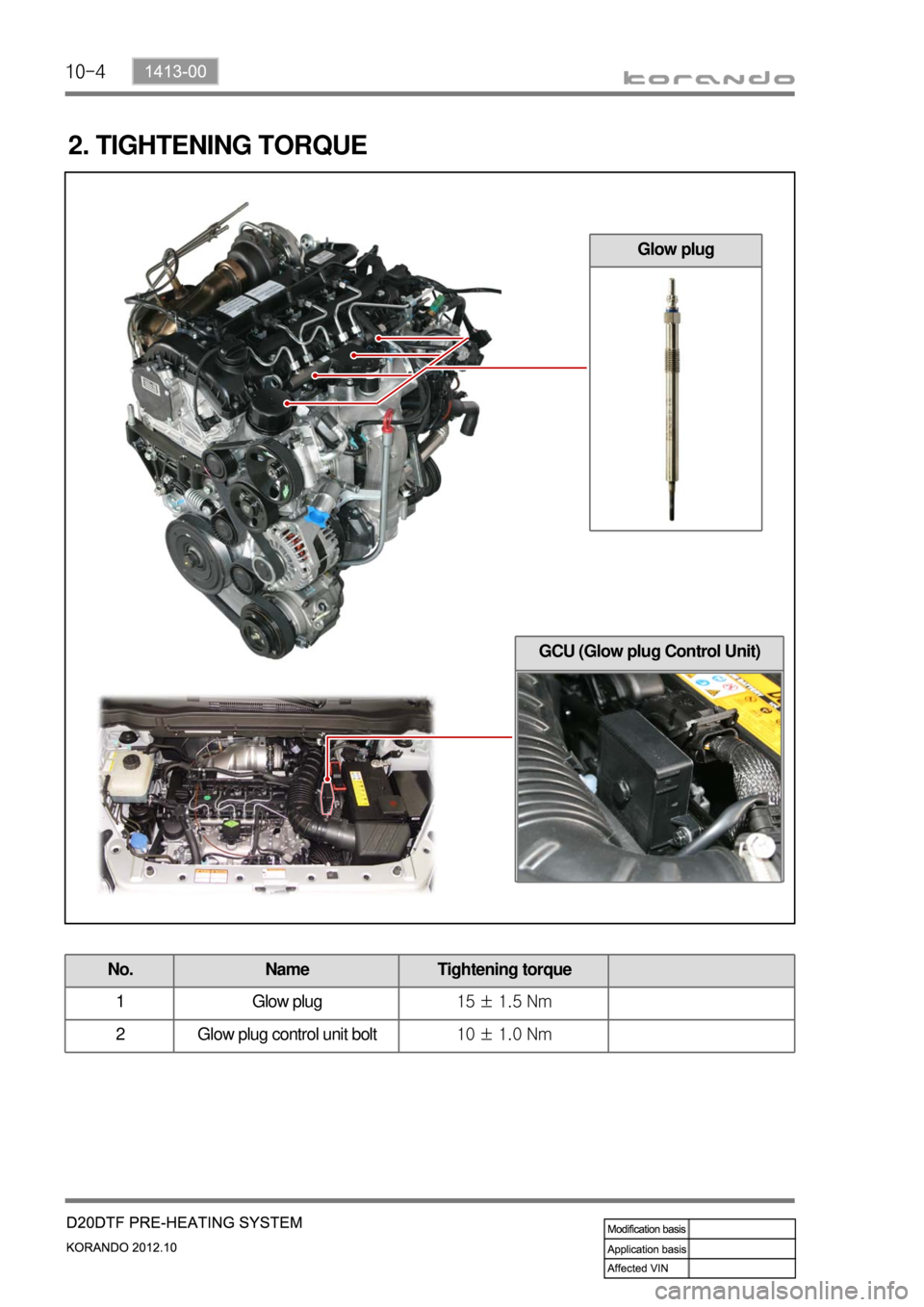

2. TIGHTENING TORQUE
No. Name Tightening torque
1 Glow plug 15 ± 1.5 Nm
2 Glow plug control unit bolt 10 ± 1.0 Nm
Glow plug

10-51413-00
1. OVERVIEW
The pre-heating system for D20DTF engine has the glow plug to the cylinder head (combustion
chamber), and improves the cold start performance and reduces the emission level.
The pre-heating resistor (air heater) is used to heat the intake air.
This enables the diesel fuel to be ignited in low temperature condition.
The ECU receives the information such as, engine rpm, coolant temperature, engine torque, etc.,
through CAN communication during pre-heating process; and the pre-heating control unit controls the
pre-heating, heating during cranking and post-heating by the PWM control.
Glow plugGlow plug control unit
(GCU)
Glow indicatorEngine ECU (D20DTF)

10-6
2. SYSTEM OPERATION
1) Input/Output Diagram of Glow Plug Control Unit
2) System Diagram

10-8
3) Circuit Diagram
