2012 SSANGYONG KORANDO Service Manual

07-8
(3) Tail lamp
The tail lamp is operated by the BCM when the BCM receives a signal from the multifunction switch.
Tail lamp warning ▶
The buzzer sounds for 10 seconds with the interval of 0.02 s ON and 1.38 s OFF when opening the
driver door with the key removed (without SKM)/with IGN OFF or ACC (with SKM) and tail lamp ON.
The buzzer stops its operation when turning off the tail lamp or closing the driver door during buzzer
operation. The buzzer stays ON when turning the tail lamp on again after turning it off during buzzer
operation. 1.
2.
Tail lamp auto turn-off ▶
When opening and closing the driver door after turning off the ignition with the tail lamp ON, the tail
lamps go off automatically.
The tail lamps come on again when inserting the ignition key (without SKM) and turning on the ignition
(with SKM) after tail lamp auto OFF.
The tail lamp should not go off when turning on the tail lamp switch with the ignition key removed
(without SKM) and with power off or ACC ON (with SKM). -
-
-
Tail lamp
Rear ▶Front ▶
Tail lamp

07-98310-00
Turn signal lamp
Rear ▶Front ▶
(4) Turn signal lamp / Side repeater lamp
The turn signal lamp is operated by the BCM when the BCM receives a signal from the multifunction
switch. The BCM cycles the turn signal lamp and buzzer (ON/OFF) 75 times per minute.
The turn signal lamps are operational only when IGN1 is ON.
If the turn signal lamp fails while it is illuminated, the BCM cycles the lamp and buzzer 100 times per
minute.
The BCM determines that there is an open circuit if the load is 3.0 A or less, and there is a short circuit if
the load is 7.0 A or more.
When turning ON the turn signal switch, the lamp blinks 3 times by the BCM. When turning OFF the
switch during the operation, the turn signal lamp blinks 3 times and goes off.
When turning OFF and then immediately ON the turn signal switch during auto blinking operation of 3
times, the turn signal lamp blinks additional 3 times.
If one of the turn signal lamp is flashing and the other lamp switch is turned on, the lamp for the activated
switch flashes.
Turn signal lamp

07-10
(5) Auto light (LIN)
The auto light sensor unit is installed to the back side of the ECM mirror located upper center of the
windshield, and detects the illuminance change. The BCM communicates with the auto light sensor
when the ignition is turned on, and turns on or off the tail lamp and headlamp automatically according to
the signals from the sensor when the multifunction switch is set to AUTO light.
The BCM communicates with the rain sensor even if the multifunction switch is in tail lamp.
Auto light switch Automatic light sensor unit
(6) Side repeater lamp
Side repeater lamp
The side repeater lamp is operated by the BCM when the BCM receives a signal from the multifunction
switch.
The BCM cycles the side repeater lamp and buzzer (ON/OFF) 75 times per minute.
The side repeater lamp operates only when IGN1 is ON.
If the side repeater lamp fails while it is illuminated, the BCM cycles the lamp and buzzer 100 times per
minute.
The lamp automatically flashes 3 times when the multifunction switch is turned on. If the switch is turned
off
during this operation, the lamp flashes 3 times and then goes off.
If the switch is turned off and then on during the 3 times of automatic flashing, the lamp flashes 3 more
times.

07-118310-00

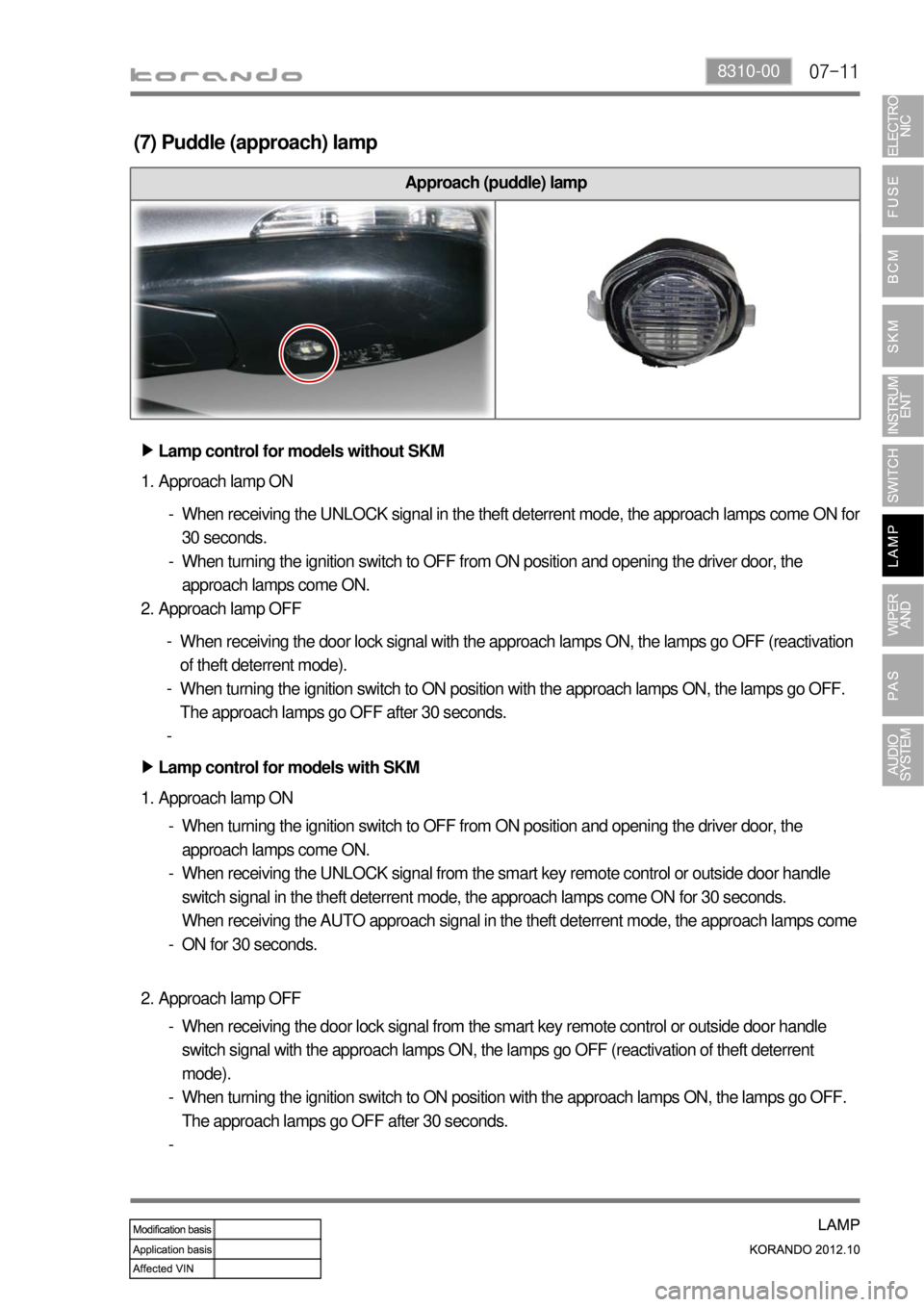

Approach (puddle) lamp
(7) Puddle (approach) lamp
Approach lamp ON 1.Lamp control for models with SKM ▶
When turning the ignition switch to OFF from ON position and opening the driver door, the
approach lamps come ON.
When receiving the UNLOCK signal from the smart key remote control or outside door handle
switch signal in the theft deterrent mode, the approach lamps come ON for 30 seconds.
When receiving the AUTO approach signal in the theft deterrent mode, the approach lamps come
ON for 30 seconds. -
-
-
Approach lamp OFF 2.
When receiving the door lock signal from the smart key remote control or outside door handle
switch signal with the approach lamps ON, the lamps go OFF (reactivation of theft deterrent
mode).
When turning the ignition switch to ON position with the approach lamps ON, the lamps go OFF.
The approach lamps go OFF after 30 seconds. -
-
- Approach lamp ON 1.Lamp control for models without SKM ▶
When receiving the UNLOCK signal in the theft deterrent mode, the approach lamps come ON for
30 seconds.
When turning the ignition switch to OFF from ON position and opening the driver door, the
approach lamps come ON. -
-
Approach lamp OFF 2.
When receiving the door lock signal with the approach lamps ON, the lamps go OFF (reactivation
of theft deterrent mode).
When turning the ignition switch to ON position with the approach lamps ON, the lamps go OFF.
The approach lamps go OFF after 30 seconds. -
-
-

07-12
Sun visor lamp
Glove box lamp
Front room lamp
1) Layout
2. INTERIOR LAMPS

07-138310-00
Center room lamp
Luggage lampDoor courtesy lamp

07-14
2) Operation
(1) Front room lamp/Center room lamp
Front room lamp Center room lamp
Operating the front room lamp and center room lamp switches illuminates the driver/passenger side
lamps and center room lamp.
Room lamp control by door coupled room lamp operation ▶
If a door except the tailgate is opened after the ignition is turned off, provided that door coupled front
room lamp switch is pressed, the front room lamp and center room lamp are illuminated for 2 sec.
and then fade out for 3 sec.
If a door except the tailgate is opened and then closed while the room lamp is fading out, the room
lamp is illuminated for 2 sec. and then fades out for 3 sec. If the ignition is turned on, the room lamp
goes off immediately.
The front room lamp and center room lamp are illuminated for 30 sec. when the door is unlocked by
the REKES or passive door UNLOCK function with IGN OFF and the ignition key removed. If the
REKES or passive door UNLOCK signal is received again, the room lamps are illuminated for
another 30 sec.
The room lamp goes off immediately when the REKES or passive door LOCK signal is received or
the ignition switch is turned to ON position.
If the room lamp is turned on after the ignition key is removed (door open or room lamp switch is
pressed), it is turned off after 10 minutes by the BCM.
When the door open state is changed or the ignition is turned on after the room lamp has been turned
off automatically, the battery saver feature is reset. 1.
2.
3.
4.
5.

07-158310-00
Sun visor lamp
Glove box lamp
(2) Luggage lamp
Luggage lamp
Courtesy lamp
The luggage lamp is turned on when the tailgate is opened
with the switch operated.
This lamp is not controlled by the BCM, unlike the
front/center room lamp.
(3) Other interior lamps
The glove box lamp comes on when the glove box is
opened after the tail lamp is illuminated.
The sunvisor lamp comes on when the sunvisor vanity
mirror cover is opened.
The door courtesy lamp comes on when the driver's door
or passenger's door is opened.
