2012 SSANGYONG KORANDO Service Manual

03-198710-01
Speed sensitive intermittent wiper ▶
The BCM without rain sensor operates the wiper as follows:
When turning the ignition switch to ON from OFF position with the intermittent wiper switch in "ON"
position, the wipers do not operate.
When turning the wiper switch to ON from OFF position after turning the ignition switch to ON position,
the wipers operate one cycle.
The wiper's operation cycle depends on the vehicle speed (CAN communication with instrument
cluster) and wiping speed the side fascia panel.
<0054004700760097008c00990088009b0090009600950047008a00a0008a0093008c00610047005a00b700570055005c0047009a008c008a0047004f006d0068007a007b00500047009b009600470058006000b700590047009a008c008a0047004f007a00
730076007e0050> 1.
2.
3.

03-20

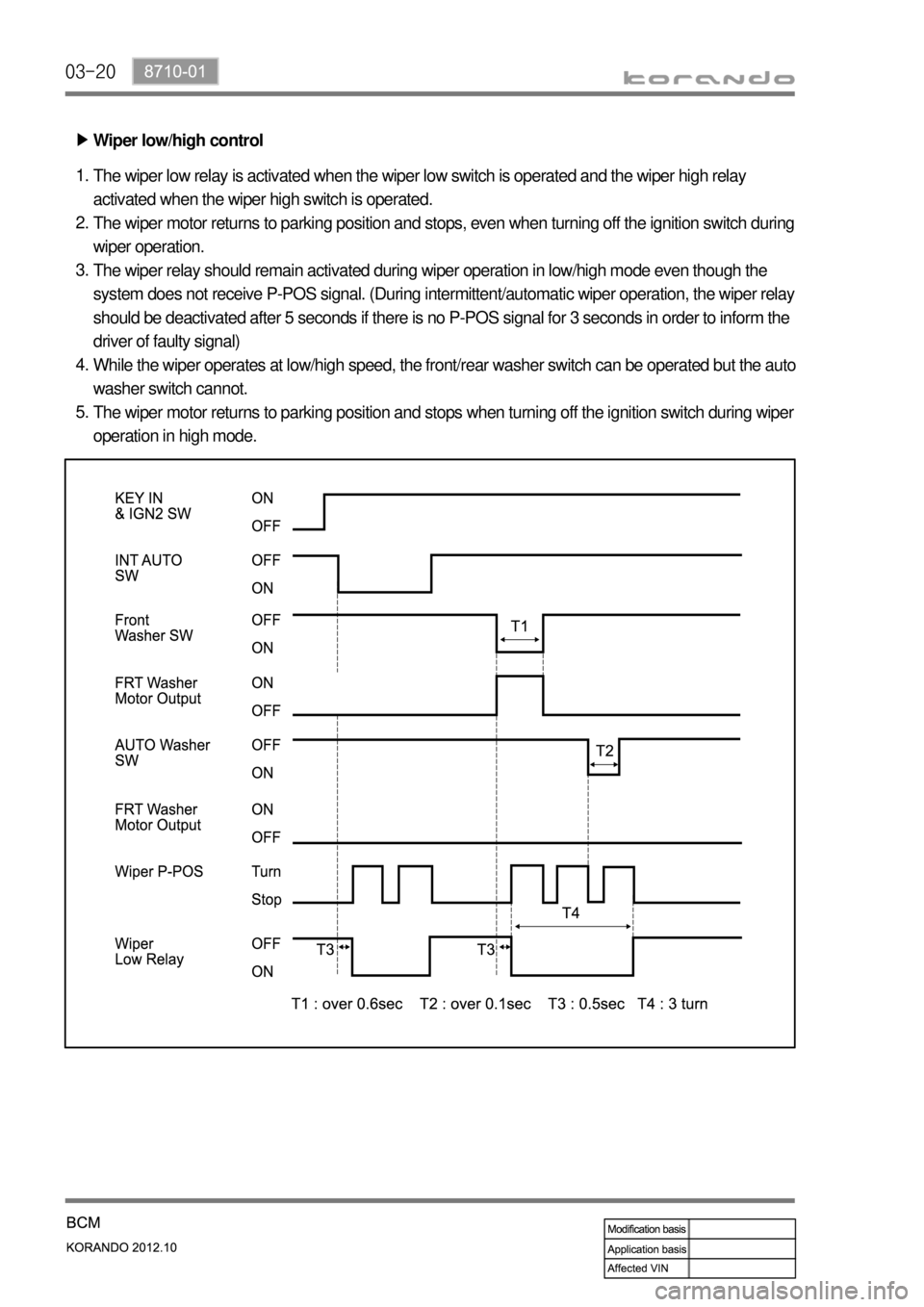

Wiper low/high control ▶
The wiper low relay is activated when the wiper low switch is operated and the wiper high relay
activated when the wiper high switch is operated.
The wiper motor returns to parking position and stops, even when turning off the ignition switch during
wiper operation.
The wiper relay should remain activated during wiper operation in low/high mode even though the
system does not receive P-POS signal. (During intermittent/automatic wiper operation, the wiper relay
should be deactivated after 5 seconds if there is no P-POS signal for 3 seconds in order to inform the
driver of faulty signal)
While the wiper operates at low/high speed, the front/rear washer switch can be operated but the auto
washer switch cannot.
The wiper motor returns to parking position and stops when turning off the ignition switch during wiper
operation in high mode. 1.
2.
3.
4.
5.

03-218710-01
2) Ignition Key Reminder
Key reminder warning
(This function has priority over the "Tail lamp on warning".) ▶
When opening the driver door while the ignition key is inserted into the key cylinder, the buzzer sound
for 10 seconds with the interval of 0.02 s ON and 1.38 s OFF.
When removing the ignition key or closing the driver door during the buzzer output (within 10
seconds), the buzzer stops its operation.
This function is not available when the ignition switch (IGN1) is in "ON" position. 1.
2.
3.

03-22
Ignition key reminder ▶
When opening a front door or turning on the door lock switch while the ignition key is inserted into the
key cylinder, the doors are locked for 0.5 seconds, and unlocked.
The door remain unlocked even when the door lock switch is received "door lock" signal within 0.5
seconds after opening and closing the door.
However, the doors should not be unlocked when removing the ignition key during the locking
process by door lock switch. 1.
2.
3.
(*1) : Driver door lock switch or passenger door lock switch
(*2) : Driver door switch or passenger door switch

03-238710-01
Anti-lock function when a door is open ▶
If any of doors (except tailgate and engine hood) is open, the doors are locked once but immediately
unlocked when receiving the lock signal.
The door remains unlocked for 0.5 seconds when closing the door during unlock.
The system also performs operation as above while the key is removed or the ignition switch is
turned to "ON" position. The ignition key reminder function is activated while the ignition key is
inserted into the key cylinder.
This function is not available when the vehicle speed is over 10 km/h. 1.
2.
3.
4.
(*1) : Driver door lock switch or passenger door lock switch
(*2) : Driver door switch or passenger door switch

03-24
3) Tail Lamp
Tail lamp left ON warning (sunroof and ignition key reminder functions have priority) ▶
The buzzer sounds for 10 seconds with the interval of 0.02 s ON and 1.38 s OFF when opening the
driver door with the key removed (without SKM)/with IGN OFF or ACC (with SKM) and tail lamp ON.
The buzzer stops its operation when turning off the tail lamp or closing the driver door during buzzer
operation. The buzzer stays ON when turning the tail lamp on again after turning it off during buzzer
operation.
This function is not available when the ignition switch (IGN1) is in ON position. 1.
2.
3.

03-258710-01
Tail lamp auto OFF ▶
When opening and closing the driver door after turning off the ignition with the tail lamp ON, the tail
lamps go off automatically.
The tail lamps come on again when inserting the ignition key (without SKM) and turning on the
ignition (with SKM) after tail lamp auto OFF.
The tail lamp should not go off when turning on the tail lamp switch with the ignition key removed
(without SKM) and with power off or ACC ON (with SKM). 1.
2.
3.
Tail lamp ON warning (with SKM) ▶
The tail lamp ON warning signal is sent via the BCAN communication when the tail lamp remains ON
with the ignition key OFF or ACC. 1.

03-26
4) Door Ajar Warning
While the BCM without SKM controls the warning lamp, the BCM with SKM controls the warning lamp
and sends the signal via the BCAN communication. But, this control is available only when any of doors
or tailgate, except engine hood, is open.
The instrument cluster controls the door ajar warning lamp according to the signal from the BCM.
(However, the BCM controls the door ajar warning lamp with the electric wire together with the BCAN
communication.)
Also, the instrument cluster controls the blinking function according to the vehicle speed.
(However, the BCM controls the door ajar warning lamp blinking with the electric wire together with
the BCAN communication.) 1.
2.
(*1) : Ajar: Driver, passenger, rear door or tailgate is open
Close: Driver, passenger, rear door and tailgate are closed
