(8) Brake not working alert
The SKM sends the brake not working alert signal for 10 sec. every time the ignition status is changed
after the 1st cycle (OFF-ACC-IGN-ACC-OFF) while the brake is not operated.
when the brake pedal is depressed, the system is reset and alert deactivation signal is sent.
when the 10 min. timer is terminated -
-
(9) Clutch not working alert
The SKM sends the clutch not working alert signal for 10 sec. every time the ignition status is changed
after the 1st cycle (OFF-ACC-IGN-ACC-OFF)
while the clutch is not operated.
when the clutch pedal is depressed, the system is reset and alert deactivation signal is sent.
when the 10 min. timer is terminated -
-
(10) Smart key slot detection alert
The SKM sends the smart key slot detection alert signal for 10 sec. when a smart key inserted into
the slot is detected with IGN OFF and the driver's door open. -
(11) SKM alert priority
1 Smart key out alert EXTERIOR
1
2 Smart key reminder alert EXTERIOR
3 Smart key verification fail alert INTERIOR
2 4 Transponder verification failure alarm INTERIOR
5 Smart key battery low voltage alert INTERIOR
6 Transmission position alert INTERIOR
7 SKM error alert INTERIOR
8 Brake alert INTERIOR
9 Clutch alert INTERIOR
10 Smart key slot reminder alert INTERIOR1
Warning cancellation requirements ▶
Warning cancellation requirements ▶
Warning transmission conditions ▶
Warning cancellation requirements ▶
when the smart key is removed, the alert deactivation signal is sent.
when the 10 min. timer is terminated -
-

05-38010-01
1. SPECIFICATION
Pin No. Specification
Rated voltage DC 13.5 V
Operating voltage DC 9 V ~ 16 V
CAN operating
voltage DC 7 V ~ 18 V
Inspection voltage DC 13.5 V
Operating
temperature -30℃ ~ +80℃
Storage temperature -40℃ ~ +85℃
Dark currentIGN OFF: 1 mA, 12 V
<0074008c0088009a009c0099008c0094008c0095009b0047008a00960095008b0090009b0090009600950047004f0088009b00470059005c0b45005000610047005d00570047009a008c008a00960095008b009a00470088008d009b008c00990047009b00
8f0088009b00470090008e00950090009b0090009600950047>is
turned off and stabilized data get
IGN ON: Max. 2 A, 12 V
<0074008c0088009a009c0099008c0094008c0095009b0047008a00960095008b0090009b0090009600950047004f0088009b00470059005c0b45005000610047008b009c009900900095008e0047006b007b006a0047008a008f008c008a00920047009400
96008b008c>

05-4
2. MAJOR CHANGES
SVC class
Previous Current
Rearranged pre-warning indicator which comes on and goes off when turning ignition on.
1) Steering wheel heating indicator added
2) Pre-warning indicator rearranged
3) Winter mode indicator added(DSL only)
STD class
Previous Current
Winter mode indicator added (one green LED)
SVC class
Previous Current
One indicator added since steering wheel heating function is equipped.

05-58010-01
Previous Current

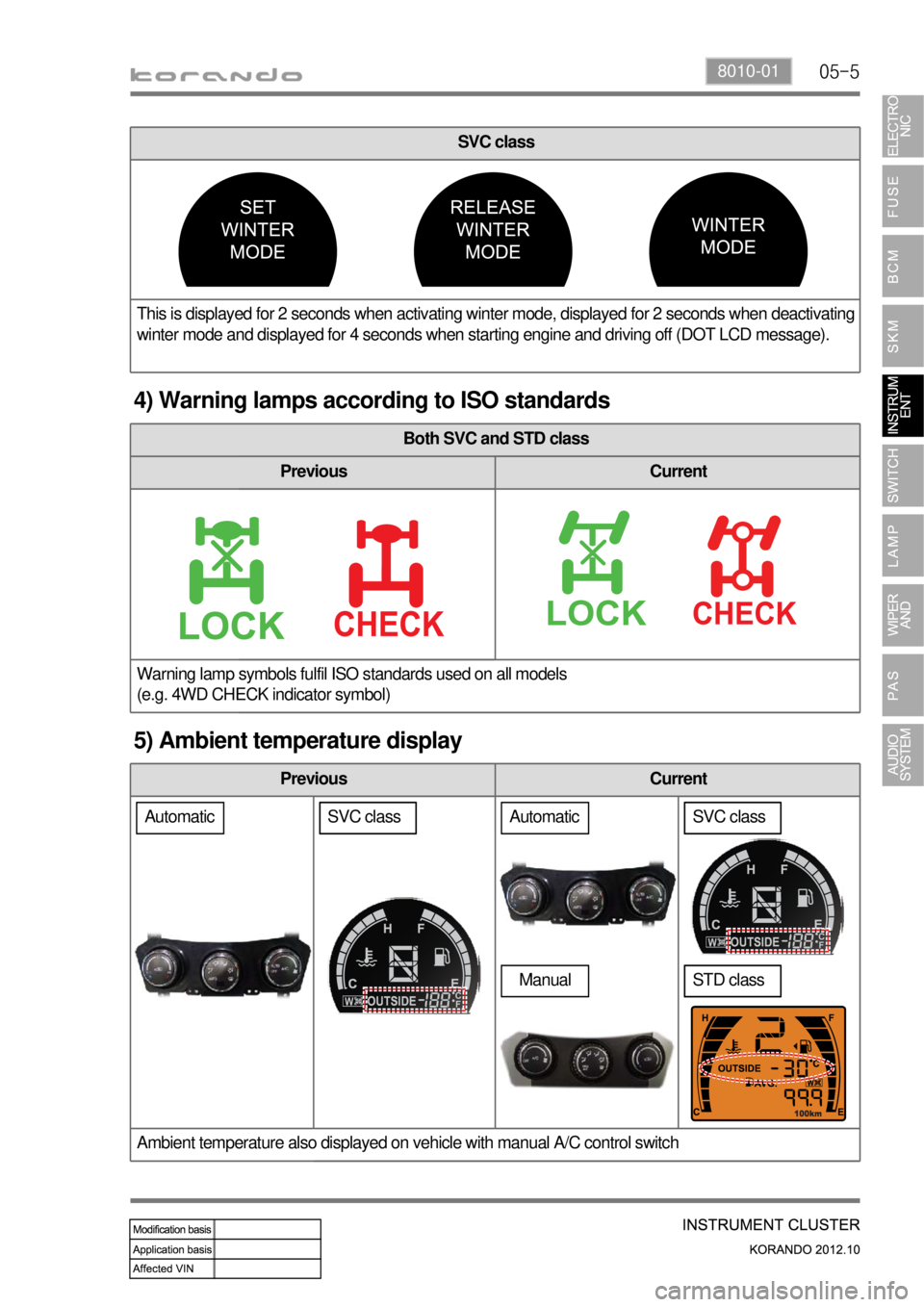

Ambient temperature also displayed on vehicle with manual A/C control switch
Both SVC and STD class
Previous Current
Warning lamp symbols fulfil ISO standards used on all models
(e.g. 4WD CHECK indicator symbol)
4) Warning lamps according to ISO standards
5) Ambient temperature display
SVC class
This is displayed for 2 seconds when activating winter mode, displayed for 2 seconds when deactivating
winter mode and displayed for 4 seconds when starting engine and driving off (DOT LCD message).
AutomaticAutomatic
Manual
SVC classSVC class
STD class

05-6
SVC class
Previous Current
Changed from figure type to bar graph type.
6) Average fuel economy reset and calibrated automatically when
refilling
7) Instant fuel consumption display changed
8) Pre-warning indicator for engine overheat removed
Both SVC and STD class
Previous Current
Reset by user Reset by user and automatic reset when refilling
9) TDMS logic changed
SVC class
Current
TDMS (Tier Direction Management System) is not displayed when EPS warning lamp comes on.
SVC class STD class
Pre-warning indicator for engine overheat is removed.
EPS warning lampTDMS displayLCD not displayed
EPS warning lamp
comes onLCD screen is not
displayed.

05-78010-01
1. OVERVIEW
There are two types in the instrument cluster used for KORANDO C: SVC (super vision) and STD
(standard). While the SVC type has three LCD screens - , and SEG LCD>, the STD type has one LCD screen.
2. LAYOUT
SVC ▶
ODO SEG LCD
GAGE SEG LCDGAGE SEG LCD

05-8
Engine RPM gaugeSpeedometer
STD ▶
LCD

05-98010-01
1) SVC
3. Description of Warning Lamps & Indicators
