2012 SSANGYONG KORANDO Service Manual

05-42
9) Buzzer
Specifications ▶
Function Signal
Part name PKM17EPP-2002-B0 (MURATA, Piezoelectric Sound Components)
Permitted input voltage 25 VP-P or less
Operating temperature-20˚C to +70˚C
Storage temperature-30˚C to +80˚C
Sound pressure level 70 dB/min (3 Vp-p, 2 kHz, square wave, 10 cm)
Capacitance10.9 nF ±30% (120 Hz)
Output ▶
Pin No.Middle East
(STD only)Except Middle
EastBuzzer
Priority
ON_Time OFF_Time
PAS O O - - 0
Over speed
warningO X 500 ms 200 ms 1
ESP O O 100 ms 100 ms 2
Temperature
warningO O 500 ms 500 ms 3
Fuel filter O O 500 ms 500 ms 4
Parking
brakeO O 2.8 s 1.5 s 5
Modulating frequency: 1.96 kHz
If the signal with higher priority is activated during the operation of signal with lower priority, the
current operation should be completed before starting the operation with higher priority.
If there are multiple signals at a time, the operation should be completed by the priority. -
-
-

05-438010-01
10) PAS (Parking Aid System)
(2) Self Diagnosis Mode
Operating conditions
Self diagnosis is performed once when the ignition is switched on (gear shift lever in "R" position). If
the system is defective (Fail) due to open sensor or communication problem, the information for the
failed sensor is sent to the instrument cluster. ▶
Fail condition (However, no obstacle should be within 30 cm)
1. The signal wire is open
2. The power wire (+ and -)is open -
Buzzer interval during self diagnosis ▶
(1) Sensor Operating Process
The ultrasonic sensors transmit ultrasonic waves and receive the reflected waves from an obstacle to
detect it in the following order: L → C → R.

05-44
Timeout processing time for buzzer interval after measuring distance/self diagnosis: 600 ms
- If timeout is reached, the PAS returns to undetected condition.
Process while re-inputting
After timeout, the process is performed normally if the signal required for display is received from
beginning to end.
(not detectable if the signal is received in the midst of process) 1.
2.Exception/error handling -Buzzer interval when measuring distance ▶

05-458010-01
Pin No.Message
Operating condition
Ambient temperature:
indicates air temperature
outside controlTRIP switch
Trip AReset: Press and hold the Trip switch
for more than 1 second
Trip BReset: Press and hold the Trip switch
for more than 1 second
Distance to empty:
indicates a distance can be
driven with the fuel remaining
controlFactory-setting mode
Average fuel consumption:
indicates average fuel
controlReset: Press and hold the Trip switch
for more than 1 second
Instant fuel consumption:
indicates fuel consumption for
a short periodsTRIP switch
Illumination brightness:
indicates tail lamp brightness
controlBrightness control: Press and hold the
Trip switch for more than 1 second
Start-up screenDisplayed for 2 seconds right after
ignition is switched on
Driver's seat belt
reminderDisplayed for 4 seconds after
'WELCOME' screen
DOT LCD message display ▶
Pin No. Message Operating condition

05-46
Pin No.Message
Operating condition
Domestic Export
Smart key
warningThis message comes on the LCD display, if the smart
key is not in the vehicle when the door is open and
closed in the ignition ON or ACC mode.
This message comes on the LCD display for approx. 10
seconds, if the ignition switch is pressed when the smart
key is not in the vehicle.
This message comes on the LCD display for approx. 10
seconds, if the smart key verification fails after inserting
the smart key into the key holder.
This message comes on the LCD display for approx. 10
seconds with warning sound if the smart key is in the key
holder when the driver door is open with ignition OFF.
This message informs the driver that the brake pedal
should be depressed and the ignition switch be pressed
in order to start the engine, if the ignition is switched to
ACC mode for more than one time when the driver keeps
pressing the ignition switch without depressing the brake
pedal.
This message informs the driver that the clutch pedal
should be depressed and the ignition switch be pressed
in order to start the engine, if the ignition is switched to
ACC mode for more than one time when the driver keeps
pressing the ignition switch without depressing the clutch
pedal.
This message comes on for approx. 10 seconds to
inform the driver that the ignition switch should be
pressed with the shift lever in P in order to start the
engine.
This message comes on for approx. 10 seconds to
inform the driver that the verified smart key is in the
vehicle, if the driver locks the door using another verified
smart key with all the doors closed.
Pin No. Message Operating condition

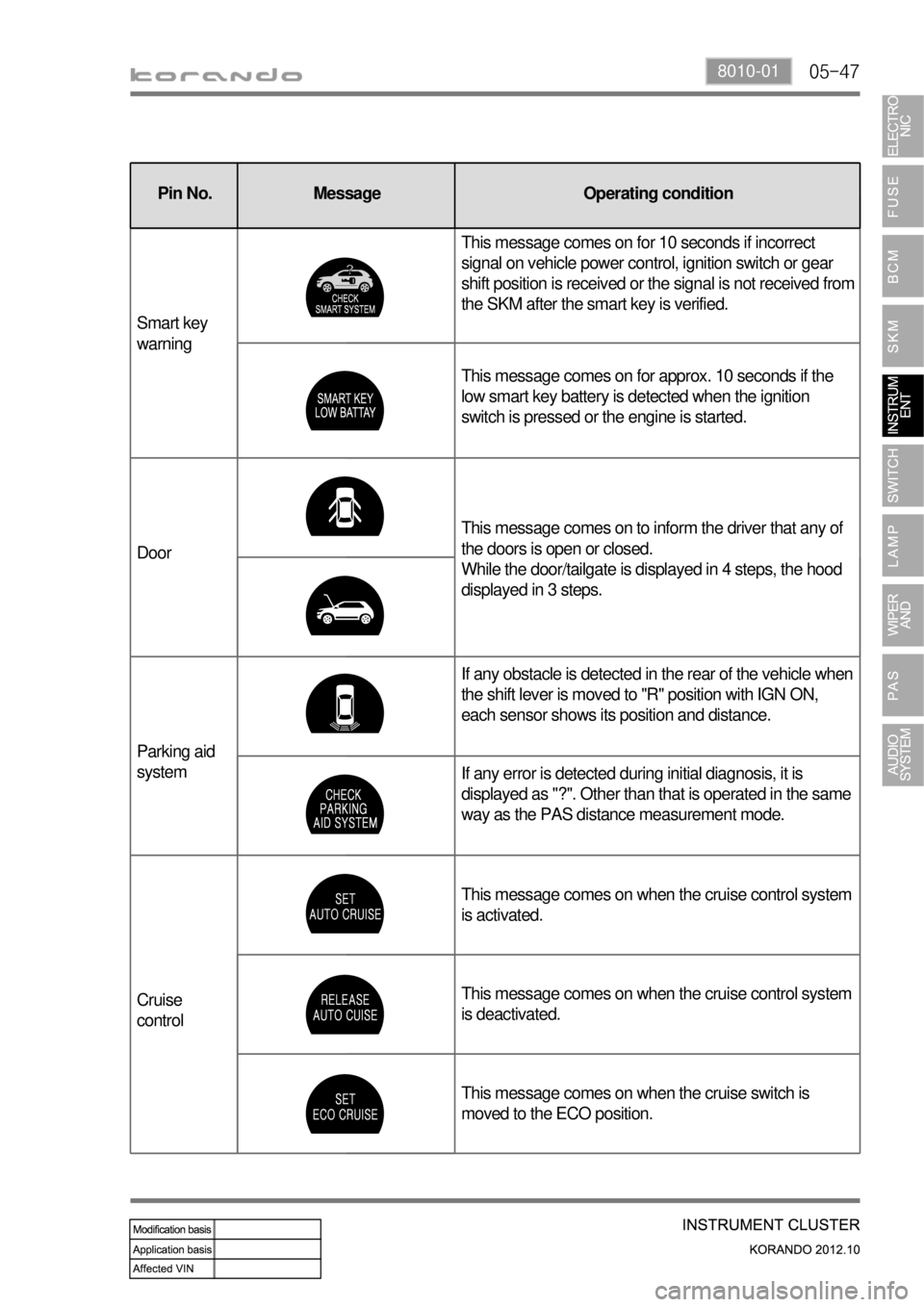

05-478010-01
Pin No.Message
Operating condition
Domestic Export
Smart key
warningThis message comes on for 10 seconds if incorrect
signal on vehicle power control, ignition switch or gear
shift position is received or the signal is not received from
the SKM after the smart key is verified.
This message comes on for approx. 10 seconds if the
low smart key battery is detected when the ignition
switch is pressed or the engine is started.
DoorThis message comes on to inform the driver that any of
the doors is open or closed.
While the door/tailgate is displayed in 4 steps, the hood
displayed in 3 steps.
Parking aid
systemIf any obstacle is detected in the rear of the vehicle when
the shift lever is moved to "R" position with IGN ON,
each sensor shows its position and distance.
If any error is detected during initial diagnosis, it is
displayed as "?". Other than that is operated in the same
way as the PAS distance measurement mode.
Cruise
controlThis message comes on when the cruise control system
is activated.
This message comes on when the cruise control system
is deactivated.
This message comes on when the cruise switch is
moved to the ECO position.Pin No. Message Operating condition

05-48
Pin No.Message
Operating condition
Domestic Export
Cruise control This message comes on when the ECO cruise mode
is deactivated.
EMSThis message comes on when the engine is faulty.
LampThis message comes on when the tail lamps are ON
with the ignition in the "OFF" or "ACC" position.
SUNROOF
SYSTEMFor the vehicle with SKM, this message comes on
when the sunroof is open with the ignition in the "OFF"
or "ACC" position. For the vehicle without SKM, this
comes on when the sunroof is open with the ignition in
the "OFF" position and the key removed.
Low fuel level This message comes on when the remaining fuel is
insufficient.
ESP checkThis message comes on when the ESP system is
faulty.
ABS check This message comes on when the ABS system is
faulty.
Engine oil level
checkThis message comes on when the engine oil level is
low. Pin No. Message Operating condition

05-498010-01
Pin No.Message
Operating condition
Domestic Export
Winter mode
(SVC class)
Tire alignment
(applies to
vehicle with
EPS)
CAN scan(This message goes off when all the CAN signal inputs
are normal)
The message "SET WINTER MODE" is displayed
on the LCD display when the winter mode is
activated. The message "RELEASE WINTER
MODE" is displayed when it is deactivated.
The message "WINTER MODE" is displayed when
the vehicle starts off with the winter mode set. -
-
This message helps the driver to predict the driving
direction since the tire alignment is displayed on the
instrument cluster.
The images on the left show that the tires are
aligned to the left. When the tires are aligned to the
right, the image is symmetrical vertically.
Tire alignment is displayed between level 0 and
level 5 depending on the alignment degree when
the ignition switch is turned to "ON" position from
"OFF" position with the shift lever in "P" or "N"
position. While the images up to level 2 comes on
for 5 seconds, the images from level 3 stay on.
These messages are not displayed when the EPS
check message is displayed. -
-
-
-
Pin No. Message Operating condition
