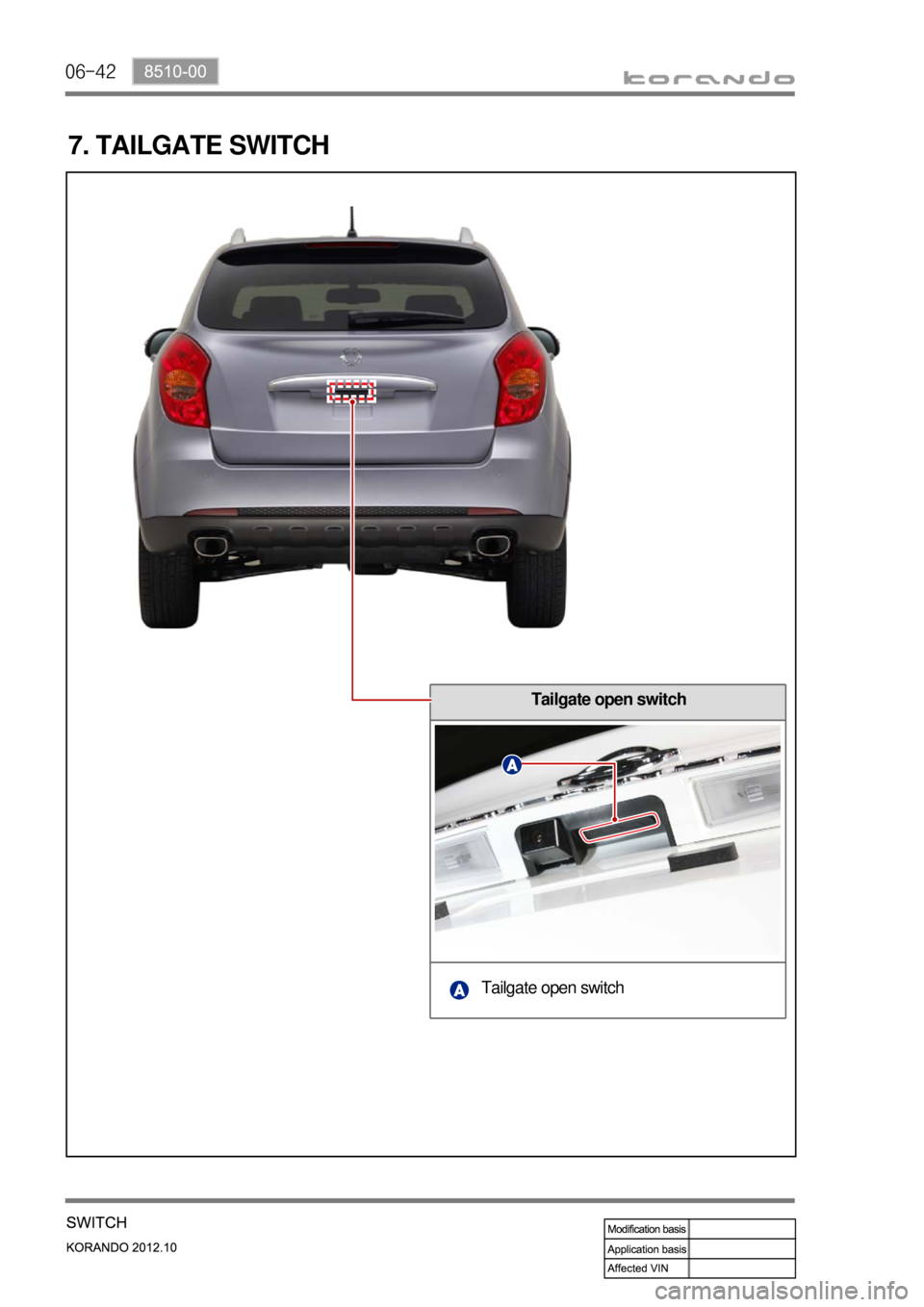

Tailgate open switch
7. TAILGATE SWITCH
Tailgate open switch

06-438510-00
Tailgate open ▶
When pressing the tailgate switch for more than 0.1 second with driver door unlocked and vehicle
<009a0097008c008c008b00470089008c00930096009e0047005a0047004f00b700570055005800500047009200940056008f00530047009b008f008c0047009b008800900093008e0088009b008c004700960097008c009500470099008c0093008800a000
470090009a0047009b009c00990095008c008b004700760075> for about 1 second, with
power OFF, ACC ON or IGN ON. However, it is turned ON when the vehicle speed is below 3
(±0.1) km/h, with IGN ON.
The tailgate open relay is turned OFF immediately after the driver door is locked or the vehicle speed
goes over 3 km/h with IGN ON during its operation. However, the BCM does not operate if the tailgate
open switch is pressed when the vehicle speed is above 3 km/h. 1.
2.
<007b008800900093008e0088009b008c004700960097008c0095006100470079006c0072006c007a0047009c009500930096008a00920047004f008b0090009a008800990094008c008b0047008b008c009b008c00990099008c0095009b00470094009600
8b008c0050004702e70047007b008800900093008e0088009b>e open signal → Tailgate
open - Without SKM
When pressing the tailgate switch for more than 0.1 second with driver door unlocked and vehicle
<009a0097008c008c008b00470089008c00930096009e0047005a0047004f00b700570055005800500047009200940056008f00530047009b008f008c0047009b008800900093008e0088009b008c004700960097008c009500470099008c0093008800a000
470090009a0047009b009c00990095008c008b004700760075> for about 1 second.
The tailgate open relay is turned OFF immediately after the driver door is locked or the vehicle speed
goes over 3 km/h during its operation.
When the tailgate switch on smart key is pressed in theft deterrent mode or with the smart key
detected by the exterior antenna, the SKM verifies the smart key and disarms the tailgate only. When
the tailgate is open and closed, the system enters into the theft deterrent mode again. If the tailgate
switch is not operated for 30 seconds, the system also does so.
The BCM checks that the verified smart key is in the luggage room 1 second after when the closed
tailgate is detected by the tailgate open switch with power OFF.
If there is a verified smart key in the luggage room when the tailgate is open and closed in theft
deterrent mode, the external buzzer sounds for 5 seconds.
When the driver press the tailgate open switch in order to look for the smart key, the BCM deactivates
lock so that the tailgate can be opened even though the driver door is locked. (maintains standby for
opening without verification) 1.
2.
3.
4. With SKM

07-2
1. LAMP SPECIFICATIONS
1) Exterior Lamps
Item Type Amount
Front lampHeadlamp (high beam/low beam) BULB: H4 2 EA
Turn signal lamp BULB: PY21W 2 EA
Position lamp BULB: W5W 2 EA
Fog lamp BULB: H27W/2 2 EA
Rear lamp
Stop lamp and tail lampBULB: 12V27/8W (Korea)
P21/5W (Other countries)2 EA
Turn signal lampBULB: 12V27W (Korea)
P21W (Other countries)2 EA
Backup lampBULB: 12V27W (Korea)
P21W (Other countries)2 EA
Stop lamp/Rear fog lamp
(Other countries)BULB: 12V27W (Korea)
P21W (Other countries)2 EA
High-mounted stop lamp LED
(Without spoiler)
(With spoiler)12 EA
24 EA
License plate lamp BULB: W5W 2 EA
Side lampSide repeater lamp LED 5 EA
Puddle lamp LED 2 EA
2) Interior Lamps
Item Type Amount
Front room lampBULB (10W-FESTOON) 2 EA
Center room lampBULB (10W-FESTOON) 1 EA
Luggage lampBULB (10W-FESTOON) 1 EA
Sun visor lampBULB (5W-FESTOON) 1 EA
Glove box lampBULB (5W-FESTOON) 1 EA
Door courtesy lampBULB (5W-WEDGGE) 1 EA
Item Type Amount
Front lampHeadlamp (high beam/low beam) BULB: H4 2 EA
Turn signal lamp BULB: PY21W 2 EA
Position lamp BULB: W5W 2 EA
Fog lamp FRT BULB: H27W/2 2 EA
RR BULB: H21W/2 2 EA

07-38310-00
Luminous intensity is a measure for the amount of light which passes through the unit area per
time unit. The SI unit of luminous intensity is the candela (cd), an SI base unit. -Luminous Intensity ▶
Luminance describes the amount of light that passes through or is emitted from a particular area,
and falls within a given solid angle. It is measured in sb or nt. -Luminance ▶
This indicates the amount of light reaching a given area. Measuring unit is lux (lx) and it is not
directly proportional to the brightness of the area as the reflection rate is not included. -Intensity of illumination ▶The LED stands for "Light Emitting Diode" or "Luminescent Diode." LED is a semiconductor diode
that emits incoherent narrow-spectrum light when electrically biased in the forward direction of the
p-n junction, as in the common LED circuit. In short, it is an element that converts electric signals
into light signals. Yellow, blue, red and white LEDs are currently available.
The followings are the advantages of LED.
It is not glaring and doesn't have short circuit unlike the conventional lamps.
It is semi-permanent and doesn't generate heat.
Its power consumption is much lower than those of conventional bulbs. -
- ▶ LED
Pin No. Specification
Operating voltage 9 V to 16 V
Load Max. 200 mA (relay load)
Operating temperature-30℃ to 85℃
Storage temperature-40℃ to ±120℃
Mounting location Top center of inner side of windshield glass
2. AUTOMATIC LIGHT SENSOR SPECIFICATIONS

07-4
Puddle (approach) lamp
Front fog lamp
Headlamp
Side repeater lamp
High-beam
/low-beam
Turn signal lamp
Position lamp
1. EXTERIOR LAMP
1) Layout

07-58310-00
Rear combination lamp
Vehicle without
spoiler Vehicle with spoiler
License plate lamp
Stop lamp and tail lamp
Rear fog lamp
Turn signal lamp
Backup lamp
High mounted stop lamp

07-6
(1) Headlamp
2) Operation
High-beam/low-beam
Most of the functions of the headlamp is controlled by the multifunction switch. The functions performed by
REKES or SMART key are controlled by the BCM.
The BCM controls the headlamp and tail lamp by using the data sent through the LIN communication from
the automatic light sensor when the multifunction switch is in AUTO position.
Control by BCM ▶
Coming home lighting control 1.
The headlamp is illuminated for 30 sec. when the ignition switch is turned on and then off with the
multifunction switch in ON or AUTO.
The headlamp is turned off right after the ignition is turned on. And when all the doors (including
tailgate) are closed the headlamp is illuminated for 30 sec.; and all the doors are open, the headlamp
is illuminated for 3 minutes.
This function can be deactivated or activated with a diagnostic equipment. -
-
-
DRL (Day Time Running Light) ▶
DRL is the function to turn on the high beam and tail lamp without any intervention from the light
switch. DRL turns off the lamps when turning off the light switch. This is an additional safety device to
prevent the accident.

07-78310-00
(2) Fog lamp
Front fog lamp
Rear
(EU only) ▶Front ▶
Rear fog light
