2022 HYUNDAI GENESIS G70 Owners Manual

Vehicle Information, Consumer Information and Reporting Safety Defects
2-10
Items Tire sizeWheel
sizeInflation pressure
kPa (psi)
Wheel nut
torque
NJI
[POEI
[IW
1
[P Normal
loadMaximum
Load OR
over 100
mph *
2
Full
size
tire2.0L
T-GDI
18 inchFront 225/45R18 8.0J X 18250 (36) 260 (38)
11~13 (79~94,
107~127)
Rear 225/45R18 8.0J X 18270 (39) 270 (39)
19 inchFront 225/40R19 8.0J X 19250 (36) 260 (38)
Rear 225/35R19 8.5J X 19250 (36) 270 (39)
19 inchFront 225/40ZR19 8.0J X 19250 (36) 260 (38)
Rear 255/35ZR19 8.5J X 19250 (36) 270 (39)
3.3L
T-GDI
18 inchFront 225/45R18 8.0J X 18250 (36) 260 (38)
Rear 225/45R18 8.0J X 18270 (39) 270 (39)
19 inch
(2WD)Front 225/40R19 8.0J X 19250 (36) 260 (38)
Rear 225/35R19 8.5J X 19250 (36) 270 (39)
19 inch
(2WD)Front 225/40ZR19 8.0J X 19250 (36) 260 (38)
Rear 255/35ZR19 8.5J X 19250 (36) 270 (39)
19 inch
(AWD)Front 225/40R19 8.0J X 19260 (38) 260 (38)
Rear 225/35R19 8.5J X 19250 (36) 270 (39)
19 inch
(AWD)Front 225/40ZR19 8.0J X 19260 (38) 260 (38)
Rear 255/35ZR19 8.5J X 19250 (36) 270 (39)
Compact
spare tire *1T135/80R18 4.0T X 18420 (60) 420 (60)
*1 : If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped
with a Tire Mobility Kit.
*2 : Must drive only where the speed is legal.
NOTICE

[Ambient temperature affects tire pressure (about 1 psi (7 kPa) for every 12°F (7°C)
FKDQJH,IFROGHUWHPSHUDWXUHVDUHDQWLFLSDWHGLWLVSHUPLVVLEOHWRLQFUHDVHFROG
tire inflation pressure by up to 3 psi (20 kPa) over the specification. If extreme
WHPSHUDWXUHFKDQJHVDUHH[SHFWHGEHVXUHWRFKHFNDQGDGMXVWWLUHSUHVVXUH
accordingly.

[7LUHLQIODWLRQSUHVVXUHGHFUHDVHVZLWKKLJKHUHOHYDWLRQDQGLQFUHDVHVZLWKORZHU
elevation (about 2.4 psi (10 kPa) for every kilometer (or mile) elevation change).
%HVXUHWRFKHFNDQGDGMXVWWLUHSUHVVXUHDFFRUGLQJO\ZKHQGULYLQJWKURXJK
changing elevations.

['RQRWH[FHHGWKHPD[LPXPLQIODWLRQSUHVVXUHDVIRXQGRQWKHVLGHZDOORIWKH
tire(s).
TIRES AND WHEELS

02
2-11
CAUTION

[:KHQUHSODFLQJWLUHVXVHWKHVDPHVL]HRULJLQDOO\VXSSOLHGZLWKWKHYHKLFOH

[Using tires of a different size can damage the related parts or not work properly.

[:KHQUHSODFLQJWLUHV$/:$<6XVHWKHVDPHVL]HW\SHFRQVWUXFWLRQDQGWUHDG
pattern supplied with the vehicle for all tires.
$,5&21',7,21,1*6<67(0
Item Weight of volume Classification
Refrigerant
oz. (g)19.2 ~ 21.0 (545 ~ 595) R-1234yf
Compressor
lubricant
cu. in (cc)3.1 ~ 3.9 (90 ~ 110) PAG
Contact an authorized retailer of Genesis Branded products for more details.
VOLUME AND WEIGHT
Item2.0L T-GDI 3.3L T-GDI
2WD AWD 2WD AWD
Gross vehicle weight
lbs. (kg)4,674
(2,120)4,828
(2,190)4,850
(2,200)4,993
(2,265)
Luggage volume (SAE)
FXIW
b11.7 (330)

Vehicle Information, Consumer Information and Reporting Safety Defects
2-12
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1 *2
(drain and refill)2.0L T-GDI86TW
bAPI SN PLUS/SP or ILSAC
GF-6 *3
SAE : 0W-30
3.3L T-GDI86TW
bACEA A5/B5*4
SAE : 5W-30
Automatic transmission fluid2.0L T-GDI
86TW
bGS ATF SP-IV-RR
Genesis/Hyundai genuine
ATF SP-IV-RR or other
brands meeting the above
specifica- tion approved by
Genesis Customer Care 3.3L T-GDI
Engine coolant2.0L T-GDI7.68 US qt.

bMixture of antifreeze and
water (Phosphate-based
Ethylene glycol coolant for
aluminum radiator) 3.3L T-GDI9.84 US qt.

b
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : If the above recommended specification oil is not available, SAE 0W-30 grade synthetic
oil can be used. If mineral oil or semi-synthetic oil is used, it is a severe maintenance
condition in terms of engine oil change.
*3 : Requires < API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.
*4 : Requires grade engine oil. If a
lower grade engine oil (mineral oil including Semi-synthetic) is used. Then the engine oil
and engine oil filter must be replaced as indicated severe maintenance condition.
RECOMMENDED LUBRICANTS AND CAPACITIES

02
2-13
Lubricant Volume Classification
Brake fluid As required FMVSS116 DOT-4
Rear differential oil *
5
(without LSD)2.0L T-GDI
1.26 US qt. (1.2
b)HYPOID GEAR OIL API
GL-5 SAE 75W/85 (SK HK
SYN GEAR OIL 75W85 or
equivalent) 3.3L T-GDI
1.37 US qt. (1.3
b)
Rear differential oil *5 *6
(with LSD)2.0L T-GDI
86TW
bHYPOID GEAR OIL API GL-5
SAE 75W85 (SK HK JL SYN
LSD GEAR OIL 75W85 PLUS
OR SK HK SYN GEAR OIL
75W85 FM PLUS) 3.3L T-GDI
86TW
b
Front differential oil *
5 (AWD)86TW
bHYPOID GEAR OIL API GL-5
SAE 75W/85
(SK HK SYN GEAR OIL 75W85
or equivalent)
Transfer case oil (AWD)Gear/
Clutch86TW
b
SHELL TF 0870B
Actuator86TW
b
Fuel86JDO
bRefer to “Fuel requirements”
in chapter 1.
*5 : If the front/rear differential is submerged, we recommend that you visit an authorized
retailer of Genesis Branded products to immediately replace the differential oil.
*6 : Be sure to inject oil for exclusive use of LSD when replacing Rear Differential Oil (if
equipped with Limited Slip Differential).

Vehicle Information, Consumer Information and Reporting Safety Defects
2-14
Recommended SAE Viscosity Number
CAUTION
$OZD\VEHVXUHWRFOHDQWKHDUHDDURXQGDQ\ILOOHUFDSGUDLQSOXJRUGLSVWLFNEHIRUH
checking or draining any lubricant. This is especially important in dusty or sandy
areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick
areas will prevent dirt and grit from entering the engine and other mechanisms that
could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
2.0L T-GDI *
10W-30
3.3L T-GDI *2
5W-30
10W-30
*1 : Requires < API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.
*2 : For better fuel economy, it is recommended to use the engine oil of a viscosity grade
SAE 5W-30. However, if the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
An engine oil displaying this American Petroleum Institute(API)
Certification Mark conforms to the International Lubricant
Specification Advisory Committee (ILSAC). It is recommended
to only use engine oils that uphold this API Certification Mark.

02
2-15
VEHICLE IDENTIFICATION
180%(5
í9,1
î
„Frame number
OIK010020
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The number is punched on the floor
under the right front seat. To check the
number, open the cover.
„VIN label (if equipped)
OIK087006L
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
VEHICLE CERTIFICATION
LABEL
OIK087007N
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).
TIRE SPECIFICATION AND
PRESSURE LABEL
OIK087002L
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.

Vehicle Information, Consumer Information and Reporting Safety Defects
2-16

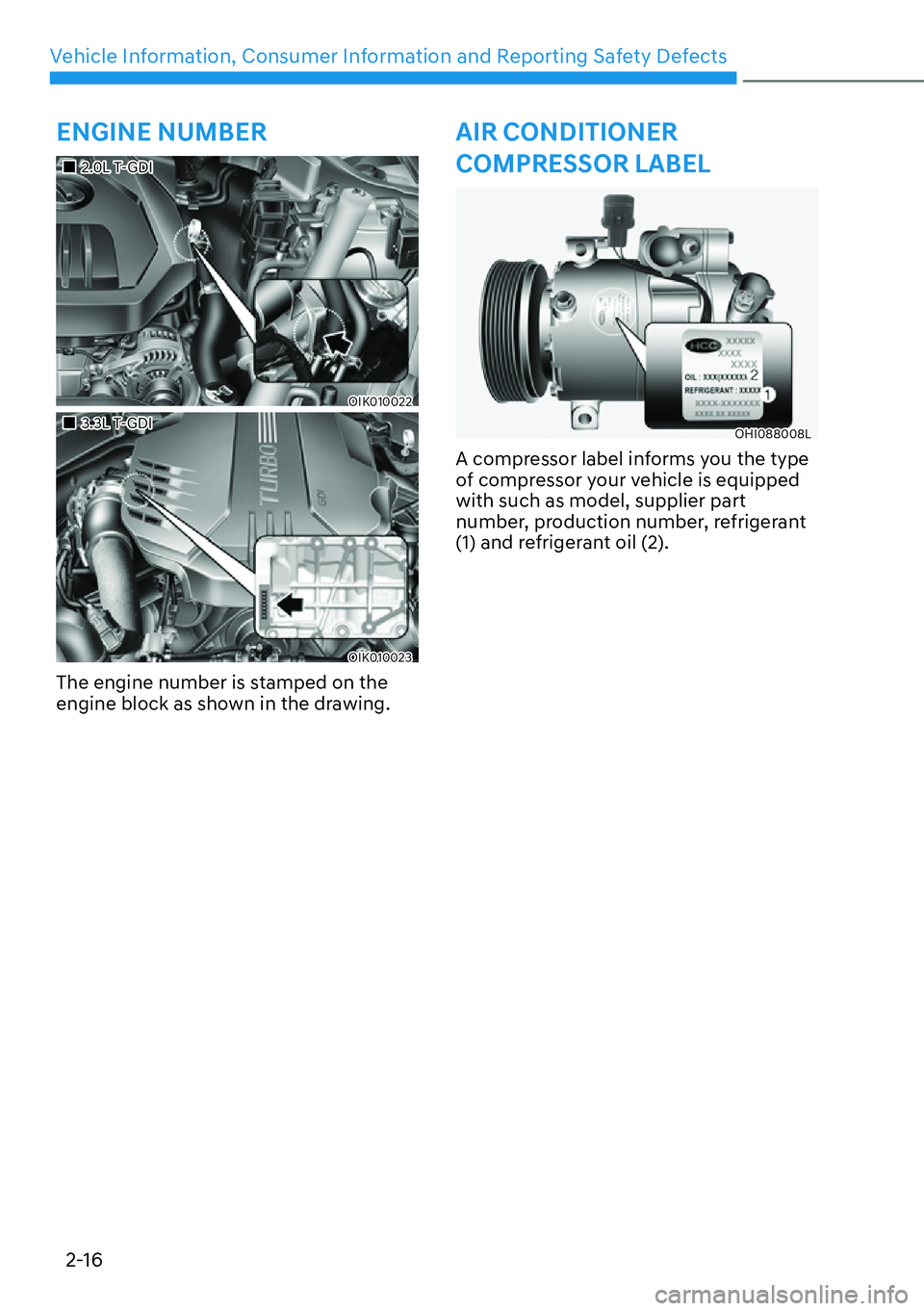

ENGINE NUMBER
„2.0L T-GDI
OIK010022
„3.3L T-GDI
OIK010023
The engine number is stamped on the
engine block as shown in the drawing.
AIR CONDITIONER
COMPRESSOR LABEL
OHI088008L
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part
number, production number, refrigerant
(1) and refrigerant oil (2).

02
2-17

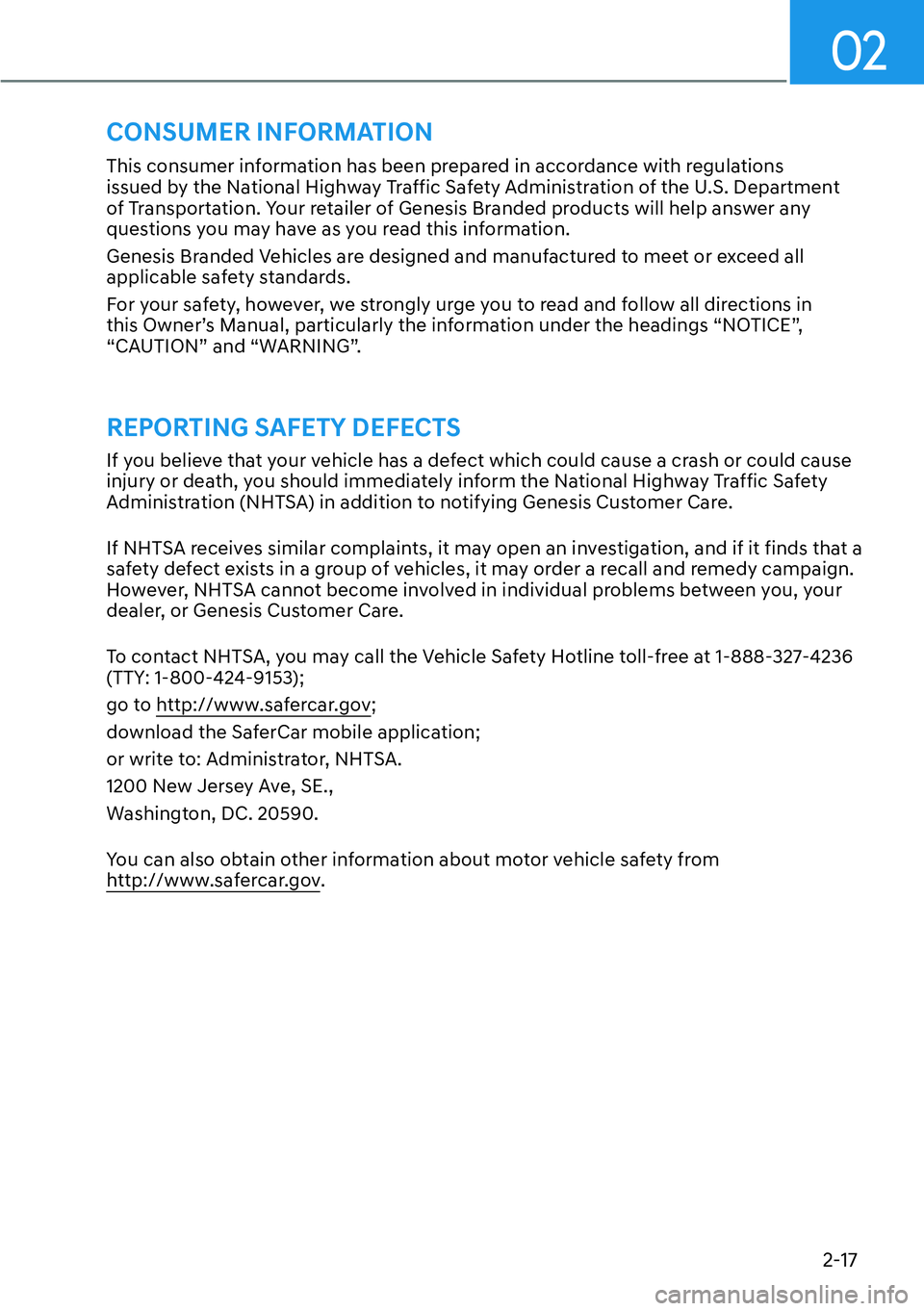

CONSUMER INFORMATION
This consumer information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the U.S. Department
of Transportation. Your retailer of Genesis Branded products will help answer any
questions you may have as you read this information.
Genesis Branded Vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “NOTICE”,
“CAUTION” and “WARNING”.
5(3257,1*6$)(7<'()(&76
If you believe that your vehicle has a defect which could cause a crash or could cause
injury or death, you should immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying Genesis Customer Care.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in individual problems between you, your
dealer, or Genesis Customer Care.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA.
1200 New Jersey Ave, SE.,
Washington, DC. 20590.
You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
