2022 HYUNDAI GENESIS G70 Owners Manual

Convenient Features
5-80
High Beam Assist Operation
Display and control

[After selecting ‘High Beam Assist’
in the Settings menu, High Beam
Assist will operate by following the
procedure below.
- Place the headlamp switch in
the AUTO position and push the
headlamp switch towards the
instrument cluster. The High Beam
Assist (
) indicator light will
illuminate on the cluster and HBA
will be enabled.
- When High Beam Assist is enabled,
high beam will turn on when vehicle
speed is above 25 mph (40 km/h).
When vehicle speed is below 20
mph (30 km/h), high beam will not
turn on.
- The High Beam (
) indicator light
will illuminate on the cluster when
high beam is on.

[When High Beam Assist is operating,
if the headlamp switch or switch is
HBA operates as follow:
- If the headlamp switch is pulled
towards you when the high beam
is off, the high beam will turn on
without High Beam Assist canceled.
When you let go of the headlamp
switch, the switch will move to the
middle and the high beam will turn
off.
- If the headlamp switch is pulled
towards you when the high beam is
on by High Beam Assist, low beam
will be on and the system will turn
off.
- If the headlamp switch is placed
from AUTO to another position
(headlamp/position/off), High
Beam Assist will turn off and the
corresponding lamp will turn on.
[When High Beam Assist is operating,
high beam switches to low beam if
any of the following conditions occur:
- When the headlamp of an
oncoming vehicle is detected.
- When the tail lamp of a vehicle in
front is detected.
- When the headlamp or tail lamp of a
motorcycle or a bicycle is detected.
- When the surrounding ambient light
is bright enough that high beams
are not required.
- When streetlights or other lights are
detected.
High Beam Assist Malfunction
and Limitations
High Beam Assist malfunction
OIK050227L
When High Beam Assist is not working
properly, the ‘Check High Beam Assist
(HBA) system’ warning message will
appear and
light will illuminate on the
cluster. Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.

05
5-81
Limitations of High Beam Assist
High Beam Assist may not work properly
in the following situations:

[Light from a vehicle is not detected
because of lamp damage, or because
it is hidden from sight, etc.

[Headlamp of a vehicle is covered with
dust, snow or water.

[A vehicle’s headlamps are off but the
fog lamps are on and etc.

[There is a lamp that has a similar
shape as a vehicle’s lamp.

[Headlamps have been damaged or
not repaired properly.

[Headlamps are not aimed properly.

[Driving on a narrow curved road,
rough road, uphill or downhill.

[Vehicle in front is partially visible on a
crossroad or curved road.

[There is a traffic light, reflecting sign,
flashing sign or mirror ahead.

[There is a temporary reflector or flash
ahead (construction area).

[The road conditions are bad such as
being wet, iced or covered with snow.

[A vehicle suddenly appears from a
curve.

[The vehicle is tilted from a flat tire or
is being towed.

[Light from a vehicle is not detected
because of exhaust fume, smoke, fog,
snow, etc.
NOTICE
For more details on the limitations
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
WARNING

[At times, High Beam Assist may
not work properly. The system is
for your convenience only. It is the
responsibility of the driver for safe
driving practices and always check
the road conditions for your safety.

[When High Beam Assist does
not operate normally, change
the headlamp position manually
between high beam and low beam.

Convenient Features
5-82
WARNING
Do not use the interior lights when
driving in the dark. The interior lights
may obscure your view and cause an
accident.
NOTICE
Do not use the interior lights for
extended periods when the vehicle is
turned off or the battery will discharge.
Interior Lamp AUTO cut
The interior lamps will automatically go
off approximately 20 minutes after the
vehicle is turned off and the doors are
closed. If a door is opened, the lamp
will go off 40 minutes after the vehicle
is turned off. If the doors are locked by
the smart key and the vehicle enters the
armed stage of the theft alarm system,
the lamps will go off five seconds later.
Front Lamps
OIK050239N
Front map lamp ():
Touch either icons to turn the map lamp
on or off. This light produces a spot
beam for convenient use as a map lamp
at night or as a personal lamp for the
driver and the front passenger.
Door lamp ()
The front or rear room lamps come on
when the front or rear doors are opened.
When doors are unlocked by the smart
key, the front and rear lamps come on
for approximately 30 seconds as long as
any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds when the
door is closed. However, if the Engine
Start/Stop button is in the ON position
or all doors are locked, the front and rear
lamps will turn off. If a door is opened
with the Engine Start/Stop button in
the ACC position or the OFF position,
the front and rear lamps will stay on for
about 20 minutes.
Room lamp ()
Press the button to turn ON the room
lamp for the front/rear seats.
INTERIOR LIGHTS

05
5-83

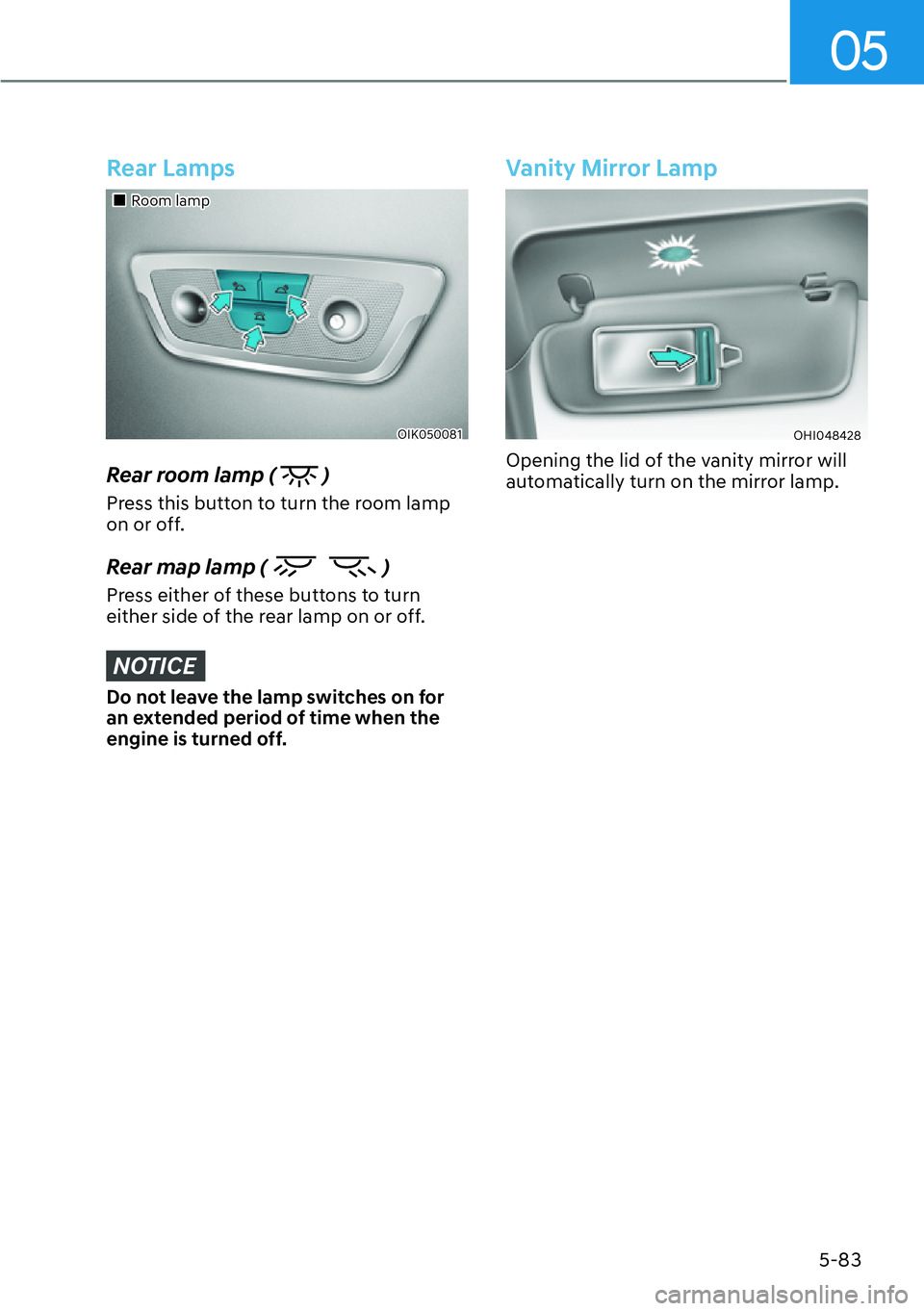

Rear Lamps
„Room lamp
OIK050081
Rear room lamp ( )
Press this button to turn the room lamp
on or off.
Rear map lamp ( )
Press either of these buttons to turn
either side of the rear lamp on or off.
NOTICE
Do not leave the lamp switches on for
an extended period of time when the
engine is turned off.
Vanity Mirror Lamp
OHI048428
Opening the lid of the vanity mirror will
automatically turn on the mirror lamp.

Convenient Features
5-84

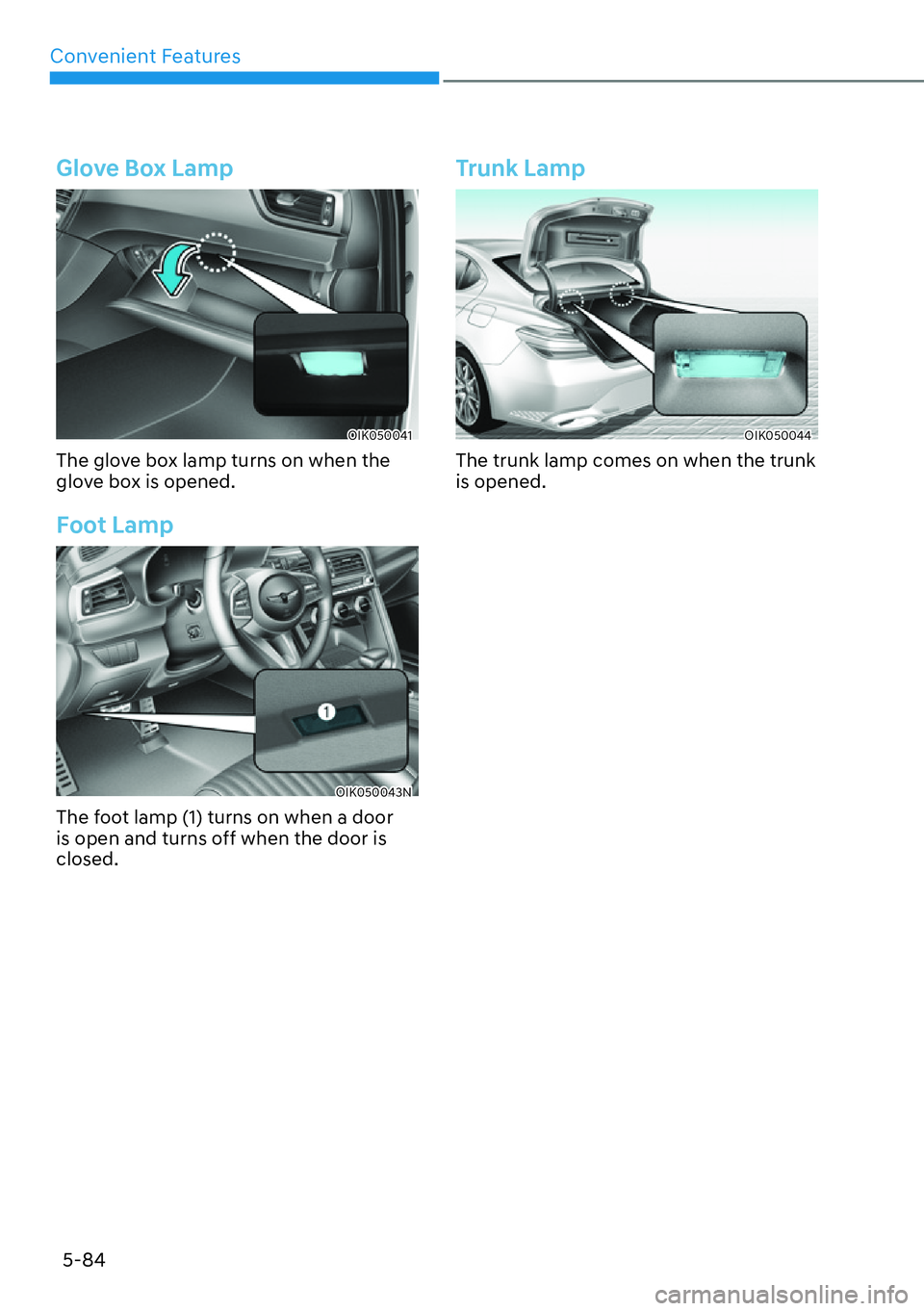

Glove Box Lamp
OIK050041
The glove box lamp turns on when the
glove box is opened.
Foot Lamp
OIK050043N
The foot lamp (1) turns on when a door
is open and turns off when the door is
closed.
Trunk Lamp
OIK050044
The trunk lamp comes on when the trunk
is opened.

05
5-85
WIPERS AND WASHERS
„Type A
OIG046468
„Type B
OHI048575L
A : Wiper speed control
· MIST – Single wipe
· OFF – Off
· INT – Intermittent wipe
· AUTO – Automatic control wipe
· LO – Low wiper speed
· HI – High wiper speed
B : Auto control wipe time adjust-ment
C : Wash with brief wipes
Front Windshield Wipers
Operates as follows when the Engine
Start/Stop button is in the ON position.
MIST : For a single wiping cycle,
push the lever upward and
release. The wipers will operate
continuously if the lever is held
in this position.
OFF : Wiper is not in operation.
INT : Wiper operates intermittently
at the same wiping intervals. To
vary the speed setting, move
the speed control lever. The top
most setting will run the wipers
most frequently (for more rain).
The bottom setting will run the
wipers the least frequently (for
less rain).
AUTO : The rain sensor located on the
upper end of the windshield
glass senses the amount of
rainfall and controls the wiping
cycle for the proper interval.
The more it rains, the faster the
wiper operates. When the rain
stops, the wiper stops. To vary
the speed setting, turn the speed
control knob.
LO : The wiper runs at a lower speed.
HI : The wiper runs at a higher speed.
Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or until
WKHVQRZDQGRULFHLVUHPRYHGEHIRUH
using the windshield wipers to ensure
proper operation.
,I\RXGRQRWUHPRYHWKHVQRZDQGRULFH
before using the wiper and washer, it may
damage the wiper and washer system.

Convenient Features
5-86
AUTO (Automatic) control
OIK050046
The rain sensor located on the upper
end of the windshield glass senses
the amount of rainfall and controls the
wiping cycle for the proper interval.
The wiper operation time will be
automatically controlled, depends on
rainfall.
When the rain stops, the wiper stops.
To vary the sensitivity setting, turn the
sensitivity control knob.
If the wiper switch is set in AUTO mode
when the Engine Start/Stop button is in
the ON position, the wiper will operate
once to perform a self-check of the
system. Set the wiper to the OFF position
when the wiper is not in use.
WARNING
To avoid personal injury from the
windshield wipers, when the engine
is running and the windshield wiper
switch is placed in the AUTO mode:

[Do not touch the upper end of the
windshield glass facing the rain
sensor.

[Do not wipe the upper end of the
windshield glass with a damp or wet
cloth.

[Do not put pressure on the
windshield glass.
NOTICE

[When washing the vehicle, set the
wiper switch in the OFF position to
stop the auto wiper operation. The
wiper may operate and be damaged
if the switch is set in the AUTO mode
while washing the vehicle.

[Do not remove the sensor cover
located on the upper end of the
passenger side windshield glass.
Damage to system components
could occur and may not be covered
by your vehicle warranty.

[Because of using a photo sensor,
temporary malfunction could occur
according to sudden ambient light
change made by stone and dust
while driving.

05
5-87
Windshield Washers
OHI048536
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation
will continue until you release the lever. If
the washer does not work, you may need
to add washer fluid to the washer fluid
reservoir.
Recirculating air when washer fluid
is used
When washer fluid is used, in order to
help prevent the scent from entering
the cabin, recirculation mode and air
conditioning are automatically activated
depending on the outside temperature. If
you select fresh mode while the function
is operating, the function will resume
after a certain amount of time. It may not
work in some conditions such as cold
weather or engine OFF.
For more details, refer to “Climate
Control Additional Features” section in
this chapter.
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE

[To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.

[To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.

[To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.

[To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.
